Toyotomi KERO-SUN RS-2200 User manual

RS – 2200
GB OPERATING MANUAL ..............................PAGE 2
D GEBRAUCHSANWEISUNG............................PAGE16
F MANUAL D’UTILISATION ............................PAGE 32
NL GEBRUIKSAANWIJZING .............................PAGE 48
E INSTRUCCIONES DE USO ............................PAGE 64
I ISTRUZIONI D’USO .................................PAGE 78
DK BRUGERVEJLEDNING ...............................PAGE 92

4
2
Thank you for choosing a “TOYOTOMI” product!
Toyotomi products are used by satisfied customers worldwide. In order to
assure the comfortable and safe use of our products by customers in each
country, our products conform to the safety standards not only in Japan but
also in every country around the world we do business with.
Toyotomi tailors its products to satisfy its customer’s needs by always pursuing
our business philosophy, “sharing joys in daily living”. We will continue to
research, develop and manufacture products that match people’s lifestyle for
efficiency, safety and comfort.
We hope that you’ll enjoy your Toyotomi appliance for years to come!
We invite you to read this instruction manual first, to ensure the maximum
lifetime for this appliance.
Get to know us better…visit us at www.toyotomi.eu for our full line of
products.
1 READ THE DIRECTIONS FOR USE FIRST.
2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.
3 BEFORE YOU START READING, CONSULT THE MAIN COMPONENTS LIST ON THE LAST PAGE.

4
3
GENERAL DIRECTIONS FOR USE
Below you will find the main steps to be taken for
using your heater. For more details, please refer to
the MANUAL.
Remove all packaging materials (refer to Section A, Fig. A).
Fill the removable tank and wait 30 minutes before you
ignite the heater (refer to Section B, Fig. I).
Insert the batteries into the battery holder 
(refer to Section A, Fig. G).
Check whether the combustion chamber is fully upright
(refer to Section A, Fig. E).
Ignite the heater by turning the knurled wick adjustment
knob  as far to the right as possible and then gently push the
ignition button  (refer to Section C, Fig. K and L).
After igniting the heater it will take 10 to 15 minutes before you
can check if the heater burns well (refer to Section D).
Switch off the heater (refer to Section E).
1
2
3
4
5
6
7
s As a fire precaution, the tank must be filled either when the heater has been
switched off or in another room than the room where the heater is installed.
s Always ensure that the tank is closed properly after filling it at a safe distance from
all sources of heat and open flames (see Section B).
s Store all fuel containers with their original caps and seals in a cool and dark place.
s Fuel ages. Use new fuel at the start of every heating season.
s Only use high quality and water -free pure paraffin in accordance with local
legislation.
s Before changing brands and/or types of fuel make sure that the mobile heater first
completely empties all of the remaining fuel inside the heater.
s The first time you ignite your heater it will smell like ’new’ for a short time.

WHAT YOU NEED TO KNOW IN ADVANCE
ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION
Read this user manual carefully before using the appliance and keep it for future
reference. Install this device only when it complies with local/national legislation,
ordinances and standards. This product is intended to be used as a heater in
residential houses and is only suitable for use in dry locations, in normal household
conditions, indoors in living room, kitchen and garage.
Note: To avoid unexpected shut off, we recommend to put a door or window ajar
when the heater is operating.
Regardless of the model, you must always make sure that the heater is used in
a room large enough to enable the heater to be used safely without extra
ventilation. If the room is smaller than required, you must always open a door or
window slightly (ensuring an opening of approx. 2.5 cm). It is important that every
room where the heater is used has sufficient air intake and efficient air outflow
(both openings must have a minimum cross section of 50 cm2). No modifications
to the safety system are allowed, as that will invalidate the guarantee that the air
probe will work properly. Consult your dealer in case of doubt.
Especially for France: Your heater was designed to operate exclusively on fuel for
liquid fuel-operated mobile heaters in accordance with the Decrees of 18-07-2002
and 25-06-2010. The use of other fuels is forbidden. Ask your dealer or check our
website for the addresses of our retailers. The liquid fuel-operated mobile heater
is intended as an extra heater, and not as a continuous source of heat.
Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with
BS2869; Part 2, or equivalent.
The user must comply with the following instructions for proper use:
DO NOT
- use the liquid fuel-operated mobile heater in caravans, boats, and vehicle
cabins;
- use the liquid fuel-operated mobile heater in insufficiently ventilated rooms
(consult the table of properties for the minimum dimensions of the room to be
heated), underground rooms and / or at a height of over 1500 metres;
- modify the heater safety features.
The use of this type of heating in public rooms is subject to prior regulatory
permission. Obtain proper information on this in advance.
THE RIGHT FUEL
Your heater has been designed for use with high-quality water-free pure paraffin
oil.. Only fuels of this kind will ensure clean and proper burning. Lower quality
fuel may result in:
increased possibility of malfunctioning
incomplete burning
reduced heater lifetime
smoke and/or smells
deposits on the grid or mantle
4
This transportation cap
is packed separately in
the box. Only this cap
ensures trouble-free
transportation of the
heater after use.
Store it well!
Only the use of the
correct fuel will ensure
safe, efficient, and
comfortable use of your
heater.
4

!
A
Using the right fuel is therefore essential for safe, efficient, and comfortable use
of your heater.
Damage and/or malfunctions of the heater due to the use of other than high
quality water-free pure paraffin oil is not covered by the warranty.
Always refer to your local dealer for the right fuel for your heater.
MANUAL
AINSTALLING THE HEATER
1Carefully remove your heater from the box and check the contents.
In addition to the heater you also need to have:
a transportation cap
these directions for use
Keep the box and the packaging materials (Fig. A) for storage and/or
transportation.
2Remove the other packaging materials:
Release the right side of the grill from the two slots by pulling the right
side of the grill to the left and then pull it forward (Fig. B).
Pull both ends of the packaging to the rear and at the same time slightly
downwards (see Fig. C).
Remove the combustion chamber from the heater and remove the pac-
kaging underneath (see Fig. D).
Put the combustion chamber back into its place. The combustion chamber
is positioned correctly when it can be smoothly moved a little to the left
and to the right by its handle (Fig. E). Close the grill: Slightly lift it to
reposition it in its slot.
Open the lid of the removable tank and remove the piece of cardboard.
If the left side of the grill has been removed, first insert the flattened upper left
end of the grill into the upper left slot and then insert the other flattened end
into the lower left slot (Fig. F).
3Fill the removable tank as indicated in Section B.
4Insert the batteries into their holder at the back of the heater (Fig. G).
Ensure that the positive and negative poles match the + and - marks indicated
on the battery housing. It is best to use new alkaline batteries (2x D-size).
4
5
B
C
D
F
G
E

!
4
6
5
The floor should be firm and completely level. Reposition the heater, when it is
not level. Do not correct the situation by placing books or other goods under the
heater.
6Your heater is now ready for use.

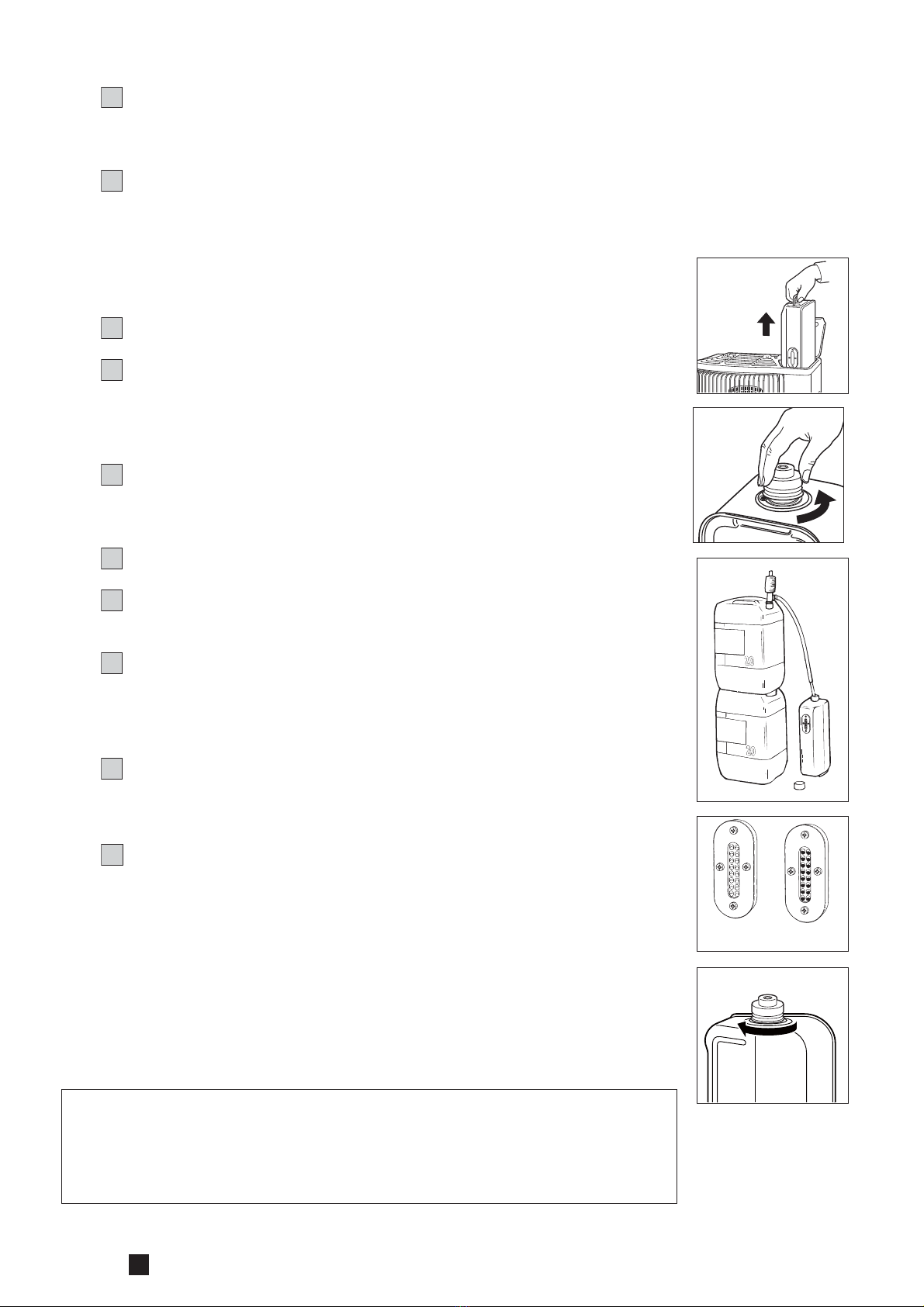

B FILLING FUEL
Fill the removable tank in a suitable place since there can always be some spillage.
Follow the procedure below:
1Make sure that the heater is switched off.
2Open the upper lid and lift the removable tank out of the heater (Fig. H).
Note: Some drops may leak from the tank. Put down the removable tank
(cap pointing upwards, handle on the floor) and screw off the fuel cap.
(Fig. I).
3Take the manual fuel pump and insert the smooth, most rigid tube into the
jerrycan. Make sure that it is in a higher position than the removable tank
(Fig. J). Insert the ribbed hose into the opening of the removable tank.
4Lock the valve on top of the pump (turn clockwise).
5Squeeze the pump a few times, until fuel starts flowing into the removable
tank. As soon as this happens, there is no need to press any longer.
6Check the fuel guage of removable tank while filling the tank (Fig. K). Stop
filling by loosening the valve on top of the pump (turn anti-clock-wise), once
the gauge indicates that the tank is full. Never overfill the tank, especially not
when the fuel is very cold (fuel expands when it heats up).
7Let the remaining fuel in the pump flow back into the jerrycan and carefully
remove the pump. Carefully screw the fuel cap back on the tank(Fig. L).
Clean off any spilled fuel.
8Check whether the fuel cap is straight and tightened properly. Reinstall the
removable tank in the heater (cap down). Close the lid.
Be sure to tighten the fuel tank cap and confirm that there is no leakage of the
fuel when the cap side is placed down. Then insert the removable fuel tank into
the heater.
CIGNITING THE HEATER
A new heater may give off some smells for a short while, when it is used for the
first time. You should therefore provide extra ventilation or ignite the heater
outside the living room.
When you use the heater for the first time, first put the filled removable tank into
place, and then wait approximately 30 minutes before you ignite the heater. This
allows the glass fibre wick to soak up the fuel. Follow the same procedure when
you have completely burnt up all fuel from the tank, and after the glass fibre wick
has been replaced.
K
J
empty full
H
I
L

!
!
!
!
4
7
Before igniting the heater, always check the fuel indicator to see whether the
removable tank needs filling up (Green=full, Red=empty).
Always ignite the heater with the ignition coil . Never use matches or a cigarette
lighter.
Follow the procedure below:
1Turn the knurled wick adjustment knob clockwise to its stop (Fig. M). If you
apply more pressure you may turn it slightly further; however, it will
automatically return to the start position. When you have set the wick to its
highest position, this action will automatically activate the safety device.
2Push in the ignition button (Fig. N), but do not apply too much force.
Release the ignition button as soon as a flame is visible in the combustion
chamber .
When you have ignited the heater and it shuts off again shortly after, the batteries
need to be replaced. It is best to use new alkaline batteries (2x D-size).
If the heater has been used only a few times and the wick adjustment knob is not
locked, first turn the wick adjustment knob (Fig. O) completely left, before putting
the wick in the highest position for ignition (Section C).
After having ignited the heater, always check whether the combustion
chamber is level, by sliding it slightly to the left and the right by combustion
chamber handle (Fig. E). This should be a smooth movement. If the combustion
chamber is not level, this will cause smoke and soot to develop.
DBURNING OF THE HEATER
After you have ignited the heater, it will take 10 to 15 minutes before you can check
whether the heater is burning well. Too high a flame may cause smoke and soot,
whereas too low a flame causes smells. (Fig. U).
If the flame remains low after the adjustment, the wick height must be
adjusted (refer to Section G).
Burning that is too low may be caused by:
insufficient fuel (fill the tank)
poor fuel quality (contact your dealer)
insufficient ventilation (put window or door ajar)
wastage of the wick (contact your dealer or replace the wick, refer to section L)
M
N
O


 U
1-3 cm.
E

!
When there is insufficient ventilation in the room, the heater shuts off automatically.
After improving the ventilation of the room (e.g. by opening a door or window a
little more), the heater can be ignited again.
This heater is equipped with a safety mechanism which switches off the heater when
the removable fuel tank is taken out of its compartment (Fig. P). To re-ignite the
heater, place the removable fuel tank back in the heater and follow the instructions
as described in Section C.
ESWITCHING OFF THE HEATER
Push the OFF-button . The flame will extinguish after a little while (Fig. Q).
FMALFUNCTION, CAUSES AND SOLUTIONS
If any malfunctioning cannot be solved from the directions below, please contact
your dealer.
THE HEATER DOES NOT IGNITE
The batteries are not positioned correctly in the holder. Check (Fig. R).
There is not enough power left in the batteries for the ignition. Replace (Fig. R).
You have run out of fuel from the tank or the wick has been replaced.
After having refilled and replaced the removable tank, wait for 30 minutes
before igniting the heater.
You are pushing the ignition button with too much force.
Push it in less forcefully (Section C).
The ignition coil  is defective.
Contact your dealer.
IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS
The combustion chamber ❹has not been positioned correctly.
Use the combustion chamber handle to put it level, until you can easily slide it
slightly to the left and to the right and the chamber is level.
You are using fuel which is past its ‘use by’ date.
Start every heating season with fresh fuel.
You are using the incorrect type of fuel.
Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’).
Dust has gathered in the lower part of the heater.
Contact your dealer.
The wick height is not correct.
Contact your dealer.
THE HEATER SLOWLY EXTINGUISHES
The removable tank is empty.
See Section B.
The lower reservoir is contaminated by water.
Contact your dealer.
The wick has hardened on the upper side.
Burn the heater until all fuel is used (Section G). Use the right fuel.
You are using fuel which is past its ‘use by’ date.
Start every heating season with fresh fuel.
THE HEATER REMAINS BURNING LOW
Wick position too low.
Contact your dealer.
Before you refilled the tank, the heater had burnt up almost all the fuel.
After having refilled and replaced the removable tank, wait for 30 minutes
before igniting the heater.
4
8
Q
P
R

!
!
4
9
You are using the incorrect type of fuel.
Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’).
The room is insufficiently ventilated.
Leave a window or a door wide open for a while.
THE HEATER IS BURNING TOO HIGH
You are using an incorrect, too volatile type of fuel.
Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’).
Wick position too high.
Contact your dealer.
GMAINTENANCE
Your heater needs hardly any maintenance. It is, however, important that you
remove dust and stains in time with a damp cloth, because otherwise these
may cause stains that are hard to remove. Under normal conditions, only two
components are subject to wear:

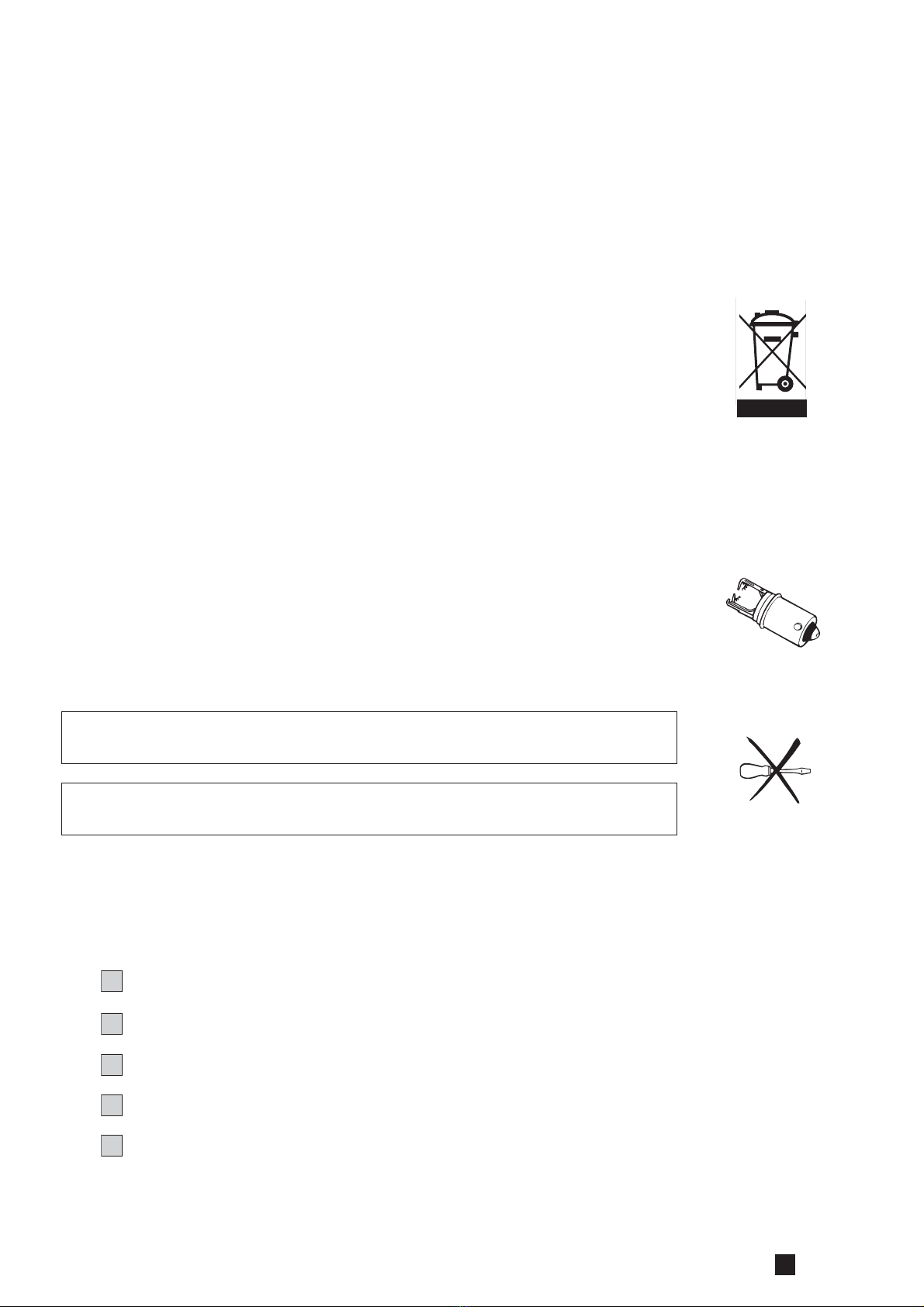

1. THE BATTERIES
You may replace the batteries yourself. Do not dispose of old batteries along with
the other domestic waste. Follow the locally applicable regulations regarding the
disposal of domestic chemical waste.
2. THE WICK
To extend the glass fibre wick life, you must occasionally let the heater burn until
the tank is completely emptied and the heater extinguishes by itself. Do this when
you notice that the flame is weakening. The burn-out will cause some smells, so it
is recommended that you take the heater outside of the living room.
3. THE IGNITION COIL
The ignition coil will have a longer life, if you ignite the heater in the correct
manner. Replace the batteries in time and take care not to push in the ignition
button with too much force. If the filament is broken, the ignition coil must be
replaced.
Do not remove any heater components yourself. Always contact your dealer for
repairs.
Let the heater cool down first, before you start any maintenance or service work.
HSTORAGE (END OF THE HEATING SEASON)
We recommend that you burn up all the fuel in the fuel tank at the end of the
heating season and store the heater properly. Follow the procedure on the next
page:
1Ignite the heater outside the living room and let it burn until all fuel is used.
2Let the heater cool down.
3Clean the heater with a damp cloth and then dry it with a dry cloth.
4Remove the batteries from the holder and store them in a dry place.
5Store the heater in a dust-free place, if possible in its original packaging.
Unused fuel cannot be used for the next heating season. If there is still some
fuel left, do not throw it away, but dispose of it in accordance with the local
regulations for the disposal of domestic chemical waste. Always start the new
heating season with fresh fuel. When you start re-using the heater, follow the
instructions again (starting from Section A and as specified).
broken ignition coil

4
10
ITRANSPORTATION
Take the following measures to avoid fuel leakage during the transportation of
the heater:
1Let the heater cool down.
2Remove the removable tank from the heater and remove the fuel
acceptance fitting (Fig. S). Some drops may leak from the fuel acceptance
fitting; keep a cloth at hand. Store the fuel acceptance fitting and the
removable tank outside the heater.
3Place the transportation cap into the position of the fuel acceptance fitting
(Fig. T). Press it tight.
4Always move the heater in an upright position.
JSPECIFICATIONS
Ignition electrical Dimensions (mm) width 422
Fuel paraffin
(including base plate) depth 281
Capacity (kW)*2.20 height 446
Suitable space (m3)** 35-80 Accessories: transportation cap
Fuel consumption (l/hr)*0.229 Required batteries
2x LR20, MN 1300
Fuel consumption (g/hr)*183 1.5V, size D
Burning time per tank (hr)* 17.5 Wick type F
Capacity removable tank (litres)
4.0 Weight (kg) 7.5
Monitoring of the quality of ventilation (air renewal):
* At maximum setting
** Specified values are indicative
Transportation cap
S
T

KWARRANTY PROVISIONS
Your heater comes with a 24 months warranty starting on the date of purchase.
Within this period all defects in material or workmanship will be repaired without
any charge. The following provisions shall apply regarding this warranty:
1We expressly dismiss all other claims for damages, including consequential
damages.
2Any repairs or replacements of components within the term of warranty will
not result in an extension of the term of warranty.
3The warranty will no longer apply, when the heater has been modified,
non-original parts have been used, or when it is repaired by third parties.
4The warranty will not apply to parts that are subject to normal wear, such as
the batteries, the ignition coil, the wick and the manual fuel pump.
5The warranty will only apply, when you present the original, dated proof of
purchase, provided no changes have been made to it.
6The warranty will not apply to damages caused by actions not in compliance
with the Directions for Use, neglect, and the use of an incorrect type of fuel,
or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
7Transportation costs and the risks involved during the transportation of the
heater or heater components will always be the responsibility of the
purchaser.
In order to avoid unnecessary costs, we recommend that you always read the
’Directions for Use’ carefully first. In case they offer no solution, please take the
heater to your dealer for repair.
* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this
happen, never try to move the heater, but always switch off the heater immediately (refer to Section E). In
cases of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder
extinguisher.
4
11

4
12
14 TIPS FOR SAFE USE
1Make sure that children are always aware of the presence of a burning
heater.
2Do not move the heater when it is burning or still hot. Do not refill nor
service the heater when it is burning or still hot.
3Position the front of the heater at a minimum distance of 1.5 metres from
walls, curtains, and furniture.
4Do not use the heater in dusty rooms or in very draughty places. In both
cases you will not have optimum burning.
5Switch off the heater, before you go to sleep.
6Store and move fuel only in suitable tanks and jerrycans.
7Make sure that the fuel is not exposed to heat or extreme temperature
changes. Always store the fuel in a cool, dry and dark place (sunlight will
affect the quality).
8Never use the heater in places where harmful gasses or fumes may be
present (e.g. exhaust gasses or paint fumes).
9The top plate of the heater becomes hot. Do not cover the heater (there is
a risk of fire). Avoid any concact with the top plate and grille.
10 Always make sure that there is sufficient ventilation.
11 This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
12 This appliance can be used by children aged from 8 years and above and per-
sons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
13 Children shall not play with the appliance.
14 Cleaning and user maintenance shall not be made by children without supervi-
sion.
100 cm
150 cm
50 cm
50 cm
20 cm
50 cm

4
13

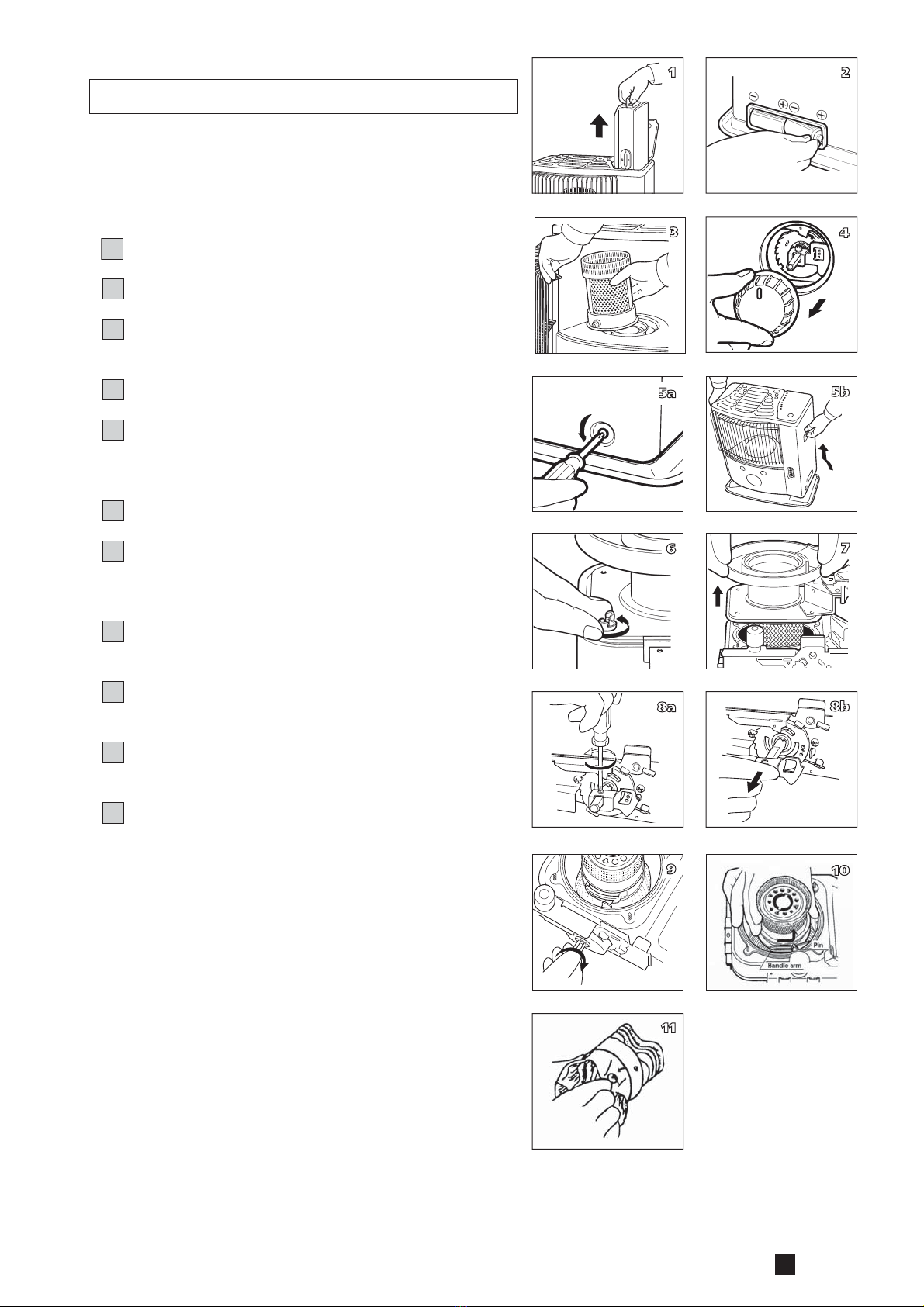

1Open the lid and remove the removable tank.
2
Remove the batteries from the battery holder .
3
Open the front grill. Remove the combustion chamber
from the heater. Close the grill.
4
Pull the knurled wick adjustment knob off the heater.
5
Unscrew the three cabinet screws on the back and sides
of the heater. Pull the cabinet forward slightly, and
then remove it from the base plate.
6
Unscrew the four wing nuts from the wick holder.
7
Lift the wick holder chassis up until the wick is visible.
Place the burner bed next to the heater. (Ensure that
the wiring does not become disconnected).
8
Remove the screw on the stem holding the bracket and
remove the bracket.
9
Turn right the stem to the end and remove the wick
sleeve (with wick).
10 Turn the wick sleeve counterclockwise and lift the wick
sleeve up. Remove it from the primary air tube.
11
Squeeze the wick to loosen the three wick pins and
remove the wick from the wick sleeve. Ensure that you
are wearing gloves and that you have a container in
which to put the old wick.
REPLACEMENT OF THE WICK
L ENSURE THAT THE HEATER IS OFF AND
COMPLETELY COOL BEFORE STARTING TO
REPLACE THE WICK.
4
8b
8a
5a
11
3
7
10
2
5b
9
6
1

4
14
12 Install the wick to the wick sleeve according to the allo-
wed direction engraved on the wick sleeve.
13 Install the wick sleeve (with wick) to the primary air
tube. And then turn the wick sleeve clockwise to set in
the handle arm.
14
Install the bracket. Then tighten the screw which is hol-
ding the stem.
15 Put the wick holder chassis back into position.
16 Screw the four wing nuts hand tight.
17 Place the knurled wick adjustment knob on the wick
mechanism. Turn the knob as far to the right as possi-
ble. Press the tip-over switch. Check that the wick can
be lowered completely. Repeat this check a number of
times. If the wick cannot be lowered completely it has
not been placed correctly. If this is the case, repeat the
procedure from No. 12. Pull the knurled wick adjust-
ment knob off the heater.
18 Put the cabinet back into position and tighten the three
screws. Put the knurled wick adjustment knob back into
position. Now put the combustion chamber back into
position. Check that it is level by sliding it slightly to the
left and the right by its handle. Close the grill.
19 Put the filled removable tank into position. Put the bat-
teries into the battery holder (ensure that the positive
and negative poles match the + and – marks indicated
on the battery housing). Wait 30 minutes after replac-
ing the tank and batteries before using the heater.
13a
17b
13b
14b
19a
17a
14a
16
18c
12b
12a
18a 18b
15
19b

4
15
MAIN COMPONENTS
OFF - button
Knurled wick
adjustment knob
Ignition button
Combustion
chamber
Combustion
chamber handle
Fuel indicator
Grill
Lid for removable
tank
Removable tank
Fuel gauge of
removable tank
Ignition coil
Battery holder

















❹




New 06/16 Printed in Japan
0268000903
Should you require further information or should particular problems occur that are not
dealt with in this operating manual, please visit our website www.toyotomi.eu or contact
our Sales Support (you find its phone number on www.toyotomi.eu)
Falls Sie weitere Informationen wünschen, oder sollten besondere Probleme auftreten,
die in dieser Bedienungsanleitung nicht ausfürhrlich genug behandelt werden, besuchen
Sie bitte unsere Website (www.toyotomi.eu), oder fordern Sie die benötigte Auskunft von
unserem Kundendienst an (Telefonnummer auf www.toyotomi.eu)
Vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un pro-
blem, rendez-vous sur notre site Web (www.toyotomi.eu) ou contactez notre service client
(vous trouverez l’adresse et le numéro de telephone sur www.toyotomi.eu)
Wenst u nadere informatie, of indien er bijzondere problemen optreden die in deze ge-
bruiksaanwijzing niet behandeld zijn, bezoekt u dan onze website www.toyotomi.eu of
vraag de benodigde informatie op bij de afdeling Sales Support (adres en telefoonnummer
op www.toyotomi.eu)
Si necesitara más información o surgiera algún problema concreto que no abarque este
manual operativo, visítenos en www.toyotomi.eu o contacte con nuestro equipo de asisten-
cia postventa (encontrará el número de teléfono en www.toyotomi.eu).
In caso aveste bisogno di ulteriori informazioni o riscontraste particolari problemi che non
sono presi in considerazione nel presente manuale, vi invitiamo a visitare il nostro sito
www.toyotomi.eu o contattare la nostra assistenza (il cui numero di telefono é indicato nel
nostro sito www.toyotomi.eu)
Hvis du ønsker yderligere information eller, hvis der opstår problemer, som ikke behandles i
brugsanvisningen, bedes du besøge vores webside www.toyotomi.eu eller kontakt afdelin-
gen Sales Support (adresse og telefonnummer på www.toyotomi.eu).
Guarantee
2
YEARS
Distributed in Europe by TOYOTOMI EUROPE SALES B.V.
Kerosun®, Toyostove®, Toyoset®, Toyotomi®and Zibro®for the the use of paraffin heaters are all registe-
red trademarks of TOYOTOMI Co., Ltd. - Japan.
Kerosun®brand paraffin heaters are made in JAPAN and imported by Toyotomi Europe Sales b.v.
