User Guide
Outdoor Security Wi-Fi Camera
©2023 TP-Link 1910013363 REV1.0.0

1
About This Guide
This guide provides a brief introduction to the Outdoor Security Wi-Fi Camera and regulatory information.
Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and
descriptions in this guide are only examples and may not reect your actual Tapo Camera experience.
Conventions
In this guide, the following convention is used:
Convention Description
Blue Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline Hyperlinks are in teal and underlined. You can click to redirect to a website.
Note: Ignoring this type of note might result in a malfunction or damage to the device.
More Info
• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
• The camera setup video and waterproof cable attachments video can be found at follow the setup video at
https://www.tp-link.com/support/setup-video/.

2
Introduction
Tapo C325WB is the first outdoor security camera among the Tapo cameras series to adopt ColorPro night vision. It is ideal for various outdoor
scenarios, such as patios, gardens, garages, and farms. With a resolution of 2688×1520 (2K QHD), it can reveal vivid colors even without spotlights
during pitch-black nights. It also provides professional protection via Smart AI detection, alerts, remote control, and more.
• ColorPro Night Vision – As a Pro series product, Tapo C325WB oers more signicant night vision performance than traditional color night vision
cameras, capturing vivid colors under ultra low-light conditions even without spotlights. Enjoy professional monitoring with clearer views even during
pitch-black nights.
• 2K QHD Crystal Clear View – With a resolution of 2688×1520, Tapo C325WB reveals highly-detailed images.
• Person/Animal/Vehicle Detection – Smart AI identies vehicles, people, and even animals, notifying you as needed.
• Customizable Motion Detection – Set up activity zones or boundaries and receive instant notications when motion is detected in your customized
zones.
• IP66 Weatherproof – Helps Tapo C325WB perform well even in harsh environments with rain and dust.
• Wired/Wireless Networking – Connect the camera to your network through Ethernet or Wi-Fi for more exible installation.
• Wide Field of View – A wide FOV oers a larger detection range covering more space, enabling you to focus on more vital areas.
• Flexible Storage Options – Save recorded videos to an installed microSD card (up to 512 GB) or use Tapo Care cloud storage service.
• Two-Way Audio – Enables communication through a built-in microphone and speaker.

3
Appearance
Front Side
microSD Card Slot
Hold for 5s to reset Wi-Fi or
10s to factory reset camera
Speaker
RESET
MIC
DC Power Connector
Used to connect to a 9V DC
power adapter
Ethernet Port
Used to connect to a
network device
System LED
Insert a microSD card
for local recording
White Light
micro SD
*Images may dier from actual products.

4
System LED Description
Blinking red and green
(for Wi-Fi setup)
Blinking red slowly
(for Wi-Fi setup)
Solid amber
Blinking red quickly
Solid red
Solid green
Blinking green quickly
Starting up
Connected to TP-Link
Cloud server
Ready for setup
Connecting to Wi-Fi
Connected to Wi-Fi or
wired network
Camera resetting
Camera updating

5
Set Up Your Camera
Follow the steps below to get started with your new camera, or you can follow the setup video at https://www.tp-link.com/support/setup-video/.

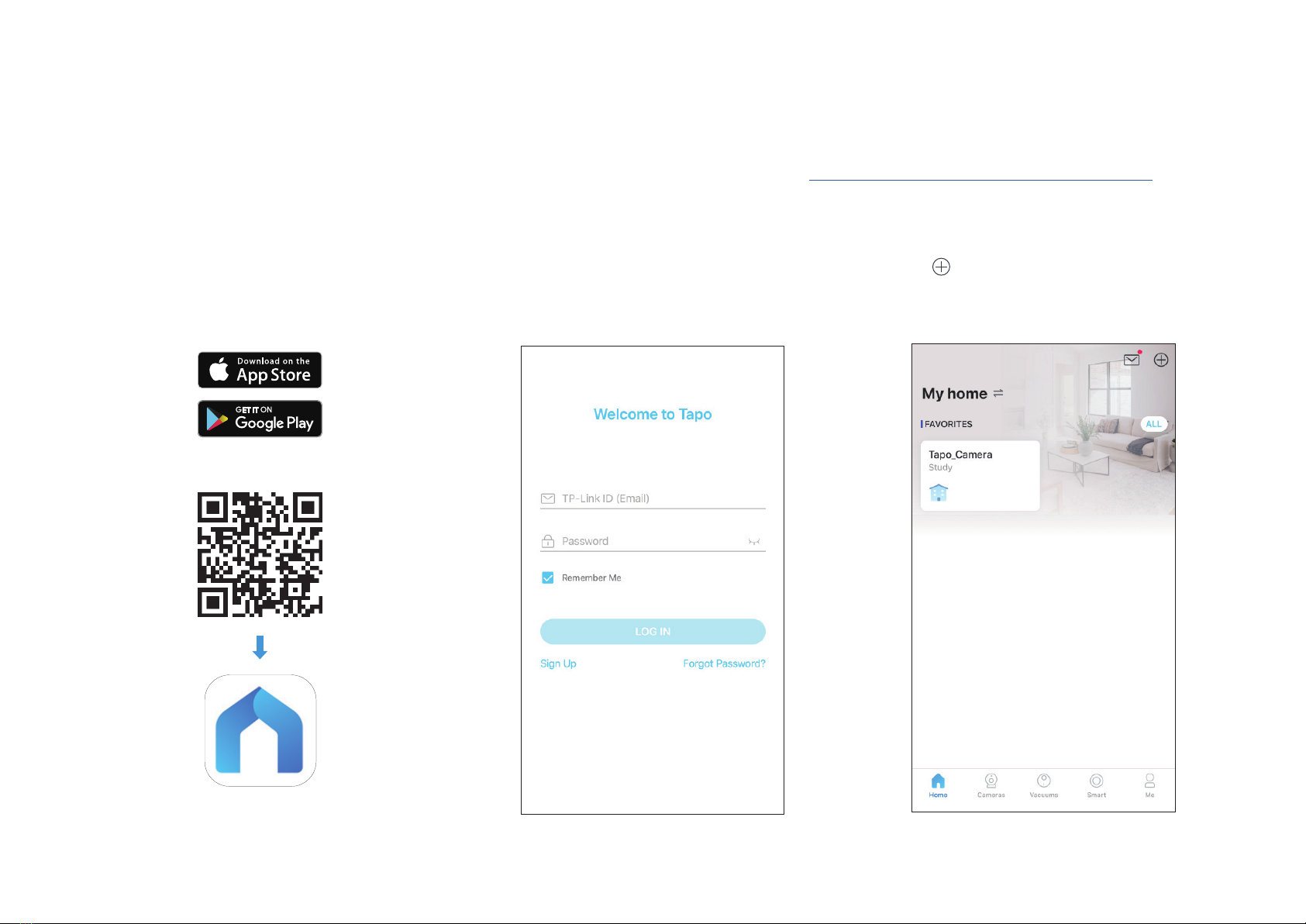

Step 1. Download Tapo App
Get the Tapo app from the App Store or Google
Play, or by scanning the QR code below.
OR
Step 2. Log In
Open the app, and log in with your TP-Link ID.
If you don't have an account, create one rst.
Step 3. Add Your Camera
Tap the button in the app, select Cameras
and then your model.

6
Step 4. Congure Camera
Follow app instructions to set up your camera via wired or wireless connection (for setup only), and
add it to your home network. After setup, you can use your camera via wired connection or wirelessly.
Note: For wireless setup, if your camera is connected to your router via an Ethernet cable, please unplug the cable rst.

7
Set Up Using Amazon Frustration-Free Setup
What is Amazon Frustration-Free Setup?
Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi
password on each device.
To use this feature, conrm the following:
● The new Tapo device supports Amazon FFS.
● You have an Amazon FFS enabled Alexa device or router.
● You have saved your Wi-Fi information to Amazon by using Alexa echo.
● Your Tapo device and router are on the same network as your Alexa echo.
LED Indications during Amazon Frustration-Free Setup
LED Status
Blinking red and green Ready for setup
Blinking amber FFS setup in progress
Solid green Working properly
If the LED does not turn solid green after a long time, you can try to add the Tapo device manually. (Press the Reset button on your Tapo device once.
Then open the Tapo app, tap the + button on the page, select your device model, and follow the app instructions. )

8

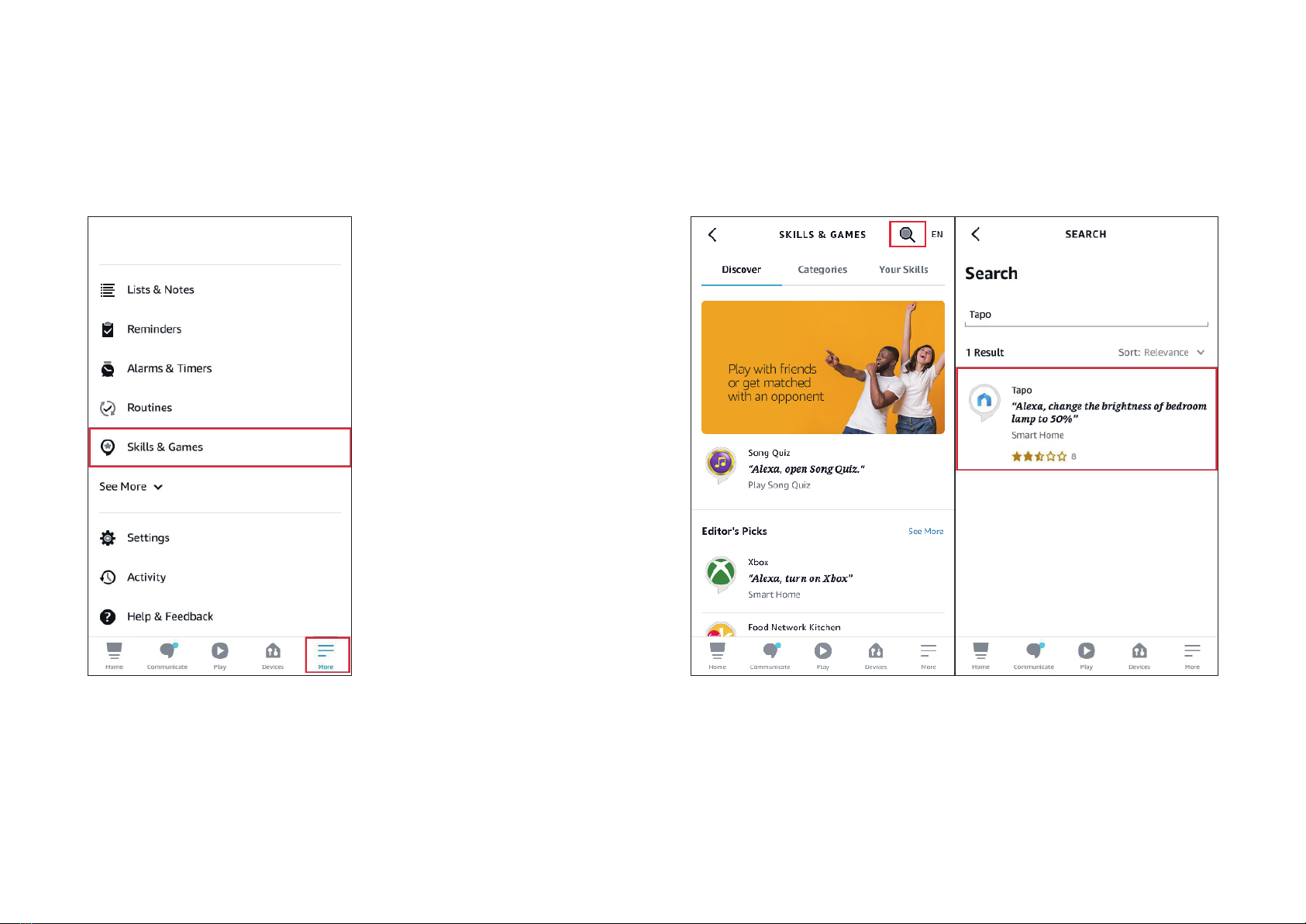

1. Open the Amazon Alexa app. Then tap More and select Skills &
Games.
How to use Amazon Frustration-Free Setup with Tapo devices
2. Enter Tapo in the search bar and choose Tapo.

9
3. Tap the ENABLE TO USE button. 4. Log in with your TP-Link ID that has bound to your Tapo device, and tap Authorize. After authorized
successfully, the message Tapo has been successfully linked will come up.

10
5. Plug in your Tapo device and the setup will complete automatically in two minutes.
For setting up more Tapo devices, just plug in and enjoy!
Done!
If this device displays on the Home page in the Tapo app, it indicates this device has been successfully associated with your Amazon account and
joined your Wi-Fi network automatically.
If this device does not display on the Home page in the Tapo app, try setting it up manually. (Tap the + button on the page, select your device model,
and then follow the app instructions.)

11
Install a microSD Card
Follow the steps below to install the microSD card for local recording, or follow the installation video at https://www.tp-link.com/support/setup-video/.
You can go to Camera Settings > microSD Card in the Tapo app to check the card status or format your card.
1. Loosen the screws on the back panel and remove the cover.
2. Identify the direction of the microSD card and carefully insert the card into the slot. Push in the card until you hear a clicking sound.
*Images may dier from actual products.

12
Mount Your Camera
When you nish adding your camera in the Tapo app, you can place your camera on a at surface, or mount it on a wall or ceiling with the provided
mounting template and screws.
Follow the steps below to mount your new camera, or follow the setup video at https://www.tp-link.com/support/setup-video/.
Step 1. Drill Holes
Stick the mounting template to the desired mounting place. Drill 3 screw holes according to the template.
Step 2. Mount Camera
Insert three anchors into the holes and use the screws to ax the camera over the anchors.
0° to 70°
0° to 360°
Φ= 6 mm (15/64 in.)

13
Step 3. Connect to Power
Connect the camera to a power outlet using the provided power adapter. Install the waterproof seal for the power connectors.
Male Power Connector Waterproof Seal Female Power Connector

14
Install Waterproof Items
When the camera is installed outdoors, please install waterproof items to waterproof your camera. Make sure each part is securely attached and the
water-proong rings are ush to keep out water.
Follow the steps below to install waterproof items, or follow the installation video at https://www.tp-link.com/support/setup-video/.
• The Ethernet port connects to a network device.
Install the waterproof cable attachments for the network interface when the camera is installed outdoors.
Fix Nut Waterproof
Ring
O-ring Network
Interface
Waterproof
Jacket
1. Route the network cable through the following components in order: x nut, waterproof ring, and then the waterproof jacket.
2. Insert the waterproof ring into the waterproof jacket.
3. Fix the O-ring to the network interface of the camera and connect the network cables.
4. Attach the network interface with the waterproof jacket, then twist to lock. Rotate the x nut to secure it to the waterproof jacket.
Done! The network interface is now waterproof.

15
Fix Nut Waterproof
Ring + Plug
Network
Interface
Waterproof
Jacket
• The Ethernet port does not connect to a network device.
1. Insert the waterproof plug into the waterproof ring, then insert them into the waterproof jacket.
2. Attach the network interface with the waterproof jacket, then twist to lock. Rotate the x nut to secure it to the waterproof jacket.

14

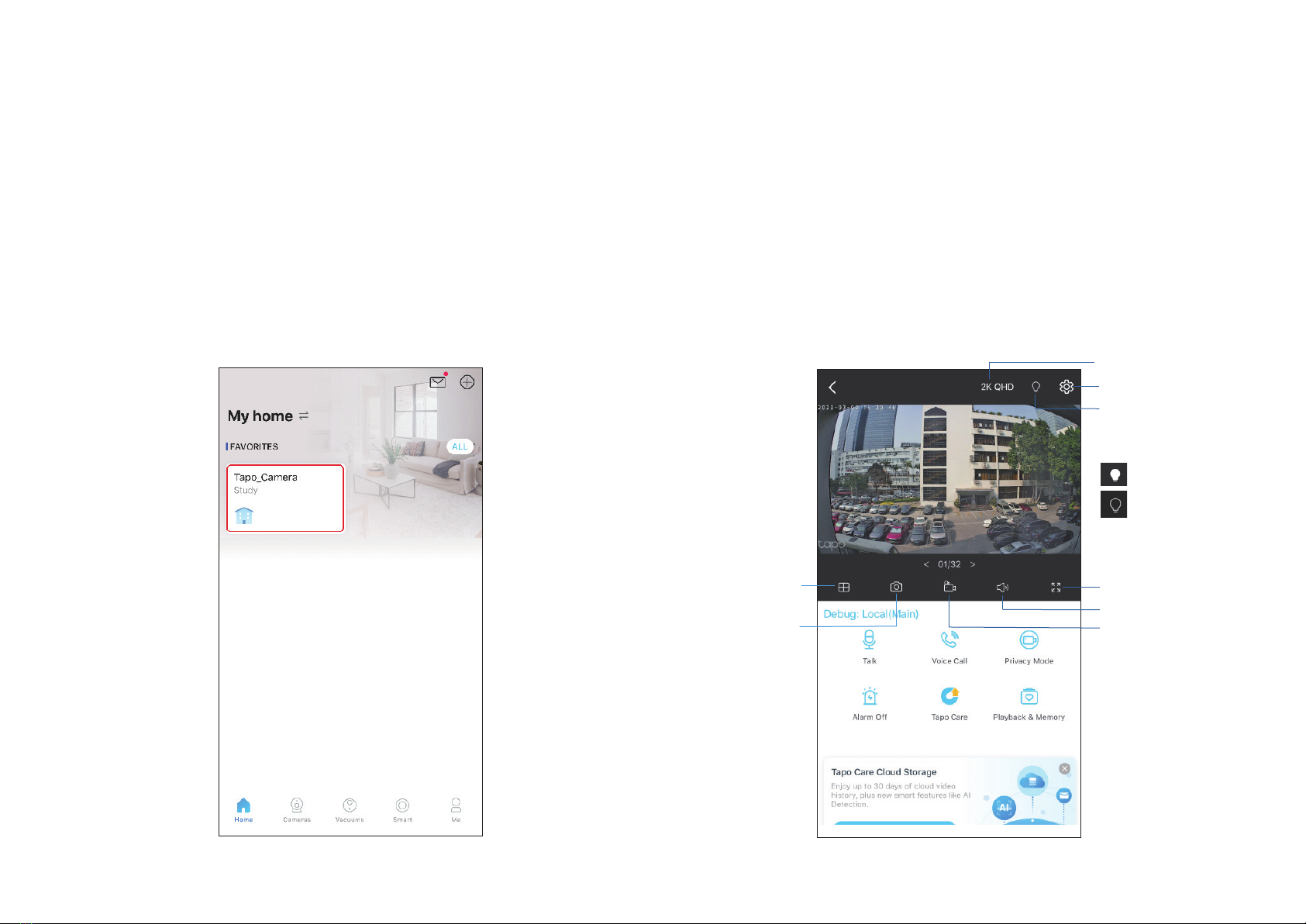

Home Page
This page lists all your cameras you've added and you can view them
directly and manage them easily. Tap the camera to enter the Live
View page.
Main Camera Controls
After you successfully set up the camera, you will see your camera listed on the home page. You can view and manage your camera from anywhere at
any time with the Tapo app.
Live View
Talk or Voice Call: Communicate with loved ones
Privacy Mode: Enable to temporarily shut down the surveillance for privacy
Alarm On/O: Turn on to get noticed when events are detected
Playback & Memory: Check all recordings and saved moments
Multi-Screen
View live videos from
multiple cameras at
the same time
Screenshot
Camera Settings
Spotlight
Get more clear and
vivid image in the
dark.
Video Quality
The spotlight is on.
The spotlight is o.
Full Screen
Volume
Record

15
Camera Settings
On Live View page, tap to enter the Camera Settings page. You can
change your camera name, set spotlights settings, customize detection
settings and recording schedules, turn on/o notications, set activity
zones, remove camera, etc.
Me
On this page, you can edit your account, quickly check the memorable
moments you saved, or nd the FAQs of using smart camera and basic
info related to the Tapo app.
Camera Memory
Photos and videos
you took will appear
here
Device Sharing
Share your Tapo
devices to your family
members to manage
devices together
Camera Preferences
You can choose to display
the Live or Speed tag on
the screen for all your
Tapo cameras
Voice Control
Set up connections with
third-party services
to control your Tapo
devices by voice
Account Info
Change your avatar,
edit your name, or
modify the password

16

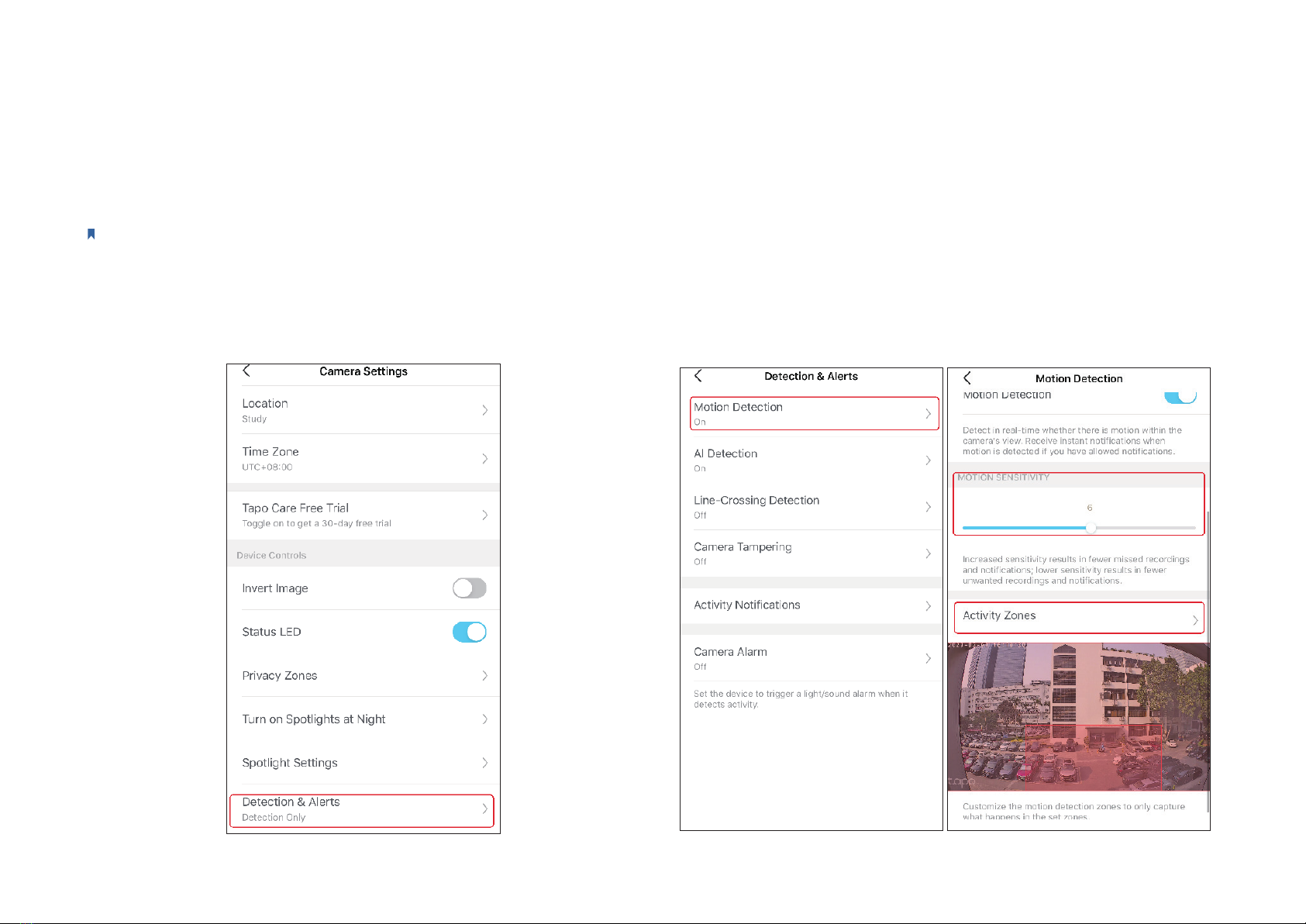

Step1. Turn On Detection
Go to Camera Settings page and tap Detection & Alerts to turn on the
detection and customize its alert settings.
Motion Detection
When your camera detects motion, it will send you notications or even
sound an alarm. You can personalize your own experience by setting
motion zones to only capture what happens in the area that you set and
adjusting motion sensitivity.
Camera Detection & Alerts
Receive notifications and check feeds when the camera detects a motion, or when someone crosses a boundary, enters an area you've set, or
obstructs the camera. Insert a microSD card or subscribe to Tapo Care serviceto record the clips when activity detected. Otherwise, you can only
receive the notications.
Note: Initialize the SD card on the Tapo app before using it.

17
AI Detection
Customize your AI detection setting to only capture people, pets, or vehicle that come into your camera's view with a samrt AI algorithms and adjust
detection sensitivity.
