TP-Link JetStream T1500G-10MPS User manual

Business Networking Solution
Installation Guide
Jetstream Smart Switch
T1500G-10MPS / T1600G-28TS / T1600G-28PS
T1500-28TC (TL-SL2428) / T1500-28PCT (TL-SL2428P)
T1600G-18TS (TL-SG2216) / T1600G-52TS (TL-SG2452)
T1600G-52PS (TL-SG2452P) / T1700G-28TQ / T1700X-16TS

About this Installation Guide
This Installation Guide describes the hardware characteristics, installation methods and the
points that should be attended to during the installation. This Installation Guide is structured as
follows:
Chapter 1 Introduction
This chapter describes the external components of the switch.
Chapter 2 Installation
This chapter illustrates how to install the switch.
Chapter 3 Connection
This chapter illustrates how to do the physical connection of the switch.
Appendix A Troubleshooting
Appendix B Hardware Specifications
Audience
This Installation Guide is for:
Network Engineer Network Administrator
Conventions
• Some models featured in this guide may be unavailable in your country or region. For local sales
information, visit http://www.tp-link.com.
• The figures in Chapter 2 to Chapter 3 are for demonstration purposes only. Your switch may differ
in appearance from that depicted.
• This Guide uses the specific formats to highlight special messages. The following table lists the
notice icons that are used throughout this guide.
Remind to be careful. A caution indicates a potential which may result in device damage.
Remind to take notice. The note contains the helpful information for a better use of the
product.
Related Document
The User Guide and CLI Reference Guide of the product are provided on the resource CD. To
obtain the latest product information, please visit the official website:
http://www.tp-link.com

Contents
Chapter 1 Introduction ——————————— 01
1.1 Product Overview ...........................................................01
1.2 Appearance.......................................................................01
Chapter 2 Installation ——————————— 08

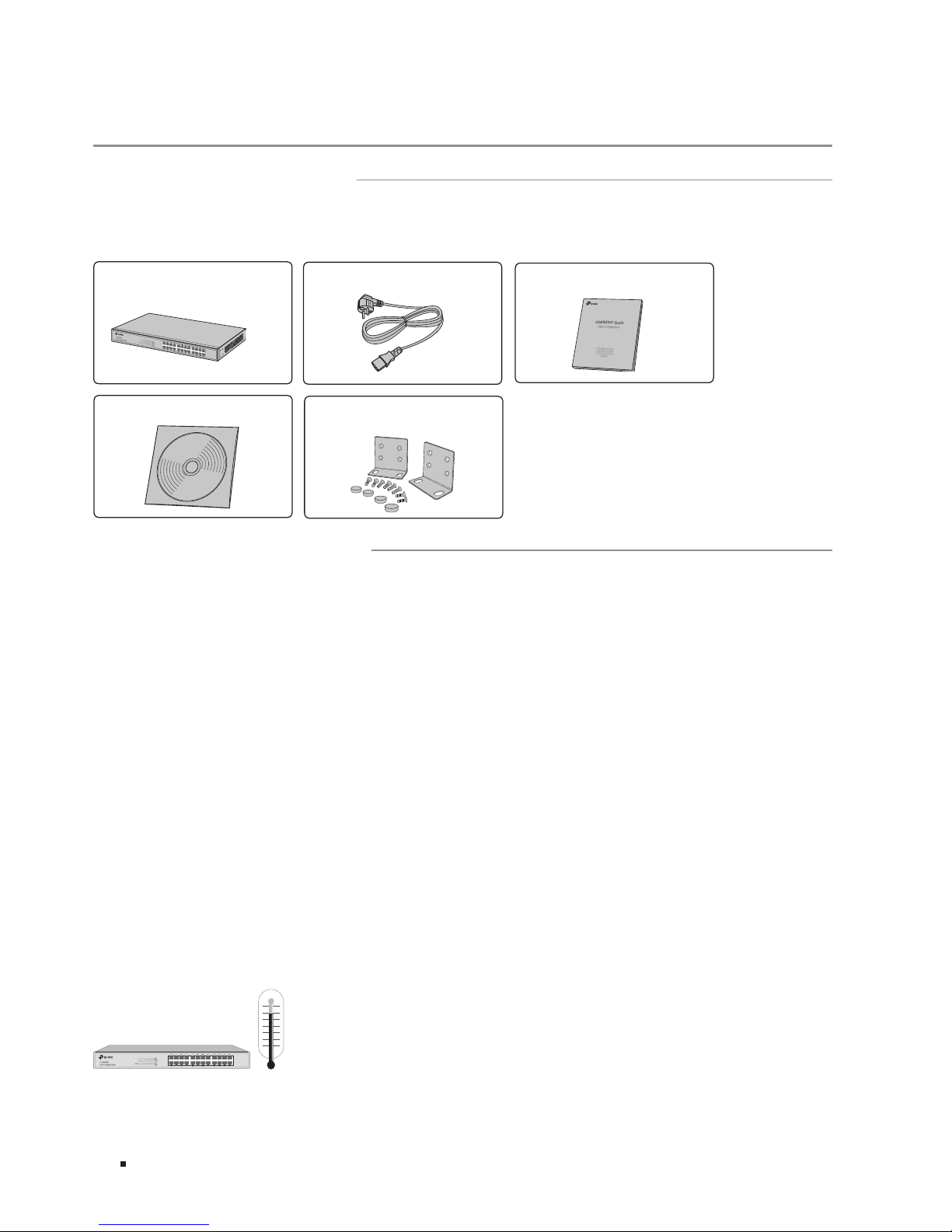

2.1 Package Contents ..........................................................08

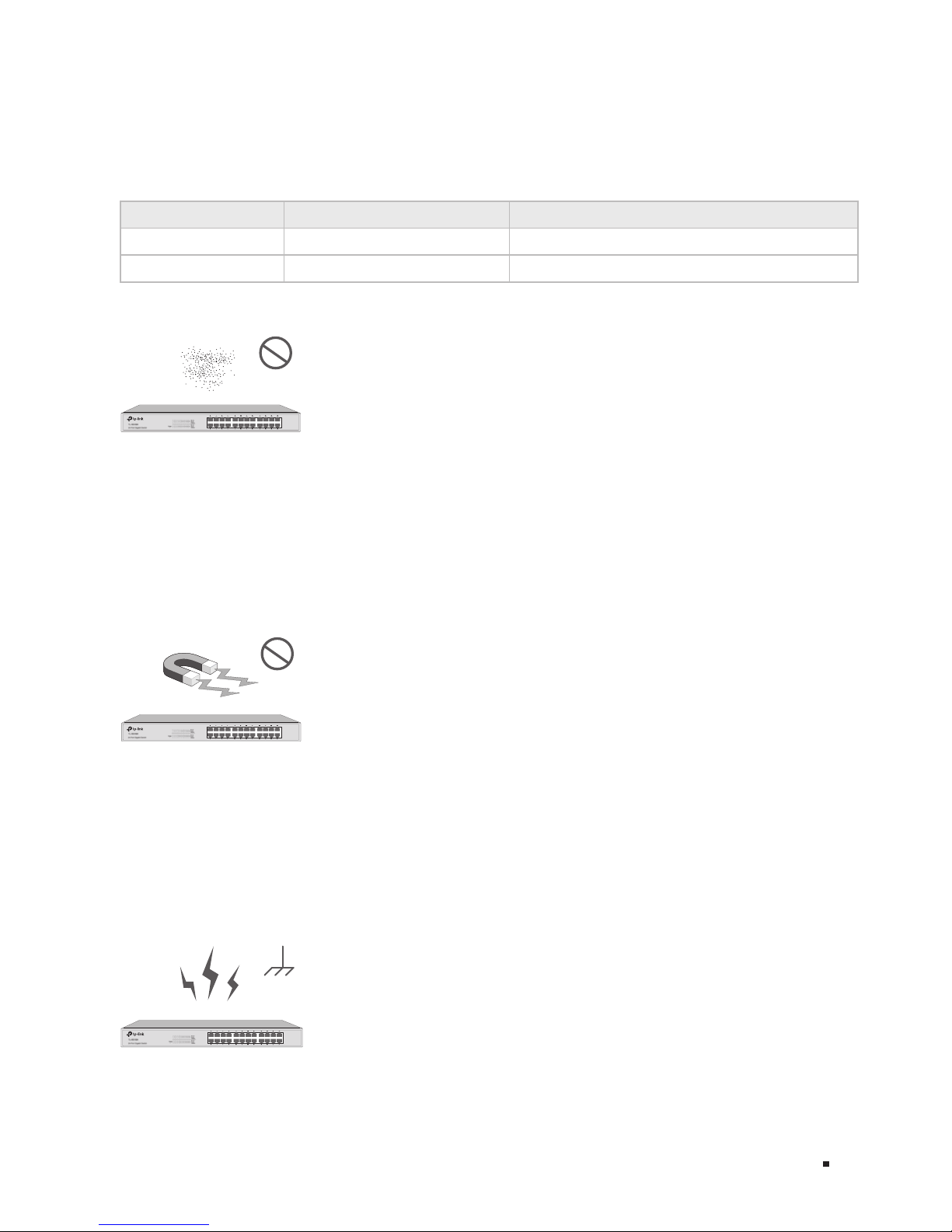

2.2 Safety Precautions .........................................................08
2.3 Installation Tools..............................................................10

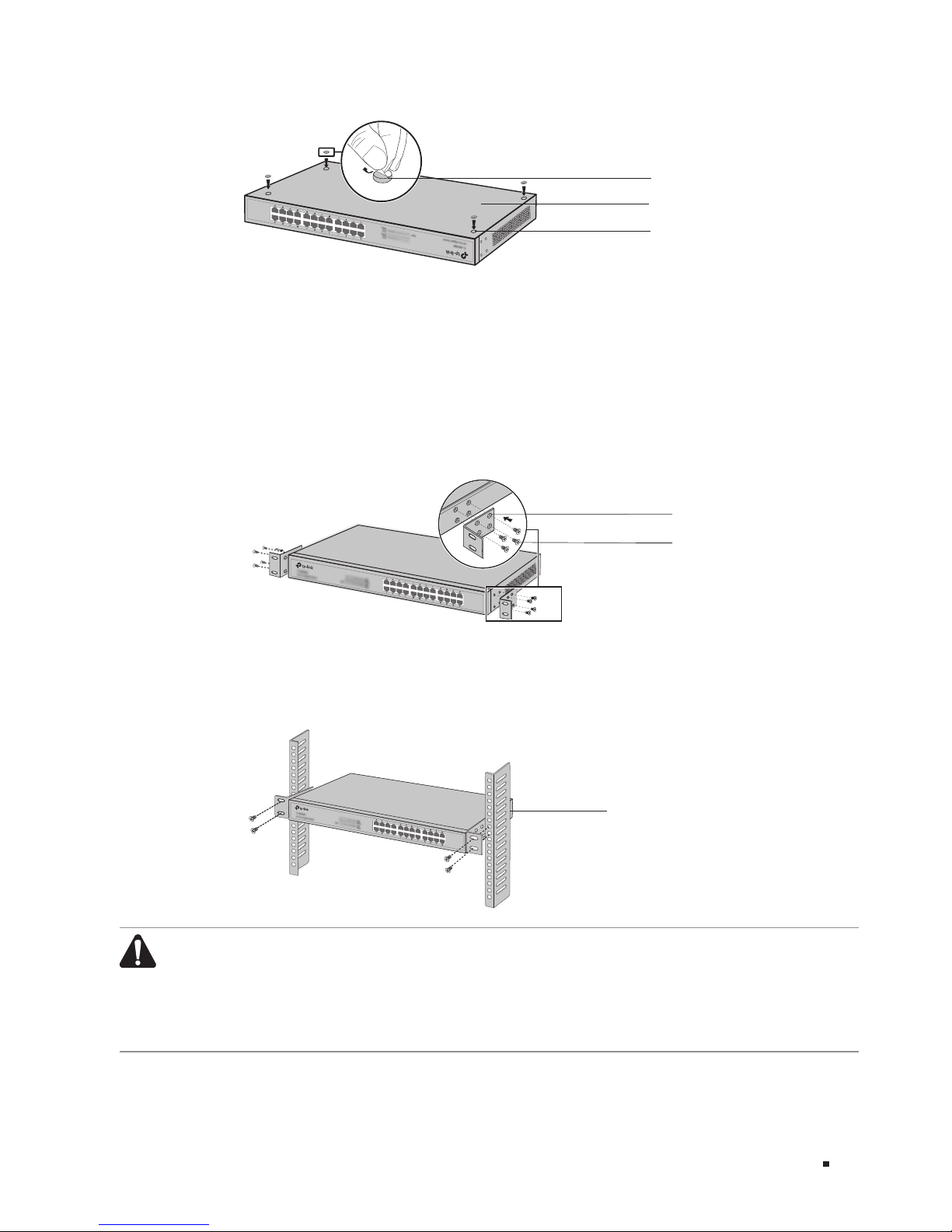

2.4 Product Installation ........................................................10
Chapter 3 Connection ——————————— 12
3.1 Ethernet Port ....................................................................12
3.2 SFP/SFP+ Port..................................................................12
3.3 Verify Installation.............................................................13

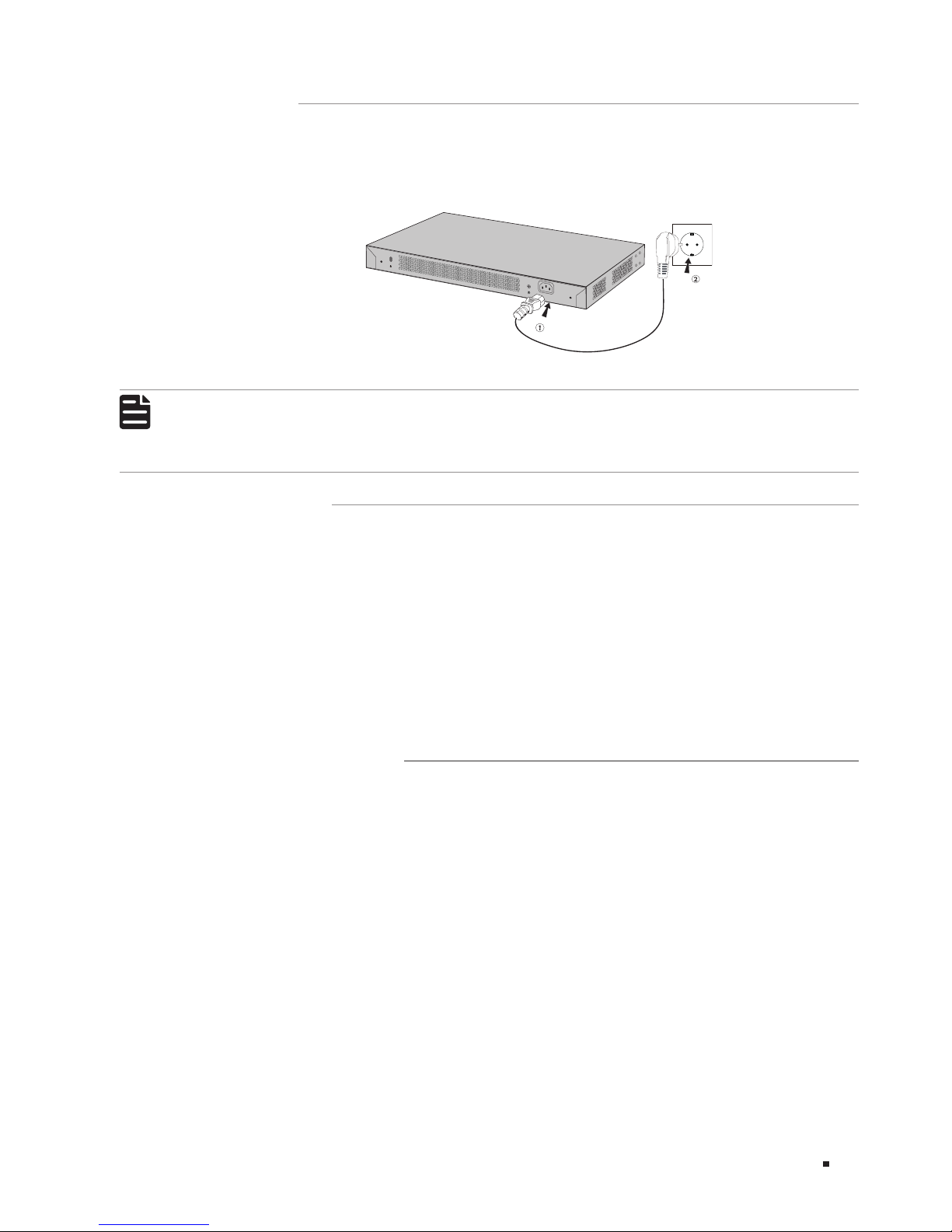

3.4 Power On............................................................................13
3.5 Initialization........................................................................13
3.6 Accessing the Switch....................................................13
Appendix A Troubleshooting ———————— 14
Appendix B Specications ————————— 15

JetStream Smart Switch
01Introduction
Chapter 1 Introduction
1.1 Product Overview
Designed for workgroups and departments, TP-Link JetStream Smart Switch provides wire-speed
performance and abundant L2 management features. It provides a variety of service features and
multiple powerful functions with high security.
The EIA-standardized framework and smart configuration capacity can provide flexible solutions for
a variable scale of networks. QoS and IGMP snooping/filtering optimize voice and video application.
Link aggregation increases aggregated bandwidth, optimizing the transport of business critical
data. SNMP, RMON, WEB and CLI Login bring abundant management policies. TP-LINK Gigabit Smart
Switch integrates multiple functions with excellent performance, and is friendly to manage, which
can fully meet the need of the users demanding higher networking performance.
T1500-28PCT/T1500G-10PS/T1500G-10MPS/T1600G-28PS (TL-SG2424P)/T1600G-52PS (TL-
SG2452P) is also a Power Sourcing Equipment (PSE*). Some of the RJ45 ports on the switch support
Power over Ethernet (PoE*) function, which can automatically detect and supply power with those
powered devices (PDs*) complying with IEEE 802.3af and IEEE 802.3at.
*PSE: a device (switch or hub for instance) that provides power through an Ethernet cable.
*PoE: a technology describes a system to transmit electrical power, along with data, to remote
devices over standard twisted-pair cable in an Ethernet.
*PD: a device powered by a PSE and thus consumes energy. Examples include powering network
cameras, wireless LAN access points, IP telephones, network hubs, embedded computers etc.
1.2 Appearance
■Front Panel
The front panel of T1500-28TC (TL-SL2428) is shown as the following figure.
Figure 1-1 Front Panel of T1500-28TC (TL-SL2428)
LEDs Reset SFP Port10/100Mbps RJ45
Port
10/100/1000Mbps
RJ45 Port
The front panel of T1500-28PCT (TL-SL2428P) is shown as the following figure.
Figure 1-2 Front Panel of T1500-28PCT (TL-SL2428P)
LEDs Reset SFP Port10/100/1000Mbps
RJ45 Port
10/100Mbps RJ45
Port and PoE Port
LED Mode
Switch Button

JetStream Smart Switch
02 Introduction
The front panel of T1500G-10MPS is shown as the following figure.
Figure 1-3 Front Panel of T1500G-10MPS
LEDs LED Mode
Switch Button
Reset 10/100/1000Mbps
RJ45 Port and PoE Port
SFP Port
The front panel of T1600G-18TS (TL-SG2216) is shown as the following figure.
Figure 1-4 Front Panel of T1600G-18TS (TL-SG2216)
LEDs Reset 10/100/1000Mbps RJ45 Port SFP Port
The front panel of T1600G-28TS is shown as the following figure.
Figure 1-5 Front Panel of T1600G-28TS
10/100/1000Mbps RJ45 PortLEDs Reset SFP Port
The front panel of T1600G-28PS is shown as the following figure.
Figure 1-6 Front Panel of T1600G-28PS
LEDs Reset 10/100/1000Mbps
RJ45 Port
SFP PortLED Mode
Switch Button
The front panel of The T1600G-52TS (TL-SG2452) is shown as the following figure.
Figure 1-7 Front Panel of T1600G-52TS (TL-SG2452)
Reset
PWR
SYS
T1600G-52TS
Smart Switch
F
Reset LEDs 10/100/1000Mbps RJ45 Port SFP Port

JetStream Smart Switch
03Introduction
The front panel of The T1600G-52PS (TL-SG2452P) is shown as the following figure.
Figure 1-8 Front Panel of T1600G-52PS (TL-SG2452P)
Reset
Speed
PWR
SYS
PoE Max
FAN
PoE
PoE
Delivering Power Over Budget Fault
Speed
activity1000Mbps 10/100Mbps
T1600G-52PS
Smart PoE Switch
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
F
Reset LED Mode Switch
Button
LEDs 10/100/1000Mbps RJ45 Port SFP Port
The front panel of The T1700G-28TQ is shown as the following figure.
Figure 1-9 Front Panel of T1700G-28TQ
LEDs Unit ID LED Reset 10/100/1000Mbps RJ45 Port SFP+ Port
The front panel of The T1700X-16TS is shown as the following figure.
Figure 1-10 Front Panel of T1700X-16TS
ResetLEDs 100M/1000M/10Gbps
RJ45 Port
1G/10Gbps SFP+ PortLEDs Indication
LEDs
For T1500-28TC (TL-SL2428) / T1600G-18TS (TL-SG2216) / T1600G-28TS / T1600G-52TS (TG-
SG2452) / T1700G-28TQ / T1700X-16TS
LED Indication
PWR
On: The switch is powered on.
Off: The switch is powered off or power supply is abnormal.
Flashing: Power supply is abnormal.
SYS Flashing: The switch works properly.
On or Off: The switch works improperly.
10/100M
Link/Act
On: A device is connected to the corresponding port but no activity.
Flashing: Data is being transmitted or received.
Off: No device is connected to the corresponding port.
Note: 10/100M for T1500-28TC. Link/Act for T1600G-18TS (TL-SG2216), T1700G-28TQ.
1000Mbps
On: Running at 1000Mbps.
Off: Running at 10/100Mbps or no device is linked to the corresponding port.
Note: For T1600G-18TS (TL-SG2216), T1700G-28TQ.

JetStream Smart Switch
04 Introduction
LED Indication
1000M
10/100/1000Mbps
Green On: Running at 1000Mbps, but no activity.
Green Flashing: Running at 1000Mbps and is transmitting or receiving data.
Yellow On: Running at 10/100Mbps, but no activity.
Yellow Flashing: Running at 10/100Mbps and is transmitting or receiving data.
Off: No device is linked to the corresponding port.
Note: 1000M for T1500-28TC. 10/100/1000Mbps for 1-24 ports of T1600G-28TS
and 1-48 ports of T1600G-52TS (TL-SG2452).
100Base-FX
1000Base-X
Green On: A 1000Mbps device is connected to the corresponding port but no
activity.
Green Flashing: A 1000Mbps device is linked to the corresponding port and data is
being transmitted or received.
Yellow On: A 10/100Mbps device is connected to the corresponding port but no
activity.
Yellow Flashing: A 10/100Mbps device is linked to the corresponding port and is
transmitting or receiving data.
Off: No device is linked to the corresponding port.
Note: 1000Base-X for 25-28 ports of T1600G-28TS. 100Base-FX/1000Base-X for
49-52 ports of T1600G-52TS (TL-SG2452).
49 -52 ports of T1600G-52TS (TL-SG2452) doesn't support 10Mbps devices.
25-28
Lick/Act
Green On: Running at 10Gbps, but no activity.
Green Flashing: Running at 10Gbps and is transmitting or receiving data.
Yellow On: Running at 1000Mbps, but no activity.
Yellow Flashing: Running at 1000Mbps and is transmitting or receiving data.
Off: No device is linked to the corresponding port.
Note: 25-28 for T1700G-28TQ. Link/Act for 13-16 ports of T1700X-16TS.
Link/Act
Green On: Running at 10Gbps, but no activity.
Green Flashing: Running at 10Gbps and is transmitting or receiving data.
Yellow On: Running at 100/1000Mbps, but no activity.
Yellow Flashing: Running at 100/1000Mbps and is transmitting or receiving data.
Off: No device is linked to the corresponding port.
Note: Only for 1-12 ports of T1700X-16TS.
Master
On: The switch works as master in the stack system, or does not join any stack
system.
Off: The switch works as stack member in the stack system.
Note: Only for T1700G-28TQ.
Fan
Green: All the fans work properly.
Yellow: Not all the fans work properly.
Off: The switch is working abnormally.
Note: Only for T1700X-16TS.
T1500-28PCT (TL-SL2428P) / T1500G-10MPS / T1600G-28PS / T1600G-52PS (TL-SG2452P) has an
LED mode switch button which is used to switch the LED status indication. When the Speed LED is
on, the port LED is indicating the data transmission rate. When the PoE LED is on, the port LED is
indicating the power supply status. By default the Speed LED is on. Pressing the mode switch button,

JetStream Smart Switch
05Introduction
the Speed LED will turn off and the PoE LED will light up. Then the PoE LED will turn off after being on
for 60 seconds and the Speed LED will light up again.
LED Indication
PWR
On: The switch is powered on.
Off: The switch is powered off or power supply is abnormal.
Flashing: Power supply is abnormal.
SYS Flashing: The switch works properly.
On or Off: The switch works improperly.
FAN Green: All the fans work properly.
Yellow: Not all the fans work properly.
PoE Max
(When the PoE LED
is on)
On: The remaining PoE power≤7W.
Flashing: The remaining PoE power keeps≤7W after this LED is on for 2 minutes.
Off: The remaining PoE power＞7W.
10/100M or PoE
(When the Speed
LED is on)
Green On: Running at 100Mbps, but no activity.
Green Flashing: Running at 100Mbps and is transmitting or receiving data.
Yellow On: Running at 10Mbps, but no activity.
Yellow Flashing: Running at 10Mbps and is transmitting or receiving data.
Off: No device is linked to the corresponding port.
Note: Only for T1500-28PCT.
1000M
Speed or PoE
(When the Speed
LED is on)
Green On: Running at 1000Mbps, but no activity.
Green Flashing: Running at 1000Mbps and is transmitting or receiving data.
Yellow On: Running at 10/100Mbps, but no activity.
Yellow Flashing: Running at 10/100Mbps and is transmitting or receiving data.
Off: No device is linked to the corresponding port.
Note: 1000M for T1500-28PCT. Speed or PoE for T1500G-10MPS, 1-24 ports of
T1600G-28PS and 1-48 ports of T1600G-52PS (TL-SG2452P)
10/100M or PoE
Speed or PoE
(When the PoE LED
is on)
Green On: The port is supplying power normally.
Green Flashing: The supply power exceeds the correponding port's maximum power.
Yellow On: Overload or short circuit is detected.
Yellow Flashing: Power-on self-test failed.
Off: Not providing PoE power on the port.
Note: 10/100M or PoE for T1500-28PCT. Speed or PoE for T1500G-10MPS, 1-24 ports
of T1600G-28PS and 1-48 ports of T1600G-52PS (TL-SG2452P)
100Base-FX
1000Base-X
SFP1, SFP2
Green On: A 1000Mbps device is linked to the corresponding port, but no activity.
Green Flashing: A 1000Mbps device is linked to the corresponding port and data is
being transmitted or received.
Yellow On: A 10/100Mbps device is linked to the corresponding port, but no activity.
Yellow Flashing: A 10/100Mbps device is linked to the corresponding port and is
transmitting or receiving data.
Off: No device is linked to the corresponding port.
Note:
1000Base-X for 25-28 ports of T1600G-28PS. 100Base-FX/1000Base-X for 49-
52 ports of T1600G-52PS (TL-SG2452P)
. SFP1/SFP2 for T1500G-10MPS.
100Base-FX and 1000Base-X ports don't support 10Mbps device.

JetStream Smart Switch
06 Introduction
LED Mode Switch Button
Press this button to switch the LED status indication between Speed and PoE.
Reset
With the switch powered on, press Reset button for 5 seconds to reset the software setting to its factory
default settings.
Unit ID LED
Designed to display the stack Unit ID of the switch. For the switch that does not join any stack system,
it displays its default Unit ID. To modify the default unit number, please logon to the GUI of theswitch
and go to Stack→Stack Management→Stack Cong page and congure the New Unit ID. The new Unit
ID will take eect after you reboot the switch.
10/100Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps or 100Mbps.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps.
SFP Port
Designed to install the SFP module. For T1500, T1500G and T1600G series products, the switch
features some slots that are shared with the associated RJ45 ports. The associated two ports are
referred as a "Combo" port, which means they cannot be used simultaneously, otherwise only SFP port
works.
SFP+ Port
Designed to install the SFP module. For T1700G-28TQ and T1700X-16TS, the switch supports 1G or
10G SFP module connection.
Port Feature
Model 100M/1000M/10Gbps
RJ45 Port
10/100/1000Mbps
RJ45 Port
10/100Mbps RJ45
Port SFP Port SFP+ Port
T1500-28TC 0 4 24 2 0
T1500-28PCT 0 4 24 2 0
T150 0G-10MPS 0 8 0 2 0
T1600 G -18TS 016 0 2 0
T1600G-28TS 024 0 4 0
T1600G-28PS 024 0 4 0
T1600G-52TS 048 0 4 0
T1600G-52PS 048 0 4 0
T1700G-28TQ 024 0 0 4
T1700X-16TS 12 0 0 0 4

JetStream Smart Switch
07Introduction
■Rear Panel
The rear panel is shown as the following figure. Here we take T1600G-28TS as an example.
Figure 1-11 Rear Panel
Power SocketGrounding TerminalKensington Security slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the
switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed
information, please refer to the Lightning Protection Guide from the training center of our website
http://www.tp-link.com/en/conguration-guides.html.
Power Socket
Connect the female connector of the power cord here, and the male connector to the AC power outlet.
Please make sure the voltage of the power supply meets the requirement of the input voltage (100-240V~
50/60Hz).
Note:
■Please use the provided power cord.

JetStream Smart Switch
08 Installation
Chapter 2 Installation
2.1 Package Contents
Make sure that the package contains the following items. If any of the listed items is damaged or
missing, please contact your distributor.
One Switch Installation Guide
Installation Guide
BusinessNetworking Solution
Two mounting brackets
and the ttings
One Resouce CD
One Power Cord
2.2 Safety Precautions
To avoid any device damage and bodily injury caused by improper use, please observe the following
rules.
■Safety Precautions
■Keep the power off during the installation.
■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is
well grounded.
■Use only the power cord provided with the switch.
■Make sure that the supply voltage matches the specifications indicated on the rear panel of the
switch.
■Ensure the vent hole is well ventilated and unblocked.
■Do not open or remove the cover of the switch.
■Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never
use any other liquid cleaning method.
■Place the device with its bottom surface downward.
■Site Requirements
Temperature/Humidity
40℃
0℃

JetStream Smart Switch
09Installation
Please keep a proper temperature and humidity in the equipment room. Too high/low humidity may
lead to bad insulation, electricity leakage, mechanical property changes and corrosions. Too high
temperature may accelerate aging of the insulation materials and can thus significantly shorten
the service life of the device. For normal temperature and humidity of the device, please check the
following table.
Environment Temperature Humidity
Operating 0℃to 40℃10% to 90%RH Non-condensing
Storage -40℃to 70℃5% to 90%RH Non-condensing
Clearness
The dust accumulated on the switch can be absorbed by static electricity and result in poor contact
of metal contact points. Some measures have been taken for the device to prevent static electricity,
but too strong static electricity can cause deadly damage to the electronic elements on the internal
circuit board. To avoid the effect of static electricity on the operation of the Switch, please attach
much importance to the following items:
■Dust the device regularly, and keep the indoor air clean.
■Keep the device well grounded and ensure static electricity has been transferred.
Electromagnetic Interference
Electronic elements including capacitance and inductance on the device can be affected by
external interferences, such as conducted emission by capacitance coupling, inductance coupling,
and impedance coupling. To decrease the interferences, please make sure to take the following
measures:
■Use the power supply that can effectively filter interference from the power grid.
■Keep the device far from high-frequency, strong-current devices, such as radio transmitting station.
■Use electromagnetic shielding when necessary.
Lightening Protection
Extremely high voltage currents can be produced instantly when lightning occurs and the air in
the electric discharge path can be instantly heated up to 20,000℃. As this instant current is strong

JetStream Smart Switch
10 Installation
enough to damage electronic devices, more effective lightning protection measures should be
taken.
■Ensure the rack and device are well earthed.
■Make sure the power socket has a good contact with the ground.
■Keep a reasonable cabling system and avoid induced lightning.
■Use the signal SPD (Surge Protective Device) when wiring outdoor.
Note: For detailed lightning protection measures, please refer to the Lightning Protection Guide
from the training center of our website http://www.tp-link.com/en/conguration-guides.html.
Installation Site
When installing the device on a rack or a flat workbench, please note the following items:
■The rack or workbench is flat and stable, and sturdy enough to support the weight of 5.5kg at least.
■The rack or workbench has a good ventilation system. The equipment room is well ventilated.
■The rack is well grounded. Keep the power socket less than 1.5 meters away from the device.
2.3 Installation Tools
■Phillips screwdriver
■ESD-preventive wrist wrap
■Cables
Note:
These tools are not provided with our product. If needed, please self purchase them.
2.4 Product Installation
■Desktop Installation
To install the device on the desktop, please follow the steps:
1. Set the device on a flat surface strong enough to support the entire weight of the device with all
fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at
each corner of the device.

JetStream Smart Switch
11Installation
Figure 2-1 Desktop Installation
Feet
Bottom of the Device
Notch
■Rack Installation
To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below:
1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as
illustrated in the following figure.
Figure 2-2 Bracket Installation
Rack-mounting Bracket
Screw
3. After the brackets are attached to the device, use suitable screws (not provided) to secure the
brackets to the rack, as illustrated in the following figure.
Figure 2-3 Rack Installation
Rack
Caution:
■Please set 5 to 10cm gaps around the device for air circulation.
■Please avoid any heavy thing placed on the device.
■Please place the device with its bottom facing downwards.
■Please mount devices in sequence from the bottom to top of the rack and ensure a certain
clearance between devices for the purpose of heat dissipation.

JetStream Smart Switch
12 Connection
Chapter 3 Connection
3.1 Ethernet Port
Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows.

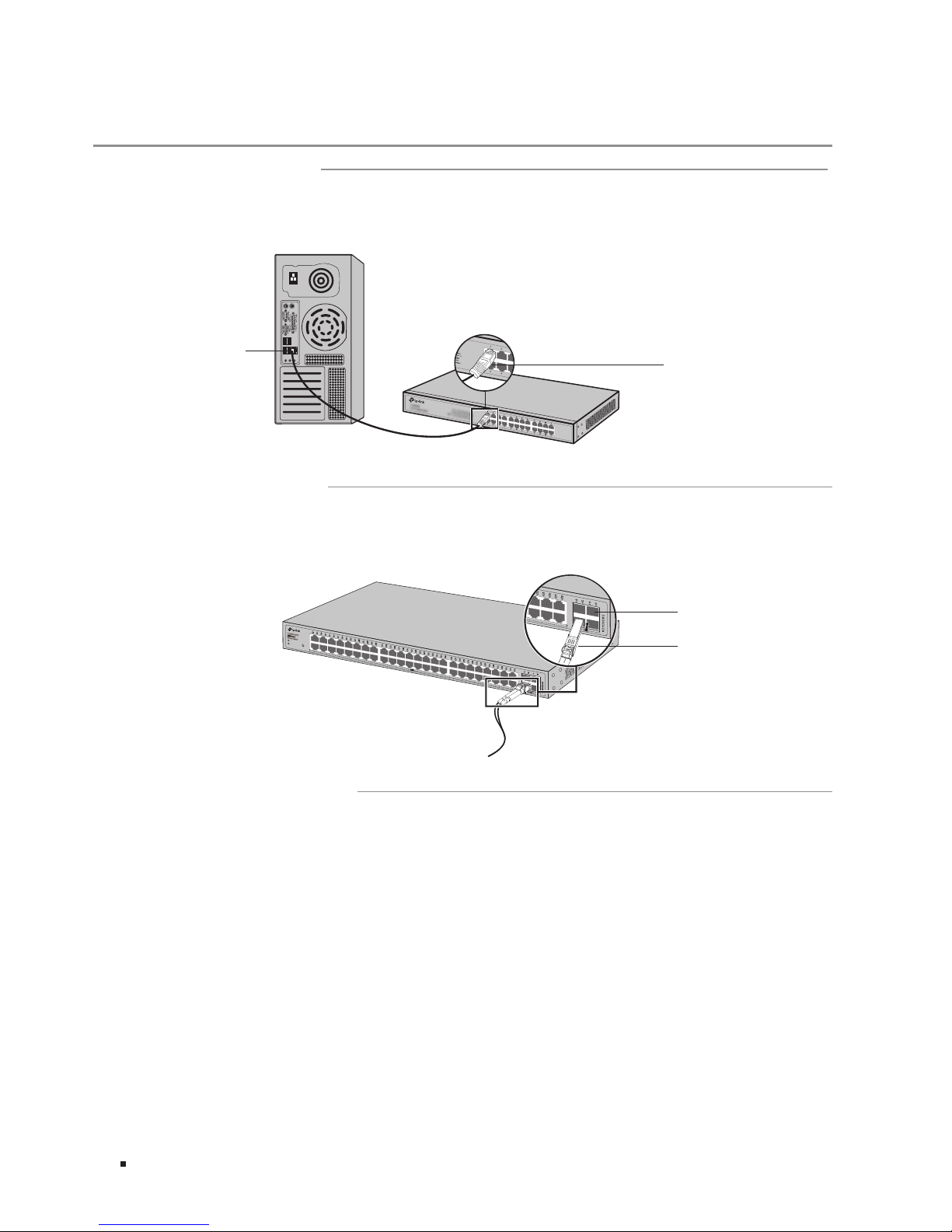

Figure 3-1 Connecting the RJ45 Port
RJ45 Port
RJ45 Cable
3.2 SFP/SFP+ Port
The following figure demonstrates the connection of SFP port to an SFP module.
Figure 3-2 Inserting the SFP Module
Reset
PWR
SYS
F
Reset
PWR
SYS
F
SFP/SFP+ Slot
SFP/SFP+ Module
3.3 Verify Installation
After completing the installation, please verify the following items:
■There are 5 to 10cm of clearance around the sides of the device for ventilation and the air flow is
adequate.
■The voltage of the power supply meets the requirement of the input voltage of the device.
■The power socket, device and rack are well grounded.
■The device is correctly connected to other network devices.

JetStream Smart Switch
13Connection
3.4 Power On
Plug in the negative connector of the provided power cord into the power socket of the device, and
the positive connector into a power outlet as the following figure shows.
Figure 3-3 Connecting to Power Supply
100-240V~50/60Hz 0.5A
Note:
The figure is to illustrate the application and principle. The power plug you get from the
package and the socket in your situation will comply with the regulation in your country, so they
may dier from the gure above.
3.5 Initialization
After the device is powered on, it begins the Power-On Self-Test. A series of tests run automatically
to ensure the device functions properly. During this time, its LED indicators will respond in the
following order:
1. The PWR LED indicator lights on all the time. The SYS LED and the LED indicators of all the ports
keep off.
2. After about one minute, the SYS LED and LED indicators of all the ports will flash momentarily and
then turn off.
3. Several seconds later, the SYS LED indicator will flash, which represents a successful initialization.
3.6 Accessing the Switch
After the initializaiton finished, you can access and manage the switch using the GUI (Graphical User
Interface) or using the CLI (Command Line Interface).
■To access the switch using the GUI, open a web browser and type the default management address
http://192.168.0.1 in the address field, then press the Enter key. The default Username and Password
are both admin in lower case letters.
■To access the switch using the CLI, you can use Telnet and SSH connection.
For the detailed configurations, please refer to the Configuration Guide and CLI Reference Guide.
The two guides can both be found on the resource CD or on the download center of our official
website: http://www.tp-link.com/en/download-center.html.

JetStream Smart Switch
14 Appendix A Troubleshooting
Appendix A Troubleshooting
Q1. What could I do if I forgot the username and password of the switch?
Press the Reset button for at least 5 seconds to reset the system. The system will be reset to
the factory default settings, and the default login user name and password are both admin.
Q2. Why does the PWR/Power LED work abnormally?
The PWR/Power LED should be lit up when the power system works normally. If the PWR LED
worked abnormally, please take the following steps:
1. Make sure that the power cable is connected properly, and the power contact is normal.
2. Make sure the voltage of the power supply meets the requirement of the input voltage of the
switch.
Q3. What should I do if I cannot access the web management page?
Please try the following:
1. Check every port LED on the switch and make sure the Ethernet cable is connected properly.
2. Try another port on the switch and make sure the Ethernet cable is suitable and works normally.
3. Power off the switch and, after a while, power it on again.
4. Make sure the IP address of your PC is set within the subnet of the switch.
5. If you still cannot access the configuration page, please restore the switch to its factory defaults.
Then the IP address of your PC should be set as 192.168.0.x ("x" is any number from 2 to 254) and
Subnet Mask as 255.255.255.0.

JetStream Smart Switch
15Appendix B Specications
Appendix B Specifications
Item Content
Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE
802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w
IEEE 802.3ae (For T1700G-28TQ / T1700X-16TS)
IEEE 802.3af, IEEE 802.3at (For T1500-18PCT / T1500G-10MPS / T1600G-
28PS / T1600G-52PS)
Transmission Medium
10Base-T: UTP/STP of Cat. 3 or above
100Base-TX: UTP/STP of Cat. 5 or above
100Base-FX/LX10/BX10: MMF or SMF SFP Module (For T1500-28TC /
T1500-28PCT / T1500G-10MPS)
1000Base-T: 4-pair UTP (≤100m) of Cat. 5e, and Cat. 6 or above
1000Base-SX/LX/LX10/BX10: MMF or SMF SFP Module
10GBASE-SR/LR: MMF or SMF SFP+ Transceiver (For T1700G-28TQ /
T1700X-16TS)
10GBASE-T: 4-pair UTP of Cat.6 (maximum 55m) or Cat.6a (maximum
100m), 4-pair STP of Cat.6/Cat. 6a/Cat.7 (maximum 100m)
(For T1700X-16TS)
LEDs
T1500-28TC: Power, System, 10/100M, 1000M
T1500-28PCT: PWR, SYS, PoE MAX, FAN, 10/100M or PoE, 1000M,
10/100M PoE
T1500G-10MPS: PWR, SYS, PoE MAX, FAN, Speed or PoE, SFP1, SFP2,
PoE, Speed
T1600G-18TS: PWR, SYS, 1000Mbps, Link/Act
T1600G-25TS / T1600G-52TS: PWR, SYS, 10/100/1000Mbps,100Base-
TX/1000Base-X
T1600G-28PS / T1600G-52PS: PWR, SYS, FAN, PoE MAX, Speed, PoE,
100Base-TX/1000BASE-X
T1700G-28TQ: PWR, SYS, Master, Link/Act, 1000M, 25, 26, 27, 28, Unit ID LED
T1700X-16TS: PWR, SYS, FAN, Link/Act
Operating Temperature 0℃to 40℃(32°F to 104°F)
Storage Temperature -40℃to 70℃(-40°F to 158°F)
Operating Humidity 10% to 90%RH Non-condensing
Storage Humidity 5% to 90%RH Non-condensing

FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown
to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is
made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2018.4.10
CE Mark Warning
This is a class A product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other
relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.
The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами України.
Safety Information
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
