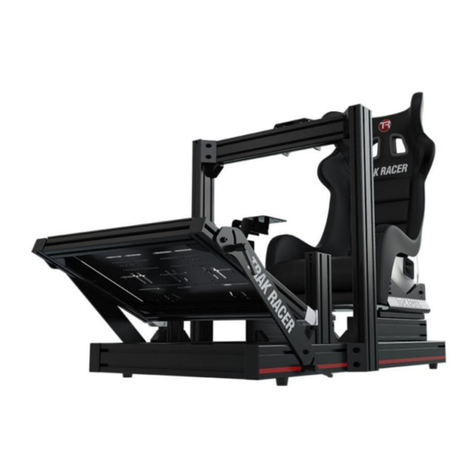

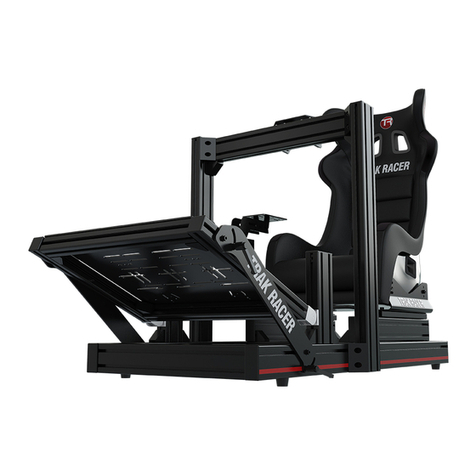

TRAK RACER TR80-LITE User manual

IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
1
Published 2022‑12‑06
TR80-LITE
Assembly Guide
TR80-LITE

3 Symbol Legend
4 Part list
5 Assembly Notes
9 TR80-LITE Assembly Instructions
15 Seat Slider Option
17 Recliner seat installation
21 GT/Rally seat installation
23 Wheel Mount Option 1
28 Universal Shifter Mount
2
TABLE OF CONTENTS

3
Two people needed
Tighten hardware
Leave hardware loose for adjustment
Make Adjustment
Break tab off Corner bracket CB1
Safety glasses needed
Attention / Priority
Reserve for following step
Mirrored Components (Same on both sides)
IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
IMPORTANT: Due to the nature of cut aluminium prole, some metal
shavings may still be present after our extensive QA cleaning process. We
recommend that boxes and packaging is opened on a hard oor.
NOTE: Some screws and washers are pre-installed. These will be part of
the parts list and will need to be loosened and reattached according to
the instructions.

IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
4
If you have any issues, please contact us at [e-mail]
Part # Description QTY Check
TR80-LITE-PART1
PS-1350-R Prole strip, 1350mm Red 2
AL-80-1350 Aluminum Prole, 40x80x1350mm 2
AL-80-660 Aluminum Aluminum Prole, 40x80x660mm 2
AL-80-500 Aluminum Aluminum Prole, 40x80x500mm 2
TR80-LITE-PART2
AL-80-150 Aluminum Prole, 40x80x150mm 2
CC-01 Cable Management clips 10
BC-40 Bracket, Corner with Cap, 40x40 18
BA-80-BLK Bracket, Anodized corner, 40x80, Black 4
EC-80 End Cap, 40x80 9
EC-40 End Cap, 40x40 4
FR-01 Feet, Rubber 4
PP-NP-LB Pedal Plate, L Bracket 2
NF-M8 Nut (Flange), M8 10
NS-M8 T-Nut (Spring), M8 10
NS-M8 T-Nut (Spring), M8 40
NS-M8 T-Nut (Spring), M8 14
NS-M6 T-Nut (Spring), M6 4
AL-40-500 Aluminum Prole, 40x40x500mm 2
AL-80-400 Aluminum Aluminum Prole, 40x80x400mm 1
PP-80-TP Pedal Plate, TR80 Top Plate 1
SH-M8-16 Screw (Hex), M8x16 16
SH-M8-20 Screw (Hex), M8x20 34
SH-M8-20 Screw (Hex), M8x20 14
SH-M6-20 Screw (Hex), M6x20 4
SF-M8-20 Screw (Flat), M8x20 10
BP-80-H Bracket (Plate), 80, Horizontal 1
TK-M8 Tool Kit, M8 1
WF-M8 Washer (Flat), M8 34
WF-M8 Washer (Flat), M8 14
WL-M8 Washer (Lock), M8 34
WL-M8 Washer (Lock), M8 14
TR80-LITE-PART2
TR80-LITE-PART1
*NOTE: Extra hardware may be included as spare parts
TR80-LITE PARTS LIST
INCLUDED TOOLS
5mm Ball End Hex Key 6mm Ball End Hex Key 13mm Spanner

5
1
NOTE
BACK SIDE
FRONTSIDE
INSIDE
TOP SIDE
OUTSIDE
SHIFTER SIDE
a
a

6
NOTE
The handle screws (SL-M8-20 & SL-M8-25) are
ratcheted to allow for tightening and loosening
when space for rotation is limited. Simply pull the
handle out and turn handle into position and
push handle back in to engage thread.

7
NOTE
If T-Nuts are skipped, and
the ends are no longer
accessible, they can be
inserted by “rocking” them
in from the outer face as
shown.
Use the provided allen key
to push the T-Nut into
position and place the hole
to slide into position.
It is strongly advised that
spring T-Nuts are inserted
by sliding from the ends of
profiles. Please take careful
note of each step of all T-nuts
as some are to be installed in
anticipation of future steps.
NS-M8 & NS-M6

8
NOTE BC-40

9
1
2
M6x20mm
SH-M6-20 x4 AT-80-1200 x2 NS-M6 x4 FR-01 x4
AT-80-500 x2 NS-M8 x20
Insert 2pcs of NS-M8
into TOP SIDE of each
AT-80-500 (for STEP 4)

10
4
3
AL-40-500 x2
380mm
15"
344mm
13.5"
SH-M8-20 x16
M8x20mm
WL-M8 x16 WF-M8 x16 BC-40 x8
NS-M8 x4 SH-M8-20 x8
M8x20mm
WL-M8 x8 WF-M8 x8 BC-40 x4

11
6
5
M8x16mm
SH-M8-16 x16 AL-80-660 x2 NS-M8 x16 BA-80-BLK x16
AL-80-240 x2 NS-M8 x8 SH-M8-20 x4
M8x20mm
WF-M8 x8 WL-M8 x8 BC-40 x4

12
8
7
PP-NP-LB x2 NS-M8 x6 SH-M8-20 x6
M8x20mm
WL-M8 x6 WF-M8 x6
M8x20mm
SF-M8-20 x10 NF-M8 x10 PP-80-TP x1

13
9
BP-80-H x1 AL-80-400 x1 NS-M8 x10
M8x20mm
SH-M8-20 x10 WL-M8 x10 WF-M8 x10 BC-40 x2
Note: End caps should be
installed after all
accessories are mounted
10
EC-40 x4 EC-80 x9 BC-40 x18

14
11
PS-1350-R x4

15
Published 2022‑12‑06
Seat Slider
Assembly
TR80-SLIDER
Part # Description QTY Check
SS-01 Seat Slider 1
SH-M8-16 Screw (Hex), M8x16 4
NL-M8 Nut (Locking), M8 4
WF-M8 Washer (Flat), M8 4
WL-M8 Washer (Lock), M8 4

16
1
SS-01 x1 NS-M8 x4
M8x16mm
SH-M8-16 x4 WL-M6 x4

17
Published 2022‑12‑06
SA-06/SA-07/SA-08
Recliner Seat
Assembly

18
x4
Note: Screws supplied with seat
1

SB-03 x1
Note: Screws supplied with seat & SB-03
SH-M8-20 x8
M8x20mm
WF-M8 x8
19
x2
2
3

Slide the slider all the way back
to install screws and nuts. Then
slide all the way forward and
repeat for front screws and nuts.
20
8a
4
x4
NL-M8 x4
Note: Hardware supplied with Seat Slider
M8x16mm
SH-M8-16 x4 WF-M8 x4
