Installation Guide
Fresh Air Damper
Used with Medium Foundation Light
Commercial Rooftops
MMooddeell NNuummbbeerr:: BAYDMPR310* and BAYDMPR311*
UUsseedd wwiitthh:: EBC 090-150, GBC 090-150

©2021 RT-SVN041B-EN
Introduction
Read this manual thoroughly before operating or servicing this unit
Warnings, Cautions, and Notices
Safety advisories appear throughout this manual as required Your personal
safety and the proper operation of this machine depend upon the strict
observance of these precautions
The three types of advisories are defined as follows:
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAU TION
Indicates a potentially hazardous situation which, if not avoided,
could result in minor or moderate injury. It could also be used to
alert against unsafe practices.
NOTICE
Indicates a situation that could result in equipment or property-
damage only accidents.
Important Environmental Concerns
Scientific research has shown that certain man-made chemicals can affect
the earth’s naturally occurring stratospheric ozone layer when released to
the atmosphere In particular, several of the identified chemicals that may
affect the ozone layer are refrigerants that contain Chlorine, Fluorine and
Carbon (CFCs) and those containing Hydrogen, Chlorine, Fluorine and
Carbon (HCFCs) Not all refrigerants containing these compounds have the
same potential impact to the environment Trane advocates the responsible
handling of all refrigerants-including industry replacements for CFCs and
HCFCs such as saturated or unsaturated HFCs and HCFCs
Important Responsible Refrigerant Practices
Trane believes that responsible refrigerant practices are important to the
environment, our customers, and the air conditioning industry All
technicians who handle refrigerants must be certified according to local
rules For the USA, the Federal Clean Air Act (Section 608) sets forth the
requirements for handling, reclaiming, recovering and recycling of certain
refrigerants and the equipment that is used in these service procedures In
addition, some states or municipalities may have additional requirements

RT-SVN041B-EN 3
that must also be adhered to for responsible management of refrigerants
Know the applicable laws and follow them
WWAARRNNIINNGG
PPrrooppeerr FFiieelldd WWiirriinngg aanndd GGrroouunnddiinngg RReeqquuiirreedd!!
Failure to follow code could result in death or serious injury
All field wiring MUST be performed by qualified personnel Improperly
installed and grounded field wiring poses FIRE and ELECTROCUTION
hazards To avoid these hazards, you MUST follow requirements for field
wiring installation and grounding as described in NEC and your local/state/
national electrical codes
WWAARRNNIINNGG
PPeerrssoonnaall PPrrootteeccttiivvee EEqquuiippmmeenntt ((PPPPEE)) RReeqquuiirreedd!!
Failure to wear proper PPE for the job being undertaken could result in
death or serious injury
Technicians, in order to protect themselves from potential electrical,
mechanical, and chemical hazards, MUST follow precautions in this manual
and on the tags, stickers, and labels, as well as the instructions below:
• Before installing/servicing this unit, technicians MUST put on all
PPE required for the work being undertaken (Examples; cut
resistant gloves/sleeves, butyl gloves, safety glasses, hard hat/
bump cap, fall protection, electrical PPE and arc flash clothing)
ALWAYS refer to appropriate Safety Data Sheets (SDS) and OSHA
guidelines for proper PPE
• When working with or around hazardous chemicals, ALWAYS
refer to the appropriate SDS and OSHA/GHS (Global Harmonized
System of Classification and Labelling of Chemicals) guidelines
for information on allowable personal exposure levels, proper
respiratory protection and handling instructions
• If there is a risk of energized electrical contact, arc, or flash,
technicians MUST put on all PPE in accordance with OSHA, NFPA
70E, or other country-specific requirements for arc flash
protection, PRIOR to servicing the unit NEVER PERFORM ANY
SWITCHING, DISCONNECTING, OR VOLTAGE TESTING
WITHOUT PROPER ELECTRICAL PPE AND ARC FLASH CLOTHING
ENSURE ELECTRICAL METERS AND EQUIPMENT ARE PROPERLY
RATED FOR INTENDED VOLTAGE
IInnttrroodduuccttiioonn

4RT-SVN041B-EN
WWAARRNNIINNGG
FFoollllooww EEHHSS PPoolliicciieess!!
Failure to follow instructions below could result in death or serious injury
• All Trane personnel must follow the company’s Environmental,
Health and Safety (EHS) policies when performing work such as
hot work, electrical, fall protection, lockout/tagout, refrigerant
handling, etc Where local regulations are more stringent than
these policies, those regulations supersede these policies
• Non-Trane personnel should always follow local regulations
Copyright
This document and the information in it are the property of Trane, and may
not be used or reproduced in whole or in part without written permission
Trane reserves the right to revise this publication at any time, and to make
changes to its content without obligation to notify any person of such
revision or change
rademarks
All trademarks referenced in this document are the trademarks of their
respective owners
IInnttrroodduuccttiioonn

RT-SVN041B-EN 5
Pre-Installation
General Information
The fresh air adjustment panel with the hood is designed to provide up to
33% outside air Once the hood is installed, it will allow a fixed quantity of
outside air to be introduced into the conditioned space when powered
Unit Inspection
To protect against loss due to damage incurred in transit, perform inspection
immediately upon receipt of the unit
Exterior Inspection
If the job site inspection reveals damage or material shortages, file a claim
with the carrier immediately Specify the type and extent of the damage on
the bill of lading before signing Notify the appropriate sales representative
IImmppoorrttaanntt:: Do not proceed with installation of a damaged unit without sales
representative’s approval.
• Visually inspect the complete exterior for signs of shipping damages
to unit or packing material
• Verify that the nameplate data matches the sales order and bill of
lading
• Verify that the unit is properly equipped and there are no material
shortages
• Verify that the power supply complies with the unit nameplate
specifications
Inspection for Concealed Damage
Visually inspect the components for concealed damage as soon as possible
after delivery and before it is stored
If concealed damage is discovered:
• Notify the carrier’s terminal of the damage immediately by phone and
by mail
• Concealed damage must be reported within 15 days
• Request an immediate, joint inspection of the damage with the carrier
and consignee
• Stop unpacking the unit

6RT-SVN041B-EN
• Do not remove damaged material from receiving location
• Take photos of the damage, if possible
• The owner must provide reasonable evidence that the damage did
not occur after delivery
Parts List
• Damper assembly
• O/A cover panel
• Filter
PPrree--IInnssttaallllaattiioonn

RT-SVN041B-EN 7
Installation
BAYDMPR310*
1 Open the unit disconnect switch
2 Remove screws securing the filter access door and outside air panel
to the unit Do not throw out the screws; they will be used in Step 4
3 Connect the provided wiring harness to the 12-pin plug in the R/A
section
4 Secure the hood and damper panel to the unit outside air panel with 4
screws (Remaining screws to be used in Step 2 )
5 Install the filter/mist eliminator into the fresh air hood using the
spring hinge to hold it in place, as illustrated in Figure 1, p 7
6 Close the unit disconnect switch

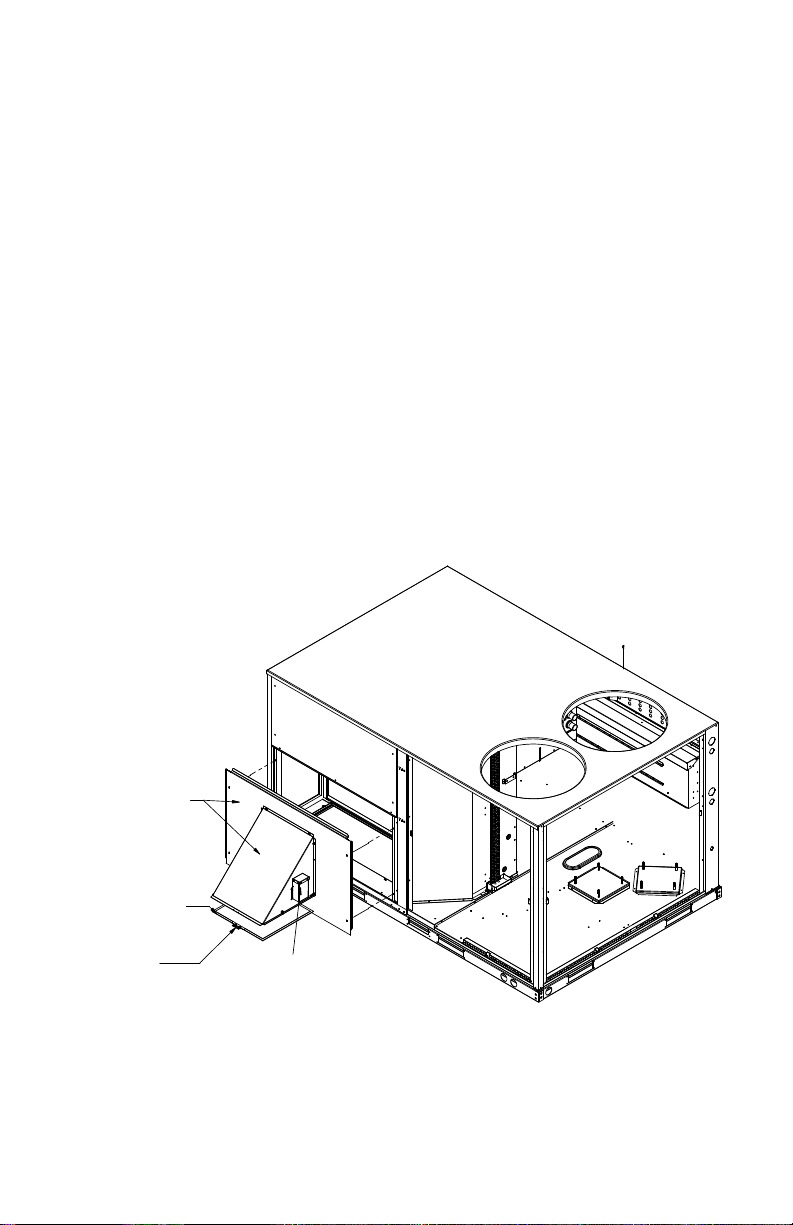

Figure 1. BAYDMPR310* damper assembly
Mist Eliminator
Hood and Panel
Ship Attached
Hinged Filter
Access Motor Housing
With 2-Position Motor
NNoottee:: The filter/mist eliminator can be taken out for cleaning by bending the
spring hinge.

8RT-SVN041B-EN
BAYDMPR311*
1 Open the unit disconnect switch
2 Remove screws securing the filter access door and outside air panel
to the unit Do not throw out the screws; they will be used in Step 3
3 Secure the hood and damper panel to the unit outside air panel with 4
screws (Remaining screws used in Step 2 )
4 Adjust the damper blade to the desired position setting
5 Install the filter/mist eliminator into the fresh air hood using the
spring hinge to hold it in place, as illustrated in Figure 2, p 8
6 Close the unit disconnect switch
Figure 2. BAYDMPR311* damper assembly
Hood and Panel
Ship Attached
Mist Eliminator
Hinged Filter
Access Manual Position
Settings
NNoottee:: The filter/mist eliminator can be taken out for cleaning by bending the
spring hinge.
IInnssttaallllaattiioonn

RT-SVN041B-EN 9
Notes
Notes

10 RT-SVN041B-EN
Notes

RT-SVN041B-EN 11
Notes
