Transition Networks SISPM1040-582-LRT User manual

TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 1of 172


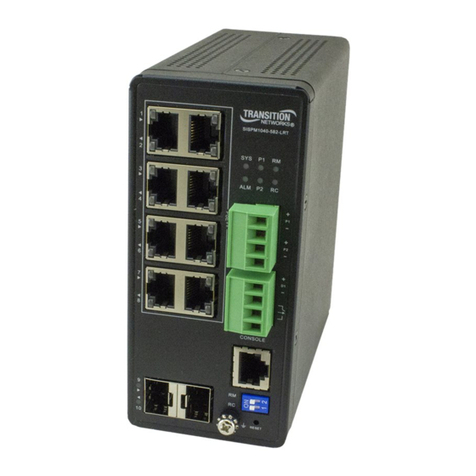

SISPM1040‐582‐LRT
ManagedHardenedPoE++Switch(8)10/100/1000Base‐TPoE++
Ports+(2)100/1000Base‐XSFPSlot

CLIReference
33757Rev.A



TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 2of 172

Trademarks
Alltrademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.
Copyright Notice/Restrictions
Copyright©2018TransitionNetworks.Allrightsreserved.Nopartofthisworkmaybereproducedorusedin
anyformorbyanymeans(graphic,electronicormechanical)withoutwrittenpermissionfromTransition
Networks.PrintedintheU.S.A.
Contact Information
TransitionNetworks
10900RedCircleDrive
Minnetonka,MN55343USA
tel:+1.952.941.7600|tollfree:1.800.526.9267|fax:952.941.2322
[email protected]|[email protected]|[email protected]
SISPM1040‐582‐LRTManagedHardenedPoE++SwitchCLIReference,33757Rev.A
Revision History
RevDateDescription
A9/20/18InitialreleaseforFWv7.10.1492.
CautionsandWarnings
Cautionsindicatethatthereisthepossibilityofpoorequipmentperformanceorpotentialdamagetotheequipment.
Warningsindicatethatthereisthepossibilityofinjurytoperson.
CautionsandWarningsappearhereandmayappearthroughoutthismanualwhereappropriate.Failuretoreadand
understandtheinformationidentifiedbythissymbolcouldresultinpoorequipmentperformance,damagetothe
equipment,orinjurytopersons.
SeetheInstallGuideforSafetyCautionsandWarningsinmultiplelanguages.


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 3of 172

TableofContents
1.Introduction..................................................................................................................................................5
1.1KeyFeatures.......................................................................................................................................................5
1.2ManualOverview...............................................................................................................................................5
1.3RelatedManuals................................................................................................................................................5
2.CLIManagement............................................................................................................................................6
2.1Login...................................................................................................................................................................6
2.2NavigatingtheCommandLine...........................................................................................................................6
2.3CLICommandModes.........................................................................................................................................7
2.4ChangingBetweenCommandModes................................................................................................................
7
2.5GlobalCommands..............................................................................................................................................8
3.ClearCommands...........................................................................................................................................12
4.ConfigureCommands....................................................................................................................................22
5.CopyCommands...........................................................................................................................................70
6.DeleteCommands........................................................................................................................................71
7.DirCommands..............................................................................................................................................71
8.DisableCommands.......................................................................................................................................72
9.DoCommands..............................................................................................................................................72
10.Dot1xCommands.......................................................................................................................................73
11.EnableCommands......................................................................................................................................74
12.ERPSCommands.........................................................................................................................................75
12.1ERPSConfigModeCommands.......................................................................................................................75
12.2ERPSExecModeCommands..........................................................................................................................76
13.FirmwareCommands..................................................................................................................................77
14.IPCommands..............................................................................................................................................77
15.IPv6Commands..........................................................................................................................................78
16.LinkOAMCommands.................................................................................................................................79
17.NoCommands............................................................................................................................................
80
18.PingCommands..........................................................................................................................................82
19.PlatformCommands...................................................................................................................................83
20.DebugCommands.......................................................................................................................................84
21.PTPCommands...........................................................................................................................................87
22.ReloadCommands......................................................................................................................................88
23.SendCommands.........................................................................................................................................88
24.ShowCommands........................................................................................................................................89
25.TerminalCommands.................................................................................................................................128
26.TracerouteCommands..............................................................................................................................128
27.ConfigureInterfaceCommands.................................................................................................................129
27.1ConfigureandShowPortEventsforanInterface.......................................................................................132
27.2ConfigureQoSCommandsforanInterface................................................................................................133

TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 4of 172

28.CLICommandSummary............................................................................................................................135
28.1PrivilegeLevels............................................................................................................................................135
28.2CommandSummary....................................................................................................................................135
29.Service,Warranty,andTechSupport........................................................................................................161
29.1RecordingDeviceandSystemInformation.................................................................................................161
29.2LimitedLifetimeWarranty..........................................................................................................................162
29.3ContactUs...................................................................................................................................................162
AppendixA.DHCPPerPort.............................................................................................................................163
AppendixB.HowtoGettheGoogleMapAPIKey...........................................................................................166
AppendixC.Service,Warranty&TechSupport..............................................................................................171
AppendixD.ComplianceInformation.............................................................................................................171

TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 5of 172

1.Introduction
TheSISPM1040‐582‐LRTindustrialL2+managedGbEPoE++switchisthenextgenerationindustrialgrade
EthernetswitchofferingpowerfulL2andbasicL3featuresforbetterfunctionalityandusability.Alongwithits
extensivemanagementfeatures,theSISPM1040‐582‐LRTalsoprovidesCarrierEthernetfeaturessuchasOAM,
ERPS,EPS,andPTPv2,makingitsuitableforindustrialandCarrierEthernetapplications.
TheSISPM1040‐582‐LRTdelivers8(10M/100M/1G)RJ45withPoE++(802.3at/af/btforupto480Wtotal)ports,2
GbESFPportsandanRJ45Consoleport.TheSISPM1040‐582‐LRTprovideshighhardwareperformanceand
operatingenvironmentflexibilityforIndustrialandCarrierEthernetapplications.
TheembeddedDeviceManagedSystem(DMS)featuremakesiteasytouse,configure,install,andtroubleshoot
invideosurveillance,wirelessaccess,andotherindustrialapplications.
1.1 Key Features
RapidRing/RingToRing/RapidChain
DMS(DeviceManagementSystem)builtin
ITU‐TG.8031EthernetLinearProtectionSwitching(EPS)
ITU‐TG.8032EthernetRingProtectionSwitching(ERPS)
IEEE1588v2PTP
IEEE802.3ahOAM
IEEE802.1agCFM(ITU‐TY.1731PerformanceMonitoring)
DHCPServer,DHCPRelay,DHCPSnooping,DHCPPerPort
IEEE802.3azEnergyEfficientEthernet(EEE)forgreenEthernetapplications
IEEE802.3af/at/PoE++PoweroverEthernet(IEEE802.3bt)
IPv4/IPv6L3staticroute
1.2 Manual Overview
Thismanualgivesspecificinformationonhowtooperateandusethemanagementfunctionsoftheswitchviaits
CommandLineInterface(CLI).Thismanualisintendedforusebynetworkadministratorswhoareresponsiblefor
operatingandmaintainingnetworkequipment;itassumesabasicworkingknowledgeofgeneralswitchfunctions,
theRS‐232Console,InternetProtocol(IP),andTelnetProtocol.
1.3 Related Manuals
SISPM1040‐582‐LRTQuickStartGuide,33754
SISPM1040‐582‐LRTInstallGuide,33755
SISPM1040‐582‐LRTWebUserGuide,33756
SISPM1040‐582‐LRTCLIReference,33757(thismanual)
ForTransitionNetworks’Drivers,Firmware,etc.gototheProductSupportwebpage(logonrequired).
ForTransitionNetworks’Manuals,Brochures,DataSheets,etc.gototheSupportLibrary(nologonrequired).
ForSFPorSFP+informationseeTransitionNetworksSFPwebpage.

TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 6of 172

2.CLIManagement
FollowthestepsbelowtomakeanetworkconnectionforCLIcommandmanagement.
1. LocatethecorrectDB‐9(RS‐232)cablewithafemaleDB‐9connector.RS‐232cableisusedforconnectinga
terminalorterminalemulatortotheManagedSwitch’sRJ45porttoaccessthecommand‐lineinterface.
2. AttachtheRJ45serialportontheswitch’sfrontpanelwhichusedtoconnecttotheswitchforconsole
configuration
3. AttachtheotherendoftheDB‐9cabletoanASCIIterminalemulatororPCCom‐1,2port.Forexample,PC
runsMicrosoftWindowsHyperTerminalutility.
4. At“ComPortProperties”menu,configuretheparametersasbelow(seethenextsection).
Baudrate 115200
Stopbits 1
Databits 8
Parity  N
Flowcontrol none

2.1 Login
Thecommand‐lineinterface(CLI)isatext‐basedinterface.UsercanaccesstheCLIthrougheitheradirectserial
connectiontothedeviceoraTelnetsession(DefaultIPaddress:192.168.1.1).Thedefaultuserandpasswordto
loginintotheManagedSwitcharelistedbelow:
Username:admin
Password:admin
Afteryouloginsuccessfully,thepromptdisplaysas“<sys_name>#“.Itmeansyouareanadministratorandhave
fullprivilegesforconfiguringtheswitch.Ifnotloggedinastheadministrator,thepromptwillbeshownas
“<sys_name>>”,whichmeansyouareaguestandarenotallowedthefullsetofCLIcommands.EachCLI
commandhasitsprivilegelevelof0‐15.
2.2 Navigating the Command Line
TodisplayPress Description
more –  dashkey
nextpageSpace spacebar
continueg gkey
quit ^C ControlC
parameters? Singlequestionmark
syntax ?? Twoquestionmarks





TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 7of 172

2.3 CLI Command Modes
TheCLIisdividedintoseveralmodes.Ifauserhasenoughprivilegetorunaparticularcommand,theuserhasto
runthecommandinthecorrectmode.Toseethecommandsofthemode,entera“?”afterthesystemprompt,
thenallcommandswillbelistedinthescreen.Thecommandmodesarelistedasbelow:
CommandModes
Mode Prompt Command Function in this Mode
exec <sys_name># Display current configuration, diagnostics,
maintenance
config <sys_name>(config)# Configure features other than those below
Config-if <sys_name>(config-interface)# Configure ports
Config-if-vlan <sys_name>(config-if-vlan)# Configure static vlan
Config-line <sys_name>(config-line)# Line Configuration
Config-impc-profile <sys_name>(config-impc-profile)# IPMC Profile
Config-snmp-host <sys_name>(config-snmp-host)# SNMP Server Host
Config-stp-aggr <sys_name>(config-stp-aggr)# STP Aggregation
Commandsresideinaspecificmodeandcanonlyberuninthatmode.Torunaparticularcommand,youmust
changetotheappropriatemode.Thecommandmodesareorganizedasatree,andyoustartinExecmode.
Thefollowingtableexplainshowtochangefromonemodetoanother.

2.4 Changing Between Command Modes
ModeEnterModeLeaveMode
exec ‐‐ ‐‐
configConfigureterminalexit
config‐interfaceInterface<port‐type>
<port‐type‐list>
exit
config‐vlanInterfacevlan<vlan_list>exit



TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 8of 172

2.5 Global Commands
Enteraquestionmark(?)atthecommandlineprompttodisplaytheglobalExecmodecommands.
SISPM1040‐582‐LRT#?
CableDiagCableDiagnostickeyword
clearResetfunctions
configureEnterconfigurationmode
copyCopyfromsourcetodestination
debugDebuggingfunctions
deleteDeleteonefileinflash:filesystem
dirDirectoryofallfilesinflash:filesystem
disableTurnoffprivilegedcommands
doTorunexeccommandsinconfigmode
dot1xIEEEStandardforport‐basedNetworkAccessControl
enableTurnonprivilegedcommands
erpsEthernetRingProtectionSwitching
exitExitfromEXECmode
firmwareFirmwareupgrade/swap
helpDescriptionoftheinteractivehelpsystem
ipIPv4commands
ipv6IPv6configurationcommands
link‐oamLinkOAMconfiguration
logoutExitfromEXECmode
moreDisplayfile
noNegateacommandorsetitsdefaults
pingSendICMPechomessages
platformPlatformconfiguration
ptpMiscnonpersistent1588settings
reloadReloadsystem.
sendSendamessagetootherttylines
showShowrunningsysteminformation
terminalSetterminallineparameters
traceroutetracerouteprogram
SISPM1040‐582‐LRT#

Command: Exit
Description: ExitfromEXECmode.
Syntax: exit
Parameters: None
Example:
SISPM1040‐582‐LRT#exit

Username:
Password:
Wrongusernameorpassword!
Username:admin
Password:
SISPM1040‐582‐LRT#conter
SISPM1040‐582‐LRT(config)#exit
SISPM1040‐582‐LRT#exit?
exitExitfromEXECmode
<cr>
SISPM1040‐582‐LRT#


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 9of 172

Command: Help
Description: Descriptionoftheinteractivehelpsystem.
Syntax: help
Parameters: None
Example:
SISPM1040‐582‐LRT#help
Helpmayberequestedatanypointinacommandbyentering
aquestionmark'?'.Ifnothingmatches,thehelplistwill
beemptyandyoumustbackupuntilenteringa'?'showsthe
availableoptions.
Twostylesofhelpareprovided:
1.Fullhelpisavailablewhenyouarereadytoentera
commandargument(e.g.'show?')anddescribeseachpossible
argument.
2.Partialhelpisprovidedwhenanabbreviatedargumentisentered
andyouwanttoknowwhatargumentsmatchtheinput
(e.g.'showpr?'.)

SISPM1040‐582‐LRT#

Command: ?
Description: Enterasinglequestionmark(?)inthecommandlinetodisplaytheparametersavailable.
Entertwoquestionmarks(??)inthecommandlinetodisplaythesyntaxavailable.
Syntax: ?
??
Parameters: <cr>
Example1:Enterasinglequestionmark(?)inthecommandlinetodisplaytheparametersavailable.
SISPM1040‐582‐LRT#show?
aaaAuthentication,AuthorizationandAccountingmethods
accessAccessmanagement
access‐listAccesslist
aggregationAggregationportconfiguration
clockConfiguretime‐of‐dayclock
dot1xIEEEStandardforport‐basedNetworkAccessControl
epsEthernetProtectionSwitching
erpsEthernetRingProtectionSwitching
evcEthernetVirtualConnections
eventShowtrapeventconfiguration
green‐ethernetGreenethernet(Powerreduction)
historyDisplaythesessioncommandhistory
interfaceInterfacestatusandconfiguration
ipInternetProtocol
ipmcIPv4/IPv6multicastconfiguration
ipv6IPv6configurationcommands
lacpLACPconfiguration/status
lineTTYlineinformation
link‐oamLinkOAMconfiguration
lldpDisplayLLDPneighborsinformation.
loggingSystemloggingmessage
loop‐protectLoopprotectionconfiguration


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 10 of 172

Example2:Entertwoquestionmarks(??)inthecommandlinetodisplaythesyntaxavailable.
SISPM1040‐582‐LRT#show?
showShowrunningsysteminformation
SISPM1040‐582‐LRT#show?
showaaa
showaccessmanagement[statistics|<access_id_list>]
showaccess‐list[interface[(<port_type>[<v_port_type_list>])]][rate
‐limiter[<rate_limiter_list>]][acestatistics[<ace_list>]]
showaccess‐listace‐status[static][link‐oam][loop‐protect][dhcp][
ptp][upnp][arp‐inspection][evc][mep][ipmc][ip‐source‐guard][
ip‐mgmt][tt‐loop][y1564][dms‐client][dms‐server][dms‐ssdp][dm
s‐onvif][agv‐car][dms‐mdns][ztp][rapid‐ring][lacp‐on‐air][conf
licts][switch<switch_list>]
showaggregation[mode]
showclock
showclockdetail
showdot1xstatistics{eapol|radius|all}[interface(<port_type>[<v_po
rt_type_list>])]
showdot1xstatus[interface(<port_type>[<v_port_type_list>])][brief]

showeps[<inst>][detail]
showerps{[<groups>]}[detail|statistics]
showevcstatistics{[<evc_id>|all]}[ece[<ece_id>]][interface(<p
ort_type>[<port_list>])][pw<pw_num_list>][cos<cos>][green|yello
w|red|discard][frames|bytes]
showevc{[<evc_id>|all]}[ece[<ece_id>]]
‐‐more‐‐,nextpage:Space,continue:g,quit:^C

Command: Logout
Description: ExitfromEXECmode.
Syntax: logout<cr>
Parameters: PressEntertologbackin.
Example:
SISPM1040‐582‐LRT#logout

Username:
Password:

Command: End
Description: GobacktoEXECmode.
Syntax: end<cr>
Parameters: None
Example:
SISPM1040‐582‐LRT(config)#end
SISPM1040‐582‐LRT#


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 11 of 172

Command: CableDiag
Description: RunCableDiagnostictestoncopperports.
Syntax: CableDiaginterface<port_type><port_type_id>
Parameters: interface Interfacekeyword
GigabitEthernet1GigabitEthernetPort
<port_type_id>PortIDin1/1‐8
Example:
SISPM1040‐582‐LRT#CableDiaginterfaceGigabitEthernet1/3
StartingCableDiagnostic‐Pleasewait
InterfaceLinkStatusTestResultLength
‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐
GigabitEthernet1/3LinkDowndetecterrororcheckcablelengthisbetween7‐120meters
SISPM1040‐582‐LRT#
Messages:%Nosuchinterface:GigabitEthernet1/9displaysifyouenterthecommandonafiberport.





TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 12 of 172

3.ClearCommands
Command Function
accessAccessmanagement
access‐list Accesslist
dot1xIEEEStandardforport‐basedNetworkAccessControl
epsEthernetProtectionSwitching.
erpsEthernetRingProtectionSwitching
evcEthernetVirtualConnections
ipInterfaceInternetProtocolconfigcommands
ipv6IPv6configurationcommands
lacpClearLACPstatistics
link‐oamClearLinkOAMstatistics
lldpClearsLLDPstatistics.
loggingSystemloggingmessage
macMACAddressTable
mepMaintenanceEntityPoint
mvrMulticastVLANRegistrationconfiguration
port‐securityEnable/disableportsecurityglobally.
ptp PrecisionTimeProtocol
sflowStatisticsflow.
spanning‐treeSTPBridge
statisticsClearstatisticsforoneormoregiveninterfaces

Command:Access
Description: ClearAccessmanagement.
Syntax: access
Parameters: None
Example: 
SISPM1040‐582‐LRT#clearaccessmanagementstatistics?
<cr>
SISPM1040‐582‐LRT#clearaccessmanagementstatistics
SISPM1040‐582‐LRT#

Command: Accesslist
Description: ClearAccesslist.
Syntax: clearaccess‐listacestatistics
Parameters:
ace Accesslistentry
statisticsTrafficstatistics
Example:
SISPM1040‐582‐LRT#clearaccess‐listacestatistics
SISPM1040‐582‐LRT#


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 13 of 172

Command: Dot1x
Description: ClearIEEEStandardforport‐basedNetworkAccessControl.
Syntax: cleardot1xstatistics
cleardot1xstatistics[interface(<port_type>[<v_port_type_list>])]
Parameters: statistics  Clearsthestatisticscounters
interface  Interface
GigabitEthernet1GigabitEthernetPort
PORT_TYPE_LIST Portlistin1/1‐10forGigabitethernet
Example:
SISPM1040‐582‐LRT#cleardot1xstatistics?
interface<cr>
SISPM1040‐582‐LRT#cleardot1xstatistics
SISPM1040‐582‐LRT#cleardot1xstatisticsinterface?
*AllswitchesorAllports
GigabitEthernet1GigabitEthernetPort
SISPM1040‐582‐LRT#cleardot1xstatisticsinterfaceGigabitEthernet1/2‐4
SISPM1040‐582‐LRT#

Command: EPS
Description:ClearEthernetProtectionSwitching.
Syntax: cleareps<unit>wtr
Parameters: 
<uint> TheEPSinstancenumber.
wtr ClearactiveWTR
Example:
SISPM1040‐582‐LRT#cleareps1wtr?
wtrClearactiveWTR.
<cr>
SISPM1040‐582‐LRT#cleareps1wtr
Error:EPSinstanceisnotcreated
SISPM1040‐582‐LRT#


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 14 of 172

Command: erps
Description:ClearEthernetRingProtectionSwitching.
Syntax: clearerps[<groups>]statistics
Parameters:
1~64 ZeroormoreERPSgroupnumbers
statistics ClearERPSstatistics
Example:
SISPM1040‐582‐LRT#clearerps?
1~64ZeroormoreERPSgroupnumbers
statisticsClearERPSstatistics
SISPM1040‐582‐LRT#clearerps1?
statisticsClearERPSstatistics
SISPM1040‐582‐LRT#clearerps1statistics?
<cr>
SISPM1040‐582‐LRT#clearerps1statistics
%NosuchERPSgroup:1
SISPM1040‐582‐LRT#clearerps?
erpsEthernetRingProtectionSwitching
SISPM1040‐582‐LRT#clearerps?
clearerps[<groups>]statistics
SISPM1040‐582‐LRT#clearerps

Command: evc
Description:ClearEthernetVirtualConnections.
Syntax: clearevcstatistics{[<evc_id>|all]}[ece[<ece_id>]][interface(<port_type>[<port_list>])
][pw<pw_num_list>]
Parameters:
statistics Statisticcounters
interface Interface
<cr>
Example:
SISPM1040‐582‐LRT#clearevc?
evcEthernetVirtualConnections
SISPM1040‐582‐LRT#clearevc?
clearevcstatistics{[<evc_id>|all]}[ece[<ece_id>]][interface(<port_type>[<port_list>
])][pw<pw_num_list>]
SISPM1040‐582‐LRT#clearevc?
statisticsStatisticcounters
SISPM1040‐582‐LRT#clearevcstatistics?
interfaceInterface
<cr>
SISPM1040‐582‐LRT#clearevcstatistics
SISPM1040‐582‐LRT#clearevcstatisticsinterface?
*AllswitchesorAllports
GigabitEthernet1GigabitEthernetPort
SISPM1040‐582‐LRT#clearevcstatisticsinterfaceGigabitEthernet1/3‐7
SISPM1040‐582‐LRT#


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 15 of 172

Command: ip
Description:ClearInterfaceInternetProtocolconfigcommands.
Syntax: 
cleariparp
clearipdhcpdetailedstatistics{server|client|snooping|relay|helper|all}[interface(<port_type>[
<in_port_list>])]
clearipdhcprelaystatistics
clearipdhcpserverbinding<ip>
clearipdhcpserverbinding{automatic|manual|expired}
clearipdhcpserverstatistics
clearipdhcpsnoopingstatistics[interface(<port_type>[<in_port_list>])]
clearipigmpsnooping[vlan<v_vlan_list>]statistics
clearipstatistics[system][interfacevlan<v_vlan_list>][icmp][icmp‐msg<type>]
Parameters: arp ClearARPcache
dhcp DynamicHostConfigurationProtocol
igmp InternetGroupManagementProtocol
statistics  Trafficstatistics
relay  DHCPrelayagentconfiguration
snooping  DHCPsnooping
interface Selectaninterfacetoconfigure
GigabitEthernet 1GigabitEthernetPort
vlan IPv4trafficinterface
<vlan_list> VLANidentifier(s):VID
Example:
SISPM1040‐582‐LRT#clearip?
arpClearARPcache
dhcpDynamicHostConfigurationProtocol
igmpInternetGroupManagementProtocol
statisticsTrafficstatistics
SISPM1040‐582‐LRT#cleariparp?
<cr>
SISPM1040‐582‐LRT#cleariparp
SISPM1040‐582‐LRT#clearipdhcpdetailedstatisticsall
SISPM1040‐582‐LRT#clearipdhcpserverbinding192.168.1.11
SISPM1040‐582‐LRT#$ingstatisticsinterfaceGigabitEthernet1/1‐10
SISPM1040‐582‐LRT#clearipstatisticssysteminterface
%Incompletecommand.

SISPM1040‐582‐LRT#clearipstatisticssysteminterface?
vlanIPv4interfacetraffic
SISPM1040‐582‐LRT#clearipstatisticssysteminterfacevlan?
<vlan_list>VLANidentifier(s):VID
SISPM1040‐582‐LRT#clearipstatisticssysteminterfacevlan10
%FailedtoclearIPv4VLAN10statistics.
SISPM1040‐582‐LRT#


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 16 of 172

Command: IPv6
Description:ClearIPv6configurationcommands.
Syntax: 
clearipv6mldsnooping[vlan<v_vlan_list>]statistics
clearipv6neighbors
clearipv6statistics[system][interfacevlan<v_vlan_list>][icmp][icmp‐msg<type>]
Parameters: mld MulticasatListenerDiscovery
neighborsIpv6neighbors
statistics Trafficstatistics
snooping SnoopingMLD
statistics RunningMLDsnoopingcounters
vlanIpv6interfacetraffic
<vlan_list>VLANidentifier(s):VID
icmpIPv6ICMPtraffic
icmp‐msgIPv6ICMPtrafficfordesignatedmessagetype
interface Selectaninterfacetoconfigure
systemIPv6systemtraffic
<0~255> ICMPmessagetyperangesfrom0to255
Example:
SISPM1040‐582‐LRT#clearipv6mldsnoopingvlan3statistics
SISPM1040‐582‐LRT#clearipv6neighbors
SISPM1040‐582‐LRT#Clearipv6statisticssystemicmpicmp‐msg2
SISPM1040‐582‐LRT#

Command: LACP
Description:ClearLACPstatistics.
Syntax: clearlacpstatistics
Parameters: 
statistics ClearallLACPstatistics
Example:
SISPM1040‐582‐LRT#clearlacpstatistics
SISPM1040‐582‐LRT#


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 17 of 172

Command: link‐oam
Description:ClearLinkOAMstatistics.
Syntax: 
clearlink‐oamstatistics
clearlink‐oamstatisticsinterface(*|GigabitEthernet)<port_type_list>
Parameters: statisticsClearRx/Txcounters
interface ClearLinkOAMstatisticonaspecificinterfaceorallinterfaces.
*AllswitchesorAllports
GigabitEthernet1GigabitEthernetPort
<port_type_list>Portlistforallporttypes
<port_type_list>Portlistin1/1‐10
Example:
SISPM1040‐582‐LRT#clearlink‐oam?
link‐oamClearLinkOAMstatistics
SISPM1040‐582‐LRT#clearlink‐oam?
clearlink‐oamstatistics[interface(<port_type>[<plist>])]
SISPM1040‐582‐LRT#clearlink‐oam
statistics
SISPM1040‐582‐LRT#clearlink‐oamstatistics?
interfaceClearLinkOAMstatisticonaspecificinterfaceorall
interfaces.
<cr>
SISPM1040‐582‐LRT#clearlink‐oamstatistics
SISPM1040‐582‐LRT#clearlink‐oamstatisticsinterfaceGigabitEthernet1/10
SISPM1040‐582‐LRT#

Command: lldp
Description:ClearLLDPstatistics.
Syntax: clearlldpstatistics{[interface(<port_type>[<plist>])]|global}
Parameters: 
|Outputmodifiers
globalClearglobalcounters
interface Interfacekeyword.
<cr>
Example:
SISPM1040‐582‐LRT#clearlldpstatistics?
|Outputmodifiers
globalClearglobalcounters
interfaceInterfacekeyword.
<cr>
SISPM1040‐582‐LRT#clearlldpstatistics?
statisticsClearsLLDPstatistics.
<cr>
SISPM1040‐582‐LRT#clearlldpstatistics?
clearlldpstatistics{[interface(<port_type>[<plist>])]|global}
SISPM1040‐582‐LRT#clearlldpstatistics
SISPM1040‐582‐LRT#



TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 18 of 172

Command: logging
Description:ClearSystemloggingmessages.
Syntax: clearlogging[info][warning][error][switch<switch_list>]
Parameters: alertSeverity1:Actionmustbetakenimmediately
critSeverity2:Criticalconditions
debugSeverity7:Debug‐levelmessages
emergSeverity0:Systemisunusable
errorSeverity3:Errorconditions
infoSeverity6:Informationalmessages
noticeSeverity5:Normalbutsignificantcondition
warningSeverity4:Warningconditions
<cr>
Example:
SISPM1040‐582‐LRT#clearlogging?
loggingSystemloggingmessage
<cr>
SISPM1040‐582‐LRT#clearloggingdebug
SISPM1040‐582‐LRT#

Command: mac
Description:ClearMACAddresstable.
Syntax: clearmacaddress‐table
Parameters: address‐table FlushMACAddresstable.
Example:
SISPM1040‐582‐LRT#clearmacaddress‐table
SISPM1040‐582‐LRT#

Command: mep
Description:ClearMaintenanceEntityPoint.
Syntax: clearmep<inst>{lm|dm|tst|bfd}
Parameters: 
<uint> TheMEPinstance.
bfd ClearG.8113.2BFDCC/CVstatisticscounters.
dm ClearDMmeasuringinformation.
lm ClearLMmeasuringinformation.
tst ClearTSTmeasuringinformation.
Example:
SISPM1040‐582‐LRT#clearmep1dm
Error:MEPinstanceisnotenabled
SISPM1040‐582‐LRT#



TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 19 of 172

Command:mvr
Description:ClearMulticastVLANRegistrationconfiguration.
Syntax: clearmvr[vlan<v_vlan_list>|name<mvr_name>]statistics
Parameters: 
name MVRmulticastname
statistics RunningMVRprotocolcounters
vlan MVRmulticastvlan
Example: 
SISPM1040‐582‐LRT#clearmvrvlan25statistics
%InvalidMVRVLANID25.

SISPM1040‐582‐LRT#clearmvrvlan1statistics

SISPM1040‐582‐LRT#

Command: port‐security
Description:Clearportsecurity.IfrunningconfighasstickyMACaddress,thentheseMACaddressesare
automaticallysettobestaticMACaddressesontheMACTable.
Syntax: port‐securityEnable/disableportsecurityglobally.
clearport‐securitysticky{All|interface(<port_type>[<plist>])}
Parameters: 
All clearallstickymacatallports
interfaceChooseport
*  AllswitchesorAllports
GigabitEthernet1GigabitEthernetPort
Example:
SISPM1040‐582‐LRT#clearport‐security?
stickyportsecuritystickyfunctionperinterface.
SISPM1040‐582‐LRT#clearport‐security?
port‐securityEnable/disableportsecurityglobally.
SISPM1040‐582‐LRT#clearport‐security?
clearport‐securitysticky{All|interface(<port_type>[<plist>])}
SISPM1040‐582‐LRT#clearport‐security?
port‐securityEnable/disableportsecurityglobally.
SISPM1040‐582‐LRT#clearport‐securitysticky?
Allclearallstickymacatallports
interfaceChooseport
SISPM1040‐582‐LRT#clearport‐securitystickyinterface?
*AllswitchesorAllports
GigabitEthernet1GigabitEthernetPort
SISPM1040‐582‐LRT#$learport‐securitystickyinterfaceGigabitEthernet1/5‐8
SISPM1040‐582‐LRT#


TransitionNetworks SISPM1040‐582‐LRTCLIReference

33757 Rev. A https://www.transition.com Page 20 of 172

Command:ptp
Description:ClearPTPnetwork‐clockconfiguration.
Syntax: clearptp0servo
Parameters: 
<0‐3>
servo
<cr>
Example:
SISPM1040‐582‐LRT#clearptp?
<0‐3>
SISPM1040‐582‐LRT#clearptp?
clearptp<clockinst>servo
SISPM1040‐582‐LRT#clearptp0?
servo
SISPM1040‐582‐LRT#clearptp0servo?
<cr>
SISPM1040‐582‐LRT#clearptp0servo
Clockinstance0:doesnotexist
%%Failedtosetnetwork‐clockconfiguration.

SISPM1040‐582‐LRT#

Command:sflow
Description:ClearsFlowstatistics.
Syntax: clearsflowstatistics
Parameters: interface   Interface
receiver   Clearstatisticsforreceiver.
<port_type>  GigabitEthernet
<Samplers:option> runtime
<port_type_list>  Portlistin1/1‐10forGigabitethernet
Example:
SISPM1040‐582‐LRT#clearsflow?
sflowStatisticsflow.
SISPM1040‐582‐LRT#clearsflow?
statisticssFlowstatistics.
SISPM1040‐582‐LRT#clearsflowstatistics?
receiverClearstatisticsforreceiver.
samplersClearstatisticsforsamplers.
SISPM1040‐582‐LRT#clearsflowstatisticsreceiver?
<cr>
SISPM1040‐582‐LRT#clearsflowstatisticsreceiver
SISPM1040‐582‐LRT#clearsflowstatisticssamplers?
interfaceClearstatisticsforaspecificinterfaceorinterfaces.
<cr>
SISPM1040‐582‐LRT#clearsflowstatisticssamplers
SISPM1040‐582‐LRT#


