Travis Industries 21 TRV GSR2 User manual

21 TRV GSR2
Fireplace (w Screen)
Installation Manual
WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Tested and Listed by
ANSI Z21.88-2014
CSA 2.33-2014
Built-In Direct Vent
Fireplace
Natural Gas or Propane
Residential or Mobile
Home
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com
Copyright 2015, T.I. $10.00 4150309 100-01421

2 Introduction
© Travis Industries 4150309 100-01421
Overview
This manual details the installation requirements
for the 21 TRV GSR2 fireplace. For operating and
maintenance instructions, refer to the 21 TRV
GSR2 Owner's Manual (part # 100-01422).
Listing Details
This appliance was listed by Intertek Test Labs to
ANSI Z21.88. The listing label is attached to the
appliance near the gas control valve. A copy is
shown to the right.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters.
National Fireplace Institute
Report No. 101423290PRT-001
Control No. 4000515
Vented Gas Fireplace Heater
21 TRV GSR2
Tested to:ANSI Z21.88-2014/CSA 2.33-2014 “Vented Gas Fireplace Heater”, CGA2.17-M91 (R2009) “Gas Burning Heating Appliances for Manufactured Homes”, and CSAP.4.1-09 Testing method for measuring annual fireplace efficiency. This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSAB149.1. This appliance must be installed in accordance with the current Standard CAN/CSA Z240 MH, Mobile Housing, in Canada or with the Manufactured Home Constructions and Safety Standard, Title 24 CFR, Part 3280, in the UnitedStates,orwhensuchastandardisnotapplicable,ANSI/NCSBCSA225.1/NFPA501A, Manufactured Home Installation Standard. Thisventedgas fireplace heater is equippedatthe factory for use withnaturalgas. If conversion to propane(LP) is desired, the optional factory conversion kit must be used. Part No. 250-02376 (SIT) or 225-20231 & 225-20173 (PSE) register kit may be used. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket,permanentlylocated, manufactured home (USAonly)ormobile home, where not prohibited by local codes. See owner’s manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. This vented gas fireplace heater is not for use with air filters. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. This appliance must be properly connected to a venting system in accordance with the manufacturer’s installation instructions. Use only approved coaxial direct vent system to vent this appliance to the exterior. See owner’s manual for approved brands of venting. If the vent-air intake system is disconnected for servicing or any other reason, it must be resealed and / or reinstalled. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUEL
Minimum Clearances to Combustibles
Fireplace to Adjacent Wall Wood Floor Beneath Fireplace Back and Angled Sides to Enclosure
1” (26mm)
0” (0mm)
0.5” (13mm)
Top and Sides to Enclosure Base of Fireplace to a Mantel 0” (0mm)
See Owner’s Manual
FAN TYPE VENTED CIRCULATOR
Blower Electrical Rating: 115V., 1.5Amps, 60 Hz
Part No. 99000163 fan or blower assembly may be used
Minimum Inlet Pressure (inches W.C.) Maximum Inlet Pressure (inches W.C.) Manifold Pressure on “HI” (inches W.C.)
L.P.
11”
13” 10”
N.G.
5.5”
7”
3.5”
Input Rate on “HI” (BTU/Hr) Input Rate on “LO” (BTU/Hr) Orifice Size - Front (DMS) Orifice Size - Rear (DMS)
L.P.
16,500
5,000
#67 #66
N.G.
16,500
6,000
#55 #55
This appliance is equipped for use only at altitudes 0-2,000 feet (0-610m) in the USA. In Canada, 0-4,500 feet (0-1370m). For altitudes above 2,000 feet, the vent configuration, orifice, or combination of both may need to be changed. See owner’s manual for information on making these changes.
2015 2016 2014
Feb. Mar. Jan.
May Jun. Apr.
Aug. Sep. Jul.
Nov. Dec. Oct.
MANUFACTURE DATE:
WARNING: Failure to install this appliance per the manufacturer’s instructions or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
12521 Harbour Reach Drive
Mukilteo, WA 98275
Manufactured by:
www.travisproducts.com
CAUTION:
Do not operate this appliance with glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.
0929

Table of Contents 3
Travis Industries 4150309 100-01421
Table of Contents
OVERVIEW.....................................................2
LISTING DETAILS..........................................2
TABLE OF CONTENTS..................................3
INSTALLATION OPTIONS.............................6
HEATING SPECIFICATIONS.........................6
DIMENSIONS..................................................6
PACKING LIST...............................................7
ADDITIONAL ITEMS REQUIRED..................7
RECOMMENDED INSTALLATION
PROCEDURE .................................................7
INSTALLATION OVERVIEW – TOP VENT
CONFIGURATION..........................................8
INSTALLATION OVERVIEW – REAR VENT
CONFIGURATION..........................................9
MASSACHUSETTS REQUIREMENTS........10
Requirements for the Commonwealth of
Massachusetts .................................................. 10
MANUFACTURER REQUIREMENTS .............. 10
TOP VENT OR REAR VENT
CONFIGURATION........................................11
Converting the Fireplace to Rear Vent
Configuration ..................................................... 11
Converting the Fireplace to Rear Vent (continued)12
Converting the Fireplace to Rear Vent (continued)13
FIREPLACE PLACEMENT REQUIREMENTS14
Clearances ........................................................ 14
Raised Fireplaces.............................................. 14
Minimum Framing Dimensions - Top Vent
Configuration ..................................................... 15
Minimum Framing Dimensions - Rear Vent
Configuration ..................................................... 16
TELEVISIONS PLACED ABOVE THE
FIREPLACE..................................................17
Using a Mantel Between the Fireplace and
Television .......................................................... 17
NAILING BRACKETS...................................18
CORNER INSTALLATIONS - TOP VENT
CONFIGURATION........................................19
CORNER INSTALLATIONS - REAR VENT
CONFIGURATION........................................19
OUTDOOR FIREPLACE INSTALLATIONS.20
GAS LINE REQUIREMENTS.......................21
Fuel ................................................................... 21
Gas Line Connection ......................................... 21
Gas Inlet Pressure............................................. 21
Optional Gas Line Location ............................... 22
Gas Line Location ............................................. 22
ELECTRICAL CONNECTION (REQUIRED)23
VENT REQUIREMENTS ..............................24
Vent Clearances ................................................ 24
Altitude Considerations ..................................... 24
Approved Vent .................................................. 25
Vent Installation ................................................. 25
APPROVED VENT CONFIGURATIONS.....26
Restrictor Position ............................................. 26
Exhaust Restrictor Adjustment .......................... 26
Diffuser Plate Adjustment .................................. 27
TOP VENT CONFIGURATION WITH
HORIZONTAL TERMINATION ....................28
TOP VENT CONFIGURATION WITH
VERTICAL TERMINATION..........................29
REAR VENT CONFIGURATION WITH
HORIZONTAL TERMINATION ....................30
REAR VENT CONFIGURATION WITH
VERTICAL TERMINATION..........................31
TERMINATION REQUIREMENTS...............32
HEARTH REQUIREMENTS.........................33
FACING REQUIREMENTS..........................34
Face Dimensions............................................... 34
Facing Detail – Drywall (or other 1/2” thick facing)34
FACING DETAIL – TILE FACING................35
MANTEL REQUIREMENTS.........................36
STEPS FOR FINALIZING THE
INSTALLATION............................................37
Air Shutter Adjustment ...................................... 38
BARRIER REMOVAL...................................39
GLASS FRAME REMOVAL AND
INSTALLATION............................................40
GLASS FRAME REMOVAL AND
INSTALLATION (CONTINUED)...................41
LOG SET INSTALLATION...........................42
Rear Log Installation ......................................... 42
Right Log Installation ......................................... 43
Right Twig Installation ....................................... 43
Left Twig Installation.......................................... 44
Log Installation Overview .................................. 44
LP CONVERSION INSTRUCTIONS............45
LINER INSTALLATION ADDENDA.............50
WIRING DIAGRAM ......................................51
Index ................................................................. 52

4 Safety Precautions
Travis Industries 4150309 100-01421
Safety Warnings
 Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
Young children should be carefully supervised when they are in the same room
as the appliance. Toddlers, young children and others may be susceptible to
accidental contact burns. A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
Children and adults should be alerted to the hazards of high surface temperature
and should stay away to avoid burns or clothing ignition. Do not touch the hot
surfaces of the heater. Educate all children of the danger of a high-temperature
heater.
Due to the high temperature, the heater should be located out of traffic and away
from furniture and draperies.
 This unit must be installed by a qualified installer to prevent the possibility of an explosion.
 This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88), in Canada follow CSA B149.1.
 A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4. This
appliance may be installed in Manufactured Housing only after the home is site located.
 All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure. The venting must not be connected to a chimney flue serving a
separate solid-fuel burning appliance.
 Notify your insurance company before hooking up this fireplace.
 The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
 This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer.
 Contact your local building officials to obtain a permit and information on any installation restrictions
or inspection requirements in your area.
 If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call
your dealer and arrange for proper servicing.
 It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
 Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call
your dealer for a full explanation of your heater and what to expect.
 Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
 Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
Immediately call a qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.

Safety Precautions 5
Travis Industries 4150309 100-01421
Safety Warnings (continued)
 Because this heater can be controlled by a thermostat there is a possibility of the heater turning on
and igniting any items placed on or near the appliance.
 Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
 Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
 The viewing glass should be opened only for conducting service.
 Allow the heater to cool before carrying out any maintenance or cleaning.
 Operate the heater according to the instructions included in this manual.
 If the main burners do not start correctly turn the gas off and call your dealer for service.
 This unit is not for use with solid fuel.
 Do not place anything inside the firebox (except the optional artwork).
 Warning: Do not operate appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
 Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
 Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
 A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this
appliance and shall be installed for the protection of children and other at-risk individuals.
 If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this
appliance.
 Clothing or other flammable material should not be placed on or near the appliance.
 Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to
operating the appliance.
 Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative
that control compartments, burners, and circulating air passageways of the appliance be kept clean.
 Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential damage(s).
Proposition 65 Warning: Fuels used in gas, woodburning or oil fired appliances, and the products of combustion of such
fuels, contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6

6 Features and Specifications
Travis Industries 4150309 100-01421
Installation Options
 Residential or Mobile Home
 Straight or Corner Placement
 Flush or Recessed Face
 Raised or Floor Placement
 Internal or External Chase
 Horizontal or Vertical Vent
 Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* Up to 650 Up to 650
Maximum BTU Input Per Hour 16,500 16,500
* Heating capacity will vary with floor plan, insulation, and outside temperature.
Dimensions
35.875"
8" External Diameter
13.625"*
45°
20.125"
See "Gas Line
Requirements" for
Details on the Gas Inlet
7.5"*
4.875"
Nailing Brackets
4"
Nailing
Bracket
(Framing)
27.25"
Rear Vent Configuration
8.5"
12.375"*
Top Vent Configuration
Lifting Bracket (may
be bent down) 34.125"
* See "Clearances" and "Framing Dimensions" for details.

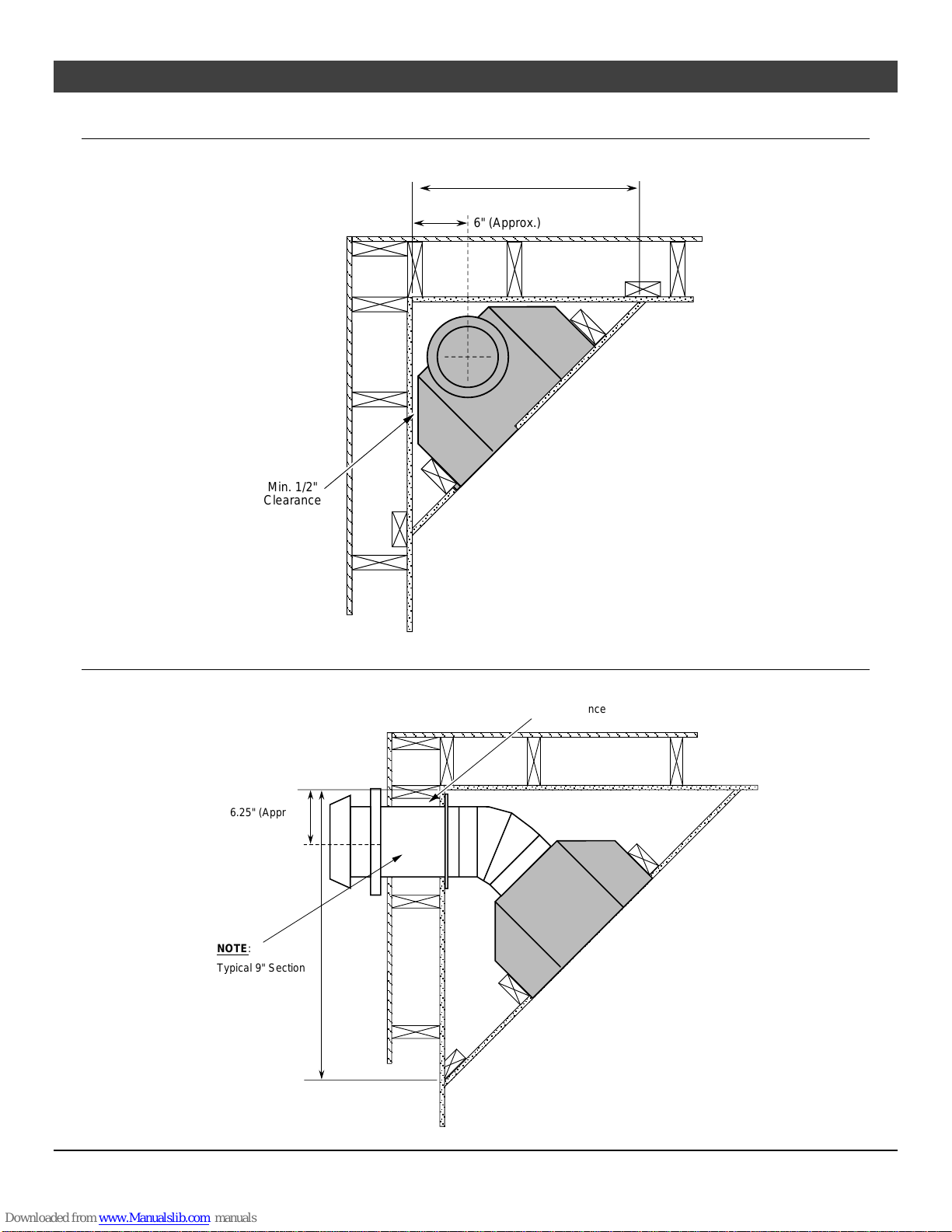

NOTE: 0.5" clearance is required to the angled sides and rear of the fireplace.

Installation (for qualified installers only) 7
Travis Industries 4150309 100-01421
Packing List
 Propane Conversion Kit (Orifices, Rivet)
 Log Set
 Firestop (sku 93006094)

Rear Vent Configuration Kit (insulation)
 (4) AA Batteries, (1) 9-Volt Battery
 Remote Control
 Felt Tabs (for concealment cover)
Additional Items Required
 If using LP (propane) a conversion kit is required (sku 94400999 – GSR Stepper Motor Kit).
 Direct Vent
 Gas Line Equipment (shutoff valve, pipe, etc.)
 Electrical Equipment (min. 14 gauge, grounded line)
Recommended Installation Procedure
HINT: We strongly recommend installing all of the optional equipment before placing the fireplace.
Place the fireplace on a suitable work stand to ease installation.
 Install the optional equipment (do not install the logs) – we recommend the following order:
a) LP Conversion (if applicable) – NOTE: leave the burner removed until after the liner is
installed (if applicable). If using the GreenSmart remote, install the modulating regulator
during LP conversion.
b) Liner (if applicable) – NOTE: You will need to loosen the accent light bracket while installing
the liner (see page 50).
c) Blower
NOTE: Do not install the rheostat if using the GreenSmart remote.
e) Remote

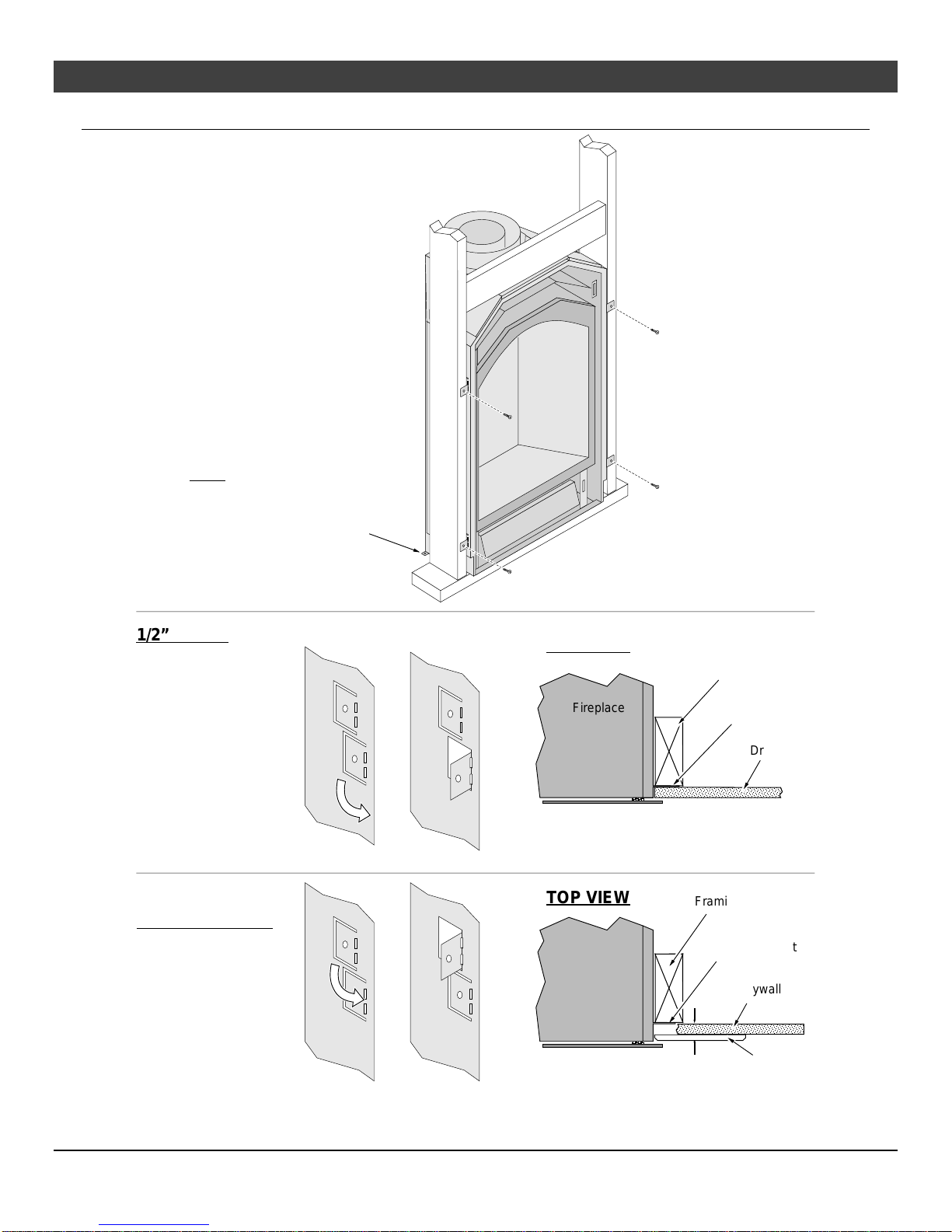

 Frame the opening for the fireplace. Make sure to allow for vent installation.
 This fireplace is designed to accommodate 1/2" drywall or 1/2” drywall with 3/8” tile (see "Nailing
Brackets" on page 17 for details). Secure the fireplace to the framing.
NOTE: If the facing is not 1/2" or 7/8" thick, follow the directions below:
Place a strip of facing material to both sides of the fireplace opening (NOTE: the strips will be
removed after the fireplace is secured). The facing thickness must represent the total thickness
of the finished facing (e.g.: If tile is to be used, include the thickness of the backboard, tile, and
tile adhesive). Insert the fireplace into the framing. Slide it back until the front edge of the
fireplace is flush with the facing material. Secure the fireplace using the plates located along the
base of the fireplace.
 Complete the gas line installation. Complete the electrical hook-up.
 Complete the vent installation.
 Install the hearth (if applicable).
 Install the drywall and facing (if applicable).
 Install the mantel (if applicable).
 Finalize the installation (see page 37) and install the grill or face.

8 Installation (for qualified installers only)
Travis Industries 4150309 100-01421
Installation Overview – Top Vent Configuration
 All requirements below must be met.
See the section
"Termination
Requirements"





















































































































































































Drywall
Gas Line
(left side or beneath)
See the section

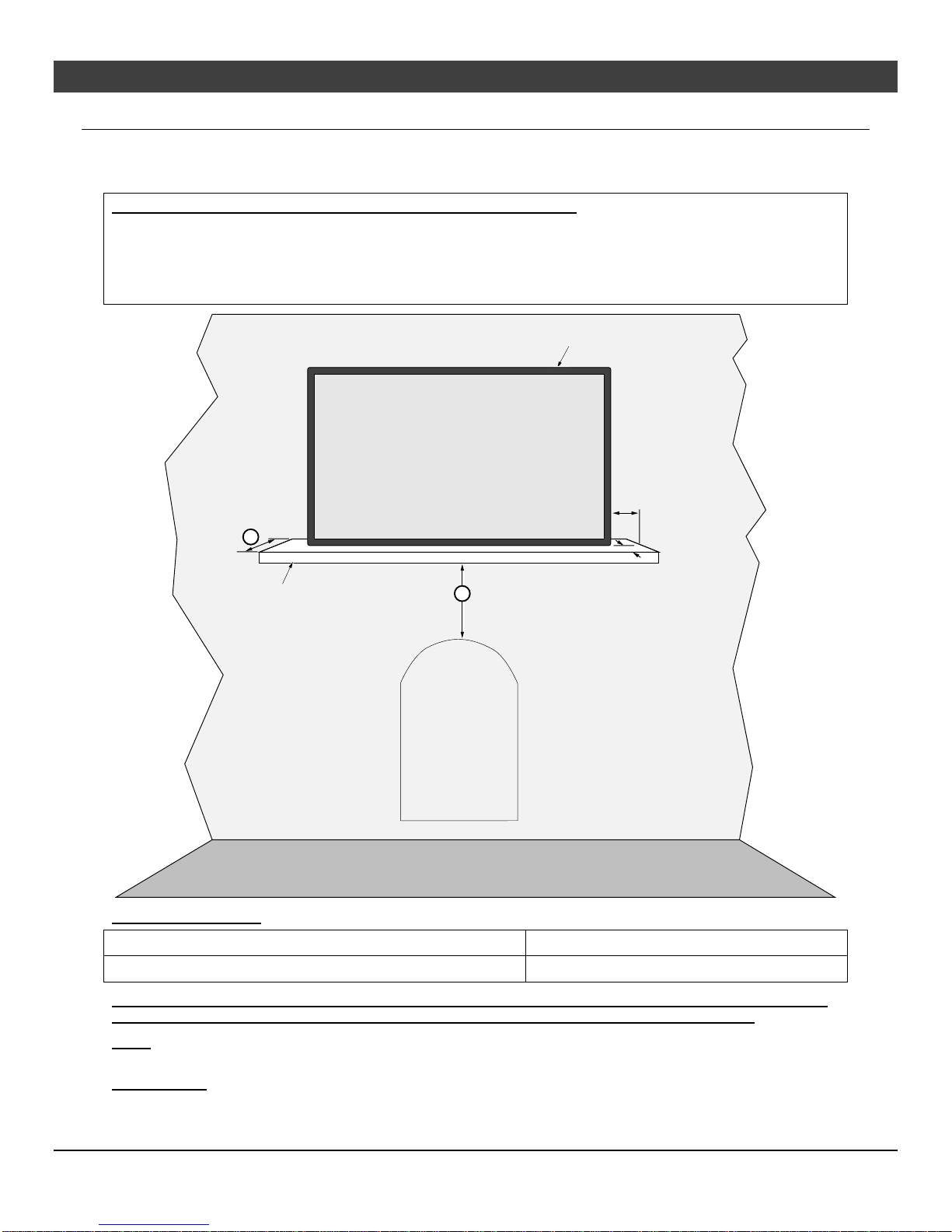

"Mantel Requirements"
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
See the section
"Hearth Requirements"
See the section "Electrical Connection"
1" Min. Clearance from Face to Side Wall

Installation (for qualified installers only) 9
Travis Industries 4150309 100-01421
Installation Overview – Rear Vent Configuration
 All requirements below must be met.
























See the section "Acceptable
Vent Lengths"
See the section
"Gas Line Installation"
See the section
"Electrical
Connection"
See the section
"Mantel Requirements"
1" Min.
(from face)
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
See the section
"Hearth Requirements"
Drywall
See the section
"Termination Requirements"

10 Installation (for qualified installers only)
Travis Industries 4150309 100-01421
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54
as adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment
and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 11
Travis Industries 4150309 100-01421
Top Vent or Rear Vent Configuration
This appliance is shipped in the top vent configuration. To change to the rear vent configuration, follow
the directions below.
NOTE: Top or rear vent configuration affects several aspects of installation (framing, maximum vent rise,
maximum vent run). Make sure the vent configuration is correct prior to installation.
HINT: The diffuser is easiest to modify when converting the vent to rear-vent configuration. Refer to the
vent configuration charts to determine if the vent diffuser requires adjustment to position # 2.
Converting the Fireplace to Rear Vent Configuration
Remove the cover
plate, and heat shield.
Remove the outer flue
assembly. Place the screws
and components aside (for
all subsequent steps).
NOTE: Use a magnetic-tipped
nutdriver on these screws - take
care to prevent the screws from
falling into the fireplace.
Remove the inner flue assembly
and exhaust cover plate.
Cover Plate
Heat Shield
Exhaust Cover Plate
Inner Flue
Assembly

12 Installation (for qualified installers only)
Travis Industries 4150309 100-01421
Converting the Fireplace to Rear Vent (continued)

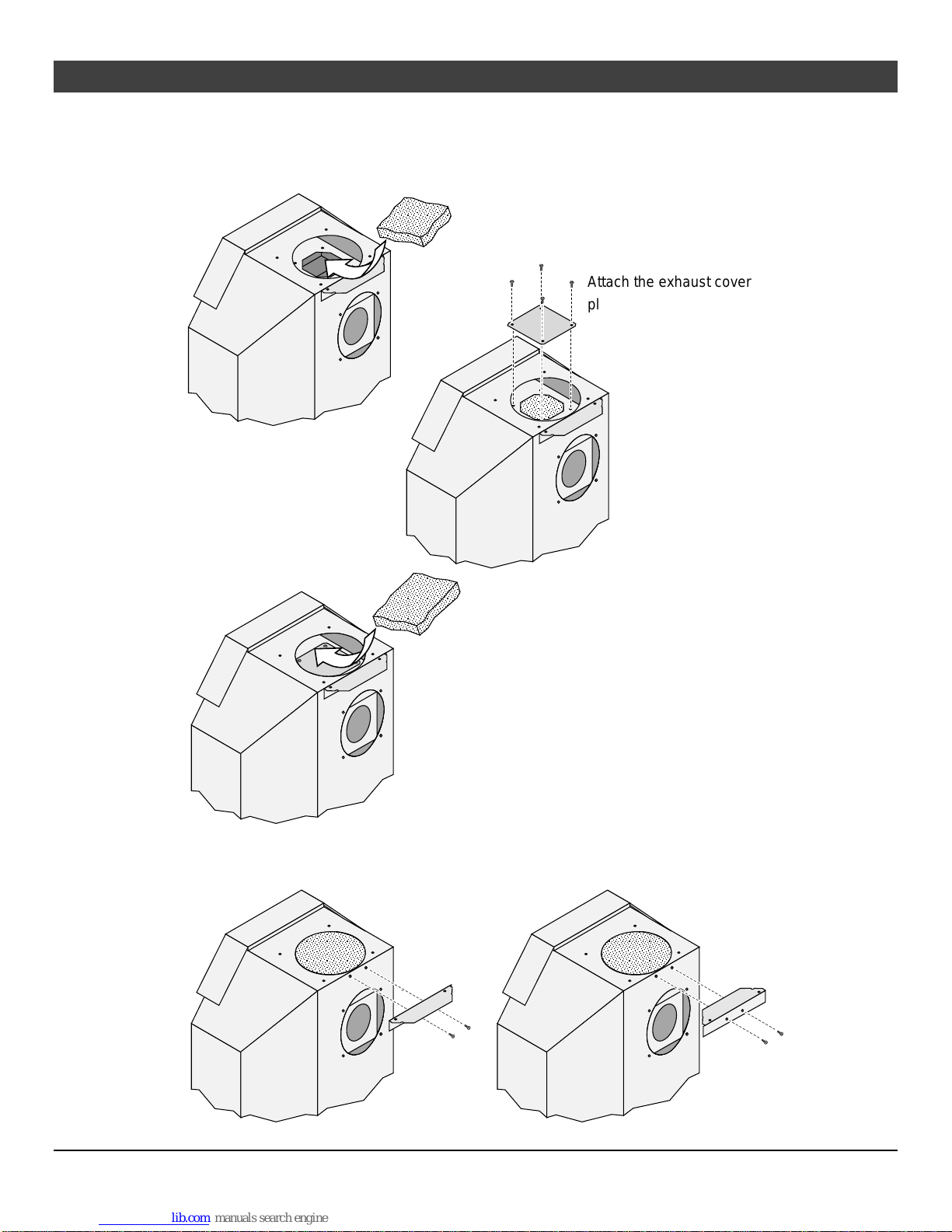

Insert the large piece of insulation into
the intake duct. Note how the wider
portion goes to the sides. Tuck it into
the cavity so it lays flat.
Remove the flue collar suport, rotate it 180°, and re-attach it to the fireplace.
Insert the small piece of insulation into the exhaust
duct. Tuck it into the cavity so it lays flat.






Attach the exhaust cover
plate, making sure the
attached gasket seals the
exhaust duct.



















Installation (for qualified installers only) 13
Travis Industries 4150309 100-01421
Converting the Fireplace to Rear Vent (continued)



Attach the cover plate to
the top of the fireplace.
NOTE: You will need to
tuck the front edge of the
cover plate under the upper
standoff.
Bend the heat
shield as shown
to the right.
Remove the 4 screws on the angled
top of the fireplace and attach the heat
shield with these screws.






Attach the inner flue
assembly with four
screws (make sure
the gasket is in place
while attaching).
NOTE: Install the flue
assembly with the diffuser
to the bottom.
Attach the outer
flue assembly
with four screws
(make sure the
gasket is in place
while attaching).






Bend the exhaust restrictor following
the steps shown below.

14 Installation (for qualified installers only)
Travis Industries 4150309 100-01421
Fireplace Placement Requirements
 The fireplace requires a 1/2" clearance from the angled sides and back of the fireplace to the framing
members. No material (insulation, framing, etc.) may be placed into this area.
 Fireplace must be installed on a level surface capable of supporting the fireplace and vent.
 Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet).
 This heater may be placed in a bedroom.
Clearances
 When installed, walls in front of the fireplace must be a minimum 1" to the side of the fireplace.
 Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
 Fireplace must be placed so the vents below and above the glass do not become blocked.
Raised Fireplaces
 The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(95 Lbs.) and vent.
Make Sure the Fireplace is Raised a Minimum 3/8” (9mm)
! Faces, when installed, extend 3/8” (9mm) below the base of the fireplace. Make sure the fireplace is
raised appropriately to allow for face installation.
Raised
Platform
Optional Hearth
Minimum
57"
Ceiling

Installation (for qualified installers only) 15
Travis Industries 4150309 100-01421

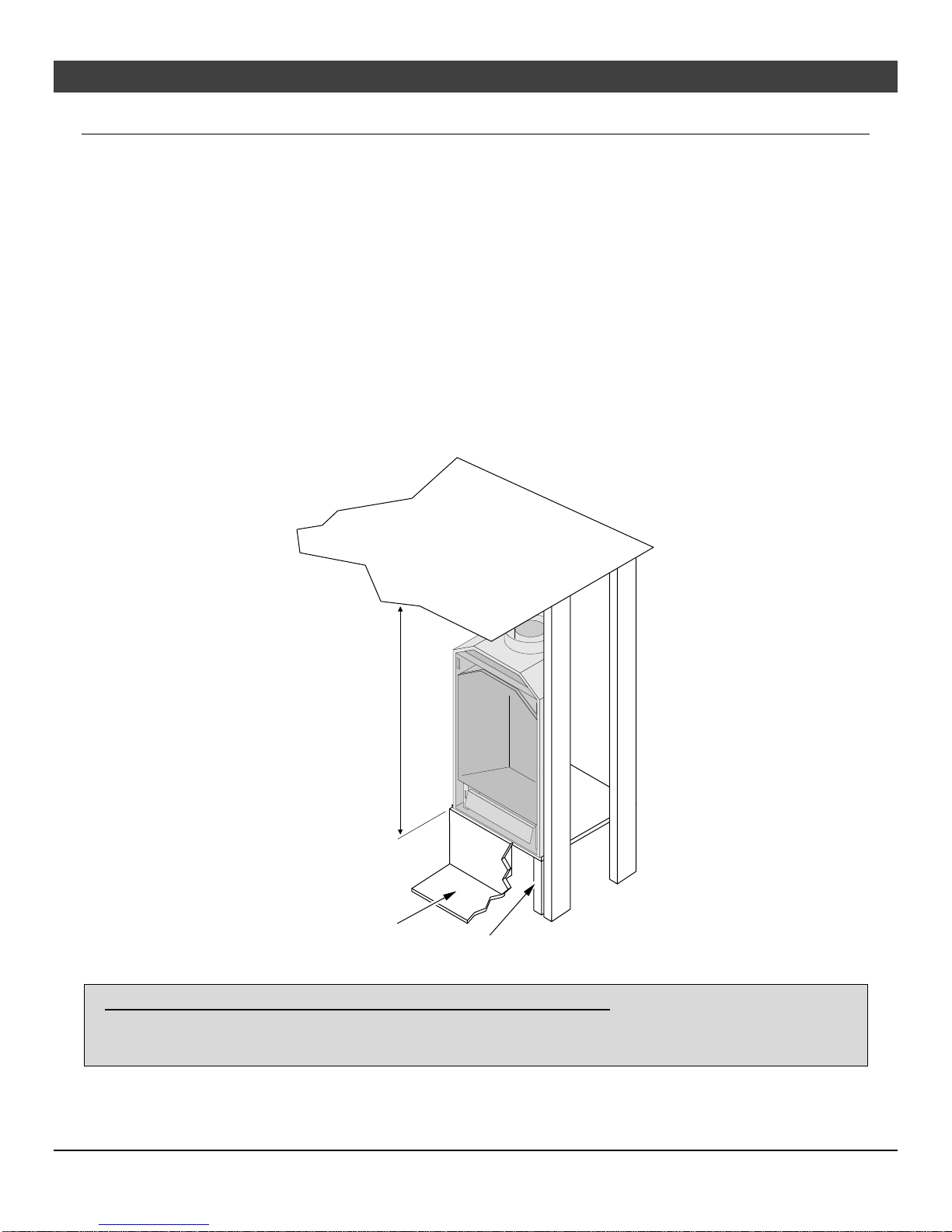

Minimum Framing Dimensions - Top Vent Configuration
Make Sure the Fireplace is Raised a Minimum 3/8” (9mm)
!Faces, when installed, extend 3/8” (9mm) below the base of the fireplace. Make sure the fireplace is
raised appropriately to allow for face installation.


































Route the electrical line to a position
to the right rear of the fireplace.
Thermostat or Remote
Control Wire (right side)
If using an elbow directly off the
fireplace, the vent will be centered
41.75" above the base of the
fireplace.
The fireplace enclosure must
be a minimum 48.75" above
the base of the fireplace.
NOTE: Do not build into the
area above the fireplace
(except for the required
framing members).
20.25"
48.75" Min.
14"
Firestop
(required)
HINT: We recommend
installing the shaded
framing after the fireplace
is in place.
WARNING: A cut-out for the gas line may be
required on the framing.
HINT: we recommend reinforcing the
upper corners of the fireplace opening.
4"
2.75"
Vent Clearances:
1" to the sides, 1" below, and 3" above
the vent to combustibles.
34.25"

16 Installation (for qualified installers only)
Travis Industries 4150309 100-01421
Minimum Framing Dimensions - Rear Vent Configuration
Make Sure the Fireplace is Raised a Minimum 3/8” (9mm)
!Faces, when installed, extend 3/8” (9mm) below the base of the fireplace. Make sure the fireplace is
raised appropriately to allow for face installation.















Route the electrical line to a position
to the right rear of the fireplace.
27.25"
Vent Clearances:
1" to the sides, 1" below, and 3" above
the vent to combustibles.
20.25"
34.25"
12.375"
Firestop
(required)
HINT: we recommend
reinforcing the upper corners of
the fireplace opening.
NOTE: The rear vent may require extra
clearance - make sure to accommodate the
vent when determining the framing.
Center of Rear Vent















WARNING: A cut-out for the gas line
may be required on the framing.
Thermostat or Remote
Control Wire (right side)
34.25" Minimum
Enclosure Height
4"
2.75"

Installation (for qualified installers only) 17
Travis Industries 4150309 100-01421
Televisions Placed Above the Fireplace
The following section details three methods to allow for television installation above the fireplace.
Using a Mantel Between the Fireplace and Television
IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE
Most television manufacturers instruct the homeowner to not place the television above a heat source. Doing so may
negatively affect the longevity of the television and may negate the warranty. If you do place a television above the
fireplace, please be aware of the large amount of heat generated by the fireplace and consider placing the television
above a mantel to reduce the amount of heat that reaches the television. The homeowner must understand that
Travis Industries does not take responsibility for any negative impact to televisions placed near this fireplace.
Minimum Dimensions:
(a) Minimum Mantel Height above Faceplate* 7.25” (1137mm) with 8” (203mm) mantel depth
(b) Mantel Depth* Minimum 8” (203mm)*
* Mantel depth is 8” minimum to allow heat to travel forward and dissipate. If using more than an 8” mantel,
make sure to make the mantel height (a) higher (see mantel requirements on page 36 for details).
NOTE: The mantel must extend 2” in front of the TV and 1” to both sides. If you have a TV that is greater than 6”
deep (including the 1” gap behind), you will need to alter the mantel depth and height.
WIRING NOTE: If running wiring into the enclosure, use thermal insulating wrap around the wiring. Secure the wiring
to protect from contact with hot surfaces.
Min. 1" (26mm) Air Gap Behind TV
b
Min. 1" (26mm)
Television (TV)
Min. 2" (51mm)
Mantel Must be
Min. 1" (26mm) Thick
a
Fireplace
Faceplate

18 Installation (for qualified installers only)
Travis Industries 4150309 100-01421
Nailing Brackets
F
or installations using 1”
f
acing (1/2” drywall with
3
/8” tile, 7/8” tile, etc.)
f
old the upper tab out
9
0°.
F
or installations using
1
/2” facing (1/2” drywall
o
r other facing) fold the
l
ower tab out 90°.


Fireplace
Drywall
Framing
Nailing Bracke
t
TOP VIEW
Tile


Fireplace
Drywall


Framing
Nailing Bracket
TOP VIEW
1
/2” Facing
7
/8” to 1” Facing
There are four nailing brackets on
the sides of the fireplace. Follow
the directions below to prepare the
nailing brackets. Once in place,
nail or screw the nailing brackets to
the framing.
NOTE: There are alternative
nailing brackets on the back
corners of the fireplace if the
front brackets can not be used.
7/8”

Installation (for qualified installers only) 19
Travis Industries 4150309 100-01421
Corner Installations - Top Vent Configuration
Typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances apply).
Corner Installations - Rear Vent Configuration
Typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances apply).
26" Min.


























6" (Approx.)
Min. 1/2"
Clearance




















6.25" (Approx.)

























37.75" Min.
Minimum 1" Clearance
NOTE:
Typical 9" Section

20 Installation (for qualified installers only)
Travis Industries 4150309 100-01421
Outdoor Fireplace Installations
Travis Industries Inc. gas-fired fireplaces are
suitable for installation into outdoor areas
protected from direct water impingement. In
addition to maintaining listed mantel and
combustibles clearances, a rain protection
overhang factor of 1/2 shall be constructed to
the front and to each side of installed
appliances (see the illustration to the right). All
wiring connections to line power shall be in
accordance with outdoor requirements of
NECA NFPA 70.
Warnings Regarding Tempered Glass
This fireplace uses tempered glass which is
susceptible to thermal shock. Take care to
prevent water from contacting the fireplace,
especially if it is hot.



































A
B
Side of
Fireplace

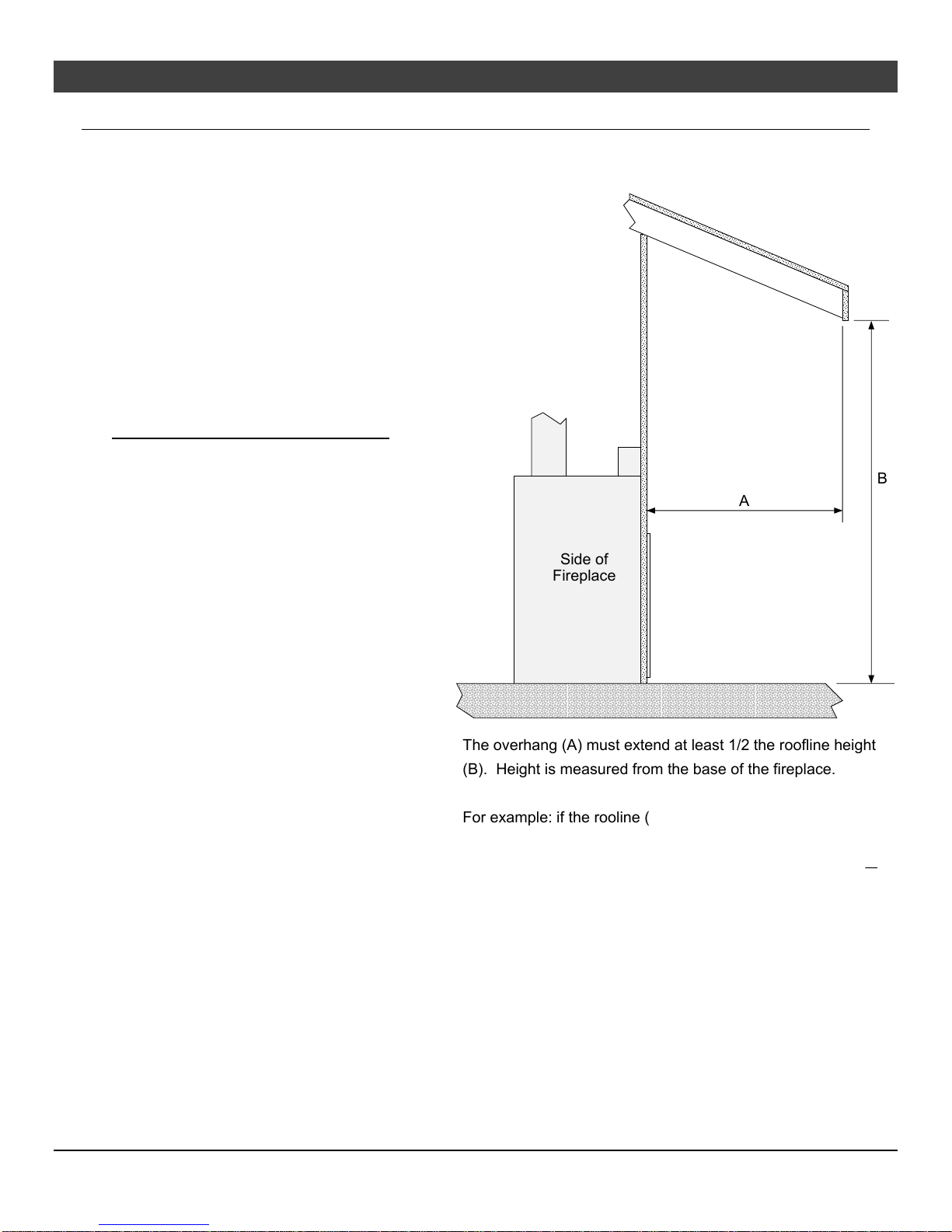

The overhang (A) must extend at least 1/2 the roofline height
(B). Height is measured from the base of the fireplace.
For example: if the rooline (B) is 8' above the base of the
fireplace, the overhang (A) must be at least 4'.










