Travis Industries 564 HO User manual

· 564 HO 2 Fireplace ·
Tested and Listed by
ANSI Z21.88
CSA 2.33
Operation
Maintenance
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of
life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Owner's Manual
Copyright 2014, T.I. $10.00 100-01293 4140221
www.travisproducts.com
12521 Harbour Reach Drive
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4140221 100-01293
Introduction
We welcome you as a new owner of a 564 HO GSR2 gas fireplace. This manual details operation and
maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your
heater and save the manual for future reference.
Important Information
No other 564 HO GSR2 gas fireplace has the same
serial number as yours. The serial number is on the
listing label that is chained to the gas control valve.
This serial number may be needed in case you require
service.
Model: 564 HO GSR2 Fireplace
Serial Number:
Purchase Date:
Purchased From:
Register your warranty online at:
traviswarranty.com
Or, mail your warranty card to:
Travis Industries House of Fire
12521 Harbour Reach Drive
Mukilteo, WA 98275
Save Your Bill of Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your heater. Do not mail your Bill
of Sale to us.
We suggest that you attach your Bill of Sale
to this page so that you will have all the
information you need in one place should the
need for service or information occur.
Installation Warnings
Installation requirements are printed in the 564 HO GSR2 Installation Manual (part #
100-01292). All requirements in the installation manual must be met.
Failure to follow all of the requirements may result in property damage, bodily injury,
or even death.
This heater must be installed by a qualified installer who has gone through a training
program for the installation of direct vent gas appliances.
This appliance must be installed in accordance with all local codes, if any; if not,
follow ANSI Z223.1 and NFPA 54(88).
In Manufactured or Mobile Homes must conform with Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a standard
is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1. This appliance may be installed in Manufactured Housing only after the
home is site located.
The fireplace is designed to operate on natural gas, or propane (LP).
All exhaust gases must be vented outside the structure of the living-area.
Combustion air is drawn from outside the living-area structure.
Notify your insurance company before hooking up this fireplace.

Introduction 3
© Travis Industries 4140221 100-01293
Table of Contents

Introduction 2
Important Information 2
Installation Warnings 2
Table of Contents 3
Features 3
Heating Specifications 3
Before You Begin 6
Remote Control Warnings ........................................ 6

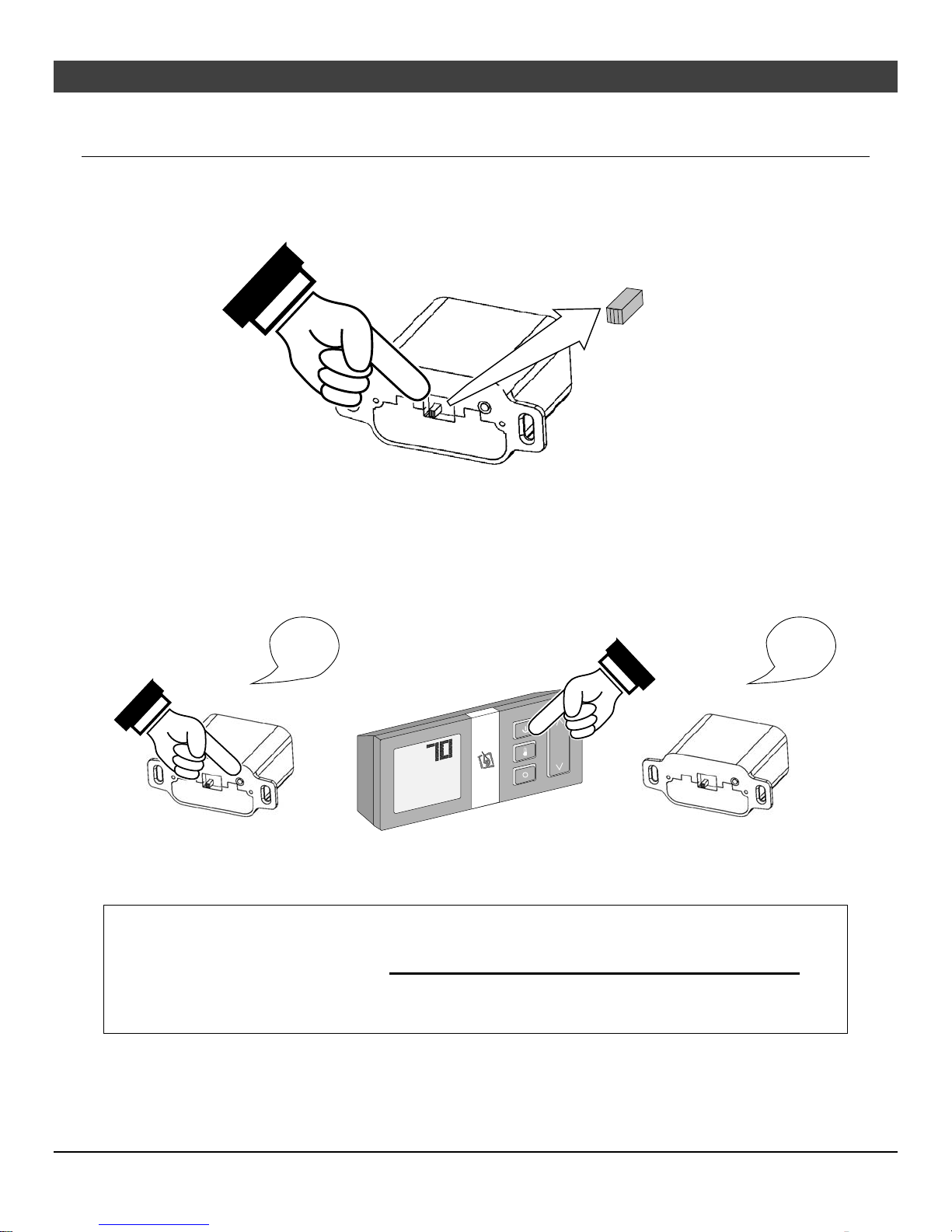

Remote Set-Up 7

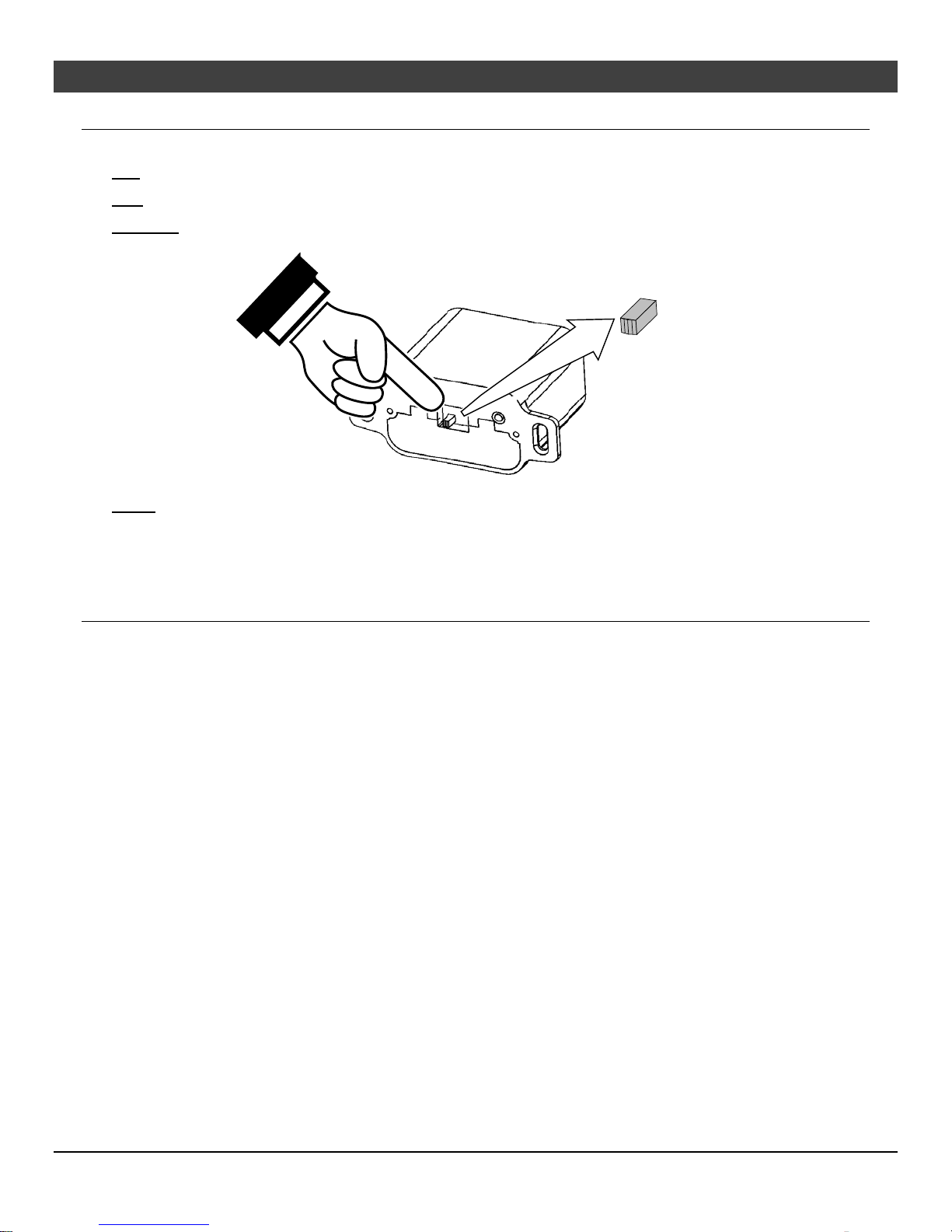

Verify the Switch is on “REMOTE” ......................7
Synchronize the Transmitter to the IFC...............7
Clearing the System Memory ...................................7
Location of Controls 8
Direct Operation 9
Starting the Fireplace for the First Time 9
Intermittent/Continuous Pilot 10
Switching from Intermittent (IPI) to Continuous
Pilot (CPI)..........................................................10
Remote Operation 11
Display Overview ..............................................11
Listen for the “Beep”..........................................11

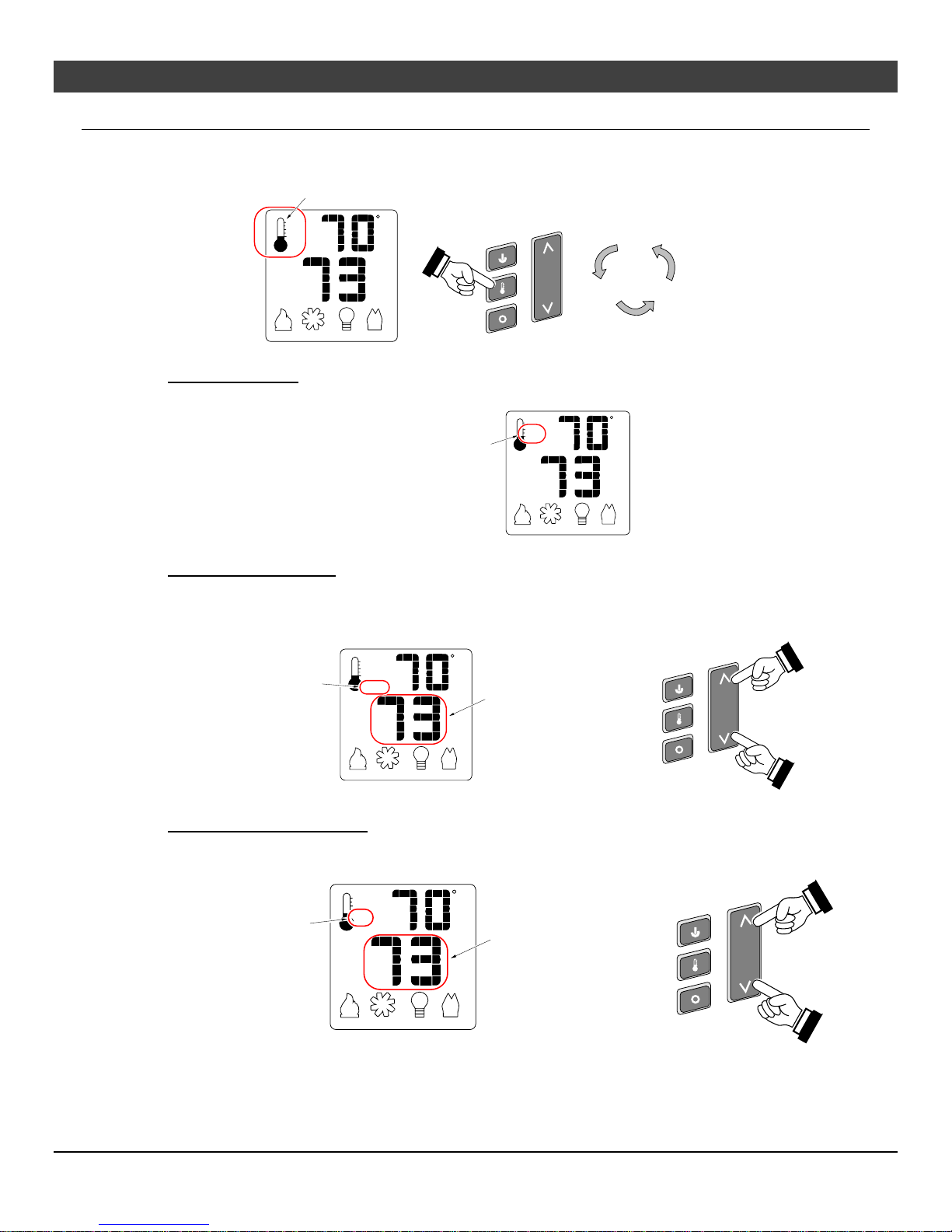

Manual On-Off / Smart Thermostat / Standard
Thermostat 12

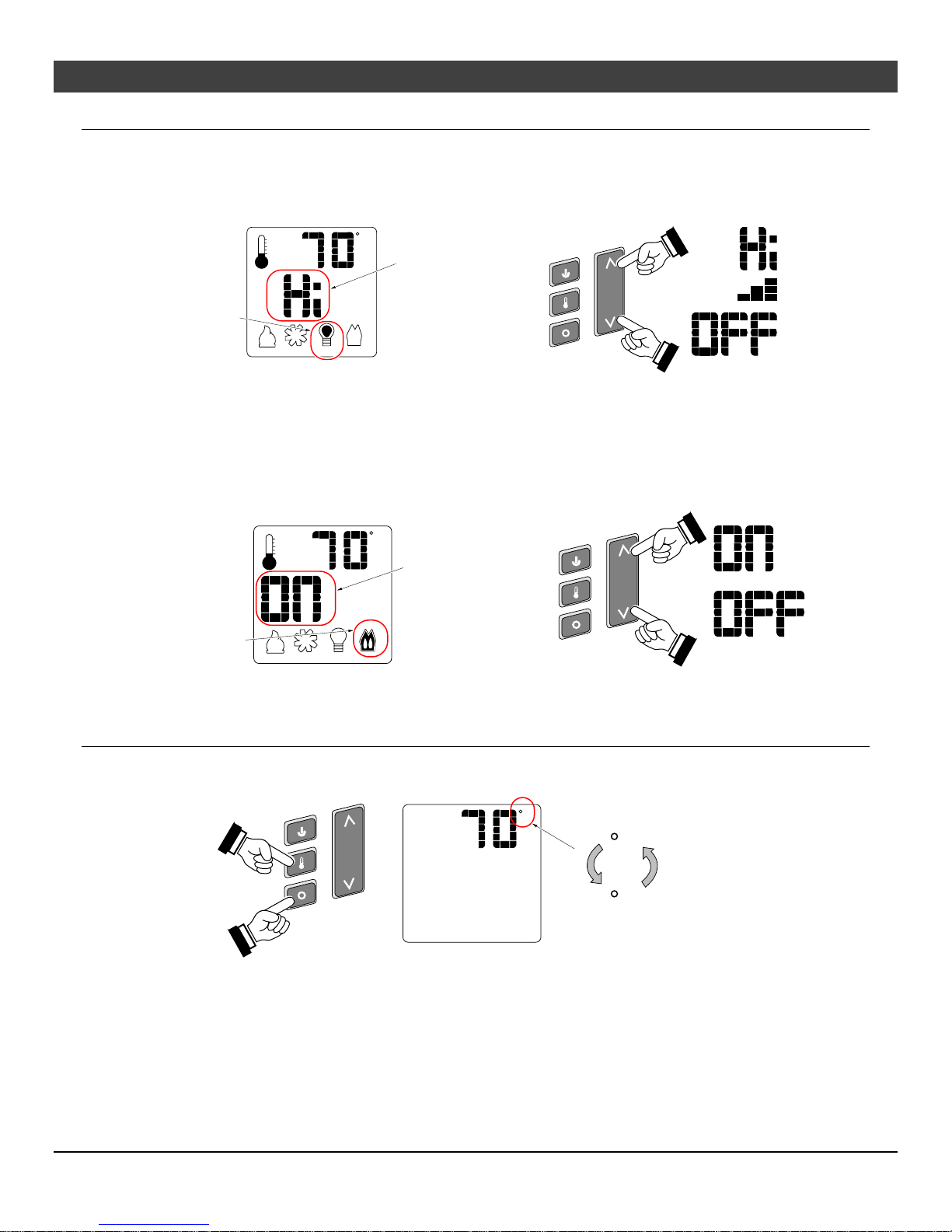

Mode Controls (Flame, Blower, Light, Comfort
Control) 13
Flame Height .......................................................... 13
Blower Speed .........................................................13
Mode Controls - continued 14
Accent Light............................................................14
Comfort Control (rear burner).................................14
Display Fahrenheit or Celsius 14

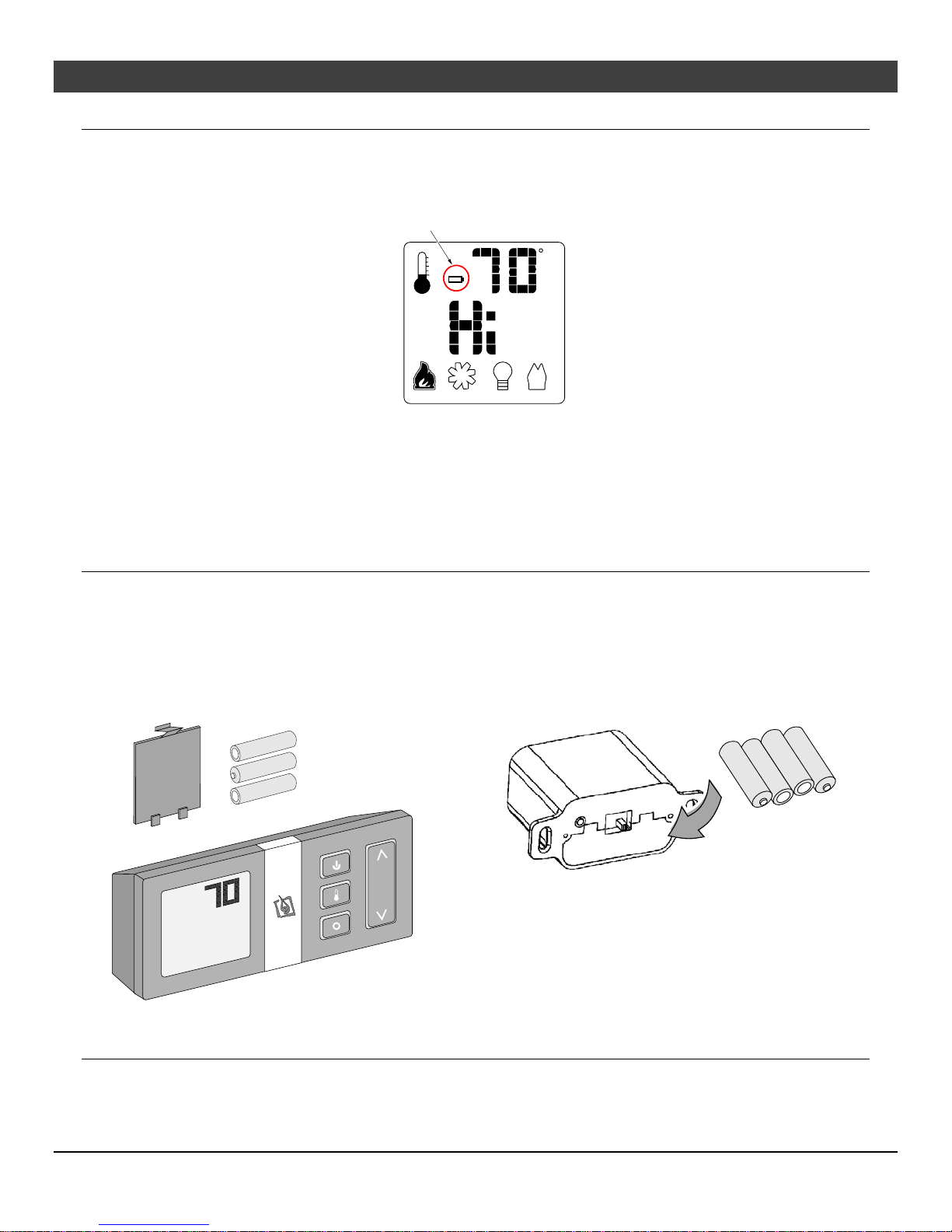

Low Battery Indicator 15
Transmitter Batteries.........................................15
IFC Batteries.....................................................15
Battery Replacement 15
Battery Installation.............................................15
Transmitter Battery Installation..........................15
Power Outages 15
Child-Proof Feature 16
Normal Operating Sounds 16
Normal Operating Odors 16
Maintaining Your Fireplace's Appearance 16
Accent Light Replacement 17
Lower Bulbs ......................................................17
Upper Bulb........................................................17
Yearly Service Procedure 19
Grill Installation and Removal 20
Face Installation and Removal 21
Glass Frame Removal and Installation 22
Glass Frame Removal and Installation
(continued) 23
Media Installation 24
Log or Stone Set ...............................................24
Glass Cleaning 24
Troubleshooting Table 25
Wiring Diagram 26
Replacement Parts List 26
CONDITIONS & EXCLUSIONS 27
IF WARRANTY SERVICE IS NEEDED: 27
Features
Works During Power Outages (battery backup)
GreenSmart™ 2 Thermostat / Remote Control
Multiple Media Options
Standard Blowers for Effective Heat Distribution
Built-In Accent Light (night light)
Standing or Intermittent (GreenSmart) Pilot
Convenient Operating Controls
Variable-Rate Heat Output
Low Maintenance
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* Up to 1,700 Up to 1,700
Maximum BTU Input Per Hour 35,000 35,000
* Heating capacity will vary with floor plan, insulation, and outside temperature.

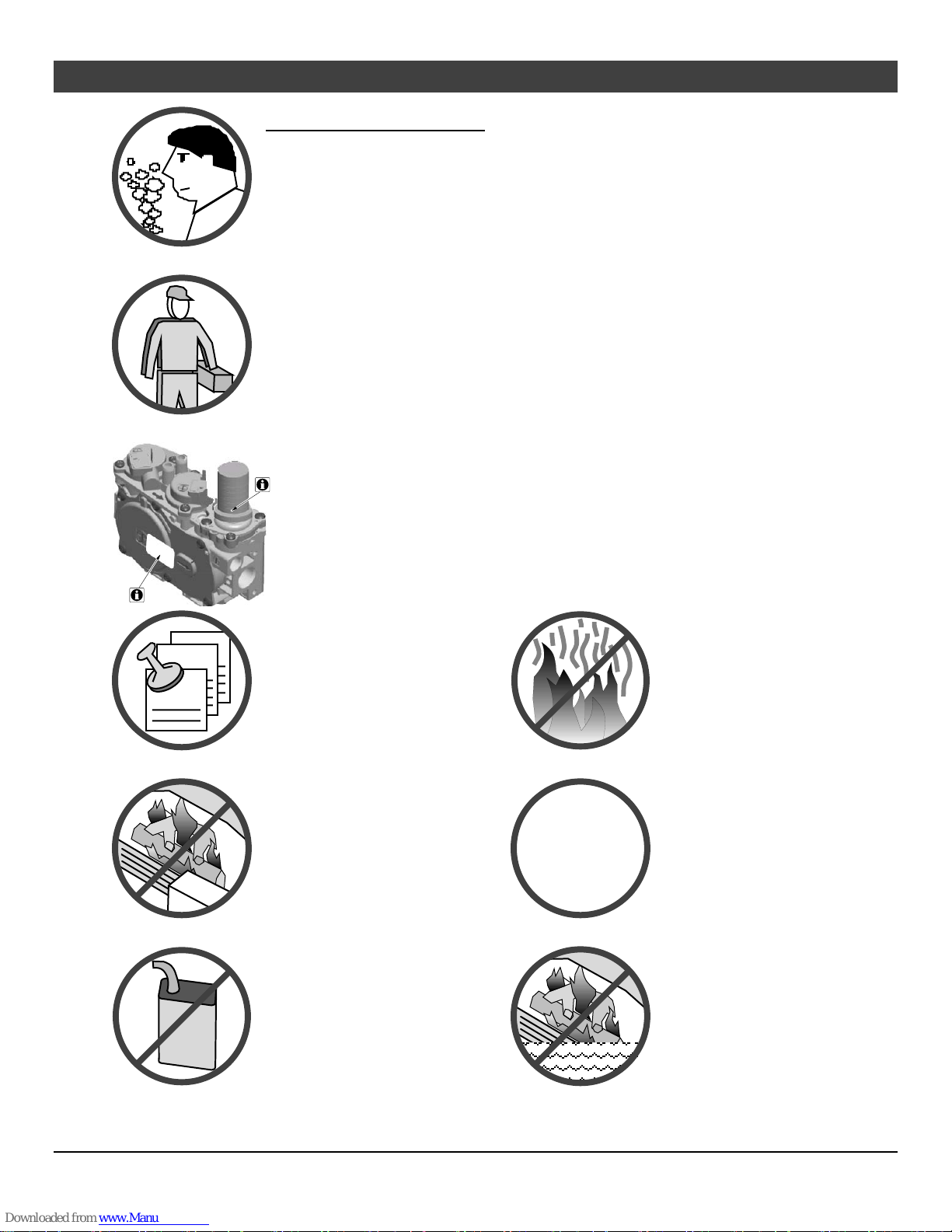

4 Safety Precautions
© Travis Industries 4140221 100-01293
IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor's house, if not reached, call fire department
This unit must be installed by a qualified installer to prevent the possibility of an explosion.
Your dealer will know the requirements in your area and can inform you of those people
considered qualified. The room heater should be inspected and cleaned before use and at
least annually by a qualified service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc.
The instructions in this manual must be strictly adhered to. Do not use makeshift methods
or compromise in the installation. Improper installation will void the warranty and safety
listing.
This heater is either approved for natural gas (NG) or for propane (LP). Burning
the incorrect fuel will void the warranty and safety listing and may cause an
extreme safety hazard. Direct questions about the type of fuel used to your dealer.
Check for a label on the flame adjust knob on the gas control valve (this is the best
place to check). You may also check for a label on the gas control valve body.
Contact your local building
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance company
of this heater as well.
If the flame becomes sooty, dark
orange in color, or extremely tall,
do not operate the heater. Call
your dealer and arrange for
proper servicing.
It is imperative that control
compartments, screens, or
circulating air passageways of
the heater be kept clean and
free of obstructions. These
areas provide the air necessary
for safe operation.
Do not operate the heater if it is
not operating properly in any
fashion or if you are uncertain.
Call your dealer for a full
explanation of your heater and
what to expect.
Do not store or use gasoline or
other flammable liquids in the
vicinity of this heater.
Do not operate if any portion of
the heater was submerged in
water or if any corrosion occurs.
Immediately call a qualified
service technician to inspect the
appliance and to replace any part
of the control system and any
gas control that has been under
water.
Ok
?
Gas







Safety Precautions 5
© Travis Industries 4140221 100-01293
Do not place clothing or other
flammable items on or near the
heater. Because this heater can
be controlled by a thermostat
there is a possibility of the
heater turning on and igniting
any items placed on or near it.
Light the heater using the built-in
igniter. Do not use matches or
any other external device to light
your heater.
Allow the heater to cool before
carrying out any maintenance or
cleaning.
The viewing glass should be
opened only for conducting
service. Do not operate with
cracked, broken, or removed
glass.
Any safety screen or guard
removed for servicing must be
replaced prior to operating the
heater.
Never remove, replace, modify or
substitute any part of the heater
unless instructions are given in
this manual. All other work must
be done by a trained technician.
Don't modify or replace orifices.
Operate the heater according to
the instructions included in this
manual.
If the main burners do not start
correctly turn the gas off at the
gas control valve and call your
dealer for service.
Instruct everyone in the house
how to shut gas off to the
appliance and at the gas main
shutoff valve. The gas main
shutoff valve is usually next to
the gas meter or propane tank
and requires a wrench to shut off.
This unit is not for use with solid
fuel
Do not place anything inside the
firebox (except the included fiber
logs).
If the fiber logs become
damaged, replace with Travis
Industries log set.
Do not throw this manual away.
This manual has important
operating and maintenance
instructions that you will need at
a later time. Always follow the
instructions in this manual.
Children and adults should be
alerted to the hazards of high
surface temperature and should
stay away to avoid burns or
clothing ignition. Young children
should be supervised when they
are in the same room as the
heater.
Travis Industries, Inc. grants
no warranty, implied or stated,
for the installation or
maintenance of your heater,
and assumes no responsibility
of any consequential
damage(s).









This
Manual

6 Operation
© Travis Industries 4140221 100-01293
Before You Begin
Read this entire manual before you use your new fireplace (especially the section "Safety
Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily
injury, or even death.
Remote Control Warnings
KEEP BATTERIES AND COVER
INSTALLED AT ALL TIMES
The remote control system requires the batteries and battery cover to
remain in place at all times. Once the batteries or cover are removed, the
system may re-start in standing pilot mode. If this occurs when the heater is
in Remote Mode, you will not be able to turn the heater off manually from
the battery box.
If you need to replace dead batteries, make sure to turn the appliance
off before removing the batteries.
NOTE:If the batteries go dead, the system will operate normally as long
as household power (120v AC) is present.
The transmitter and IFC are radio frequency devices. Placing the transmitter in or near
metal may severely reduce the signal range.
Turn off the main gas supply to the appliance during appliance installation or maintenance.
During appliance installation or maintenance or in case of remote control malfunction turn
off the main gas supply.

Operation 7
© Travis Industries 4140221 100-01293
Remote Set-Up
Verify the Switch is on “REMOTE”
The battery holder has a switch built into it (see Figure 1). This switch must remain in the REMOTE
position for the remote to operate.
Figure 1
Synchronize the Transmitter to the IFC
The transmitter will need to be synchronized to the IFC (Integrated Fireplace Control) before the remote
will work correctly. Synchronizing is done in the following two steps below (see Figure 2):
1. Press the PRG (Program) button on the battery box (IFC will beep 3 times).
2. Press the “ON” button on the transmitter (IFC will beep 3 times).
Figure 2
NOTE: If power is cut off to the IFC for an extended period of time, you may need to re-synchronize the
remote.
Clearing the System Memory
This appliance uses an Integrated Fireplace Control (IFC) to store the unique code for the remote control.
If you wish to clear the system memory, MAKE SURE GAS IS TURNED OFF TO THE APPLIANCE then
press the PRG (Program) button for 10 seconds. The pilot will start to spark repeatedly, signifying all
system memory has been cleared. The system will return to its original configuration: a remote will need
to be synchronized; and, the system will operate under continuous pilot mode.
ON REMOTE OFF
°F
"Beep"
"Beep"
"Beep"
"Beep"
"Beep"
"Beep"

8 Operation
© Travis Industries 4140221 100-01293
Location of Controls
ON REMOTE OFF
Swing the access door and control
cover down to access the battery
holder / switch.
Most features will be controlled
by the included remote.
°F

Operation 9
© Travis Industries 4140221 100-01293
Direct Operation
The fireplace may be directly operated from the battery holder. The three positions are below (see Figure 3):
ON – Burner turns on (regardless of transmitter settings).
OFF – Burner turns off (regardless of transmitter settings).
REMOTE – Burner is controlled by the transmitter.
Figure 3
NOTE: When the battery holder switch is turned to ON or OFF, the mode settings (Flame Height, Comfort
Control) will remain in the same state as before the switch was moved (i.e.: the IFC “remembers” the last
setting). If you wish to adjust the mode settings use the transmitter mode button to adjust the settings
(see “Mode Controls” on page 13). The thermostat and burner on/off operating functions will not work on
the transmitter.
Starting the Fireplace for the First Time
Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will
cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This
is normal. We recommend opening a window to vent the room.
Condensation may appear on the glass each time you start the fireplace - this is normal.
Blue Flames will occur on the fireplace when it first comes on. After fifteen minutes the flames will
turn a more realistic yellow and orange color.
Certain installations use a remote, thermostat, or wall switch to turn the fireplace on and off. If this is
the case, leave the ON/OFF switch "ON".
Verify the power backup batteries are installed (see page 15).
ON REMOTE OFF

10 Operation
© Travis Industries 4140221 100-01293
Intermittent/Continuous Pilot
This heater may run with the pilot continuously running or in intermittent mode. For most homeowners,
the intermittent mode is preferred (this saves fuel, doesn’t give off un-needed heat). However, in some
situations the homeowner may prefer to switch the heater to continuous pilot. The most typical reasons
for switching to continuous pilot are:
Very Cold Conditions – in very cold conditions you may notice that the burner does not light quickly,
and the flames lift off the burner. If this is situation, we recommend you switch to continuous pilot.
This will create a slight draft in the vent, allowing for the burner to light quickly and draft correctly.
Excessive Condensation on Glass After Startup – certain installations may encounter excessive
fogging on the window after startup (not just the first time the heater was started). This is an aesthetic
condition that may be remedied by switching the heater to continuous pilot.
Cold Glass or Heater Front – in very cold conditions you may notice that the heater front and glass
become very cold. To remedy this, switch the heater to continuous pilot.
Frequent On / Off Operation – if you are frequently turning the heater on and off, you may wish to
leave it in continuous pilot. This allows the burner to turn on more quickly, without pilot ignition delay.
Switching from Intermittent (IPI) to Continuous Pilot (CPI)
The pilot mode on this appliance is adjusted using the remote. With the remote in the off position
(thermostat off, manual off), follow the directions below to adjust the pilot mode.
Figure 4
Press the "MODE" button
when the appliance is off to
adjust the IPI/CPI.
FF
F
NOTE: This icon appears
when the appliance is in
CPI mode. Press the "UP" button
to activate CPI mode.
Press the "DOWN" button
to activate IPI mode.

Operation 11
© Travis Industries 4140221 100-01293
Remote Operation
When the switch on the battery holder is set to “REMOTE” the transmitter operates the fireplace. Once
you understand how the transmitter works, you will be able to operate your fireplace quickly and easily.
Display Overview
The transmitter display has four main sections (see Figure 5).
Figure 5
Listen for the “Beep”
Each time you press a button on the transmitter that controls the fireplace, a “beep” will come from the
IFC. When you change thermostat target settings the IFC will not beep.
NOTE: When the batteries start to get low, the IFC will beep intermittently. When the batteries are nearly
depleted, the IFC will no longer beep. See “IFC Batteries” on page 15).
ON
F
Thermostat Display
Room Temperature Display
Read-Out (Thermostat Setting, Function, etc.)
Mode Display (Flame, Blower, Light, Comfort Control)

12 Operation
© Travis Industries 4140221 100-01293
Manual On-Off / Smart Thermostat / Standard Thermostat
Use the thermostat button to cycle through the three thermostat settings (see Figure 6).
Figure 6
MANUAL ON/OFF – The burner will turn on and off using the remote (see Figure 7). Press the
On/Off button to control the burner. When off, the display will only show the current temperature.
Figure 7
SMART THERMOSTAT – While in smart thermostat, the transmitter will control the burner to
achieve the target temperature (see Figure 8 below). Flame height will be adjusted up or down to
allow operation without turning the burner on and off (also called “smart modulation”). To adjust
the target temperature, press the UP and DOWN buttons until a suitable temperature is achieved.
Figure 8
STANDARD THERMOSTAT - While in standard thermostat setting, the transmitter will turn the
burner on and off to achieve the target temperature (see Figure 9 below). To adjust the target
temperature, press the up and down buttons until a suitable temperature is achieved.
Figure 9
NOTE: If the transmitter batteries go dead while in thermostat setting (standard or smart), the appliance
will shut off after approximately 24 hours.
ON
F
OFF
ON SMART
Look here for the
thermostat setting. Press the thermostat button to cycle
through the thermostat settings.
F
OFF
When in manual setting, the
word "OFF" will appear here.
F
When in smart thermostat
setting, the word "SMART"
will appear here.
This is the target
temperature on the read-
out. Use the up or down
buttons to adjust the target
temperature.
SMART
F
ON
When in standard thermostat
setting, the word "ON" will
appear here.
This is the target
temperature on the
read-out. Use the up or
down buttons to adjust
the target temperature.

Operation 13
© Travis Industries 4140221 100-01293
Mode Controls (Flame, Blower, Light, Comfort Control)
Use the mode button to cycle through the four mode controls (see Figure 10 below).
Figure 10
Flame Height
Flame height may be controlled using the UP and DOWN buttons when in Flame Height Mode (see
Figure 11 below). The center display will display the 7 settings, from “OFF” to “HI” for full on.
NOTE: Flame height may not be adjusted if operating in Smart Thermostat setting.
Figure 11
Blower Speed
The blower may be controlled using the up and down buttons when in Blower Speed Mode (see Figure
12). The center display will display the 7 settings, from “OFF” to “HI” for full on.
Figure 12
MANUAL MODE – BLOWER OPERATION
When in Manual Mode the blower will remain on, even if the burner is turned off and the heater cools.
Either manually turn the blower off, or turn off the heater by pressing the On/Off button.
F
Flame
Height
OFF
Look here for
mode controls.
Press the mode button to cycle through the mode settings.
Optional
Blower Accent
Light
Comfort
Control
MAX
F
OFF
When in flame height
mode, this icon will
appear darkened.
This is the flame height
read-out. Use the up or
down buttons to adjust
the flame height (7
settings).
High
Medium
Off
MAX
F
OFF
When in blower
mode, this icon will
appear darkened.
This is the blower
speed read-out. Use
the up or down buttons
to adjust the blower
speed (7 settings).
High
Medium
Off

14 Operation
© Travis Industries 4140221 100-01293
Mode Controls - continued
Accent Light
The Accent Light (night light) inside the heater may be turned on and off using the up and down buttons
when in Accent Light Mode (see Figure 13). The center display will display the 7 settings, from “OFF” to
“HI” for full on.
Figure 13
HINT: If you wish to leave the accent light on while turning the burner off, adjust the Flame Height to
“OFF” (see above).
Comfort Control (rear burner)
The comfort control (rear burner) may be turned on and off using the up and down buttons when in
Comfort Control Mode (see Figure 14). The center display will display either “ON” or “OFF”.
Figure 14
Display Fahrenheit or Celsius
With the system in the “OFF” position, press both the MODE and THERMOSTAT buttons
simultaneously to toggle between Fahrenheit (F) and Celsius (C).
Figure 15
F
OFF
MAX
When in accent light
mode, this icon will
appear darkened.
This is the accent light
read-out. Use the up
or down buttons to
adjust the accent light
brightness (7 settings).
High
Medium
Off
F
OFF
When in comfort
control mode, this
icon will appear
darkened.
This is the comfort
control read-out. Use
the up button to turn
on, down button to
turn off (2 settings).
On
Off
F
C
F

Operation 15
© Travis Industries 4140221 100-01293
Low Battery Indicator
Transmitter Batteries
The transmitter has a battery-level indicator. When it indicates low battery voltage (see Figure 16 below), install
three new AAA alkaline batteries into the transmitter (see “Transmitter Battery Installation” on page 15).
Figure 16
IFC Batteries
The IFC (Integrated Fireplace Control) will “beep” repeatedly when the batteries go low. Install four new
AA alkaline batteries into the battery box when this occurs (see “Battery Installation” on page 15). In
applications where the appliance is required to provide heat, we recommend replacing the batteries
before each heating season.
Battery Replacement
Battery Installation
Install four AA batteries into the battery holder (see Figure 17 below). These batteries act as a power
backup in case the household (AC) current goes out.
Transmitter Battery Installation
Install the three included AAA batteries into the remote.
Figure 17
Power Outages
The remote will work if household current (AC power) is disconnected. The batteries inside the battery
box will continue to power the heater but the accent light and blower will not operate.
MAX
F
OFF
Low Battery Indicator
AA Battery
AA Battery
AA Battery
AA Battery
AAA Battery
AAA Battery
°F
AAA Battery

16 Operation
© Travis Industries 4140221 100-01293
Child-Proof Feature
The child proof feature disables the control buttons, preventing un-wanted use of the remote.
Press both the MODE and UP buttons simultaneously to turn this feature on and off (see Figure
18 below).
HINT: This feature is especially useful while using the thermostat setting.
Figure 18
Normal Operating Sounds
Normal Operating Odors
This appliance has several areas that reach high temperatures. Dust or other particles on these areas
may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if
the appliance was left idle for a long period.
Maintaining Your Fireplace's Appearance
Fingerprints or other marks left on the optional plated surface may become etched in place if they are not
wiped clean prior to turning the fireplace on. Clean the plated surface with denatured alcohol and a soft
cloth (with the fireplace cool). Other cleaners may leave a film that may become etched into the surface.
MAX
F
OFF
Child Proof Indicator
Blowers
The optional blowers push heated air into
the room. You will hear the sound of air
movement increase as the speed of the
blower is increased.
Extinction Pops
It is not unusual, especially on Propane
(LP) appliances, to experience a "pop"
when the burner is shut off.
Gas Control Valve
As the gas control valve is turned
on and off you will hear a dull
clicking sound. This is the valve
opening up and shutting down.
The appliance may creak
with change of temperature
-- THIS IS NORMAL.
Pilot Assembly
The pilot flame will make a clicking
sound when starting up. When on, it
will make a slight whisper sound.
GreenSmart Receiver
The GreenSmart receiver will beep when
receiving commands from the remote.

Maintenance 17
© Travis Industries 4140221 100-01293
Accent Light Replacement
The accent light in your fireplace provides additional lighting. The bulbs will burn out over time. To
replace, follow the directions below:
Shut off gas to the fireplace and let it cool for 15 minutes.
Turn off electricity to the fireplace (disable the breaker).
Remove the glass (see page 22) and media (see instructions included with the media).
Replace the halogen bulbs with the following bulbs:
35 Watt 120 Volt T4 Halogen Bulb (G6.35 Base)
Lower Bulbs
Located behind the logs on the EmberFyre and DancingFyre Burners.
Located below the media tray (firebox floor) on the DiamondFyre Burner.
Remove the bulb from the socket as shown above.
(NOTE: .Take care to not touch the bulb with your fingers – use foam packing or paper towel to hold the bulb):
Upper Bulb
1. Remove the exhaust manifold from the roof of the fireback. The 2 rear screws are in slots, and do not
need to be removed. Remove the 2 front screws from the exhaust manifold, then tilt the manifold
down and slide it forward to remove.

18 Maintenance
© Travis Industries 4140221 100-01293
2. Remove the accent light cover plate from the roof of the firebox. Remove the outer 8 screws, not the
inner 4 screws.
NOTE: When replacing this plate, position the glass to the rear. Make sure the gasket seals tightly
against the firebox ceiling.
3. Pull down the upper accent light enclosure from the roof of the firebox, as shown below. Note the 3
screws holding the bulb assembly in place.
4. Loosen the lower 2 set screws nearest the bulb to disengage the bulb from the holder. Remove the
bulb from the holder. Replace the bulb, making sure not to touch the bulb with your fingers (grasp the
bulb with the bulb packaging or a paper towel). Tighten the set screws until the bulb is secure (do not
over-tighten, this may damage the electrical contacts on the bulb).
5. Return the fireplace to the correct configuration.
Micro (1/16") Standard
or Philips Screwdriver
Do not loosen these screws
(they hold the wires in place).

Maintenance 19
© Travis Industries 4140221 100-01293
Yearly Service Procedure
Failure to inspect and maintain the fireplace may lead to improper combustion and a potentially
dangerous situation. We recommend the following procedures be done by a qualified technician.
1. Turn the pilot flame to continuous. It should touch approximately 3/8" of the top of the flame sensor. If it does
not, contact your dealer for service.
2. Shut off gas to the fireplace and let it cool for 15 minutes. Remove the glass (see page 22).
3. Remove the media (see the instructions included with the media). If severely deteriorated, replace. Check the
logs for sooting. A small amount of soot along the bottom of the logs is normal. If excessive sooting is found,
the fireplace will require adjustment. Contact your dealer.
4. Inspect the burner and remove any debris.
Make sure the burner is not warped, cracked, or damaged.
Check the firebox and area around the pilot to make sure there is no warping or damage.
If any problem is found, discontinue use and contact your dealer for service.
5. Replace the media. Clean and replace the glass (see Glass Cleaning on page 24). If the glass is damaged,
replace. Make sure the gasket along the perimeter of the glass contacts the face of the firebox and forms an air-
tight seal. If it does not, re-align or replace the gasket to insure an air-tight seal.
6. Inspect the area behind the access door. Clean if necessary. Check the gas
control valve and the gas lines. If damage is found, discontinue use and contact
your dealer for service. Clean the air channels, ducts, and blower (if applicable).
7. Start the main burner. Inspect the main burner and pilot flame. After 15 minutes
the flames should be orange/yellow and not touch the top of the firebox. If the
pilot or main burners do not burn correctly, contact your dealer for service.
Monitor blower operation.
8. Remove any debris or vegetation near the vent termination. Contact your dealer
if any sooting or deterioration is found near the vent termination. Venting system
should be examined by a qualified agency.

20 Maintenance
© Travis Industries 4140221 100-01293
Grill Installation and Removal
Follow the directions below to install.
Upper Grill Installation (FPX and Avalon)
Hold the grill at an angle and insert the
lower slot over the lower bushing on
the fireplace (both sides)
Swing the grill upwards to engage the upper slot. You
will need to lift the grill slightly to get it over the bushing.
Once in place the grill is held in place by gravity.
Lower Grill Installation
Hold the grill at an angle and insert the lower
slot over the bushing on the fireplace (both
sides). You may need press on the grill to get
the tab over the bushing (this prevents the
grill from accidentally falling off).
Bend the tab outward on
both sides. This is the
end-stop for the lower grill,
it allows the grill to swing
forward.
Swing the grill upwards to engage
the upper slot. You will need to lift
the grill slightly to get it over the
bushing. Once in place the grill is
held in place by gravity.
NOTE: The upper grill is difficult to install the first time - be
patient, after you install it, you will know how it installs and it
will be much easier the second time.
SIDE VIEW


Position the grill
so the slots on
the grill align with
the mounting
studs.
You may need to
push in and
upwards on the
grill as it inserts.
The grill, when
fully inserted,
will slide down
and “click” into
place.
Upper Grill
Heat Shields
(on fireplace)
Mounting Stud

Upper Grill Installation (Lopi)
