DVL EF Fireplace
Owner's Manual
Featuring the
Burner
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028-S-23B-5
ANSI Z21.88
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
• Residential or Mobile Home
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed as an OEM installation in a manufactured (mobile) home and
must be installed in accordance with the manufacturer’s instructions and the manufactured home
construction and safety standard, Title 24 CFR, Part 3280.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A
conversion kit is supplied with the appliance.
Installer:After installation give this manual to the home-owner
and explain operation of this heater.
Copyright 2007, Travis Industries, Inc. $10.00 100-01147
Travis Industries, Inc.
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2Introduction
Travis Industries 4041206 100-01147
Introduction
We welcome you as a new owner of a Travis Industries gas fireplace. In purchasing this fireplace you
have joined the growing ranks of concerned individuals whose selection of an energy system reflects
both a concern for the environment and aesthetics. The Travis Industries DVL EF Fireplace is one of
the finest home heaters the world over. This manual will explain the installation, operation, and
maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating
your heater and save the manual for future reference. Included are helpful hints and suggestions that
will make the operation and maintenance of your new fireplace an easier and more enjoyable
experience. We offer our continual support and guidance to help you achieve the maximum benefit
and enjoyment from your heater.
Important Information
No other DVL EF gas fireplace has the same serial
number as yours. The serial number is below and to
the left of the gas control valve.
This serial number will be needed in case you require
service of any type.
Model: DVL EF Fireplace
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card
Today, and Save Your Bill of
Sale.
To receive full warranty coverage,
you will need to show evidence of
the date you purchased your
heater. Do not mail your Bill of
Sale to us.
We suggest that you attach your
Bill of Sale to this page so that you
will have all the information you
need in one place should the need
for service or information occur.

Table of Contents 3
Travis Industries 4041206 100-01147
Introduction
Introduction & Important Information................2
Safety Precautions
Safety Precautions......................................4
Features & Specifications
Features ....................................................6
Installation Options......................................6
Heating Specifications..................................6

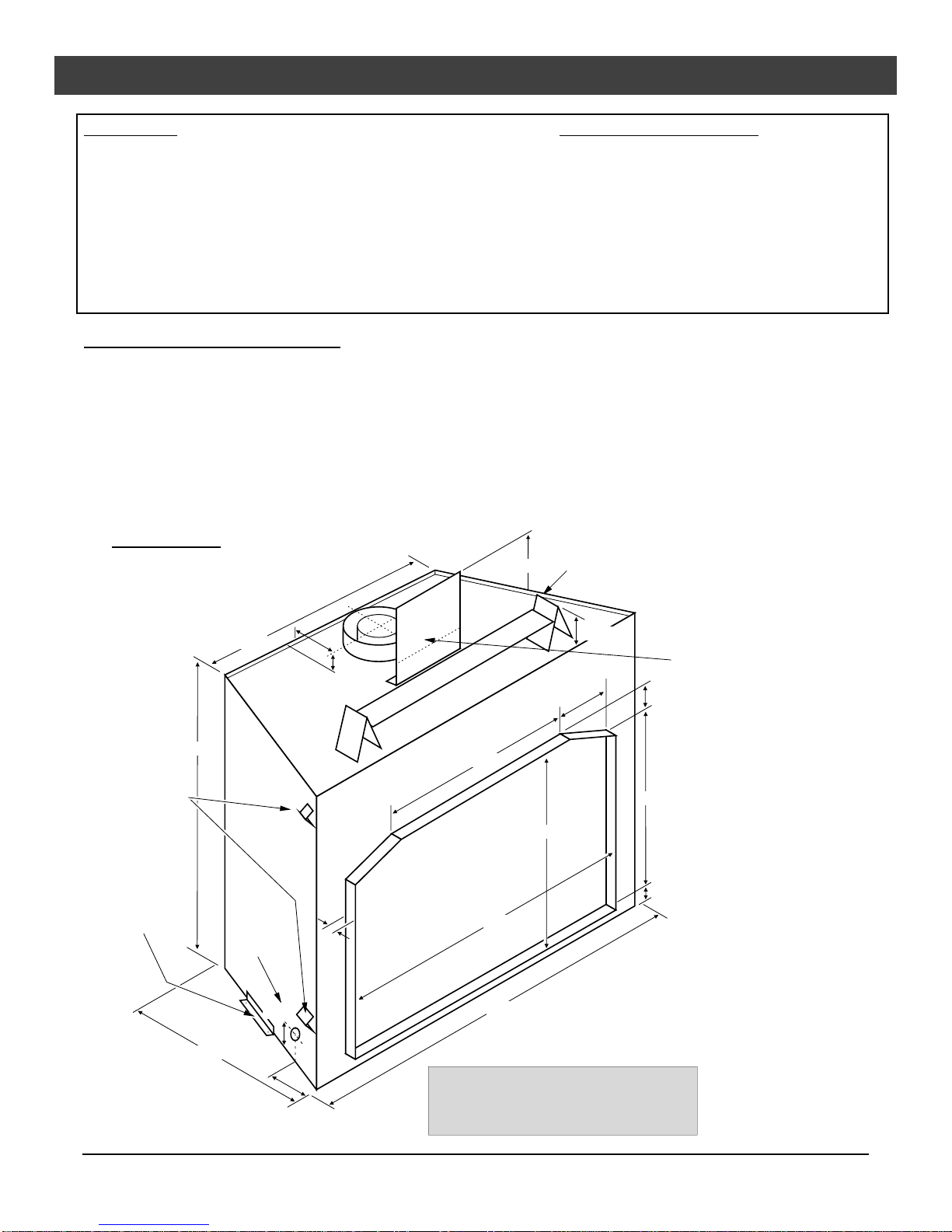

Dimensions.................................................6
Installation
Installation Warning......................................7
Packing List................................................7
Additional Items Required for Installation..........7

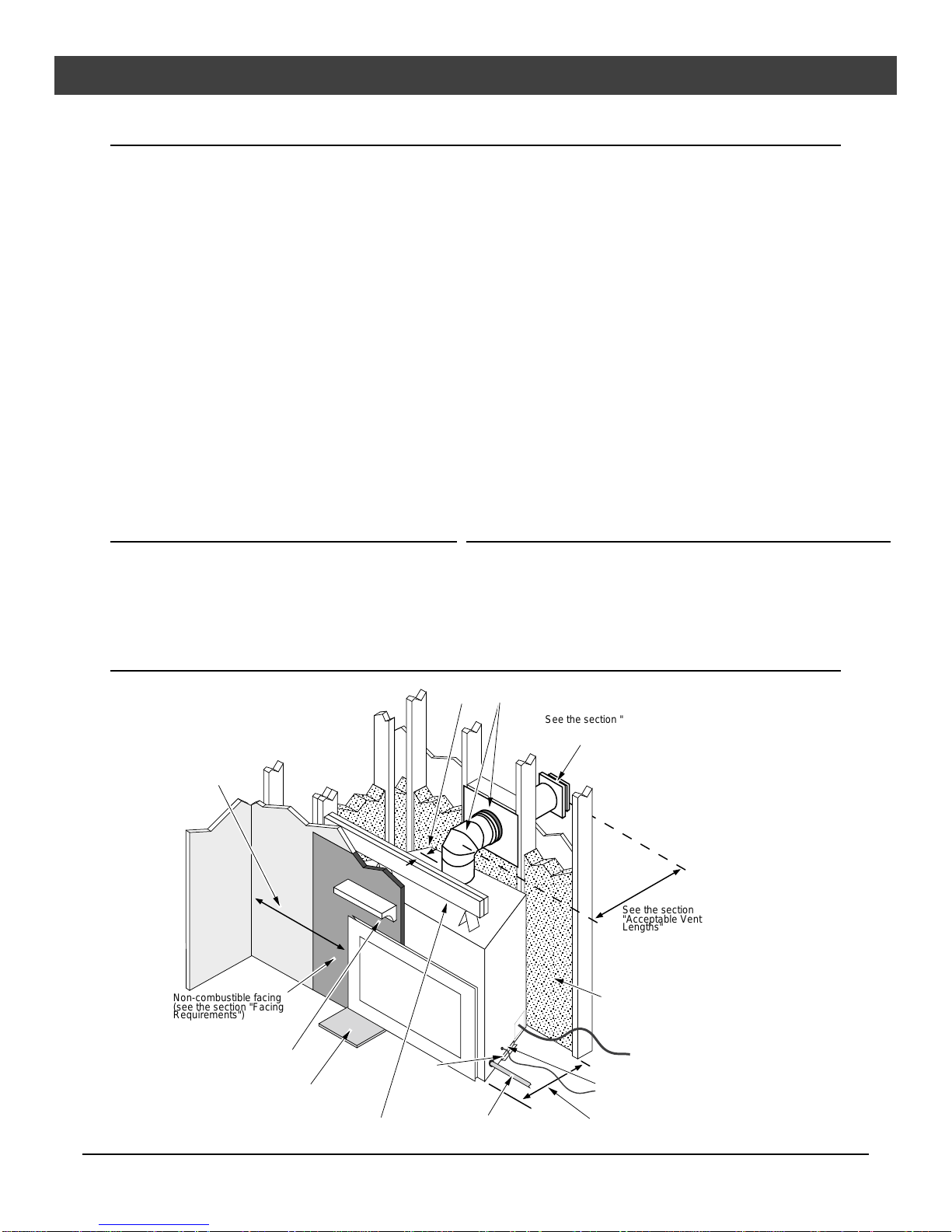

Installation Overview....................................7
Fireplace Placement Requirements..................8
Minimum Framing Dimensions ....................8
Clearances ............................................8

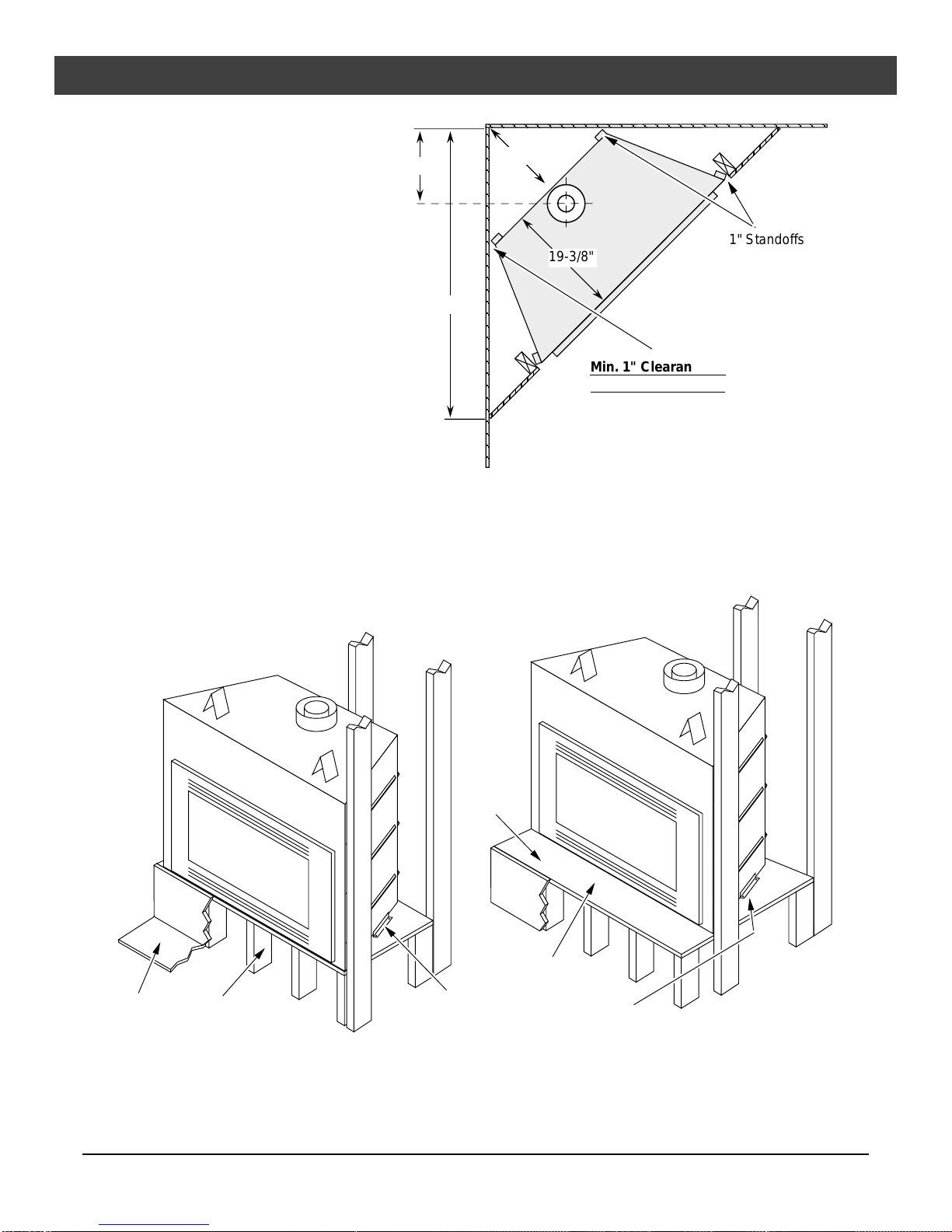

Corner Installations .................................9
Raised Fireplaces....................................9

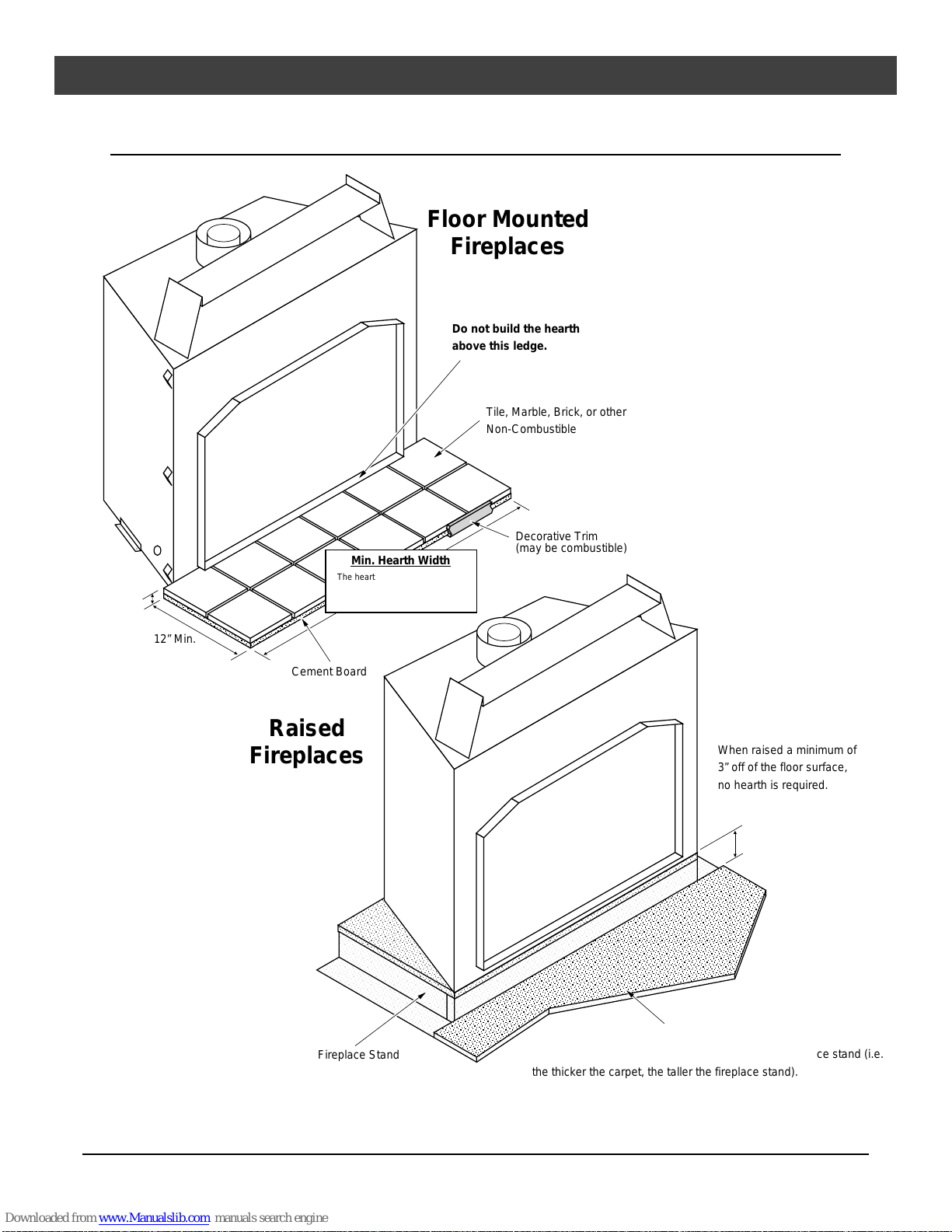

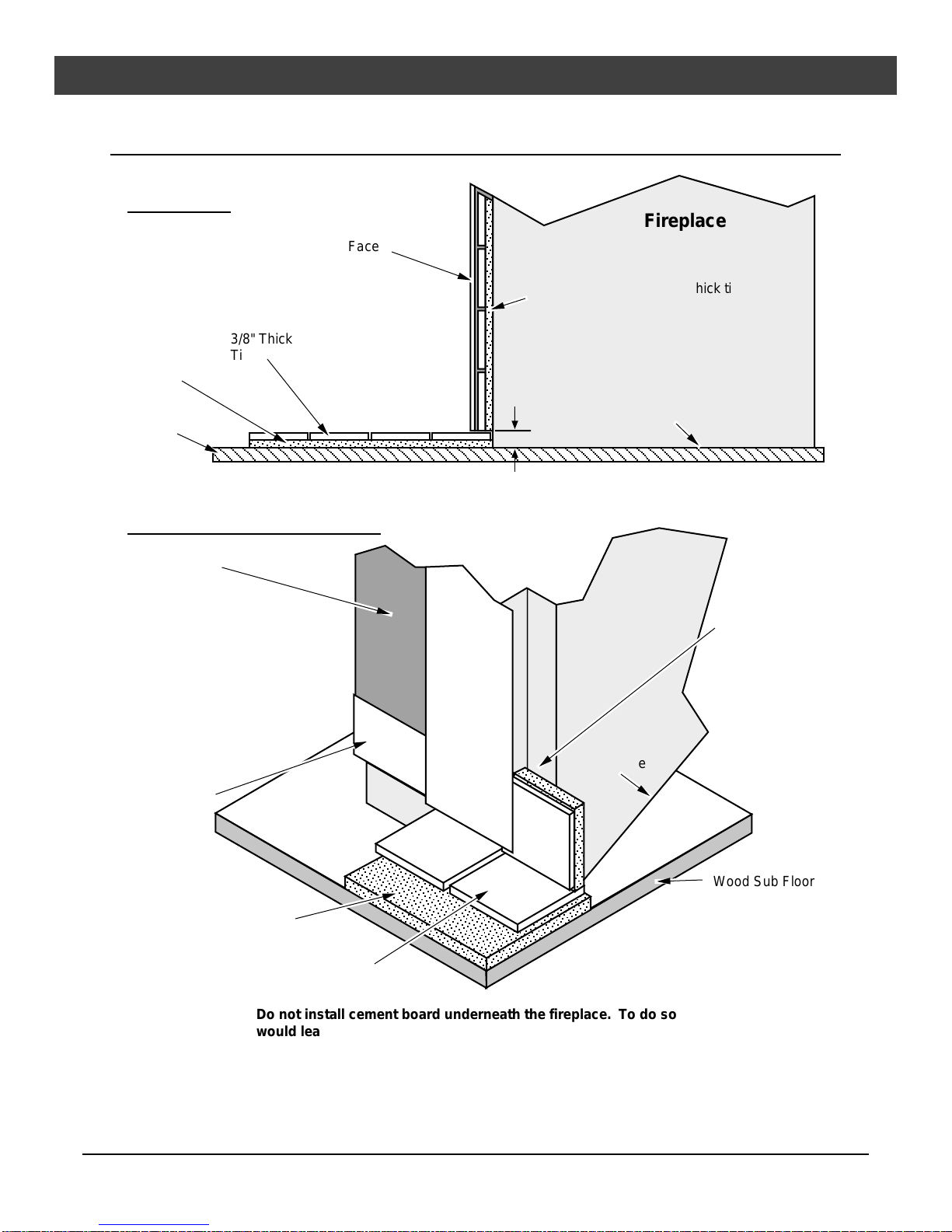

Hearth Requirements....................................10
Facing Requirements....................................11
Facing Over 1" Thick.....................................11

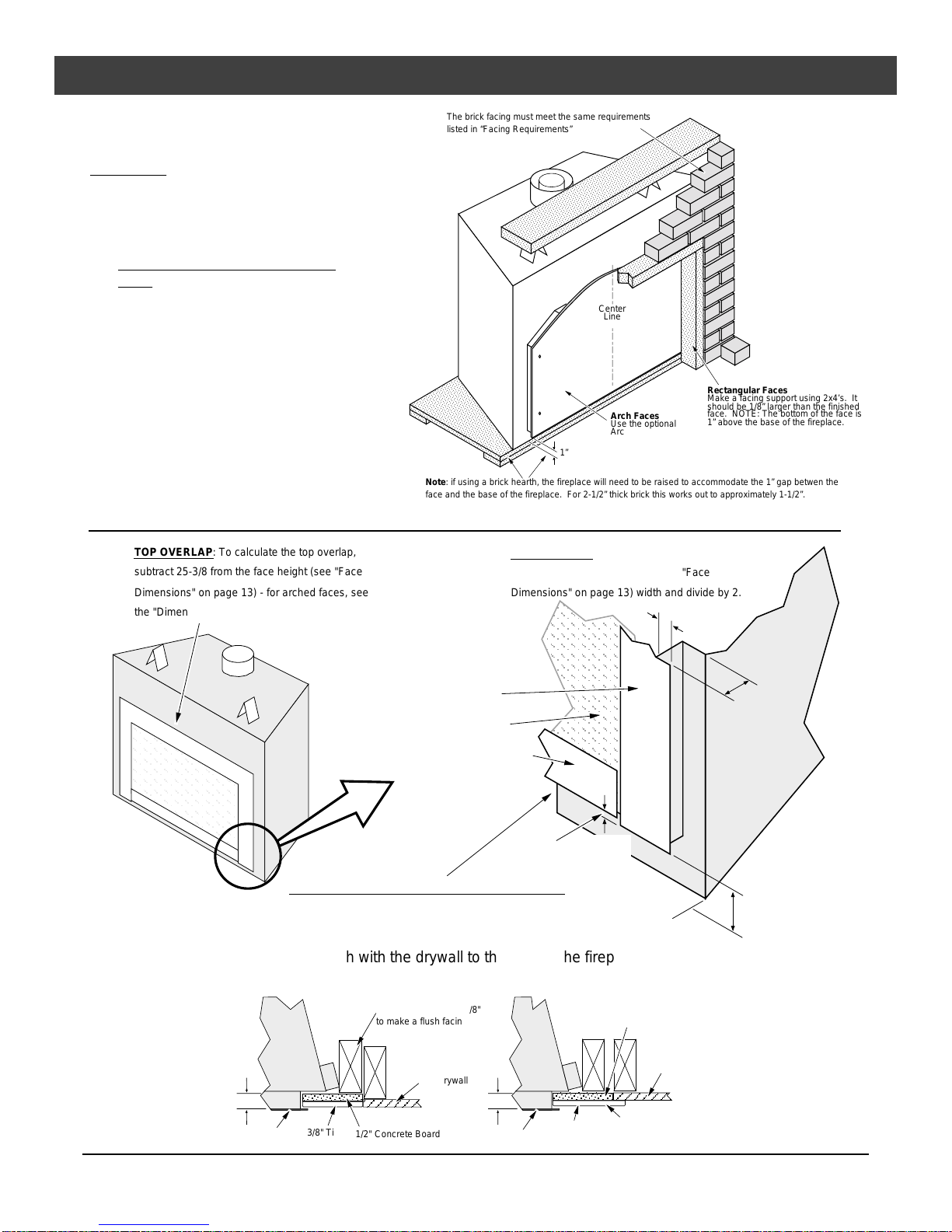

Facing Detail...............................................12
Face Dimensions .........................................13
Modifying the Face Angle...............................14
Facing & Hearth Examples.............................15
Mantel Requirements....................................17
Vent Requirements.......................................18
Altitude Considerations ............................18
Clearances ............................................18
Use of 8” Dia. Pipe...................................18
Vent Installation......................................19
Approved Vent Configurations........................20
Restrictor Position...................................20
Measuring Vent Lengths...........................20
Vertical Terminations (with/ without offsets)..21
Vertical Terminations with 2 90° Elbows........22
Horizontal Terminations w/ 1 Vertical Elbow ..23
Horizontal Terminations w/ 3 Vertical Elbows.24
Vent Termination Requirements ......................25
Gas Line Requirements.................................26
Fuel......................................................26
Gas Line Connection................................26
Gas Inlet Pressure ..................................26
Electrical Connection....................................27
Finalizing the Installation
1 Glass Removal (& installation)......................28
2 Log & Coal Installation................................30
3 Purge Gas Line and Replace the Glass ..........31
4 Faceplate Installation.................................31
5 Leak Test.................................................31
6 Pilot Adjustment (if necessary).....................31
7 Air Shutter Adjustment (if necessary)............31
8 Check Flame.............................................32
9 Explain Operation to Home-Owner.................32
Operation
Before You Begin.........................................33
Location of Controls .....................................33
Starting The Pilot .........................................34
Starting the Fireplace for the First Time.............35
Turning the Fireplace On and Off.....................35
Adjusting the Flame Height.............................35
Adjusting the Blower Speed............................36
Normal Operating Sounds..............................36
Normal Operating Odors................................36
Maintenance
Yearly Service Procedure..............................37
Troubleshooting Table...................................38
How this Fireplace Works...............................39
What Turns the Main Burners On and Off......39
What Prevents Gas Buildup.......................39
Wiring Diagram ............................................40
Replacement Parts List.................................40
Safety Label
Safety (Listing) Label....................................41
Warranty
Warranty....................................................42
Optional Equipment
LP Conversion Kit ........................................43
Index
Index.........................................................46

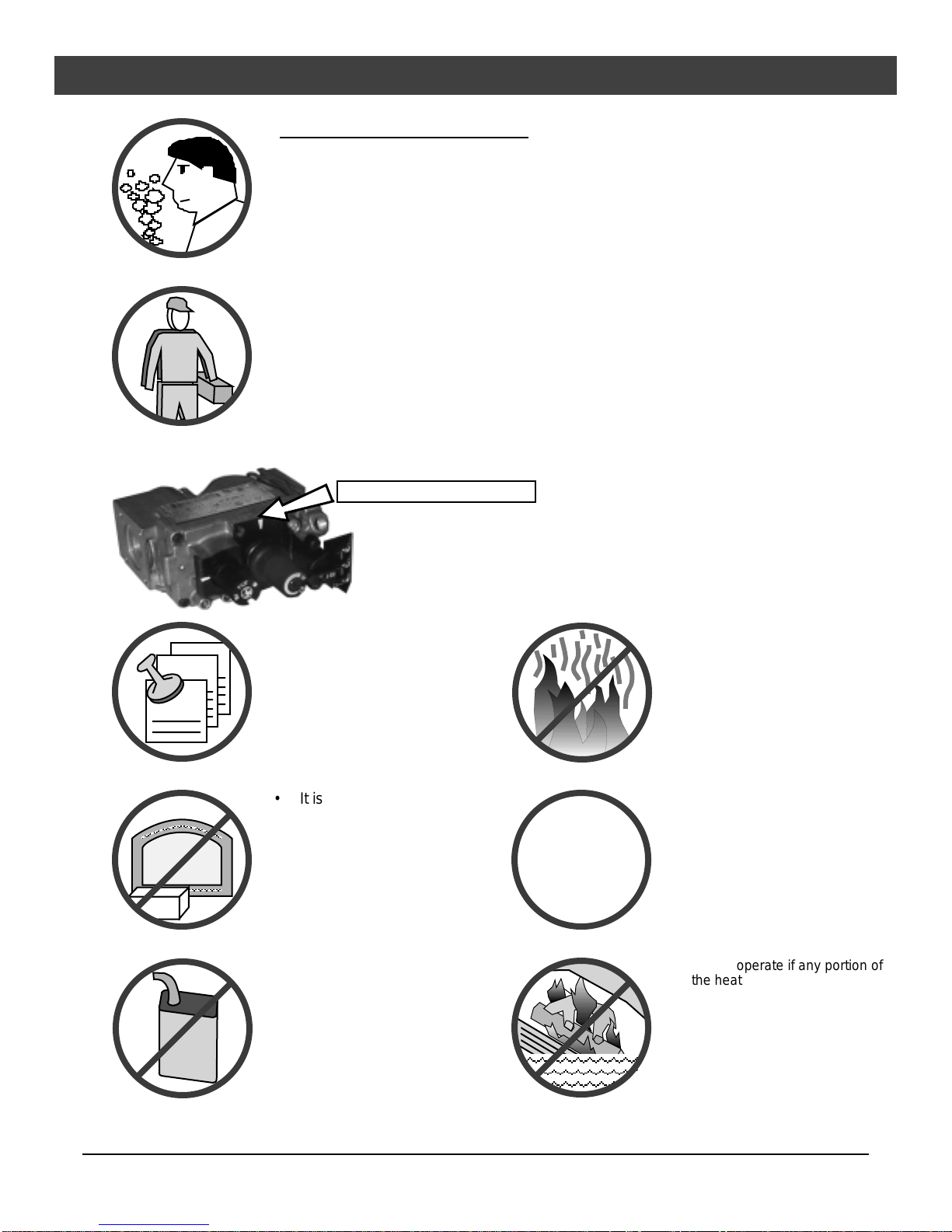

4Safety Precautions
Travis Industries 4041206 100-01147
• IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor's house, if not reached, call fire
department
• This unit must be installed by a qualified installer to prevent the possibility of an
explosion. Your dealer will know the requirements in your area and can inform you of
those people considered qualified. The room heater should be inspected and
cleaned before use and at least annually by a qualified service person. More frequent
cleaning may be required due to excessive lint from carpeting, bedding material, etc.
• The instructions in this manual must be strictly adhered to. Do not use makeshift
methods or compromise in the installation. Improper installation will void the warranty
and safety listing.
For LPG only | Pout 11” W.C.
Look for this label:
If the label is present, the
heater is equipped for LP
(propane). If the label is
absent, the heater is equipped
for NG (natural gas).
•This heater is either approved for natural
gas (NG) or for propane (LP). Burning the
incorrect fuel will void the warranty and
safety listing and may cause an extreme
safety hazard. Direct questions about the
type of fuel used to your dealer. Check
the label and flame adjust knob on the
gas control valve.
Ok
•Contact your local building
officials to obtain a permit
and information on any
installation restrictions or
inspection requirements in
your area. Notify your
insurance company of this
heater as well.
•If the flame becomes sooty,
dark orange in color, or
extremely tall, do not
operate the heater. Call
your dealer and arrange for
proper servicing.
AAA
AA
AA
•It is imperative that control
compartments, screens, or
circulating air passageways
of the heater be kept clean
and free of obstructions.
These areas provide the air
necessary for safe
operation. ?•Do not operate the heater if
it is not operating properly in
any fashion or if you are
uncertain. Call your dealer
for a full explanation of your
heater and what to expect.
Gas
•Do not store or use gasoline
or other flammable liquids in
the vicinity of this heater.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AA
AA
•Do not operate if any portion of
the heater was submerged in
water or if any corrosion
occurs. Immediately call a
qualified service technician to
inspect the appliance and to
replace any part of the control
system and any gas control
wash has been under water.

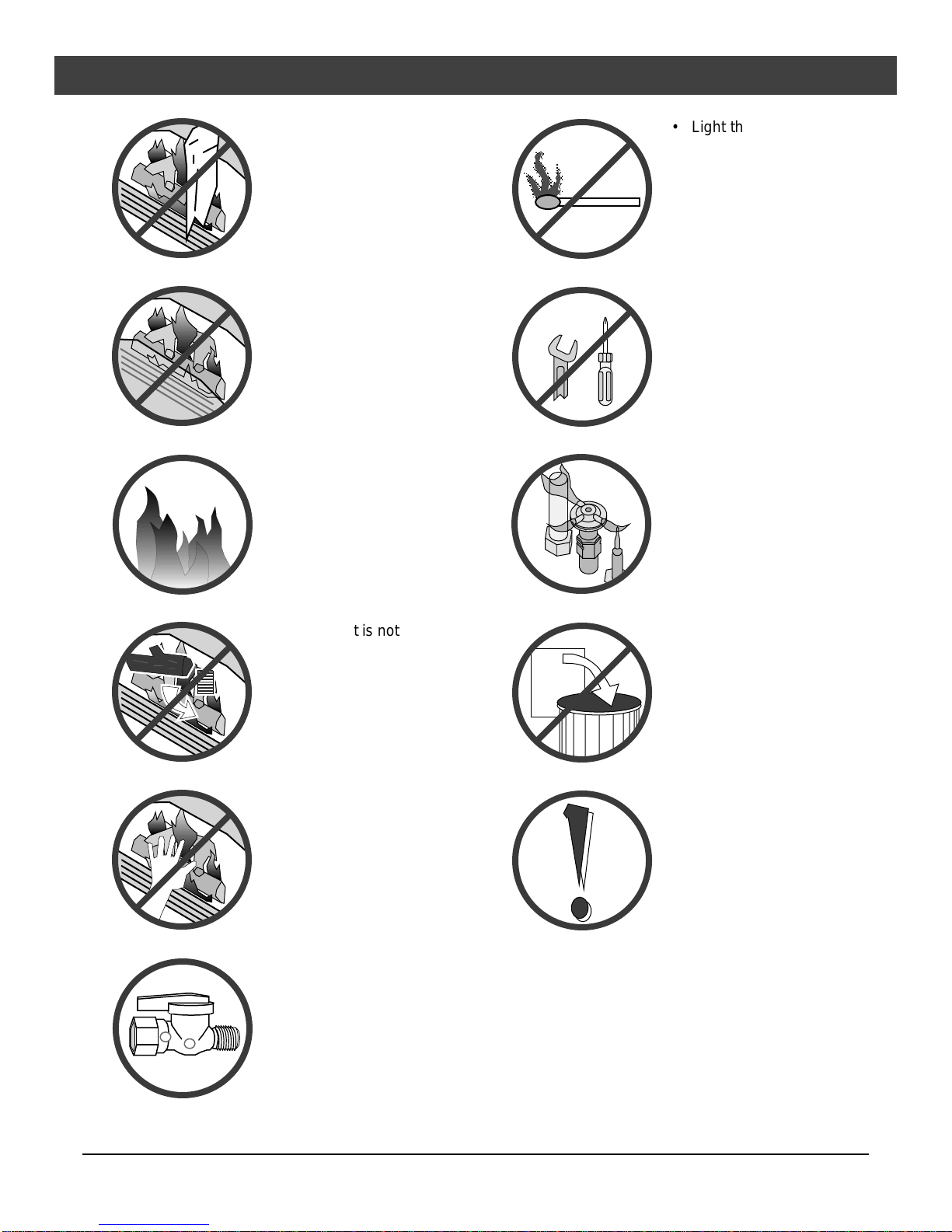

Safety Precautions 5
Travis Industries 4041206 100-01147
•Do not place clothing or
other flammable items on or
near the heater. Because
this heater can be controlled
by a thermostat there is a
possibility of the heater
turning on and igniting any
items placed on or near it.
AA
AA
AA
AA
A
•Light the heater using the
built-in piezo igniter. Do not
use matches or any other
external device to light your
heater.
•Never remove, replace,
modify or substitute any part
of the heater unless
instructions are given in this
•The viewing glass should be
opened only for lighting the
pilot or conducting service.
Do not operate with cracked,
broken, or removed glass.
•Any safety screen or guard
removed for servicing must
be replaced prior to
operating the heater.
manual. All other work must
be done by a trained
technician. Don't modify or
replace orifices.
•Allow the heater to cool
before carrying out any
maintenance or cleaning.
•Operate the heater
according to the instructions
included in this manual.
•If the main burners do not
start correctly turn the gas
off at the gas control valve
and call your dealer for
service.
•The pilot flame must contact
the thermopile and
thermocouple (see the
illustration to the left). If it
does not, turn the gas
control valve to "OFF" and
call your dealer.
AA
AA
AA
AA
•This unit is not for use with
solid fuel
•Do not place anything inside
the firebox (except the
included fiber logs).
•If the fiber logs become
damaged, replace with
Travis Industries log set.
This
Manual
•Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this manual.
•Children and adults should
be alerted to the hazards of
high surface temperature
and should stay away to
avoid burns or clothing
ignition. Young children
should be supervised when
they are in the same room as
the heater.
•Travis Industries, Inc.
grants no warranty,
implied or stated, for
the installation or
maintenance of your
heater, and assumes
no responsibility of any
consequential
damage(s).
•Instruct everyone in the
house how to shut gas off to
the appliance and at the gas
main shutoff valve. The gas
main shutoff valve is usually
next to the gas meter or
propane tank and requires a
wrench to shut off.

6Features and Specifications
Travis Industries 4041206 100-01147
Features:
- Works During Power Outages (millivolt system)
- High Efficiency
- Optional Thermostat or Remote Control
- Realistic "Wood Fire" Look
- Quiet Blower for Effective Heat Distribution
- Convenient Operating Controls
- Variable-Rate Heat Output
- Low Maintenance
Installation Options:
- Residential or Mobile Home
- Straight or Corner Placement
- Flush or Recessed Face
- Raised or Floor Hearth
- Internal or External Chase
- Horizontal or Vertical Vent
- Bedroom Approved
Heating Specifications: Natural Gas Propane
Approximate Heating Capacity (in square feet)* Up to 2,000 Up to 2,000
Maximum BTU Input Per Hour 40,000 40,000
Minimum BTU Output on Low 17,250 20,600
Steady State Efficiency** (with blowers on) Up to 82% Up to 82%
AFUE (Annual Fuel Utilization Efficiency) 68% 68%
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous operation
independent of installed system.
The electrical connection is
made in the lower right rear
corner.
43-7/8"*
1" Stand-offs
* Includes the 1" clearance (stand-offs)
Nail Down
Plate (used
to secure
the fireplace
to the floor)
Weight: 250 Lbs.
Dimensions:
Gas Inlet
(both sides)
16-3/8"
20-1/4"* 6-5/8"
2-5/8"
32-7/8"
25-1/8"
1"
22-3/4"
2-5/8"
8-1/4"
1"
40-1/8"
25-1/4"
WARNING:
A 1" clearance from the fireplace enclosure is
required along the sides and back of the fireplace.
6-3/8"
7"
1-7/8"
53-5/8"
This shield is shipped bent over
the vent - it must be bent to a
vertical positon.

Installation (for qualified installers only) 7
Travis Industries 4041206 100-01147
Installation Warnings:
•Failure to follow all of the requirements may result in property damage, bodily
injury, or even death.
•This heater must be installed by a qualified installer who has gone through a
training program for the installation of direct vent gas appliances.
•This appliance must be installed in accordance with all local codes, if any; if not,
follow ANSI Z223.1 and NFPA 54(88).
•In Manufactured or Mobile Homes must conform with Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home Installations,
ANSI/NCSBCS A225.1. This appliance may be installed in Manufactured Housing
only after the home is site located.
•The fireplace is designed to operate on natural gas, or propane (LP).
•All exhaust gases must be vented outside the structure of the living-area.
Combustion air is drawn from outside the living-area structure.
•Notify your insurance company before hooking up this fireplace.
•The requirements listed below are divided into sections. All requirements must be
met simultaneously. The order of installation is not rigid –the qualified installer
should follow the procedure best suited for the installation.
Packing List
•Propane Conversion Kit
•Log Set
•Glass Latch Key (to un-latch glass frame)
•Firestop
•Fireback Clips (for Ceramic Firebacks Only)
Additional Items Required
•Faceplate
•Direct Vent (Simpson Dura-Vent Ph. # 800 835-4429)
•Gas Line Equipment (shutoff valve, pipe, etc.)
•Electrical Equipment (min. 14 gauge, grounded line)
Installation Overview
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
Non-combustible facing
(see the section "Facing
Requirements")
See the section
"Acceptable Vent
Lengths"
See the section "Horizontal
Termination Requirements"
See the section
"Gas Line Installation"
See the section
"Electrical Connection"
See the section
"Mantel Requirements"
Insulation must not fill
the 1" clearance
around the back and
sides of the fireplace.
See the section "Fireplace
Placement Requirements"
6" Min.
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
See the section
"Hearth Requirements"
Drywall
Nail
Down
Plate This grommet and hole is for
thermostat wire (on both sides)
Side
Wall

8Installation (for qualified installers only)
Travis Industries 4041206 100-01147
Fireplace Placement Requirements
Minimum Framing Dimensions
A 1" clearance is required along the sides and back of the fireplace. The 1" stand-offs on the sides
and 6-3/8" stand-offs on the top of the fireplace are designed to separate the fireplace from the
framing members. These stand-offs may contact the framing members but no material may be placed
between the stand-offs.
54-3/4" Min.
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
A
AA
AA
A
A
A
A
A
AAAA
AAAA
AAAA
AA
AA
AAAAA
AAAAA
AAAAA
A
AA
A
A
A
A
AA
AA
AA
A
AA
A
A
44-1/4"
20-1/2"
46-3/4"
3" Clearance Min. Above Vent
The center of the vent is a
minimum 47-3/4" above the
base of the fireplace.
1" Clearance Min. to
the Sides of Vent
The fireplace enclosure
must not be less than
54-3/4" above the base
of the fireplace. 1" Clearance Min.
Below Vent
•Fireplace must be installed on a level surface capable of supporting the fireplace and vent
•Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet)
•This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.
Clearances
•When installed, walls in front of the fireplace must be a minimum 6" to the side of the faceplate.
•Due to the high temperature of the fireplace, it should be located out of traffic and away from furniture
and draperies.
•Fireplace must be placed so the vents below and above the glass do not become blocked

Installation (for qualified installers only) 9
Travis Industries 4041206 100-01147
Corner Installations
A typical 45°installation
uses the minimum framing
dimensions shown in the
illustration to the right
(NOTE: all clearances still
apply).
AAA
AAA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
AAAAAAAAAAA
19-3/8" 1" Standoffs
Min. 1" Clearance to
Fireplace Enclosure
47-5/8"
13-3/4"
14-3/4"
Raised Fireplaces
•The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace
(250 Lbs.) and vent.
•The fireplace may not be raised so as to place the ceiling within 36" of the base of the fireplace.
Raised fireplace Raised fireplace with
raised hearth.
Raised
Platform Nail the nail down plates to the floor
(or raised platform)
Raised Hearth
Hearth
Raised
Platform

10 Installation (for qualified installers only)
Travis Industries 4041206 100-01147
Hearth Requirements
Min. 3/4”
Max. 15/16”
6-1/4"
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
Do not build the hearth
above this ledge.
12”Min.
Cement Board
Tile, Marble, Brick, or other
Non-Combustible
Decorative Trim
(may be combustible)
Floor Mounted
Fireplaces
Raised
Fireplaces
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAA
A
A
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
When raised a minimum of
3”off of the floor surface,
no hearth is required.
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Fireplace Stand
6-1/4"
Min. Hearth Width
The hearth must be as wide as
the face (see page 13 for face
dimensions)
Make sure to accomodate the floor covering (carpet, linoleum,
flooring, etc.) when determining the height of the fireplace stand (i.e.
the thicker the carpet, the taller the fireplace stand).

Installation (for qualified installers only) 11
Travis Industries 4041206 100-01147
Facing Requirements
NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it
does, it is considered a mantel and must meet the mantel requirements listed in this manual.
Adhesive
WARNING: Do not use adhesive to secure the cement board or facing. The high
temperatures of the fireplace may cause adhesives to emit odors. Use mastic or thin set (or
other non-combustible, non-odorous adherent) to attach the facing to the cement board.
NOTE: Screws may be used to secure the cement board to the fireplace. Do not penetrate
the fireplace more than 3/4”
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
6" Min.
(both sides)
Non-combustible Facing
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
The fireplace requires a concrete
board (or other non-combustible)
extending from the header to the
floor and to the framing members on
both sides. Do not use sheetrock,
plywood or other combustible
material.
Arch Face Rectangular Face
Header
Bottom of
Faceplate
SEE PAGE 13 FOR
FACE DIMENSIONS
1"
Base of
Fireplace
Combustible Facing
AAAAA
AAAAA
Non-Combustible Facing
Top Facing Clearance (see the
table below)
Top Facing Clearance:
•Measured From Top of Faceplate (see “Faceplate Dimensions”on page 13)
8" Max. Mantel Depth 10" Max. Mantel Depth 12" Max. Mantel Depth
Avalon Cambridge 12" 12" 12"
Avalon Craftsman 12" 12" 12"
Avalon Rosario 16" 18" 19"
Avalon Victorian Lace 15" 15" 15"
Avalon Victorian Lace with shield 12" 12" 12"
Avalon Rawhide 15" 15" 15"
Avalon Rawhide with shield 12" 12" 12"
Avalon Bungalow 18”18”18”
FPX 34 Arch & Artisan 18" 18.5" 19"
FPX 34 Arch & Artisan with shield 13.5" 14" 14.5"
FPX Metropolitan 19.5" 19.5" 19.5"
FPX Metropolitan with shield 15" 15" 15"
FPX Art Deco 19.5" 19.5" 19.5"
FPX Art Deco with shield 12" 12" 12"
FPX Neo-Classic 17.5" 17.5" 17.5"
FPX Neo-Classic with shield 12" 12" 12"
FPX Arts & Crafts 19" 19" 19"
FPX Arts & Crafts with shield 12" 12" 12"
FPX French Country 15.5" 15.5" 15.5"
FPX French Country with shield 12" 12" 12"
Lopi Discovery 13" 13" 13"
Lopi Wilmington 17”17”17”

12 Installation (for qualified installers only)
Travis Industries 4041206 100-01147
Facing Over 1" Thick
WARNING:
Faces that attach with latch-hooks
(Avalon Rosario, Avalon Cambridge,
Avalon Salish Bay, Avalon Rawhide,
Lopi Discovery, Lopi Heritage Bay, FPX
Architectural Faces (all styles),
require a 5/8” gap above the
facefor face installation and removal.
•If the facing material is over 1" thick
(e.g. brick, river rock), install the facing
around the perimeter of the face. You
may wish to make a facing support (see
the illustration to the right). If using an
arch face, you may wish to order the
optional set-up face:
34 Arch Set-Up Face is available from
Travis Industries (Part # 98500694)
•Artisan faces vary in size. Use the face
being installed to create a template.
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AA
AA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Rectangular Faces
Make a facing support using 2x4’s. It
should be 1/8”larger than the finished
face. NOTE: The bottom of the face is
1”above the base of the fireplace.
1”
Note: if using a brick hearth, the fireplace will need to be raised to accommodate the 1”gap betwen the
face and the base of the fireplace. For 2-1/2”thick brick this works out to approximately 1-1/2”.
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAA
AAA
AAA
The brick facing must meet the same requirements
listed in “Facing Requirements”
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Center
Line
A
A
A
A
A
A
A
A
Arch Faces
Use the optional
Arch Set-Up Face
available from Travis
Industries.
Facing Detail
Access Door
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
1"
Face 1"
Glass
Air Space
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
Do not tuck facing under the faceplate on the bottom The 3/8"
(approx.) gap below the access door is required for the door to open. You
may tuck facing under the sides and top, but not on the bottom.
SIDE OVERLAP: To calculate the side overlap,
subtract 32-7/8" from the face (see "Face
Dimensions" on page 13) width and divide by 2.
TOP OVERLAP: To calculate the top overlap,
subtract 25-3/8 from the face height (see "Face
Dimensions" on page 13) - for arched faces, see
the "Dimensions" on page 6 for other details.
AA
AA
Approx.
3/8"
•To achieve a facing that is flush with the drywall to the side of the fireplace, recess the framing directly
next to the fireplace. See the illustration below.
Fireplace
1"
1/2" Drywall
AAA
AAA
AAA
1/2" Concrete Board
3/8" Tile
This 2x4 is recessed 3/8"
to make a flush facing
Fireplace 1/2" Drywall
AAAA
AAA
1/2" Concrete Board
3/8" Tile The tile overlaps the drywall
for an overlap facingFaceplate
1"
TOP
VIEW
Faceplate

Installation (for qualified installers only) 13
Travis Industries 4041206 100-01147
Face Dimensions
Face Height Width Notes
Rawhide 27”35-3/4”
Victorian 27”35-3/4”
Rosario 26”35-3/4”
Cambridge 25-7/8”37-5/8”
Craftsman 27-1/2”36”
Bungalow 27”32-3/4”
Classic Arched, Artisan 26-1/2”34-3/4”Side begins arch 3-1/2”below top - 45”radius
Metropolitan 26-1/2”34-3/4”
Architectural Series 27-7/8”33-5/8”
Discovery 26’35-3/4’
Wilmington 27”36-1/8”

14 Installation (for qualified installers only)
Travis Industries 4041206 100-01147
Modifying the Face Angle for Rectangular Faces
If using a rectangular face, adjust the face angles at the top corners of the glass (see the illustration
below).
AAAAAAA
A
A
A
A
A
Remove these four
screws from the face
angle. Phillips
Screwdriver Bend the face angle up and replace
the two screws on the upper section.
AAAAAA
A
A
A
A
A
AAAAAA
A
A
A
A
A
Re-bend the face angle at the
inward location and re-attach the
lower portion with one screw.
AAAAAAA
A
A
A
A
A
Straighten the face angle.
b
a
d
c
Front of
Fireplace
Glass

Installation (for qualified installers only) 15
Travis Industries 4041206 100-01147
Facing and Hearth Examples
AA
AA
AA
AA
AA
AA
AA
AA
AAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAA
Fireplace
Face
3/8" Thick
Tile
1/2" Cement
Board
Wood Sub
Floor
1"
Side View
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
2x4 and Plywood Platform
Face
Side of
Fireplace
AAA
AAA
AAA
AAA
AAA
AAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
Note how the tile facing fits behind
the face on the side and top and
butts up to the face on the bottom.
When fully installed, there will be
approx. 3/8" air space below the access
door on the face. Do not block this
space (it is required for access door
opening and air flow).
Three-Dimensional View
Tile
Cement Board
2x4 and
Plywood
Platform
If using a hearth, make your platform height a
dimension that will accommodate the size tiles
you are using and the 1" between the base of
the fireplace and the bottom of the face.
SUGGESTION:
Base of Fireplace
Base of Fireplace
1/2" Cement Board
& 3/8" Tile
(tucked behind the
face)
NOTE: Access Door

16 Installation (for qualified installers only)
Travis Industries 4041206 100-01147
Facing and Hearth Examples (continued)
AAAAAAAAAAAAAAAAAA
AAAAAAAA
Fireplace
Face
3/8" Thick
Tile
1/2" Cement
Board
Wood Sub
Floor
1"
A
A
A
A
A
A
A
1/2" Cement Board & 3/8" thick tile
(tucked behind the face)
Side View
Three-Dimensional View
Face
Side of
Fireplace Note how the
tile facing fits
behind the
face on the
side and top.
When hearth installation is
correctly completed, there will
be approx. 3/8" air space below
the access door on the face.
Do not block this air space (it is
required for access door
opening and proper air flow).
3/8" Tile
1/2" Cement
Board
WARNING:
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
Base of Fireplace
Base of
Fireplace
Wood Sub Floor
Do not install cement board underneath the fireplace. To do so
would leave a large gap underneath the finish faceplate sides.
NOTE:
Access
Door

Installation (for qualified installers only) 17
Travis Industries 4041206 100-01147
Mantel Requirements
•The combustible area above the facing must not protrude more than 3/4" from the facing. If it does, it
is considered a mantel and must meet the mantel requirements listed in this manual.
Combustible or Non-Combustible Mantels
Combustible or Non-Combustible Mantel
Mantel
Depth
Base of Fireplace 1”
Bottom of Faceplate Face Height
(see “Face Dimensions”on page 13)
Face
Mantel
Clearance
(see table
below)
Mantel Clearance:
•Measured From Top of Faceplate (see “Faceplate Dimensions”on page 13)
8" Max. Mantel Depth 10" Max. Mantel Depth 12" Max. Mantel Depth
Avalon Cambridge 15" 15" 15"
Avalon Craftsman 15" 15" 15"
Avalon Rosario 18" 20" 21"
Avalon Victorian Lace 16" 16" 16"
Avalon Victorian Lace with shield 16" 16" 16"
Avalon Rawhide 16" 16" 16"
Avalon Rawhide with shield 16" 16" 16"
Avalon Bungalow 26”26”26”
FPX 34 Arch & Artisan 24" 25" 26"
FPX 34 Arch & Artisan with shield 17.5" 18" 18.5"
FPX Metropolitan 24" 24" 24"
FPX Metropolitan with shield 16.5" 16.5" 16.5"
FPX Art Deco 19.5" 19.5" 19.5"
FPX Art Deco with shield 15" 15" 15"
FPX Neo-Classic 19" 19" 19"
FPX Neo-Classic with shield 15" 15" 15"
FPX Arts & Crafts 20" 20" 20"
FPX Arts & Crafts with shield 15" 15" 15"
FPX French Country 16" 18" 19"
FPX French Country with shield 15" 15" 15"
Lopi Discovery 16" 16" 16"
Lopi Wilmington 19”19”19”

18 Installation (for qualified installers only)
Travis Industries 4041206 100-01147
Vent Requirements
•The vent must maintain the required clearance to combustible materials to prevent a fire (see
“Clearances”below). Do not fill air spaces with insulation.
•The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas
appliance must use it's own separate vent system.
Altitude Considerations
This heater has been tested at altitudes ranging from sea level to 8,000 feet (2,400 M). In this testing we have
found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.
•Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Vent Clearances
Horizontal Runs
AA
AA
AA
Vertical Sections
Min. 3" Clearance
Above 45°Sloping Vent
AAAAAA
AAAAAA
Min. 1" Clearance to
the Sides of the Vent
A
A
A
A
A
A
A
A
A
A
A
A
AAA
AAA
AAA
AAA
The included firestop (Travis part #
93006094) is required when passing
through any wall.
Min. 3" Clearance
Above the Vent
AAAA
AAAAAAA
A
A
A
A
A
A
A
A
A
Min. 1" Clearance
to the Sides
A
A
Firestop
Min. 1" Clearance
Below the Vent
Min. 1" Clearance
Below the Vent
Approved Vent Components for Top Vent Configuration
•Use 8”diameter Model GS Direct Vent manufactured by Simpson Dura-Vent only. Follow the
installation instructions included with the vent. For the nearest Simpson Dura-Vent supplier, call (800)
835-4429. Vent part numbers and descriptions are listed below.
Straight Lengths
1208B 6" Pipe Length, Black
1207B 9" Pipe Length, Black
1206B 12" Pipe Length, Black
1204B 24" Pipe Length, Black
1203B 36" Pipe Length, Black
1202B 48" Pipe Length, Black
1211B 11”to 14-5/8" Adjustable, Black
Firestops & Support
93006094 Travis Hor. Firestop (44 DV XXL or DVL FP EF)
1263 Ceiling Firestop
1288 Wall Strap
Terminations
1284 Horizontal Square Termination
1285 Hor. High Wind Termination
1250 Vinyl Siding Stand-off
1291 Travis Vertical Termination
Elbows
1245B 45°Elbow, Black
1290B 90°Elbow, Black

Installation (for qualified installers only) 19
Travis Industries 4041206 100-01147
Vent Installation
•In addition to the requirements below, follow the requirements provided with the vent.
Vertical Termination
(part # 1291)
Use a roof flashing and storm collar
whenever passing through the roof
Vertical Vent
Requirements
Horizontal Vent
Requirements
Min. 1" Clearance on
Vertical Sections to
combustible surfaces.
Use a firestop whenever passing through a
ceiling (or enclosure and at every floor
penetration.
Combustible
Framing
Use the Travis Firestop (part # 93006094) when passing through a
wall. NOTE: make sure the firestop is postitioned correctly so the 3"
clearance is allowed above the vent.
3" Min.
1" Min.
1" Min. Combustible
Surfaces
•Slide the vent sections together and turn 1/4 turn until the sections lock in
place.
•Screws are not required to secure the vent. However, three screws may be
used to secure vent sections together if desired.
•High temperature sealant is recommended at the appliance starter section
connection (use high-temperature silicone or Mill-Pac®).
•If disassembly is required, at time of re-assembly check to see if the vent
creates a tight fit. If it does not, apply high temperature sealant to the joints of
the affected sections.
•Horizontal sections require a 1/4" rise every 12" of travel
•Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)

20 Installation (for qualified installers only)
Travis Industries 4041206 100-01147
Approved Vent Configurations
Restrictor Position
Remove the face (if installed).
To Adjust the Restrictor:
To Access the Restrictor:
1
2
Determine the correct restrictor position (see the charts under
"Approved Vent Configurations" - the factory position is #1).
Lift up the adjustment plate and move it so the correct notch
falls into the slot on the adjustment bracket.
This restrictor is in position 1
(factory setting).
This restrictor is in
position 4 -
To adjust, lift the adjustment plate
and push it back.
WARNING: Use a glove to
protect your hand from burns.
Adjustment
Bracket
Adjustment
Plate
# 8
# 7 # 2
etc.
NOTE: position 5 is fully closed - positions 6 through 8 are not used.
Measuring
Vent
Lengths
NOTE:
All measurements
are for 8" diameter
vent.
Vent
Horizontal
Run
Vent
Height
3-1/2"
Side
View
1-3/4"
Vent Length
(2', 3', etc.)
NOTE:
Vent sections overlap
each other by 1-3/4"
42"
10-3/4" wide with
1-3/4" to
3-3/8" of overlap
Starter
Section
12-3/8"
3-1/2"
8"
