Traxon Propoint vista series User manual

ProPointTM Vista

INSTALLATION GUIDE

V0.1

Cover:

ProPoint Vista 200W RGBW

ProPoint Vista 200W SW

ProPoint Vista 400W RGBW

ProPoint Vista 400W SW

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 2 of 29

CONTENT

SAFETY AND OPERATION 3

1. INTRODUCTION 4

2. INSTALLATION 12

3. POWER AND DATA WIRING 21

4. CONFIGURATION 25

5. TROUBLESHOOTING 27

6. WARRANTY INFORMATION 27

7. APPENDIX 28

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 3 of 29

SAFETY AND OPERATION

This installation guide uses the following special statement categories to alert you to key items:

1. WARNING - Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

2. CAUTION - Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

3. NOTICE - Indicates information considered important for the proper operation of the product but not hazard

related.

4. Please review this manual completely prior to beginning the installation process and take note of the

following:

• The ProPoint luminaire and associated accessories must be installed by a qualiﬁed person in conjunction

with all applicable electrical codes and standards.

• The ProPoint luminaire does not contain any user-serviceable parts. Opening of the luminaire will void the

warranty.

• Do not use the product if the cables are damaged.

• Handle the luminaire carefully to prevent damage during installation. Rough handling may damage the

internal electronics and void the warranty.

• Do not attempt installation in wet or severe weather conditions.

• Do not stare directly into the light beam while the unit is illuminated.

• IP66 rated. The ProPoint luminaire is not suitable for direct immersion in water.

• Do not operate the ProPoint luminaire without a connection to earth surface.

• The ProPoint luminaire is designed for operation at 120-277VAC. Voltages outside of this range may

damage the ﬁxture and will void the warranty.

• The ProPoint luminaire housing may become hot during normal operation and present a risk of burn

injury and ﬁre hazard. Exercise caution when working in proximity to the luminaire and make sure that

combustible material does not contact the housing or lens.

• Failure to keep the luminaire within the operating temperature range (-30°C to +55°C/-22°F to +131°F) will

result in improper operation and will void the product warranty.

• Do not use harsh chemicals, cleaning solvents or strong detergents when cleaning the luminaire.

• Persons installing this product should make sure:

i. The installation complies with all applicable codes, state and local laws, ordinances, standards and

safety regulations.

ii. The installation environment is carefully studied and suitable surge protection measure(s) is taken.

Suggested surge protection measures for outdoor application should reach “Live to Neutral” 5kV,

“Live/Neutral to Earth” 10kV.

iii. All luminaires can pass over-voltage test up to “Live to Neutral” 1kV, “Live/Neutral to Earth” 2kV

according to EN61547 standard.

iv. He or she is qualiﬁed for the handling of electrical equipment.

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 4 of 29

1. INTRODUCTION

1.1 Product Overview

The ProPoint Vista is an AC line powered, high brightness luminaire. Controllable with DMX512, the ProPoint Vista

is available in 200W and 400W outputs, 12 beam angle options, standard & custom ﬁnishes which can meet the

needs for most projects. The daisy chain topology, and direct-wire nature of the ﬁxture via the two integral cable

whips allow for simple installation into existing installations and new structures, and is ideal for high-rise and tower

illumination.

This manual is intended for use with DMX/RDM versions of the ProPoint Vista.

1.2 Getting Assistance

Additional product information is available on the Traxon web site:

• www.osram.us/traxon & www.traxontechnologies.com

For additional support, please contact Traxon Technical Support:

• TRXT[email protected]

For Americas Regional Support:

• (978) 570-3189 – Business Hours Technical Support

• +1 (978) 267-5346 – After Hours Technical Support

For Asia Paciﬁc Regional Support

• [email protected]

For Europe, Middle East and Africa Regional Support

• [email protected]

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 5 of 29

1.3 Dimensions

FIG.1: ProPoint Vista 200W

357.2mm

(14.1")

271.5mm

(10.7")

Data Cable, diameter:

Ø 8.1mm (Ø 0.3")

Power Cable, diameter:

Ø 7.8mm (Ø 0.3")

176.2mm

(6.9")

14mm Hex Key required to adjust

Fixture angle (Available from Traxon)

221mm

(8.7")

101.6mm (4")

81mm (3.2")

689mm

(27.1")

674.7mm

(26.6")

689mm

(27.1")

357.2mm

(14.1")

271.5mm

(10.7")

674.7mm

(26.6")

674.7mm

(26.6")

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 6 of 29

FIG.2: ProPoint Vista 400W

14mm Hex Key

required to adjust

Fixture angle

(Available from

Traxon)

17mm Hex Key

required to adjust

Fixture angle

(Available from

Traxon)

Data Input/OutputCable

diameter:ø8.1mm

Power Cable

diameter:ø7.8mm

738mm

(29.1")

657.2mm

(25.9")

455.6mm

(17.9")

176.2mm

(6.9")

576.3mm

(22.7")

267.5mm

(10.5")

643mm

(25.3")

2'-1 7/8"

2'-4"

101.6mm (4")

304.8mm (12")

763.6mm (30.1")

506.4mm (19.9")

2'-6 1/16"

1'-7 15/16"

576.3mm (22.7")

Data Input/OutputCable

diameter: ø8.1mm (Ø 0.3")

Power Cable

diameter:ø7.8mm(Ø 0.3")

2'-4"

2'-1 7/8"

1'-5 15/16"

6 15/16"

1'-10 11/16"

10 11/16"

2'-1 5/16"

576.3mm

(22.7")

657.2mm

(25.9")

101.6mm (4")

738mm

(29.1")

738mm

(29.1")

Additional Accessories (Optional accessory for 200W and 400W units)

A additional accessories kit may be ordered for the 200W and 400W luminaire models. This kit allows for mounting

directly into a suitable angle. The kit can be installed onto the luminaires directly. Additional accessories include a

Rock Guard to protect the lens, and an Angled Glare shield and Open Glare shield to help hide the light source.

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 7 of 29

FIG.3: ProPoint Vista Accessories-Full/Half Glare Shield

Full Glare Shield

Half Glare Shield

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 8 of 29

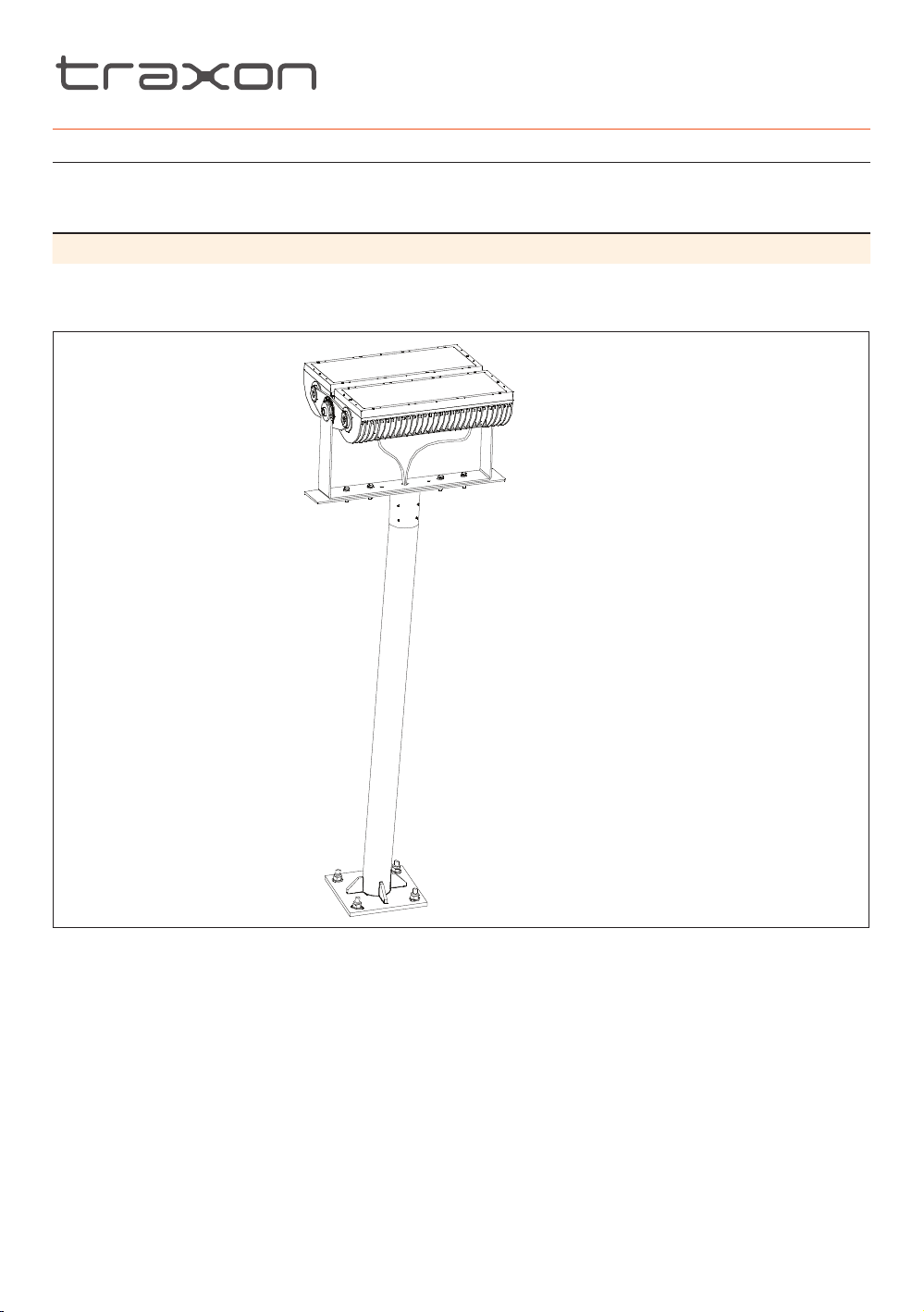

FIG.4: ProPoint Vista Accessories-Pole Mounting Supporter/Rock Guard

Pole-Mounting Supporter

Rock Guard

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 9 of 29

FIG.5: ProPoint Vista Accessories-Additional Frame

Spread Lens Frame

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 10 of 29

1.4 Packing Contents

FIG.6: Packing Contents

1 x ProPoint Vista (size/model based on order)

1.5 Component Overview

Luminaire Options

The ProPoint Vista luminaire is available in the following sizes:

Model Weight Power Consumption

(Nominal)

Power

Factor

Input Voltage

Range

Operating

Temperature

Minimum Starting

Temperature

200W 22.3kg

(49.2 lbs.)

200W

≥0.9 120-277VAC

50/60 Hz

-30°C to +55°C

(-22°F to +131°F) -20°C (-4°F)

400W 45.5kg

(100.3 lbs.)

400W

The ProPoint Vista luminaire is available with the following optical engines:

Model Optical Engine Lens Options DMX Control

Channels

Color Temperature

200W Color Changing

(RGBW)

3° native; 5°, 8°, 10°,

15°, 20°, 30°, 40°, 55°,

80°, 50°x10°, 50°x5° via

accessory Internal Louver

(Standard)

4 RGBW (White CCT: 4000K standard)

Other White CCT and RGBA available

Static White + Color

(SW + Color)

13000K / 4000K

2700K, 3500K, 5000K, 6500K, Red,

Green, Blue, Amber available

400W Color Changing

(RGBW)

4 RGBW (White CCT: 4000K standard)

Other White CCT and RGBA available

Static White + Color

(SW + Color)

13000K / 4000K

2700K, 3500K, 5000K, 6500K, Red,

Green, Blue, Amber available

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 11 of 29

1.6 Additional Accessories

Termination Kit

A ProPoint termination kit (part number AM243520054) may be purchased separately. This kit contains the

following components:

- (6) Splicing wire connectors: For use in connecting data cable conductors. See section 3.2 for additional

information on usage.

NOTE Wire nuts are not permissible for use with data connections and will void warranty.

- 120 Ohm resistor for use in terminating the DMX512 data line at the last luminaire. See section 2.6

for additional information on usage.

FIG.7: ProPoint Termination Kit

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 12 of 29

2. INSTALLATION

Each ProPoint Vista luminaire is shipped with a mounting bracket suitable for Surface/Pole mount

applications. This mounting plate is pre-installed at the mounting interface of the luminaire.

2.1 Surface Mount Installation

Required Tools

200W Model 14mm and 17mm Hex Key

400W Model 14mm and 17mm Hex Key

Surface Mount Installation

FIG.8: ProPoint Vista Surface Mount Installation

Preparation

• Remove the ProPoint Vista luminaire from the packaging and place the unit on a level surface.

Bracket Preparation and Mounting

CAUTION It is the installer’s responsibility to ensure that the mounting surface can handle the

static weight of the fixture as well as dynamic loading from environmental factors

such as wind and snow/ice buildup. The use of Grade 5 or higher hardware is

recommended.

• Make sure that the bolts on the mounting surface align with the holes on the surface mount bracket

• Install the luminaire to the mounting surface and secure using appropriate hardware (by others).

NOTICE The ProPoint Luminaire should be installed with the power and data cables exiting

the housing directly down when the luminaire is mounted on a vertical surface. For

applications that require horizontal orientation of the power and data cables, the

installer shall apply RTV silicone to the cable gland entry points. The luminaire shall

not be installed with the power and data cabling oriented up.

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 13 of 29

Surface Mount Installation Steps

• After placing the stainless steel mounting bracket on the mounting surface, mark the positions of 4 mounting

holes and drill 4 x M12 expanding anchors into the holes with the electric drill.

FIG.9: Surface Mounting Step 1

101.6mm (4")

304.8mm (12")

763.6mm (30.1")

506.4mm (19.9")

101.6mm (4")

100.8mm (4")

(Screws are not included)

Bracket Installation

• Mark the positions of mounting holes and drill M12 expanding anchors into the holes with the electric drill. Fix

the M12*50 Outer hexagon bolt/φ12 ﬂat washer/φ12 Spring washer as the following picture shows to install the

bracket.

NOTICE It is the responsibility of the installer to ensure that the mechanical fixings are

appropriate for the task and if necessary, approved by a structural engineer as the

installation scenario is unique for each luminaire

FIG.10: Bracket Mounting

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 14 of 29

• After aligning 4φ13mm holes and expansion screws on the ﬂoor of the stainless steel mounting bracket, lock

the mounting bracket.

FIG.11: Surface Mounting Step 2

• Loosen the adjusting bolts with 17mm Hex Key, adjust the overall angle of the luminaire and tighten

the adjusting bolts.

• Loosen the adjusting bolts with 14mm Hex Key, adjust the single-head exposure angle and tighten

the adjusting bolts.

CAUTION Do not rotate the luminaire more than 180 degrees. Rotating more than 180 degrees

may cause the power and/or data cables to bind inside the unit resulting in damage.

FIG.12: Surface Mounting Step 3

A 17mm hex key can be used on the center adjustment bolt to

enable you to change the angle of the fixture.

A 14mm hex key can be used on the outer

adjustment bolts to enable you to change the

angle of the individual heads.

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 15 of 29

2.2 Pole Mount Installation (Vertical Mounting only)

Required Tools

200W Model 14mm and 17mm Hex Key

400W Model 14mm and 17mm Hex Key

Pole Mount Installation

FIG.13: ProPoint Vista pole Mount Installation

Preparation

• Remove the ProPoint luminaire from the packaging and place the unit on a level surface.

Pole Mounting Steps

• Mark the positions of the 4 mounting holes and then drill 4 x M12 holes with an electric drill. Mount the luminaire

bracket to the post mount plate using suitable M12 ﬁxings (e.g. M12 bolt, spring washer and locking M12 nut).

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 16 of 29

FIG.14: Pole Mounting Step 1

90 3.5

30 1.2

3 0.1

8 0.3

150 5.9

4.1)

4.6

30 1.2

800 31.5

500 19.7

300 11.8

12 0.5

6.5 3

126 5

13.3 0.5

• Fix the inner hexagon screw to fasten the pole mounting supporter onto the pole.

FIG.15: Pole Mounting Step 2

4 mm hex

wrench to fasten

screws

4-M8*10

hex socket screw

(Screws and pole are not included)

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 17 of 29

• Pull the power and data cabling through the pole fitting (by others). Install the luminaire onto the

pole fitting and secure mounting screws and lock nuts.

FIG.16: Pole Mounting Step 3

M12*50 hex bolt/

φ12 ﬂat washer/φ12 Spring washer

M12 Nut

Put the connected signal cable/power

cable into the pole

(Screws and pole are not included)

• Fix the luminaire and use a suitable inner Hex Key to adjust the luminaire to a target angle.

FIG.17: Pole Mounting Step 4

14 mm hex key

to adjust the angle of single module

17 mm hex key

to adjust the angle of whole luminaire

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 18 of 29

Recording the UID (DMX/RDM Model Only)

Each ProPoint Vista luminaire is marked with a Unique Identifier (UID) on the product label. This UID is

used to address the luminaire for correct operation.

Example: 16DC:0834AA0B

AA0B represents the designation shown on the label.

Before completing installation, record each luminaire’s UID in a manner similar to the table included at

the end of this manual.

FIG.18: UID Location

Record the UID code

and physical location

from the label located

on the side of each

luminaire.

UID: *0834

2.3 Power Wiring

The ProPoint Vista luminaire is supplied with a 1.8 meter (6 foot) long power feed cable. This cable

may be ﬁeld-cut to the required length by the installer.

WARNING Risk of electrical shock. Make sure that the branch circuit is disconnected prior to

installation or inspection..

CAUTION Make sure that the cable is protected from cuts and abrasions that may result in

damage to the outer jacket.

CAUTION IP failure induced by stressed/damaged cable entry points during or after installation

will void the product warranty.

NOTICE A voltage divider is recommended (and may be required by local electrical code)

when a single junction box is utilized for termination of the power supply and data

cables.

NOTICE Cable bend radius must NOT be less than the Minimum Bending Radius (4 X Cable

Diameter) as speciﬁed by cable manufacturer and the Non-Bendable Length of 5cm

(2in) near the cable gland MUST be adhered to. In addition to the Minimum Bending

Radius, ensure that 5cm (2in) of cable at the connector junction is kept straight.

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 19 of 29

2.4 Glare Shield Installation (Optional Accessory)

Required Tools

200W Model 5mm and 3mm Hex Keys

400W Model 6mm and 4mm Hex Keys

Preparation

• Remove the ProPoint luminaire from the packaging and place the unit on a level surface.

FIG.19: Accessories Structure

Accessories Installation

• Fix the screws as the following picture shows to install the additional accessories as your requirements.

FIG.20: Accessories Mounting

Angled Glare Shield Mounting

Open Glare Shield Mounting

Spread Lens Frame Mounting

Rock Guard Mounting

www.traxontechnologies.com

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide IG0108EN V0.1 08/20 P. 20 of 29

CAUTION Ensure that the mounting surface and hardware are suitable for the luminaire weight.

Final Installation

NOTE For ease of installation and Safety, the following step may require 2 people to

perform. This is largely dependent on the location/orientation of the junction

box and the size of the fixture being mounted. All installers should refer to their

occupational safety and best practice guidelines when performing these tasks.

• Install the luminaire onto the mounting bracket and secure the set screws and lock nuts.

CAUTION Ensure that the power and data cabling is routed so that the luminaire mounting

interface does not crush the power and/or data cable jacketing.

• Tighten both set screws so that each screw engages securely in the surface mount bracket groove.

CAUTION Both set screws must engage within the groove. Failure of the set screws to engage

the groove could result in the luminaire separating from the surface mount bracket.

• Tighten both lock nuts over the set screws. Grasp the luminaire body and rotate it back and forth on

the mounting bracket to ensure that the fixture is securely fastened.

CAUTION Do not rotate the luminaire more than 180 degrees. Rotating more than 180 degrees

may cause the power and/or data cables to bind inside the unit resulting in damage.

This manual suits for next models

Table of contents

Other Traxon Lighting Equipment manuals

Traxon

Traxon Allegro Dot M Installation instructions manual

Traxon

Traxon Cove Light AC DIM Installation instructions manual

Traxon

Traxon e:cue SYMPL pro Node User manual

Traxon

Traxon ARCHISHAPE Dot 2.0 S CE User manual

Traxon

Traxon Allegro Dot M/L Direct View User manual

Traxon

Traxon Mesh Installation instructions manual

Traxon

Traxon Washer Quattro AC XB Installation instructions manual

Traxon

Traxon Media Tube HO Installation instructions manual

Traxon

Traxon ProPoint Vista 100W User manual

Traxon

Traxon Allegro Dot S Direct View User manual

Traxon

Traxon ARCHISHAPE Tube Ultra Slim User manual

Traxon

Traxon e cue Osram ProPoint KR.MA.01.10001 Installation instructions manual

Traxon

Traxon Allegro Dot S Direct View User manual

Traxon

Traxon RGB 50 144PXL User manual

Traxon

Traxon Osram Media Tube Go User manual

Traxon

Traxon Allegro Media Tube Lite User manual

Traxon

Traxon Allegro Media Tube Lite Installation instructions manual

Traxon

Traxon Pro Washer Pro Nano User manual

Traxon

Traxon e:cue Genius AM38213003I Specification sheet

Traxon

Traxon Media Tube HO User manual

Popular Lighting Equipment manuals by other brands

Home Accents Holiday

Home Accents Holiday TY323-1914 Assembly instructions

Heitronic

Heitronic Bedlight Installation and operating instructions

PROFILO

PROFILO LED 150 user manual

MicrohDJ

MicrohDJ MINI-NEBULA user manual

Anolis

Anolis ArcPar 100 user manual

Emos

Emos ZY2191 quick start guide

Epstein-Design

Epstein-Design Sahara E27 manual

Stairville

Stairville LC-48 owner's manual

Clevertronics

Clevertronics L10 CleverFit Exit LCFLED Series ASSEMBLY, INSTALLATION & MAINTENANCE INSTRUCTIONS

Panlux

Panlux IC-J01/T instructions

Digital Sputnik

Digital Sputnik DS6 user manual

DTS

DTS PAR 20 user manual

Glow Bricks

Glow Bricks FORBIDDEN WEST HORIZON Lego 76989 installation guide

PROEL

PROEL PLWAT250 user manual

Kikusui

Kikusui PL02-TOS Operation manual

PROEL

PROEL PLLEDMLW18 user manual

Life

Life 39.LED0613 quick start guide

ADVATEK LIGHTING

ADVATEK LIGHTING PixLite R4D-S user manual

Traxon ProPoint Vista Series User manual

Popular Lighting Equipment manuals by other brands
