Traxon Allegro Media Tube Lite User manual

Allegro Media Tube®Lite
INSTALLATION GUIDE
V1.0
Cover:
Allegro Media Tube®Lite RGBW
Allegro Media Tube®Lite RGB
Allegro Media Tube®Lite DW

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 2 of 21
CONTENT
1. INTRODUCTION 3
2. INSTALLATION 7
3. SAFETY AND OPERATION 11
4. SYSTEM CONFIGURATION 12
5. CARE AND MAINTENANCE 17
6. TROUBLESHOOTING 18
7. TECHNICAL SPECIFICATION 19
8. WARRANTY STATEMENT 20
For your own safety and that of the product, please read this installation guide
carefully before beginning setup and installation.

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 3 of 21
1. INTRODUCTION
1.1 General
Allegro Media Tube®Lite Diffused View Length
(mm)
Maximum number of pixels
(PXL)
AL MT LT RGBW 1000 10PXL DF R CE 1000 10
AL MT LT RGBW 500 5PXL DF R CE 500 5
AL MT LT RGBW 300 3PXL DF R CE 300 3
AL MT LT RGB 1000 10PXL DF R CE 1000 10
AL MT LT RGB 500 5PXL DFR CE 500 5
AL MT LT RGB 300 3PXL DFR CE 300 3
AL MT LT DW 1000 10PXL DFR CE 1000 10
AL MT LT DW 500 5PXL DFR CE 500 5
AL MT LT DW 300 3PXL DF R CE 300 3
Allegro Media Tube®Lite Direct View Length
(mm)
Maximum number of pixels
(PXL)
AL MT LT RGBW 1000 10PXL CR CE 1000 10
AL MT LT RGBW 500 5PXL CR CE 500 5
AL MT LT RGBW 300 3PXL CR CE 300 3
AL MT LT RGB 1000 10PXL CR CE 1000 10
AL MT LT RGB 500 5PXL CR CE 500 5
AL MT LT RGB 300 3PXL CR CE 300 3
AL MT LT DW 1000 10PXL CR CE 1000 10
AL MT LT DW 500 5PXL CR CE 500 5
AL MT LT DW 300 3PXL CR CE 300 3

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 4 of 21
Allegro Media Tube®Lite fits into any wall, façade or media lighting application with tight
installation space, while the wide beam angle output and 10-pixels-per-meter ensures a
smooth illumination experience. Featuring auto addressing and quick lock connections, this
greatly simplifies the lighting installation for building façades, media applications, bridges and
more.
Features:
• Available lengths: 300mm (3PXL), 500mm (5PXL), and 1000mm (10PXL)
• Diffused view and direct view
• Three color options: RGBW, RGB, DW (2700K - 6500K)
• DMX512
• Daisy Chain System with quick lock connectors
• Auto-Addressing
• Outdoor Applications (IP66 and IK08 rated)*
*IK08 is for diffused view

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 5 of 21

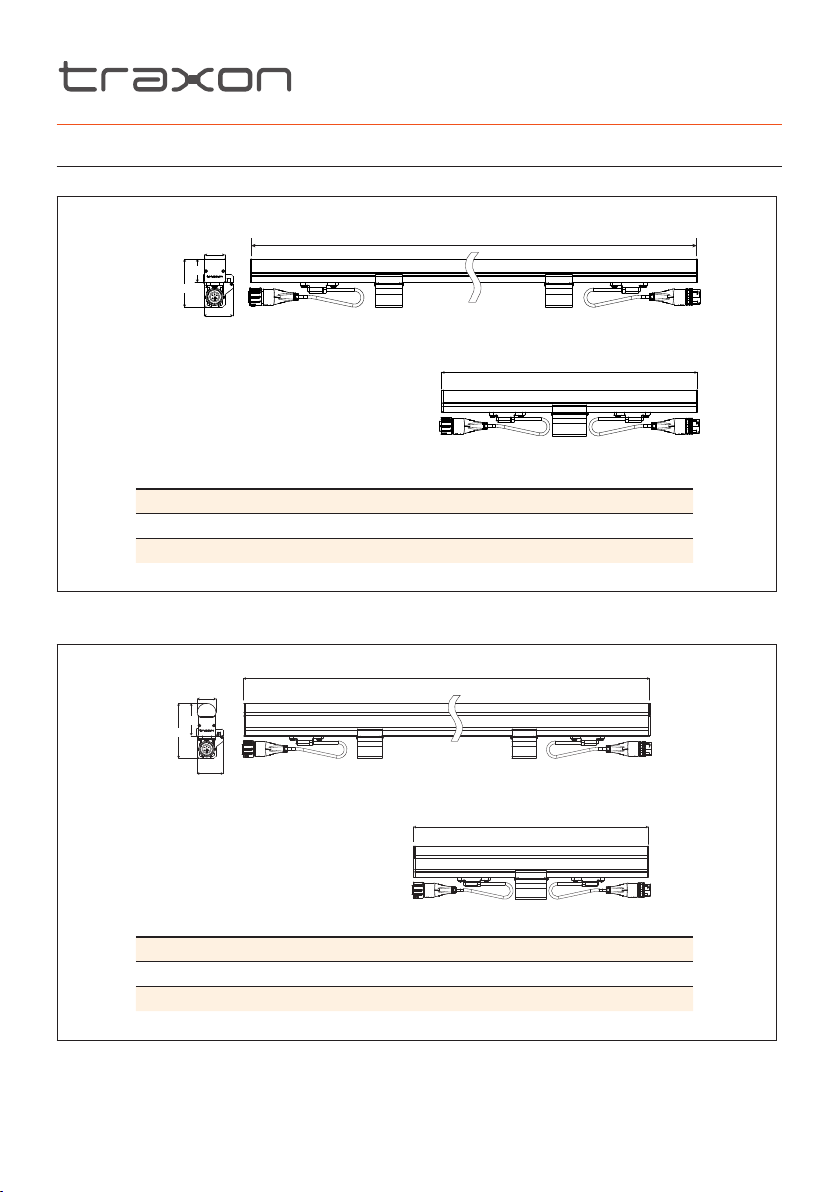

1.2 Dimensions
FIG.1: Allegro Media Tube®Lite Direct View
300mm
500mm, 1000mm
W1
W2
H2
H1
W1 W2 H1 H2
1000mm 24mm 32.6mm 54mm 26mm
500mm 24mm 32.6mm 54mm 26mm
300mm 24mm 32.6mm 54mm 26mm
FIG.2: Allegro Media Tube®Lite Diffused View
300mm
500mm, 1000mm
W1
W2
H2
H1
W1 W2 H1 H2
1000mm 24mm 32.6mm 68mm 40mm
500mm 24mm 32.6mm 68mm 40mm
300mm 24mm 32.6mm 68mm 40mm

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 6 of 21

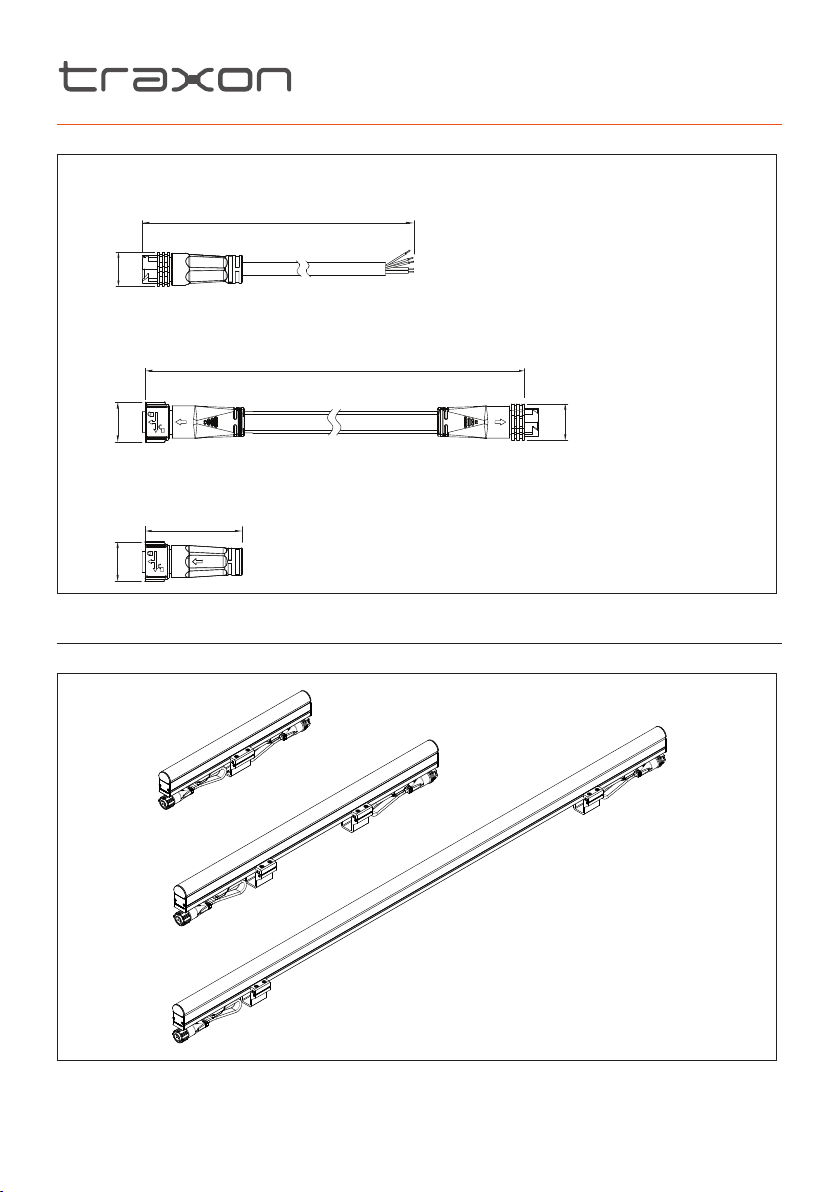

FIG.3: Allegro Media Tube®Lite Accessories
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
1m, 5m, 30m
1m, 4m
56.3mm
12 x 3.5mm Flat Cable
12 x 3.5mm Round Cable
22.5mm 22.5mm 19mm
20.3mm
Cable A Starter Cable
From terminal block to first Allegro Media Tube Lite in chain
Cable B Interconnection Cable
From Allegro Media Tube Lite to another Allegro Media Tube Lite
Cable C End Cap with 120Ω Terminator
The end cap includes DMX data terminator
1.3 Packing Contents
FIG.4: Packing Contents
Allegro Media Tube®Lite Direct/Diffused View x 1
(Either one of the 300mm, 500mm, and 1000mm version)
For 300mm version, mounting bracket x 1
For 500mm and 1000mm version, mounting bracket x2

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 7 of 21
2. INSTALLATION
2.1 Points To Consider
Plan your installation before mounting the Allegro Media Tube®Lite. The following should be
considered for a successful installation.
• Weather conditions and ambient temperature of installation site.
• Appropriate cable lengths (cable gauges described in system diagram). Please consult your
local Traxon office or authorized agent for necessary aid.
• The number of the Allegro Media Tube®Lite and appropriate LED Engines.
• DMX512 to be used to control the Allegro Media Tube®Lite.
• Distance between each Tube for thermal expansion and maintaining pixel pitch.
• Mounting distances should be paid attention on.
• Proper surge protection.
FIG.5: Allegro Media Tube®Lite Cable System
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
End Cap with 120 Ohm Terminator
Starter Cable
Interconnection Cable
1m, 5m, 30m
1m, 4m
56.3mm
12 x 3.5mm Flat Cable
12 x 3.5mm Round Cable
22.5mm 22.5mm 19mm
20.3mm
Cable A Starter Cable
From terminal block to first Allegro Media Tube Lite in chain
Cable B Interconnection Cable
From Allegro Media Tube Lite to another Allegro Media Tube Lite
Cable C End Cap with 120Ω Terminator
The end cap includes DMX data terminator

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 8 of 21
2.2 Pre-Installation Checks
2.2.1 Installation Checklist
1. Prepare cables and all necessary accessories (Waterproof Quick Lock End Caps etc).
2. Perform functional check of the Allegro Media Tube®Lite. Take care not to damage
cables/connectors during pre-installation checks.
3. Ensure all pre-installation checks laid out below have been followed.
4. Mount the Allegro Media Tube®Lite on-site. If the installation is to be left uncompleted
overnight, place all non-connected LED Engines and the Allegro Media Tube®Lite in an
indoor environment.
Ensure all the Interconnection Cables, Allegro Media Tube®Lite and LED Engines are initially
stored in a dry area to guarantee the complete sealing of the system from water before
installation.
2.2.2 Mounting Bracket
5mm screws with spring washers and washers are needed to fix the mounting bracket. The
mounting brackets can be moved and the bracket distances are recommended values.
FIG.6: Mounting Bracket
Spring washer and
washer (not included)
5mm stainless steel screw
(not included)
Stainless steel screw
(Included)

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 9 of 21
2.2.3 Installation Sequence
1. Measure the correct distances for brackets and install the Allegro Media Tube®Lite fixtures.
2. Connect the Allegro Media Tube®Lite in the daisy-chain manner outlined in the System
Diagram to form large installations.
3. Perform functional check on all the Allegro Media Tube®Lite and inspect cables and
brackets for any damage. Check for any abnormalities with the control signal.
4. Report any functional defect found to your nearest Traxon Technologies office. DO NOT
attempt to install the Allegro Media Tube®Lite with functional defects on-site.
2.3 On-Site Installation
• DO NOT attempt installation in wet or severe weather conditions.
• DO NOT leave and expose any Allegro Media Tube®Lite or LED Engines
unconnected under wet/raining or snowing environment.
• IP failure induced by stressed/damaged cables during or after installation
will not be under warranty by Traxon Technologies.
• ALWAYS keep the cables protected from sharp objects and ensure no
damage is generated on the cable.
Failure to keep Allegro Media Tube®Lite within the operating temperature range of –40°C
to +50°C / –40°F to +122°F and storage temperature range of –40°C to +70°C / –40°F to
+158°F will void the product’s warranty.
2.3.1 On-Site Installation
1. Fix brackets to installation surface with anchor bolts or screws.
2. The Allegro Media Tube®Lite are interconnected using the IN and OUT cables/
connectors on each end of the tube. Connectors will make an audible “click” when
connected. Gently pull on the cables in opposites directions to ensure they are fulled
locked and do not come loose. Below diagram shows the Tube connections. Always
remember to affix an Quick Lock Waterproof End Cap (sold separately) for the OUT
connector of the final Tube in each daisy chain. See System Diagram for details.

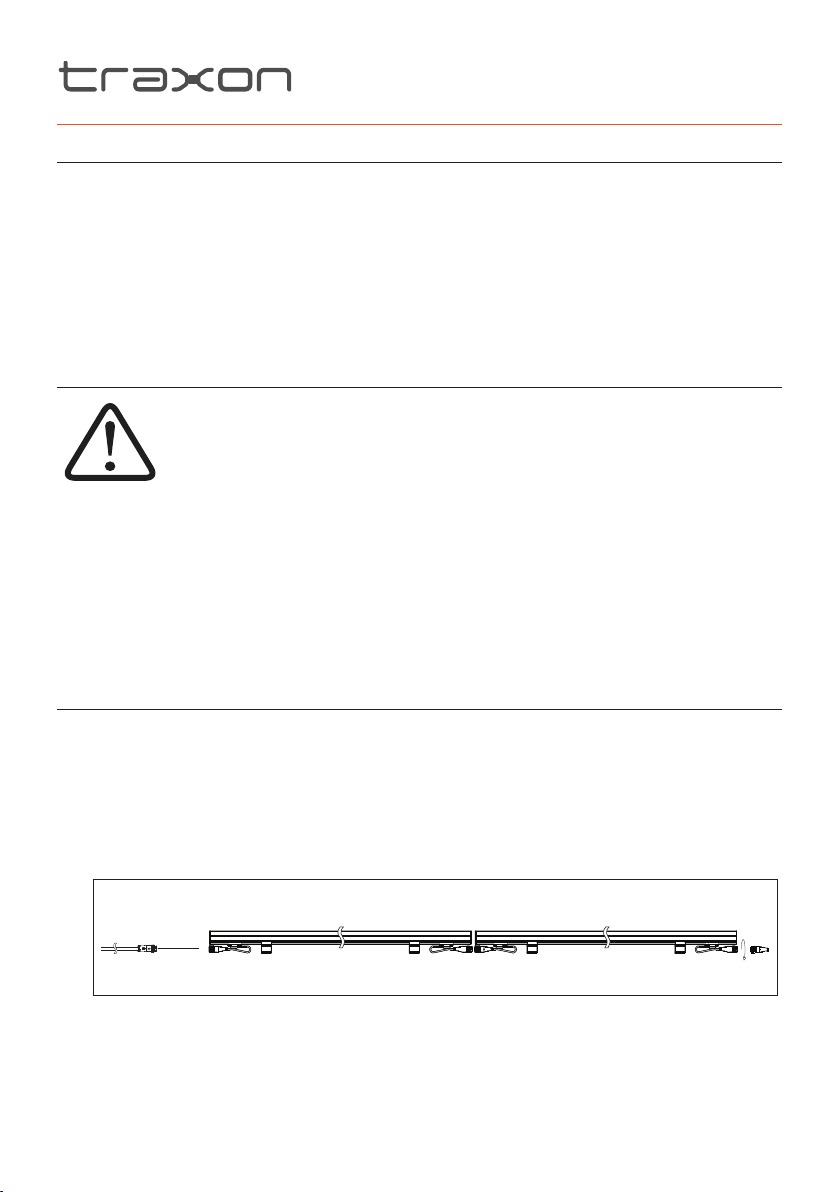

FIG.7: Allegro Media Tube®Lite Connections
Starter Cable End Cap

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 10 of 21
NOTE: Any water ingress incurred due to improper installation of cable connectors
or Waterproof Quick Lock End Caps will not be covered under warranty by Traxon
Technologies.
3. Be sure not to compress the IN/OUT cables.

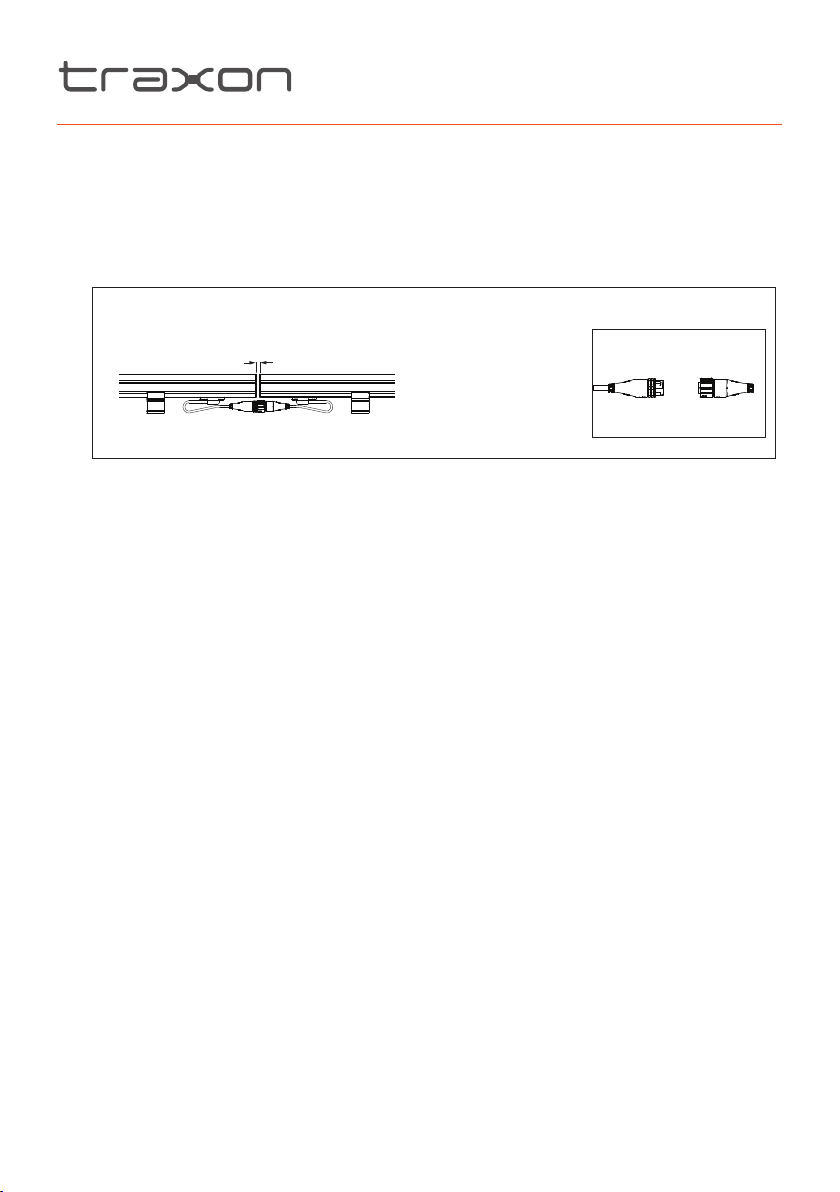

NOTE: To keep LED pitch consistent and allow for thermal expansion, be sure to keep
a minimum distance of 4mm (0.16”) between consecutive Allegro Media Tube®Lite (see
below diagram).
FIG.8: Keep minimum distance between fixtures
To maintain consistent LED pitch and to allow for thermal expansion for Tubes.
End Cap Seal on Last Tube
>4mm
4. The first tube of the daisy-chain group has to be connected to the control system via
Waterproof Junction Box (not included).Starter cables, Data and Power cables, and video
fiber optic cables have to be installed through conduits.
5. Set up the control system indoors as detailed in the System Diagram and connect to the
Allegro Media Tube®Lite outside. Start up each unit and verify correct function.

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 11 of 21
3. SAFETY AND OPERATION
• CAUTION - Unplug the power supply from the mains power before connecting any cables
as this can damage the products.
• CAUTION - Avoid looking directly into the LED light source at close range for your own
safety.
• Persons installing this product should make sure:
1. The installation complies with all applicable codes, state and local laws,
ordinances, standards and safety regulations.
2. The installation environment is carefully studied and suitable surge protection
measure(s) is taken.
3. He or she is qualified for the handling of electrical equipment.
• Do not attempt to install or use the product until installation instructions and safety labels
are fully understood. This product is designed for indoor and outdoor use.
• Ensure product operates within the specified temperature range. (Refer to 7. TECHNICAL
SPECIFICATION for more details.)
• The Allegro Media Tube Lite does not contain any user-serviceable parts. Opening of the
luminaire will void the warranty.
• Do not use the product if any part of it, or the power cables are damaged.
• Only use product for specified voltage, do not exceed. (Refer to 7. TECHNICAL
SPECIFICATION for more details.)
• Always maintain connection to ensure waterproofing.
• If the product has been subjected to drastic temperature variances, for example, following
transportation, do not connect the fixture until it has reached room temperature, as
moisture condensation may cause electric shock and product damages.
• When installing the products and system power supplies, please ensure they will not be
exposed to moisture and extreme heat (and direct sunlight for outdoor products). Besides,
keep a clean operating environment for the fixtures and system power supplies.
• Please study this Installation Guide thoroughly and check the latest Technical Specification
Sheets available from the Traxon website www.traxontechnologies.com before setup.
• Any non-compliance of the Installation Guide will void the Traxon warranty.

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 12 of 21
4. SYSTEM CONFIGURATION

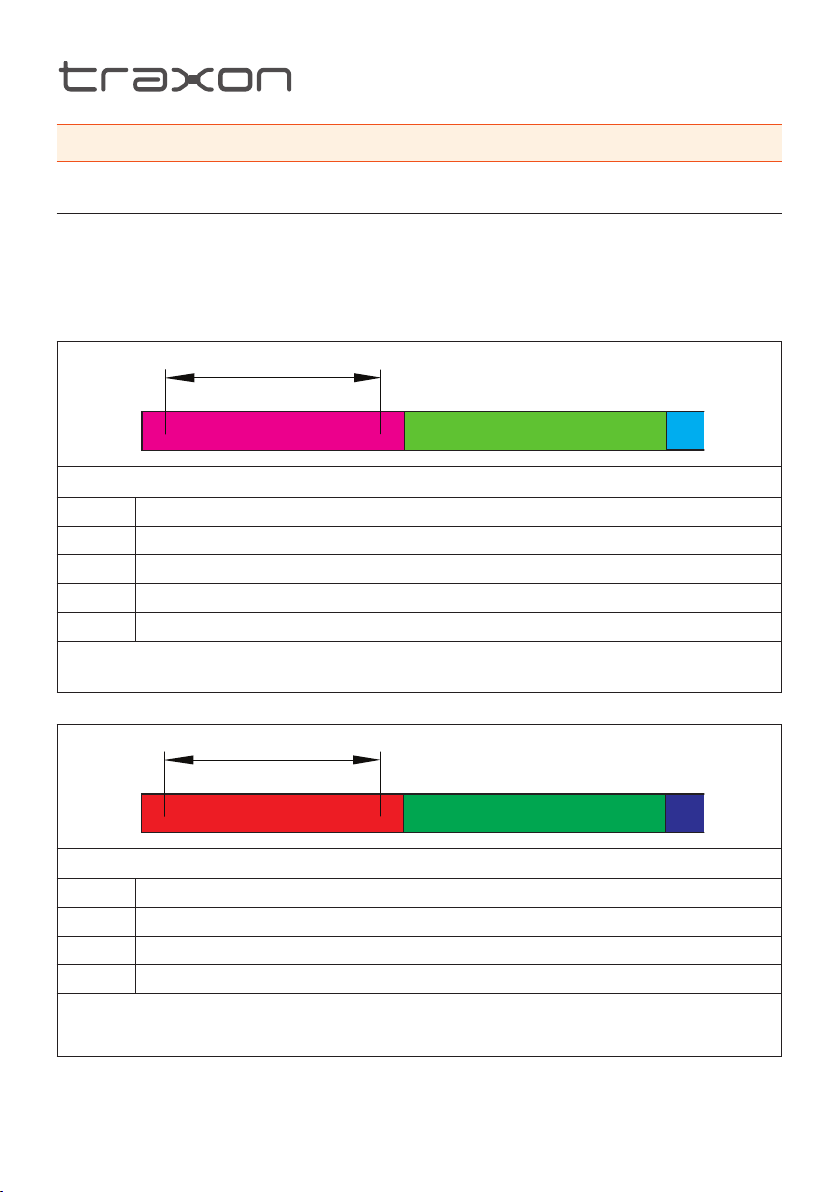

4.1 LED CONTROL
The LEDs on the Allegro Media Tube®Lite are controlled by DMX512. For RGBW, each pixel
on the Tube uses six RGB 3 in 1 LEDs and six white LEDs, for R, G, B and W channels. Pixel
number 1 begins on the IN connector side, and it uses the first four channels. RGB and DW
work in a similar way, but use less pixels per length.
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs
RGBW
Pixel n Control Channel Number
R +4(n-1) + 1
G +4(n-1) + 2
B +4(n-1) + 3
W +4(n-1) + 4
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs
RGB
Pixel n Control Channel Number
R +3(n-1) + 1
G +3(n-1) + 2
B +3(n-1) + 3
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 13 of 21
6 RGBW LEDs
6 RGB LEDs
6 DW LEDs

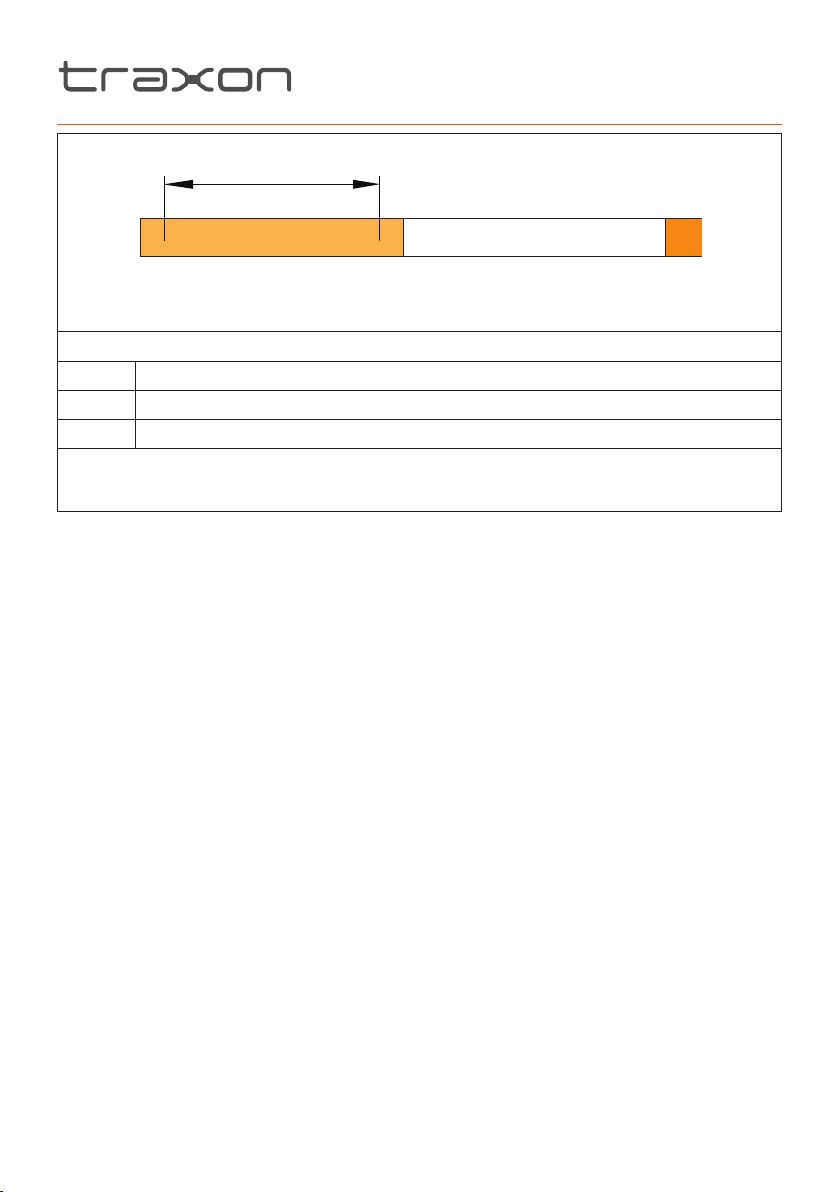

DW
Pixel n Control Channel Number
WW + 2 (n-1) + 1
CW Tube start address +2n
Where: n is pixel number along the Tube.
(Pixel 1 is located near the IN connector.)

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 14 of 21

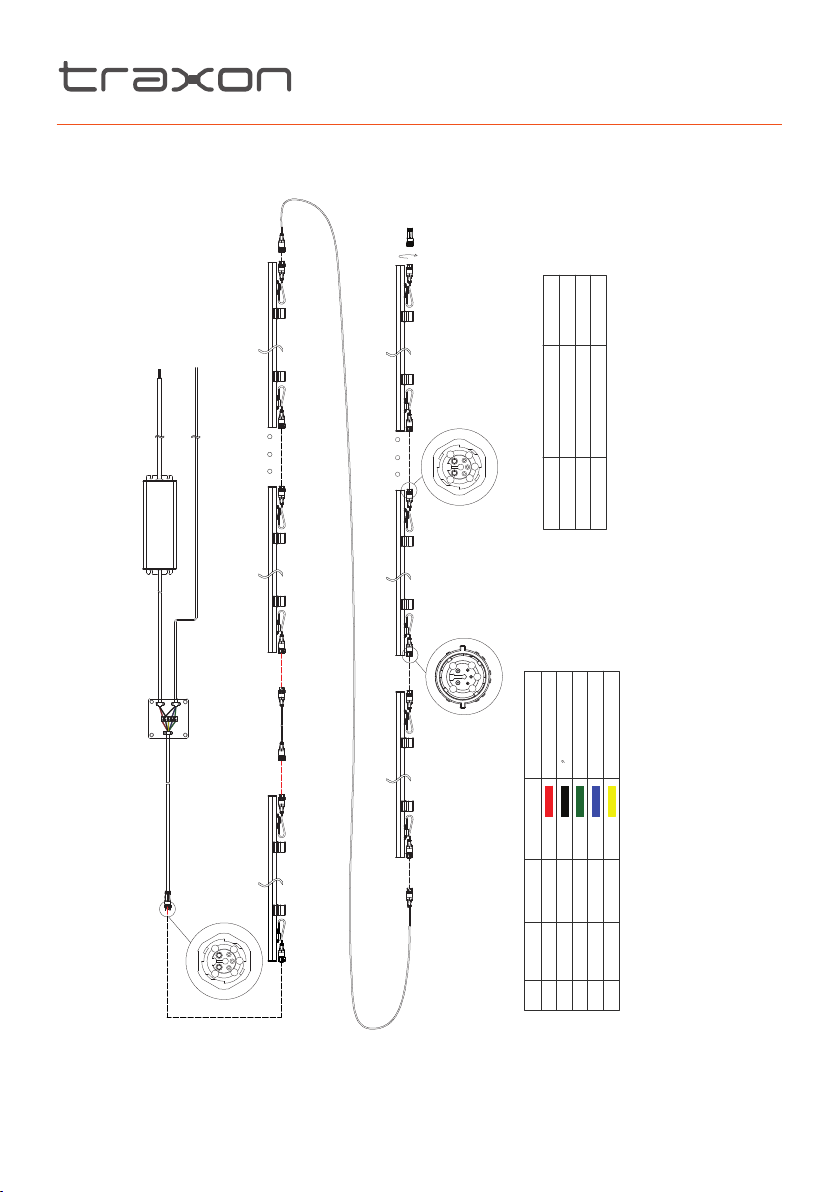

FIG.9: System Diagram
Tubes are daisy chained
Signal
DC48V+
DC48V–
DMX+
DMX–
Address
Wire Size
1.0mm² 1.0mm² 0.3mm² 0.3mm² 0.3mm²
Color
Red
Black
Green
Blue
Yellow
Connection
DC48V+
DC48V– and GND
DMX+
DMX–
Do not connect
Pin#
5 4 1 3 2
End Cap
The Address wire only need to be connected during address configuration, it is not needed during operation. This wiring diagram shows only typical connections. Actual wiring depends on LED Tube configuration and installation. Actual no. vary according to cable lengths and signal source. Please consult your local Traxon office for aid.
Color Type
RGBW
RGB
DW
Max. Daisy Chain
12m 17m 20m
PSU Power
240W 320W 320W
12
3
45
1
2
3
45
DMX In
300mm
LED Engine 48V
AC 220-240V In
Starter Cable
Installation engineer should use appropriate plugs for
outdoor connection.
12
3
45

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 15 of 21

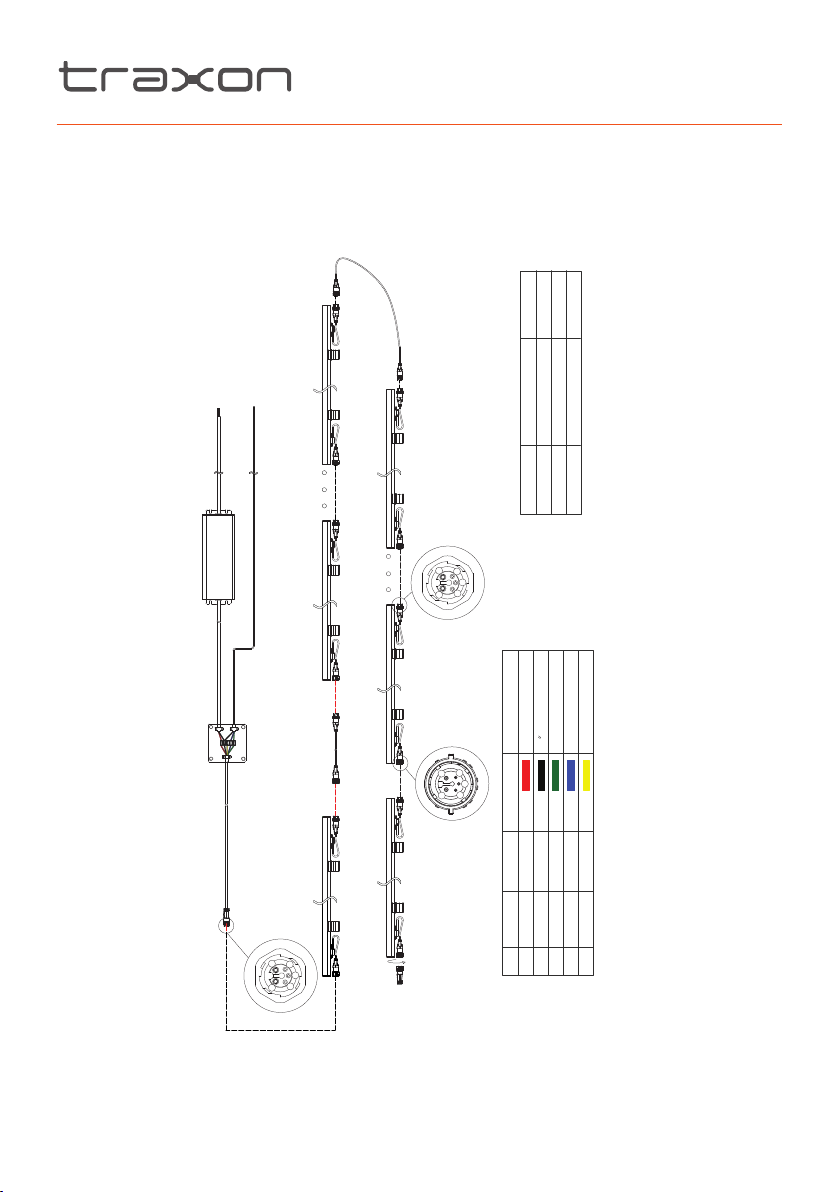

FIG.10: System Diagram-Snake Model (Direct View)
Signal
DC48V+
DC48V–
DMX+
DMX–
Address
Wire Size
1.0mm² 1.0mm² 0.3mm² 0.3mm² 0.3mm²
Color
Red
Black
Green
Blue
Yellow
Connection
DC48V+
DC48V– and GND
DMX+
DMX–
Do not connect
Pin#
5 4 1 3 2
The Address wire only need to be connected during address configuration, it is not needed during operation. This wiring diagram shows only typical connections. Actual wiring depends on LED Tube configuration and installation. Actual no. vary according to cable lengths and signal source. Please consult your local Traxon office for aid.
Color Type
RGBW
RGB
DW
Max. Daisy Chain
12m 17m 20m
PSU Power
240W 320W 320W
DMX In
300mm
LED Engine 48V
AC 220-240V In
Starter Cable
Installation engineer should use appropriate plugs for
outdoor connection.
End Cap
Tubes are daisy chained
12
3
45
Interconnection cable (optional)
Interconnection cable (mandatory)
1
2
3
45
12
3
45

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 16 of 21
FIG.11: System Diagram-Snake Model (Diffused View)
Signal
DC48V+
DC48V–
DMX+
DMX–
Address
Wire Size
1.0mm² 1.0mm² 0.3mm² 0.3mm² 0.3mm²
Color
Red
Black
Green
Blue
Yellow
Connection
DC48V+
DC48V– and GND
DMX+
DMX–
Do not connect
Pin#
5 4 1 3 2
The Address wire only need to be connected during address configuration, it is not needed during operation. This wiring diagram shows only typical connections. Actual wiring depends on LED Tube configuration and installation. Actual no. vary according to cable lengths and signal source. Please consult your local Traxon office for aid.
Color Type
RGBW
RGB
DW
Max. Daisy Chain
12m 17m 20m
PSU Power
240W 320W 320W
DMX In
300mm
LED Engine 48V
AC 220-240V In
Starter Cable
Installation engineer should use appropriate plugs for
outdoor connection.
Tubes are daisy chained
12
3
45
Interconnection cable (optional)
Interconnection cable (mandatory)
1
2
3
45
12
3
45
End Cap

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 17 of 21
5. CARE AND MAINTENANCE
Traxon products are of superior design and quality and should be treated with care. The
recommendations below will help fulfill any warranty obligations and gain good use and
longevity from the products.
• Do not attempt or use the product(s) until you read and understand the installation
instructions. Failure to adhere to these instructions could result in serious injury or property
damage.
• Do not use product(s) if cables are damaged.
• Do not connect cables and connectors when wet or in wet area. Moisture on bare
connectors can cause electric shock and damage to product(s).
• Do not use product(s) in extreme heat environment. Ensure there is sufficient airflow and
use cool air circulation if required.
• Do not drop, knock, or shake product(s). Rough handling can damage the electronics and
void the warranty.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean products.
Wipe with a damp cloth on housings and a dry cloth on electronics to remove dirt or dust.
• Do not attempt to service or repair the product(s) unless done by an authorized service
personnel. Contact your local Traxon office or distributor for details.
• If the product is not working as specified, please contact your nearest authorized service
center or Traxon Technologies office for assistance.

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 18 of 21
6. TROUBLESHOOTING
CAUTION: Ensure power supply is OFF when disconnecting / connecting
cables.
Problem Cause Possible Solutions
Product does
NOT light up after
installation
Incorrect power
connection
• Check Mains Power
• Check power supply leads and wire
connections
• Ensure output wires are connected with
proper polarity
• Check if LED Engine’s secondary
output is working as specified.
Shadowing Light source covered • Check for cables, wires or unwanted
debris covering LED light source
Modules are dim Excess products
connected
• Ensure the power supplies are not
overloaded due to an excess of
products connected
Flickering Incorrect power input/
Excess products
connected
• Ensure the input voltage is correct
• Ensure the power supplies are not
overloaded due to an excess of
products connected
If problems persist or the product is not working as specified, please contact your nearest
authorized service center or Traxon Technologies office for assistance.

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 19 of 21
7. TECHNICAL SPECIFICATION
Allegro Media Tube®Lite RGBW
Color Range: 16.7 Million additive RGB colors; White 6500K
Light Source: 18 RGBW 4 in 1 / 30 RGBW 4 in 1 / 60 RGBW 4 in 1 (Direct)
18RGB+18White / 30RGB+30White / 60RGB+60White (Diffused)
Beam Angle: 90° (Direct) / 115°x170° (Diffused)
Power Input*: 48V DC
Power Consumption (typ).: 4.2W / 7W / 14W
Weight: 0.35kg / 0.52kg / 0.85kg
Operating Temperature: –40°C to +50°C / –40°F to +122°F
Storage Temperature: –40°C to +70°C / –40°F to +158°F
Allegro Media Tube®Lite RGB
Color Range: 16.7 Million additive RGB colors
Light Source: 18RGB / 30RGB / 60RGB
Beam Angle: 90° (Direct) / 115°x170° (Diffused)
Power Input*: 48V DC
Power Consumption (typ).: 4.2W / 7W / 14W
Weight: 0.35kg / 0.52kg / 0.85kg
Operating Temperature: –40°C to +50°C / –40°F to +122°F
Storage Temperature: –40°C to +70°C / –40°F to +158°F
Allegro Media Tube®Lite DW
Color Range: White CCT 2700K-6500K
Light Source: 18WW+18CW / 30WW+30CW / 60WW+60CW
Beam Angle: 90° (Direct) / 115°x170° (Diffused)
Power Input*: 48V DC
Power Consumption (typ).: 4.2W / 7W / 14W
Weight: 0.35kg / 0.52kg / 0.85kg
Operating Temperature: –40°C to +50°C / –40°F to +122°F
Storage Temperature: –40°C to +70°C / –40°F to +158°F

www.traxontechnologies.com
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG????EN V1.0 11/21 20 of 21
As with all electronic devices, LED output degrades over time - a term called lumen
depreciation. This also explains why it is nearly impossible to expect photometric
performances of two LED products with different service life spans to be the same. The
rate of LED degradation is a complex function of many factors such as operating efficiency,
duration of continuous operation, and operating conditions (e.g. ambient temperature).
Because LEDs are semiconductor devices, their performances are subject to inherent
variability commonly found in semiconductor industry. To improve consistency in performance
across the same product, LED manufacturers “sort” LEDs into bins according to different
preset parameters, such as forward driving voltage, illumination, etc. Whereas binning is a
sorting function, it is not a correction process. Inherent variability in the manufacturing process
always results in different binning distributions according to different production lots. Traxon
uses automatically binned LEDs on its products, thereby minimizing output variations within
the model range.
8. WARRANTY STATEMENT
Traxon Technologies warrants its Products against material or workmanship defects for a
period of five (5) years from date of purchase, provided that the purchased items are used
under the conditions stated in this user manual.
Please refer www.traxontechnologies.com for all warranty terms and conditions.
