Traxxas EZ-Peak PLUS 4S User manual

owner’s manual
4s4s
NiMH / LiPo Fast ChargerNiMH / LiPo Fast Charger

2 •EZ-PEAK PLUS 4s
Important warnings for users of Lithium Polymer
(LiPo) batteries:
Lithium Polymer (LiPo) batteries are significantly
more volatile than other rechargeable batteries.
• ONLY use a Lithium Polymer (LiPo) balance charger
with a balance adapter port to charge LiPo batteries.
Never use NiMH or NiCad-type chargers or charge
modes to charge LiPo batteries. DO NOT charge with
a NiMH-only charger. The use of a NiMH or NiCad
charger or charge mode will damage the batteries
and may cause fire and personal injury.
• Never charge LiPo battery packs in series or parallel.
Charging packs in series or parallel may result in
improper charger cell recognition and an improper
charging rate that may lead to overcharging, cell
imbalance, cell damage, and fire.
• ALWAYS inspect your LiPo batteries carefully before
charging. Look for any loose leads or connectors,
damaged wire insulation, damaged cell packaging,
impact damage, fluid leaks, swelling (a sign of
internal damage), cell deformity, missing labels, or
any other damage or irregularity.
Thank you for purchasing the Traxxas EZ-Peak Plus® 4s charger. This charger features exclusive Traxxas
innovations that make charging batteries easier and safer than ever. If you have any questions or concerns
about your charger, please contact our customer support team for fast, friendly answers and solutions.
CHARGING AND DISCHARGING BATTERIES HAS
THE POTENTIAL FOR FIRE, EXPLOSION, SERIOUS INJURY, AND PROPERTY
DAMAGE IF NOT PERFORMED PER THE INSTRUCTIONS. BEFORE USE, READ AND FOLLOW
ALL MANUFACTURER’S INSTRUCTIONS, WARNINGS, AND PRECAUTIONS. NEVER ALLOW
CHILDREN UNDER THE AGE OF 14 TO CHARGE OR USE LIPO BATTERIES WITHOUT THE
SUPERVISION OF A RESPONSIBLE, KNOWLEDGEABLE ADULT.
WARNING! CAUTION! DANGER!
FIRE HAZARD!

EZ-PEAK PLUS 4s • 3
If any of these conditions (see page 2) are observed,
do not charge or use the battery pack. Follow the
disposal instructions included with your battery to
properly and safely dispose of the battery.
• Do not store or charge LiPo batteries with or
around other batteries or battery packs of any type,
including other LiPos.
• Store and transport your LiPo batteries in a cool
dry place. Do not store in direct sunlight. Do not
allow the storage temperature to exceed 140°F or
60°C such as in the trunk of a car or the cells may be
damaged and create a fire risk.
• Do NOT disassemble LiPo batteries or cells.
• Do NOT attempt to build your own LiPo battery
pack from loose cells.
Charging and handling precautions for all battery
types:
• ALWAYS proceed with caution and use good
common sense at all times.
• Charge only NiMH packs or 2s–4s LiPo battery packs.
• This charger may be used by persons (including
children over 14 years old) with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge, if they have been given supervision
or instruction concerning use of the charger in a
safe way and understand the hazards involved. Do
not allow children to play with the charger. Children
require adult supervision while using, cleaning, or
maintaining this charger.
• DO NOT let any exposed battery contacts or wires
touch each other. This will cause the battery to
short circuit and create the risk of fire.
• While charging, ALWAYS place the battery in a
fire retardant/fire proof container and on a non-
flammable surface such as concrete.
WARNING! CAUTION! DANGER! (continued)
FIRE HAZARD!

4 •EZ-PEAK PLUS 4s
• •
• DO NOT operate the charger inside of an
automobile.
• NEVER charge batteries on wood, cloth, carpet or on
any other flammable material.
• ALWAYS charge batteries in a well-ventilated area.
• REMOVE flammable items and combustible
materials from the charging area.
• DO NOT leave the charger and battery unattended
while charging, discharging, or any time that the
charger is ON with a battery connected. If there
are any signs of a malfunction or in the event of an
emergency, unplug the charger from the power
source and disconnect the battery from the charger.
• DO NOT operate the charger in a cluttered space, or
place objects on top of the charger or battery.
• If any battery or battery cell is damaged in any way,
DO NOT charge, discharge, or use the battery.
• Keep a Class D fire extinguisher nearby in case of fire.
• BEFORE you charge, ALWAYS confirm that the
charger settings exactly match the type (chemistry),
specification, and configuration of the battery to be
charged.
• DO NOT exceed the battery manufacturer’s maximum
recommended charge rate.
• DO NOT disassemble, crush, short circuit, or expose
the batteries or cells to flame or any other source of
ignition.
• If a battery gets hot to the touch during the charging
process, disconnect the battery from the charger and
discontinue charging immediately.
• ALWAYS unplug the charger and disconnect the
battery when not in use.
• Never attempt to charge more batteries than the
charger was designed to charge.
• DO NOT disassemble the charger.
• REMOVE the battery from your model or device
before charging.
WARNING! CAUTION! DANGER! (continued)
FIRE HAZARD!

EZ-PEAK PLUS 4s • 5
• DO NOT use the charger outdoors or expose it to
water or moisture. Water entering the charger will
increase the risk of electric shock.
• ALWAYS store battery packs safely out of the reach
of children and pets.
• If the charger power cord is damaged, it must be
replaced by Traxxas in order to avoid a hazard.
• DO NOT charge batteries under ANY of the
following conditions:
- Batteries that are hot to the touch.
- Batteries that are not expressly stated by the
manufacturer to be suitable to accept the power
output (voltage and amperage) the charger
delivers during the charging process.
- Batteries that are damaged or defective in any way.
Examples of damage or defects include,
but are not limited to, batteries with dented cells,
damaged or frayed wires, loose connections,
fluid leaks, corrosion, plugged vents, swelling,
cell deformity, impact damage, melted
components, or any other signs of damage.
- Battery packs that have been altered from original
manufacturer configuration.
- Non-rechargeable batteries (explosion hazard).
- Batteries that have missing or unreadable labels,
preventing you from properly identifying the
battery type and specifications.
WARNING! CAUTION! DANGER! (continued)
FIRE HAZARD!

6 •EZ-PEAK PLUS 4s
Explanation of Symbols
Symbol Explanation
General warning for personal safety
Fire hazard warning. This product presents a
possible fire hazard if not used correctly.
FCC—Tested to Federal Communications
Commission requirements
CE marking indicates product conformance
with the applicable European Union (EU)
Directives.
For EU WEEE compliance, this product
should not be disposed of in household
waste containers. Dispose of the product by
using a designated collection point for the
recycling of waste electrical and electronic
equipment.
Symbol Explanation
This product includes a replaceable fuse.
This product is double insulated for safe use.
This product is designed to be used indoors
only.
C-Tick—Regulatory Compliance Mark for
Australia and New Zealand
California Energy Commission Compliant

EZ-PEAK PLUS 4s • 7

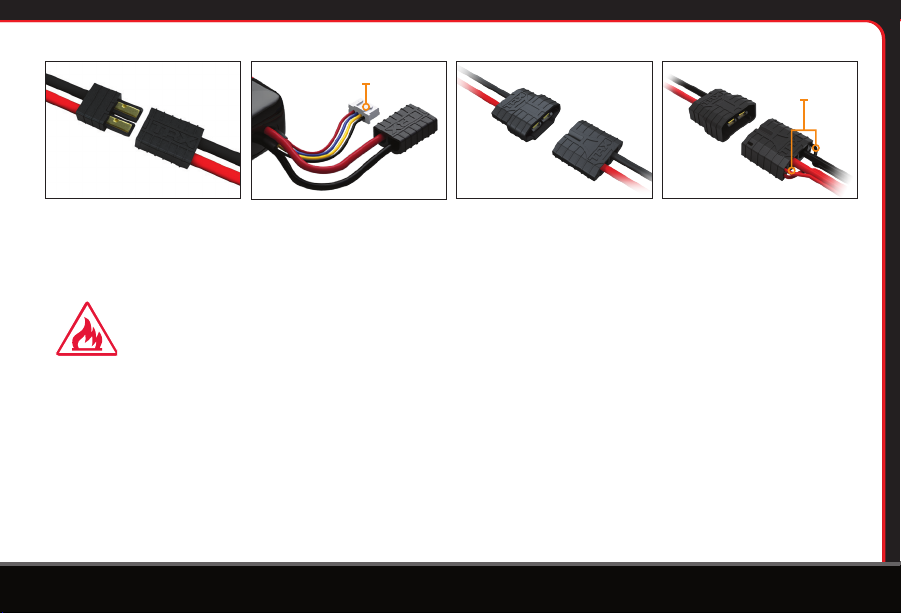

Know Your Connectors
First Generation Traxxas
High-Current Connector
Traxxas High-Current
Connector with integrated
balance wires (4s battery
with Traxxas iD shown)
Traxxas
High-Current Connector
LiPo Balance Connector
(battery without
Traxxas iD)
Balance Connector Integrated
Balance Wires
WARNING: FIRE HAZARD!
If you have a battery that is labeled as or appears to be a LiPo but it does not have a balance
connector, do not attempt to charge the battery.

8 •EZ-PEAK PLUS 4s
LiPo (Lithium Polymer) batteries
are made from stacks of flat
rectangular cells so the battery
pack is rectangular, blocky, and has
square corners. LiPo batteries also
have balance connectors. For older Traxxas batteries
with first generation High-Current Connectors, the
balance connector and the multi-colored balance
wires are separate. For Traxxas iD batteries, the
balance wires are integrated into the High-Current
Connector (see Know your connectors on page 6).
NiMH (Nickel-Metal Hydride)
batteries are constructed using
6, 7, or 8 round battery cells that
are soldered together and and
wrapped with heat shrink material.
NiMH batteries do not have a
separate balance wire.
Know Your Batteries
The EZ-Peak Plus® 4s is able to charge two different types (chemistries) of batteries: NiMH and LiPo.
Batteries are normally clearly labeled, but they can also be visually identified as a confirmation step.
iD LogoBattery Type
Traxxas High-Current
Connector
NiMH Battery
iD LogoBattery Type
Traxxas High-Current
Connector
LiPo Battery
Balance Wires
WARNING: FIRE HAZARD!
Do not attempt to charge any battery that
has a missing or unreadable label that
prevents you from properly identifying
the battery type and specifications.

EZ-PEAK PLUS 4s • 9

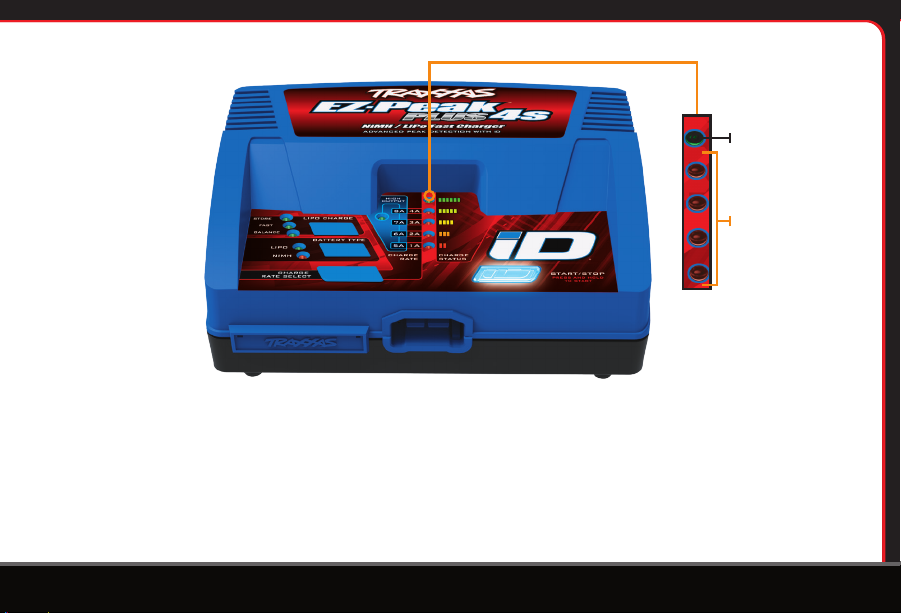

Know Your Charger
A. Start/Stop Button
B. LiPo Charge Mode Select
C. Battery Type Select
D. Charge Rate Select
E. Charger Output Port (Traxxas
High-Current Connector)
Charge
Status
Charge
Progress
F. 2s/3s/4s LiPo Balance Ports
(pull to remove cover)
G. Charge Status LED
H. Charge Progress/Charge Rate LEDs
I. High Output LED (see page 16)
AA
BB
CC
DD
GG
EE
FF
HH
II

10 •EZ-PEAK PLUS 4s
Charger Specifications
AC Input Power 100-240V,50-60Hz,1.6A-2A
Charger Output 75W,4-16.8V
Traxxas iD Battery Type Capacity EZ-Peak Plus® 4s Maximum Charge Rate
6-cell NiMH
1200-1800mAh 2A
3000-4200mAh 4A
4300-5000mAh 5A
7-cell NiMH 3000-4200mAh 4A
4300-5000mAh 5A
8-cell NiMH 3000-4200mAh 4A
4300-5000mAh 5A
2-cell LiPo,7.4v 4000-10000mAh 8A
3-cell LiPo,11.1v 4500-8400mAh 6.7A
4-cell LiPo,14.8v 3400-6700mAh 5A

EZ-PEAK PLUS 4s • 11

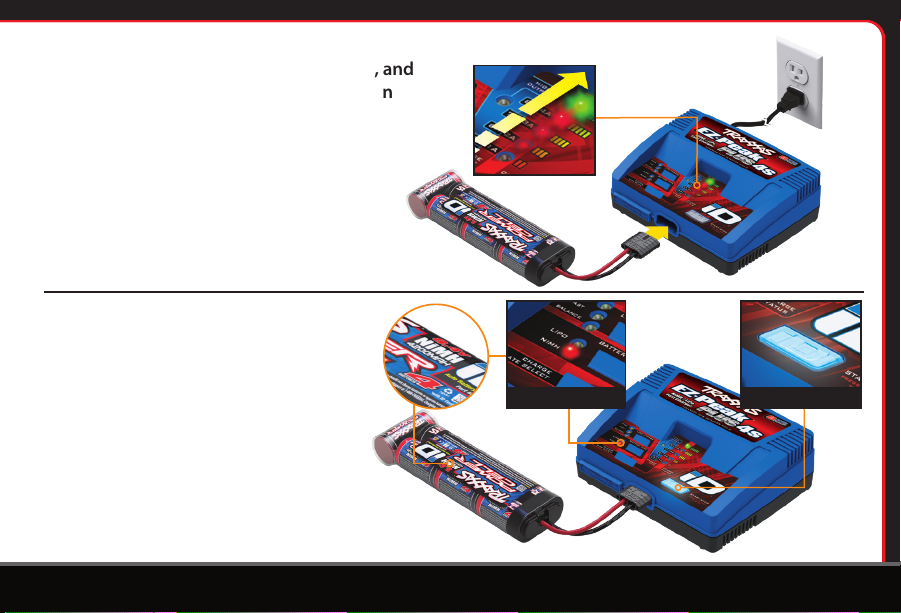

Charging Traxxas iD NiMH Batteries
1. Plug the charger into an AC wall outlet, and
then connect the NiMH battery as shown
2. Verify the charge settings
Confirm that the red NiMH LED is lit
for the connected NiMH battery. The
Start button will light blue indicating
that an iD battery is connected and
ready to charge.
The charger will recognize the iD battery
and show you the charge settings.
Battery Type Start
NiMH with iD

12 •EZ-PEAK PLUS 4s
3. Charging
Press and hold the Start button for 2
seconds. The charger will play a tone
and the green progress LED will flash,
indicating that charging has started.
The red charge progress LEDs will light
as the battery charges. Press the Start
button at any time to stop charging.
The charger will play a tone, indicating
that charging has been canceled.
4. Charge cycle complete
The charger will play a “charge complete”
tone to indicate charging is complete. The
alert tone will play 3 times and stop.
The EZ-Peak Plus 4s will trickle charge your
NiMH battery at a minimum of 100mA for
12 hours after the charge cycle is complete.
Charging Complete
(solid)
Charging
(flashing)
Charge Cycle Progress

EZ-PEAK PLUS 4s • 13

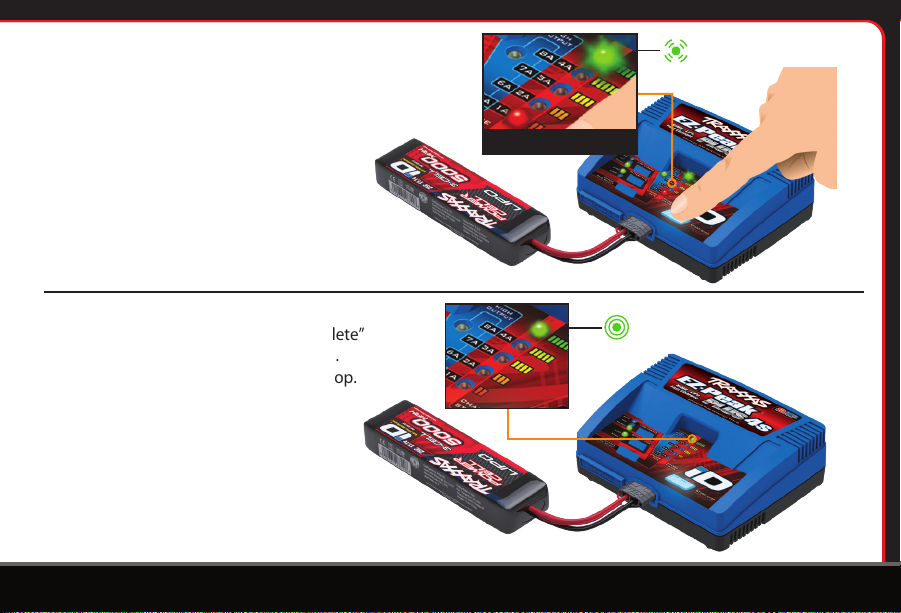

Charging Traxxas iD LiPo Batteries
1. Plug the charger into an AC wall outlet, and
then connect the LiPo battery as shown
The charger will recognize the iD battery
and show you the charge settings.
2. Verify the charge settings
Confirm that the green LiPo LED is lit for
the connected LiPo battery. The Start
button will light blue indicating that an
iD battery is connected and
ready to charge.
Start
Charge Mode
(the default is
Balance)
Battery Type
LiPo with iD

14 •EZ-PEAK PLUS 4s
The default LiPo charge setting is Balance Charge. You can change the LiPo charge setting, if desired.
Storage Charge
Makes it easy to charge or discharge the battery to the proper storage
voltage. Use this mode whenever the battery will be stored unused for
more than 7 days.
Fast Charge
Fast charges your battery without balancing your cells. Stops charging
when the battery is fully charged or when the first cell reaches peak
voltage. Depending on the battery, this may reduce the charge time
by a few minutes.
Balance Charge (recommended)
Always balance charge your LiPo batteries for maximum capacity,
voltage, and battery life. This is the default setting for Traxxas iD
batteries. The EZ-Peak Plus 4s performs a balance charge quickly
and efficiently.
3. Select LiPo charging mode
WARNING: FIRE HAZARD!
The fast charge LiPo setting is for occasional use only. LiPo
batteries that become severely out of balance over time can
create a hazard if one or more cells are discharged below
the recommended safe voltage during use. See additional
warnings and precautions in the beginning of this manual.

EZ-PEAK PLUS 4s • 15
4. Charging
Press and hold the Start button for 2
seconds. The charger will play a tone
and the green progress LED will flash,
indicating that charging has started.
The red charge progress LEDs will light
as the battery charges. Press the Start
button at any time to stop charging.
The charger will play a tone, indicating
that charging has been canceled.
5. Charge cycle complete
The charger will play a “charge complete”
tone to indicate charging is complete.
The alert tone will play 3 times and stop.
Charging
(flashing)
Charge Cycle Progress
Charging Complete
(solid)

16 •EZ-PEAK PLUS 4s
Advanced Mode offers full manual control for users that have an in-depth knowledge of battery types
(chemistry) and battery charging techniques. Advanced Mode also allows you to adjust the charge rate
(current) for Traxxas iD batteries. If you do not understand the differences in various battery types or what
charge rates should be used, then do not use Advanced Mode. Use the Traxxas Battery iD System instead
for safe, easy, and fast charging .
Simultaneously press and hold the Start button and the Charge Rate Select button for 2 seconds to enter
Advanced Mode.
Advanced Mode
IN ADVANCED MODE, THE USER SELECTS THE
BATTERY CHEMISTRY AND CHARGE MODE. THIS CREATES THE RISK OF FIRE
AND POSSIBLE INJURY TO YOURSELF AND OTHERS RESULTING FROM ACCIDENTALLY
CHOOSING TO CHARGE A LIPO BATTERY IN NIMH MODE. ALWAYS MAKE SURE TO SELECT
THE BATTERY TYPE THAT MATCHES THE CONNECTED BATTERY. ALSO, TO HELP PREVENT
ACCIDENTALLY SELECTING THE WRONG BATTERY TYPE, NEVER ATTEMPT TO CHARGE
LIPO BATTERIES WITH MISSING OR DAMAGED BALANCE CONNECTORS. IF YOU DO NOT
UNDERSTAND THE TERMINOLOGY USED IN THESE INSTRUCTIONS, KNOW WHAT TYPE OF
BATTERIES YOU HAVE, OR WHAT THIS WARNING MEANS, DO NOT USE ADVANCED
MODE; INSTEAD, CONTACT TRAXXAS FOR MORE INFORMATION.
WARNING! CAUTION! DANGER!
FIRE HAZARD!

EZ-PEAK PLUS 4s • 17
WARNING: In Advanced Mode, the high output charge rate selection begins at 5 amps
and goes up to 8 amps. You can use high output to charge high capacity batteries at a faster
rate. Make sure you do not exceed the maximum charge rate recommended by your battery
manufacturer. If you are unsure about the maximum charge rate for your battery, then do not attempt to
charge the battery in Advanced Mode. Contact Traxxas or your local hobby dealer for more information.
Using Advanced Mode for High Output Charging

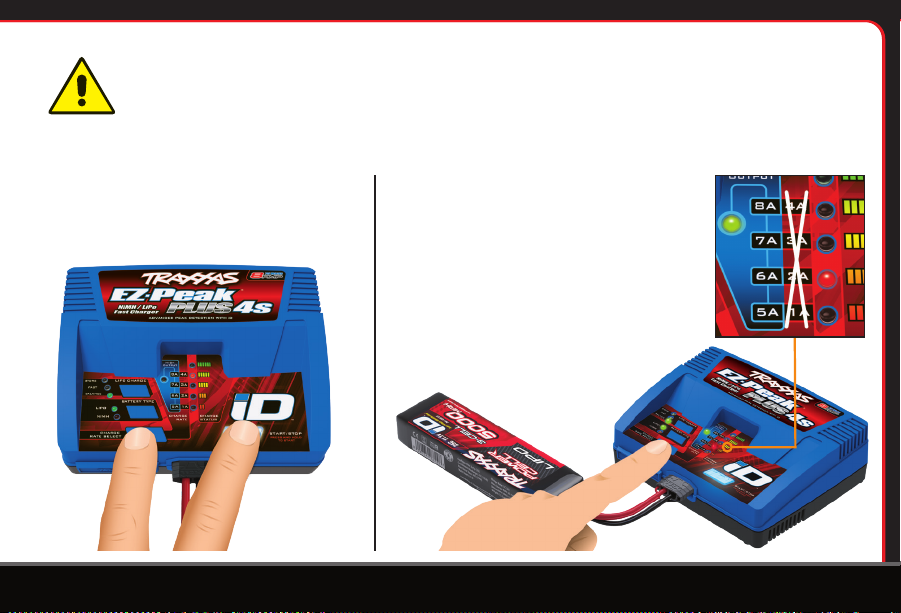

1. Enter Advanced Mode:
Simultaneously press and hold the
Start button and the Charge Rate Select
button for 2 seconds.
2. Select Charge Rate:
Use the Charge Rate Select button to
toggle through and select the charge
rate. When the green High Output
LED turns on, the charger is in High
Output Mode. With the green High
Output LED on, the red Charge Rate
LED lights now indicate the high
output 5A-8A charge rate options.

18 •EZ-PEAK PLUS 4s
1. Connect the main connector and the balance connector to the charger
When a battery is connected for charging that does not have Traxxas iD, the red charge rate/progress
LEDs will sweep in a scanning motion. Advanced Mode must be used for manual battery type and
charge rate selection. The Start button will not light blue when there is no Traxxas iD present.
LiPo Only
Using Advanced Mode for Charging Traxxas Batteries
without iD

EZ-PEAK PLUS 4s • 19
WARNING: FIRE HAZARD!
DO NOT attempt to charge LiPo batteries with missing or damaged balance connectors. The
EZ-Peak Plus 4s will default to LiPo mode charging when a balance plug connection is detected.
If you fail to plug in the balance connector, or attempt to charge a LiPo battery with a damaged
or missing balance connector, you create the risk of accidentally selecting to charge a LiPo
battery in NiMH mode resulting in fire and possible injury to yourself and others. Always make
sure to select the battery type that matches the connected battery. If you do not understand
what this warning means, do not attempt to use Advanced Mode on the EZ-Peak Plus 4s.
Contact Traxxas for more information.
2. Enter Advanced Mode:
Simultaneously press and hold the Start button and the
Charge Rate Select button for 2 seconds.

20 •EZ-PEAK PLUS 4s
3a. Charging a NiMH battery
Select Charge
Rate
Select NiMH
Battery Type (Red)
Press and hold the Start button for 2 seconds. The charger will play a tone, indicating that charging has
started. Press once to stop. The charger will play a tone, indicating that charging has been canceled. The
charge progress LEDs will light as the battery charges.
Charge cycle progresses as shown in steps 3 and 4 for iD NiMH charging.
