Treasure Garden AKZ PLUS Installation instructions

Assembly and Operation Guide
www.treasuregarden.com
©2020 Treasure Garden, Inc. - All Rights Reserved.
v.11.30.20
AKZ PLUS CANTILEVER
AKZP13LX 13’ octagon
AKZP13 13’ octagon
AKZPRT 10’ x 13’ rectangle
AKZP 11’ octagon

Thank you for purchasing Treasure Garden’s AKZ Plus Cantilever.
Please remove all contents from the package, inspect and review checklist.
Some parts may be included in the styrofoam packaging.
Do not discard any packaging or box until assembly is complete.

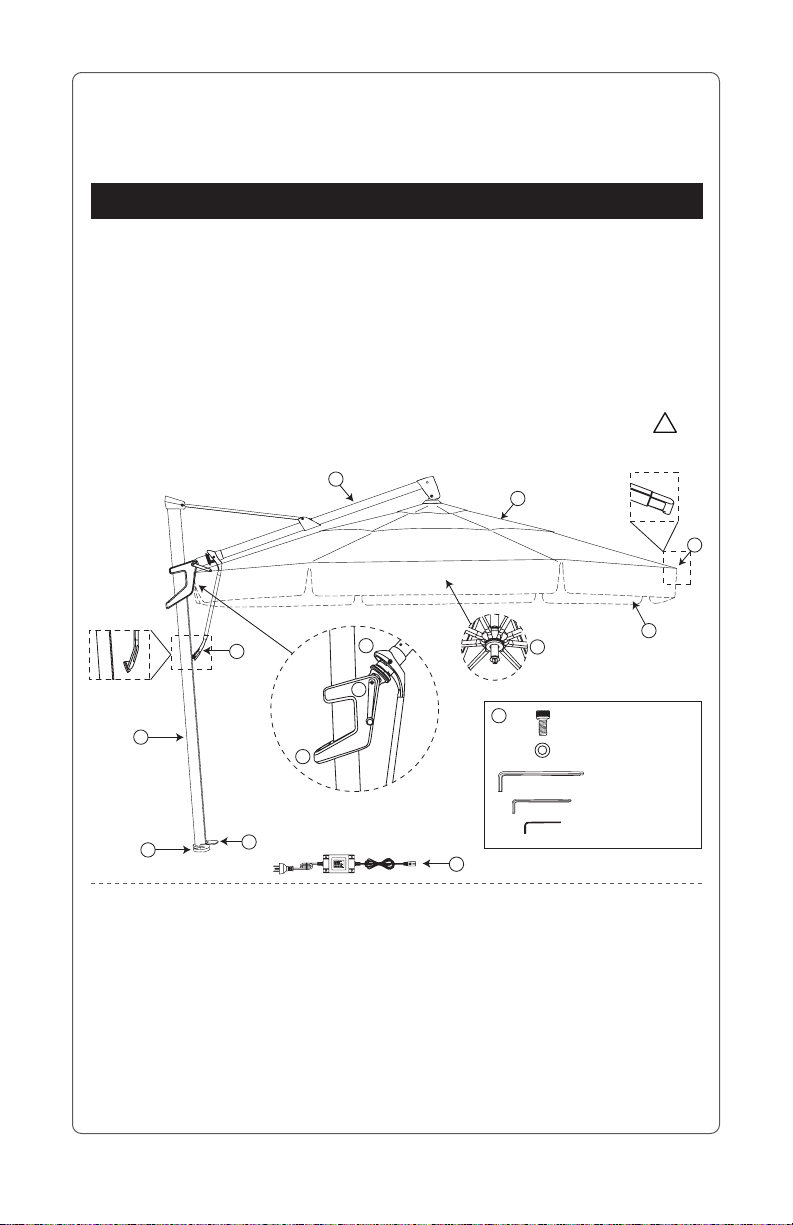

CHECKLIST
101
!
WARRANTY:
Treasure Garden warrants this product
(for residential use ONLY) to be free
from defects in original materials and
workmanship for a period of 2 years from
the date of purchase. If a defect in the
original material or workmanship appears
during the warranty period; Treasure
Garden will (at its discretion) repair or
replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a description
of the defect. The dealer will verify the
defect and work closely with Treasure
Garden to obtain the necessary service.
In many cases, simple problems can
be solved with a replacement part that
can be shipped directly to the dealer for
professional installation / repair.
In the event that warranted factory service
is required, Treasure Garden will assume
the responsibility of the return freight
charges on warranted product for the first
year only.
Returned product that (upon receipt and
inspection) is deemed to be “not covered”
under our warranty, will be shipped / billed
at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RUST: Rust is a natural part of the aging
process of steel or iron based materials,
and is therefore NOT considered a defect.
NOTE: Failure caused by unreasonable or
abusive use, or failure caused by neglect
of reasonable and necessary care are not
covered by this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes, tornadoes,
and storms) are not covered by this
warranty.
E
H
I
D
L
J
M
Loop Lock
Spring Loaded
Rib End Cap (8)
(5) Hub Bolts
(5) Washers
(1) 8mm Hexagon Wrench
(1) 6mm Hexagon Wrench
(1) 2.5mm Hexagon Wrench
AB
K
N
G
F
C
A - (1) 360°Rotating Hub H - (1) Canopy Support Beam
B - (1) Foot Pedal I - (1) Canopy
C - (1) Crank Lift Handle J - (1) Light Adapter (light sold separately)
D - (1) Main Frame K - (1) Valance (optional)
E - (1) Tilt Lever L - (8) Spring Loaded Rib End Cap
F - (1) Main Frame Grip M - (1) Hardware Assembly
G - (1) Tilt Degree Scale N - (1) Power Supply* (Starlux style only)
O - (1) Protective Cover (not shown)
*NOTE: Use only the Power Supply included with umbrella. See page 9 for Safety Precautions.
IMPORTANT:
Prior to assembly it is important to decide on the location of the umbrella.
·Allow ample height to avoid damage to your umbrella during assembly and usage.
·Choose a location that is level and sturdy.
·Avoid any sloping of soft ground.
·Consider a location that will maximize the umbrella’s 360°rotating function. Placing the
umbrella between two entertaining areas is idea.
CAUTION:
·Fully assembled, the umbrella weighs over 500 lbs. Moving umbrella fully assembled
will increase the risk of damage to your umbrella and/or can cause serious injury. We
recommend a two-person team for assembly and disassembly.

29
SAFETY PRECAUTIONS
• Close and store the umbrella in windy conditions or when a storm approaches.
Never allow the umbrella to flap in the wind; this could damage the canopy.
• Do not leave open umbrella unattended. If damage occurs, this is not covered
by the warranty.
• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the
umbrella. This is important to prevent injury or material damage.
Starlux Style Only:
• Do not operate the Starlux power switch or attempt to charge the umbrella in inclement
weather (rain, snow) so as to prevent damage to the electrical components.
• When Starlux lights are not in use, unplug power supply from umbrella and put the cap
back onto the plug to protect the electrical components inside.
Rechargeable Battery Pack (sold separately) and Power Supply:
• Discontinue battery usage if leakage is found. Contact your local authorized dealer for a
replacement.
• Do not disassemble rechargeable battery pack.
• Do not leave rechargeable battery pack in sun, it will affect battery life.
• Never use a third party battery or power supply. Doing so may increase risk of fire or
explosion. Contact your local authorized dealer for a replacement rechargeable battery
pack or power supply.
• During prolonged use, it is normal for the power supply to be warm to the touch. When
using power supply, avoid direct sunlight and exposure to moisture.
• Do not attempt to charge the umbrella in inclement weather (rain, snow) so as to
prevent damage to the electrical components.
CARE AND MAINTENANCE
• When not in use, close and cover umbrella with provided protective cover.
• Store rechargeable battery pack and power supply in dry place.
• Allow a wet canopy to dry while in open position, but do not leave unattended.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Wipe sliding marks on the aluminum poles with a damp cloth.
Winter Storage:
• Store in a dry place.
After the Winter:
• Check the condition and function of the umbrella. Any defects must be repaired by a
professional.
!
Power Supply Information
Input voltage: 100~240VAC 50/60Hz 0.9AMax
Output: 24VDC 1.5A
17’ Cord
Rechargeable Battery Pack Information (sold separately)
Input: 24VDC 1.5A
Output: 20VDC 1.0A

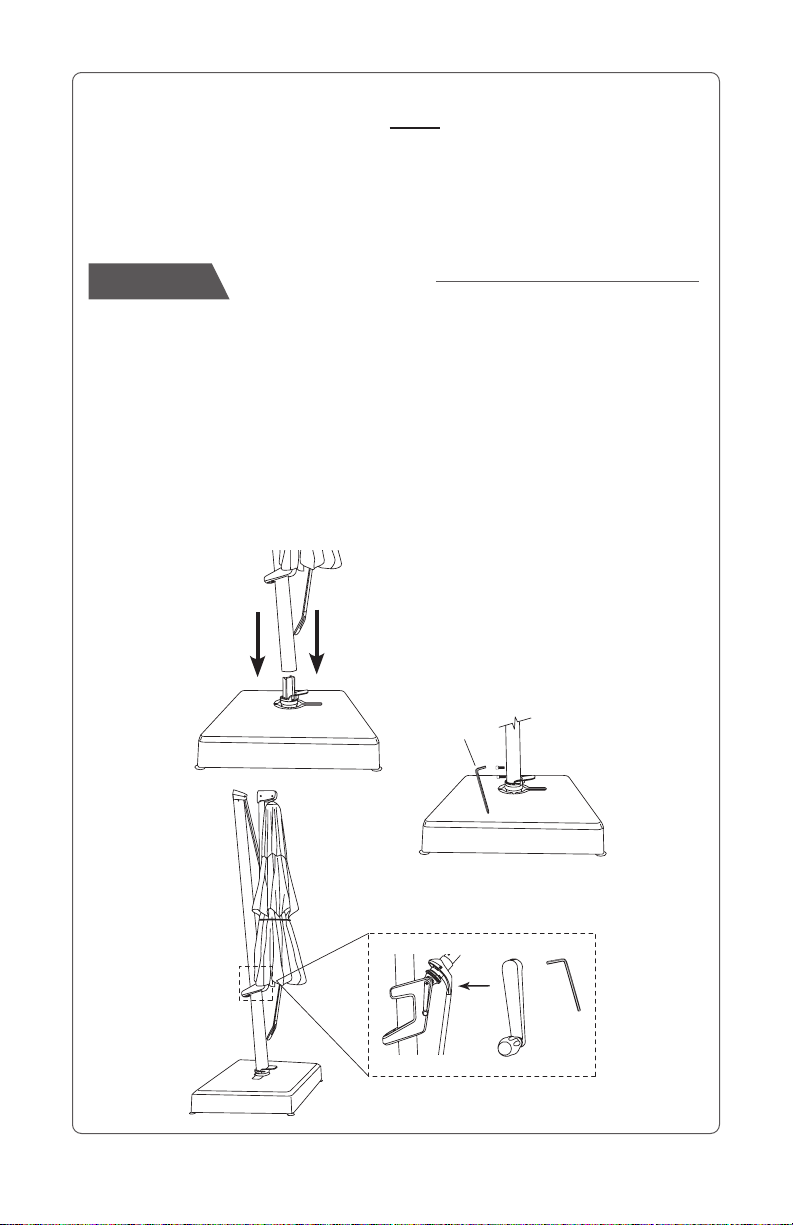

STEP 1UMBRELLA ASSEMBLY
Two-persons recommended for team lift and to complete assembly.
With base cover in place or mount kit installed, insert the main frame onto the installed
rotating hub (Fig. 1); align tilt lever with foot pedal. Assembled in upright position, insert the
(2) bolts and (2) washers and tighten using 6mm hexagon wrench provided (Fig. 2). Install
the crank lift handle onto the mid-area of the main frame. Use the 2.5mm hexagon wrench
provided to lock in the small screw (Fig. 3).
REMOVE ALL PLASTIC PACKAGING MATERIAL FROM ALL PARTS PRIOR TO
OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIBS.
Your umbrella is now ready for use!
NOTE: REFER TO SEPARATE BASE OR MOUNT KIT MANUAL
FOR BASE ASSEMBLY PRIOR TO PROCEEDING.
6mm
Hexagon
Wrench
2.5mm
Hexagon
Wrench
(Fig. 1)
(Fig. 2)
(Fig. 3)
(BASE-13 option shown)
IMPORTANT:
For free standing base applications, it is imperative to install the appropriate base for your
size cantilever. The minimum base weight recommended for each size is:
·13’ and 10’ x 13’ AKZ Plus is 400 lbs.
·11’ AKZ Plus is 200 lbs.

83
(Fig. 4) (Fig. 5) (Fig. 6)
(Fig. 7) (Fig. 8) (Fig. 9)
(Fig. 10)
STEP 2OPENING UMBRELLA
Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle
midway up main frame (Fig. 4). Release grip handle to lock into place. Slowly turn the crank
lift handle clockwise to open the umbrella (Fig. 5). Crank the handle an extra half turn to
lock the canopy structure into place. CAUTION: When cranking umbrella open, if you feel
resistance and the umbrella is not opening, do not force crank. Gently spread umbrella ribs
with hands, then continue to crank open. Once fully opened, squeeze the main frame grip
handle to release lock and continue to slide handle upward until desired height is reached
(Fig. 6).
WARNING: Do not continue to crank once umbrella canopy is completely open, it may
impair your ability to disengage the tilt lever. Keep hands free of mainframe while moving
grip handle up and down.
STEP 3UMBRELLA LIGHTS (STARLUX STYLE ONLY)
From the lower backside of the frame, remove plug cap (Fig. 7). Line up power supply
grooves to plug (Fig. 8) and insert power supply into plug. Secure plug by turning locking ring
clockwise (Fig. 9). Connect other end of power supply into wall outlet (Fig. 10).

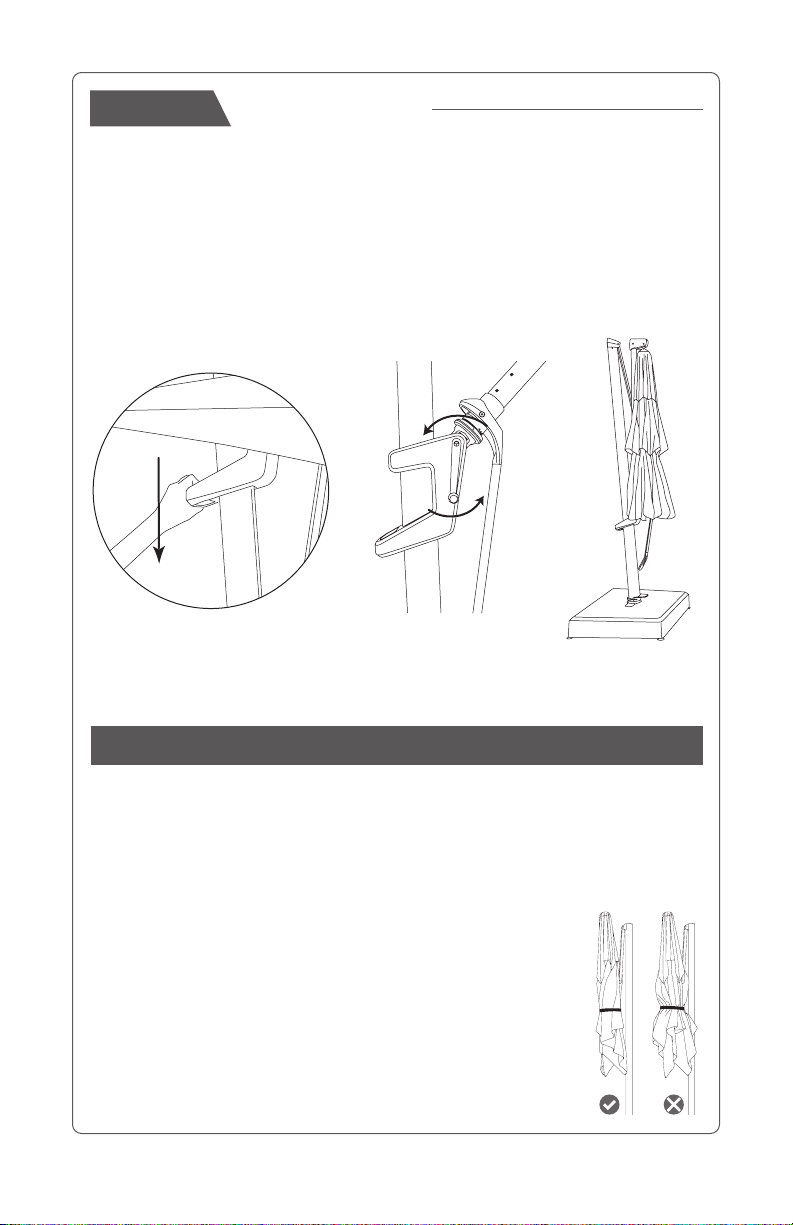

STEP 7CLOSING UMBRELLA
Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle
midway down main frame (Fig. 27). Release grip handle to lock into place. Slowly turn the
crank lift handle counter-clockwise until the canopy is fully closed (Fig. 28). Squeeze main
frame grip handle to release lock and continue to slide grip handle downward SLOWLY until
umbrella is fully closed in an upright position (Fig. 29) and locks into position.
NOTE: Prior to closing ensure that the canopy is in a level (non tilt) position. Properly store
umbrella when not in use. Close umbrella, tie string around canopy and cover umbrella with
provided protective cover.
(Fig. 27) (Fig. 28) (Fig. 29)
CARE AND MAINTENANCE
TO PROPERLY FOLD CANOPY:
The canopy will last longer if you fold it as it was packed and shipped. This technique is
similar to the way a parachute is folded and is especially important when folding the canopy
for seasonal storage or when left in the closed position for an extended period of time.
Using this technique at all times will significantly extend the life of the canopy.
• When the umbrella has been fully closed, stand in front of the canopy
structure and begin the folding process by pulling out two panels
opposite the main frame. Pull the two panels together and roll tight into
the canopy.
• Once rolled tight, pull adjacent panels out one at a time and fold to the
center, alternating sides until all the panels have been pulled out from
the arms and folded into the center.
• Tie string around canopy and cover umbrella with provided protective
cover.

NOTE: The transformer output power is 5VDC 2A. It is normal for transformer to get warm
after long period of use. Avoid sun and water on power supply to increase lifetime use. Be
sure not to drop transformer. NOTE: Use only the Power Supply provided.

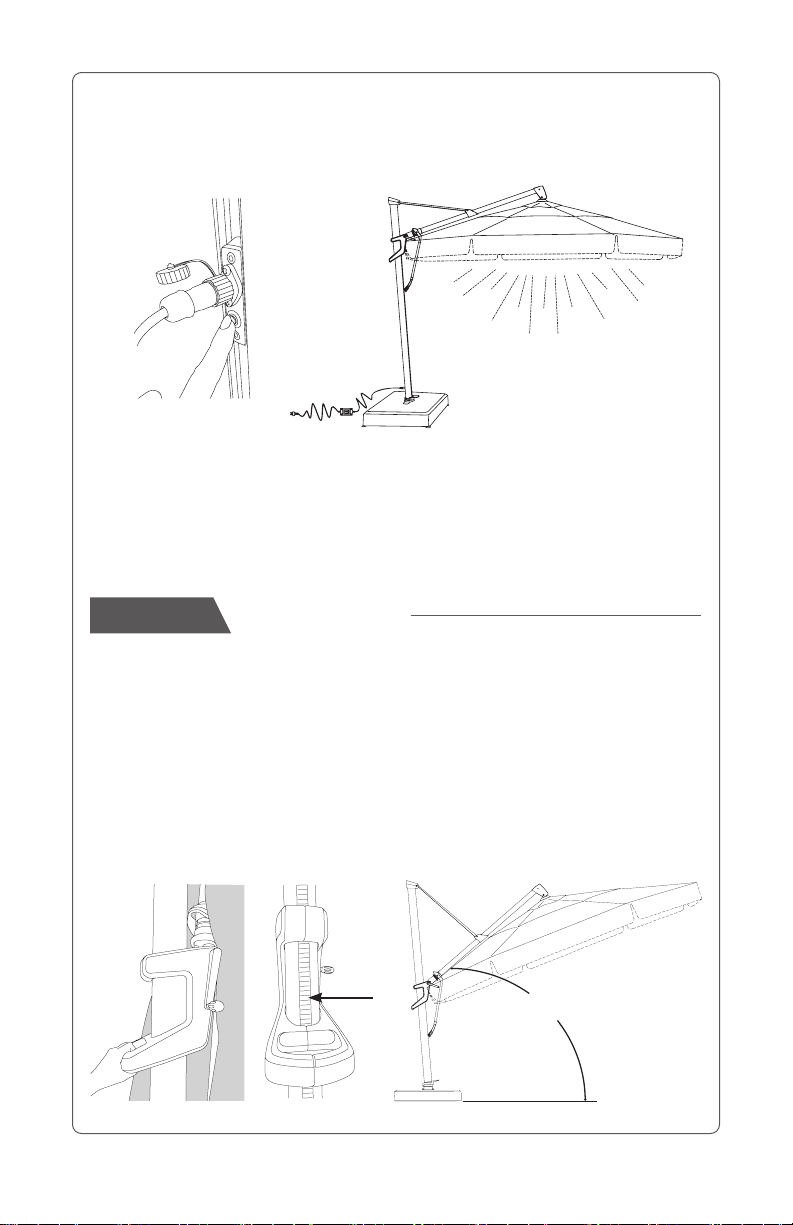

STEP 4TILTING UMBRELLA
To Tilt Canopy Vertically:
IMPORTANT: PRIOR TO USING TILT FEATURE.
To avoid personal injury or damage to the umbrella, make sure the area behind you is clear
and free from any furniture or structure.
Position yourself behind umbrella. Squeeze main frame grip handle (Fig. 13) to disengage
from track (Fig. 14) and guide main frame grip down main frame until desired degree of
vertical shade is reached (maximum back angle of 40˚ from ground level) (Fig. 15). Release
grip handle to lock into place. WARNING: Make sure tilt is secure in track. Do not tilt
umbrella past the track. Keep hands free of main frame while moving grip handle up and
down.
Max. 40°
(Fig. 13) (Fig. 14) (Fig. 15)
Track
Turn umbrella lights on by pressing button located under plug (Fig. 11). Lights will initially
turn on high setting (Fig. 12). For low setting, press button once more. To turn off lights,
press button a third time. WARNING: We do not recommend use of lights while raining.
See Safety Precautions on page 9.
(Fig. 11) (Fig. 12)
When lights are not in use, unplug power supply from wall and umbrella. Store power
supply in dry, cool area to keep from damaging.
47
(Fig. 23) (Fig. 24)
(Fig. 25) (Fig. 26)
STEP 6LIGHT ADAPTER FEATURE
To Open Light Adapter:
• Loosen the light adapter built into the umbrella runner by turning counter-clockwise
(Fig. 23).
• After loosening, pull down light adapter post (Fig. 24).
To Open and Attach Umbrella Light: (light sold separately)
• Open the umbrella light and attach to light adapter post (Fig. 25).
• Snap to close (Fig. 26).
To Remove Umbrella Light and Close Light Adapter:
• Remove umbrella light from light adapter post (Fig. 25).
• Gently push up the light adapter post back into umbrella runner and tighten turning
clockwise (Fig. 23).
Note:
• It may be necessary to lower umbrella to a reachable height to pull light adapter down
and attach umbrella light.
• It is not necessary to remove light to close umbrella.

5
(Fig. 18)
(Fig. 19)
(Fig. 16)
Tilting Gears
PULL
(Fig. 17)
To Tilt Canopy Horizontally:
IMPORTANT: PRIOR TO USING TILT FEATURE.
To avoid personal injury or damage to the umbrella, make sure the area behind you is clear
and free from any furniture or structure.
Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock
from main frame track (Fig. 16). Pull out further to disengage tilting gears and reveal gear
teeth (Fig. 17). Move the tilt lever to the left or right, opposite the desired tilt direction (Fig. 18).
Use the tilt degree scale as a guide (Fig. 19). Now, push forward slightly to re-engage tilting
gear teeth. Move tilt lever to center position (canopy should be moving also) and snap the
loop lock back into main frame track.
NOTE: We do not recommend tilting vertically and horizontally at a maximum tilt degree for a
prolonged period of time. Doing so may result in damage to umbrella.
Tilt Degrees
(Fig. 20)
(Fig. 21)
(Fig. 22)
STEP 5ROTATING UMBRELLA
Place your foot on the foot pedal of the rotating hub and step-on the foot pedal
to release rotating lock (Fig. 20). Place one hand on the main frame and one hand on
the tilt lever (Fig. 21), swivel the umbrella frame in either direction until desired position is
reached (Fig. 22). Step off the foot pedal to engage rotating lock and lock position (you will
hear the pedal click, as it reaches the next available lock position).
6

5
(Fig. 18)
(Fig. 19)
(Fig. 16)
Tilting Gears
PULL
(Fig. 17)
To Tilt Canopy Horizontally:
IMPORTANT: PRIOR TO USING TILT FEATURE.
To avoid personal injury or damage to the umbrella, make sure the area behind you is clear
and free from any furniture or structure.
Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock
from main frame track (Fig. 16). Pull out further to disengage tilting gears and reveal gear
teeth (Fig. 17). Move the tilt lever to the left or right, opposite the desired tilt direction (Fig. 18).
Use the tilt degree scale as a guide (Fig. 19). Now, push forward slightly to re-engage tilting
gear teeth. Move tilt lever to center position (canopy should be moving also) and snap the
loop lock back into main frame track.
NOTE: We do not recommend tilting vertically and horizontally at a maximum tilt degree for a
prolonged period of time. Doing so may result in damage to umbrella.
Tilt Degrees
(Fig. 20)
(Fig. 21)
(Fig. 22)
STEP 5ROTATING UMBRELLA
Place your foot on the foot pedal of the rotating hub and step-on the foot pedal
to release rotating lock (Fig. 20). Place one hand on the main frame and one hand on
the tilt lever (Fig. 21), swivel the umbrella frame in either direction until desired position is
reached (Fig. 22). Step off the foot pedal to engage rotating lock and lock position (you will
hear the pedal click, as it reaches the next available lock position).
6

NOTE: The transformer output power is 5VDC 2A. It is normal for transformer to get warm
after long period of use. Avoid sun and water on power supply to increase lifetime use. Be
sure not to drop transformer. NOTE: Use only the Power Supply provided.
STEP 4TILTING UMBRELLA
To Tilt Canopy Vertically:
IMPORTANT: PRIOR TO USING TILT FEATURE.
To avoid personal injury or damage to the umbrella, make sure the area behind you is clear
and free from any furniture or structure.
Position yourself behind umbrella. Squeeze main frame grip handle (Fig. 13) to disengage
from track (Fig. 14) and guide main frame grip down main frame until desired degree of
vertical shade is reached (maximum back angle of 40˚ from ground level) (Fig. 15). Release
grip handle to lock into place. WARNING: Make sure tilt is secure in track. Do not tilt
umbrella past the track. Keep hands free of main frame while moving grip handle up and
down.
Max. 40°
(Fig. 13) (Fig. 14) (Fig. 15)
Track
Turn umbrella lights on by pressing button located under plug (Fig. 11). Lights will initially
turn on high setting (Fig. 12). For low setting, press button once more. To turn off lights,
press button a third time. WARNING: We do not recommend use of lights while raining.
See Safety Precautions on page 9.
(Fig. 11) (Fig. 12)
When lights are not in use, unplug power supply from wall and umbrella. Store power
supply in dry, cool area to keep from damaging.
47
(Fig. 23) (Fig. 24)
(Fig. 25) (Fig. 26)
STEP 6LIGHT ADAPTER FEATURE
To Open Light Adapter:
• Loosen the light adapter built into the umbrella runner by turning counter-clockwise
(Fig. 23).
• After loosening, pull down light adapter post (Fig. 24).
To Open and Attach Umbrella Light: (light sold separately)
• Open the umbrella light and attach to light adapter post (Fig. 25).
• Snap to close (Fig. 26).
To Remove Umbrella Light and Close Light Adapter:
• Remove umbrella light from light adapter post (Fig. 25).
• Gently push up the light adapter post back into umbrella runner and tighten turning
clockwise (Fig. 23).
Note:
• It may be necessary to lower umbrella to a reachable height to pull light adapter down
and attach umbrella light.
• It is not necessary to remove light to close umbrella.

83
(Fig. 4) (Fig. 5) (Fig. 6)
(Fig. 7) (Fig. 8) (Fig. 9)
(Fig. 10)
STEP 2OPENING UMBRELLA
Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle
midway up main frame (Fig. 4). Release grip handle to lock into place. Slowly turn the crank
lift handle clockwise to open the umbrella (Fig. 5). Crank the handle an extra half turn to
lock the canopy structure into place. CAUTION: When cranking umbrella open, if you feel
resistance and the umbrella is not opening, do not force crank. Gently spread umbrella ribs
with hands, then continue to crank open. Once fully opened, squeeze the main frame grip
handle to release lock and continue to slide handle upward until desired height is reached
(Fig. 6).
WARNING: Do not continue to crank once umbrella canopy is completely open, it may
impair your ability to disengage the tilt lever. Keep hands free of mainframe while moving
grip handle up and down.
STEP 3UMBRELLA LIGHTS (STARLUX STYLE ONLY)
From the lower backside of the frame, remove plug cap (Fig. 7). Line up power supply
grooves to plug (Fig. 8) and insert power supply into plug. Secure plug by turning locking ring
clockwise (Fig. 9). Connect other end of power supply into wall outlet (Fig. 10).
STEP 7CLOSING UMBRELLA
Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle
midway down main frame (Fig. 27). Release grip handle to lock into place. Slowly turn the
crank lift handle counter-clockwise until the canopy is fully closed (Fig. 28). Squeeze main
frame grip handle to release lock and continue to slide grip handle downward SLOWLY until
umbrella is fully closed in an upright position (Fig. 29) and locks into position.
NOTE: Prior to closing ensure that the canopy is in a level (non tilt) position. Properly store
umbrella when not in use. Close umbrella, tie string around canopy and cover umbrella with
provided protective cover.
(Fig. 27) (Fig. 28) (Fig. 29)
CARE AND MAINTENANCE
TO PROPERLY FOLD CANOPY:
The canopy will last longer if you fold it as it was packed and shipped. This technique is
similar to the way a parachute is folded and is especially important when folding the canopy
for seasonal storage or when left in the closed position for an extended period of time.
Using this technique at all times will significantly extend the life of the canopy.
• When the umbrella has been fully closed, stand in front of the canopy
structure and begin the folding process by pulling out two panels
opposite the main frame. Pull the two panels together and roll tight into
the canopy.
• Once rolled tight, pull adjacent panels out one at a time and fold to the
center, alternating sides until all the panels have been pulled out from
the arms and folded into the center.
• Tie string around canopy and cover umbrella with provided protective
cover.

29
SAFETY PRECAUTIONS
• Close and store the umbrella in windy conditions or when a storm approaches.
Never allow the umbrella to flap in the wind; this could damage the canopy.
• Do not leave open umbrella unattended. If damage occurs, this is not covered
by the warranty.
• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the
umbrella. This is important to prevent injury or material damage.
Starlux Style Only:
• Do not operate the Starlux power switch or attempt to charge the umbrella in inclement
weather (rain, snow) so as to prevent damage to the electrical components.
• When Starlux lights are not in use, unplug power supply from umbrella and put the cap
back onto the plug to protect the electrical components inside.
Rechargeable Battery Pack (sold separately) and Power Supply:
• Discontinue battery usage if leakage is found. Contact your local authorized dealer for a
replacement.
• Do not disassemble rechargeable battery pack.
• Do not leave rechargeable battery pack in sun, it will affect battery life.
• Never use a third party battery or power supply. Doing so may increase risk of fire or
explosion. Contact your local authorized dealer for a replacement rechargeable battery
pack or power supply.
• During prolonged use, it is normal for the power supply to be warm to the touch. When
using power supply, avoid direct sunlight and exposure to moisture.
• Do not attempt to charge the umbrella in inclement weather (rain, snow) so as to
prevent damage to the electrical components.
CARE AND MAINTENANCE
• When not in use, close and cover umbrella with provided protective cover.
• Store rechargeable battery pack and power supply in dry place.
• Allow a wet canopy to dry while in open position, but do not leave unattended.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Wipe sliding marks on the aluminum poles with a damp cloth.
Winter Storage:
• Store in a dry place.
After the Winter:
• Check the condition and function of the umbrella. Any defects must be repaired by a
professional.
!
Power Supply Information
Input voltage: 100~240VAC 50/60Hz 0.9AMax
Output: 24VDC 1.5A
17’ Cord
Rechargeable Battery Pack Information (sold separately)
Input: 24VDC 1.5A
Output: 20VDC 1.0A
STEP 1UMBRELLA ASSEMBLY
Two-persons recommended for team lift and to complete assembly.
With base cover in place or mount kit installed, insert the main frame onto the installed
rotating hub (Fig. 1); align tilt lever with foot pedal. Assembled in upright position, insert the
(2) bolts and (2) washers and tighten using 6mm hexagon wrench provided (Fig. 2). Install
the crank lift handle onto the mid-area of the main frame. Use the 2.5mm hexagon wrench
provided to lock in the small screw (Fig. 3).
REMOVE ALL PLASTIC PACKAGING MATERIAL FROM ALL PARTS PRIOR TO
OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIBS.
Your umbrella is now ready for use!
NOTE: REFER TO SEPARATE BASE OR MOUNT KIT MANUAL
FOR BASE ASSEMBLY PRIOR TO PROCEEDING.
6mm
Hexagon
Wrench
2.5mm
Hexagon
Wrench
(Fig. 1)
(Fig. 2)
(Fig. 3)
(BASE-13 option shown)
IMPORTANT:
For free standing base applications, it is imperative to install the appropriate base for your
size cantilever. The minimum base weight recommended for each size is:
·13’ and 10’ x 13’ AKZ Plus is 400 lbs.
·11’ AKZ Plus is 200 lbs.

Thank you for purchasing Treasure Garden’s AKZ Plus Cantilever.
Please remove all contents from the package, inspect and review checklist.
Some parts may be included in the styrofoam packaging.
Do not discard any packaging or box until assembly is complete.
CHECKLIST
101
!
WARRANTY:
Treasure Garden warrants this product
(for residential use ONLY) to be free
from defects in original materials and
workmanship for a period of 2 years from
the date of purchase. If a defect in the
original material or workmanship appears
during the warranty period; Treasure
Garden will (at its discretion) repair or
replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a description
of the defect. The dealer will verify the
defect and work closely with Treasure
Garden to obtain the necessary service.
In many cases, simple problems can
be solved with a replacement part that
can be shipped directly to the dealer for
professional installation / repair.
In the event that warranted factory service
is required, Treasure Garden will assume
the responsibility of the return freight
charges on warranted product for the first
year only.
Returned product that (upon receipt and
inspection) is deemed to be “not covered”
under our warranty, will be shipped / billed
at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RUST: Rust is a natural part of the aging
process of steel or iron based materials,
and is therefore NOT considered a defect.
NOTE: Failure caused by unreasonable or
abusive use, or failure caused by neglect
of reasonable and necessary care are not
covered by this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes, tornadoes,
and storms) are not covered by this
warranty.
E
H
I
D
L
J
M
Loop Lock
Spring Loaded
Rib End Cap (8)
(5) Hub Bolts
(5) Washers
(1) 8mm Hexagon Wrench
(1) 6mm Hexagon Wrench
(1) 2.5mm Hexagon Wrench
AB
K
N
G
F
C
A - (1) 360°Rotating Hub H - (1) Canopy Support Beam
B - (1) Foot Pedal I - (1) Canopy
C - (1) Crank Lift Handle J - (1) Light Adapter (light sold separately)
D - (1) Main Frame K - (1) Valance (optional)
E - (1) Tilt Lever L - (8) Spring Loaded Rib End Cap
F - (1) Main Frame Grip M - (1) Hardware Assembly
G - (1) Tilt Degree Scale N - (1) Power Supply* (Starlux style only)
O - (1) Protective Cover (not shown)
*NOTE: Use only the Power Supply included with umbrella. See page 9 for Safety Precautions.
IMPORTANT:
Prior to assembly it is important to decide on the location of the umbrella.
·Allow ample height to avoid damage to your umbrella during assembly and usage.
·Choose a location that is level and sturdy.
·Avoid any sloping of soft ground.
·Consider a location that will maximize the umbrella’s 360°rotating function. Placing the
umbrella between two entertaining areas is idea.
CAUTION:
·Fully assembled, the umbrella weighs over 500 lbs. Moving umbrella fully assembled
will increase the risk of damage to your umbrella and/or can cause serious injury. We
recommend a two-person team for assembly and disassembly.

Assembly and Operation Guide
www.treasuregarden.com
©2020 Treasure Garden, Inc. - All Rights Reserved.
v.11.30.20
AKZ PLUS CANTILEVER
AKZP13LX 13’ octagon
AKZP13 13’ octagon
AKZPRT 10’ x 13’ rectangle
AKZP 11’ octagon
