Treasure Garden Cantilever AKZ13 Installation instructions

AKZ13/AKZRT
13’
OC /10’x13’ RT
Cantilever
Assembly and Operation Guide
www.treasuregarden.com
©2018 Treasure Garden, Inc. - All Rights Reserved. Rev. 10/18

Thank you for purchasing Treasure Garden’s AKZ Cantilever Umbrella.
Please remove all contents from the package, inspect and review checklist.
CAUTION: To reduce personal injury and damage to your umbrella, read and follow this
assembly and operation guide. We recommend a two-person team for assembly and
disassembly. Save information for future reference.
1
E
F
H
I
C
D
G
L
K
J
Loop Lock
Spring Loaded
Rib End Cap (8)
AB
A - 360° Rotating Hub G - Tilt Degree Scale
B - Foot Pedal H - Canopy Support Beam
C - Crank Lift Handle I - Canopy - Single or Double Wind Vent
D - ain Frame Stand J - Light Adapter (light sold separately)
E - Tilt Lever K - Valance (optional)
F - ain Frame Grip L - Spring Loaded Rib End Cap
CHECKLIST

29
CAUTION: Fully assembled, the umbrella weighs over 500 lb .
oving the umbrella fully assembled will increase the risk of damage to your umbrella
and/or can cause serious injury. We recommend a two-per on team for a embly
and di a embly.
IMPORTANT:
Prior to assembly it is important to decide on the location of the umbrella.
• Allow ample height to avoid damage to your umbrella during assembly and usage.
• Choose a location that is level and sturdy.
• Avoid any sloping or soft ground.
• Consider a location that will maximize the umbrella’s rotating swivel function. Placing
the umbrella between two entertaining areas is ideal.
Storage:
• Pro erly store umbrella when not in use. Close umbrella, tie string around
cano y and cover umbrella with rovided rotective cover.
NOTE: Some parts may be included in the styrofoam packaging.
DO NOT discard any packaging or box until assembly is complete.
1 AKZ Main Frame 1
2 Crank Lift Handle 1
3 HubBolts 5
4 Washers 5
5 8mm Hexagon Wrench 1
6 6mm Hexagon Wrench 1
7 2.5mm Hexagon Wrench 1
AKZ PART LIST
Part Description Qty.
WARRANTY:
Treasure Garden warrants this product
(in residential use) to be free from
defects in original materials and
workmanship for a period of 2 year from
the date of purchase. If a defect in the
original material or workmanship
appears during the warranty period;
Treasure Garden will (at its option) repair
or replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a
description of the defect. The dealer will
verify the defect and work closely with
Treasure Garden to obtain the necessary
service. In many cases, simple problems
can be solved with a replacement part
that can be shipped directly to the dealer
for professional installation / repair.
In the event that warranted factory
service is required, Treasure Garden will
assume the responsibility of the return
freight charges on warranted product for
the first year only.
Returned product that (upon receipt and
inspection) is deemed to be “not
covered” under our warranty, will be
shipped / billed at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RU T: Rust is a natural part of the
aging process of steel or iron based
materials, and is therefore NOT
considered a defect.
NOTE: Failure caused by unreasonable
or abusive use, or failure caused by
neglect of reasonable and necessary
care are not covered by this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes,
tornadoes, and storms) are not covered
by this warranty.

83
NOTE: REFER TO EPARATE BA E-13 OR MOUNT KIT MANUAL FOR
BA E/MOUNT A EMBLY PRIOR TO PROCEEDING.
6mm
Hexagon
Wrench
2.5mm
Hexagon
Wrench
(Fig. 1)
(Fig. 2)
(Fig. 3)
S T E P 1 Umbrella Assembly
Two-persons recommended for team lift and to complete assembly.
With base cover in place or mount kit installed, insert the main frame onto the installed
rotating hub (Fig. 1) {align tilt lever with foot pedal}. Assembled in upright position, insert the
(2) bolts and (2) washers and tighten using 6mm hexagon wrench provided (Fig. 2). Install
the crank lift handle onto the mid-area of the main frame. Use the 2.5mm hexagon wrench
provided to lock in the small screw (Fig. 3).
REMOVE ALL PLA TIC PACKAGING MATERIAL FROM ALL PART PRIOR TO
OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIB .
Your umbrella i now ready to operate!
SAFETY PRECAUTIONS:
• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the
umbrella. This is important to prevent injury or material damage.
• Close the umbrella in windy conditions or when a storm approaches. Never allow the
umbrella to flap in the wind; this could damage the canopy. If damage occurs, this is not
covered by the warranty.
• Do not leave open umbrella unattended. If damage occurs, this is not covered
by the warranty.
• Properly store umbrella when not in use. Close umbrella, properly fold canopy, tie string
around canopy and cover umbrella with provided protective cover. See instructions
below.
TO PROPERLY FOLD CANOPY:
The canopy will last longer if you fold it as it was packed and shipped. This technique is
similar to the way a parachute is folded and is especially important when folding the
canopy for seasonal storage or when left in the closed position for an extended period of
time.
Using this technique at all times will significantly extend the life of the canopy.
• When the canopy has been fully lowered, stand in front of the
canopy structure and begin the folding process by pulling out two
panels opposite the mast. Pull the two panels together and roll tight
into the canopy.
• Once rolled tight, pull adjacent panels out one at a time and fold to
the center, alternating sides until all the panels have been pulled out
from the arms and folded into the center.
• Tie string around canopy and cover umbrella with provided
protective cover.
CARE AND MAINTENANCE:
• When not in use, close and cover umbrella with a protective cover.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Allow a wet canopy to dry slightly opened, but do not leave unattended.
• Wipe sliding marks on the aluminum poles with a damp cloth.
Winter Storage:
• Store in a dry place.
After the Winter:
• Check the condition and function of the umbrella. Any defects must be repaired by a
professional.

47
To Close Canopy:
Slowly turn the crank lift handle counter-clockwise (Fig. 6) with one hand and
slide the main frame grip down with the other hand (Fig. 7) until the canopy is fully closed
(Fig. 8). NOTE: Prior to clo ing in ure that the canopy i in a level (non-tilted) po ition.
Properly tore umbrella when not in u e. Clo e umbrella, tie tring around canopy and cover
umbrella with provided protective cover.
(Fig. 4)
(Fig. 6)
S T E P 2 O eration

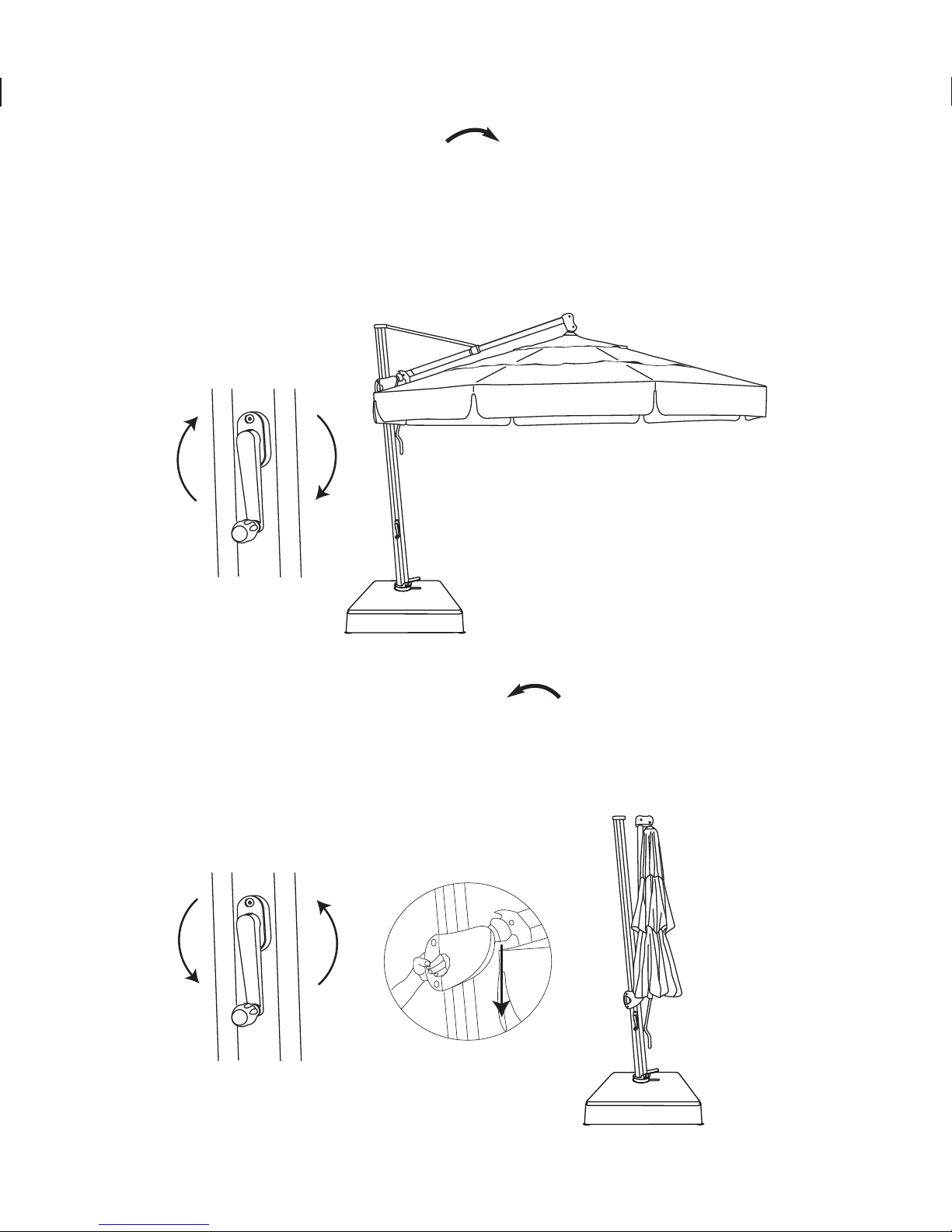

To Open Canopy:
Slowly turn the crank lift handle clockwise to open the umbrella to a level position
(Fig. 4). CAUTION: Stop turning the crank handle as soon as the umbrella cover is
completely open and the sleeve on the umbrella pole has reached its maximum height
(Fig. 5).
WARNING: Do not continue to crank once umbrella canopy is completely open, it may
impair your ability to disengage the tilt lever.
(Fig. 5)
(Fig. 7) (Fig. 8)
To ATTACH Umbrella Light: (sold se arately)
Loosen the light adapter built into the umbrella runner by turning counter-clockwise
(Fig. 16). After loosening, pull down light adapter post (Fig. 17) to attach the
umbrella light (sold separately).
To REMOVE Umbrella Light and CLOSE ada ter:
Remove umbrella light, and gently push up the light adapter post back into umbrella runner
and tighten turning clockwise (Fig. 16). NOTE: It is not necessary to remove light
to close umbrella.
(Fig. 16) (Fig. 17)
AKZ Features

65
(Fig. 11)
(Fig. 12)
(Fig. 9)
Tilting Gears
Tilt Lever
PULL
(Fig. 10)
IMPORTANT: PRIOR TO USING THE TILT FEATURE. To avoid personal injury or damage to
the umbrella, make sure the area behind you is clear and free from any furniture or
structure.

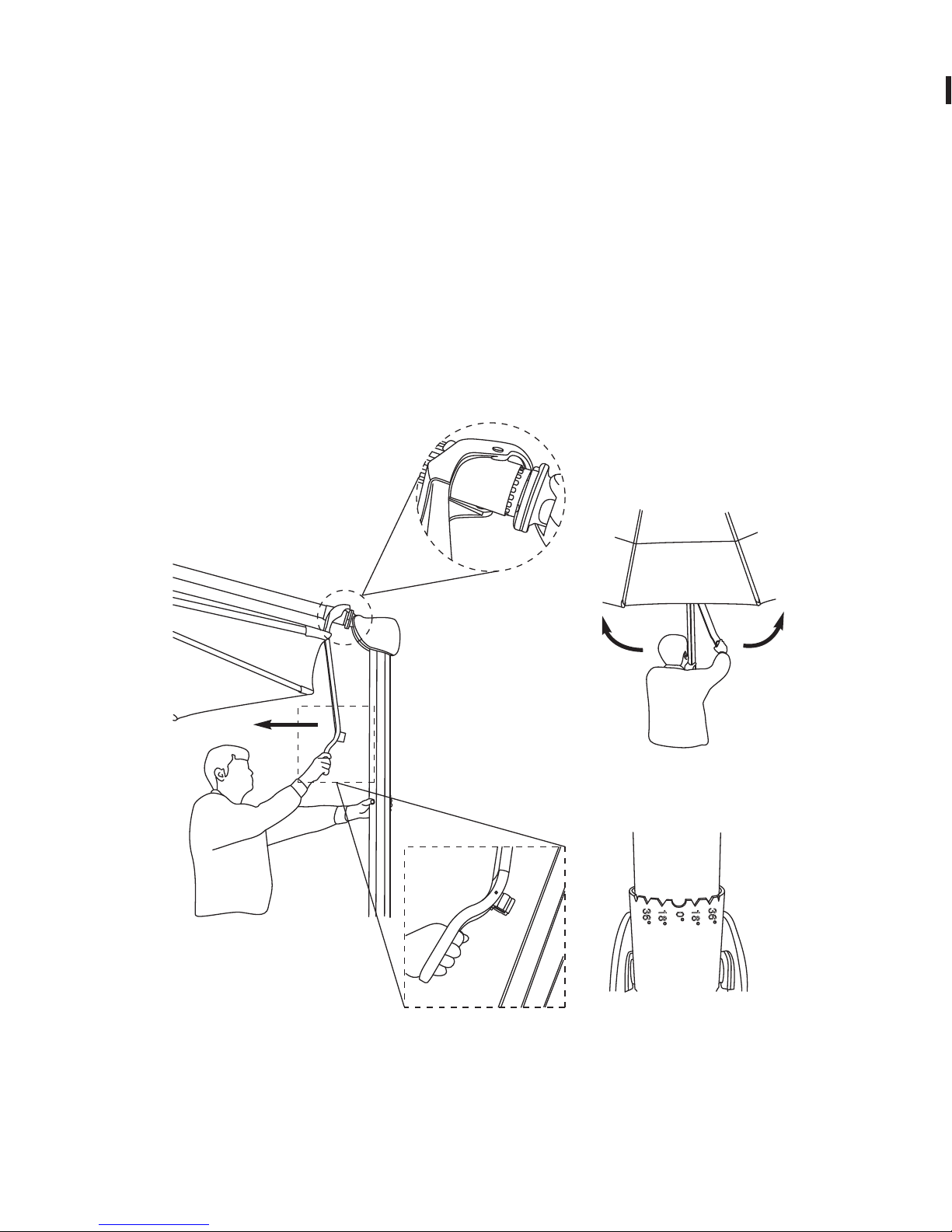

To Tilt Canopy:
ake sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from
main frame track (Fig. 9). Pull out further to dis-engage tilting gears and reveal gear teeth
(Fig. 10). ove the tilt lever to the left or right, opposite the desired tilt direction (Fig. 11).
U e the tilt degree cale a a guide (Fig. 12). Now, push forward slightly to re-engage tilting
gear teeth. ove tilt lever to center position (canopy should be moving also) and snap the
loop lock back into main frame track.
(Fig. 13)
(Fig. 14)
(Fig. 15)

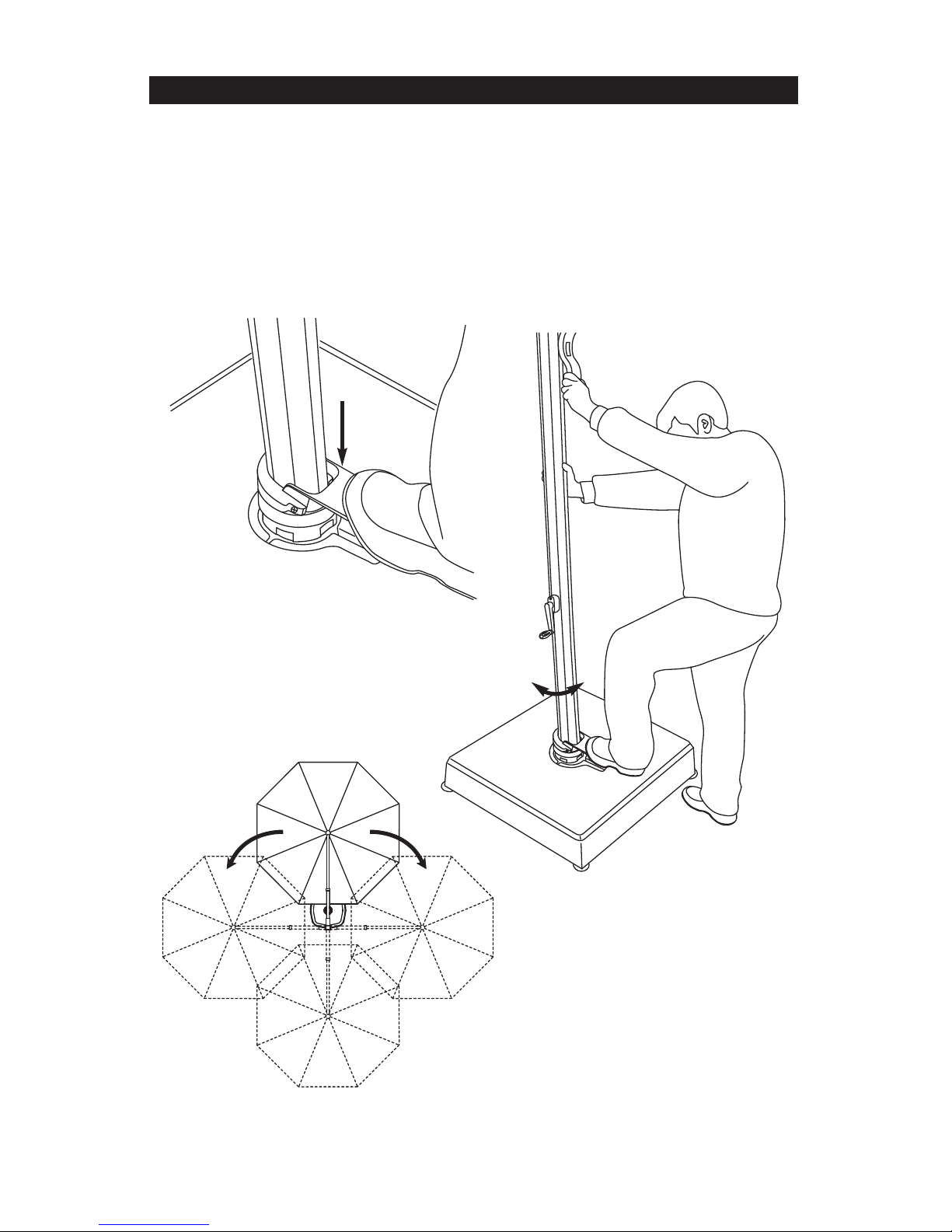

To OPERATE the 360° Rotating Hub wivel:
Place your foot on the foot pedal of the rotating hub and tep-on the foot pedal
to release rotating lock (Fig. 13). Place one hand on the main frame and one hand on the
tilt lever (Fig. 14), swivel the umbrella frame in either direction until desired position is
reached (Fig. 15). Step off the foot pedal to engage rotating lock and lock position (you will
hear the pedal click, as it reaches the next available lock position).
AKZ Features

65
(Fig. 11)
(Fig. 12)
(Fig. 9)
Tilting Gears
Tilt Lever
PULL
(Fig. 10)
IMPORTANT: PRIOR TO USING THE TILT FEATURE. To avoid personal injury or damage to
the umbrella, make sure the area behind you is clear and free from any furniture or
structure.
To Tilt Canopy:
ake sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from
main frame track (Fig. 9). Pull out further to dis-engage tilting gears and reveal gear teeth
(Fig. 10). ove the tilt lever to the left or right, opposite the desired tilt direction (Fig. 11).
U e the tilt degree cale a a guide (Fig. 12). Now, push forward slightly to re-engage tilting
gear teeth. ove tilt lever to center position (canopy should be moving also) and snap the
loop lock back into main frame track.
(Fig. 13)
(Fig. 14)
(Fig. 15)
To OPERATE the 360° Rotating Hub wivel:
Place your foot on the foot pedal of the rotating hub and tep-on the foot pedal
to release rotating lock (Fig. 13). Place one hand on the main frame and one hand on the
tilt lever (Fig. 14), swivel the umbrella frame in either direction until desired position is
reached (Fig. 15). Step off the foot pedal to engage rotating lock and lock position (you will
hear the pedal click, as it reaches the next available lock position).
AKZ Features

47
To Close Canopy:
Slowly turn the crank lift handle counter-clockwise (Fig. 6) with one hand and
slide the main frame grip down with the other hand (Fig. 7) until the canopy is fully closed
(Fig. 8). NOTE: Prior to clo ing in ure that the canopy i in a level (non-tilted) po ition.
Properly tore umbrella when not in u e. Clo e umbrella, tie tring around canopy and cover
umbrella with provided protective cover.
(Fig. 4)
(Fig. 6)
S T E P 2 O eration
To Open Canopy:
Slowly turn the crank lift handle clockwise to open the umbrella to a level position
(Fig. 4). CAUTION: Stop turning the crank handle as soon as the umbrella cover is
completely open and the sleeve on the umbrella pole has reached its maximum height
(Fig. 5).
WARNING: Do not continue to crank once umbrella canopy is completely open, it may
impair your ability to disengage the tilt lever.
(Fig. 5)
(Fig. 7) (Fig. 8)
To ATTACH Umbrella Light: (sold se arately)
Loosen the light adapter built into the umbrella runner by turning counter-clockwise
(Fig. 16). After loosening, pull down light adapter post (Fig. 17) to attach the
umbrella light (sold separately).
To REMOVE Umbrella Light and CLOSE ada ter:
Remove umbrella light, and gently push up the light adapter post back into umbrella runner
and tighten turning clockwise (Fig. 16). NOTE: It is not necessary to remove light
to close umbrella.
(Fig. 16) (Fig. 17)
AKZ Features

83
NOTE: REFER TO EPARATE BA E-13 OR MOUNT KIT MANUAL FOR
BA E/MOUNT A EMBLY PRIOR TO PROCEEDING.
6mm
Hexagon
Wrench
2.5mm
Hexagon
Wrench
(Fig. 1)
(Fig. 2)
(Fig. 3)
S T E P 1 Umbrella Assembly
Two-persons recommended for team lift and to complete assembly.
With base cover in place or mount kit installed, insert the main frame onto the installed
rotating hub (Fig. 1) {align tilt lever with foot pedal}. Assembled in upright position, insert the
(2) bolts and (2) washers and tighten using 6mm hexagon wrench provided (Fig. 2). Install
the crank lift handle onto the mid-area of the main frame. Use the 2.5mm hexagon wrench
provided to lock in the small screw (Fig. 3).
REMOVE ALL PLA TIC PACKAGING MATERIAL FROM ALL PART PRIOR TO
OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIB .
Your umbrella i now ready to operate!
SAFETY PRECAUTIONS:
• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the
umbrella. This is important to prevent injury or material damage.
• Close the umbrella in windy conditions or when a storm approaches. Never allow the
umbrella to flap in the wind; this could damage the canopy. If damage occurs, this is not
covered by the warranty.
• Do not leave open umbrella unattended. If damage occurs, this is not covered
by the warranty.
• Properly store umbrella when not in use. Close umbrella, properly fold canopy, tie string
around canopy and cover umbrella with provided protective cover. See instructions
below.
TO PROPERLY FOLD CANOPY:
The canopy will last longer if you fold it as it was packed and shipped. This technique is
similar to the way a parachute is folded and is especially important when folding the
canopy for seasonal storage or when left in the closed position for an extended period of
time.
Using this technique at all times will significantly extend the life of the canopy.
• When the canopy has been fully lowered, stand in front of the
canopy structure and begin the folding process by pulling out two
panels opposite the mast. Pull the two panels together and roll tight
into the canopy.
• Once rolled tight, pull adjacent panels out one at a time and fold to
the center, alternating sides until all the panels have been pulled out
from the arms and folded into the center.
• Tie string around canopy and cover umbrella with provided
protective cover.
CARE AND MAINTENANCE:
• When not in use, close and cover umbrella with a protective cover.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Allow a wet canopy to dry slightly opened, but do not leave unattended.
• Wipe sliding marks on the aluminum poles with a damp cloth.
Winter Storage:
• Store in a dry place.
After the Winter:
• Check the condition and function of the umbrella. Any defects must be repaired by a
professional.

29
CAUTION: Fully assembled, the umbrella weighs over 500 lb .
oving the umbrella fully assembled will increase the risk of damage to your umbrella
and/or can cause serious injury. We recommend a two-per on team for a embly
and di a embly.
IMPORTANT:
Prior to assembly it is important to decide on the location of the umbrella.
• Allow ample height to avoid damage to your umbrella during assembly and usage.
• Choose a location that is level and sturdy.
• Avoid any sloping or soft ground.
• Consider a location that will maximize the umbrella’s rotating swivel function. Placing
the umbrella between two entertaining areas is ideal.
Storage:
• Pro erly store umbrella when not in use. Close umbrella, tie string around
cano y and cover umbrella with rovided rotective cover.
NOTE: Some parts may be included in the styrofoam packaging.
DO NOT discard any packaging or box until assembly is complete.
1 AKZ Main Frame 1
2 Crank Lift Handle 1
3 HubBolts 5
4 Washers 5
5 8mm Hexagon Wrench 1
6 6mm Hexagon Wrench 1
7 2.5mm Hexagon Wrench 1
AKZ PART LIST
Part Description Qty.
WARRANTY:
Treasure Garden warrants this product
(in residential use) to be free from
defects in original materials and
workmanship for a period of 2 year from
the date of purchase. If a defect in the
original material or workmanship
appears during the warranty period;
Treasure Garden will (at its option) repair
or replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a
description of the defect. The dealer will
verify the defect and work closely with
Treasure Garden to obtain the necessary
service. In many cases, simple problems
can be solved with a replacement part
that can be shipped directly to the dealer
for professional installation / repair.
In the event that warranted factory
service is required, Treasure Garden will
assume the responsibility of the return
freight charges on warranted product for
the first year only.
Returned product that (upon receipt and
inspection) is deemed to be “not
covered” under our warranty, will be
shipped / billed at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RU T: Rust is a natural part of the
aging process of steel or iron based
materials, and is therefore NOT
considered a defect.
NOTE: Failure caused by unreasonable
or abusive use, or failure caused by
neglect of reasonable and necessary
care are not covered by this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes,
tornadoes, and storms) are not covered
by this warranty.

AKZ13/AKZRT
13’
OC /10’x13’ RT
Cantilever
Assembly and Operation Guide
www.treasuregarden.com
©2018 Treasure Garden, Inc. - All Rights Reserved. Rev. 10/18
