Treasure garden Cantilever akz13 Installation instructions

AKZ13

13’

Cantilever

Assembly and Operation Guide

www.treasuregarden.com

WARRANTY:

Treasure Garden warrants this product

(in residential use) to be free from

defects in original materials and

workmanship for a period of 2 year from

the date of purchase. If a defect in the

original material or workmanship

appears during the warranty period;

Treasure Garden will (at its option) repair

or replace the product without charge.

Simply contact your original authorized

Treasure Garden dealer with a

description of the defect. The dealer will

verify the defect and work closely with

Treasure Garden to obtain the necessary

service. In many cases, simple problems

can be solved with a replacement part

that can be shipped directly to the dealer

for professional installation / repair.

In the event that warranted factory

service is required, Treasure Garden will

assume the responsibility of the return

freight charges on warranted product for

the first year only.

Returned product that (upon receipt and

inspection) is deemed to be “not

covered” under our warranty, will be

shipped / billed at your expense.

This warranty gives you specific legal

rights, and you may have other rights

which vary from state to state.

RUST: Rust is a natural part of the

aging process of steel or iron based

materials, and is therefore NOT

considered a defect.

NOTE: Failure caused by unreasonable

or abusive use, or failure caused by

neglect of reasonable and necessary

care are not covered by this warranty.

Additionally, acts of nature (including but

not limited to wind, hurricanes,

tornadoes, and storms) are not covered

by this warranty.

Thank you for your purchase of Treasure Garden’s AKZ13 Cantilever Umbrella.

Please remove all contents from the package, inspect and review checklist.

CAUTION: To reduce personal injury and damage to your AKZ13, read and follow this

assembly and operation guide We recommend a two-person team for assembly and

disassembly. Save information for future reference.

101

Base frameBase cover

Base Parts Boxed Separately

Add-on weights (4)

Loop Lock

Spring Loaded

Rib End Cap (8)

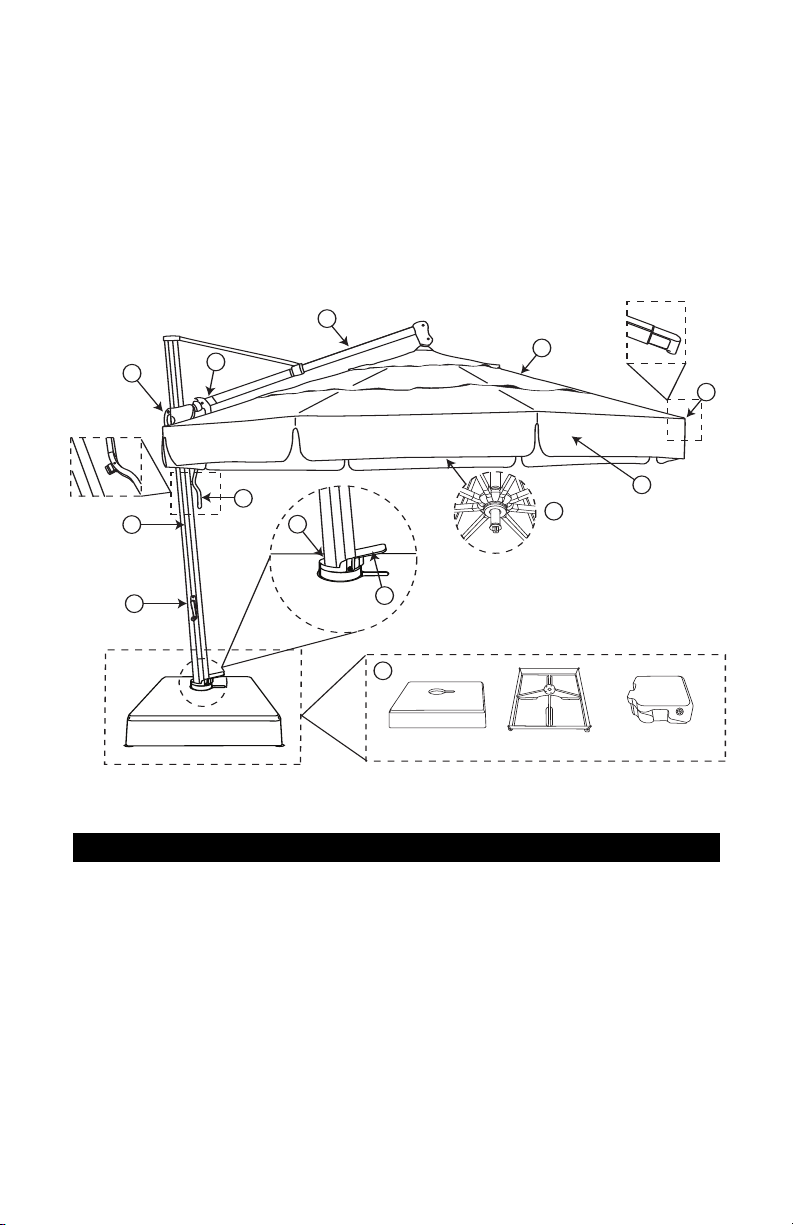

A- Base Cover, Frame and Add-on Weights H- Tilt Degree Scale

B- 360° Rotating Hub I- Canopy Support Beam

C- Base Pedal J- Canopy - Double Wind Vent

D- Crank Lift Handle K- Valance (optional)

E- Main Frame Stand L-Vega

™Light Adapter (light sold

F- Main Frame Grip separtely)

G- Tilt Lever M- Spring Loaded Rib End Cap

AKZ13 CHECKLIST

REQUIRED FOR ASSEMBLY:

• 400 lbs. playground sand (not included).

SAFETY PRECAUTIONS:

• Close the umbrella in windy conditions or when a storm approaches.

Never allow the umbrella to flap in the wind; this could damage the canopy.

• Do not leave open umbrella unattended. If damage occurs, this is not covered

by the warranty.

• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the

umbrella. This is important to prevent injury or material damage.

CARE AND MAINTENANCE:

• When not in use, close and cover umbrella with a protective cover.

• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.

• Allow a wet canopy to dry slightly opened, but do not leave unattended.

• Wipe sliding marks on the aluminum poles with a damp cloth.

Winter Storage:

• Store in a dry place.

• Any visible defects must be repaired by a professional.

After the Winter:

• Areas subject to turning and sliding can be treated with a non-staining lubricant spray

(silicone-based).

• Check the condition and function of the umbrella. Any defects must be repaired by a

professional.

CAUTION: Fully assembled, the AKZ13 umbrella weighs over 500 lbs.

Moving the umbrella fully assembled will increase the risk of damage to your umbrella

and/or can cause serious injury. We recommend a two-person team for assembly

and disassembly. IMPORTANT: Prior to assembly it is important to decide on the location of the AKZ13

umbrella. The umbrella measures approximately 10 ft. in height and 13 ft. in width.

• Allow ample height to avoid damage to your umbrella during assembly and usage.

• Choose a location that is level and sturdy.

• Avoid any sloping or soft ground.

• Consider a location that will maximize the umbrella’s rotating swivel function. Placing

the AKZ13 between two entertaining areas is ideal.

NOTE: Some parts may be included in the styrofoam packaging.

DO NOT discard any packaging or box until assembly is complete.

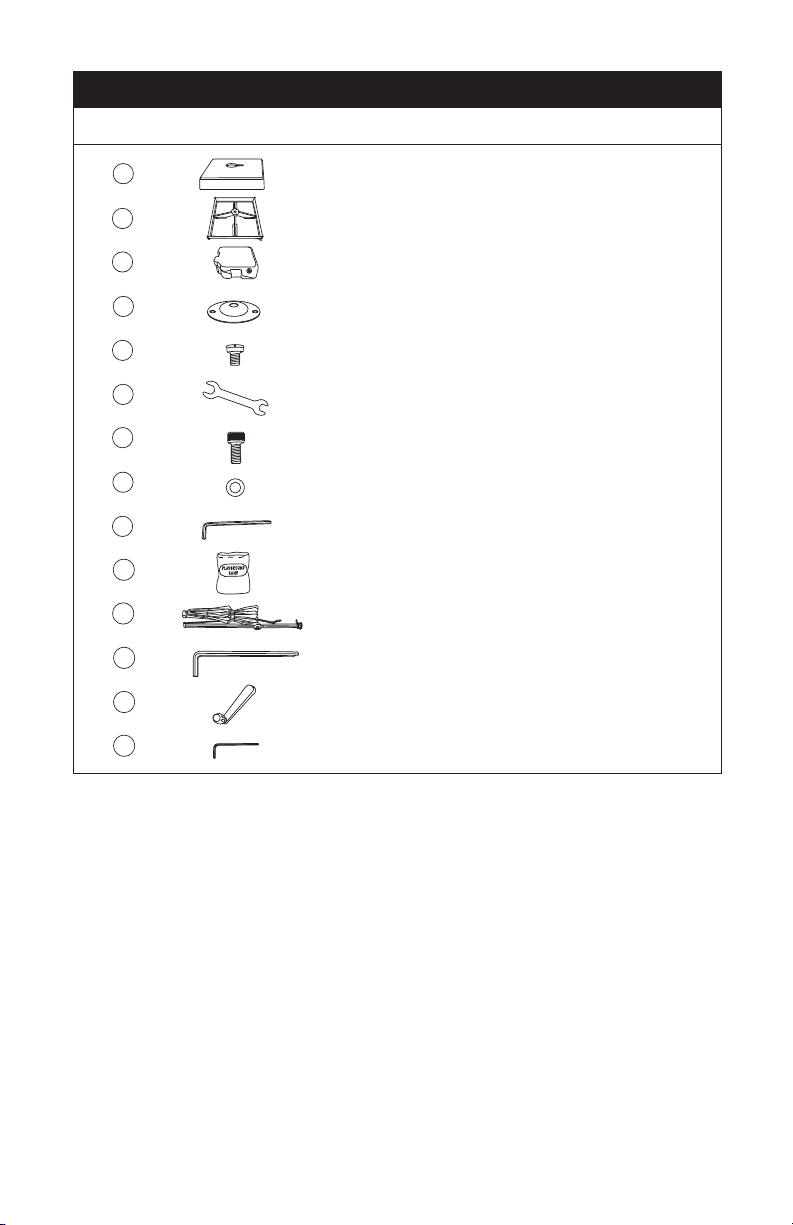

1 Base Cover 1

2 Steel Base Frame 1

3 Add-On Weight Containers 4

4 Feet 4

5 Screws 4

Wrench 1

Bolts 5

8 Washers 5

Medium Hexagon Wrench 1

PlaygroundSand(not included) 400 lbs.

11 AKZ13 Main Frame 1

12 Large Hexagon Wrench 1

Crank Lift Handle 1

14 Small Hexagon Wrench 1

AKZ13 PART LIST

Part Description Qty.

CAUTION: Fully assembled, the AKZ13 umbrella weighs over 500 lbs. Moving the umbrella

fully assembled will increase the risk of damage to your umbrella and/or can cause serious

injury. We recommend a two-person team for assembly and disassembly.

Lg. Hexagon

Wrench

Med. Hex. Wrench

Rotating Hub

Main Frame

(Fig. 1)

(Fig. 3)

(Fig. 4)

(Fig. 5)

(Fig. 6)

To ATTACH VEGA Umbrella Light: (sold separately)

Loosen the VEGA light adapter built into the umbrella runner by turning counter-clockwise

(Fig. 23). After loosening, pull down light adapter post (Fig. 24) to attach the

VEGA umbrella light (sold separately).

To OPEN and ATTACH VEGA:

Open the VEGA umbrella light by holding firmly with one hand and then depress the clamp

release button with the other hand to release the clamp lock. Open up the VEGA light and

clasp around the light adapter post (Fig. 25). Snap to close (Fig. 26).

To REMOVE VEGA and CLOSE adapter:

Hold the VEGA umbrella light, depress the clamp release button to release the clamp lock.

Remove VEGA umbrella light, and gently push up the light adapter post back into umbrella

runner and tighten turning clockwise (Fig. 23). NOTE: It is not necessary to

remove light to close umbrella.

(Fig. 23) (Fig. 24)

(Fig. 25) (Fig. 26)

AKZ13 Features

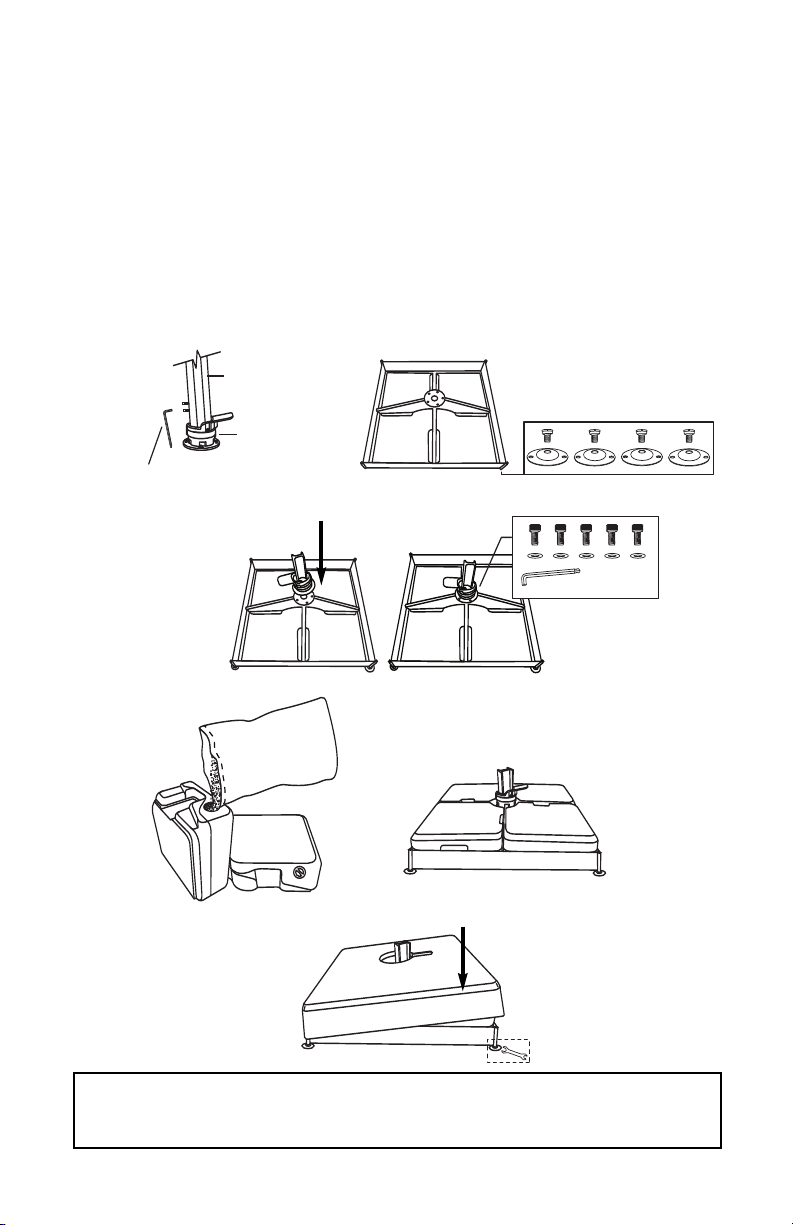

STEP 1 Base Assembly

Select area to set base frame and place in desired location. NOTE: Moving the umbrella will

be difficult once fully assembled. Remove rotating hub from the main frame by removing the

(2) bolts and (2) washers (Fig. 1), set aside bolts and washers for later use in step 2. Screw

(4) feet onto bottom of base frame with supplied (4) screws (Fig. 2). Now, place rotating

hub onto base frame and secure with supplied (5) bolts & (5) washers (Fig. 3). Remove

caps from each add-on weight container and fill with dry playground sand (Fig. 4). The AKZ13

base containers hold up to 400 lbs. of sand. IMPORTANT: When filling the containers, it is

necessary to wet down the sand after partial filling. After wet down, fill each add-on weight with

remaining sand. Place each add-on weight container into base frame sections (Fig. 5).

Carefully place base cover onto base frame (Fig. 6). LEVELING: If needed, adjust frame

corners using supplied wrench until frame is level (Fig. 7).

(Fig. 7)

(Fig. 2)

Large

Hexagon Wrench

Small

Hexagon

Wrench

(Fig. 8)

(Fig. 9)

(Fig. 10)

(Fig. 20)

(Fig. 21)

(Fig. 22)

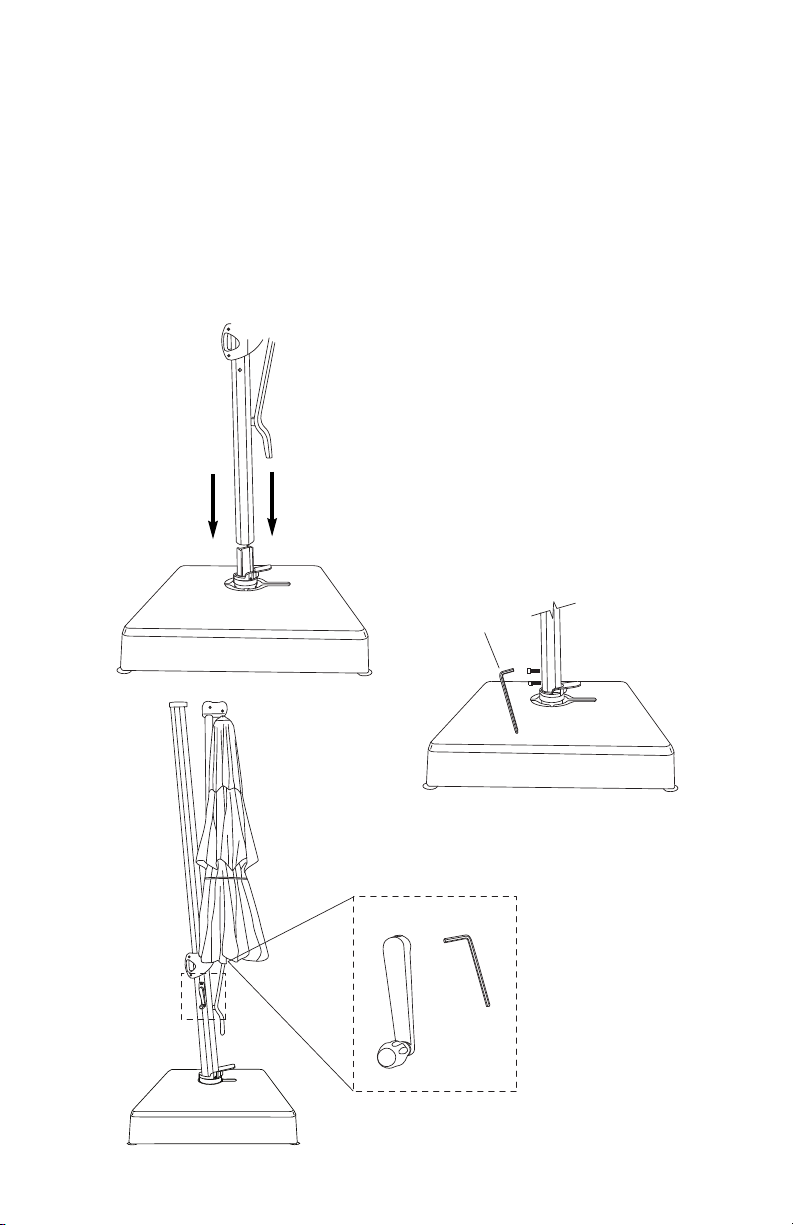

STEP 2 Umbrella Assembly

Two-persons recommended for team lift and to complete assembly.

With base cover in place, insert the main frame back onto the rotating hub (Fig. 8) {align tilt

lever with foot pedal}. Assembled in upright position, re-insert the removed (2) bolts and

(2) washers and tighten using large hexagon wrench provided (Fig. 9). Install the crank lift

handle onto the mid-area of the main frame. Use the small hexagon wrench provided to

lock in the small screw (Fig. 10).

REMOVE ALL PLASTIC PACKAGING MATERIAL FROM ALL PARTS PRIOR TO

OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIBS.

Your AKZ13 umbrella is now ready to operate!

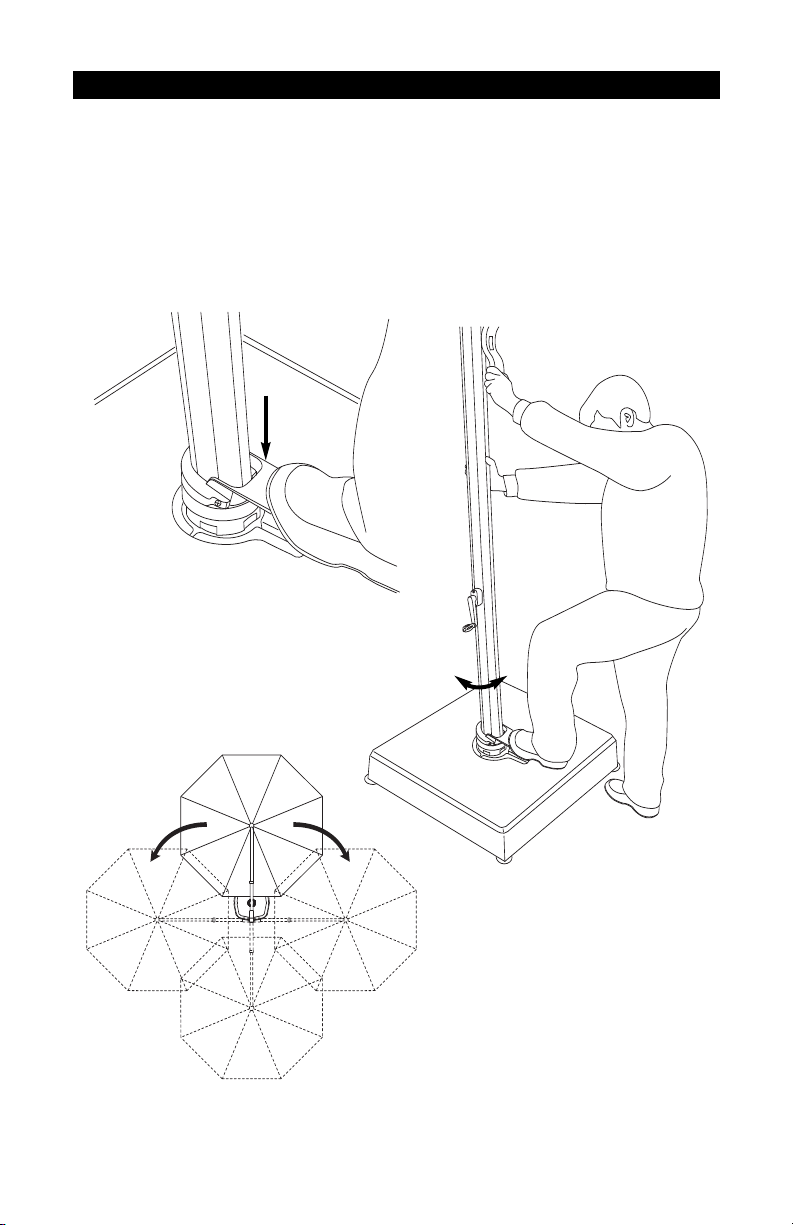

To OPERATE the 360° Rotating Hub Swivel:

Place your foot on the foot pedal of the rotating hub and step-on the base pedal

to release rotating lock (Fig. 20). Place one hand on the main frame and one hand on the

tilt lever (Fig. 21), swivel the umbrella frame in either direction until desired position is

reached (Fig. 22). Step off the foot pedal to engage rotating lock and lock position (you will

hear the pedal click, as it reaches the next available lock position).

AKZ13 Features

To Close Canopy:

Slowly turn the crank lift handle counter-clockwise (Fig. 13) with one hand and

slide the main frame grip down with the other hand (Fig. 14) until the canopy is fully

closed (Fig. 15). NOTE: Prior to closing insure that the canopy is in a level (non-tilted)

position.

(Fig. 18)

(Fig. 19)

IMPORTANT: PRIOR TO USING THE TILT FEATURE. To avoid personal injury or damage to

the AKZ13 umbrella, make sure the area behind you is clear and free from any furniture or

structure.

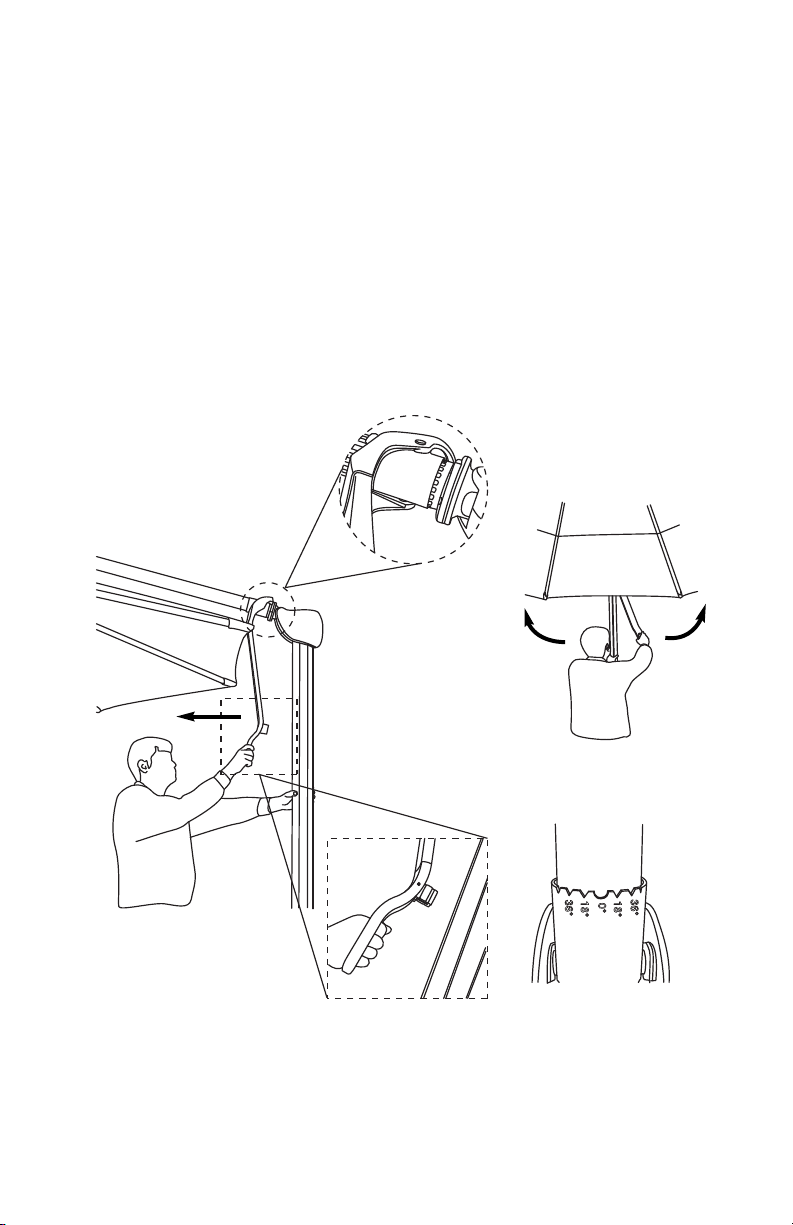

To Tilt Canopy:

Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from

main frame track (Fig. 16). Pull out further to dis-engage tilting gears and reveal gear teeth

(Fig. 17). Move the tilt lever to the left or right, opposite the desired tilt direction (Fig. 18).

Use the tilt degree scale as a guide (Fig. 19). Now, push forward slightly to re-engage tilting

gear teeth. Move tilt lever to center position (canopy should be moving also) and snap the

loop lock back into main frame track.

(Fig. 11)

(Fig. 13)

(Fig. 16)

Tilting Gears

Tilt Lever

PULL

(Fig. 17)

STEP 3 Operation

To Open Canopy:

Slowly turn the crank lift handle clockwise to open the umbrella to a level position

(Fig. 11). CAUTION: Stop turning the crank handle as soon as the umbrella cover is

completely open and the sleeve on the umbrella pole has reached its maximum height

(Fig. 12).

WARNING: Do not continue to crank once umbrella canopy is completely open, it may

impair your ability to disengage the tilt lever.

(Fig. 12)

(Fig. 14) (Fig. 15)

To Close Canopy:

Slowly turn the crank lift handle counter-clockwise (Fig. 13) with one hand and

slide the main frame grip down with the other hand (Fig. 14) until the canopy is fully

closed (Fig. 15). NOTE: Prior to closing insure that the canopy is in a level (non-tilted)

position.

(Fig. 18)

(Fig. 19)

IMPORTANT: PRIOR TO USING THE TILT FEATURE. To avoid personal injury or damage to

the AKZ13 umbrella, make sure the area behind you is clear and free from any furniture or

structure.

To Tilt Canopy:

Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from

main frame track (Fig. 16). Pull out further to dis-engage tilting gears and reveal gear teeth

(Fig. 17). Move the tilt lever to the left or right, opposite the desired tilt direction (Fig. 18).

Use the tilt degree scale as a guide (Fig. 19). Now, push forward slightly to re-engage tilting

gear teeth. Move tilt lever to center position (canopy should be moving also) and snap the

loop lock back into main frame track.

(Fig. 11)

(Fig. 13)

(Fig. 16)

Tilting Gears

Tilt Lever

PULL

(Fig. 17)

STEP 3 Operation

To Open Canopy:

Slowly turn the crank lift handle clockwise to open the umbrella to a level position

(Fig. 11). CAUTION: Stop turning the crank handle as soon as the umbrella cover is

completely open and the sleeve on the umbrella pole has reached its maximum height

(Fig. 12).

WARNING: Do not continue to crank once umbrella canopy is completely open, it may

impair your ability to disengage the tilt lever.

(Fig. 12)

(Fig. 14) (Fig. 15)

Large

Hexagon Wrench

Small

Hexagon

Wrench

(Fig. 8)

(Fig. 9)

(Fig. 10)

(Fig. 20)

(Fig. 21)

(Fig. 22)

STEP 2 Umbrella Assembly

Two-persons recommended for team lift and to complete assembly.

With base cover in place, insert the main frame back onto the rotating hub (Fig. 8) {align tilt

lever with foot pedal}. Assembled in upright position, re-insert the removed (2) bolts and

(2) washers and tighten using large hexagon wrench provided (Fig. 9). Install the crank lift

handle onto the mid-area of the main frame. Use the small hexagon wrench provided to

lock in the small screw (Fig. 10).

REMOVE ALL PLASTIC PACKAGING MATERIAL FROM ALL PARTS PRIOR TO

OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIBS.

Your AKZ13 umbrella is now ready to operate!

To OPERATE the 360° Rotating Hub Swivel:

Place your foot on the foot pedal of the rotating hub and step-on the base pedal

to release rotating lock (Fig. 20). Place one hand on the main frame and one hand on the

tilt lever (Fig. 21), swivel the umbrella frame in either direction until desired position is

reached (Fig. 22). Step off the foot pedal to engage rotating lock and lock position (you will

hear the pedal click, as it reaches the next available lock position).

AKZ13 Features
