Treasure Garden UM800LX Installation instructions

Assembly and Operation Guide
www.treasuregarden.com
©2023 Treasure Garden, Inc. - All Rights Reserved.
v.06.08.23 UM800LX 9’ octagon
STARLUX COLLAR TILT
WARRANTY:
Treasure Garden warrants this product
(for residential use ONLY) to be free
from defects in original materials and
workmanship for a period of 2 years from
the date of purchase. If a defect in the
original material or workmanship appears
during the warranty period; Treasure
Garden will (at its discretion) repair or
replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a description
of the defect. The dealer will verify the
defect and work closely with Treasure
Garden to obtain the necessary service.
In many cases, simple problems can
be solved with a replacement part that
can be shipped directly to the dealer for
professional installation / repair.
In the event that warranted factory service
is required, Treasure Garden will assume
the responsibility of the return freight
charges for the first year only.
Returned product that (upon receipt and
inspection) is deemed to be “not covered”
under our warranty, will be shipped / billed
at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RUST: Rust is a natural part of the aging
process of steel or iron based materials,
and is therefore NOT considered a defect.
CAUTION: Seaside and indoor pool
use, salt & chlorides can accumulate on
the powder coat finish, leading to finish
failure. Failure or neglect to make needed
cleanings may cause paint to blister, and
such failure will void limited warranty.
NOTE: Failure caused by unreasonable or
abusive use, or failure caused by neglect
of reasonable and necessary care, and any
modification to product are not covered by
this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes, tornadoes,
and storms) are not covered by this
warranty.

Thank you for purchasing Treasure Garden’s Starlux Collar Tilt Umbrella.
Please remove all contents from the package, inspect and review checklist.

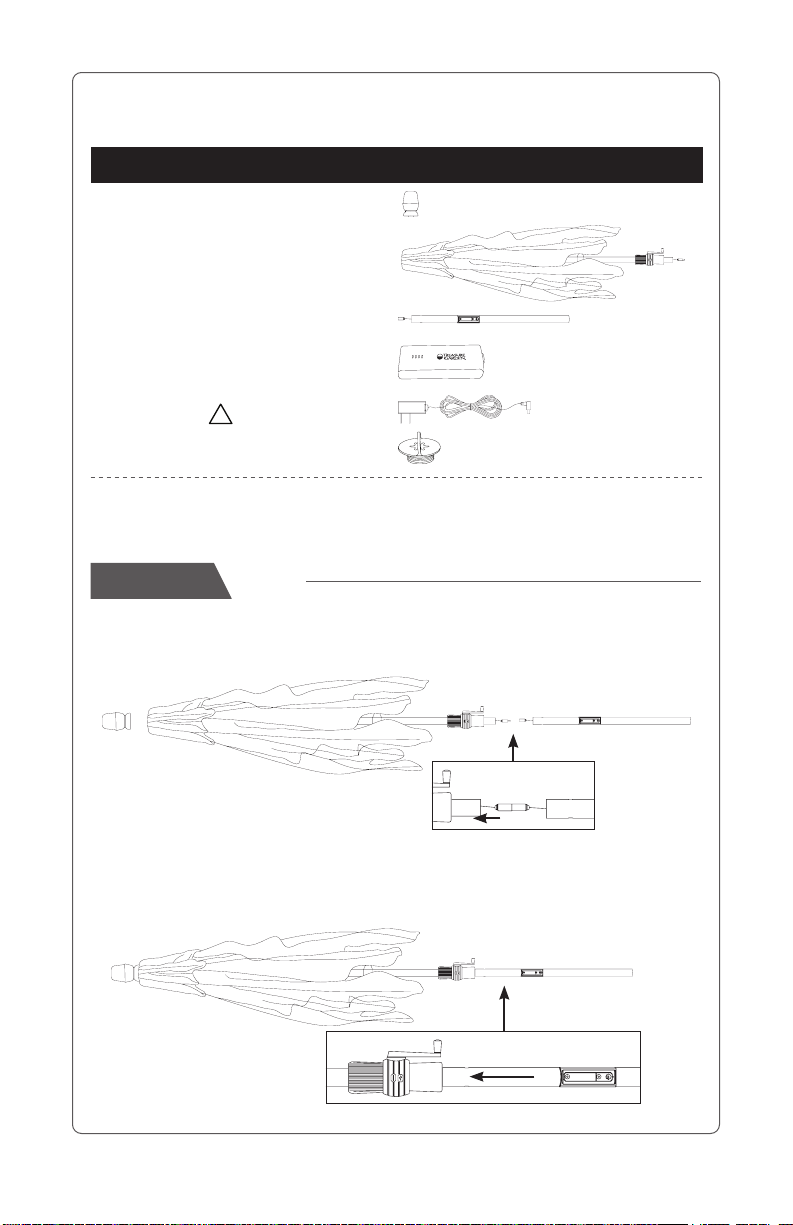

STEP 1SET UP
CHECKLIST
A - (1) Finial
B - (1) Canopy/Mainframe
C - (1) Bottom Pole
D - (1) Rechargeable Battery Pack
E - (1) Power Supply*
F - (1) BW Base Stopper
*Note: Use only the Power Supply
included with umbrella. See page 6 for
Safety Precautions.
Carefully remove umbrella from box. Attach finial to top of canopy/mainframe. Connect
bottom pole and canopy/mainframe plugs together. Tuck plug inside pole.
61
!
A -
B -
C -
D -
E -
F -
Insert bottom pole onto canopy/mainframe pole. NOTE: Make sure battery dock on bottom
pole is lined up with ON/OFF switch and USB port on housing. Line up button with hole
and snap into place.
IMPORTANT:
It is imperative to use appropriate base weight for your umbrella. The minimum base weight
required for the 9’ Starlux Collar Tilt is 50lbs.
TO PROPERLY FOLD CANOPY:
The canopy will last longer if you fold it as it was packed and shipped. This technique is
similar to the way a parachute is folded and is especially important when folding the canopy
for seasonal storage or when left in the closed position for an extended period of time.
Using this technique at all times will significantly extend the life of the canopy.
• When the umbrella has been fully closed, stand in front of the canopy
structure and begin the folding process by pulling out two panels
opposite the main frame. Pull the two panels together and roll tight into
the canopy.
• Once rolled tight, pull adjacent panels out one at a time and fold to the
center, alternating sides until all the panels have been pulled out from
the arms and folded into the center.
• Tie string around canopy and cover umbrella with a protective cover
(sold separately).
CARE AND MAINTENANCE
• When not in use, close and cover umbrella with a protective cover (sold separately).
• Store rechargeable battery pack and power supply in dry place.
• Allow a wet canopy to dry while in open position, but do not leave unattended.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Wipe sliding marks on the aluminum poles with a damp cloth.
Winter Storage:
• Store in a dry place.
• Store battery pack, along with power supply in dry, cool area to keep from damaging.
After the Winter:
• Check the condition and function of the umbrella. Any defects must be repaired by a
professional.

25

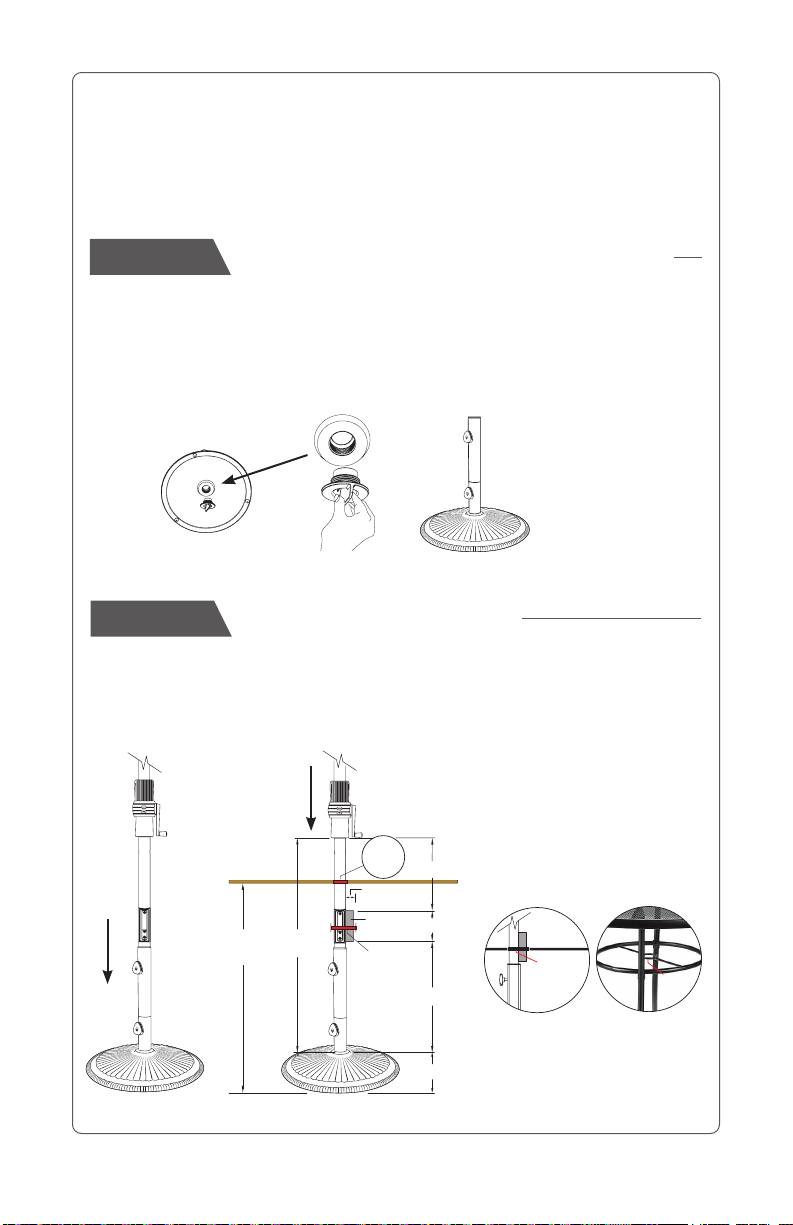

STEP 2BW BASE STOPPER (FOR BW CLASSIC BASE ONLY)
To avoid the BW Classic Base stem from interfering with the battery, base stopper must be
installed under base.
Turn BW Classic Base on its side. Attach Base Stopper to underside of base by turning
clockwise until tightened. Turn base back to upright position.
IMPORTANT:
If you are using a BW Classic Base with your Starlux Collar Tilt, you must attach Base
Stopper to your BW Classic Base (see Step 2 below). If you are not using a BW Classic
Base OR if you have a BW30 Add-on Weight attached to your BW Classic Base, please
proceed to Step 3.
Free Standing Table Application
18.3”
4.6”
1.4”
9.1”
32”
2” DIA.
28”
3.5”
(Height toTA BLE
BOTTOM)
(BOTTOM POLE)
TABLE
UMBRELLA
HOLE
BATTERY
+ POLE & BATTERY
CLEARANCE
3.5”
DIA.
(WHEN ATTACHED)
BATTERY
3.5”
DIA.
3.5”
DIA.
STEP 3RECHARGEABLE BATTERY PACK
Turn umbrella in upright position. Insert bottom pole into free standing base or through table
top. IMPORTANT: If using table application, please take note of measurements below to
ensure table can accommodate battery pack.
SAFETY PRECAUTIONS
• To reduce risk of personal injury in which a person is injured or harmed, and/or damage
to personal property, read and follow the Assembly Guide prior to assembling and
operating umbrella and base.
• Close and store the umbrella in windy conditions or when a storm approaches. Never
allow the umbrella to flap in the wind; this could cause personal injury, damage to
personal property, damage to umbrella and/or umbrella canopy. Do not use tilting
function during windy conditions.
• Keep umbrella secured to umbrella base at all times. Base knobs may loosen over time.
Simply tighten base knobs during use of umbrella to ensure umbrella is secure.
• Do not leave open umbrella unattended. If damage occurs, this is not covered by the
warranty.
• When adjusting the umbrella, make sure that no person(s), item(s) or personal property
are close to the umbrella. This is important to prevent injury or material damage.
• Do not allow children to play on or with umbrella or umbrella base.
• When adjusting or assembling the umbrella or umbrella base, make sure fingers, toes
or any other parts of the body are clear from moving parts. Failing to do so many result
in serious injury.
• Do not operate the Starlux power button, USB port or attempt to charge the umbrella in
inclement weather (rain, snow) so as to prevent damage to the electrical components.
Rechargeable Battery Pack and Power Supply:
• Discontinue battery usage if leakage is found. Contact your local authorized dealer for a
replacement.
• Do not disassemble rechargeable battery pack.
• Do not leave rechargeable battery pack in sun, it will affect battery life.
• Never use a third party battery or power supply. Doing so may increase risk of fire or
explosion. Contact your local authorized dealer for a replacement rechargeable battery
pack or power supply.
• During prolonged use, it is normal for the power supply to be warm to the touch. When
using power supply, avoid direct sunlight and exposure to moisture.
• Do not attempt to charge the umbrella in inclement weather (rain, snow) so as to
prevent damage to the electrical components.
!
Rechargeable Battery Pack Information
Input: 5V 2A
Output: 3.7V 6000mAh
Power Supply Information
Input voltage: 100-240Vac 50/60Hz 0.3A
Output: 5VDC 2A
26.5’ Cord
USB Information
USB 2.0 Output: 5V 500mA

43
STEP 7CLOSING UMBRELLA
Twist collar in counter-clockwise direction to bring umbrella
back to a horizontal position. Turn crank handle in
counter-clockwise direction to close umbrella.
Properly fold canopy (see page 6). Tie string around canopy
and cover umbrella with a protective cover (sold separately).
STEP 4OPENING & TILTING UMBRELLA
Crank handle clockwise to open umbrella to its
fully open position.
To tilt, simply twist the collar in clockwise
direction until desired tilt position is reached.
Attach rechargeable battery pack onto bottom pole.
Charging Battery Pack:
IMPORTANT: You must fully charge battery pack prior to first use.
To charge battery, remove plug cap from charging port
on battery pack. Using the power supply included with
umbrella, insert power supply into charging port. Plug
other end of power supply into wall outlet for 6 hours to
fully charge. When fully charged, all 4 lights displayed on
battery pack will be illuminated.
Battery Status: Lights on the battery pack will indicate battery
charge level. Four lights indicates full charge, while one is low
battery. When battery is low, you may charge battery pack while
attached to frame, or removed from frame, using power supply
included with umbrella.
Note: The transformer output power is 5VDC 2A. During prolonged use, it is normal for the
power supply to be warm to the touch. When using power supply, avoid direct sunlight and
exposure to moisture.
To tilt
On/Off Button
USB Port

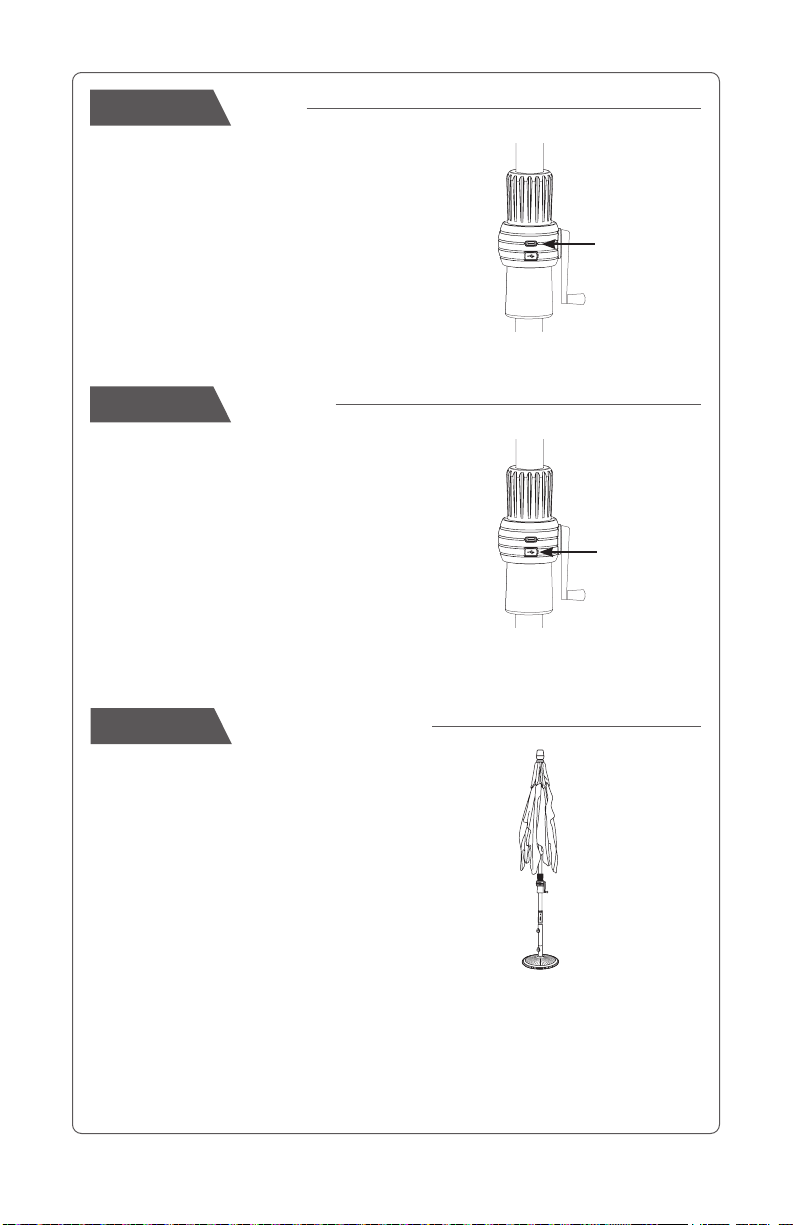

STEP 5LIGHTS
To turn umbrella lights on or off, press on/off button located
on collar housing.
WARNING: We do not recommend use of lights while
raining. When lights are not in use, remove battery pack
from umbrella. Store battery pack, along with power supply
in dry, cool area to keep from damaging.
STEP 6USB PORT
To charge electronic devices, remove plug from USB port.
Insert USB cable into USB port. Reattach plug when not
in use. NOTE: If using USB port and lights, battery life will
reduce to 4 hours.

43
STEP 7CLOSING UMBRELLA
Twist collar in counter-clockwise direction to bring umbrella
back to a horizontal position. Turn crank handle in
counter-clockwise direction to close umbrella.
Properly fold canopy (see page 6). Tie string around canopy
and cover umbrella with a protective cover (sold separately).
STEP 4OPENING & TILTING UMBRELLA
Crank handle clockwise to open umbrella to its
fully open position.
To tilt, simply twist the collar in clockwise
direction until desired tilt position is reached.
Attach rechargeable battery pack onto bottom pole.
Charging Battery Pack:
IMPORTANT: You must fully charge battery pack prior to first use.
To charge battery, remove plug cap from charging port
on battery pack. Using the power supply included with
umbrella, insert power supply into charging port. Plug
other end of power supply into wall outlet for 6 hours to
fully charge. When fully charged, all 4 lights displayed on
battery pack will be illuminated.
Battery Status: Lights on the battery pack will indicate battery
charge level. Four lights indicates full charge, while one is low
battery. When battery is low, you may charge battery pack while
attached to frame, or removed from frame, using power supply
included with umbrella.
Note: The transformer output power is 5VDC 2A. During prolonged use, it is normal for the
power supply to be warm to the touch. When using power supply, avoid direct sunlight and
exposure to moisture.
To tilt
On/Off Button
USB Port
STEP 5LIGHTS
To turn umbrella lights on or off, press on/off button located
on collar housing.
WARNING: We do not recommend use of lights while
raining. When lights are not in use, remove battery pack
from umbrella. Store battery pack, along with power supply
in dry, cool area to keep from damaging.
STEP 6USB PORT
To charge electronic devices, remove plug from USB port.
Insert USB cable into USB port. Reattach plug when not
in use. NOTE: If using USB port and lights, battery life will
reduce to 4 hours.

25
STEP 2BW BASE STOPPER (FOR BW CLASSIC BASE ONLY)
To avoid the BW Classic Base stem from interfering with the battery, base stopper must be
installed under base.
Turn BW Classic Base on its side. Attach Base Stopper to underside of base by turning
clockwise until tightened. Turn base back to upright position.
IMPORTANT:
If you are using a BW Classic Base with your Starlux Collar Tilt, you must attach Base
Stopper to your BW Classic Base (see Step 2 below). If you are not using a BW Classic
Base OR if you have a BW30 Add-on Weight attached to your BW Classic Base, please
proceed to Step 3.
Free Standing Table Application
18.3”
4.6”
1.4”
9.1”
32”
2” DIA.
28”
3.5”
(Height toTA BLE
BOTTOM)
(BOTTOM POLE)
TABLE
UMBRELLA
HOLE
BATTERY
+ POLE & BATTERY
CLEARANCE
3.5”
DIA.
(WHEN ATTACHED)
BATTERY
3.5”
DIA.
3.5”
DIA.
STEP 3RECHARGEABLE BATTERY PACK
Turn umbrella in upright position. Insert bottom pole into free standing base or through table
top. IMPORTANT: If using table application, please take note of measurements below to
ensure table can accommodate battery pack.
SAFETY PRECAUTIONS
• To reduce risk of personal injury in which a person is injured or harmed, and/or damage
to personal property, read and follow the Assembly Guide prior to assembling and
operating umbrella and base.
• Close and store the umbrella in windy conditions or when a storm approaches. Never
allow the umbrella to flap in the wind; this could cause personal injury, damage to
personal property, damage to umbrella and/or umbrella canopy. Do not use tilting
function during windy conditions.
• Keep umbrella secured to umbrella base at all times. Base knobs may loosen over time.
Simply tighten base knobs during use of umbrella to ensure umbrella is secure.
• Do not leave open umbrella unattended. If damage occurs, this is not covered by the
warranty.
• When adjusting the umbrella, make sure that no person(s), item(s) or personal property
are close to the umbrella. This is important to prevent injury or material damage.
• Do not allow children to play on or with umbrella or umbrella base.
• When adjusting or assembling the umbrella or umbrella base, make sure fingers, toes
or any other parts of the body are clear from moving parts. Failing to do so many result
in serious injury.
• Do not operate the Starlux power button, USB port or attempt to charge the umbrella in
inclement weather (rain, snow) so as to prevent damage to the electrical components.
Rechargeable Battery Pack and Power Supply:
• Discontinue battery usage if leakage is found. Contact your local authorized dealer for a
replacement.
• Do not disassemble rechargeable battery pack.
• Do not leave rechargeable battery pack in sun, it will affect battery life.
• Never use a third party battery or power supply. Doing so may increase risk of fire or
explosion. Contact your local authorized dealer for a replacement rechargeable battery
pack or power supply.
• During prolonged use, it is normal for the power supply to be warm to the touch. When
using power supply, avoid direct sunlight and exposure to moisture.
• Do not attempt to charge the umbrella in inclement weather (rain, snow) so as to
prevent damage to the electrical components.
!
Rechargeable Battery Pack Information
Input: 5V 2A
Output: 3.7V 6000mAh
Power Supply Information
Input voltage: 100-240Vac 50/60Hz 0.3A
Output: 5VDC 2A
26.5’ Cord
USB Information
USB 2.0 Output: 5V 500mA

Thank you for purchasing Treasure Garden’s Starlux Collar Tilt Umbrella.
Please remove all contents from the package, inspect and review checklist.
STEP 1SET UP
CHECKLIST
A - (1) Finial
B - (1) Canopy/Mainframe
C - (1) Bottom Pole
D - (1) Rechargeable Battery Pack
E - (1) Power Supply*
F - (1) BW Base Stopper
*Note: Use only the Power Supply
included with umbrella. See page 6 for
Safety Precautions.
Carefully remove umbrella from box. Attach finial to top of canopy/mainframe. Connect
bottom pole and canopy/mainframe plugs together. Tuck plug inside pole.
61
!
A -
B -
C -
D -
E -
F -
Insert bottom pole onto canopy/mainframe pole. NOTE: Make sure battery dock on bottom
pole is lined up with ON/OFF switch and USB port on housing. Line up button with hole
and snap into place.
IMPORTANT:
It is imperative to use appropriate base weight for your umbrella. The minimum base weight
required for the 9’ Starlux Collar Tilt is 50lbs.
TO PROPERLY FOLD CANOPY:
The canopy will last longer if you fold it as it was packed and shipped. This technique is
similar to the way a parachute is folded and is especially important when folding the canopy
for seasonal storage or when left in the closed position for an extended period of time.
Using this technique at all times will significantly extend the life of the canopy.
• When the umbrella has been fully closed, stand in front of the canopy
structure and begin the folding process by pulling out two panels
opposite the main frame. Pull the two panels together and roll tight into
the canopy.
• Once rolled tight, pull adjacent panels out one at a time and fold to the
center, alternating sides until all the panels have been pulled out from
the arms and folded into the center.
• Tie string around canopy and cover umbrella with a protective cover
(sold separately).
CARE AND MAINTENANCE
• When not in use, close and cover umbrella with a protective cover (sold separately).
• Store rechargeable battery pack and power supply in dry place.
• Allow a wet canopy to dry while in open position, but do not leave unattended.
• If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge.
• Wipe sliding marks on the aluminum poles with a damp cloth.
Winter Storage:
• Store in a dry place.
• Store battery pack, along with power supply in dry, cool area to keep from damaging.
After the Winter:
• Check the condition and function of the umbrella. Any defects must be repaired by a
professional.

Assembly and Operation Guide
www.treasuregarden.com
©2023 Treasure Garden, Inc. - All Rights Reserved.
v.06.08.23 UM800LX 9’ octagon
STARLUX COLLAR TILT
WARRANTY:
Treasure Garden warrants this product
(for residential use ONLY) to be free
from defects in original materials and
workmanship for a period of 2 years from
the date of purchase. If a defect in the
original material or workmanship appears
during the warranty period; Treasure
Garden will (at its discretion) repair or
replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a description
of the defect. The dealer will verify the
defect and work closely with Treasure
Garden to obtain the necessary service.
In many cases, simple problems can
be solved with a replacement part that
can be shipped directly to the dealer for
professional installation / repair.
In the event that warranted factory service
is required, Treasure Garden will assume
the responsibility of the return freight
charges for the first year only.
Returned product that (upon receipt and
inspection) is deemed to be “not covered”
under our warranty, will be shipped / billed
at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RUST: Rust is a natural part of the aging
process of steel or iron based materials,
and is therefore NOT considered a defect.
CAUTION: Seaside and indoor pool
use, salt & chlorides can accumulate on
the powder coat finish, leading to finish
failure. Failure or neglect to make needed
cleanings may cause paint to blister, and
such failure will void limited warranty.
NOTE: Failure caused by unreasonable or
abusive use, or failure caused by neglect
of reasonable and necessary care, and any
modification to product are not covered by
this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes, tornadoes,
and storms) are not covered by this
warranty.
