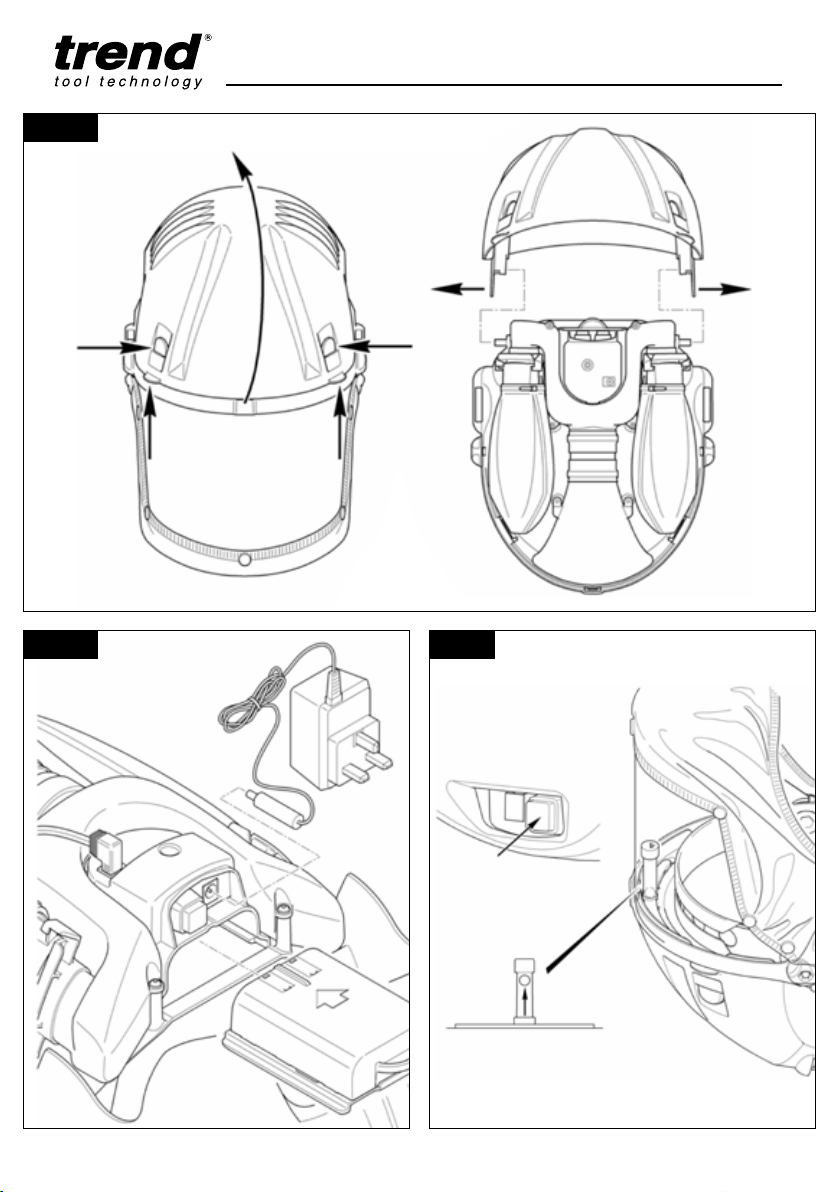

Fig. 1
Fig. 2 Fig. 3

-3-
AIR/PRO
Fig. 4 Fig. 5
Fig. 6 Fig. 7

-4-
AIR/PRO
Fig. 10
Fig. 8
Fig. 11
Fig. 9

-5-
AIR/PRO
AO
J
M
L
K
C
D
I
E
B
F
G
H
D
Fig. 12

-6-
EN - AIR/PRO
EN - AIR/PRO
USER INSTRUCTIONS
Please read these instructions and then store them in a
safe place for future reference. The respirator must be
fitted and used in accordance with these instructions in
order to obtain the approved level of performance.
INTRODUCTION
The Airshield Pro is a self-contained, lightweight
Powered Air Purifying Respirator intended for protection
against solid aerosols only. This is combined with eye
protection from impact and liquid splash.
The Airshield Pro is powered by a rechargeable battery
pack held inside the respirator. Air is filtered through the
respirator to provide a constant flow of clean air over
the face. A face seal ensures that positive pressure is
maintained within the respirator.
The Airshield Pro has an adjustable headband and
concussion cradle, ensuring a comfortable fit for most
head sizes.
GENERAL DESCRIPTION
The Airshield Pro unit should contain the following items:
Quantity Description
1 Airshield Pro complete
1 Airow indicator
1Pair of TH2P lters
18 Hour rechargeable battery
1Battery charger
1Disposable visor overlay – Clear
(may already be tted)
1Pair of ear defender clips
1Carry bag
1COSHH Record car (UK only)
1Instruction manual
1Guarantee card
APPROVAL FOR USE
This product has been shown to meet the requirements
of Annexe V (Module B) of the European Regulation
EU2016/425 and is manufactured in accordance with
Annexe VIII (Module D) of PPE Regulation EU 2016/425
quality monitoring system, and thus is CE marked.
Annexe V and VIII assessments conducted by: British
Standards Institution, Kitemark Court, Davy Avenue,
Knowlhill, Milton Keynes, MK5 8PP, UK.
(Notified Body Number: 0086)
Product assessed against the requirements of the
following standards:
Respiratory Protection:
• EN 12941:1998+A2:2008, respiratory devices, powered
filtering devices class TH2P.
• For use against solid particulates only.
Eye Protection:
• BS EN 166: 2002, personal eye protection.
• Class 1B3.
• Optical class 1; high-speed particles - medium energy
impact, B; liquid droplets and splashes, 3.
SUITABILITY FOR USE
This respirator must be used strictly in accordance with
these instructions.
Do not use this respirator for protection against unknown
atmospheric contaminants or when concentrations of
contaminants are unknown or immediately dangerous
to life or health, or in atmospheres likely to be deficient
in oxygen.
Only use this respirator with the parts and accessories l
isted in these instructions. The respirator is only for use
by trained, competent personnel.
In the power-off state little or no respiratory protection is
to be expected, and this is considered to be an abnormal
situation.
In the power-off state there will be a rapid build up of
carbon dioxide and depletion of oxygen may occur.
Without the face seal fitted no respiratory protection is to
be expected.
At very high work rates and peak inhalation the pressure
flow in the device may become negative.
Ophthalmic spectacles may transmit impacts from high-
speed particles, thus creating a hazard to the wearer.
Leave the contaminated area immediately if any of the
following conditions apply:
• The buzzer sounds.
• Any part of the respirator becomes damaged.
• Airflow into the respirator decreases or stops.
• Breathing becomes difficult.
• Dizziness or other physical distress or irritation occurs.
• The user tastes or smells contaminants.
Never modify or alter this product, except as directed in

-7-
EN - AIR/PRO
the service tasks contained in these instructions.
Materials which may come into contact with the wearer’s
skin could cause allergic reactions to susceptible
individuals.
Transportation
For transportation purposes use the carry bag provided
and protect the unit from physical or chemical damage.
PREPARATION FOR USE
The following tasks must be performed prior to use:
Battery charging and installation
The nominal recharge time for a flat battery pack is 14
hours. The battery pack must be fully charged before
first use. To install and charge the battery pack:
• Lift the cover by pressing the forward side tabs
inwards and rotating the cover rearwards as shown
in - (Fig.1)
• Slide the battery pack into its housing as shown in
- (Fig.2)
• Fit the battery charger connector into the rear of the
electronics unit and connect the charger to a mains AC
supply. The LED lights up and remains lit even after a
full charge has been completed. Charge for 14 hours.
• After charging switch off the mains AC supply, remove
the charger connector from the helmet and refit cover
ensuring tabs lock the cover in position.
For external charging see optional charge cradle in
accessories list.
Visual inspection
• Check the face seal material for damage.
• Check the face seal attachment to the respirator
chassis and visor.
• Check the visor seal for damage.
Replace any damaged parts including scratched or
damaged visors.
Airflow Pre-Use Check
Ensure that the air filters have been installed correctly as
shown in (Fig.9) Check the airflow as shown in (Fig.3)
• Turn the helmet upside down and locate the airflow
indicator on the four slots at the front of the helmet.
• Press the red on/off switch to operate the fan. An
audible tone should sound briefly one time. The red
ball is raised to the top of the indicator tube if the
system is operating correctly.
• If the red ball is raised to less than half the height of the
tube then either the battery charge is low or the filters
are blocked and need replacing.
Low Battery Warning
If an audible regular intermittent tone sounds recharge or
replace the battery pack.
WEARING AND USING
Fitting the respirator
• Adjust the crown strap length on the headband as
shown in (Fig.4) so that the headband rests against
brow.
• Adjust headband diameter by pulling out knob and
rotating for head size, push the knob in to secure as
shown in (Fig.4)
• Ensure face seal is above the ears. Check that the face
seal is taut so that there are no gaps between mask
and face as shown in (Fig.5)
• Switch on the fan/motor by operating the red on/off
switch.
Removing the respirator
• Switch off the fan/motor by operating the red on/off
switch.
• Pull out the knob and to release headband and remove
respirator
Cleaning
• Use a clean cloth with a mild solution of a household
liquid soap and water.
PUREWIPE cleaning wipes are recommended for this
purpose. Do not immerse the respirator in water.
• Do not immerse the respirator in fluid.
• Do not use organic solvents or abrasive cleaning
agents on any part of the equipment.
• Launder the face seal and linings as required using a
mild solution of a household detergent and w ater.
Disposal and cleaning of parts should be undertaken
in accordance with local health and safety, and
environmental regulations.
If a respirator has been used in an area that has caused
it to become contaminated with a substance requiring
special decon tamination procedures, observe the
precautions described in the manufacturer’s health and
safety information.

-8-
EN - AIR/PRO
PARTS LISTS
Complete kit
Product Part Number Description
Airshield Pro
UK
AIR/PRO Powered Air Purifying
Respirator incorporating
Eye Protection
Airshield Pro
North EU
AIR/PRO/
EURO
Powered Air Purifying
Respirator incorporating
Eye Protection
Spares - (Fig.12)
Item
No.
Product
Designation
Part
Number
Qty
AVisor Assembly WP-AIR/P/07 1
BHead Cover and Face
Seal
WP-AIR/P/03 1
CHeadband Assembly WP-AIR/P/18 1
DFilter TH2P AIR/P/1 2
EBattery Pack AIR/P/4 1
FBattery Charger AIR/P/5/
EURO (EU)
or
AIR/P/5/UK
(UK)
1
GAirow Indicator WP-AIR/P/02 1
HOn/Off Switch
Assembly
WP-AIR/P/05 1
ICover WP-AIR/P/08 1
JFan/Motor Assembly WP-AIR/P/01 1
KBrow Comfort Pad WP-AIR/P/10 1
LVisor Overlays green AIR/P/3G 10
MVisor Overlays clear AIR/P/3C 10
N- - 1
OHeadband Fixing Kit WP-AIR/P/16 1
ACCESSORIES
Charge Cradle
AIR/P/7
SERVICING
Visor overlays (optional)
Install a new set of visor overlays by adhering to the
main visor using the adhesive strips provided.
Visor assembly replacement
• Remove the seven face seal pop studs from visor as
shown in (Fig.6)
• Replace the old or damaged visor assembly as shown
in (Fig.7)
• Release nuts and push screws inwards, release the
front tab and lift visor from the helmet.
• Fit replacement visor ensuring slot in visor locates on
tab and bottom edge in grooves, secure with screws
and nuts.
• Fit visor stiffener wire. Insert the wire ends into the
outer slots provided and rotate to engage securely in
the centre slot.
Visors should be stored out of direct sunlight and
replaced at least every 5 years.
Face seal
Replace the face seal as shown in (Fig.6)
• Starting from the centre of the visor pop studs on
face seal. Release touch and close tape from front of
helmet.
• Unfasten the crown strap on the headband and release
elastic loops on each side.
• Pull face seal over the headband knob and remove
face seal from helmet.
• Tuck edge strip of new face seal under headband and
secure to touch and close tape on helmet. Slip the
elastic loops over the crown strap and adjust strap
length.
• Fit face seal over head band knob and secure to visor
pop studs.
Face seals should be stored out of direct sunlight and
replaced at least every 5 years.
Headband assembly
Remove face seal and visor as shown in (Fig.6) and
(Fig.7). Install a new headband assembly as shown in
(Fig.8)

-9-
EN - AIR/PRO
• Release nuts and screw and remove the headband
from the helmet.
• Assemble anti-rotating cap and screw retainer to
headband noting that Anti- rotating caps are marked
‘L’ (left) and ‘R’ (right)
• Position the headband in the helmet ensuring that the
tabs on the anti-rotating cap locate in the helmet.
• Fit screws through retainer, anti -rotating cap and visor
secure with nuts.
Air filter replacement
Lift the cover as shown in (Fig.1) Replace air filter as
shown in (Fig.9)
• Hold the neck of the fitted air filter and push firmly
towards sealing face to release from securing tabs and
lift filter upwards to remove. Discard appropriately.
• Locate new air filter against sealing face. Push firmly
toward sealing face and downwards. Filter will click
into in securing tabs. Ensure the rear locating tag is
engaged in the slot and the filter lays parallel to the
chassis.
• Refit helmet cover.
CAUTION:
Dust on the respirator or filter from usage should be
handled in a safe manner in accordance with the
manufacturer’s safety data information.
Fan/motor assembly replacement
Lift the cover as shown in (Fig.1)
Replace fan/motor assembly as shown in (Fig.10)
• Disconnect fan/motor electrical lead from the
electronics unit.
• Remove the two screws securing the front air duct. Lift
the air duct from locating lip and pull fan/motor from
rear air duct. Separate fan/motor from front air duct.
• Fold back both seals on replacement fan/motor
assembly. With electrical lead point downwards locate
with front air duct and secure by unfolding seal over
duct.
• Connect electrical lead to electronics unit.
• Locate front air duct in lip and fan/motor with rear
air duct, tuck excess cable under fan/motor unit and
unfold seal to secure. Secure air duct with screws.
• Ensure both seals are fully engaged with ducts and a
re fully unfolded, failure to do so may compromise the
unit’s performance.
Electronics unit
Lift the cover as shown in (Fig.1)
Replace electronics unit as shown in (Fig.11)
STORAGE
The equipment should be stored in dry, clean conditions
away from direct sunlight, sources of heat, petrol and
solvent vapours.
Store the equipment within the temperature range +5°C
to +40°C and the humidity range 0 -90%.

-10-
EN - AIR/PRO
TECHNICAL SPECIFICATION
Weight 1.0kg nominal
Head Size Range 54 - 61cm
Protection Factor Assigned (APF)20
Humidity 0-90% storage and use (store out of direct
sunlight)
Temperature Range
Charging +5°C to +40°C
Use -5°C to +40°C
Storage +5°C to +40°C
Airflow
Initial 210 l \min
Minimum 150 l \min
Power Supply
Battery Pack 3 cell
Nominal 3.6V
Capacity 3.5 Ah per pack NiMH
Battery life 8 hrs (Fully charged battery pack tted)
Charging Method/Rate Mains charger
14 hrs from fully discharged
Battery Charger
Input UK 230 10% VAC
Nominal Power Consumption 4W
No Load output 12VDC
Nominal output voltage 4.2 V
300 mA IP 20 indoor use only
CE EN 60335-1, 60335-2-29
AIRSHIELD PRO DECONTAMINATION
RETURN PROCEDURE
IMPORTANT NOTICE:
Trend Machinery & Cutting Tools Ltd cannot accept
any Respirator for service or repair unless the following
information has been supplied separately externally
attached to the packaging.
Please use the returns form provided with your
Respirator.
Name of
company
Address
Telephone
Fax
Email
Contact Name Type
of business
Process ESM used for
Serial Number of
Respirator Specific
contaminant
a) Name of
b) Manufacturer of
c) Brand name
d) By-Product of
a Process
Please provide Health and safety data sheet for
contaminant. Any known allergic reactions caused by the
contaminant. From whom the unit was purchased.
The date the unit was purchased.
Specific reason for return, please provide as much detail
as possible.
•Respirators without this information attached
will be returned to source without any further
action being taken.
•Respirators that have not been thoroughly
decontaminated inside and out will be returned
to source without any further action being taken.
