TRENDnet TEG-160WS User manual

FCC Warning
This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with this user’s guide, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will
be required to correct the interference at his or her own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.
VCCI Warning
This is a product of VCCI Class A Compliance.

UL Warning
a) Elevated Operating Ambient Temperature- If installed in a closed
or multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient. Therefore,
consideration should be given to installing the equipment in an
environment compatible with the manufacturer's maximum rated
ambient temperature (Tmra).
b) Reduced Air Flow- Installation of the equipment in a rack should
be such that the amount of air flow required for safe operation of the
equipment is not compromised.
c) Mechanical Loading- mounting of the equipment in the rack
should be such that a hazardous condition is not achieved due to
uneven mechanical loading.
d) Circuit Overloading- Consideration should be given to the
connection of the equipment to the supply circuit and the effect that
overloading of circuits might have on over current protection and
supply wiring. Appropriate consideration of equipment nameplate
ratings should be used when addressing this concern.
e) Reliable Earthing - Reliable earthing of rack-mounted equipment
should be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit (e.g.,
use of power strips).
Ver. C1-1.00

i
TABLE OF CONTENT
About This Guide.................................................................................1
Purpose ............................................................................................1
Terms/Usage....................................................................................1
Introduction..........................................................................................3
Gigabit Ethernet Technology...........................................................3
Fast Ethernet Technology ................................................................4
Switching Technology .....................................................................5
VLAN (Virtual Local Area Network)..............................................6
Features............................................................................................6
Unpacking and Installation ..................................................................9
Unpacking........................................................................................9
Installation .......................................................................................9
Rack Mounting ..............................................................................11
Connecting Network Cable............................................................12
AC Power.......................................................................................12

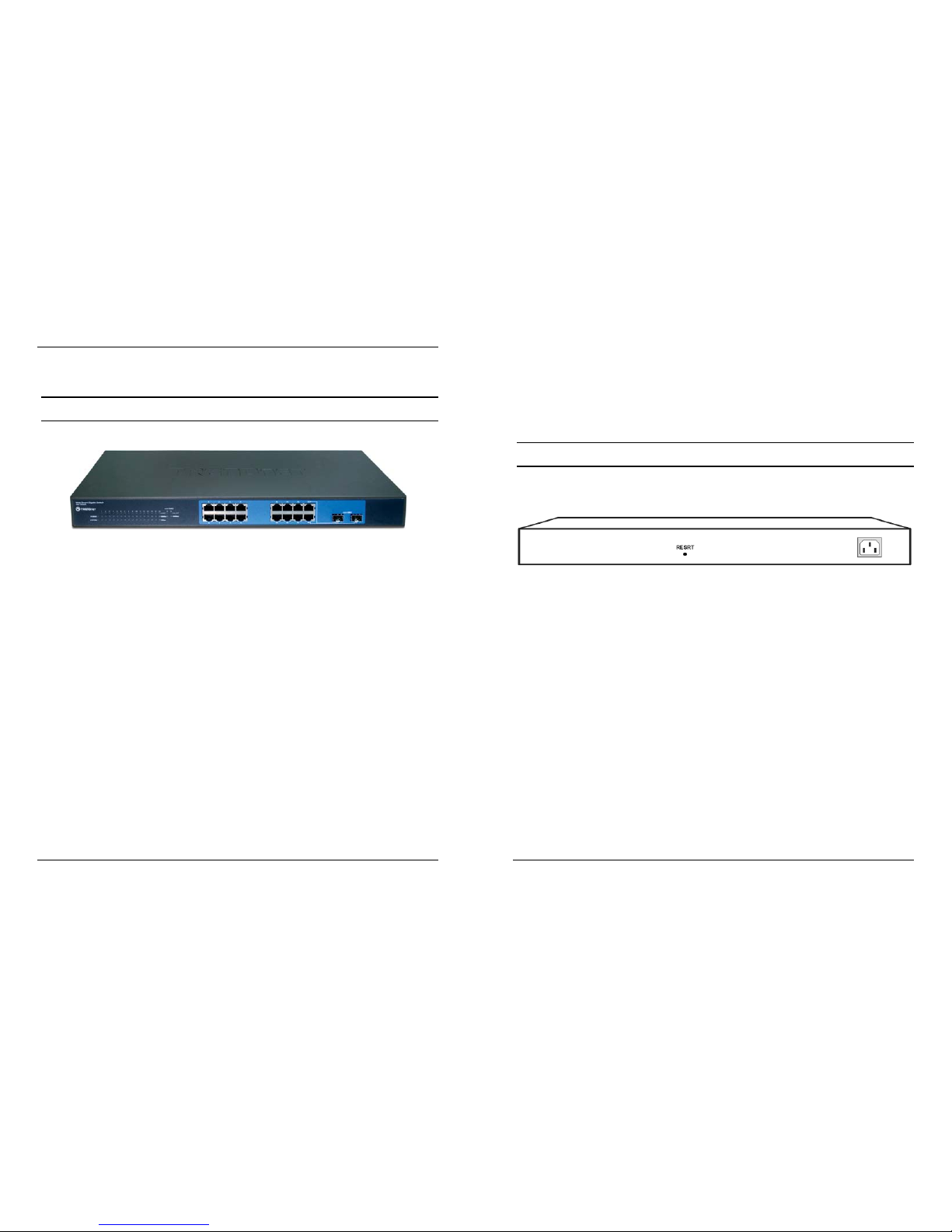

Identifying External Components......................................................13
Front Panel.....................................................................................13
Rear Panel......................................................................................14

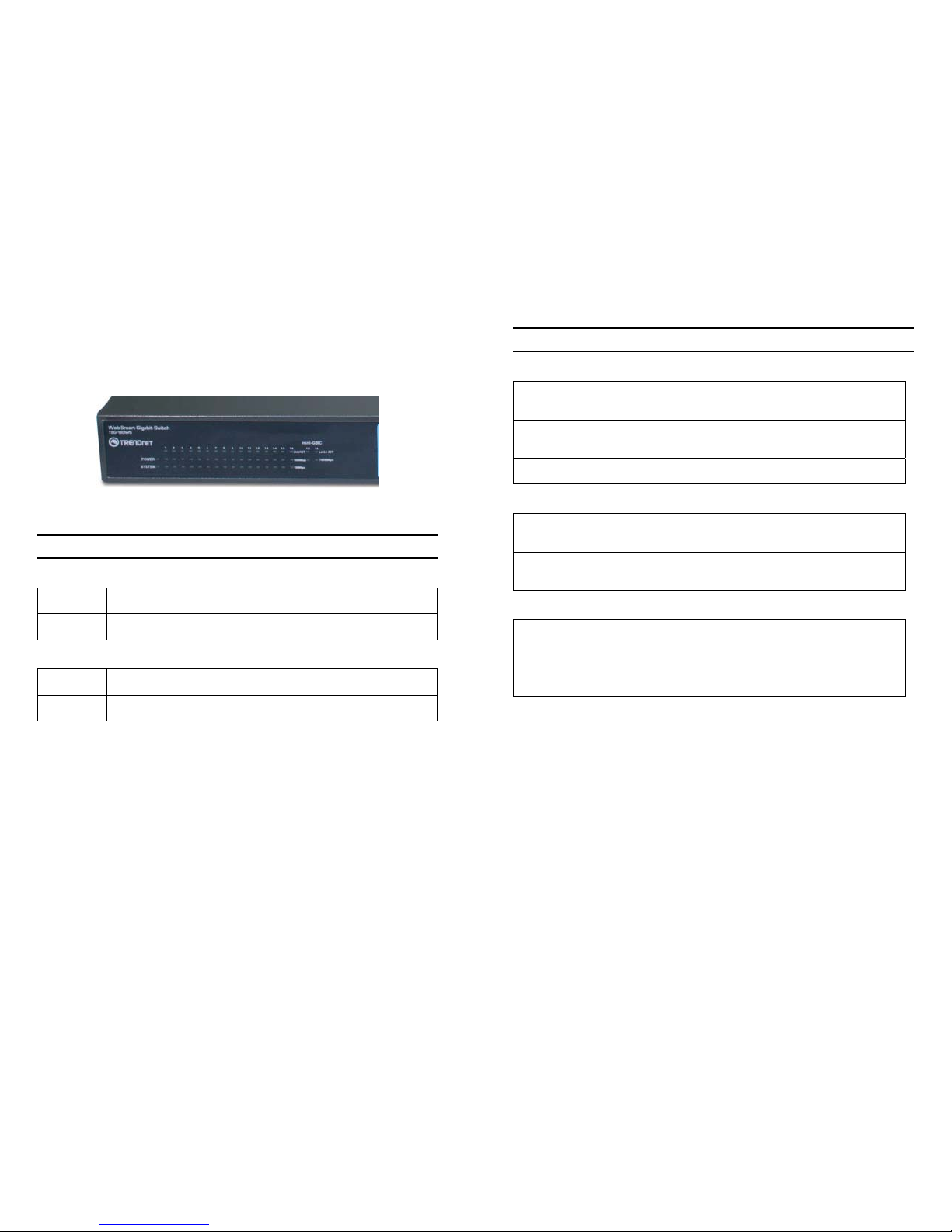

Understanding LED Indicators ..........................................................15
Power and System LEDs ...............................................................15
1000BASE-T Port 1~16 Status LEDs............................................16
Mini-GBIC Slots 15~ 16 Status LEDs...........................................17
Configuration.....................................................................................19
ii

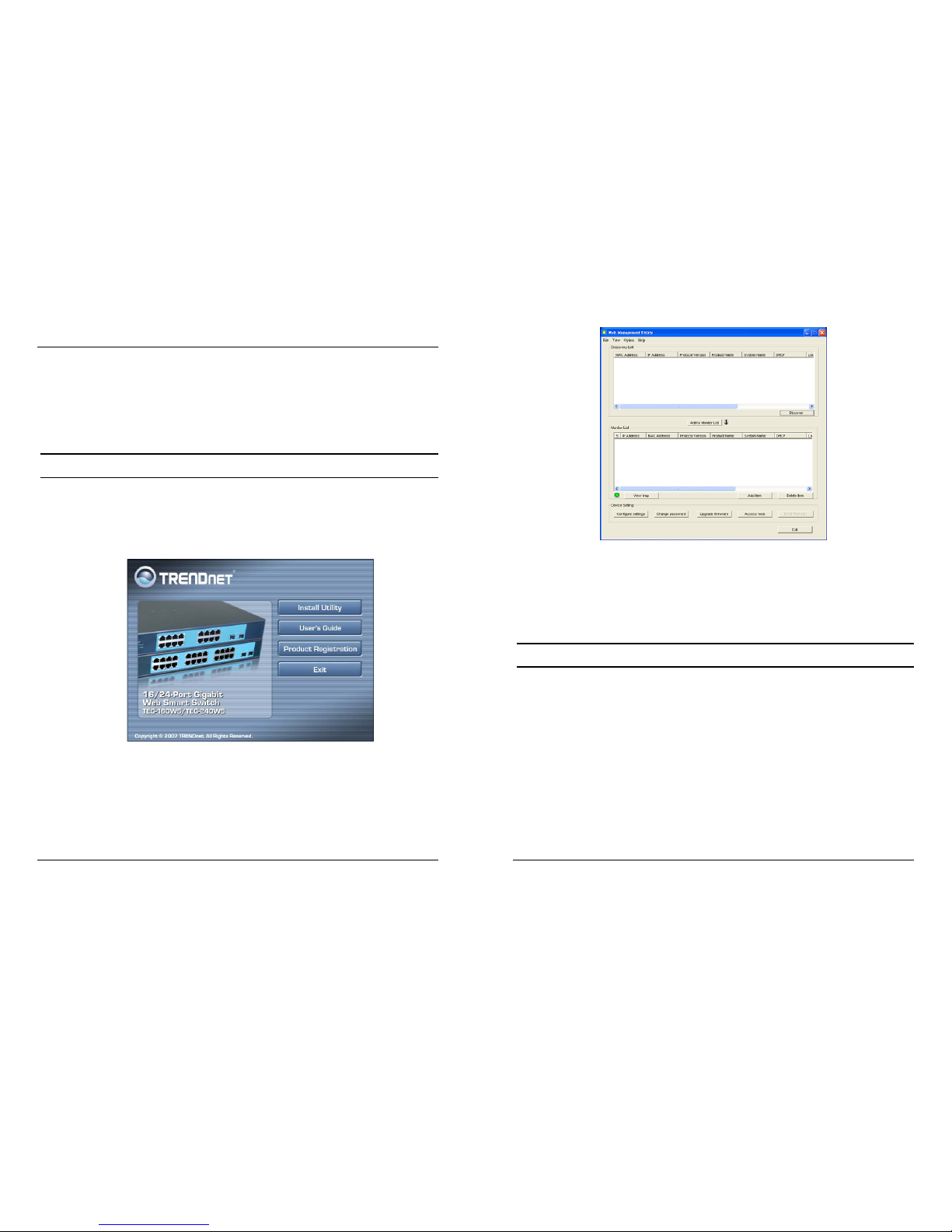

Installing the Web Management Utility.........................................19
Discovery List................................................................................20
Monitor List...................................................................................21
Device Setting................................................................................23
Toolbar...........................................................................................25
Configuring the Switch..................................................................26
Login..............................................................................................26
Setup Settings ................................................................................28
Port Settings...............................................................................28
IEEE 802.1Q VLAN..................................................................29
Trunk Setting .............................................................................40
Mirror Setting.............................................................................40
IEEE 802.1p Default Priority.....................................................41
Broadcast Storm Control Setting ...............................................42
Jumbo Frame Setting .................................................................42
IGMP Snooping Setting.................................................................43
IGMP Global Setting .................................................................43
IGMP VLAN Setting.................................................................45
System Setting ...............................................................................47
System Information....................................................................47
System Setting ...........................................................................48
Trap Setting................................................................................49
Password Setting........................................................................50
Statistic.......................................................................................50
Factory Reset .............................................................................51

iii
Backup Setting...........................................................................52
Firmware Upload.......................................................................52
System Reboot...........................................................................53
Logout............................................................................................53
Technical Specifications.................................................................45

1
ABOUT THIS GUIDE
Congratulations on your purchase of the TEG-160WS 16-Port Gigabit
Web Smart Switch. This device integrates 1000Mbps Gigabit
Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network
capabilities in a highly flexible package.
Purpose
This guide discusses how to install your TEG-160WS 16-Port Gigabit
Web Smart Switch.
Terms/Usage
In this guide, the term “Switch” (first letter upper case) refers to your
TEG-160WS 16-Port Gigabit Web Smart Switch and “switch” (first
letter lower case) refers to other Ethernet switches.

3
INTRODUCTION
This chapter describes the features of the TEG-160WS 16-Port
Gigabit Web Smart Switch and some background information about
Ethernet/Fast Ethernet/Gigabit Ethernet switching technology.
Gigabit Ethernet Technology
Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the
same packet structure, format, and support for CSMA/CD protocol,
full duplex, flow control, and management objects, but with a tenfold
increase in theoretical throughput over 100-Mbps Fast Ethernet and a
hundredfold increase over 10-Mbps Ethernet. Since it is compatible
with all 10-Mbps and 100-Mbps Ethernet environments, Gigabit
Ethernet provides a straightforward upgrade without wasting a
company’s existing investment in hardware, software, and trained
personnel.
The increased speed and extra bandwidth offered by Gigabit Ethernet
is essential to coping with the network bottlenecks that frequently
develop as computers and their busses get faster and more users use
applications that generate more traffic. Upgrading key components,
such as your backbone and servers to Gigabit Ethernet can greatly
improve network response times as well as significantly speed up the
traffic between your subnets.
Gigabit Ethernet enables fast optical fiber connections to support
video conferencing, complex imaging, and similar data-intensive
applications. Likewise, since data transfers occur 10 times faster than
Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to
perform 10 times the number of operations in the same amount of
time.
4
In addition, the phenomenal bandwidth delivered by Gigabit Ethernet
is the most cost-effective method to take advantage of today and
tomorrow’s rapidly improving switching and routing internetworking
technologies. And with expected advances in the coming years in
silicon technology and digital signal processing that will enable
Gigabit Ethernet to eventually operate over unshielded twisted-pair
(UTP) cabling, outfitting your network with a powerful 1000-Mbps-
capable backbone/server connection creates a flexible foundation for
the next generation of network technology products.
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of
desktop computing applications are fueling the need for high
performance networks. A number of high-speed LAN technologies
have been proposed to provide greater bandwidth and improve
client/server response times. Among them, 100BASE-T (Fast
Ethernet) provides a non-disruptive, smooth evolution from the
current 10BASE-T technology. The non-disruptive and smooth
evolution nature, and the dominating potential market base, virtually
guarantees cost-effective and high performance Fast Ethernet
solutions.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3
LAN committee. It is an extension of the 10Mbps Ethernet standard
with the ability to transmit and receive data at 100Mbps, while
maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps
Fast Ethernet is compatible with all other 10Mbps Ethernet
environments, it provides a straightforward upgrade and takes
advantage of the existing investment in hardware, software, and
personnel training.

5
Switching Technology
Another approach to pushing beyond the limits of Ethernet technology
is the development of switching technology. A switch bridges
Ethernet packets at the MAC address level of the Ethernet protocol
transmitting among connected Ethernet or Fast Ethernet LAN
segments.
Switching is a cost-effective way of increasing the total network
capacity available to users on a local area network. A switch
increases capacity and decreases network loading by dividing a local
area network into different segments, which don’t compete with each
other for network transmission capacity.
The switch acts as a high-speed selective bridge between the
individual segments. The switch, without interfering with any other
segments, automatically forwards traffic that needs to go from one
segment to another. By doing this the total network capacity is
multiplied, while still maintaining the same network cabling and
adapter cards.
Switching LAN technology is a marked improvement over the
previous generation of network bridges, which were characterized by
higher latencies. Routers have also been used to segment local area
networks, but the cost of a router, the setup and maintenance required
make routers relatively impractical. Today switches are an ideal
solution to most kinds of local area network congestion problems.
6
VLAN (Virtual Local Area Network)
A VLAN is a group of end-stations that are not constrained by their
physical location and can communicate as if a common broadcast
domain, a LAN. The primary utility of using VLAN is to reduce
latency and need for routers, using faster switching instead. Other
VLAN utility includes:
Security, Security is increased with the reduction of opportunity in
eavesdropping on a broadcast network because data will be switched
to only those confidential users within the VLAN.
Cost Reduction, VLANs can be used to create multiple broadcast
domains, thus eliminating the need of expensive routers.
Features
16 x 1000BASE-TAuto-negotiation Gigabit Ethernet ports
2 x Mini-GBIC (Auto-Sense) slots for optional mini-GBIC
transceiver to extend distance, share with 2 1000BASE-T ports
All 1000BASE-T ports support auto MDI/MDIX, so there is no
need to use cross-over cables or an up-link port
Half duplex transfer mode for connection speed 10Mbps and
100Mbps
Full duplex transfer mode for connection speed of 10Mbps,
100Mbps and 1000Mbps
Store-and-Forward switching scheme capability to support rate
adaptation and ensure data integrity
Up to 8K unicast addresses entities per device, self-learning, and
table aging
512 Kbytes packet buffer

7
Supports IEEE 802.3x flow control for full-duplex mode ports
Supports IEEE 802.1Q VLAN
Supports IEEE 802.1p Priority Queues
Supports Static Port Trunk
Supports IGMP Snooping
Supports Jumbo Frame
Supports Broadcast Storm Control
Supports Port Mirroring
Supports Port Setting for Speed, Flow control
Easy configuration via WEB Browser
Easy setting via Web Management Utility
Standard 19” (1U) Rack-mount size

9
UNPACKING AND INSTALLATION
This chapter provides unpacking and installation information for the
Switch.
Unpacking
Open the shipping cartons of the Switch and carefully unpacks its
contents. The carton should contain the following items:
TEG-160WS Gigabit Web Smart Switch
Multi-Language Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Rack Mount Kit
If any item is found missing or damaged, please contact your local
reseller for replacement
Installation
The site where you install the hub stack may greatly affect its
performance. When installing, consider the following pointers:
Install the Switch in a fairly cool and dry place. See Technical
Specifications for the acceptable temperature and humidity operating
ranges.
Install the Switch in a site free from strong electromagnetic field
generators (such as motors), vibration, dust, and direct exposure to
sunlight.
Leave at least 10cm of space at the front and rear of the hub for
ventilation.
Install the Switch on a sturdy, level surface that can support its weight,
10
or in an EIA standard-size equipment rack. For information on rack
installation, see the next section, Rack Mounting.
When installing the Switch on a level surface, attach the rubber feet to
the bottom of each device. The rubber feet cushion the hub and
protect the hub case from scratching.
Figure 1. Attach the adhesive rubber pads to the bottom

11
Rack Mounting
The switch can be mounted in an EIA standard-size, 19-inch rack,
which can be placed in a wiring closet with other equipment. Attach
the mounting brackets at the switch’s front panel (one on each side),
and secure them with the provided screws.
Figure 2. Combine the Switch with the provided screws
Then, use screws provided with the equipment rack to mount each
switch in the rack.
Figure 3. Mount the Switch in the rack
12
Connecting Network Cable
The Switch supports 1000Mbps Gigabit Ethernet that runs in Auto-
negotiation mode and 10Mbps Ethernet or 100Mbps Fast Ethernet that
runs both in half and full duplex mode and 1000Mbps Gigabit
Ethernet runs in full duplex mode using four pairs of Category 5
cable.
These 1000BASE-T ports are Auto-MDI type port. The Switch can
auto transform to MDI-II or MDI-X type, so you can just make an
easy connection that without worrying if you are using a standard or
crossover twisted-pair cable.
There are additional 2 ports combo mini-GBIC slot for optional mini-
GBIC module.
AC Power
The Switch used the AC power supply 100-240V AC, 50-60 Hz. The
power switch is located at the rear of the unit adjacent to the AC
power connector and the system fan. The switch’s power supply will
adjust to the local power source automatically and may be turned on
without having any or all LAN segment cables connected.

13
IDENTIFYING EXTERNAL COMPONENTS
This chapter describes the front panel, rear panel, and LED indicators
of the Switch.
Front Panel
The figure below shows the front panels of the Switch.
Figure 4. Front panel
LED Indicators:
Comprehensive LED indicators display the status of the switch and
the network (see the LED Indicators chapter below).
1000BASE-T Gigabit Ethernet Ports (Port 1~16):
The Switch sixteen Gigabit twisted pair ports, supported auto negotiable
10/100/1000Mbps and auto MDI/MDIX crossover detection function, this
function gives true “plug and play” capability, just need to plug-in the
network cable to the hub directly and don’t care if the end node is NIC
(Network Interface Card) or switch and hub. These ports can operate in
half-duplex mode for 10/100Mbps and full- duplex mode for
10/100/1000Mbps.
Note: When the port is set to “Forced Mode”, the Auto MDI/MDIX
will be disabled.
14
Mini-GBIC Slots (sharing with port 15~16)
The Switch is equipped with two combo mini-GBIC ports, supported
optional 1000BASE-SX/LX mini-GBIC module.
The 1000BASE-T port 15 and 16 are the same ports with the mini-
GBIC port 15 and 16, when plug in the mini-GBIC module, the device
will activate mini-GBIC, and the RJ45 port will be disabled.
Rear Panel
The rear panel of the Switch consists of an AC power connector and
Reset button. The following shows the rear panel of the Switch.
Figure 5. Rear panel
AC Power Connector:
This is a three-pronged connector that supports the power cord. Plug
in the female connector of the provided power cord into this
connector, and the male into a power outlet. Supported input voltages
range from 100-240V AC at 50-60Hz.
Reset:
The Reset button is to reset all the setting back to the factory default.
Note: Be sure that you recorded the setting of your device, else all
the setting will be erased when pressing the “Reset” button.

15
UNDERSTANDING LED INDICATORS
The front panel LEDs provides instant status feedback, and, helps
monitor and troubleshoot when needed.
Figure 6. LED indicators
Power and System LEDs
POWER: Power Indicator
On : When the Power LED lights on, the Switch is receiving power.
Off : When the Power turns off or the power cord has improper connection.
SYSTEM: Management Indicator
Blinking : When the CPU is working, the System LED is blinking.
On/Off : The CPU is not working.
16
1000BASE-T Port 1~16 Status LEDs
Link/ACT: Link/Activity
On : When the Link/ACT LED lights on, the respective port is
successfully connected to an Ethernet network.
Blinking : When the Link/ACT LED is blinking, the port is transmitting or
receiving data on the Ethernet network.
Off : No link.
1000Mbps
On : When the 1000Mbps LED lights on, the respective port is connected
to a 1000Mbps Gigabit Ethernet network.
Off : When the respective port is connected to a 10Mbps Ethernet or
100Mbps Fast Ethernet network
100Mbps
On : When the 100Mbps LED lights on, the respective port is connected
to a 100Mbps Fast Ethernet network.
Off : When the respective port is connected to a 10Mbps Ethernet or
1000Mbps Gigabit Ethernet network.

17
Mini-GBIC Slots 15~ 16 Status LEDs
Link/ACT
On : When the fiber line connected to the mini-GBIC module is installed
and connected to a network, the Link/ACT LED will lights on.
Blinking : When the Link/ACT LED is blinking, the port is transmitting or
receiving data on the Gigabit Ethernet network.
Off : Fiber line or mini-GBIC module is not installed.
1000Mbps
On : When the 1000Mbps LED lights on, the respective port is connected
to a 1000Mbps Gigabit Ethernet network.
Off : When the respective
p
ort is connected to a 10Mbps Ethernet or
100Mbps Fast Ethernet network

19
CONFIGURATION
Through the Web Browser you can configure the Switch such as
VLAN, Port Trunking, Jumbo Frame… etc.
With the attached Web Management Utility, you can easily discover
all the Web Management Switch, assign the IP Address, changing the
password and upgrading the new firmware.
Installing the Web Management Utility
The following are step-by-step instructions for installing the Web
Management utility.
1. Insert the Utility CD in the CD-ROM Drive.
2. Click Install Utility icon to start
3. Follow the on-screen instructions to install the utility.
4. Upon completion, go to Program Files ÆTRENDnetÆWeb
Smart Switch Management Utility and open the Web
Management utility.
20
Web Management Utility
The Web Management Utility is divided into four sections, Discovery
List, Monitor List, Device Setting and Toolbar function, for details
instruction, follow the below section.
Discovery List
This is the list where you can discover all the Web management
devices in the entire network.
By pressing the “Discovery” button, you can list all the Web
Management devices in the discovery list.
Double click or press the “Add to monitor list” button to select a
device from the Discovery List to the Monitor List.

21
System word definitions in the Discovery List:
zMAC Address: Shows the device MAC Address.
zIP Address: Shows the current IP address of the device.
zProtocol version: Shows the version of the Utility protocol.
zProduct Name: Shows the device product name.
zSystem Name: Shows the appointed device system name.
zDHCP: Shows the DHCP status of the device.
zLocation: Shows where the device is located.
zTrap IP: Shows the IP where the Trap to be sent.
zSubnet Mask: Shows the Subnet Mask set of the device.
zGateway: Shows the Gateway set of the device.
Monitor List
All the Web Smart Device in the Monitor List can be monitored; you
can also receive the trap and show the status of the device.
System word definitions in the Monitor List:
zS: Shows the system symbol of the Web-Smart device,
represent for device system is not alive.
zIP Address: Shows the current IP address of the device.
zMAC Address: Shows the device MAC Address.
zProtocol version: Shows the version of the Utility protocol.
zProduct Name: Shows the device product name.
zSystem Name: Shows the appointed device system name.
zDHCP: Shows the DHCP status of the device.
zLocation: Shows where the device is located.
zTrap IP: Shows the IP where the Trap to be sent.
zSubnet Mask: Shows the Subnet Mask set of the device.
zGateway: Shows the Gateway set of the device.
22
View Trap: The Trap function can receive the events that happen
from the Web Management Switch in the Monitor List.
There is a light indicator behind the “View Trap” button, when the
light indicates in green, it means that there is no trap transmitted, and
else when it indicates in red, it means that there is new trap
transmitted, this is to remind us to view the trap. (Figure 7)
Figure 7. View Trap button
When the “View Trap” button is clicked, a Trap Information window
will pop out, it will show the trap information including the Symbol,
Time, Device IP and the Event occurred. (Figure 8)
The symbol “ ” represents the trap signal arise, this symbol will
disappear after you review and click on the event record.
Figure 8. Trap Information
Note: In order to receive Trap information, switch has to be configured with
Trap IP and Trap Events in Web browser, which are available in the Trap
Setting Menu (see Page 49 for detail).
Add Item: To add a device to the Monitor List manually, enter the IP
Address of the device that you want to monitor.
Delete Item: To delete the device in the Monitor List.

23
Device Setting
You can set the device by using the function key in the Device Setting
Dialog box.
Configuration Setting: In this Configuration Setting, you can set the
IP Address, Subnet Mask, Gateway, Set Trap to (Trap IP Address),
System name, Location and DHCP function.
Select the device in the Discovery list or Monitor List and press this
button, then the Configuration Setting window will pop out as Figure
10, after filling up the data that you want to change, you must fill up
the password and press the “Set” to process the data changed
immediately. The default password of this TEG-160WS 16-Port
Gigabit Web Smart Switch configuration is “admin”.
Figure 9. Configuration Setting
Password Change: You can use this Password Change when you
need to change the password, fill in the password needed in the dialog
box and press “Set” button to proceed the password change
immediately.
24
Figure 10. Password Change
Firmware Upgrade: When the device has a new function, there will
be a new firmware to update the device, use this function to update.
Figure 11. Firmware Upgrade
Access Web: Double click the device in the Monitor List or select a
device in the Monitor List and press this “Web Access” button to
access the device in Web browser.
DHCP Refresh: Press this “DHCP Refresh” button to refresh IP
address of selected device form DHCP server.

25
Toolbar
The toolbar in the Web Management Utility have four main tabs, File,
View, Options and Help.
In the “File TAB”, there are Monitor Save, Monitor Save As, Monitor
Load and Exit.
zMonitor Save: To record the setting of the Monitor List to the
default, when you open the Web Management Utility next
time, it will auto load the default recorded setting.
zMonitor Save As: To record the setting of the Monitor List in
appointed filename and file path.
zMonitor Load: To manually load the setting file of the
Monitor List.
zExit: To exit the Web Management Utility.
In the “View TAB”, there are view log and clear log function, this
function will help you to show trap setting.
zView Log: To show the event of the Web Management Utility
and the device.
zClear Log: to clear the log.
In the “Option TAB”, there are Refresh Time function, this function
helps you to refresh the time of monitoring the device. Choose 15
secs, 30 secs, 1 min, 2 min and 5 min to select the time of monitoring.
In the “Help TAB”, there is About function, it will show out the
version of the Web Management Utility.
26
Configuring the Switch
The TEG-160WS 16-Port Gigabit Web Smart Switch has a Web GUI
interface for smart switch configuration. The Switch can be
configured through the Web Browser. A network administrator can
manage, control and monitor the switch from the local LAN. This
section indicates how to configure the Switch to enable its smart
functions
Login
Before you configure this device, note that when the Web Smart
Switch is configured through an Ethernet connection, make sure the
manager PC must be set on same the IP network. For example, when
the default network address of the default IP address of the Web Smart
Switch is 192.168.0.1, then the manager PC should be set at
192.168.0.x (where x is a number between 2 and 253), and the default
subnet mask is 255.255.255.0.
Open Internet Explorer 5.0 or above Web browser.
Enter IP address http://192.168.0.1 (the factory-default IP address
setting) to the address location.
Figure 12.

27
Or through the Web Management Utility, you do not need to
remember the IP Address, select the device shown in the Monitor List
of the Web Management Utility to settle the device on the Web
Browser. When the following dialog page appears, remain enter the
default password "admin" and press Login to enter the main
configuration window.
Figure 13. Login
After entering the password, the main page comes up, the screen will
display the device status.
Figure 14. System Information
28
Setup Settings
Find that there are seven items, including Port Setting, IEEE 802.1Q
VLAN Settings, Trunk Setting, Mirror Setting, IEEE 802.1p Default
Priority, Broadcast Strom Control Setting, Jumbo Frame Setting in
Setup menu.
Port Settings
In Port Settings menu (Figure 15), this page will show each port’s
status, selected drop down menu to set each port’s Speed, and QoS
priority then press “Apply” button to activate changes. To refresh the
information table to view the latest port setting and Link Status, press
the Refresh button.
The Link Status in the screen will show the connection speed and
duplex mode; else this dialog box will show Down when the port is
disconnected.
Figure 15. Port Setting
Note: The priority of Gigabit Fiber port is higher than Copper.

29
Speed:
The 1000BASE-T connections can operate in Forced Mode settings
(1000M Full, 100M Full, 100M Half, 10M Full, 10M Half), Auto, or
Disable. The default setting for all ports are Auto. The mini-GBIC
(Gigabit Fiber) connections can operate in Forced Mode settings
(1000M Full), Auto, or Disable
Flow Control:
This setting determines whether or not the Switch will be handling
flow control. Set Flow Control to Enable for avoiding data transfer
overflow. Or it sets to Disable; there is either no flow control or other
hardware/software management.
When the port is set to forced mode, then the flow control will
automatically set to Disable.
QoS:
Displays each port’s 802.1p QoS priority level for received data
packet handling. Default setting for all ports is Middle. You can
change the priority settings in 802.1p Default Priority.
IEEE 802.1Q VLAN
A VLAN is a group of ports that can be anywhere in the network, but
communicate as though they were in the same area.
VLANs can be easily organized to reflect department groups (such as
R&D, Marketing), usage groups (such as e-mail), or multicast groups
(multimedia applications such as video conferencing), and therefore
help to simplify network management by allowing users to move
devices to a new VLAN without having to change any physical
connections.
30
The IEEE 802.1Q VLAN Configuration page provides powerful VID
management functions. The original settings have the VID as 01,
named “default”, and all 16 ports as “Untagged”.
Asymmetric VLAN
IEEE 802.1Q Asymmetric VLAN default setting is “Disabled”, you
can press “Enabled” ratio button and Apply it to submit the
Asymmetric VLAN function.
Enabled Asymmetric VLAN function
Change setting warning message
Note: The Settings of VLAN, IGMP Snooping and Forwarding Table will be reset to
default.

31
Untag Asymmetric VLAN Setting:
The IEEE 802.1Q VLAN Configuration page provides powerful VID
management functions. The original default VLAN setting has the
VID as 01, named “default”, and contains all ports as “Untagged”.
802.1Q Asymmetric VLAN Setting
Add VID: Click to create a new VID group, assigning ports from 01 to
16 as Untag, Tag, or Not Member. A port can be “Untagged” in only
one VID. To save the VID group, press Apply.
Add New VID
VID: A unique VLAN ID.
VLAN Name: A VLAN name can be setting as user wish.
Port: The switch port number.
Untag: Outgoing frames without VLAN tag.
Tag: Outgoing frames with VLAN tag.
32
Not Member: The port number which not to be grouped.
Select All: Select all ports to be VLAN members or not VLAN
members.
Cancel: To call the modifications off.
Apply: To activate and save the modifications.
Delete: Click to delete selected VID.
To change exist IEEE 802.1Q VLAN setting, press the VID to modify
that IEEE 802.1Q VLAN setting.
PVID settings:
While receiving an untagged frame from the port, the switch will
assign a tag to the frame, using the PVID of the port as its VID.
