ABOUT THIS GUIDE
Congratulations on your purchase of the TEG-424WS 24-Port
10/100Mbps Web Smart Switch w/ 4 Gigabit Ports and 2 Mini-GBIC
slots. This device integrates 1000Mbps Gigabit Ethernet, 100Mbps
Fast Ethernet and 10Mbps Ethernet network capabilities in a highly
flexible package.
Purpose
This guide discusses how to install your TEG-424WS 24-Port
10/100Mbps Web Smart Switch w/ 4 Gigabit Ports and 2 Mini-GBIC
slots.
Terms/Usage
In this guide, the term “Switch” (first letter upper case) refers to your
TEG-424WS 24-Port 10/100Mbps Web Smart Switch w/ 4 Gigabit
Ports and 2 Mini-GBIC slots, and “switch” (first letter lower case)
refers to other Ethernet switches.

INTRODUCTION
This chapter describes the features of the TEG-424WS 24-Port
10/100Mbps Web Smart Switch w/ 4 Gigabit Ports and 2 Mini-GBIC
slots, and some background information about Ethernet/Fast
Ethernet/Gigabit Ethernet switching technology.
Gigabit Ethernet Technology
Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the
same packet structure, format, and support for CSMA/CD protocol,
full duplex, flow control, and management objects, but with a tenfold
increase in theoretical throughput over 100-Mbps Fast Ethernet and a
hundredfold increase over 10-Mbps Ethernet. Since it is compatible
with all 10-Mbps and 100-Mbps Ethernet environments, Gigabit
Ethernet provides a straightforward upgrade without wasting a
company’s existing investment in hardware, software, and trained
personnel.
The increased speed and extra bandwidth offered by Gigabit Ethernet
is essential to coping with the network bottlenecks that frequently
develop as computers and their busses get faster and more users use
applications that generate more traffic. Upgrading key components,
such as your backbone and servers to Gigabit Ethernet can greatly
improve network response times as well as significantly speed up the
traffic between your subnets.
Gigabit Ethernet enables fast optical fiber connections to support
video conferencing, complex imaging, and similar data-intensive
applications. Likewise, since data transfers occur 10 times faster than
Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to
perform 10 times the number of operations in the same amount of
time.
9

In addition, the phenomenal bandwidth delivered by Gigabit Ethernet
is the most cost-effective method to take advantage of today and
tomorrow’s rapidly improving switching and routing internetworking
technologies. And with expected advances in the coming years in
silicon technology and digital signal processing that will enable
Gigabit Ethernet to eventually operate over unshielded twisted-pair
(UTP) cabling, outfitting your network with a powerful 1000-Mbps-
capable backbone/server connection creates a flexible foundation for
the next generation of network technology products.
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of
desktop computing applications are fueling the need for high
performance networks. A number of high-speed LAN technologies
have been proposed to provide greater bandwidth and improve
client/server response times. Among them, 100BASE-T (Fast
Ethernet) provides a non-disruptive, smooth evolution from the
current 10BASE-T technology. The non-disruptive and smooth
evolution nature, and the dominating potential market base, virtually
guarantees cost-effective and high performance Fast Ethernet
solutions.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3
LAN committee. It is an extension of the 10Mbps Ethernet standard
with the ability to transmit and receive data at 100Mbps, while
maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps
Fast Ethernet is compatible with all other 10Mbps Ethernet
environments, it provides a straightforward upgrade and takes
advantage of the existing investment in hardware, software, and
personnel training.
Switching Technology
Another approach to pushing beyond the limits of Ethernet technology
10

is the development of switching technology. A switch bridges
Ethernet packets at the MAC address level of the Ethernet protocol
transmitting among connected Ethernet or Fast Ethernet LAN
segments.
Switching is a cost-effective way of increasing the total network
capacity available to users on a local area network. A switch
increases capacity and decreases network loading by dividing a local
area network into different segments, which don’t compete with each
other for network transmission capacity.
The switch acts as a high-speed selective bridge between the
individual segments. The switch, without interfering with any other
segments, automatically forwards traffic that needs to go from one
segment to another. By doing this the total network capacity is
multiplied, while still maintaining the same network cabling and
adapter cards.
Switching LAN technology is a marked improvement over the
previous generation of network bridges, which were characterized by
higher latencies. Routers have also been used to segment local area
networks, but the cost of a router, the setup and maintenance required
make routers relatively impractical. Today switches are an ideal
solution to most kinds of local area network congestion problems.
11

VLAN (Virtual Local Area Network)
A VLAN is a group of end-stations that are not constrained by their
physical location and can communicate as if a common broadcast
domain, a LAN. The primary utility of using VLAN is to reduce
latency and need for routers, using faster switching instead. Other
VLAN utility includes:
Security, Security is increased with the reduction of opportunity in
eavesdropping on a broadcast network because data will be switched
to only those confidential users within the VLAN.
Cost Reduction, VLANs can be used to create multiple broadcast
domains, thus eliminating the need of expensive routers.
Features
24 x 100BASE-TX Auto-negotiation Fast Ethernet ports
4 x 1000BASE-T Auto-negotiation Gigabit Ethernet ports
2 x 1000BASE-T Mini-GBIC (Auto-Sense) Gigabit slots for
optional mini-GBIC transceiver to extend distance, share with 2
1000BASE-T ports
All 1000BASE-T ports support auto MDI/MDIX, so there is no
need to use cross-over cables or an up-link port
Half duplex transfer mode for connection speed 10Mbps and
100Mbps
Full duplex transfer mode for connection speed of 10Mbps,
100Mbps and 1000Mbps
Store-and-Forward switching scheme capability to support rate
adaptation and ensure data integrity
12

Up to 8K unicast addresses entities per device, self-learning, and
table aging
128 KBytes packet buffer
Supports IEEE 802.3x flow control for full-duplex mode ports
Supports IEEE 802.1Q VLAN
Supports IEEE 802.1p Priority Queues
Supports Static Port Trunk
Supports IGMP Snooping
Supports SNMP for RFC1213 MIB II and Private MIB
Supports IEEE 802.1D Spanning Tree
Supports 802.1x port based access control
Supports Broadcast Storm Control
Supports Port Mirroring
Supports Port Setting for Speed, Flow control
Easy configuration via WEB Browser
Easy setting via Web Management Utility
Standard 19” Rack-mount size
13

UNPACKING AND INSTALLATION
This chapter provides unpacking and installation information for the
Switch.
Unpacking
Open the shipping cartons of the Switch and carefully unpacks its
contents. The carton should contain the following items:
TEG-424WS 24-Port 10/100Mbps Web Smart Switch w/ 4
Gigabit Ports and 2 Mini-GBIC slots
Multi-Language Quick Installation Guide
CD-COM (Utility & User’s Guide)
Power Cord
Rack Mount Kit (Rubber Feet, Screws and Mounting Brackets)
If any item is found missing or damaged, please contact your local
reseller for replacement
Installation
The site where you install the hub stack may greatly affect its
performance. When installing, consider the following pointers:
Install the Switch in a fairly cool and dry place. See Technical
Specifications for the acceptable temperature and humidity operating
ranges.
Install the Switch in a site free from strong electromagnetic field
generators (such as motors), vibration, dust, and direct exposure to
sunlight.
Leave at least 10cm of space at the front and rear of the hub for
ventilation.
14

Install the Switch on a sturdy, level surface that can support its weight,
or in an EIA standard-size equipment rack. For information on rack
installation, see the next section, Rack Mounting.
When installing the Switch on a level surface, attach the rubber feet to
the bottom of each device. The rubber feet cushion the hub and
protect the hub case from scratching.

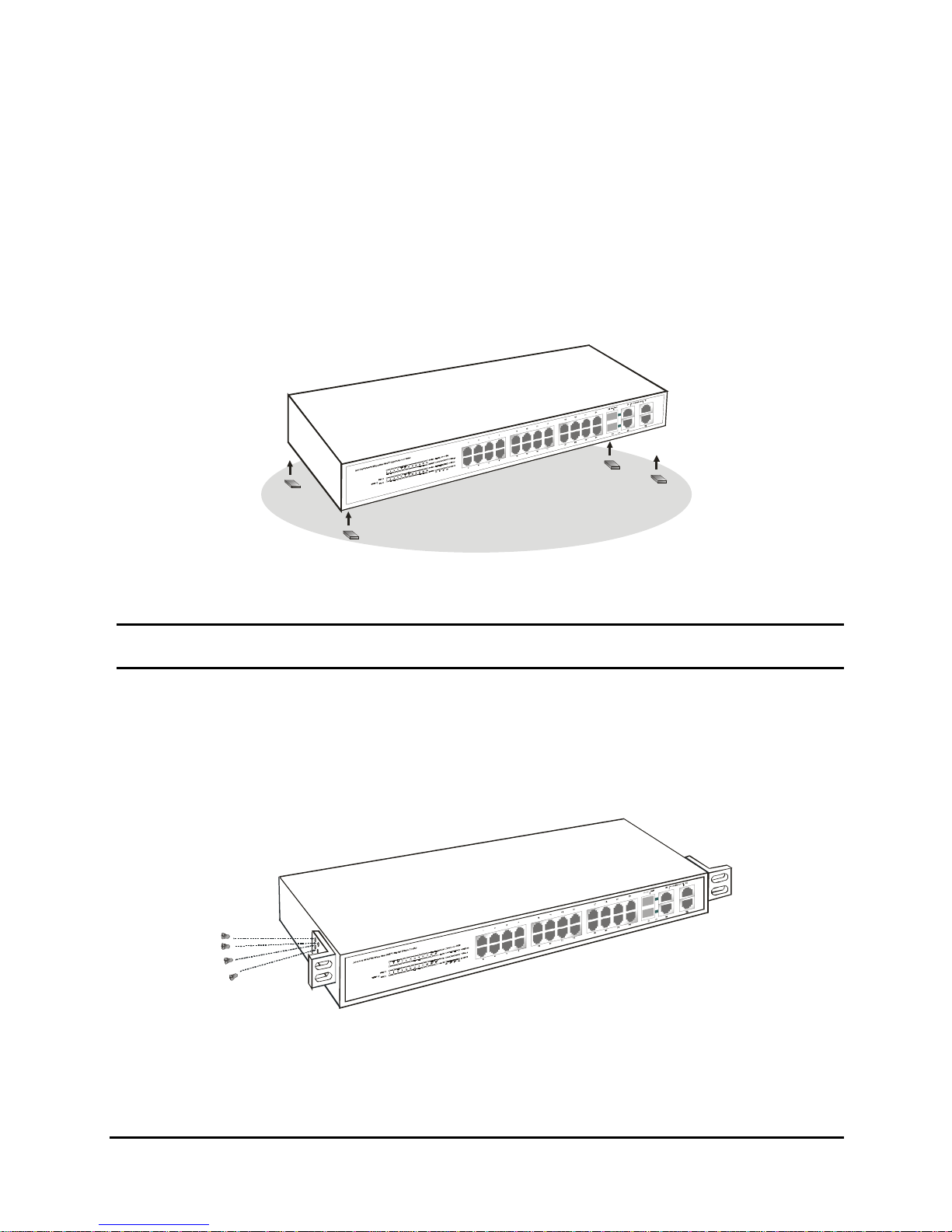

Figure 1. Attach the adhesive rubber pads to the bottom
Rack Mounting
The switch can be mounted in an EIA standard-size, 19-inch rack,
which can be placed in a wiring closet with other equipment. Attach
the mounting brackets at the switch’s front panel (one on each side),
and secure them with the provided screws.
Figure 2. Combine the Switch with the provided screws
15

Then, use screws provided with the equipment rack to mount each
switch in the rack.
Figure 3. Mount the Switch in the rack
Connecting Network Cable
The Switch supports 24-port 10/100Mbps 100BASE-TX Fast Ethernet
and it runs both in half and full duplex mode using two pair of
Category 5 cable.
The Switch also supports 4-port 10/100/1000Mbps 1000BASE-T
Gigabit Ethernet that runs in Auto-negotiation mode and 10Mbps
Ethernet or 100Mbps Fast Ethernet that runs both in half and full
duplex mode and 1000Mbps Gigabit Ethernet runs in full duplex
mode using four pair of Category 5 Cable.
These RJ45 ports are Auto-MDI type port. The Switch can auto
transform to MDI-II or MDI-X type, so you can just make an easy
connection that without worrying if you are using a standard or
crossover RJ45 cable.
There are additional 2 ports mini-GBIC slot for optional mini-GBIC
module.
16

17
AC Power
The Switch used the AC power supply 100-240V AC, 50-60 Hz. The
power switch is located at the rear of the unit adjacent to the AC
power connector and the system fan. The switch’s power supply will
adjust to the local power source automatically and may be turned on
without having any or all LAN segment cables connected.
