Triple S PS-2 Guide

Model: PS-2
ProSense II Item # 49001
OPERATION 잟SERVICE 잟PARTS 잟CARE

FOR COMMERCIAL USE ONLY
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING
WARNING -To reduce the risk of fire, electric shock, or injury: Do NOT use this product
outdoors or on wet surfaces.
• Do not leave vacuum plugged in. Unplug from outlet when not in use and before
servicing.
• Never allow children or untrained adults to operate this equipment.
• Keep the area of operation clear of all persons, particularly small children, and pets.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use: with damaged cord or plug, if appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water. Have unit repaired at a qualified
service center prior to use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
• Do not use without dustbag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas
they may be present.
• Connect to a properly grounded outlet only. See grounding instructions.
• This appliance is not suitable for removal of dusts that are dangerous to health.
• This appliance is suitable only for dry cleaning and must not be used out doors.
• The power cord should be inspected regularly for signs of damage. Do not use if the
cord is damaged.
SAVE THESE INSTRUCTIONS
2

INSPECTION
Carefully unpack and inspect your machine for shipping damage. Each unit is tested and
thoroughly inspected before shipment, and any damage is the responsibility of the delivery
carrier who should be notified immediately. Record date of purchase and serial number
on the front of this manual.
USER MAINTENANCE INSTRUCTIONS
All service and repair should be performed by a qualified service center. No user
serviceable components are employed in the electrical system.
No lubrication of the motor is required.
When not in use wrap cord around storage hooks located on back of machine.
This equipment should be stored indoors and not exposed to the elements.
ELECTRICAL - Model PS-2
This machine is designed to operate on a standard 15 amp. 120 volt, 60 hz, AC circuit.
Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the
motor.
WARNING
Electric motors can cause explosions when operated near explosive materials or vapors.
Do not operate this machine near flammable materials such as solvents, thinners, fuels,
grain dust, etc.
GROUNDING INSTRUCTIONS (120V only)
This appliance must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock.
This appliance is equipped with a cord having an equipment-grounding conductor and
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or service person if you are in doubt as
to whether the outlet is properly grounded. Do not modify the plug provided with the
appliance — if it will not fit the outlet, have a proper outlet installed by a qualified
electrician.
This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks
like the plug illustrated in sketch below. Make sure that the appliance is connected to an
outlet having the same configuration as the plug. No adapter should be used with this
appliance.
3

GENERAL INSTRUCTIONS
CAUTION: Unplug unit from electrical outlet.
1. Installation/Removal of Brush Head
Brush head can be removed by turning knob to the right. The brush head can now
be separated from vacuum housing (see figure 1, number 1).
2. Handle Release
To release the machine from upright position, push down on foot release (see
figure 1, number 2).
3. Bristle Insert Replacement
Remove cover and pull brush strip out. Insert new brush strip and push it in all the
way. Replace cover (see figure 1, number 3).
4. Brush Control
If brush control light is red (see Figure 1, number 4), turn off unit and check brush
head for any obstructions. Remove any foreign objects from brush head and inspect drive
belt.
4

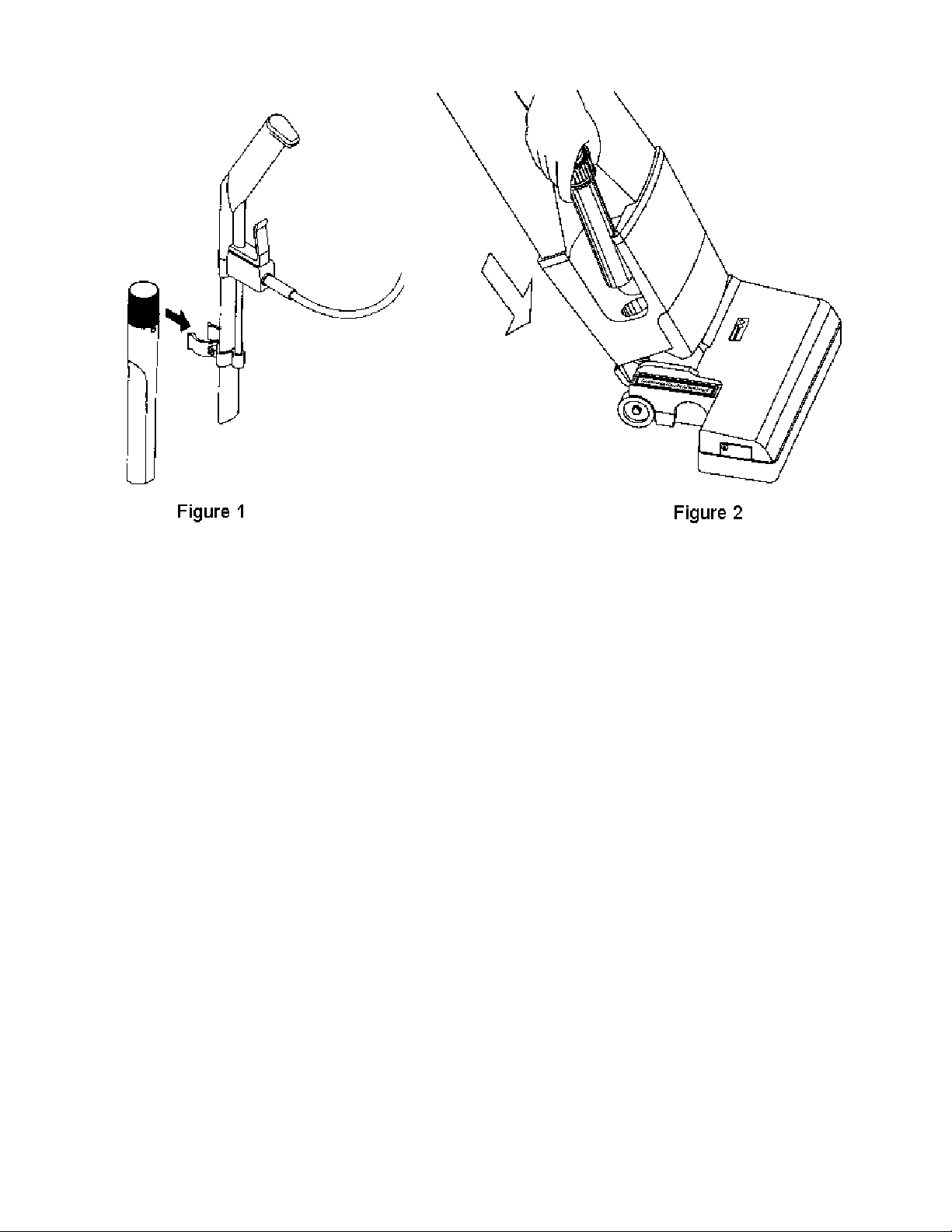

1. Tool Storage
Tools should be installed as shown in Figure 1. The smaller lower section of the tools
should be snapped into the retainers.
2. Accessory Hose (Figure 2)
The vacuum hose can be removed from base of unit and used as is or with accessory
tools. Simply pull out from base to use. NOTE: The brush motor turns off when the hose
is removed from the housing.
3. Full Bag Indicator
The red indicator light (at top of bag housing) will illuminate when the collection bag is full
or when there is a blockage in the hose or brush head. Indicator light is next to on/off
switch.
5

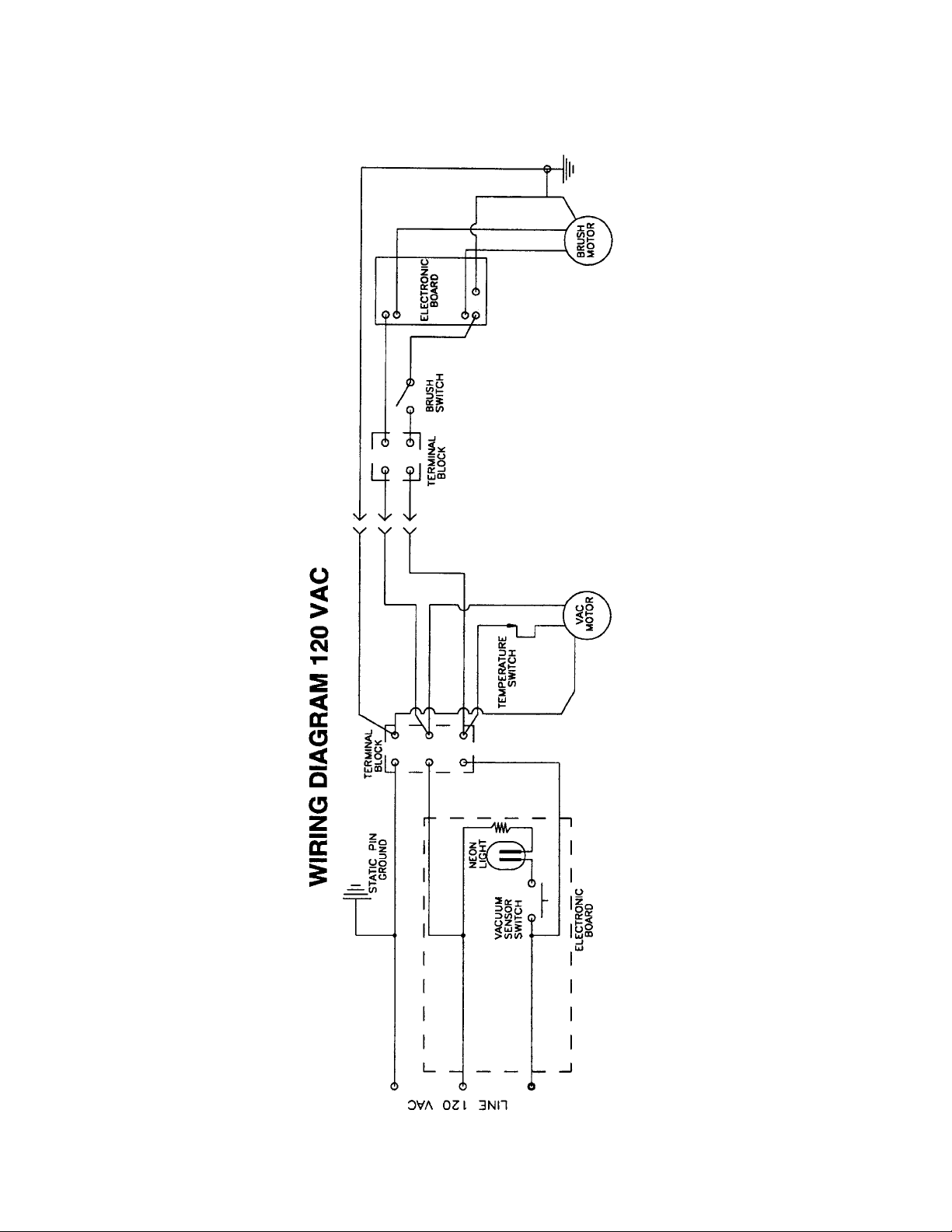

WIRING DIAGRAM 120 VAC
6

UPPER ASSEMBLY – PARTS DIAGRAM
7

UPPER ASSEMBLY PARTS LISTS
Item Part No. Qty. Description Item Part No. Qty. Description
1 250039 2 CLAMP-PLASTIC 5/16 3305 45 730203 1 FILTER-HOSPITAL PKG 10
2 370012G 1 WAND UPRIGHT LT GREY 46 710130 2 SCR-MC 8-32 X .62 NICKEL
3 370156 1 HANDLE GREY 47 740250 1 THERMODISC-290TWIN
4 370019 1 HSG RELEASE KNOB BLACK 48 710362 4 SCR-MC 10-32X1.25 ST PL
5 370026 2 CORD STRAIN RELIEF GREY 49 740704 1 MOTOR-VAC 120V 6378-07
6 370027G 2 HOSE LOC FITNG LT GREY 50 711124 1 SCR-ST-B 10 X .37 NI
7 370029G 2 HSE LOC RING LT GREY 51 740705-1 1 CORD-18GA-3 40FT ORANGE
8 370036G 1 HOSE-VAC UPRIGHT LT GREY 52 711161 1 SCR-HI/LO #10 X 3/4 ZINC
9 370057 1 VAC MOTOR GASKET 53 740711 1 SWITCH-212FGOC4OAOS
10 370072 1 VAC MOTOR DAMPENER 54 711181 14 SCR-ST-B HI-LO 8 X .50 ZINC
11 370097 1 CREVICE TOOL 55 740726 1 TERM SCREW / TAB
12 370159 1 CORD RETAINER GREY 56 711372 2 NUT-NYLOC 8-32
13 370160 1 HANDLE CAP GREY 57 740734 1 CIRCUIT BRD-PC MULTI VAC 120V
14 370300 1 GREY UPPER HOUSING FRONT 57A 740727 1 CIRCUIT BRD-PCB RFI W/BAG SWIT
15 370301 1 GREY HOUSING VAC MTR 58 740728 1 RECEPTACLE-AC POWER
16 370315 1 GREY FILTER /DOOR ASY 59 740730 1 16G GRN/YEL 12.00" B=13
17 370302 1 GREY COUPLING HOSE 60 740731 1 18G BLACK 11.00" B=14
18 370309 1 GREY LATCH BAG CLIP 61 741011 1 WIRE HARNESS PS-2
19 370311 1 GREY COVER BAG LATCH 62 410-4419AA 2 POP RIVET
20 370310 1 GREY BUTTON VAC FTR 63 370313 1 GREY CORD HOOK
21 370182 1 CAM, LOCK & RELSE BLACK 64 711503 1 WSR-FLT #10
22 370183 1 COVER, VAC MOTOR BLACK 65 710355 2 SCR-MC 10-32 X .50 ZINC
23 370184 1 WIRE FORM, LOCK-RELEASE 66 711502 4 WSR-FLT #8
24 370185 1 SPRING, COVER BUTTON 67 715154 1 DECAL-CAUTION INS
25 370186 1 SPRING-LATCH BAG .236 X .3 X 1 68 715155 1 DECAL-HOSE INSERT
26 370304 1 GREY HANDLE TRANSPORT 69 715229 1 DECAL-RUNNER
27 370188 1 LENSE-BAG FULL LIGHT 71 715015 1 DECAL-WARNING 1.25 X 2.75
28 370312 1 GREY COVER LATCH 72 370207 1 INSULATOR PAD, VAC MOTOR
29 370190 1 FLTR FRAME, VAC MTR BLK 73 715178 1 DECAL-BAG INSTALL
30 370305 2 TAB HOLDDOWN GREY 74 190010 1 STRAIN RELIEF
31 370306 1 GREY LATCH 75 370068 2 CARBON BRUSH (380054)
32 370307 1 GREY COVER ELECTRICAL 76 740789 1 18G GRN/YEL 5.50" B= 4
33 370195 1 SPRING-CORD HOOK 77 370350 1 EXTENSION WAND (not shown)
34 370196G 1 ACCESSORY CLIP LT GREY
35 370197 1 SPRING-LATCH BAG COVER SS
36 370198 1 EXTRUDED HANDLE MCH'D
37 370199 1 GASKET 3/16 X 5/16 EXTRD
38 49002 1 BAG, 10 Packages of 10
39 711401 1 NUT-RIV 10-32
40 370204 1 BACKER PLATE
41 715171 1 DECAL-BASE RELEASE NS
42 370303 1 GREY REAR VAC COVER
43 715172 1 DECAL-HANDLE INSERT PS-2
44 711168 4 SCR-ST-B 10-32 X .50 ZINC
8

HEAD ASSEMBLY – PARTS DIAGRAM
9

HEAD ASSEMBLY PARTS LIST
10

LIMITED WARRANTY
Manufacturer warrants to the original purchaser/user that this product is free from defects
in workmanship and materials under normal use and service for a period of one year from
date of purchase. In addition, Manufacturer will, at its option, honor labor warranty claims
for the first 12 months from date of sale, provided such claims are submitted
through and approved by factory authorized repair stations. Manufacturer will, at its
option, repair or replace without charge, except for transportation costs, parts that fail
under normal use and service when operated and maintained in accordance with the
applicable operation and instruction manuals.
This warranty does not apply to normal wear, or to items whose life is dependent on their
use and care, such as belts, cords, switches, hoses, rubber parts, electrical motor
components or adjustments.
Special warning to purchaser — Use of replacement filters and/or prefilters not
manufactured by Manufacturer or its designated licensees, will void all warranties
expressed or implied. A potential health hazard exists without exact original equipment
replacement.
All warranteed items become the sole property of Manufacturer or its original
manufacturer, whichever the case may be.
Manufacturer disclaims any implied warranty, including the warranty of merchantability
and the warranty of fitness for a particular purpose. Manufacturer assumes no
responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to
the original user/purchaser of this product. Customers outside the U.S.A. and Canada
should contact their local distributor for export warranty policies. Manufacturer is not
responsible for costs or repairs performed by persons other than those specifically
authorized by Manufacturer This warranty does not apply to damage from transportation,
alterations by unauthorized persons, misuse or abuse of the equipment, use of non-
compatible chemicals, or damage to property, or loss of income due to malfunctions of the
product.
If a difficulty develops with this machine, you should contact the dealer from whom it was
purchased.
This warranty gives you specific legal rights, and you may have other rights which vary
from state to state. Some states do not allow the exclusion or limitation of special,
incidental or consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions and limitations may not apply to you.
988012
Revised 9/04
11
