Triple S SC-19 Installation and operation manual

OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
CANISTER VACUUM
MODEL SC-19
This operator’s book has important information for the use
and safe operation of this machine. Read this book care-
fully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For additional information refer to the Triple S website
www.triple-s.com or write to:
Triple S
2 Executive Park Drive
Billerica, MA 01862
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Triple S
reserves the right to make changes or improvements to its
machines without notice.
FOR YOUR CONVENIENCE, RECORD THIS
IMPORTANT INFORMATION:
MODEL_______________________________
SERIAL NUMBER______________________
PART NUMBER ________________________
DATE PURCHASED ____________________

This machine must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This machine is equipped with a cord having an
equipment-grounding conductor and grounding plug. The plug must be
inserted into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
WARNING - Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician
or service person if you are in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the machine - if it will not
fit the outlet, have a proper outlet installed by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a grounded
plug that looks like the plug illustrated in figure A. A temporary adapter
that looks like the adapter illustrated in figures B and C may be used to
connect this plug to a 2-pole receptacle as shown in figure B if a properly
grounded outlet is not available. The temporary adapter should be used only
until a properly grounded outlet (figure A) can be installed by a qualified
electrician. The green colored rigid ear, lug, or the like extending from
the adapter must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be held
in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the
Canadian Electrical Code
EXTENSION CORDS
Use only three-wire 16/3 or larger gauge approved extension cords that have
three-prong grounding type plugs and three-pole receptacles that accept the
appliance’s plug. Replace or repair any damaged cords or plugs.
When servicing, refer to authorized person only. Use only identical
replacement parts.
Grounding Instructions
NOTE: Do not use adapters shown in figures B & C in Canada
IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS
BEFORE USING THIS APPLIANCE!
WARNING! To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer’s attachments.
5. Do not use with damaged cord or plug. If appliance should not work as it should, has been dropped or damaged, left
outdoors, or dropped into water, return it to service center.
6. Do not pull or carry by cord, use cord as handle, close a door on cord or pull cord around sharp edges or corners. Do
not run appliance over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any objects into opening. Do not use with any opening blocked: keep free of dust, lint, hair and anything
that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
14. Connect to a properly grounded outlet only.
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
16. Do not use without dust bag and/or filters in place.
17. Do not use this vacuum for pick-up of wet debris; this vacuum is for dry pick-up only.

ASSEMBLY AND OPERATION
Unpack your vacuum from its carton and inspect the ma-
chine, hose assembly and tools for any damage. If there
is damage to any component, file a claim with the carrier
immediately.
Assembly
This machine requires little assembly before operation.
However, the following steps must be taken to ensure proper
operation.
1. Install a filter bag into the tank. Release the hook
located on each side of the machine’s tank and motor
assembly. Lift the cover off and set it aside. Slide the
bag retaining plate (Item 6) off the bag adapter. Then
push the filter bag opening over the adapter and slide
the bag retaining plate over both the bag cuff and the
adapter. Be sure the filter bag follows the perimeter of
the tank; the center area must remain clear for replace-
ment of the cover with motor assembly. Replace the
cover and fasten both hooks.
2. Insert the vacuum hose assembly into the adapter. Line
up the tabs on the vacuum hose with the notches on the
adapter and twist to secure in place. Then attach the
wand and selected tool. The wand and tools attach by
simply pushing them together.
Operation
The Model shown in this manual is intended for commercial
use and is to be used for only dry pick-up applications.
1. Before use, be sure a filter bag has been properly
installed in the machine (reference assembly instruc-
tions).
2. Attach the hose assembly, wand and selected tools.
3. Plug the power cord into a 115-volt, 60 cycle, grounded
outlet.
4. Press the power switch to start the vacuum. The switch
is located on the back left side of the vacuum, under the
accessory holder.
5. The vacuum suction is adjustable by turning the red
knob located on the back right side of the vacuum.
Minor adjustments to the vacuum suction can also be
made by sliding the lever on the bent wand section of
the hose assembly. For maximum pick-up the opening
must be closed, for reduced suction expose the open-
ing.
Tools
Four tools are provided with the vacuum: the combination
floor tool, upholstery tool, crevice tool and dusting brush.
Each is used by inserting them directly into the free end of
the vacuum hose/wand.
An adjustable metal wand is also provided. Simply push
on its knob to adjust the length.
Servicing
Warning: Always unplug your vacuum before per-
forming any service. Severe personal injury could
result if the electrical power is not disconnected.
1. Vacuum Filter Bag: When full, remove the paper filter
bag and install a new one.
2. Power Cord: Check the cord for cuts or nicks. If dam-
aged, have the cord replaced at a factory authorized
service center.
3. Caster/Wheels: Remove any string or debris that may
restrict their free movement. Wipe the treads clean.
4. Tools and Wand: Inspect to ensure there is no obstruc-
tion of airflow. Remove any debris if found.
5. Vacuum Filter: A foam filter is provided with the
vacuum. It is located in the cover assembly; turn the
cover upside down and push the tabs toward the center
of the cover to release the filter rest (Item 5) from the top
cover (Item 2). The filter requires periodic cleaning or
replacement. Remove any dust and debris by vacuum-
ing with a different vacuum cleaner. Note: There is also
an optional HEPA filter available for this vacuum. In
order to obtain the optimal performance from a HEPA
filter, it should be replaced when dirty.
6. Inlet Motor Filter: This vacuum has a filter to protect
the motor assembly. It requires periodic cleaning or
replacement. The filter is located inside the tank, over
the vacuum motor. Remove any dust and debris by
vacuuming with a different vacuum cleaner.
7. Vacuum Motor Maintenance: Have the vacuum mo-
tor inspected annually by a factory authorized service
technician. If the carbon brushes are worn, they should
be replaced. This service will prolong the life of the
vacuum motor.
3

4
10
11 13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
2
1
3
4
56
7
8
9
30
31
32
33
34
35
36
37
38
39
40
41 42
43
44
45
46

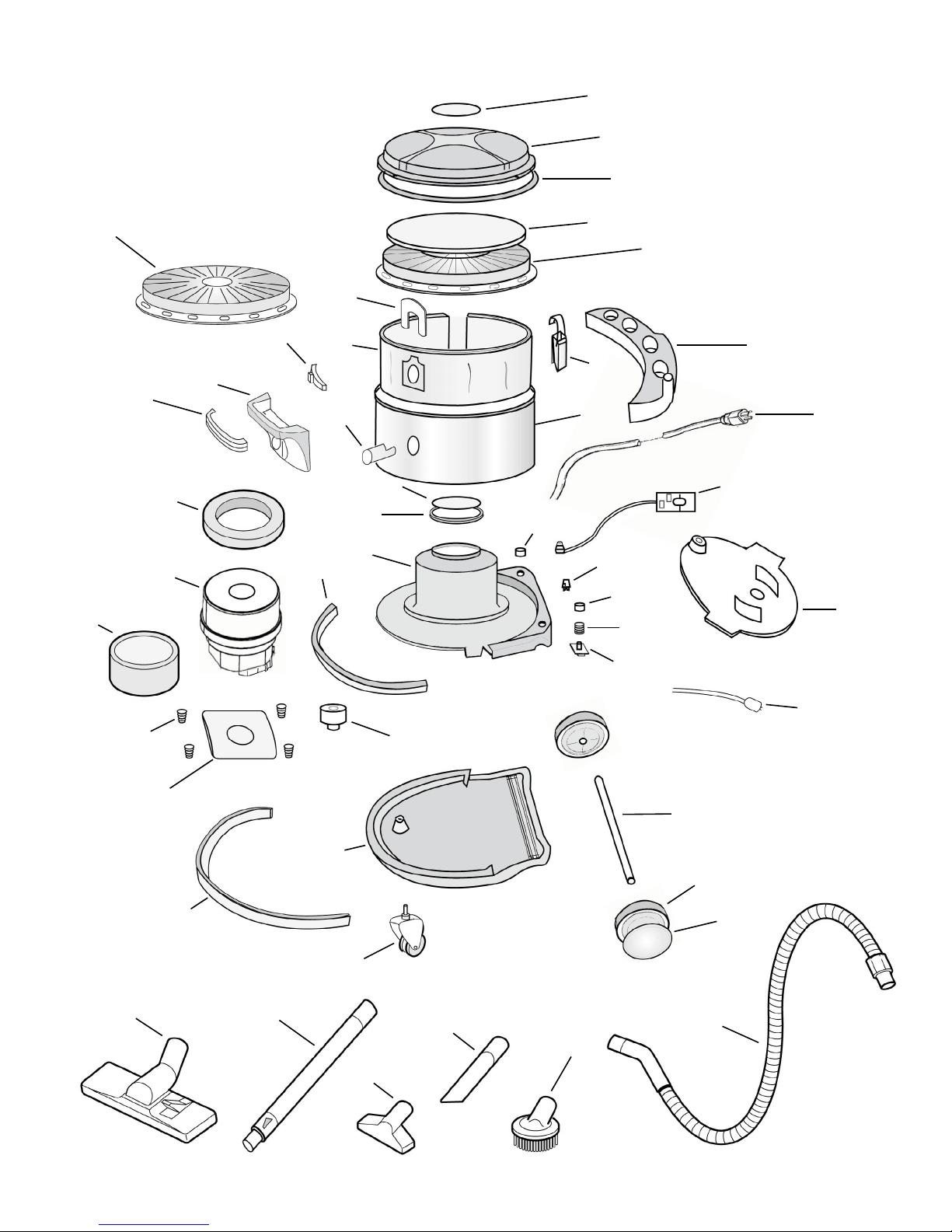

SC-19 Canister Vacuum
12

SC-19 Parts List
ITEM PART NUMBER DESCRIPTION QTY
1 612316 Decoration Cover 1
2 612317 Top Cover 1
3 613403 Gasket, Vac. Hd. 1
4 613301 Sponge Filter 1
5 613303 HEPA Filter - Optional
6 617503 Filter Rest 1
7 616605 Bag Retaining Plate 1
8 610610 Paper Bags, pack of 10
9 611305 Dustbag Block 1
10 619001 Vacuum Tube 1
11 613901 Carrying Handle 1
12 612315 Handle Cover 1
13 614501 Hook 2
14 616606 Accessory Plate 1
15 618601 Stainless Steel Tank 1
16 613302 Inlet Filter 1
17 613401 Gasket 1
18 612315 Motor Cover 1
19 618505 Sponge Bar 1
20 613402 Motor Gasket 1
21 605240 Motor 1
22 618502 Sound Deadening 1
23 618301 Support Spring for Motor 4
24 616605 Spring Plate 1
25 618503 Motor Support 1
26 908106 Power Cord 1
27 615005 Speed Control Knob 1
28 911282 PCB Vacuum Control 1
29 618506 Socket 1
30 615006 Knob - On/Off Switch 1
31 618302 Switch Spring 1
32 911283 On/Off Switch 1
33 618506 Motor Support 1
34 911284 Thermal Protector 1
35 617703 Wheel Shaft 1
36 619704 Wheel 2
37 611505 Cap - Wheel 2
38 611306 Base 1
39 611205 Bumper 1
40 619705 Caster 1
41 608813 Combination Floor Tool 1
42 639802 Metal Wand - Telescoping 1
43 618807 Upholstery Tool 1
44 608815 Crevice Tool 1
45 618806 Dusting Brush 1
46 614104 Hose Asm. 1

6
NOTES

7
NOTES

615605
8/04
SSS CANISTER VACUUM, MODEL SC-19
LIMITED WARRANTY
The SSS Canister Vacuum, Model SC-19 has been manufactured, tested and inspected in accordance with specific engineering requirements,
and is WARRANTED by the manufacturer to be free from defects in workmanship and materials.
This warranty is, however, subject to the following qualifications, conditions and limitations which are set forth to provide you and all users
of the SSS Canister Vacuum, Model SC-19 with information concerning the duration, extent, availability and applicability of this Limited
Warranty, the procedure to be taken to obtain its performance and other information concerning the manufacturer’s warranty policy.
1. TO WHOM EXTENDED AND DURATION OF ITEMS COVERED
This warranty extends to the original consumer purchaser from the date it
was purchased and for the items and periods as follows:
One (1) year parts and labor – All components unless excluded below.
2. PARTS NOT COVERED BY WARRANTY
Certain parts of the SSS Canister Vacuum require replacement in the or-
dinary course of use due to normal wear by reason of their characteristics.
This warranty does not cover the following normal wear items:
Part Number Part Name
908106 Cord Assembly
614104 Vacuum Hose Assembly
613301 Sponge Filter
610610 Paper Bags
613302 Inlet Filter
613303 HEPA Filter
608813 Combination Floor Tool
618807 Upholstery Tool
608815 Crevice Tool
618806 Dusting Brush
3. EXCEPTIONS AND EXCLUSIONS FROM WARRANTY
The SSS Canister Vacuum is required to be used on electric current as indi-
cated on the nameplate. Otherwise damage, defects, malfunctions or other
failures of the SSS Canister Vacuum arising from use on electric current
not as indicated are excepted and excluded from this warranty.
Defects, malfunctions, failure or damage of the SSS Canister Vacuum
caused by improper, unreasonable or negligent use or abuse while in the
possession of the consumer are likewise excluded from this warranty.
If repair is done on your SSS Canister Vacuum by anyone other than those
below designated as authorized to perform such work without first having
obtained factory instructions, the manufacturer, at its sole option, may
determine that this warranty will not apply and that reimbursement for
such repair will not be made because of the failure to comply with such
factory specified instructions.
4. PROCEDURE TO BE TAKEN TO OBTAIN PERFORMANCE
OF WARRANTY
To secure repair of the SSS Canister Vacuum or any warranted parts under
this warranty, the following procedure should be taken: The inoperative SSS
Canister Vacuum or warranted parts, together with satisfactory evidence
of the purchase date, must be delivered with shipping and delivery charges
prepaid to the Dealer from whom purchased.
If you are unable to locate the Dealer, you may write or otherwise com-
municate with Triple S, 2 Executive Park Drive, Billerica, MA 01862
for instructions before repair service is performed by anyone else. In such
event Triple S will provide either the location of a closely available Triple
S Distributor Service Department or other factory instructions.
Upon compliance with the above procedure, all warranted defects will
be repaired, at no additional charge or costs to the consumer, and the
repaired product returned to the consumer, with all shipping and delivery
charges prepaid.
In following the procedures above set forth PLEASE MAKE CERTAIN
to state the Triple S model, type and serial number as shown on the name
plate of the SSS Canister Vacuum.
REPLACEMENT
In the event of the defect, malfunction or failure of your SSS Canister
Vacuum or any warranted part to conform with this warranty, the manu-
facturer may at its sole option and own expense, replace the SSS Canister
Vacuum or any warranted part with another new identical or reasonably
equivalent model or part in lieu of repairing the defect.
5. NO REFUND OF PURCHASE PRICE
Triple S will not, as a matter of its warranty policy, refund the consumer’s
purchase price.
6. WARRANTY REGISTRATION CARD FOR YOUR SSS CAN-
ISTER VACUUM AND REQUESTS FOR INFORMATION
Please fill out the warranty registration card accompanying your SSS
Canister Vacuum, giving complete information as requested on the card,
and return to Triple S.
This warranty is in lieu of all other expressed or implied warranties.
