Tripp Lite SmartPro BP36V15-2U User manual

Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +[phone]
E-mail: [email protected]
Model #: BP36V15-2U

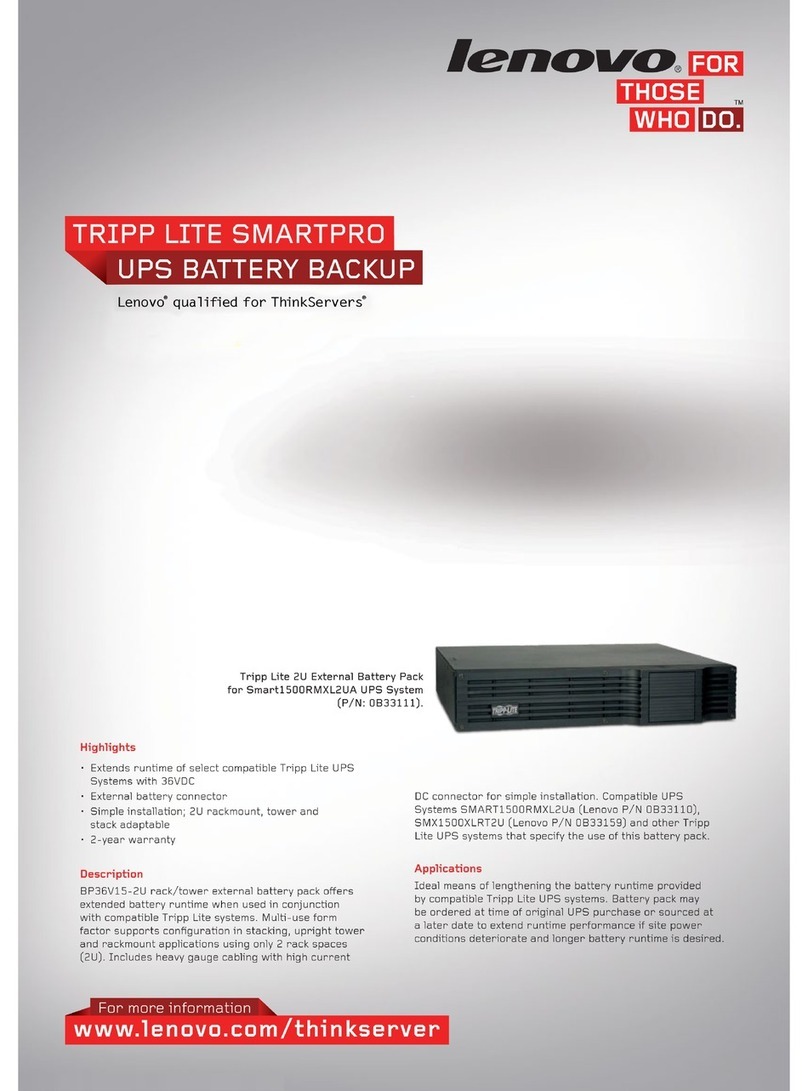

BP36V15-2U - External Battery Pack for UPS System
Highlights
Extends runtime of select compatible Tripp Lite UPS Systems with 36VDC
external battery connector
Simple installation; 2U rackmount, tower and stack adaptable
Description
BP36V15-2U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite systems.
Multi-use form factor supports configuration in stacking, upright tower and rackmount applications using only 2 rack spaces (2U). Includes heavy
gauge cabling with high current DC connector for simple installation.
COMPATIBLE UPS SYSTEMS - SMART1500RMXL2Ua, SMX1500XLRT2U and other Tripp Lite UPS systems that specify the use of this battery
pack.
Applications
Ideal means of lengthening the battery runtime provided by compatible Tripp Lite UPS systems. Battery pack may be ordered at time of
original UPS purchase or sourced at a later date to extend runtime performance if site power conditions deteriorate and longer battery
runtime is desired.
Package Includes
BP36V15-2U external battery pack
Mounting hardware
Warranty information
Instruction manual
Features
Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
Supports stacking or rackmount installation using only 2 rack spaces (2U)
Includes heavy gauge cabling with high current DC connectors for simple installation
Specifications
BATTERY
Expandable battery runtime No, users of this battery pack are limited to 1 max.
DC system voltage (VDC) 36

Connects to UPS via Grey 2-point connector
Typical battery lifespan 4-6 years typical
PHYSICAL
Shipping weight (lbs) 55
Shipping weight (kg) 24.95
Unit Dimensions (HWD/in) 3.5 x 17.5 x 13.25
Unit Dimensions (HWD/cm) 8.89 x 44.45 x 33.66
Shipping Dimensions
(HWD/in)
9 x 24 x 20.25
Shipping Dimensions
(HWD/cm)
22.86 x 60.96 x 51.44
Unit weight (lbs) 45
Unit weight (kg) 20.41
Material of construction Steel
Form factors supported 2U rack/tower
WARRANTY
Product Warranty Period
(U.S. & Canada)
2-year limited warranty
Product Warranty Period
(International)
1-year limited warranty
Product Warranty Period
(Mexico)
1-year limited warranty
Product Warranty Period
(Puerto Rico)
1-year limited warranty
Related Items
Optional Products
Product Type Related Model Description Qty.
Extended Warranties WEXT3-BP36V 3-Year Extended Warranty - For All 36V Battery Packs 1
Extended Warranties WEXT5-BP36V 5-Year Extended Warranty - For All 36V Battery Packs 1
Rackmount/Wallmount Kits 2POSTRMKITWM Enables 2-Post Rackmount or Wallmount Installation of Select
Rackmount UPS Systems
1
Tower Stands 2-9USTAND Enables Tower Placement of Rackmount UPS Systems 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=2727.
Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
