CAT5 Smart KVM Extender
User Guide

CAT5 SMART KVM EXTENDER
1
Table of Contents
1. Welcome ......................................................................... 2
2. Introduction ....................................................................3
3. The system components................................................ 3
4. The KVM Extender units ................................................4
5. Pre-installation instructions ..........................................5
6. The KVM Extender cables..............................................6
7. Power supply..................................................................6
8. Using the KVM Extender as an extender ...................... 7
9. Giving 2 users access to 1 computer............................ 8
10. The KVM Extender as a 2-port KVM Switch.................. 9
11. Operating the KVM Extender....................................... 10
12. KVM Extender Settings mode...................................... 11
13. Cascading Smart Extenders........................................ 16
14. Technical specifications.............................................. 19
15. KVM Extender configuration........................................ 20

USER GUIDE
2
1. Welcome
Thank you for buying the CAT5 Smart KVM Extender system. The
system is produced by Minicom Advanced Systems Limited.
Technical precautions
This equipment generates radio frequency energy and if not installed in
accordance with the manufacturer’s instructions, may cause radio
frequency interference.
This equipment complies with Part 15, Subpart J of the FCC rules for a
Class A computing device. This equipment also complies with the
Class A limits for radio noise emission from digital apparatus set out in
the Radio Interference Regulation of the Canadian Department of
Communications. These above rules are designed to provide
reasonable protection against such interference when operating the
equipment in a commercial environment. If operation of this equipment
in a residential area causes radio frequency interference, the user, and
not Minicom Advanced Systems Limited, will be responsible.
Changes or modifications made to this equipment not expressly
approved by Minicom Advanced Systems Limited could void the
user’s authority to operate the equipment.
Minicom Advanced Systems Limited assumes no responsibility for any
errors that appear in this document. Information in this document is
subject to change without notice.
No part of this document may be reproduced or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without
the express written permission of Minicom Advanced Systems
Limited.
Trademarks
All trademarks and registered trademarks are the property of their
respective owners.

CAT5 SMART KVM EXTENDER
3
2. Introduction
The CAT5 Smart KVM Extender (KVM Extender) system from
Minicom is an advanced KVM switch that performs the
following functions:
Extends KVM control over a computer* up to a
distance of 110m / 360ft
Gives 2 users at 2 workstations control of 1 computer*
A 2-port KVM switch for 1 or 2 users
* Throughout this guide ‘computer’ also means a KVM switch
3. The system components
The KVM Extender system consists of:
Transmitter
Receiver
3 in 1 CPU cable
1 Power adapter for the Receiver
A Shielded CAT5 FTP (Foil Twisted Pair) Solid Wire 2x4x24
AWG cable with RJ-45M connectors connects the KVM
Extender system.
The Receiver can be up to 110m/360ft away from the
Transmitter.

USER GUIDE
4
4. The KVM Extender units
The figures below illustrate the Transmitter and Receiver units.

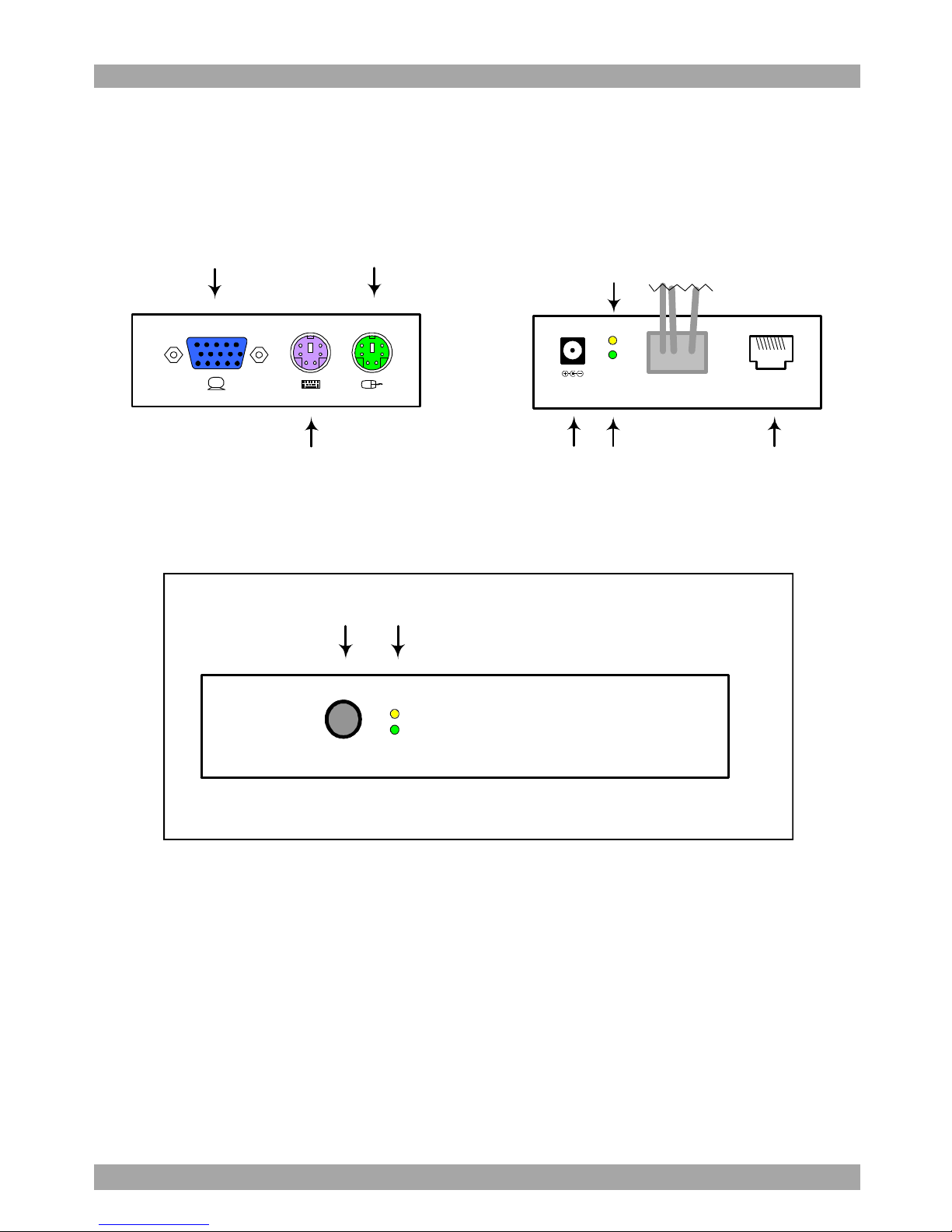

Figure 1 Transmitter side panels
Figure 2 Receiver front panel
SYSTEM
CPU
Built-in KVM
cables
System cable
6VDC
Green
Control LED
MouseMonitor
Keyboard
Side A Side B
Yellow
Power LED
Power
connector
SELECT
POWER
CONTROL
Select
button LEDs

CAT5 SMART KVM EXTENDER
5
Figure 3 Receiver rear panel
Figure 4 Receiver side panel
5. Pre-installation instructions
Disconnect all computers from the power supply.
Place cables away from fluorescent lights, air conditioners,
and machines that are likely to generate electrical noise.
COMPUTER USER
Keyboard
Mouse
Monitor
Computer
Mouse port
Computer Keyboard
port Computer Monitor port
6VDC
SYSTEMPICTURE
adjuster
System
cable
Power
connector

USER GUIDE
6
6. The KVM Extender cables
The Transmitter comes with built-in KVM cables that connect
to the computer’s Video card, Mouse and Keyboard ports.
The 3 in 1 CPU cable
The 3 in 1 CPU cable –illustrated below – is only used when
the Receiver connects to a computer. The cable connects to the
Computer section of the Receiver rear panel.
Figure 5 3 in 1 CPU cable
7. Power supply
Connect the Receiver to the power supply with the Power
adapter and cord provided.
The Transmitter receives its power from the connected
computer and does not generally need an external power supply.
However, when cascading Smart Extenders, some of the
Transmitters need an external power supply. Use a Minicom
Power adapter p/n 5PS20025. The power supply specifications
are: Regulated 6VDC 2 Amp, minus on internal pin .
Cascading is discussed on page 16.

CAT5 SMART KVM EXTENDER
7
8. Using the KVM Extender as an extender
Extend the KVM workstation from the computer up to a
distance of 110m/360ft.
1. Connect the Transmitter to a computer.
2. Connect a KVM workstation to the Receiver.
3. Connect a CAT5 FTP cable to the System ports of the
Transmitter and Receiver.
4. Connect a Power adapter to the Receiver.
Figure 6 illustrates the connections.
Figure 6 KVM Extender as an extender
CAT5
S M AR T
Extender
RECEIVER MINICOM
www.minicom.com
CAT5
S M A R T
Extender
TRANSMITTER M INICOM
www.minicom.com
6VDC
To Video card
SD
DESKPRO To wall
socket
SD
P110
Computer
To
Keyboard
port
To Mouse port
Transmitter
Receiver
To System port
CAT5 FTP cable
Up to 110m / 360ft
Power
adapter To Power
connector
To User Monitor port To User
Keyboard port
To User
Mouse
port
To System port

USER GUIDE
8
9. Giving 2 users access to 1 computer
To give 2 users access to 1 computer, connect the system as in
Figure 7. The connections are the same as in Figure 6, with the
addition of a KVM workstation for user 2.
Access to the computer is on a first-come-first-served basis.
Figure 7 Giving 2 users access to 1 computer
CAT5
SM ART
Extender
RECEIVER MINICOM
www.minicom.com
CAT5
SM ART
Extender
TRANSMITTER MINICOM
www.minicom.com
6VDC
SD
DESKPRO 
SD
P110
Computer
Transmitter
Receiver
CAT5 FTP cable
Up to 110m / 360ft
To Monitor port
SD
P110
To Keyboard
port
To Mouse
port
User 1
User 2

CAT5 SMART KVM EXTENDER
9
10. The KVM Extender as a 2-port KVM Switch
Figure 8 illustrates the system connected to 2 computers and 2
workstations. User 1 can access his local computer or the
remote computer. User 2 can only access his local computer.
The connections are the same as in Figure 7, with the addition
of the 3 in 1 CPU cable that connects a 2nd computer to the
Receiver.
Figure 8 2-port KVM Switch
The option in Figure 8 can also work with only 1 user
workstation connected at the Receiver.
There is another configuration diagram on the last page of this
Guide, and more on the Marketing & Documentation CD.
CAT5
SM ART
Extender
RECEIVER MINICOM
www.minicom.com
CAT5
SM ART
Extender
TRANSMITTER MINICOM
www.minicom.com
6VDC
SD
DESKPRO 
SD
P110
Computer
Transmitter
Receiver
CAT5 FTP cable
Up to 110m / 360ft
SD
P110
User 1
User 2
3 in 1
CPU
cable
SD
DESKPRO 
To Video card
To
Keyboard
port
To Mouse port
To Computer
Monitor port
To Computer
Keyboard port
To Computer
Mouse port
Computer

USER GUIDE
10
11. Operating the KVM Extender
Once the system is connected there are 2 ways to switch
between the 2 computers / KVM workstations.
At the Receiver, press the Select button
Or
At the keyboard, press Shift followed by + or -.
Control LEDs
Control LED On Blinking Off
Receiver Receiver controls
the Transmitter
computer
Transmitter controls
its own computer Working at
Receiver
computer
Transmitter Receiver controls
the Transmitter
computer N/A Working at
Transmitter
computer
Adjusting the picture
When the Transmitter computer is controlled from the Receiver,
you can adjust the picture quality using a small flat screwdriver
to turn the Picture adjuster located on the Receiver’s rear panel.
See Figure 4.
Timeout
When there are 2 workstations in the system you can gain
control at either workstation when the other workstation is idle
for 1 second. This timeout period can be altered in the Settings
mode to between 1-99 seconds, as explained on page 12.

CAT5 SMART KVM EXTENDER
11
Locking KVM control
When there are 2 users in the system, either user can override
the Timeout feature and retain control by locking the system.
To lock control:
On the keyboard press Shift then, F12.
To relinquish control:
On the keyboard press Shift then, Esc.
In the Settings mode you can disable the lock control function,
as explained on page 12.
12. KVM Extender Settings mode
Enter the Settings mode to:
Change the hotkey
Change the Timeout period
Enable/disable lock control
Make advanced adjustments
View settings
Note! Settings changed at the Receiver location are saved in the
system. Settings changed at the Transmitter location are erased
once the Transmitter is powered off.

USER GUIDE
12
To enter the Settings mode:
Press Shift then, F2. Release Shift before pressing F2. All 3
keyboard LEDs glow when in the Settings mode.
Changing the hotkey
At the Receiver you can change the hotkey from Shift to Alt or
Ctrl. Once changed, all references in this Guide to Shift now
refer to the new hotkey.
To change the hotkey:
To Type the letters
Alt HA
Ctrl HC
Shift HS
Changing the Timeout period
At the Receiver you can change the Timeout period.
To do so:
Press Tfollowed by a 2-digit number of between 01-99
seconds. The 3 keyboard LEDs blink and the new setting is now
functional.
Enabling/disabling lock control
By default both users can lock control. At the Receiver you can
disable / enable lock control.
To disable lock control type DL.
To enable lock control type EL.

CAT5 SMART KVM EXTENDER
13
Making advanced adjustments
The KVM Extender operates with:
Windows, Linux, Novell or UNIX systems
2 or 3 or 5 button PS/2 mouse, Intellimouse or Wheel
mouse
When connected and switched on as set out above, the KVM
Extender automatically operates with the computer and mouse
types connected to it.
Replacing a computer
When a computer is replaced with a different computer type
while the KVM Extender is in use, we recommend turning the
new computer off before connecting it to the KVM Extender.
When turning the computers off is inconvenient, do the
following:
At the Receiver or Transmitter location, enter the Settings mode
to adjust the keyboard and mouse modes making them
compatible with the new computer. See the tables below.
Keyboard settings when replacing a computer
For Type the letters
PC (Windows, Linux,
Novell) PC
UNIX console mode UC
UNIX graphics mode UG

USER GUIDE
14
Set the keyboard mode to:
PC when operating Intel based computers.
UC when operating UNIX computers in console mode.
UG when operating UNIX computers in graphics mode.
Mouse driver settings when replacing a computer
For Type the letters
Wheel mouse or Intellimouse IN
2 or 3 button mouse PS
5-button mouse EP
Set the mouse mode to IN when the computer has an operating
system that supports Wheel mouse functionality: (Windows 98
and Linux*).
Set the mouse setting to PS when the computer has an operating
system that does not support Wheel mouse functionality:
(Windows 95, NT4, DOS, Linux*, UNIX and Novell).
*Depending on the version.
Set the mouse setting to EP when the computer has an operating
system that supports Explorer mouse functionality: (Windows –
ME, 2000, and XP).

CAT5 SMART KVM EXTENDER
15
Replacing a mouse type
After replacing a mouse with a different mouse type (as
opposed to a different mouse of the same type) while the KVM
Extender is in use. From the Receiver location:
1. Press and hold the Select button for more than 5 seconds.
2. Release the Select button after your monitor blinks once.
Viewing the settings
At the Receiver or Transmitter location, view the settings and
firmware revision in any text editor.
To view the settings:
1. Before entering to the Settings mode switch the keyboard
layout to English.
2. Open any text editor, e.g. Notepad.
3. Press Shift, then F2 to enter the Settings mode.
4. Press F. The settings appear in the text editor.
Exiting the Settings mode
To save changes and exit the Settings mode:
Press Esc.

USER GUIDE
16
13. Cascading Smart Extenders
You can cascade two or more Smart Extenders to get more than
one remote workstation working from one computer. One
possible configuration is shown on the diagram below.

CAT5 SMART KVM EXTENDER
17
Figure 9 Cascading Smart extenders
Transmitter Power adapter
When cascading connect an external Minicom Power adapter
+6VDC 2A (P/N 5PS20025) and Power cord to the second
CA T5
SM ART
Extender
TRANSM ITTER M I N IC O M www .min icom .com
SYSTEM
6VDC
SD
P 1 1 0
CAT5
SM ART
Extender
TRANSMITTER M IN IC O M www. minicom.com
SYSTEM
6VDC
6VDC
SYS TEM
CA T5
SM ART
Extender
RECEIVE R M I NI C O M
www .min icom .com
PICT URE
SELECT
US ERCOM PU TER
S D
P 1 1 0
6VDC
SYSTEM
CAT5
SM ART
Extender
RE CEIV ER M I N IC O M
www.m inicom.com
PICTU RE
SELEC T
USE RCOMP UTER
CAT5 Cable
CAT5 Cable
Remote
Workstation 2 Remote
Workstation 1
Smart Extender
Transmitter 1
Smart Extender
Transmitter 2
Smart Extender Receiver 2 Smart Extender Receiver 1
Power Supply
+6VDC 2A
To Wall Socket
Power Supply
+6VDC 2A
To Wall Socket
Power Supply
+6VDC 2A
To Wall Socket

USER GUIDE
18
Transmitter unit. This ensures mouse and keyboard
functionality. See Figure 9 above.
Order of switching on
When cascading, switch the system on in the following order:
1. The second Smart Extender Transmitter unit
2. The rest of the system, including the shared computer.

CAT5 SMART KVM EXTENDER
19
14. Technical specifications
System
System cable CAT5 FTP cable 2x4x24 AWG Solid Wire
Maximum distance 110m/360ft
Mouse support: 2 or 3 or 5 button PS/2, Wheelmouse
Operating systems DOS, Windows, Novell, Linux, UNIX, HP UX,
QNX, SGI, FreeBSD, BeOS, Open VMS
Screen resolution Up to 1600X1200 @ 75Hz (depends on
cable length)
Operating temperature 0° to 40°C/32° to 104°F
Storage temperature -40°C to 40°C/-40°F to 104°F
Transmitter Receiver
Cables Built-in KVM 3 in 1 CPU
Connectors VGA – HDD15M
Keyboard – MiniDin6M
Mouse – MiniDin6M
System – RJ45
VGA – HDD15F
Keyboard – MiniDin6F
Mouse – MiniDin6F
System - RJ45
Dimensions 85 x 113 x 25mm/
3.3 x 4.4 x 0.98“ 85 x 49 x 25mm/ 3.3 x 1.9 x 0.98“
Weight 380g
Shipping weight 1.70 Kg
Power supply From computer keyboard
5V 220mA External power adapter 6VDC 2A
