Tripp lite B127a-1a1-fhfh User manual

4K A/V over Cat6 Wall-Plate

Extender Kits and Receivers

HDMI Extender Kit Models:

B127A-1A1-FHFH, B127A-2A1-FHFH, B127A-1A1-BHFH

DisplayPort to HDMI Extender Kit Models:

B127A-1A1-FDFH, B127A-1A1-BDFH

HDMI Receiver Models: B127A-1A0-FH, B127A-2A0-FH

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Owner's Manual

WARRANTY REGISTRATION

win an ISOBAR®surge protector in our monthly drawing!

tripplite.com/warranty

Este manual está disponible en español en la página de Tripp Lite:

tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite :

tripplite.com

Русскоязычная версия настоящего руководства представлена на

веб-сайте компании Tripp Lite по адресу: tripplite.com

Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website

verfügbar: tripplite.com

B127A-1A1-FHFH

• Wall-Plate Transmitter and Receiver

• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;

Output: 24V/1A)

• Plug Adapters (AS/NZS 3112 Australia; BS 1363 U.K.;

CEE 7/16 Schuko; NEMA 1-15P North America)

• IR-In and IR-Out Cables

• Mounting Screws

• Owner’s Manual

B127A-2A1-FHFH

• Wall-Plate Transmitter and Dual Output Receiver

• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;

Output: 24V/1A)

• Plug Adapters (AS/NZS 3112 Australia; BS 1363 U.K.;

CEE 7/16 Schuko; NEMA 1-15P North America)

• IR-In and IR-Out Cables

• Mounting Screws

• Owner’s Manual

Package Contents

B127A-1A1-FDFH

• Wall-Plate DisplayPort Transmitter and HDMI Receiver

• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;

Output: 24V/1A)

• Plug Adapters (AS/NZS 3112 Australia; BS 1363 U.K.;

CEE 7/16 Schuko; NEMA 1-15P North America)

• IR-In and IR-Out Cables

• Mounting Screws

• Owner’s Manual

B127A-1A1-BHFH

• Box-Style Transmitter and Wall-Plate Receiver

• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;

Output: 24V/1A)

• Plug Adapters (AS/NZS 3112 Australia; BS 1363 U.K.;

CEE 7/16 Schuko; NEMA 1-15P North America)

• IR-In and IR-Out Cables

• Mounting Hardware

• Owner’s Manual

Package Contents

B127A-1A1-BDFH

• Box-Style DisplayPort Transmitter and Wall-Plate HDMI Receiver

• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;

Output: 24V/1A)

• Plug Adapters (AS/NZS 3112 Australia; BS 1363 U.K.;

CEE 7/16 Schuko; NEMA 1-15P North America)

• Mounting Hardware

• Owner’s Manual

B127A-1A0-FH

• Wall-Plate Receiver

• Mounting Screws

• Owner’s Manual

B127A-2A0-FH

• Wall-Plate Dual-Output Receiver

• Mounting Screws

• Owner’s Manual

Optional Accessories

• N202-Series Cat6 24 AWG Solid-Wire Patch Cables

• P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI 2.0

Cables

• P580-Series DisplayPort 1.2 Cables

• B127A-010-H Signal Booster

Product Features

B127A-1A1-FHFH

• Extends video resolutions up to 4K x 2K (3840 x 2160) @

60 Hz (as speciﬁed in HDMI 2.0) to an HDMI monitor up to

230 ft. (70 m)

• HDCP 2.2, High Dynamic Range (HDR) and 4:4:4 color space

compatible

• Local HDMI port included on transmitter unit supports

4K/60 Hz

• Plug and play—no software or drivers required

• Power over Cable (PoC) function allows external power supply

to be plugged in at either transmitter or receiver side and

provides power to both units

• Single-gang metal wall-plate design with included mounting

screws

• Support up to 7.1-channel surround sound audio

• Supports bi-directional IR with the included IR-In and IR-Out

cables

• Compatible with B127A-010-H signal booster to extend the

maximum transmission distance to 400 ft. (120m) from the

source (sold separately, see tripplite.com)

B127A-2A1-FHFH

• Extends video resolutions up to 4K x 2K (3840 x 2160) @

60 Hz (as speciﬁed in HDMI 2.0) to an HDMI monitor up to

230 ft. (70 m)

Product Features

• Single-gang metal wall-plate design with included mounting

screws

• HDCP 2.2, High Dynamic Range (HDR) and 4:4:4 color space

compatible

• Local HDMI port included on transmitter unit supports

4K/60 Hz

• Plug and play—no software or drivers required

• Power over Cable (PoC) function allows the external power

supply to be plugged in at either transmitter or receiver side

and provides power to both units

• Support up to 7.1-channel surround sound audio

• Supports bi-directional IR with the included IR-In and IR-Out

cables

• Compatible with B127A-010-H signal booster to extend the

maximum transmission distance to 400 ft. (120m) from the

source (sold separately, see tripplite.com)

B127A-1A1-FDFH

• Extends video resolutions up to 4K x 2K (3840 x 2160) @

60 Hz (as speciﬁed in HDMI 2.0) to an HDMI monitor up to

230 ft. (70 m)

• Single-gang metal wall-plate design with included mounting

screws

• HDCP 2.2, High Dynamic Range (HDR) and 4:4:4 color space

compatible

Product Features

• Local HDMI port included on transmitter unit supports

4K/60 Hz

• Plug and play—no software or drivers required

• Bi-directional Power over Cable (PoC) function allows external

power supply to be plugged in at either transmitter or receiver

side

• Remote receiver unit includes built-in equalization (EQ) control

• Real-time compression and decompression technology

• Supports pass-through audio formats including:

LPCM 2.0/5.1/7.1

• Compatible with B127A-010-H signal booster to extend the

maximum transmission distance to 400 ft. (120m) from the

source (sold separately, see tripplite.com)

B127A-1A1-BHFH

• Extends video resolutions up to 4K x 2K (3840 x 2160) @

60 Hz (as speciﬁed in HDMI 2.0) to an HDMI monitor up to

230 ft. (70 m)

• Box-style transmitter can be mounted to a wall, 19” rack, pole

or other hard surface with included mounting hardware

• Single-gang metal wall-plate receiver with included mounting

screws

• HDCP 2.2, High Dynamic Range (HDR) and 4:4:4 color space

compatible

• Local HDMI port included on transmitter unit supports

4K/60 Hz

Product Features

• Plug and play—no software or drivers required

• Power over Cable (PoC) function allows external power supply

to be plugged in at the transmitter side and provides power to

receiver unit

• Remote receiver unit includes built-in equalization (EQ) control

• Real-time compression and decompression technology

• Supports bi-directional IR with the included IR-In and IR-Out

cables

• Compatible with B127A-010-H signal booster to extend the

maximum transmission distance to 400 ft. (120m) from the

source (sold separately, see tripplite.com)

B127A-1A1-BDFH

• Extends video resolutions up to 4K x 2K (3840 x 2160) @

60 Hz (as speciﬁed in HDMI 2.0) to an HDMI monitor up to

230 ft. (70 m)

• Box-style transmitter can be mounted to a wall, 19” rack, pole

or other hard surface with included mounting hardware

• Single-gang metal wall-plate receiver with included mounting

screws

• HDCP 2.2, High Dynamic Range (HDR) and 4:4:4 color space

compatible

• Local HDMI port included on transmitter unit supports

4K/60 Hz

• Plug and play—no software or drivers required

Product Features

• Power over Cable (PoC) function allows external power supply

to be plugged in at the transmitter side and provides power to

receiver unit

• Includes real-time video compression and decompression

technology

• Compatible with B127A-010-H signal booster to extend the

maximum transmission distance to 400 ft. (120m) from the

source (sold separately, see tripplite.com)

B127A-1A0-FH

• Extends video resolutions up to 4K x 2K (3840 x 2160) @

60 Hz (as speciﬁed in HDMI 2.0) to an HDMI monitor up to

230 ft. (70 m)

• Single-gang metal wall-plate receiver works with Tripp Lite

B127A-Series transmitter, splitter and switch products (sold

separately)

• HDCP 2.2, High Dynamic Range (HDR) and 4:4:4 color space

compatible

• Plug and play—no software or drivers required

• Power over Cable (PoC) function provides power to the receiver

from a connected B127A-Series transmitter, splitter or switch

unit via Cat6 cable

• Includes real-time video compression and decompression

technology

Product Features

• Compatible with B127A-010-H signal booster to extend the

maximum transmission distance to 400 ft. (120m) from the

source (sold separately, see tripplite.com)

B127A-2A0-FH

• Extends video resolutions up to 4K x 2K (3840 x 2160) @

60 Hz (as speciﬁed in HDMI 2.0) to an HDMI monitor up to

230 ft. (70 m)

• Dual-output single-gang metal wall-plate receiver works

with Tripp Lite B127A-Series transmitter, splitter and switch

products (sold separately)

• HDCP 2.2, High Dynamic Range (HDR) and 4:4:4 color space

compatible

• Plug and play—no software or drivers required

• Power over Cable (PoC) function provides power to the receiver

from a connected B127A-Series transmitter, splitter or switch

unit via Cat6 cable

• Real-time video compression and decompression technology

• Compatible with B127A-010-H signal booster to extend the

maximum transmission distance to 400 ft. (120m) from the

source (sold separately, see tripplite.com)

Disclaimer

Before installation, please check the following settings of your

source(s) and TV/monitor(s):

1. Set display to 60 Hz. Double-check factory settings, as

default can be set to a lower frequency (Hz) than advertised.

2. Ensure the input setting of your monitor is set at HDMI 2.0.

Some displays may have default setting at HDMI 1.4.

3. Verify your monitor has the HDR feature enabled. Some

displays may have this feature disabled as a factory setting.

4. Check if the Ultra HD (UHD) Deep Color setting is enabled on

your TV/monitor. Conﬁrm with your TV/monitor manufacturer

which HDMI ports support UHD Deep Color.

Note: To connect a local monitor to your installation, the UHD Deep Color

setting may need to be disabled on your local TV/monitor (depending on

make/model) to achieve 4K 60 Hz resolution.

Installation

B127A-1A1-FHFH Single-Output

Extender Kit

Notes:

• Make sure all equipment in the installation—such as monitors, an

HDMI notebook PC and the transmitter—is powered OFF.

• Test to ensure the entire installation works properly before pulling

cables through ceilings/walls.

• To achieve maximum distance and performance, use 24 AWG solid

wire Cat6 cable. Using stranded-wire Cat6 cable, or cable with a

gauge (AWG) size higher than 24 AWG, will result in shorter extension

distance. Higher gauge cabling, such as 26 AWG, has a more limited

transmission capability than lower gauge cabling. All Tripp Lite

N202-Series Cat6 cables are made with 24 AWG solid-wire cabling.

• External power is not required for remote receiver units due to Power-

over-Cable (PoC) technology incorporated in the transmitter units.

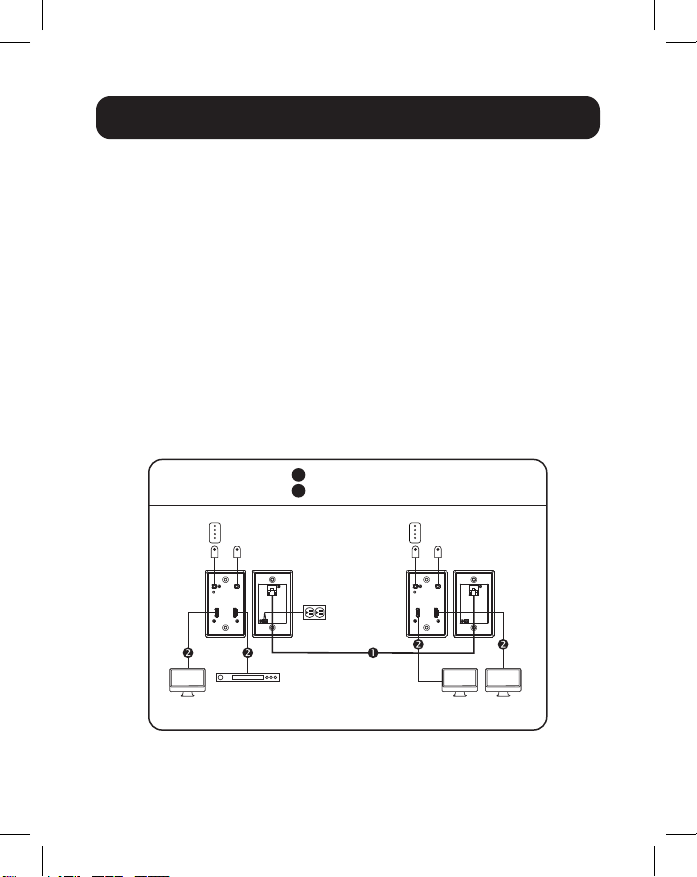

B127-1A1-FHFH

Extender Kit

Local / Transmitter Remote / Receiver

Up to 230 ft. Cat6 solid cable at 4K / 60 Hz.

Up to 15 ft. HDMI 2.0 cable at 4K / 60 Hz.

IR Control

Pad

IR Control

Pad

Sensor

Monitor

HDR Player

Up to 230 ft. (70 m) at 4K / 60 Hz.

Installation

1. Using an HDMI cable, connect the HDMI source to the INPUT

port on the local transmitter unit.

2. Optional: Using an HDMI 2.0 cable (such as Tripp Lite

P569-XXX-CERT or P568-XXX-2A Series cables), connect a

local monitor to the LOCALOUT port on the B127A-1A1-FHFH

local transmitter unit.

3. Using Cat6 cable, connect the RJ45 port on the local

transmitter unit to the RJ45 port on the remote receiver unit.

Optional: For extended transmission distance, connect a

B127A-010-H signal booster between the transmitter and

receiver (sold separately, see tripplite.com).

4. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT

or P568-XXX-2A Series cables), connect the remote receiver

unit’s HDMI port to a monitor.

5. Turn the power on to your connected TVs/monitors.

6. Connect the external power supply to the local transmitter

unit and plug it into an available wall outlet or (optional) a

Tripp Lite Surge Protector, Power Distribution Unit (PDU) or

Uninterruptible Power Supply (UPS). The POWER (green) LED

on the local transmitter unit will illuminate to indicate the unit

is receiving power from the external power supply. The DATA

(green) LED on the remote receiver unit will illuminate to

indicate the unit is receiving power from the local transmitter

unit through PoC technology.

7. Turn on the power to the HDMI source. The DATA (green) LED

on the local receiver unit will blink to indicate a signal is being

received from the source.

Installation

Optional: Connect the included IR-OUT cable to the transmitter

unit’s IR-OUT port. Place the sensor on the IR-OUT cable in

an unobstructed area within clear view of the device being

controlled. Then connect the included IR-IN cable to the receiver

unit’s IR-IN port. The IR-IN cable will communicate the desired

command via the transmitter’s IR-OUT cable.

Note: The IR-OUT cable receives the signal from the remote control and

sends it to the device being controlled (e.g. Blu-ray™ player, etc.).

B127A-2A1-FHFH Dual-Output Extender Kit

Notes:

• Make sure all equipment in the installation--such as monitors, an

HDMI notebook PC and the transmitter--is powered OFF.
