Tripp Lite B024-DUA8-SL User manual

1
Owner’s Manual
DVI/USB Rack-mount
KVM Switch with Audio
and Peripheral Sharing
Models: B024-DUA8-SL (Single-Link),
B024-DUA8-DL (Dual-Link)
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2017 Tripp Lite. All rights reserved.
Package Contents 2
Optional Accessories 2
System Requirements 2
Features 3
Safety Instructions 7
Installation 9
Basic Operation 17
Specifications 39
Warranty and 40
Product Registration
Regulatory Compliance 40
Español 41
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an ISOBAR6ULTRA
surge protector—a $100 value!
www.tripplite.com/warranty
17-10-479-93370A.indb 1 11/17/2017 2:28:56 PM

2
Package Contents
Optional Accessories
System Requirements
• B024-DUA8-SL or B024-DUA8-DL KVM Switch
• (x2) DVI/USB KVM Cable Kits, 6 ft.
• External Power Supply
B024-DUA8-SL – 1-15P Plug with 5 ft. Cord
(Input: 100-240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)
B024-DUA8-DL – 1-15P Plug with 5 ft. Cord
(Input: 100-240V, 50/60 Hz, 0.7A; Output: 5.2V 4A)
• RJ11 to DB9 Firmware Upgrade Cable, 6 ft.
• Grounding Wire
• Rackmount Hardware
• Rubber Feet
• Owner’s Manual
• P312-Series 3.5 mm Stereo Audio Cables
• P502-Series High-Resolution VGA Monitor Cables
• P556-Series DVI to VGA Adapter Cables
• P560-Series DVI-D Dual Link Cables
• P561-Series DVI-D Single Link Cables
• P759-Series DVI/USB + Audio KVM Cable Kits
• U022-Series USB 2.0 A/B Device Cables
Console Requirements
• DVI or VGA (optional) monitor capable of supporting the highest resolution in the
installation
• USB keyboard and mouse
• Microphone and speakers with 3.5 mm connectors (optional)
Computer Requirements
• DVI* or VGA (optional) ports
• A USB port
• Microphone and speaker jacks with 3.5 mm connectors (optional)
*DVI dual-link ports required to obtain DVI dual-link video resolutions.
17-10-479-93370A.indb 2 11/17/2017 2:28:56 PM

3
System Requirements
Features
• 8-Port DVI/USB rack-mount KVM switch with audio and USB 2.0 peripheral sharing
• Connect up to 512 computers by cascading up to three levels of KVM switches
• Multi-view installation feature allows stacking of up to four KVMs for connecting
computers with up to four DVI output ports and displaying video on up to four
console monitors
• Built-in 2-port USB 2.0 hub allows USB devices to be shared among computers
connected to the KVM switch
• 3.5 mm microphone jack provides audio input to connected computers
• 3.5 mm audio jack provides rich 2.1 channel sound with full bass response to a set
of speakers via the computer’s audio output
• Additional console audio jacks are conveniently located on the front panel of the
KVM switch, ideal for use with IP phones
• The KVM and USB focus can be switched independently of one other; for example,
you can access one computer while simultaneously printing from another computer
• Switch between connected computers via front panel pushbuttons, keyboard
hotkeys, and the on-screen display (OSD)
• Multilingual OSD supports English, German, Japanese, Traditional Chinese,
Simplified Chinese, Spanish, Russian and French
• Auto Scan mode scans connected computers without manually switching between
them
• Broadcast mode simultaneously sends console commands to all computers to
perform operations
Supported Operating Systems
OS Version
Windows™ 2000 and higher
Mac®OS 9.0 and higher
Linux®Kernel 2.6 and higher
Linux RedHat 9.0 and higher
Linux Debian 3.1 / 4.0
Linux SuSE 10 / 11.1 and higher
Linux Ubuntu 7.04 / 7.10
UNIX AIX 4.3 and higher
UNIX FreeBSD 5.5 and higher
UNIX Sun Solaris 8 and higher
Novell Netware 6.0 and higher
17-10-479-93370A.indb 3 11/17/2017 2:28:56 PM

4
Features
• OSD Backup and Restore feature allows back up of KVM configuration and user
profile information
• Supports analog and digital video signals, allowing VGA computer and/or monitor
connections
• Supports digital video resolutions up to 2560 x 1600 (B024-DUA8-DL),
1920 x 1200 (B024-DUA8-SL), and analog video resolutions up to 2048 x 1536
(both models)
• Console mouse port emulation/bypass feature supports most mouse drivers and
multifunction mice
• Multi-platform support – compatible with Windows, Mac, Sun and Linux
• Supports hot plugging – computers and devices can be unplugged and re-plugged
without shutting down the KVM switch
• The KVM switch stores the monitor’s EDID (Extended Display Identification Data) to
optimize display resolution
• LEDs provide easy monitoring of connected computers
• HDCP compliant
• Complete keyboard emulation for error-free booting
• Quick installation—no software needed
• Sun/Mac keyboard support and emulation*
• Multilingual keyboard mapping supports English (US), English (UK), French, German,
Japanese, Korean, Traditional Chinese and Spanish
• Firmware upgradeable
*PC keyboard combinations emulate Sun/Mac keyboards. Sun/Mac keyboards are only
compatible with their respective computers.
17-10-479-93370A.indb 4 11/17/2017 2:28:56 PM

5
Features
Front Panel
1Port Selection Pushbuttons
• To simultaneously switch the focus of the KVM, audio, and USB hub to a port,
press and hold its pushbutton for two seconds.
• To switch the focus of the KVM and audio to one port only, press and hold its
pushbutton for less than two seconds.
• To initiate Auto Scan mode, simultaneously press and hold pushbuttons 1 and
2 for two seconds.
• To perform a keyboard/mouse reset, simultaneously press and hold
pushbuttons 7 and 8 for two seconds.
2Port LEDs
Each port contains two LEDs.
• The top LED will dimly illuminate orange to indicate a powered-on computer is
connected to its corresponding port.
• The top LED will brightly illuminate orange to indicate the corresponding port
currently has the KVM and audio focus.
• The top LED will flash when a port is currently being accessed in Auto Scan
mode.
• All top LEDs will flash to indicate Firmware Upgrade mode is in effect.
• The bottom LED will illuminate green to indicate the corresponding port
currently has the USB hub focus.
3Firmware Upgrade Recover Switch
During normal operation, this switch should remain in the NORMAL position. In
the event a firmware upgrade operation does not complete normally, this switch
should be set to RECOVER as a part of the Firmware Upgrade Recovery process.
See the Firmware Upgrade section in this manual for details.
4Console Audio Connectors
A separate set of console Speaker and Microphone jacks are located on the front
panel of the unit for greater accessibility. Devices plugged into these ports will
take priority over devices plugged into the console Speaker and Microphone jacks
located on the rear panel of the unit.
5USB 2.0 Peripheral Port
USB 2.0 devices (flash drives, printers, scanners, etc.) can be plugged into this
port and shared among connected computers.
Note: USB hub functionality is not provided to second- or third-level KVM switches in a
cascade installation.
1 5 6 743
2
17-10-479-93370A.indb 5 11/17/2017 2:28:57 PM

6
6Reset Button
Press this button with a small, thin object (such as a paper clip) to perform a
system reset. When the system resets, the switch will beep and the port LEDs will
flash in succession until the reset is complete.
7Power LED
Illuminates green to indicate the KVM switch is powered on.
Rear Panel
Features
1Power Jack
The included power supply connects to the KVM switch here.
2USB 2.0 Peripheral Port
USB 2.0 devices (flash drives, printers, scanners) can be plugged into this port
and shared among connected computers.
Note: USB hub functionality is not provided to second- or third-level KVM switches in a
cascade installation.
3Firmware Upgrade Port
During a firmware upgrade, the included RJ11 to DB9 firmware upgrade cable
connects to the KVM here.
4Grounding Terminal
When grounding the KVM switch, the grounding wire connects to the KVM here.
5Console Ports
Your monitor, keyboard, mouse, microphone and speakers plug into these ports.
6Computer Ports
The DVI/USB KVM cable kits connect from an available set of ports to a computer.
1
4 5 6
2 3
17-10-479-93370A.indb 6 11/17/2017 2:28:58 PM

7
Safety Instructions
• Read all instructions and save for future reference.
• Follow all warnings and instructions marked on the device.
• Do not place the device on any unstable surface (cart, stand, table, etc.). If the
device falls, serious damage will result.
• Do not use the device near water.
• Do not place the device near or over radiators or heat registers. The device cabinet’s
slots and openings allow for adequate ventilation. To ensure reliable operation and
to protect against overheating, these openings must never be blocked or covered.
• The device should never be placed on a soft surface (bed, sofa, rug, etc.), as this
will block its ventilation openings. The device should also not be placed in a built-in
enclosure, unless adequate ventilation is provided.
• Never spill liquid of any kind onto the device.
• Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol
cleaners. Always use a damp cloth for cleaning.
• The device should operate from the power source type as indicated on the marking
label. If unsure what power type is available, consult your dealer or local power
company.
• Do not allow anything to rest on the power cord or cables. Route power cord and
cables so they cannot be stepped on or tripped over.
• If an extension cord is used with this device, make sure the total ampere ratings of
all products used on this cord does not exceed the extension cord ampere rating.
Make sure the total of all products plugged into the wall outlet does not exceed 15
amperes.
• To help protect your system from sudden transient increases and decreases
in electrical power, plugging your devices into a Tripp Lite surge protector, line
conditioner, or uninterruptible power supply (UPS) is recommended.
• When connecting or disconnecting power to hot-pluggable power supplies, observe
the following guidelines:
o Install the power supply before connecting the power cable to the power supply.
o Unplug the power cable before removing the power supply.
o If the system has multiple sources of power, disconnect power from the system by
unplugging all power cables from the power supplies.
• Never push objects of any kind into or through cabinet slots. They may touch
dangerous voltage points or short out parts resulting in a risk of fire or electrical
shock.
• Do not attempt to service the device. Refer all servicing to qualified service
personnel.
17-10-479-93370A.indb 7 11/17/2017 2:28:58 PM

8
Safety Instructions
• If the following conditions occur, unplug the device from the wall outlet and bring it
to qualified service personnel for repair.
o The power cord or plug has become damaged or frayed.
o Liquid has been spilled into the device.
o The device has been exposed to rain or water.
o The device has been dropped, or the cabinet has been damaged.
o The device exhibits a distinct change in performance, indicating a need for
service.
o The device does not operate normally when the operating instructions are
followed.
• Only adjust controls covered in the operating instructions. Improper adjustment of
other controls may result in damage that will require extensive work by a qualified
technician to repair.
• Do not connect the RJ11 port on the KVM marked UPGRADE to a public
telecommunications network.
• The device is designed for IT power distribution systems with 230V phase-to-phase
voltage.
• To prevent damage to your installation, it is important that all devices are properly
grounded.
17-10-479-93370A.indb 8 11/17/2017 2:28:58 PM

9
Installation
Rack-mount Installation
Attach the included rack-mount brackets to the KVM switch. With the user-supplied
screws, fasten the rack-mount brackets to the rack.

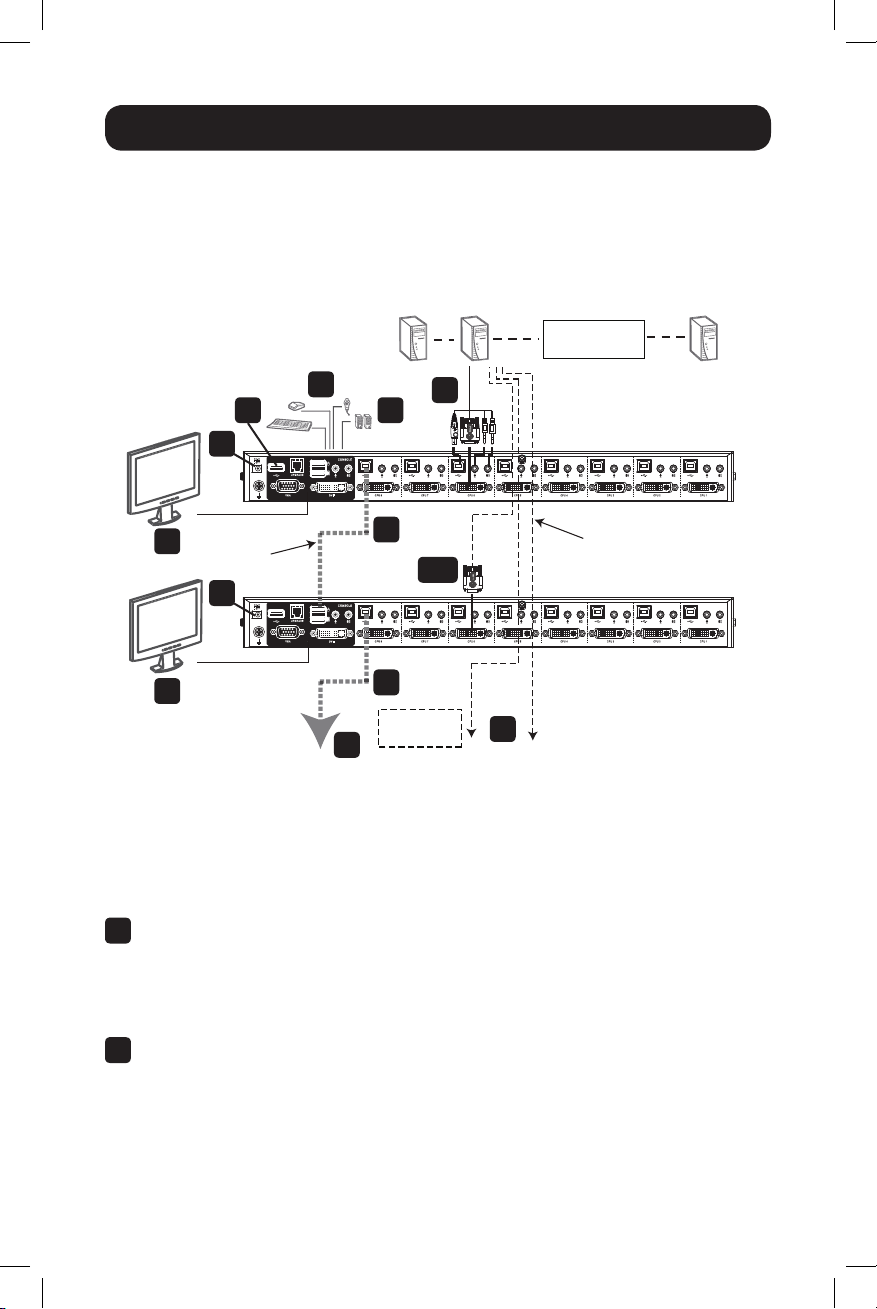

Single Stage Installation
USB DVI
KVM Cable Set
VGA
or
DVI
USB DVI
KVM Cable Set
Note: Before making any connections, make sure power to all devices being connected to the
KVM switch are turned off. Unplug any computer power cords using the Keyboard Power-On
function.
1 4
5
6
7
2
3
17-10-479-93370A.indb 9 11/17/2017 2:28:58 PM

10
Installation
1Connect a monitor to the KVM using one of the three following methods:
a. DVI Monitor – Connect the DVI port on the monitor to the DVI-I console port
located on the rear of the KVM switch.
b. DVI + VGA Monitor – For monitors with DVI and VGA ports, you can connect
both to the KVM switch. Connect the DVI port on the monitor to the KVM’s
DVI-I console port, and the VGA port on the monitor to the KVM’s VGA console
port.
c. DVI and VGA Monitors – Connect a DVI monitor to the DVI-I console port on
the KVM, and a VGA monitor to the VGA console port.
Note: Only one video signal will transmit at a time. When connecting to both the DVI and
VGA ports on a single monitor, or when connecting DVI and VGA monitors at the same
time, the video output used will be determined by the OSD settings. See the Set Computer
Video Input section in this manual for details.
2Connect a USB keyboard and mouse to the corresponding USB keyboard and
mouse console ports located on the rear panel of the KVM switch.
3Optional – Connect a microphone and speakers to the corresponding 3.5 mm
console jacks located on the unit’s front or rear panel. The front panel jacks will
take priority over those on the rear panel.
4Optional – Connect USB device(s) to the USB 2.0 hub port(s) on the front and
rear of the KVM switch.
5Connect the KVM cable kit to the KVM switch. The USB-B male connector side
plugs in to an available set of computer ports on the unit’s rear panel. Connect
the DVI-D connector to the DVI-I port, and the USB and 3.5 mm connectors to its
corresponding USB and 3.5 mm ports.
Note: KVMs include two 6 ft. cable kits. For the remaining ports requiring cables, or if a
longer cable is needed, separate P759-Series DVI/USB + Audio KVM Cable Kits are needed
(sold separately).
6Connect the other end of the KVM cable kit to the corresponding ports on the
computer you wish to add to the installation.
7Repeat steps 5 and 6 for each additional computer added to the installation.
8Connect the included power supply to the KVM switch, then plug it into an
appropriate power source. To help protect your system from sudden transient
increases and decreases in electrical power, plugging your devices into a Tripp
Lite surge protector, line conditioner, or uninterruptible power supply (UPS) is
recommended.
9Turn on the power to all connected computers and devices.
17-10-479-93370A.indb 10 11/17/2017 2:28:59 PM

11
Installation
Cascade Installation
To expand the number of computers controlled in the KVM installation, up to three
levels of B024-DUA8-SL and/or B024-DUA8-DL KVM switches can be cascaded
together. As many as 512 computers can be controlled in a complete three-level
installation. In a three-level cascade installation, the first KVM switch in the chain is
considered the first level unit; the KVM switches cascaded to the first level unit are
considered second level units, and the KVM switches cascaded to the second level
units are third level units.
Note: In a cascade installation, USB 2.0 hub functionality is not available in the second or third
levels of KVM switches.
USB DVI
KVM Cable Set
USB DVI
KVM Cable Set
USB DVI
KVM Cable Set
USB DVI
KVM Cable Set
1
6
7
7
12
13
11
5
2
3
4
8
9
17-10-479-93370A.indb 11 11/17/2017 2:29:00 PM

12
Note: Before making any connections, make sure power to all devices being connected to the
KVM switch are turned off. Unplug any computer power cords using the Keyboard Power-On
function.
1Connect a monitor to the KVM using one of the three following methods.
a. DVI Monitor – Connect the DVI port on the monitor to the DVI-I console port
located on the rear of the KVM switch.
b. DVI + VGA Monitor – For monitors with DVI and VGA ports, you can connect
both to the KVM switch. Connect the DVI port on the monitor to the KVM’s
DVI-I console port, and the VGA port on the monitor to the KVM’s VGA console
port.
c. DVI and VGA Monitors – Connect a DVI monitor to the DVI-I console port on
the KVM, and a VGA monitor to the VGA console port.
Note: Only one video signal will transmit at a time. When connecting to both the DVI and
VGA ports on a single monitor, or when connecting DVI and VGA monitors at the same
time, the video output used will be determined by the OSD settings. See the Set Computer
Video Input section in this manual for details.
2Connect a USB keyboard and mouse to the corresponding USB keyboard and
mouse console ports located on the rear panel of the first level KVM switch.
3Optional – Connect a microphone and speakers to the corresponding 3.5 mm
console jacks on the unit’s front or rear panel. The front panel jacks will take
priority over those on the rear panel.
4Optional – Connect USB device(s) to the USB 2.0 hub port(s) on the front and
rear panels of the KVM switch.
Note: In a cascade installation, USB 2.0 hub functionality is not available to the second or
third levels of KVM switches.
5Connect the KVM cable kit to the KVM switch. The USB-B male connector side
plugs in to an available set of computer ports on the unit’s rear panel. Connect
the DVI-D connector to the DVI-I port, and the USB and 3.5 mm connectors to its
corresponding USB and 3.5 mm ports.
Note: KVMs include two 6 ft. cable kits. For the remaining ports requiring cables, or if a
longer cable is needed, separate P759-Series DVI/USB + Audio KVM Cable Kits are needed
(sold separately).
6Connect the other end of the KVM cable kit to the console ports of a second level
KVM switch.
Note: Connect the USB-A male connector to the top USB-A console port (labeled for mouse
functionality) on the second level KVM switch.
7Repeat steps 5 and 6 for each additional KVM switch added to the installation.
Up to 8 second-level KVM switches and up to 64 third level KVM switches can be
connected.
Installation
17-10-479-93370A.indb 12 11/17/2017 2:29:00 PM

13
Installation
8Connect the KVM cable kit to the KVM switch. The USB-B male connector side
plugs in to an available set of computer ports on the unit’s rear panel. Connect
the DVI-D connector to the DVI-I port, and the USB and 3.5 mm connectors to its
corresponding USB and 3.5 mm ports.
Note: KVMs include two 6 ft. cable kits. For the remaining ports requiring cables, or if a
longer cable is needed, separate P759-Series DVI/USB + Audio KVM Cable Kits are needed
(sold separately).
9Connect the other end of the KVM cable kit to the corresponding ports on the
computer you wish to add to the installation.
10
Repeat steps 8 and 9 for each additional computer added to the installation.
11
To properly power on the installation, first connect the included power supply to
each third level KVM switch in the installation, then plug it into an appropriate
power source. To help protect your system from sudden transient increases
and decreases in electrical power, plugging your devices into a Tripp Lite surge
protector, line conditioner, or uninterruptible power supply (UPS) is recommended.
12
Connect the included power supply to each second level KVM switch, then plug it
into a Tripp Lite surge protector, line conditioner, or uninterruptible power supply
(UPS).
13
Connect the included power supply to the first level KVM switch, then plug it
into a Tripp Lite surge protector, line conditioner, or uninterruptible power supply
(UPS).
14
Turn on the power to all connected computers and devices.
17-10-479-93370A.indb 13 11/17/2017 2:29:00 PM

14
Installation
Notes:
• Before making any connections, you must first access the OSD and enable the Multi-View
setting (see the Activate Multi-View section of this manual for details).
• Before making any connections, make sure power to all devices being connected to the
KVM switch are turned off. Unplug any computer power cords using the Keyboard Power-On
function.
1Using a standard USB-A to USB-B device cable, connect the USB-B port on
computer port 8 (CPU 8) of the first level KVM switch to the top USB-A console
port (labeled for mouse functionality) on the second level KVM switch.
Note: Computer port 8 is reserved for connecting KVM switches in a multi-monitor
installation. Up to seven computers can be controlled using computer ports 1 through 7.
2Repeat step 1 to connect additional KVM switches, with a maximum of four KVM
switches in a multi-monitor installation.
Multi-Monitor Installation
The multi-monitor feature connects two, three or four units to control up to seven
dual-, triple- or quad-monitor computers at once. This installation requires different
cabling than standard cascade configuration and offers an extra level of switching
flexibility for multiple-monitor installations where multiple video cards are installed on
each computer.
Computers with
2/3/4 video inputs
Third / Fourth
Stage Units
DVI Cables
First Switch
Second Switch
USB Type A to
Type B cables
7
3
42
4
1
6
5
8/9
10/11
13
14
12
17-10-479-93370A.indb 14 11/17/2017 2:29:01 PM

15
Installation
3Connect a monitor to the first level KVM switch using one of the following three
methods.
a. DVI Monitor – Connect the DVI port on the monitor to the DVI-I console port
located on the rear of the KVM switch.
b. DVI + VGA Monitor – For monitors with DVI and VGA ports, you can connect
both to the KVM switch. Connect the DVI port on the monitor to the KVM’s
DVI-I console port, and the VGA port on the monitor to the KVM’s VGA console
port.
c. DVI and VGA Monitors – Connect a DVI monitor to the DVI-I console port on
the KVM, and a VGA monitor to the VGA console port.
Note: Only one video signal will transmit at a time. When connecting to both the DVI and
VGA ports on a single monitor, or when connecting DVI and VGA monitors at the same
time, the video output used will be determined by the OSD settings. See the Set Computer
Video Input section in this manual for details.
4Repeat step 3 for each KVM in the installation.
Note: The OSD setting of the first level KVM switch determines the video output used by
each KVM in the installation.
5Connect a USB keyboard and mouse to the corresponding USB keyboard and
mouse console ports located on the back of the first level KVM switch.
Note: This step is required for the first level KVM switch only.
6Optional – Connect a microphone and speakers to the corresponding 3.5 mm
console jacks on the unit’s front or rear panel. The front panel jacks will take
priority over those on the rear panel.
Note: This step is required for the level one KVM switch only.
7Optional – Connect USB device(s) to the USB 2.0 hub port(s) on the front and
rear of the KVM switch.
Note: This step is required for the level one KVM switch only.
8Connect the KVM cable kit to the KVM switch. The USB-B male connector side
plugs in to an available set of computer ports located on the rear panel of the first
level KVM switch. Connect the DVI-D connector to the DVI-I port, and the USB
and 3.5 mm connectors to its corresponding USB and 3.5 mm ports.
Note: KVMs include two 6 ft. cable kits. For the remaining ports requiring cables, or if a
longer cable is needed, separate P759-Series DVI/USB + Audio KVM Cable Kits are need
(sold separately).
9Connect the other end of the KVM cable kit to the corresponding ports on the
computer you wish to add to the installation.
10
From the same computer port on the second level KVM switch that was just used
to connect a computer to the first level KVM switch, connect the DVI-I port to the
second DVI port of the same computer with a DVI cable (such as Tripp Lite P560-
and P561-Series cables).
17-10-479-93370A.indb 15 11/17/2017 2:29:01 PM

16
Installation
Grouping Ports into Channels
Once the cables are connected and Multi-monitor mode is enabled in the OSD (see
“Activate Multiview” in the F4: ADM section in this manual for details), the KVM switch
auto-detects the channels and viewing modes. Users can assign a channel number
as the port name (channels are represented by the vertical columns in the diagram
below). For example, all Port 1s in the installation become Channel 1, and all Port 2s
become Channel 2, and so on. The ports will all switch at the same time, channel by
channel.
1hC6hC7hC
First
Switch
Second
Switch
Third
Switch
Fourth
Switch
11
Repeat step 10 for each additional KVM switch on the installation.
12
Repeat steps 8 through 11 for each additional computer added to the installation.
13
To properly power on the installation, first connect the included power supply to
the first level KVM switch, then plug it into an appropriate power source. To help
protect your system from sudden transient increases and decreases in electrical
power, plugging your devices into a Tripp Lite surge protector, line conditioner, or
uninterruptible power supply (UPS) is recommended.
14
Repeat step 13 for the second level KVM switch, then for each successive KVM
switch in the installation.
15
Turn on the power to all connected computers and devices.
17-10-479-93370A.indb 16 11/17/2017 2:29:02 PM

17
Basic Operation
Hot Plugging
B024-DUA8-SL and B024-DUA8-DL KVM Switches support hot plugging, allowing
components to be removed and reinstalled back into the installation by unplugging and
replugging their cables from the ports without needing to shut the unit down.
Hot Plugging KVM Ports
If changing computer positions, in order for the OSD menus to correspond to KVM
port changes, port names must be edited manually for the OSD to reflect the new port
information (see the F3 Set section of this manual for details).
Note: If the computer’s operating system does not support hot plugging, this function may not
work properly
Hot Plugging Console Ports
The keyboard, monitor, and mouse can all be hot plugged.
When hot plugging the mouse:
• You may unplug and replug the mouse (to reset the mouse, for example), as long as
the same mouse is used.
• If plugging a different mouse, all computers in the installation must remain shut
down for 10 seconds, then restarted following the power up sequence described in
the installation section.
Note: If after hot plugging there is no response to keyboard and/or mouse input, perform a
keyboard and mouse reset by simultaneously pressing the 7 and 8 front panel pushbuttons.
Port Selection
The B024-DUA8-SL and B024-DUA8-DL KVM switches provide three port selection
methods to switch between computers on the installation: manual pushbuttons, OSD
(on-screen display), and keyboard hotkey commands. The manual pushbutton method
is as simple as pressing a pushbutton on the KVM’s front panel that corresponds with
the port you want to switch to; press a pushbutton for two seconds to simultaneously
switch KVM, audio and USB, or press a pushbutton for less than two seconds to
switch only the KVM and audio. For OSD and keyboard hotkey commands, subsequent
sections of this manual provide greater detail on the operation of these methods, both
for port selection and other KVM functions.
Powering Off and Restarting
In the event the KVM switch needs to be powered off, follow the steps below:
1. Shut down all computers connected to the KVM switch.
2. Unplug the power supply from the KVM switch.
3. Wait 10 seconds, then plug the power supply back into the KVM switch.
4. Power on all connected computers.
Note: If there are multiple levels in the installation, all cascaded KVM switches and computers
must also be shut down and restarted. Power on the installation in the same order as described
in the installation instructions.
17-10-479-93370A.indb 17 11/17/2017 2:29:02 PM

18
Basic Operation
OSD (On-Screen Display) Operation
The On-Screen Display (OSD) is a text-based interface that allows control and
administration of the KVM switch. When logging onto the KVM switch, the OSD Main
Menu is the first screen to appear after entering the username and password.
First Time Logging In
The KVM switch features two-level security, with one Administrator and four User
accounts. If you are an Administrator accessing the KVM switch for the first time, leave
the Username and Password fields blank, and press the [Enter] key twice to access
the OSD Main Menu. Once logged in to the KVM switch as Administrator, you will be
able to access all OSD features and customize KVM settings. At this point, changing
the Administrator username and password is highly recommended.
OSD Invocation Sequence
Once logged in to the KVM switch, use one of two sequences to open the OSD Main
Menu: [Scroll Lock, Scroll Lock] or [Ctrl, Ctrl]. The default OSD invocation sequence is
[Scroll Lock, Scroll Lock]. The OSD Invocation Sequence can be changed via the OSD
(see the OSD Hotkey section of this manual for details).
When the OSD is invoked, a screen similar to the one above appears.
Notes:
• The diagram depicts the Administrator’s main screen. The User’s main screen does not contain
F4 and F6 functions, as they cannot be accessed by ordinary users and are reserved for the
Administrator.
• OSD always starts in list view, with the highlight bar at the same position as when it was last
closed.
• Only the ports that have been set accessible by the Administrator for the currently logged in
User are visible (see the Set Accessible Ports section of this manual for details).
• If the port list is collapsed into stations, simply click on the plus sign next to the desired station
number, or highlight the desired station number and press the [Enter] key.
17-10-479-93370A.indb 18 11/17/2017 2:29:03 PM

19
Basic Operation
OSD Main Screen Headings
Header Description
PN This column lists the port ID number for all KVM ports on the installation.
The easiest method to access a particular computer is to move the high-
light bar over it, then press Enter.
QV If a port has been selected for quick view scanning (see the Set Quick
View Ports section in this manual for details), an arrowhead displays in
this column.
Computers powered on and online have a sun symbol in this column.
NAME If a port has been given a name (see the Edit Port Names section of this
manual for details), its name appears in this column.
OSD Navigation
• To close the menu and deactivate OSD, click the [X] at the upper right corner of the
OSD window or press [Esc].
• To log out, press [F8], click F8 on the OSD Menu Bar or click the symbol in the
upper-right corner of the OSD screen.
• To move up or down one line at a time, click the Up and Down Triangle symbols
( ), or press the up and down arrow keys. If more entries appear than on the
screen, the screen will scroll.
• To move up or down one screen at a time, click the Up and Down Arrow symbols
( ), or press the [Pg Up] and [Pg Dn] keys. If more entries appear than on the
screen, the screen will scroll.
• To activate a port, double-click or move the highlight bar over it, then press [Enter].
• After executing any action, you will automatically return to the menu one level
above.
OSD Functions
OSD functions allow the KVM to be controlled and configured via the OSD. Using these
functions, you can quickly skip over to a port on the installation, initiate an auto scan,
limit the port list displayed when you access the OSD, create/edit port names, and so
on. To access any of the OSD functions, simply click on the corresponding function
number at the top of the OSD or type the corresponding function number using the
keyboard. When in the OSD function submenus, simply press [Esc] to exit and return
to the previous menu.
17-10-479-93370A.indb 19 11/17/2017 2:29:03 PM

20
Basic Operation
F1 Go To (GOTO)
Click the F1 field or press [F1] to activate the GOTO function. GOTO switches directly
to a port, either by typing in the port’s Name or its Port ID.
• To use the Name: press [1], type the port’s Name, then press [Enter]
• To use the Port ID: press [2], type the Port ID, then press [Enter]
Note: A partial Name or Port ID can be entered. The screen will display all computers matching
the Name or Port ID pattern, as well as those the User is allowed access to. To return to the OSD
Main Menu without making a choice, press [Esc].
F2 List Ports (LIST)
This function tailors the list of ports the OSD will display on the Main Screen. The
submenu choices and their meanings are provided in the table below:
Setting Description
ALL Lists all ports on the installation that are accessible to the
logged-on User.
POWERED ON Lists all ports on the installation that are accessible to the
logged-on User AND powered-on.
QUICK VIEW This is an Administrator-only option. When selected, it only
displays ports that have been marked as Quick View ports.
QUICK VIEW +
POWERED ON
This is an Administrator-only option. When selected, it only
displays ports that have been marked as Quick View ports and
are also powered-on.
Move the highlight bar to the desired choice and press [Enter]. An icon will appear
next to the choice to indicate it is currently selected.
F3 Set Environment (SET)
This function allows each User and the Administrator to set up their own working
environment. A separate profile for each account type is stored by the OSD and is
activated according to the username provided during login.
To change a setting:
1. Double-click the item, or move the highlight bar over to it and press [Enter].
2. After selecting an item, a submenu with more choices will appear. To make a
selection, either double-click a choice or move the highlight bar to the desired
choice and press [Enter]. An icon will appear beside the selected choice. The
settings are explained in detail in the following table:
Setting Description
OSD HOTKEY Select the hotkey that activates the OSD function: use either
[Scroll Lock] [Scroll Lock] or [Ctrl] [Ctrl]. Since the [Ctrl]
key combination may conflict with programs running on the
computers, the default setting is the [Scroll Lock] combination.
17-10-479-93370A.indb 20 11/17/2017 2:29:03 PM
