Industrial USB 2.0 Hub
Models:
U223-004-IND(4-Port),U223-007-IND(7-Port)
Español11•Français21•Русский31•Deutsch41
23-05-201-934819.indb 123-05-201-934819.indb 1 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

2
Before attempting to connect, operate or adjust this product, please
read the entire Owner’s Manual rst.
Safety Instructions
• Always read the safety instructions carefully
• Keep this Owner’s Manual for future reference
• If any of the following situations arise, schedule an appointment to
have your equipment inspected by a service technician:
º The equipment has been exposed to moisture
º The equipment has been dropped and damaged
º The equipment shows obvious signs of breakage
º The equipment is not functioning properly or is not functioning
according to the Owner’s Manual instructions
23-05-201-934819.indb 223-05-201-934819.indb 2 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

3
Features
• Increases the number of High Speed USB ports via a single computer
port (4 ports for U223-004-IND model / 7 ports for U223-007-IND
model)
• USB 2.0 compliant with data transfer rates up to 480Mbps
• Backwards compatible with USB 1.1
• Rugged all-metal enclosure designed for use in industrial applications
• Wall-mount and DIN rail hardware included for secure installation
• Three power connection options (source USB port, external power
supply (not included) or 3-wire terminal block)
• Over-current detection and protection
• ESD protection to +/- 15 kV
• Automatic link and speed detection
• Plug-and-play; no software or drivers required
System Requirements
• Compatible with all USB-enabled operating systems
Package Contents
• U223-004-IND or U223-007-IND Industrial USB 2.0 Hub
• USB 2.0 cable
• 3-pin power terminal block
• DIN mounting hardware
• Wall-mount hardware
• Owner’s Manual
23-05-201-934819.indb 323-05-201-934819.indb 3 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

4
Powering the Hub

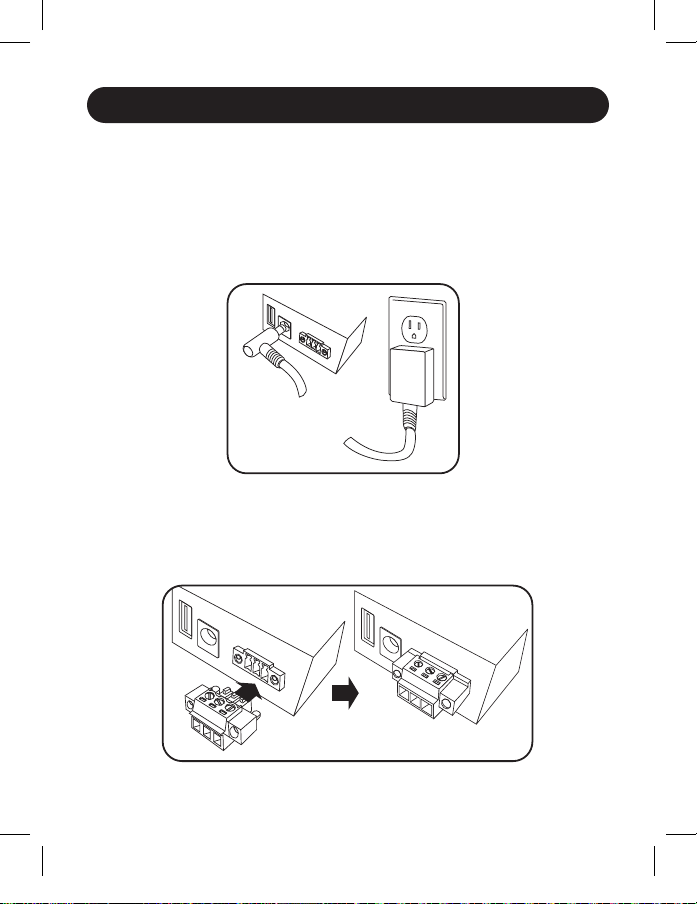

To power the hub, plug the user-supplied power adapter into the wall
outlet.
Note: The U223-004-IND is compatible with external power supply units with
a 5V 2.5A DC output. The U223-007-IND is compatible with external power
supply units with a 5V 3A DC output. In order to connect an external power
supply with the U223-004-IND or U223-007-IND’s input port, the external
power supply unit must have a 5.5 x 2.1 x 9.5 mm output plug with a positive
tip and negative sleeve.
DC-In Power Terminal
To power the hub using a power terminal, plug the supplied power
terminal block into the hub according to the connector’s orientation.
23-05-201-934819.indb 423-05-201-934819.indb 4 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

5
Mounting Kit Installation
Mounting Hardware Installation
The U223-004-IND and U223-007-IND hubs can be placed on a at
surface, or mounted using the included wall-mount brackets or DIN rail
hardware. Reference the diagrams below when installing the mounting
hardware.
Wall-Mount Hardware Installation
DIN mounting
Screw x3
DIN Rail Hardware Installation
DIN mounting
Screw x3
23-05-201-934819.indb 523-05-201-934819.indb 5 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

6
Mounting Kit Installation
Note: The U223-007-IND and U223-004-IND’s dimensions are the same; the only
dierence between the two models is the number of USB ports.
23-05-201-934819.indb 623-05-201-934819.indb 6 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

7
Specications
Item Description
Ports 4 x USB 2.0 (U223-004-IND model)
7 x USB 2.0 (U223-007-IND model)
ESD Protection 15KV ESD
Transmission Speed 12M~480Mbps
Power Requirement Bus-power or External Power Supply:
(5V 2.5A DC for U223-004-IND),
(5V 3A DC for U223-007-IND)
3-Pin Terminal: (9~36V DC)
Operating
Temperature
32°F to 140°F / 0°C to 60°C
Operating Humidity 5 to 95% RH
Dimension (LxWxH) 5.6 x 2.5 x 1 in. / 142 x 63.6 x 24.6 mm
Enclosure Material Metal
Regulatory Approvals FCC/CE
23-05-201-934819.indb 723-05-201-934819.indb 7 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

8
Warranty & Product Registration
2-Year Limited Warranty
TrippLite warrants its products to be free from defects in materials and
workmanship for a period of two (2) years from the date of initial purchase.
TrippLite’s obligation under this warranty is limited to repairing or replacing (at its
sole option) any such defective products. To obtain service under this warranty,
you must obtain a Returned Material Authorization (RMA) number from TrippLite
or an authorized TrippLite service center. Products must be returned to TrippLite
or an authorized TrippLite service center with transportation charges prepaid
and must be accompanied by a brief description of the problem encountered and
proof of date and place of purchase. This warranty does not apply to equipment,
which has been damaged by accident, negligence or misapplication or has been
altered or modied in any way.
EXCEPT AS PROVIDED HEREIN, TrippLite MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied warranties; therefore,
the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TrippLite BE LIABLE FOR DIRECT,
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specically, TrippLite is not liable for any costs, such as lost prots or
revenue, loss of equipment, loss of use of equipment, loss of software, loss of data,
costs of substitutes, claims by third parties, or otherwise.
Product Registration
Visit tripplite.com/warranty today to register your new TrippLite product. You’ll
be automatically entered into a drawing for a chance to win a FREE TrippLite
product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See
website for details.
TrippLite follows a policy of continuous improvement. Product specications are
subject to change without notice.
23-05-201-934819.indb 823-05-201-934819.indb 8 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

9
Regulatory Compliance
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications to this equipment not expressly approved by
TrippLite could void the user’s authority to operate this equipment.
23-05-201-934819.indb 923-05-201-934819.indb 9 6/15/2023 10:49:19 AM6/15/2023 10:49:19 AM

10
Regulatory Compliance
WEEEComplianceInformationforTrippLiteCustomersand
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive
and implementing regulations, when customers buy new electrical and
electronic equipment from TrippLite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this
varies depending on the country)
• Send the new equipment back for recycling when this ultimately
becomes waste
Use of this equipment in life support applications where failure of this equipment
can reasonably be expected to cause the failure of the life support equipment or to
signicantly aect its safety or eectiveness is not recommended
TrippLite has a policy of continuous improvement. Product specications are
subject to change without notice.
