TRIUMPH BOARD 55 inch User manual

User Manual
INTERACTIVE FLAT PANEL
55”/ 65”/ 70”
2016

2
Contents
1. Product Description..............................................................................................4
2. Technical Specifications......................................................................................5
3. Safety Warning......................................................................................................8
Placement.......................................................................................................................................... 8
Power Supply.................................................................................................................................... 8
Screen................................................................................................................................................ 8
Range of Visibility............................................................................................................................. 8
Temperature...................................................................................................................................... 8
Humidity............................................................................................................................................. 8
Ventilation.......................................................................................................................................... 9
Headphones ...................................................................................................................................... 9
Standby.............................................................................................................................................. 9
Battery................................................................................................................................................ 9
Caution............................................................................................................................................... 9
Notes for Cleaning............................................................................................................................ 9
Notes for Maintenance ..................................................................................................................... 9
4. Preparing for Installation ...................................................................................10
Unpacking........................................................................................................................................ 10
Accessories..................................................................................................................................... 10
Control Panel................................................................................................................................... 11
5. IFP Interface Inputs, Outputs.............................................................................12
Mini PC 10A Inputs, Outputs (optional)....................................................................................... 13
6. Remote control ...................................................................................................14
Remote control button instructions ........................................................................................... 14
Detailed function description of remote control buttons........................................................... 15
Remote control use instructions................................................................................................... 16
Install Batteries............................................................................................................................... 16
Range of remote control................................................................................................................ 16
7. Connection and Setting......................................................................................17
External Computer and Touch Connection.................................................................................. 17
Audio and video equipment........................................................................................................... 18
AV..................................................................................................................................................... 18
HDMI1 / HDMI2 / HDMI3.................................................................................................................. 18
Coaxial connection......................................................................................................................... 19
Video output connection................................................................................................................ 19
VGA output connection.................................................................................................................. 19

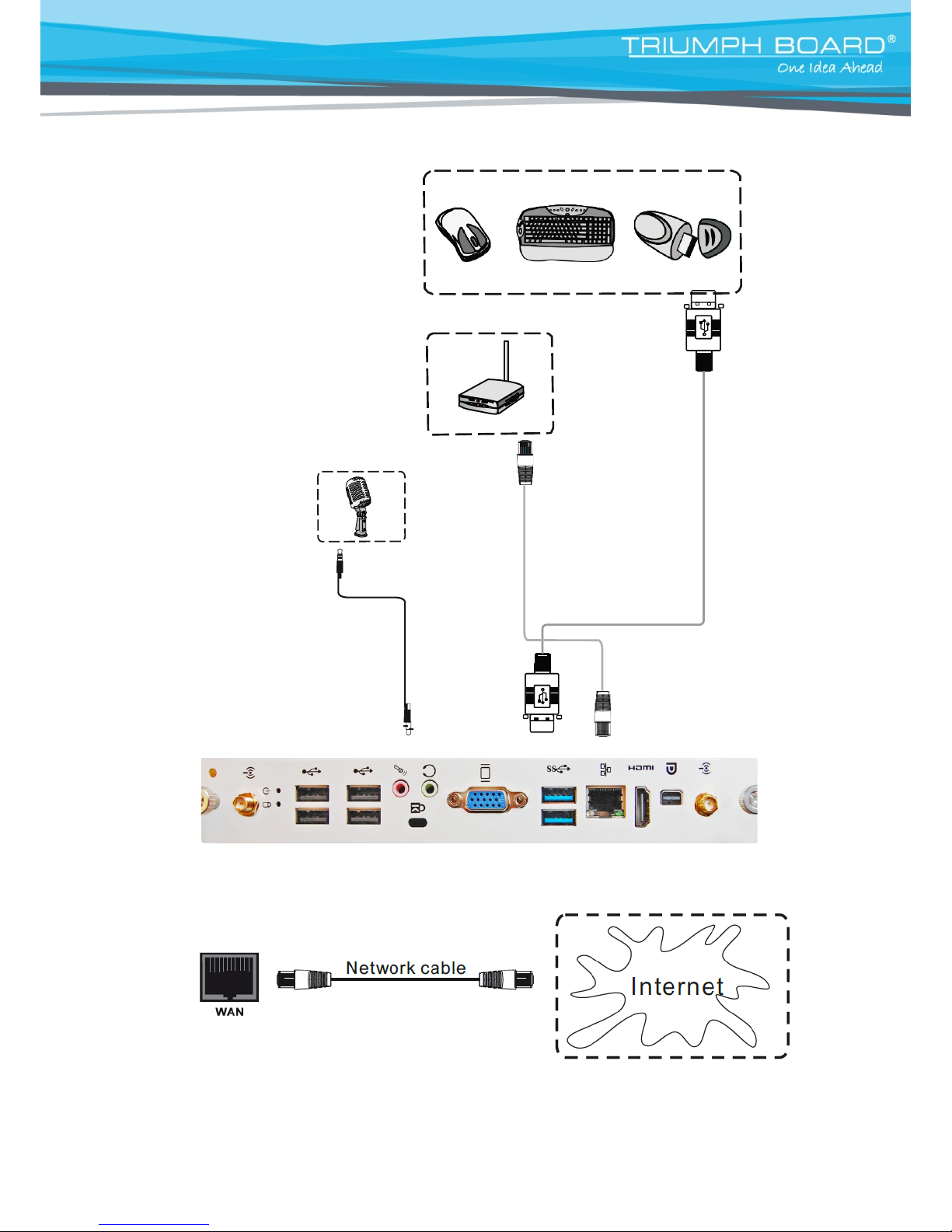

USB Equipment connection .......................................................................................................... 20
Network cable connection ............................................................................................................. 20
Microphone connection ................................................................................................................. 20
WAN connection............................................................................................................................. 20

3
RS232 Serial port connection........................................................................................................ 21
8. Menu Operation...................................................................................................22
One Touch menu operation........................................................................................................... 22
Settings menu................................................................................................................................. 22
Input settings .................................................................................................................................. 22
Volume and Brightness settings................................................................................................... 23
Audio settings................................................................................................................................. 23
Display settings .............................................................................................................................. 24
Screen settings............................................................................................................................... 25
9. More Settings (Advanced settings)...................................................................26
Advanced settings menu ............................................................................................................... 26
System tool menu........................................................................................................................... 27
10. Android System Interface ................................................................................28
Main Interface.................................................................................................................................. 28
TB Finder ......................................................................................................................................... 29
Browser............................................................................................................................................ 30
Settings............................................................................................................................................ 30
Apps................................................................................................................................................. 30
TB Comenius Lite ........................................................................................................................... 31
11. Multimedia File Playback Interface..................................................................32
Image play ...................................................................................................................................... 32
Audio play..................................................................................................................................... 32
Video play...................................................................................................................................... 33
13. Troubleshooting................................................................................................34
14. Software protocols ...........................................................................................35
15. Maintenance......................................................................................................40
16. Display mode ....................................................................................................40
17. Repair Service and Contacts ...........................................................................41

4
1. Product Description
TRIUMPH BOARD INTERACTIVE FLAT PANEL
TRIUMPH BOARD INTERACTIVE FLAT PANEL is a fully integrated, professional, multi-touch FULL
HD IFP. The IR LED optical technology enables ten finger touches simultaneously using fingers,
stylus or even a pointer.
TRIUMPH BOARD INTERACTIVE FLAT PANELs are an effective presentation tool for showing
pictures, data, presentations, thoughts, ideas and business forecasts interactively. Engage the
audience with the presentation with direct control of the computer through the INTERACTIVE FLAT
PANEL.
TRIUMPH BOARD MINI PC10A for INTERACTIVE FLAT PANEL (optional)
TRIUMPH BOARD 10A is the powerful, fully integrated personal computer for the TRIUMPH BOARD
INTERACTIVE FLAT PANEL.
TRIUMPH BOARD PC10A is equipped with an Intel i5 processor, integrated graphics and 4 GB RAM,
which ensures high power for running current software. A 500 GB hard disk provides sufficient
capacity for saving and storing user data.
TRIUMPH BOARD MINI PC10A is the ideal addition to TRIUMPH CLOUD, and the Display Note
software bundle which are delivered together with the TRIUMPH BOARD IFP.

5
2. Technical Specifications
TRIUMPH BOARD 55” INTERACTIVE FLAT PANEL
EAN:
8592580112348
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refresh rate:
6 ms, 60 Hz, 1200:1
Display Area:
1209.6(H) × 680.4(V)
Outline Dimensions:
1304 x 800 x 104 mm
Package Dimensions:
1580 x 970 x 215 mm
Net / Gross weight:
39/55 kg
TRIUMPH BOARD 65” INTERACTIVE FLAT PANEL
EAN:
8592580112355
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refresh rate:
6 ms, 60 Hz, 1400:1
Display Area:
1428.48 (H) x 803.52 (V)
Outline Dimensions:
1523 x 924 x 104 mm
Package Dimensions:
1710 x 1140 x 215 mm
Net / Gross weight:
53/72 kg
TRIUMPH BOARD 70” INTERACTIVE FLAT PANEL
EAN:
8592580112362
Screen Type:
TFT LCD/ A Standard/ LED backlight
Resolution:
1920 x1080
Refresh rate:
8 ms, 60 Hz, 4000:1
Display Area:
1549.44 (H) x 871.56 (V)
Outline Dimensions:
1665 x 1015 x 104 mm
Package Dimensions:
1940 x 1200 x 215 mm
Net / Gross weight:
64/87 kg
Touch System
Sensing Type:
Infrared Transmission (multi-touch)
Response Time:
< 15ms
Response Area:
Single point, opaque objects of any diameter
≥5mm
Multi-point, opaque objects of any diameter ≥8mm
Scan Frequency:
200Hz
Output Coordinates:
32767×32767
Communication Mode:
Full-speed USB
Writing Screen:
Mohs hardness of 7
PC System:
mini PC10A (Optional)

6
Inputs and Outputs
HDMI:
3
CVBS:
1
R/L(CVBS):
1
Coaxial Digital Audio Output:
1
Audio IN:
3
VGA OUT:
1
VGA IN:
3
RS232
1
Touch OUT:
1
Audio Output (headphone)
1
USB 2.0:
1
USB 3.0:
1
LAN (RJ45)
1
AC IN:
1
Power:
1
Sound System
Power Amplification:
2x10W
Sound:
Surround
Power
Power Requirements:
100 – 240 V AC 50/60 Hz
Overall Power Consumption:
< 200 - 350 W *
Standby Power Consumption:
< 0,5 W
* depends on the model
Ambient Conditions
Operation Temperature
0 – 40 °C
Operation Humidity:
10 – 90% RH
Storage Temperature:
- 20 C to 60 °C
Storage Humidity:
10 – 95% RH
TRIUMPH BOARD MINI PC10A for IFP
EAN:
8592580112164
Processor:
Intel i5
Graphics:
Integrated Intel® HD Graphics
Sound Card:
Integrated High Definition Audio Stereo
Networking:
Integrated 10/100/1000 Mbps adapted
Memory:
4 GB DDRIII
Hard Drive:
500 GB SATA
WIFI:
802.11 ac, WiFi 2,4/5 GHz + Bluetooth 4.0
USB:
4x USB 2.0 and 2x USB 3.0

7
Lan Port (RJ45):
1
VGA Out:
1
Mini Display Port
1
HDMI Output
1
Audio:
Operation System:
Side Headphone and Mic Ports
Microsoft Windows 10 Professional (OEM)
64-bit MultiLang
Net / Gross Weight:
1.8 / 2.14 kg
Android System
System Version
Android 4.2.1
CPU
ARM Cortex A9 dual-core CPU
GPU
Quad-Core
RAM
1.5GB
ROM
8GB

8
3. Safety Warning
Before using the device, please read the instructions carefully.
Placement
•Do not put the device on surfaces that are unstable, easy to tilt or which can fall.
•Do not put the device in places with direct sunlight, or near sources of heat, such as
electric heaters or strong light sources.
•Do not use the device next to radiation emitting equipment.
•Do not put the device in damp places or places where it might be exposed to moisture or
liquids.
•Do not insert any items inside of the device.
•Do not place heavy objects on the device.
Power Supply
•Please verify compatibility between the voltage value on back shell nameplate and the
main power supply voltage value.
•In case of thunderstorm and lightning weather, please unplug power cord and antenna
plug.
•When no one is indoors or the device will not be in use for an extended period of time,
please unplug the power cord.
•Please protect the power cord from physical or mechanical damage.
•Please use the special power cord, and do not modify or extend the power cord.
•Please check and make sure the AC power ground wire is connected.
Screen
•When writing on screen, please do not use hard or sharp objects instead of styluses.
•When the screen requires cleaning, please unplug the power cord first.
•Please use a soft, dust-free, dry cloth to wipe the screen.
•Do not use water or a spray cleaner to clean the device.
•Please contact the service center for internal cleaning of the device.
•Do not display image with high brightness on the screen for a long time.
Range of Visibility
•The best distance between eyes of viewer and screen is 5 to 7 times of screen diagonal.
•The best viewing angle between eyes of viewer and listener and screen is within 176
degrees up and down, left and right.
Temperature
•Do not place the device near an electric radiator or heating unit.
•When moving the device from a low temperature area to a high temperature area, before
connecting the device to power, please leave the device idle in the new environment for
some time to allow for temperature adjustment, in order to sufficiently diffuse internal
condensation prior to powering on.
•The Device's normal working temperature is 0 ~ 40°C, storage temperature is -20~60°C
Humidity
•Do not expose the machine to rain, moisture, or places near water.
•Please make sure the indoor environment is dry and cool, the machine’s normal working
humidity is 10~90%, storage humidity is 10~90%.

9
Ventilation
•Please place the machine in ventilated places, and ensure machine's good heat
dissipation.
•Please ensure ventilation spaces 10 cm on the sides and back, and 20 cm on the top of
the machine.
Headphones
•Extended use of headphones at high volumes may damage hearing.. If external
headphones/earbuds are needed, please turn down the machine volume in advance.
Standby
•The standby button on the front of device body will not
completely shut off the device, but only place the device in
standby mode.
Battery
•Please dispose of used batteries in the proper manner and
recycle.
•To avoid danger, please do not let children touch the battery,
and do not put the battery into water.
Caution
•This product is a Level 4 product, and may cause radio
interference in the living environment. In this case, the user
may be required to take practical measures to mitigate the
effects.
Notes for Cleaning
•There are vents on back cover, please do not use any liquid
on or spray this area directly during cleaning.
Power Switch Status Signs
•“I” means power on, “O” means power off.
Notes for Maintenance
•This machine can only be maintained by certified engineer.

10
4. Preparing for Installation
Unpacking
Accessories
Quick start guide, styluses, cleaning pads, remote control, power cords (UK, US, EU), VGA
cable, touch OUT USB, headphone cable, AV cable, USB Flash Drive and VC Camera Bracket.
Quick Start Guide 2x Stylus Cleanning
Pads Remote control
Power Cord (US, UK, EU)
AV Cable
VGA Cable
USB Flash Drive
USB Cable
a
Headphone Cable
HDMI Cable
VC Camera Bracket

11
Control Panel
6
5
4
3
2
1
78
Number Item Function Description
1 Power on/off
2 HOME HOME button: back to main interface
3 BACK Return button: return to previous menu level
4 MENU Menu button: call up function menu
5 VOL - Volume down button: turn volume down
6 VOL + Volume up button: turn volume up
7 Power indicator
Indicator color shows the status of power on/off (on -
green / standby mode - orange / off - off)
8 Remote control signal
Receiver Receive the remote control signal.

12
5. IFP Interface Inputs, Outputs
1 2 2 2 3 4 5 5 4 16
right side of IFP
5 4 7 8 9 10 11 12 13
right bottom side of IFP
Ports Description of Function
1. USB 2.0
USB 3.0 Connect USB devices such as mobile hard disk, USB disk, USB keyboar
d
and mouse, USB drives, etc.
2. HDMI IN
High-definition multimedia interface signal input, for connecting to
PC (personal computer) with HDMI output, set-top box, or other
video
device and can also implement touch function.
3. VGA OUT Connected to display devices with VGA input function
4. AUDIO IN External computer audio input
5. VGA IN External computer image input
6. TOUCH
External computer touch signal input. Default touch function is available
under internal computer. When connecting an external computer, in
addition to connecting external computer VGA and audio signals, the
external computer's USB port needs to be connected to the equipment.
Under the condition that driver is installed, the external computer can be
touch controlled through the equipment (touch function is effective in PC
,
VGA and HDMI channel by default)
7. AV IN Composite video and audio input
8. COAX OUT Coaxial output
9. RS232 Serial interface, used for mutual transfer of data between devices
10. Audio Out
3,5mm connector Audio Out
11. LAN LAN interface, connecting RJ45 terminals.
(This network port is only used for Android system)
12. POWER SWITCH
Power switch, to open and shut down AC power supply ON/OFF
13. AC IN
AC power input, connecting AC power supply

13
Mini PC 10A Interface Inputs, Outputs (optional)
23 14 22 22 21 20 19 18 17 16 15 14 23
)
Mini PC 10A (optional)
Ports Description of Function
14. WIFI antenna interface
15. MINI DISPLAY
PORT OUT Connection to device with Display Port input function
16. HDMI OUT Connection to devices with HDMI input function
17. LAN (RJ45) Network interface, connecting RJ45 port to connect to the Internet
.
(This network port is only used for PC)
18. USB 3.0 USB 3.0 interface to connect USB devices, such as mobile hard
disk, U disk, USB keyboard and mouse, USB drives, etc.
19. VGA OUT Connection to display device with VGA input function
20. EARPHONE Connected to device with headphone input function
21. MIC Connect to device with microphone voice collection
(used for recording function)
22. USB 2.0 USB 2.0 interface to connect USB devices, such as mobile hard
disk, U disk, USB keyboard and mouse, USB drives, etc.
23. SCREWS Screws for fixing the Mini PC into the slot of IFP.

14
6. Remote Control
Remote control button
instructions
14

15
Detailed function description of remote control buttons
1. : Press this button to enter standby mode when power is on; Click this button to
switch on in standby mode
2. LCD: Press this button to control your LED LCD screen.
Note: Your Remote control has been set-up automatically for the function of your
LED LCD.
3. SPACE: Built-in computer Space key
4. : Mute switch
5. NUMERIC KEYS: Numeric input keys
6. DISPLAY: Display channel information
7. : Function button
8. INPUT: Input signal source selection key, choose different sources as needed
9. MENU: Setting menu button, press this button to pop up
10. HOME: Android system main screen button
11. RED: TV function button, Lock/Unlock touch function
12. BLUE: TV function button
13. YELLOW: TV function button
14. GREEN: TV function button
15. :Single key for blank screen
16. :Backspace key
17. Direction keys
18. ENTER: Confirmation key, press this key to confirm mode selection
19. Quickly start writing software (TBC Lite in Android), select writing pen quickly if
software is running
20. BACK: Return key
21. CH. +, CH.-: Function button
22. PG UP: Built-in computer page (previous page)
23. VOL+,VOL-: Volume switch key
24. PG DN: Built-in computer page (next page)
25. : Built-in computer Windows key
26. ALT+TAB: Built-in computer spacebar Alt + Tab
27. ALT+F4: Built-in computer program window close button
28. F1-F8: Built-in computer F1 – F9 function keys
NOTE: In case of no built-in computer, all function keys relating to the computer are regarded as
having no operating functions.

16
Remote Control Use Instructions
Install Batteries (batteries not included)
1) Open back cover of battery compartment on the back of remote control
2) Install AAA type batteries according to the corresponding electrode, make
sure battery positive and negative poles are correctly placed ("+"to"+", "-" to
"-"), please do not mix old and new batteries
3) After batteries are installed, close the back cover of battery compartment, and snap the clip
fastener shut against the bottom of the remote.
Range of remote control
Remote control can function normally within the range of 8 meters distance, 30
degrees left and right from the remote control receiver; in order to protect the
environment, please dispose of waste batteries in a designated recycling box.
CAUTION
RISK OF EXPLOSION IF BATTERY IS
REPLACED WITH AN INCORRECT TYPE
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS

17
7. Connection and Set Up
CAUTION
For the safety of you and the device, please do not connect any power cord before the external
device has been prepared.
External Computer and Touch Connection
(1) Use VGA line to connect to VGA output port of external computer, and
meanwhile use headphone audio line to connect to external computer
audio output interface.
(2) Use USB line to connect to external computer USB port.
(3) After connection is completed, plug in power cord, and switch POWER
to on.
(4) Start external computer.
(5) Press key, and the equipment is powered on.
(6) Press the INPUT key to switch to VGA channel.
NOTE:
External computer input, equipment's best resolution is 1920x1080.
External computer can also connect to the equipment through the HDMI cable
Recommended computer configuration:
2.0GHZ Processor, 1GB Memory, min. 256 color display card
1GB Available Hard Drive, Support Resolution 800*600, 1024*768
VGA-OUT/HDMI-OUT, Audio-OUT, USB Interface

18
Audio and video equipment
AV
(1) Use AV audio and video lines to connect audio and video equipment with AV output
(yellow for video, red for right sound channel, and white for left sound channel)
(2) After line connection, plug in power cord, and switch power to On
(3) Press to turn equipment ON
(4) Press INPUT key to switch to CVBS port
HDMI1 / HDMI2 / HDMI3
)
(MHL)
DVD Disc Player
HDMI cable
(1) Use HDMI line to connect audio and video equipment with HDMI output
(2) After line connection, plug in power cord, and switch power On
(3) Press to turn equipment ON
(4) Press INPUT key to switch to HDMI port

19
HDMI
Coaxial connection
(1) Use coaxial line to connect audio device with coaxial input
(2) After line connection, plug in power cord, and switch power to ON
(3) Press to turn equipment on
Video output connection
VGA output connection
Mini PC 10A (optional)
(1) Use VGA line to connect display devices with VGA input, and use
headphone line to connect sound output
(2) After line connection, plug in power cord, and switch power to On
(3) Press to turn equipment on
(4) Press INPUT key to switch to PC port
(5) Set internal computer as VGA output or multi-screen display TV
Note: VGA OUT of TV outputs VGA IN graphics and sound

20
USB Equipment connection
Network cable connection
Microphone connection
WAN connection
NOTE: If the user wants the built-in computer and android system to connect to the
Internet at the same time.
