Trojan CADENCE 420 User manual

USER MANUAL
CADENCE 420
STATIONARY
BIKE
7 KG
FLYWHEEL CARDIO
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
www.instagram.com/trojanhealth
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.

2
INDEX
• Important Safety Instructions ________________________________ 3
• Pre Assembly Check List _____________________________________ 5
• Hardware & Tools List ________________________________________ 6
• Parts List ___________________________________________________ 8
• Exploded Drawing ___________________________________________ 10
• Assembly Steps _____________________________________________ 11
• Console Functions ___________________________________________ 14
• Exercise Instructions ________________________________________ 18
• Fitness Tips & Techniques ____________________________________ 20
• Conditioning Guidelines ______________________________________ 21
• Warm Up & Cool Down _______________________________________ 22
• Maintenance ________________________________________________ 23
• 2 Year Limited Warranty ______________________________________ 24
• Repairs Procedure ___________________________________________ 25

3
IMPORTANT SAFETY INSTRUCTIONS
It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa. Customers residing outside South Africa
can contact us on [phone].
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam. This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each session
by cooling down and stretching.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely. It is
recommended that there should be at least 1 m of space around the equipment where access is required
to exercise.
PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by 1 person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan
equipment to avoid injury.
• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.

4
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner.
Keep children away from all equipment.
• Parents or other supervising adults must provide close supervision of children if the equipment is used
in the presence of children.
INSPECTION
• Do not use or permit use of any equipment that is damaged, or has worn or broken parts. For all Trojan
equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason. They contain
important information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your
Trojan equipment.
• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the
equipment yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
Customers residing outside South Africa can contact us on [phone].
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all
Trojan equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan Cadence 420 Stationary Cycle may not be used by persons weighing more than 120 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE.
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.
Customers residing outside South Africa can contact us on [phone].
IMPORTANT SAFETY INSTRUCTIONS

5
PRE ASSEMBLY CHECK LIST
Thank you for choosing the Trojan Cadence 420 Stationary Cycle. We take great pride in producing this product
and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its
fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health. Too
often, our busy lifestyles limit our time and opportunity to exercise. The Trojan Cadence 420 Stationary Cycle
provides a convenient and simple method to begin your assault on getting your body in shape and achieving

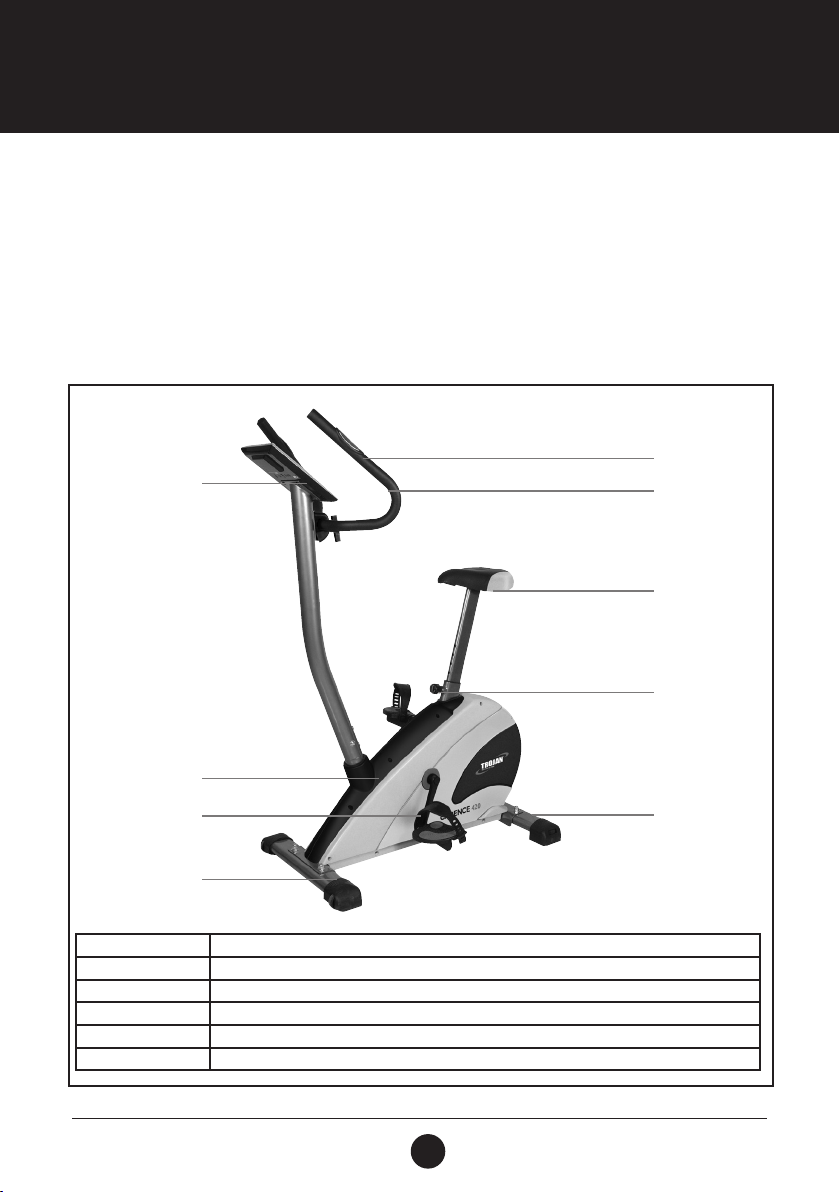

a healthier lifestyle. Before reading further, please review the drawing below and familiarise yourself with the
parts that are labelled.
Read this manual carefully before using the Trojan Cadence 420 Stationary Cycle.
Tension Control Auto
Function Time / Speed / RPM / Distance / Calories / Hand Pulse / Recovery / ODO / Watt / Programs
Set-up Size 950 mm (l) x 515 mm (w) x 1333 mm (h)
Weight of Flywheel 7 kg
User Weight 120 kg (maximum)
Programs Manual, Pre-programs, Body Fat, BMI, Target Rate Control, Heart Rate Control, User Program
Hand Pulse
Handlebar
Rear
Stabiliser
Console
Main Cover
Pedal
Front
Stabiliser
Seat
Adjustment
Knob

6
HARDWARE & TOOLS LIST
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.
No. 1 Main Frame
No. 15 Console
No. 3 Front StabiliserNo. 2 Rear Stabiliser
No. 10 Right Pedal
No. 9 Left Pedal
No. 13 Front Post No. 14 Handlebar
No. 11 Seat Post
No. 12 Seat

7
No. Description Parts & Tools QTY
4 Flat Washer (M10 x 22 mm) 4
5 Domed Nut (M10) 4
6 Carriage Bolt (M10 x 55 mm) 4
26 Curved Washer (M8 x 20 mm) 4
27 Allen Screw (M8 x 16 mm) 4
37 Cover for Clamp 1
38 T Type knob 1
Allen Key (6 mm) 1
Spanner (S13, 19) 1
HARDWARE & TOOLS LIST

8
PARTS LIST
No. Description Qty
1 Main Frame 1
2 Rear Stabiliser 1
3 Front Stabiliser 1
4 Flat Washer (M10 x 22 mm) 4
5 Domed Nut (M10) 4
6 Carriage Bolt (M10 x 55 mm) 4
7 L Transportation Wheel Left 1
7 R Transportation Wheel Right 1
8 Leveling End Cap 2
9 Left Pedal 1
10 Right Pedal 1
11 Seat Post 1
12 Seat 1
13 Front Post 1
14 Handlebar 1
15 Console 1
16 Allen Screw (M8 x 20 mm) 2
17 Hand Pulse Sensor 2
18 Self-tapping Screw (ST4 x 20 mm) 2
19 Flat Washer (4.2 x 12 mm) 2
20 Screw (M5 x 10 mm) 4
21 End Cap for Handlebar 2
22 L Crank Left 1
22 R Crank Right 1
23 Foam Grip 2
24 Lower Console Wire 1
25 Middle Console Wire 1
26 Curved Washer (M8 x 20 mm) 4
27 Allen Screw (M8 x 16 mm) 4
No. Description Qty
28 Hand Pulse Wire 2
29 Grommet 1
30 Flat Washer (17 x 8 mm) 5
31 Spring Washer (M8) 3
32 Nylon Locknut (M8) 5
33 Quick Release Knob 1
34 Upper Hand Pulse Wire 2
35 Upper Console Wire 1
36 Clamp 1
37 Cover for Clamp 1
38 T Type Knob 1
39 Hex Head Bolt (M8 x 45 mm) 1
40 Spring (Ø16) 1
41 Magnet Assembly 1
42 Powder Spacer 1
43 Hex Head Bolt (M6 x 20 mm) 1
44 Nut (M6) 2
45 Sensor Bracket 1
46 Spring (Ø10) 1
47 Seat Post Bushing 1
48 France Nut 2
49 Nut (M8) 1
50 Flywheel 1
51 Belt-drive Wheel 1
52 Belt 1
53 Screw (ST5 x 15 mm) 13
54 L Chain Cover Left 1
54 R Chain Cover Right 1
55 Idle Wheel 1

9
No. Description Qty
56 Bearing 2
57 Motor 1
58 Motor Wire 1
59 Power Wire 1
60 Inner Cap for Handlebar Post 1
No. Description Qty
61 Inner Cap for Seat Post 1
62 Screw (ST5 x 15) 4
63 Powder Spacer 2
64 Hex Head Bolt (M8 x 55 mm) 1
65 Adaptor (230V/50HZ, 6VDC, 1000MA) 1
PARTS LIST

10

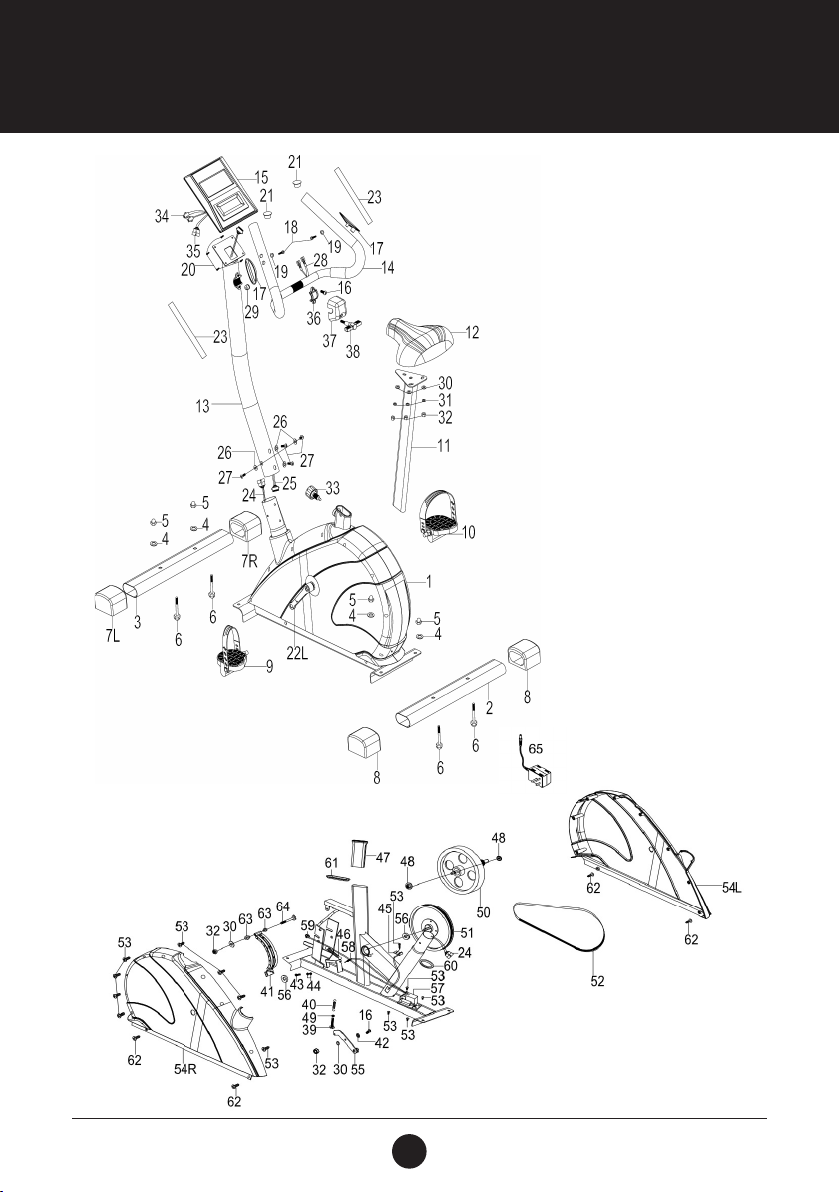

EXPLODED DRAWING

11
ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

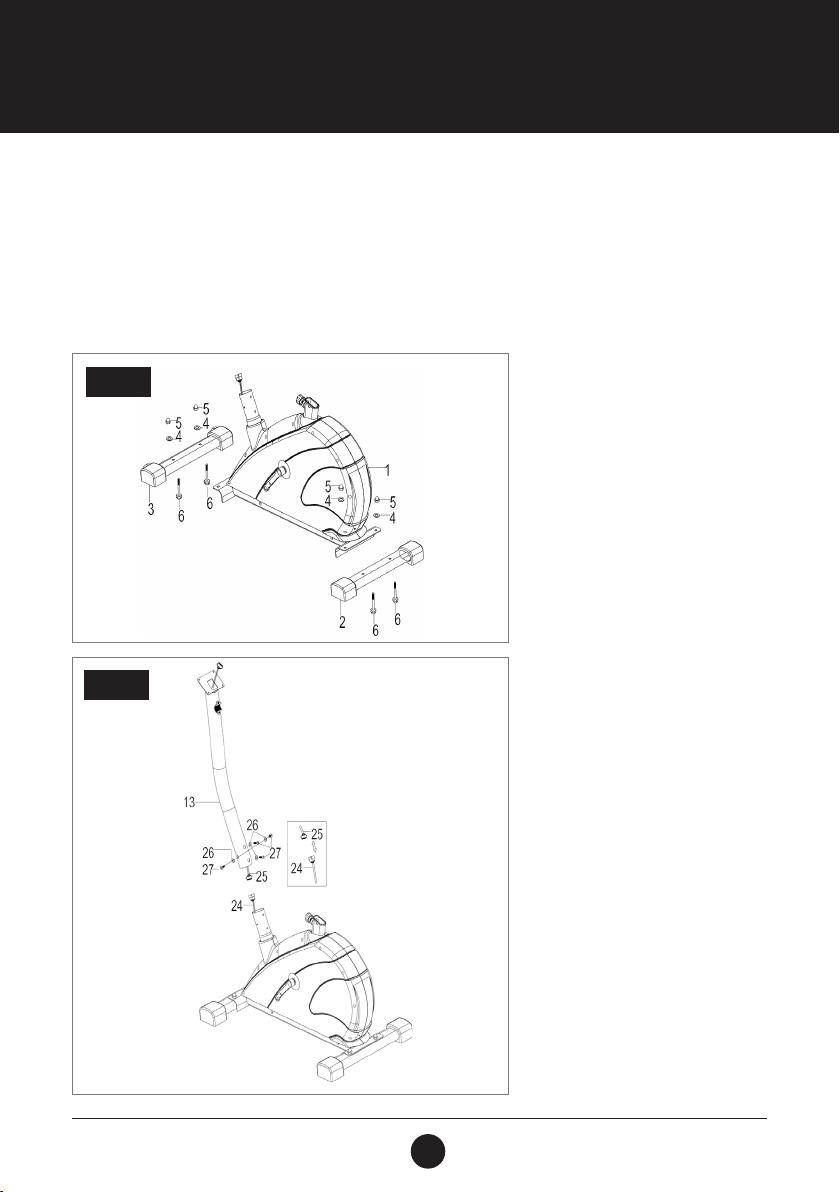

STEP 1: STABILISER
ASSEMBLY
Attach the Front Stabiliser (3) to the
front of the Main Frame (1) using
2 Carriage Bolts (M10 x 55 mm) (6),
2 Flat Washers (M10 x 22 mm) (4)
and 2 Domed Nuts (M10) (5). Attach
the Rear Stabiliser (2) to the rear of
the Main Frame (1) using 2 Carriage
Bolts (M10 x 55 mm) (6), 2 Flat
Washers (M10 x 22 mm) (4) and
2 Domed Nuts (M10) (5).
STEP 2: HANDLEBAR POST
ASSEMBLY
Connect the Middle Console Wire (25)
in the Handlebar Post (13) to the Lower
Console Wire (24) in the Main Frame (1).
Insert the Front Post (13) into the Main
Frame (1). Secure using 4 Allen Screws
(M8 x 16 mm) (27) and 4 Curved Washers
(M8 x 20) (26).
STEP 1
STEP 2

12
ASSEMBLY STEPS

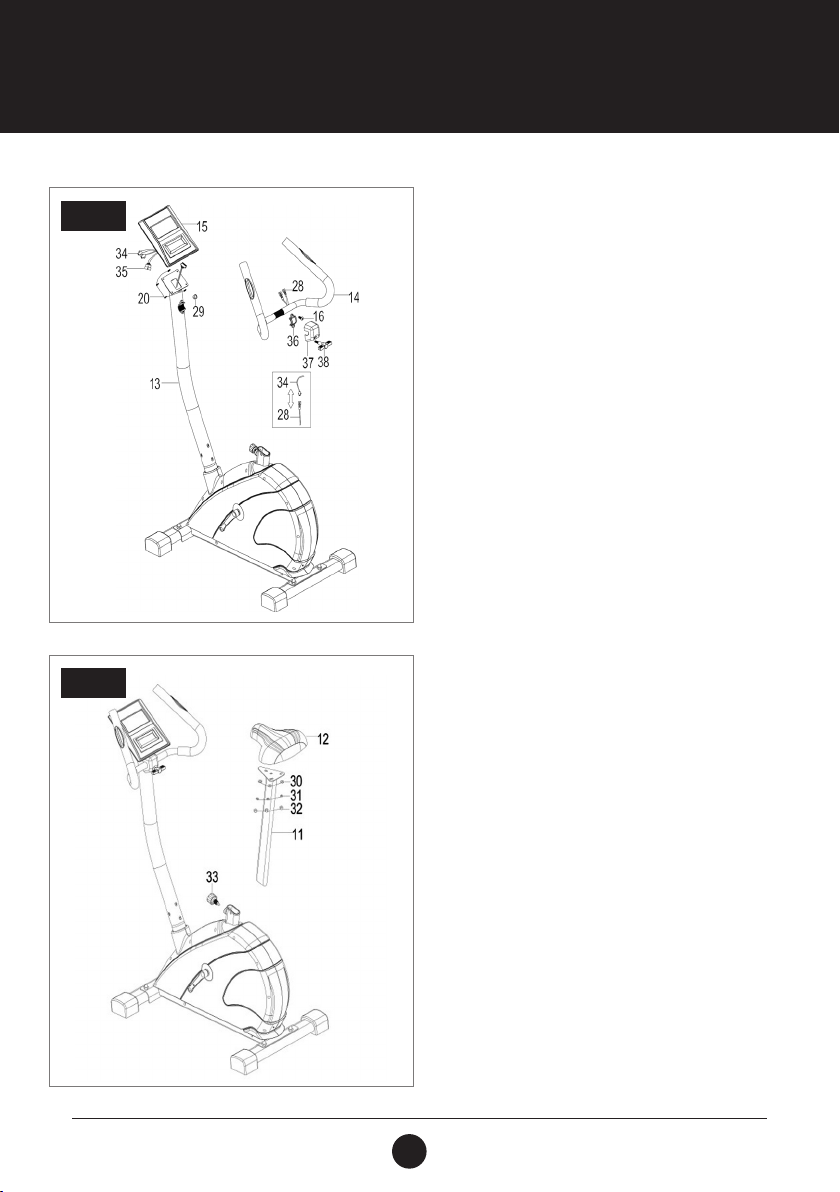

STEP 3: HANDLEBAR ASSEMBLY
Attach the Handlebar (14) to the Front Post (13), securing
with 1 Clamp (36), 1 Allen Bolt (M8 x 20 mm) (16), 1 Cover
for Clamp (37) and the T Type Knob (38). Insert the Hand
Pulse Wire (28) through the Grommet (29) and insert it
through the hole in the Front Post (13). Pull the Hand
Pulse Wire (28) through the hole at the top of the Front
Post (13) and insert the Grommet (29) into the upright.
Connect the Hand Pulse Wire (28) to the Upper Hand Pulse
Wire (34). Connect the Middle Console Wire (25) to the
Upper Console Wire (35).
Attach the Console (15) onto the bracket of the Front
Post (13), securing it using 4 Screws (M5 x 10 mm) (20)
which are pre-assembled on the back of the Console (15).
STEP 4: SEAT ASSEMBLY
Attach the Seat (12) to the Seat Post (11), securing
it using 3 Flat Washers (17 x 8 mm) (30), 3 Spring
Washers (M8) (31) and 3 Nylon Locknuts (M8) (32),
which are pre-assembled on the seat. Take the Quick
Release Knob (33) off Main Frame (1) then insert
the Seat Post Assembly (11) into the Main Frame (1)
and secure into the desired position using the Quick
Release Knob (33).
STEP 3
STEP 4

13

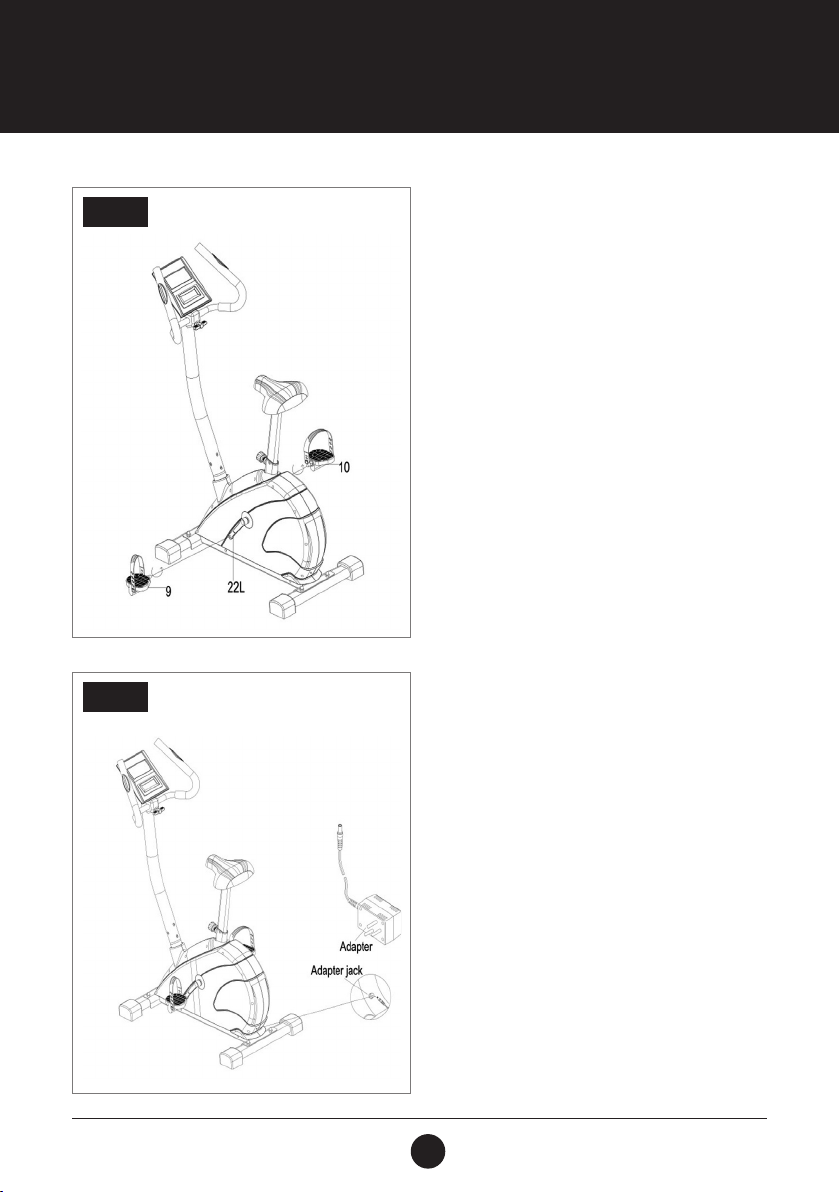

STEP 5: PEDAL ASSEMBLY
Attach the Right and Left Pedal Straps to the Left
and Right Pedals (9, 10).
Note: The end with 4 adjustable holes must be set
outwards.
Attach the Left and Right Pedals (9, 10) to the
Crank Arms (22L, R).
Note: The Pedals and Crank Arms are marked with
R, L. The Right Pedal (R) should be threaded in a
clockwise direction and the Left Pedal (L) should be
threaded in a counter-clockwise direction.
ASSEMBLY STEPS
STEP 5
STEP 6: ELECTRICAL SUPPLY
Plug the Adapter into the Adapter Jack.
STEP 6

14
CONSOLE FUNCTIONS
BUTTON FUNCTION:
START / STOP: 1. Starts & pauses workouts.
2. Starts body fat measurement and quits the body fat program.
3. Operates only when in stop mode. Holding key for 3 seconds will reset all
function value to 0.
DOWN: Decreases value of selected workout parameter: TIME, DISTANCE, RPM,
SPEED, ODO, DISTANCE. During the workout, it will decrease the
resistance load.
UP: Increases value of selected workout parameter. During the workout, it will
increase the resistance load.
ENTER: To input desired value or work out mode.
TEST (RECOVERY): Press to enter into the Recovery function when the Console is displaying
heart rate values. Hold for 1 minute and Recovery will determine the users
tness level. There are 6 Levels (1-6): F1 is the best and F6 is the worst.
MODE: Press to switch display from RPM to SPEED, ODO to DIST during workout.
FUNCTIONS AND OPERATIONS:
WORKOUT SELECTION: After power-up use UP or DOWN keys to select, then press ENTER to enter
the desired mode.
There are 5 basic workout modes:
• Manual
• Pre-programs
• Body Fat Program
• Target Heart Rate Program
• Heart Rate Control Program
• User Program
SPECIFICATIONS:
TIME (TMR) 00:00 - 99:00
DISTANCE (DST) 0.00 - 999 KM
CALORIES 0.00 - 9995
AGE 10 - 99

15
SETTING WORKOUT After selecting desired workout mode: Manual, Pre-set Programs, Body Fat,
PARAMETERS: Target Heart Rate, Heart Rate Control and User Program. You may pre-set
several workout parameters:
WORKOUT PARAMETERS: TIME / DISTANCE / CALORIES /AGE
NOTE: Some parameters are not adjustable in certain programs. Time and
Distance can not be set up at the same time. Once a program has been
selected, pressing ENTER will make the TIME parameter ash. Using the UP
or DOWN key you may select the desired time value. Press ENTER to input
the value. The ashing prompt will move to the next parameter. Continue
to use UP or DOWN key. Press START/STOP to start workout
PROGRAM OPERATIONS
MANUAL (P1): Select “Manual” using UP or DOWN key, then press ENTER. The 1st
parameter “Time” will ash and the value can be adjusted using the UP or
DOWN key. Press ENTER to save value and move onto the next parameter
to be adjusted.
NOTE: If the user sets up a Target Time for a workout, then the next
parameter of Distance cannot be adjusted. Continue through all desired
parameters, pressing START/STOP to start workout.
NOTE: When 1 of the workout parameters counts down to 0, the Console
will sound a warning and stop the workout automatically. Press the START
key to continue the workout to reach any unnished workout parameters.
PRE-PROGRAMS: There are 12 program proles ready for use. All program proles have 16
levels of resistance. Select 1 of the pre-programs using the UP or DOWN key
then press ENTER. The 1st parameter “Time” will ash and the value can be
adjusted using the UP or DOWN key. Press ENTER to save value and move
onto the next parameter to be adjusted.
NOTE: If the user sets up a Target Time for a workout, then the next
parameter of Distance cannot be adjusted. Continue through all desired
parameters, pressing START/STOP to start workout.
NOTE: When one of the workout parameters counts down to 0, the
Console will sound a warning and stop the workout automatically. Press
the START key to continue the workout to reach any unnished workout
parameters.
BODY FAT PROGRAM:
• Select the BODY FAT Program using the UP or DOWN key then press ENTER MALE will ash and the
gender can be adjusted using the UP or DOWN key.
• Press ENTER to save gender and move to the next data, 175 cm will ash and HEIGHT can be adjusted
using the UP or DOWN key.
• Press ENTER to save value and move to the next data, 75 kg will ash and WEIGHT can be adjusted
using the UP or DOWN key.
CONSOLE FUNCTIONS

16
CONSOLE FUNCTIONS
• Press ENTER to save value and move to the next data, 30 Years will ash and AGE can be adjusted
using the UP or DOWN key.
• Press ENTER to save value. Place both hands on the hand pulse grips and press START/STOP to start
measurement. After 15 seconds the display will show your Body Fat%, BMR, BMI and BODY TYPE.
BMR (Basal Metabolism Ratio): Your Basal Metabolic Rate (BMR) shows the number of calories your
body needs to operate. This doesn’t account for any activity, it’s simply
the energy needed to sustain a heartbeat, breathing and normal body
temperature. It measures the body at rest, not sleep, at room temperature.
BMI (BODY MASS INDEX): BMI is a measure of body fat based on height and weight that applies to
both adult men and women.-
• Press START/STOP KEY to return the Main Display.
Body Types:
There are 9 body types divided according to the FAT % calculated.
• Type 1 is from 5% to 9%.
• Type 2 is from 10% to 14%.
• Type 3 is from 15% to 19%.
• Type 4 is from 20% to 24%.
• Type 5 is from 25% to 29%.
• Type 6 is from 30% to 34%.
• Type 7 is from 35% to 39%.
• Type 8 is from 40% to 44%.
• Type 9 is from 45% to 50%.
TARGET HEART Select TARGET H.R. using the UP or DOWN key then press ENTER KEY.
RATE PROGRAM: The 1st parameter “Time” will ash and the value can be adjusted using
the UP or DOWN key. Press ENTER to save value and move onto the next
parameter to be adjusted. If the user sets up a target time for a workout,
then the next parameter of Distance cannot be adjusted. If the measured
Pulse is above or below the set TARGET H.R (± 5), the Console will adjust
the resistance load automatically. The Console will check, approximately
every 20 seconds, and adjust the resistance load by 1 up or down, as
required. Each resistance load represents 2 levels of loading. When 1 of the
workout parameters counts down to 0, the Console will sound a warning
and stop the workout automatically. Press the START key to continue the
workout to reach any unnished workout parameters.
HEART RATE CONTROL There are 2 selections for target pulse:
PROGRAM: • P16 - 60% TARGET H.R= 60% of (220 - AGE)
• P17 - 85% TARGET H.R= 85% of (220 - AGE)
Select one of the HEART RATE CONTROL PROGRAMS using the UP or DOWN
key then press ENTER. The 1st parameter “Time” will ash and the value
can be adjusted using the UP or DOWN key. Press ENTER to save value and
move onto the next parameter to be adjusted.

17
Note: If the user sets up a target time for a workout, then the next
parameter of Distance cannot be adjusted. Continue through all desired
parameters, pressing START/STOP to start workout. If the measured Pulse
is above or below the set TARGET H.R (± 5), the Console will adjust the
resistance load automatically. The Console will check, approximately every
20 seconds, and adjust the resistance load by 1, up or down as required.
Each resistance load represents 2 levels of loading. When 1 of the workout
parameters counts down to 0, the Console will sound a warning and stop
the workout automatically. Press the START key to continue the workout
to reach any unnished workout parameters.
USER PROGRAM: User program allows the user to set their own program that can be used
immediately. Select USER using the UP or DOWN key then press ENTER.
The 1st parameter “Time” will ash and the value can be adjusted using
the UP or DOWN key. Press ENTER to save value and move onto the next
parameter to be adjusted.
NOTE: If the user sets up a target time for a workout, then the next
parameter of Distance cannot be adjusted. Continue through all desired
parameters, pressing START/STOP to start workout. After user has nished
setting up the desired parameter, LEVEL 1 will ash. Use the UP or DOWN
key to adjust then press ENTER until nished (10 times in total). Press
START/STOP to start workout. When 1 of the workout parameters counts
down to 0, the Console will sound a warning and stop the workout
automatically. Press the START key to continue the workout to reach any
unnished workout parameters
CONSOLE FUNCTIONS

18

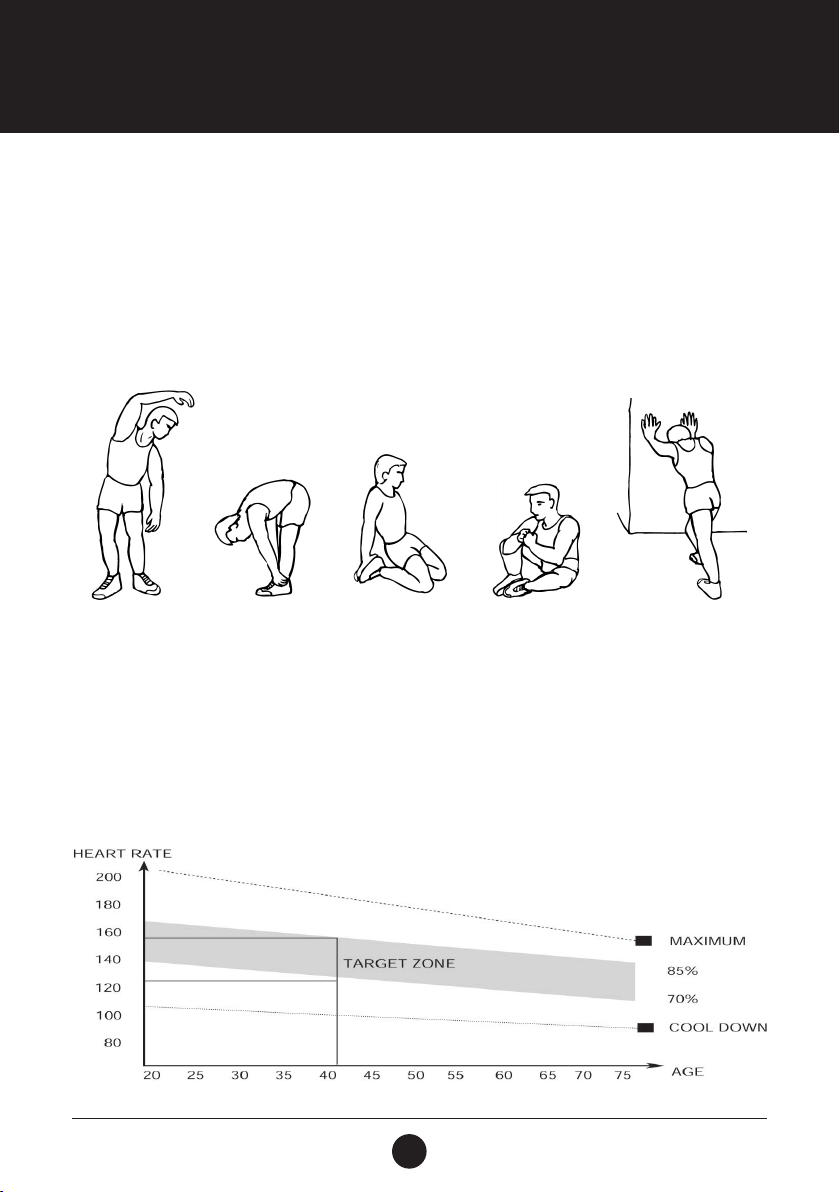

EXERCISE INSTRUCTIONS
Using your Trojan Cadence 420 Stationary Cycle provides you with several benets, it will improve your
physical tness, tone muscle and in conjunction with a calorie controlled diet, help you lose weight.
THE WARM UP PHASE
This stage helps get the blood owing around the body and the muscles working properly. It will also reduce
the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each
stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch.
If it hurts, STOP.
THE EXERCISE PHASE
This is the stage where you put the effort in. After regular use, the muscles in your legs will become
stronger. Work at your own pace, but it is very important to maintain a steady tempo throughout.
The rate of work should be sufcient to raise your heart beat into the target zone shown on the
graph below.
SIDE BENDS OUTER THIGH CALF STRETCHINNER THIGHFORWARD
BENDS

19
EXERCISE INSTRUCTIONS
This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up
exercise i.e. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now
be repeated, again remembering not to force or jerk your muscles into the stretch.
As you get tter you may need to train longer and harder. It is advisable to train at least 3 times a week,
and if possible space your workouts evenly throughout the week.
MUSCLE TONING
To tone muscle while on your Trojan Cadence 420 Stationary Cycle you will need to have the resistance set
quite high. This will put more strain on your leg muscles and may mean you cannot train for as long as you
would like. If you are also trying to improve your tness, you need to alter your training program. You should
train as normal during the warm up and cool down phases, but towards the end of the exercise phase you
should increase resistance, making your legs work harder than normal. You may have to reduce your speed to
keep your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer you work the more
calories you will burn.

20
FITNESS TIPS & TECHNIQUES
VISIT:
www.trojanhealth.co.za for equipment choices and exercise programs.
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs.
Aerobic exercise improves the tness of your lungs and heart − your body’s most important muscle. Aerobic
exercise tness is promoted by any activity that uses your large muscles (arms, legs, or buttocks, for
example). Your heart beats quickly and you breathe deeply. An aerobic exercise should form part of your
entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store,
weight training is an essential part of the exercise routine process. Weight training helps tone, build and
strengthen muscle. If you are working above your target zone, you may want to do a lesser amount of reps.
Always consult your physician before beginning any exercise program.
MUSCLE CHART
The exercise routine that is performed on the Trojan Cadence 420 Stationary Cycle will develop the lower
body muscle group as well as condition the circulatory system and provide a good aerobic workout. These
muscle groups are highlighted on the muscle chart below.
Trapezius
Posterior
Tricep
Latissimus Dorsi
Gluteals
Hamstrings
Gastrocnemius
Trapezius
Anterior
Pectoralis Major
Serratus Anterior
Biceps
Abdominal
Sartorius
Quadriceps
Tibialis
