PAE 25

OPERATING MANUAL

AIR COOLER

1 EN

Operating manual – air cooler PAE 25

Table of contents

Notes regarding the operating manual.................................1

Safety .....................................................................................1

Information about the device................................................3

Transport and storage...........................................................4

Assembly and installation.....................................................5

Operation ...............................................................................7

Available accessories..........................................................10

Errors and faults..................................................................10

Maintenance ........................................................................12

Technical annex...................................................................15

Disposal ...............................................................................15

Notes regarding the operating manual

Symbols

Warning of electrical voltage

This symbol indicates dangers to the life and health of

persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average

risk level which, if not avoided, can result in serious

injury or death.

Caution

This signal word indicates a hazard with a low risk

level which, if not avoided, can result in minor or

moderate injury.

Notice

This signal word indicates important information (e.g.

material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry

out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the

operating manual must be observed.

You can download the current version of the operating manual

and the EU declaration of conformity via the following link:

PAE 25

https://hub.trotec.com/?id=41090

Safety

Read this manual carefully before starting or using the

device. Always store the manual in the immediate vicinity

of the device or its site of use!

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may

result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future

reference.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• Do not use the device in potentially explosive rooms.

• Do not use the device in aggressive atmosphere.

• Set the device up in an upright and stable position.

• Let the device dry out after a wet clean. Do not operate it

when wet.

• Do not use the device with wet or damp hands.

• Do not expose the device to directly squirting water.

• Never insert any objects or limbs into the device.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• This appliance is not a toy! Keep away from children and

animals. Do not leave the device unattended during

operation.

• Check accessories and connection parts for possible

damage prior to every use of the device. Do not use any

defective devices or device parts.

EN 2

Operating manual – air cooler PAE 25

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals). Never

use the device if electric cables or the power connection

are damaged!

• The electrical connection must correspond to the

specifications in chapter Technical data.

• Insert the mains plug into a properly secured mains

socket.

• Observe the technical data when selecting extensions to

the power cable. Completely unroll the extension cable.

Avoid electrical overload.

• Before carrying out maintenance, care or repair work on

the device, remove the mains plug from the mains socket.

Hold onto the mains plug while doing so.

• Switch the device off and disconnect the power cable from

the mains socket when the device is not in use.

• Do not under any circumstances use the device if you

detect damages on the mains plug or power cable.

If the supply cord is damaged, it must be replaced by the

manufacturer, his service agent or similarly qualified

persons in order to avoid a hazard.

Defective power cables pose a serious health risk.

• When positioning the device, observe the minimum

distances from walls and other objects as well as the

storage and operating conditions specified in the Technical

data chapter.

• Ensure that the air inlet and outlet are not obstructed.

• Ensure that the side of the device where the air inlet is

found is kept free of dirt and loose objects.

• Only transport the device in an upright position with an

emptied water tank.

• Empty the water tank before transport and storage. Do not

drink the water. Health hazard!

• Only fill the water tank with fresh drinking water, ice cubes

made of fresh drinking water and/ or suitable ice packs.

• Ice packs are not toys. Keep away from children and

animals.

• Never open an ice pack. The liquid inside the ice packs

can be harmful to health.

• Do not eat the ice that may form on the ice packs. Health

hazard!

Intended use

Only use the device for cooling the air in interior spaces while

adhering to and following the technical data.

Intended use comprises cooling the air in:

• living spaces

• museums

• warehouses and archives

• libraries

• call centres and computer rooms

Improper use

• Do not place the device on wet or flooded ground.

• Do not place any objects, e.g. clothing, on the device.

• Do not use the device outdoors.

• Any unauthorised modifications, such as alterations or

structural changes to the device, are forbidden.

• Any operation other than as described in this manual is

prohibited. Non-observance renders all claims for liability

and guarantee null and void.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with

electric devices in damp areas.

• have read and understood the operating manual, especially

the Safety chapter.

Maintenance tasks which require the housing to be opened

must only be carried out by specialist electrical companies or by

Trotec.

3 EN

Operating manual – air cooler PAE 25

Residual risks

Warning of electrical voltage

Work on the electrical components must only be

carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug

from the mains socket!

Hold onto the mains plug while pulling the power cable

out of the mains socket.

Warning

The liquid inside the ice packs can be harmful to

health!

If the liquid was swallowed, immediately seek medical

attention.

If the liquid came into contact with your eyes, rinse

with water and immediately consult an

ophthalmologist.

Warning

Dangers can occur at the device when it is used by

untrained people in an unprofessional or improper way!

Observe the personnel qualifications!

Warning

The device is not a toy and does not belong in the

hands of children.

Warning

Risk of suffocation!

Do not leave the packaging lying around. Children may

use it as a dangerous toy.

Notice

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

Behaviour in the event of an emergency

1. In an emergency, disconnect the device from the mains

feed-in: Switch the device off and disconnect the power

cable from the mains socket. Hold onto the mains plug

while doing so.

2. Do not reconnect a defective device to the mains.

Information about the device

Description of the device

The air cooler PAE25 cools rooms down to pleasant

temperatures by means of evaporation.

The device is filled with cold water or optionally with ice cubes

and/or ice packs in order to cool down the incoming warm air at

the evaporation filter and to blow out the cold air thus generated

via the fan.

Besides its cooling function, the device can also be used for air

freshening: thanks to an integrated air filter and the evaporation

filter's honeycomb structure, the sucked-in air is filtered and

humidified.

The fan can be set to four stages.

The discharge direction of the cooled air can be manually

adjusted via the ventilation flaps as well as via the optionally

selectable automatic swing mode.

The device has a night mode enabling ultra-silent operation at

bedtime.

The device can be operated via the control panel at the device

or via the infrared remote control.

EN 4

Operating manual – air cooler PAE 25

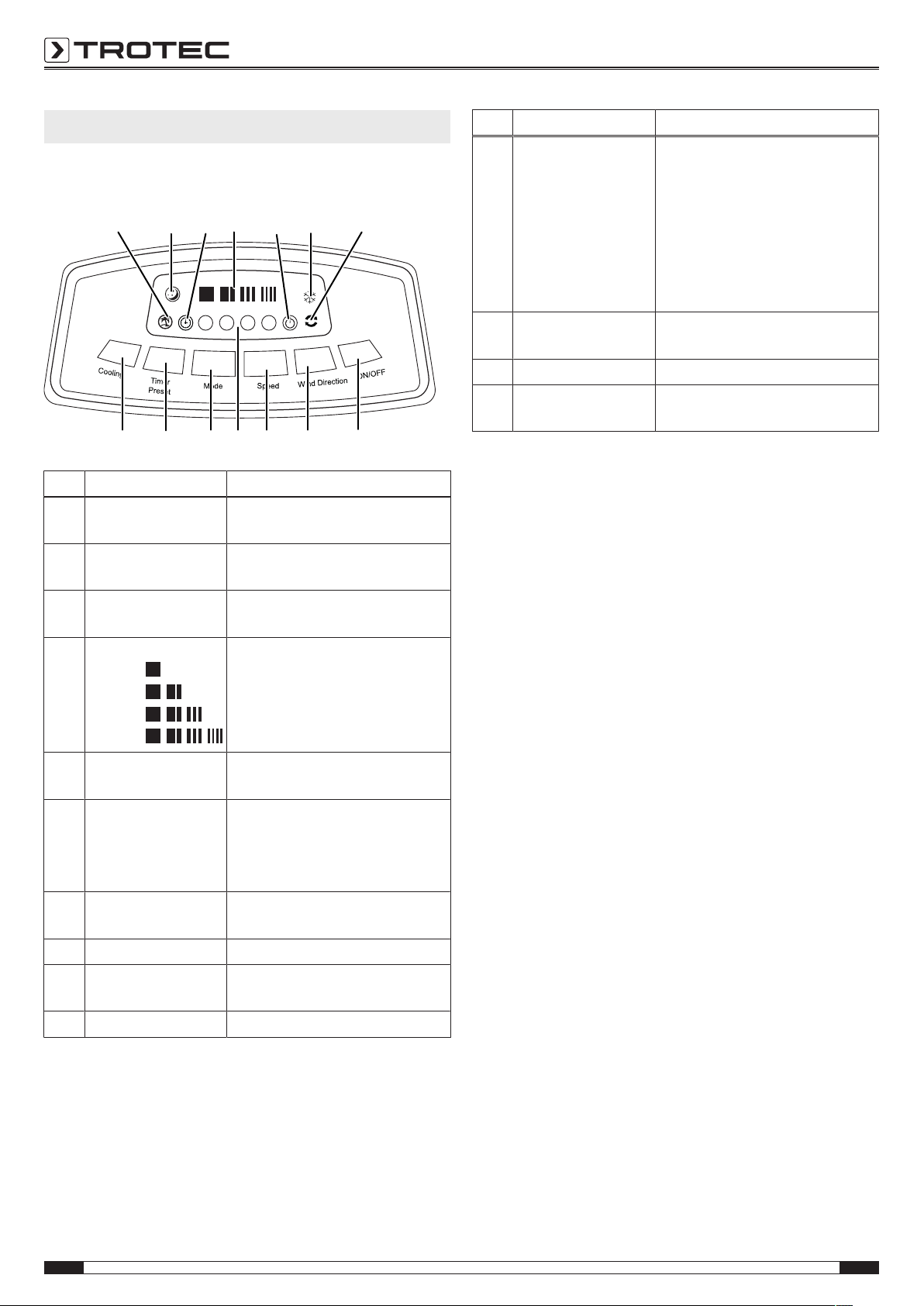

Device depiction

Timer/

Preset

Speed

Wind

Direction Mode

ON/OFF

Cooling

Light

No. Designation

1 Transport handle

2 Air inlet with air filter and honeycomb filter

3 Wheels

4 Honeycomb filter

5 Ice packs

6 Remote control

7 Air filter

8 Water tank with filling level indicator

9 Air outlet with adjustable ventilation flaps

10 Air flaps for swing function

11 Control panel

Transport and storage

Notice

If you store or transport the device improperly, the

device may be damaged.

Note the information regarding transport and storage of

the device.

Transport

Before transporting the device, proceed as follows:

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Empty the water tank.

• To make the device easier to transport, it is fitted with

wheels.

• Do not use the power cable to drag the device.

• Only wheel the device on a level and smooth surface.

After transporting the device, observe the following:

• Set up the device in an upright position after transport.

Storage

Before storing the device, proceed as follows:

• Empty and clean the water tank prior to storage (see

chapter Maintenance).

• Allow the honeycomb filter to dry prior to storage.

Otherwise the device may distribute a musty smell after

restart.

When the device is not being used, observe the following

storage conditions:

• dry and protected from frost and heat

• in an upright position where it is protected from dust and

direct sunlight

• with a cover to protect it from invasive dust if necessary

• Place no further devices or objects on top of the device to

prevent it from being damaged.

• Remote batteries from the remote control.

5 EN

Operating manual – air cooler PAE 25

Assembly and installation

Scope of delivery

• Device

• Remote control

• Honeycomb filter

• 2 ice packs

• Manual

Unpacking the device

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power

cable is not damaged and that you do not damage it during

unwinding.

Start-up

When positioning the device, observe the minimum distance

from walls or other objects as described in the Technical data

chapter.

• Before restarting the device, check the condition of the

power cable. If there are doubts as to the sound condition,

contact the customer service.

• Set the device up in an upright and stable position.

• Do not create tripping hazards when laying the power

cable or other electric cables, especially when positioning

the device in the middle of the room. Use cable bridges.

• Make sure that extension cables are completely unrolled.

• Make sure that no curtains or other objects interfere with

the air flow.

Prior to initial start-up, insert the batteries in the remote control.

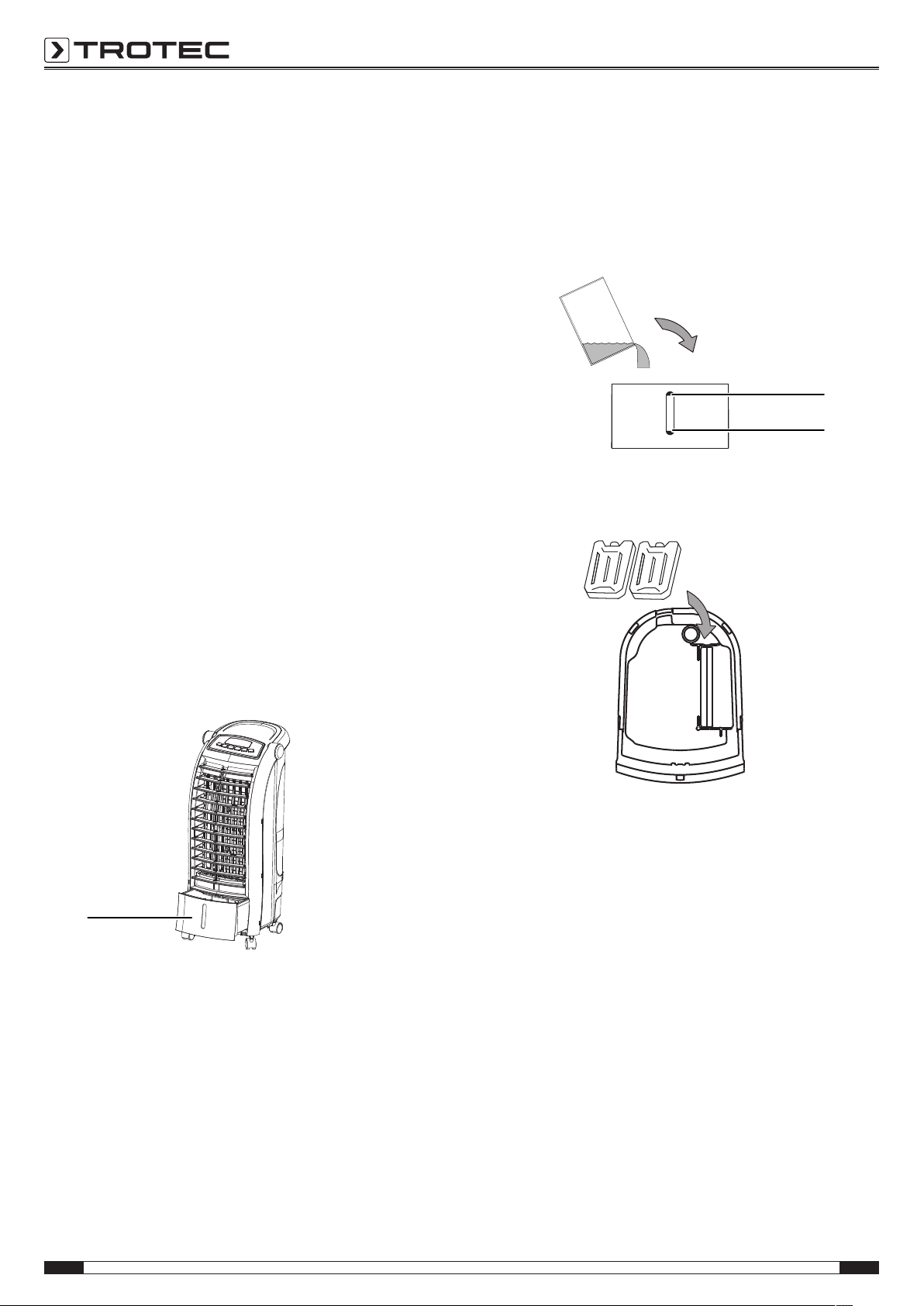

Filling the water tank

The device requires fresh drinking water for air cooling.

Observe the following when using the ice packs:

• Put the ice packs into a freezer for at least 4hours before

use.

• The water tank(8) should be filled with water before

inserting the ice packs.

• Only place the ice packs into the designated compartment

in the water tank, otherwise the pump will not function

properly.

Info

When using ice packs at high outside temperatures,

condensation may form at the water tank and drip onto

the floor.

1. Remove the water tank(8) from the device.

ðWhen removing the water tank quickly, the mechanism

for lowering the pump may be released. Push the pump

back up into the housing (see chapter Errors and faults).

EN 6

Operating manual – air cooler PAE 25

2. Fill the water tank(8) with fresh drinking water only.

Optionally, you can add ice cubes made of drinking water

for additional cooling.

ðObserve the minimum(13) and maximum filling

level(12) at the filling level indicator.

The water tank must be filled up to minimum filling

level(13) to enable pump operation.

3. If required, put the two ice packs into the compartment

inside the water tank to achieve an enhanced cooling effect.

4. Refit the water tank into the device.

5. Make sure that the device is neither damp nor wet on the

outside. Otherwise wipe it dry.

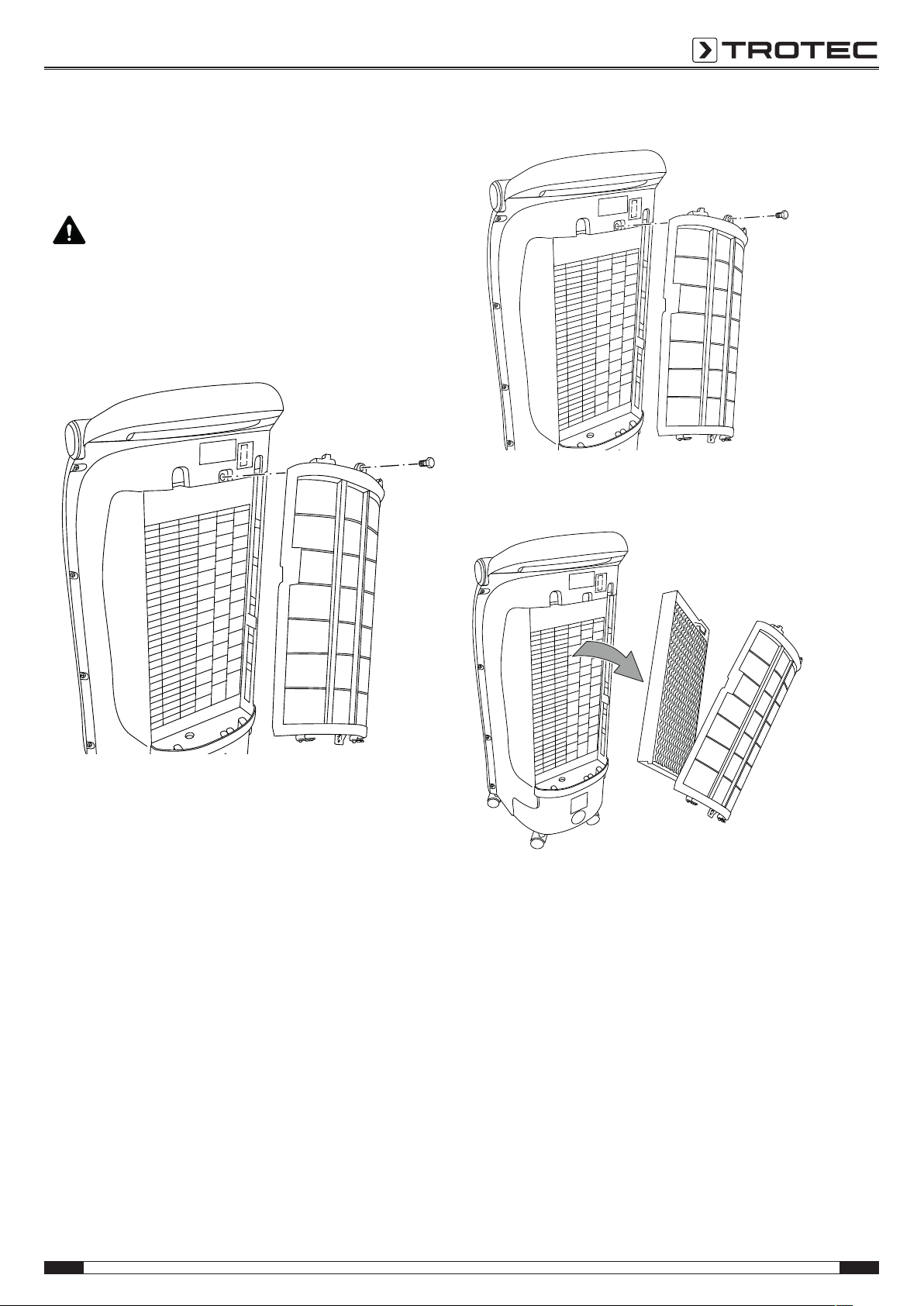

Inserting the honeycomb filter

Notice

When set to air cooling mode, the device should not be

operated without the honeycomb filter, otherwise

cooling will not work.

• Make sure that the honeycomb filter is installed before

switching the device on.

Opening the ventilation flaps

Prior to switching the device on, open the two segments of the

ventilation flaps at the air outlet.

Connecting the power cable

• Insert the mains plug into a properly secured mains

socket.

• The symbols on the control panel display light up briefly.

The device is now in standby mode.

7 EN

Operating manual – air cooler PAE 25

Operation

• Avoid open doors and windows.

Operating elements

1H 2H 4H 8H

1 2 3 4

14 15 17 18 19 20

27 26 25 24 23 22 21

No. Designation Meaning

14 Air freshening symbol Illuminated red when air

freshening mode is activated

15 Night mode symbol Illuminated red when night mode

is activated

16 Preset symbol Illuminated green when timer for

automatic switch-on is activated

17 Fan stage indication Fan speed indication:

Stage 1 = low

Stage 2 = medium

Stage 3 = high

Stage 4 = maximum

18 Timer symbol Illuminated red when timer for

automatic switch-off is activated

19 Air cooling symbol • Illuminated red when air

cooling mode is activated

• Flashes red when water tank

is empty

20 Swing function

symbol

Illuminated red when swing

function is activated

21 ON/OFF button Switching the device on or off

22 Wind Direction button Switching the swing function on

or off

23 Speed button Setting the fan speed

No. Designation Meaning

24 Hour indication • Indication of the number of

hours of the activated timer

(1 to 15 h) through a

combination of the symbols

1H, 2H, 4H and/or 8H

• When added up, the symbols

illuminated in red indicate

the desired number of hours

25 Mode button Selection button for operating

mode air freshening or night mode

26 Timer / Preset button Switching the timer on or off

27 Cooling button Switching the air cooling mode on

or off

Switching the device on

Once you have completely installed the device as described in

the Start-up chapter, you can switch it on.

1. Press the ON/OFF button(21).

ðThe device starts in ventilation mode at fan stage1.

Setting the operating mode

The device comes with the following operating modes:

•air cooling

•air freshening

•ventilation

Air cooling can be switched on both in air freshening and in

ventilation mode.

When activating air cooling, the pump is switched on and the

water is distributed over the honeycomb filter to cool the

circulating air. If the water tank is empty, an alarm signal will be

emitted and the air cooling symbol(19) will start flashing.

Please proceed as follows to activate air cooling:

1. Press the Cooling button(27).

ðThe air cooling symbol(19) appears on the display.

ðThe pump starts.

2. Press the Speed button(23) to set the desired fan stage (1

to4).

3. Press the Cooling button(27) again to switch air cooling off.

ðThe air cooling symbol(19) disappears.

ðThe device continues to run in ventilation mode.

Notice

When air cooling mode is activated, the water tank

must not be removed, otherwise the water from the

filter will drip down into the device.

EN 8

Operating manual – air cooler PAE 25

In air freshening mode, the fan speed increases and decreases

alternately to generate a pleasant, natural flow of air.

Please proceed as follows to activate air freshening:

1. Press the Mode button(25) until the air freshening

symbol(14) appears on the display.

When switching the device on, it starts in ventilation mode at

stage 1. All 4 speed stages can be selected manually.

Setting the timer

The timer has two modes of operation:

• automatic switch-on upon expiry of a preset number of

hours.

• automatic switch-off upon expiry of a preset number of

hours.

The number of hours can be between 1 and 15 and can be

adjusted in increments of 1h.

Automatic switch-on

1. Switch off the device.

2. Press the Timer / Preset button(26) until the desired

number of hours is displayed as a combination of the

different hour symbols(24).

ðThe Preset symbol(16) appears on the display.

ðThe timer setting equals the desired number of hours.

ðAfter the set number of hours has elapsed, the device

automatically starts running in ventilation mode at fan stage

1. Additionally, automatic switch-off is programmed to 2

hours and the swing function is switched on.

Notes regarding automatic switch-on:

• Manually switching the device on disables the automatic

switch-on function.

• If the power supply is interrupted, the timer will be

deactivated.

Automatic switch-off

üThe device is switched on.

1. Press the Timer / Preset button(26) until the desired

number of hours is displayed as a combination of the

different hour symbols(24).

ðThe Timer symbol(18) appears on the display.

ðThe timer setting equals the desired number of hours.

ðThe device switches off after the set number of hours has

elapsed.

Activating night mode

In night mode, it is possible to additionally switch on air cooling.

Air freshening cannot be activated.

1. Press the Mode button(25) until the night mode symbol(15)

appears on the display.

Info

If you activate air cooling, an alarm signal will be

emitted when the water tank is empty, even in night

mode.

Setting the fan stage

1. Press the Speed button(23) until the desired fan stage

appears on the fan stage indicator(17) on the display.

Remote control

All settings of the device can also be made using the remote

control included in the scope of delivery.

Timer/

Preset

Speed

Wind

Direction Mode

ON/OFF

Cooling

Light

No. Designation Meaning

21 ON/OFF button Switching the device on or off

22 Wind Direction button Switching the swing function on

or off

23 Speed button Setting the fan speed

25 Mode button Selection button for operating

mode air freshening or night mode

26 Timer / Preset button Switching the timer on or off

27 Cooling button Switching the air cooling mode on

or off

28 Light button Switching the display illumination

on or off

29 Remote control

transmitter/receiver

For infrared transmission to the

device

9 EN

Operating manual – air cooler PAE 25

Swing function

The swing function can be switched on in any operating mode if

required.

Behind the horizontal ventilation flaps, there are vertical air flaps

integrated in the device. By means of the swing function, these

air flaps are moved automatically and thus ensure continuous

air circulation.

1. Press the Wind Direction button(22) to switch the swing

function on or off.

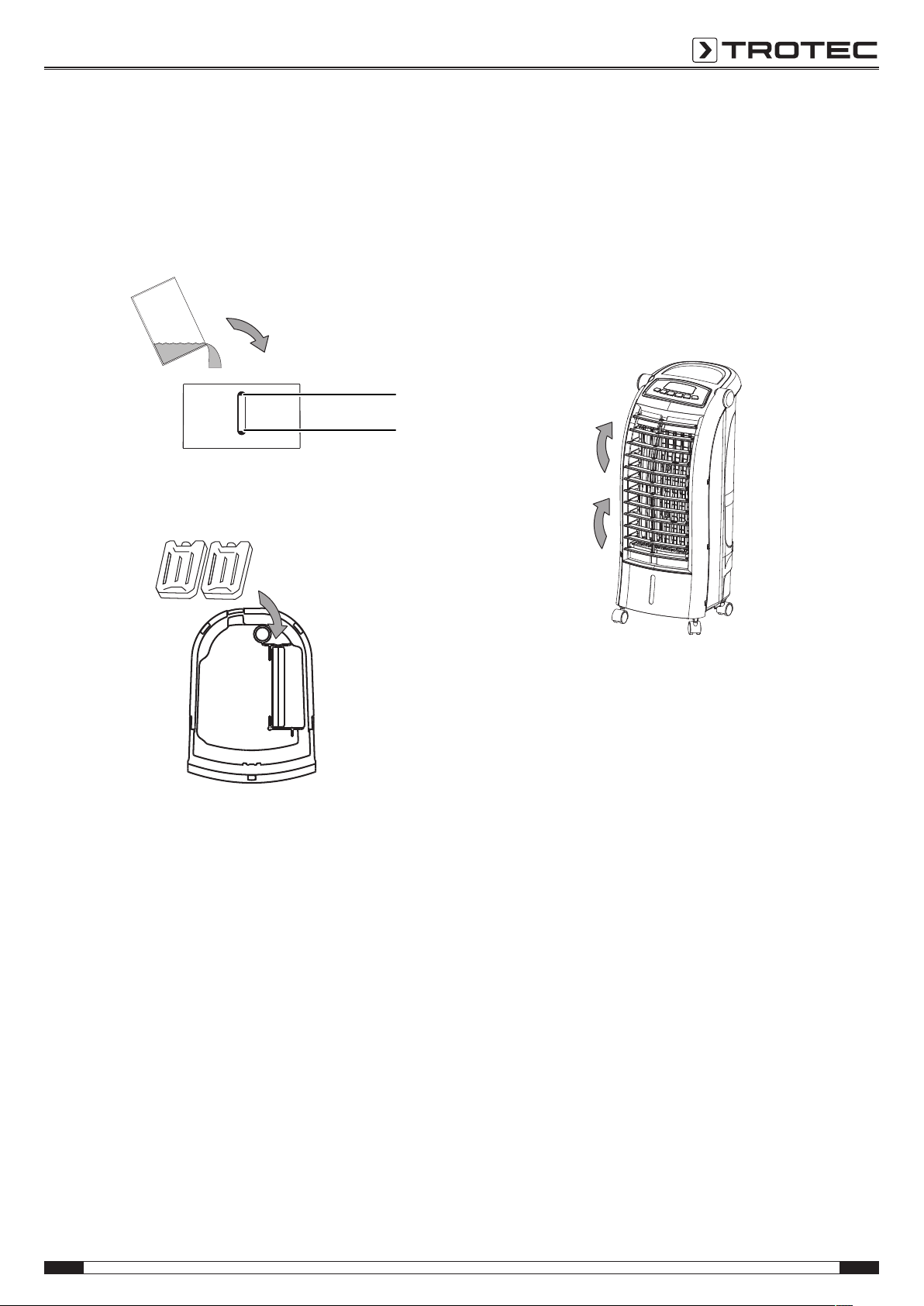

Adding water

An empty water tank is indicated by the device with an acoustic

signal and the air cooling symbol(19) flashing. In this case, the

water tank must be refilled.

Observe the following when using the ice packs:

• Put the ice packs into a freezer for at least 4hours before

use.

• The water tank(8) should be filled with water before

inserting the ice packs.

• Only place the ice packs into the designated compartment

in the water tank, otherwise the pump will not function

properly.

1. Switch the device off.

2. Remove the water tank(8) from the device.

ðWhen removing the water tank quickly, the mechanism

for lowering the pump may be released. Push the pump

back up into the housing (see chapter Errors and faults).

3. Fill the water tank(8) with fresh drinking water only.

Optionally, you can add ice cubes made of drinking water

for additional cooling.

ðObserve the minimum(13) and maximum filling

level(12) at the filling level indicator.

The water tank must be filled up to minimum filling

level(13) to enable pump operation.

4. If required, put the two ice packs into the compartment

inside the water tank to achieve an enhanced cooling effect.

5. Refit the water tank(8) into the device.

6. Make sure that the device is neither damp nor wet on the

outside. Otherwise wipe it dry.

7. Plug the power cable back into the mains socket.

8. Switch the device on.

ðThe air cooling symbol(19) no longer flashes.

Auto stop function

If the water tank is empty or not inserted correctly, an acoustic

signal signal will be emitted three times and the air cooling

symbol(19) will flash.

In air cooling mode, the fan continues running; in air freshening

mode, the device will stop automatically after a while.

EN 10

Operating manual – air cooler PAE 25

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Empty and clean the water tank (see chapter

Maintenance).

• Clean the device according to the Maintenance chapter.

• Store the device according to the Storage chapter.

Available accessories

Evaporation filter PAE 25

Article number: 7.710.000.837

Errors and faults

The device has been checked for proper functioning several

times during production. If malfunctions occur nonetheless,

check the device according to the following list.

The device does not start:

• Check the power connection.

• Check the power cable and mains plug for damages.

• Check the on-site fusing.

• Wait for 10minutes before restarting the device. If the

device is not starting, have the electrics checked by a

specialist company or by Trotec.

The device works with reduced or no capacity

• Check the position of the ventilation flaps. They should be

opened to the maximum.

• Check the air filter(s) for dirt. If necessary, clean or replace

the air filter(s).

• Check the minimum distance to walls or other objects.

Position the device a little more in the room's centre, if

required.

The device is running, but there is no air cooling or pump

operation

• Check whether air cooling mode is activated. The air

cooling symbol(19) should be illuminated.

• Check the filling level of the water tank (see chapter Filling

the water tank). The air cooling symbol(19) should not

flash.

• Check whether there are any objects blocking the pump

inlet. The pump inlet should not be blocked.

• In case the pump does not operate despite a correctly filled

water tank and activated air cooling mode, the pump might

be defective. Please contact the customer service.

Water leaks

• Check the device for leaks.

• Check the water tank for tight fit.

11 EN

Operating manual – air cooler PAE 25

The water tank cannot be inserted

• Check whether the mechanism for lowering the pump was

released. If the pump can be seen in the lower area, the

water tank is being blocked.

– Push the pump up until the switch for lowering the

pump can be seen.

The swing function does not work

• The swing function motor might be defective. Please

contact the customer service.

The device is loud or vibrates:

• Check whether the device is set up in a stable and upright

position.

The device does not respond to the infrared remote control:

• Check whether the distance between remote control and

device is too large and reduce it if necessary.

• Make sure there are no obstacles, such as furniture or

walls, between the device and the remote control. Ensure

visual contact between device and remote control.

• Check the charging status of the batteries and change

them if required.

• If the batteries have only just been changed, check them

for correct polarity and change them if required.

Notice

Wait for at least 3 minutes after maintenance and

repair work. Only then switch the device back on.

Your device still does not operate correctly after these

checks?

Please contact the customer service. If necessary, bring the

device to an authorized specialist electrical company or to

Trotec for repair.

EN 12

Operating manual – air cooler PAE 25

Maintenance Maintenance intervals

Maintenance and care interval before every

start-up

as needed at least every

2 weeks

at least every

4 weeks

at least every

6 months

at least

annually

Clean the water tank X X

Check the air inlets and outlets for

dirt and foreign objects and clean if

necessary

X X

Clean the exterior X X

Visually check the inside of the

device for dirt

X X

Check the air filter for dirt and

foreign objects and clean if

necessary

X X

Replace the honeycomb filter X

Check for damage X

Check the attachment screws X X

Test run X

Maintenance and care log

Device type: ............................................. Device number: ....................................

Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Clean the water tank

Check the air inlets and outlets for

dirt and foreign objects and clean if

necessary

Clean the exterior

Visually check the inside of the

device for dirt

Check the air filter for dirt and

foreign objects and clean if

necessary

Replace the honeycomb filter

Check for damage

Check the attachment screws

Test run

Remarks:

1. Date: ................................
