Trotec PT 2700 SP User manual

TRT-BA-PT2700SP-TC220111TTRT04-001-EN
PT 2700 SP
EN
ORIGINAL INSTRUCTIONS
SPOT COOLING AIR
CONDITIONING UNIT

2ENspot cooling air conditioning unit PT 2700 SPTable of contentsNotes regarding the instructions..........................................2Safety.....................................................................................2Information about the device................................................5Transport and storage...........................................................6Assembly and start-up..........................................................7Operation.............................................................................10Errors and faults..................................................................11Maintenance........................................................................12Technical annex...................................................................15Disposal...............................................................................19Declaration of conformity ...................................................19Notes regarding the instructionsSymbolsDangerThis symbol indicates dangers to the life and health ofpersons due to extremely flammable gas.Warning of electrical voltageThis symbol indicates dangers to the life and health ofpersons due to electrical voltage.WarningThis signal word indicates a hazard with an averagerisk level which, if not avoided, can result in seriousinjury or death.CautionThis signal word indicates a hazard with a low risklevel which, if not avoided, can result in minor ormoderate injury.NoteThis signal word indicates important information (e.g.material damage), but does not indicate hazards.InfoInformation marked with this symbol helps you to carryout your tasks quickly and safely.Follow the manualInformation marked with this symbol indicates that theinstructions must be observed.You can download the current version of the instructions via thefollowing link:PT 2700 SPhttps://hub.trotec.com/?id=46127SafetyRead this manual carefully before starting or using thedevice. Always store the manual in the immediate vicinityof the device or its site of use.WarningRead all safety warnings and all instructions.Failure to follow the warnings and instructions mayresult in electric shock, fire and/or serious injury.Save all warnings and instructions for futurereference.This appliance can be used by children aged from8years and above and persons with reduced physical,sensory or mental capabilities or lack of experienceand knowledge if they have been given supervision orinstruction concerning use of the appliance in a safeway and understand the hazards involved.Children shall not play with the appliance. Cleaning anduser maintenance shall not be made by childrenwithout supervision.•Do not use the device in potentially explosive rooms orareas and do not install it there.•Do not use the device in aggressive atmosphere.•Only put up the device in an upright, stable position on firmground.•Let the device dry out after a wet clean. Do not operate itwhen wet.•Do not use the device with wet or damp hands.•Do not expose the device to directly squirting water.•Never insert any objects or limbs into the device.•Do not cover the device during operation.•Do not sit on the device.•This appliance is not a toy. Keep away from children andanimals. Do not leave the device unattended duringoperation.•Check accessories and connection parts for possibledamage prior to every use of the device. Do not use anydefective devices or device parts.

EN3spot cooling air conditioning unit PT 2700 SP•Ensure that all electric cables outside of the device areprotected from damage (e.g. caused by animals). Neveruse the device if electric cables or the power connectionare damaged!•The mains connection must correspond to thespecifications in the Technical annex.•Insert the mains plug into a properly fused mains socket.•Observe the technical data when selecting extensions tothe power cable. Completely unroll the extension cable.Avoid electrical overload.•Before carrying out maintenance, care or repair work onthe device, remove the mains plug from the mains socket.Hold onto the mains plug while doing so.•Switch the device off and disconnect the power cable fromthe mains socket when the device is not in use.•Do not under any circumstances use the device if youdetect damages on the mains plug or power cable. If the power cable is damaged, it must be replaced by themanufacturer, its service agent or similarly qualifiedpersons in order to avoid a hazard.Defective power cables pose a serious health risk!•When positioning the device, observe the minimumdistances from walls and other objects as well as thestorage and operating conditions specified in the Technicalannex.•Make sure that the air inlet and outlet are not obstructed.•Do not remove any safety signs, stickers or labels from thedevice. Keep all safety signs, stickers and labels in legiblecondition.•Make sure that the suction side is kept free of dirt andloose objects.•Discharge the collected condensate before transport andstorage. Do not drink it. Health hazard!•Only transport the device in an upright position.Safety warnings for devices containing flammablerefrigerants•Only position the device in rooms where potentially leakingrefrigerant cannot accumulate. Unventilated rooms, inwhich the device is installed, operated or stored, must bebuilt in a way to ensure that potentially leaking refrigerantcannot accumulate. This serves to avoid fire or explosionhazards resulting from an ignition of the refrigerant by anelectric furnace, cooking stove or another ignition source.•Only position the device in rooms where there is no sourceof ignition (e.g. open flames, an active gas appliance or anelectric heater).•Please note that the refrigerant is odourless.•Only install the device in compliance with the nationalinstallation regulations.•Please observe the local regulations.•Observe the national gas regulations.•Only install, operate and store the device PT 2700 SP in aroom measuring more than 15m2.•Store the device in a way that no mechanical damage canoccur.•Please note that the connected pipelines must not containany sources of ignition.•R290 is a refrigerant that complies with Europeanenvironmental regulations. No part of the cooling circuitmay be perforated.•Observe the maximum refrigerant capacity in the technicaldata.•Do not drill through or burn.•Do not use any means other than those recommended bythe manufacturer for accelerating the defrosting process.•Every person working with or at the refrigerant circuit mustbe able to provide a certificate of qualification issued by abody accredited by the industry, demonstrating theircompetence in the safe use of refrigerants based on aprocedure well-known in the industry.•Service work may only be carried out in accordance withthe manufacturer's specifications. If maintenance andrepair work require the support of additional persons, theperson trained in handling flammable refrigerants shallcontinuously supervise the work carried out.•The entire refrigerant circuit is a maintenance-free,hermetically sealed system and may only be maintained orrepaired by specialist companies for cooling and air-conditioning or by Trotec.Intended useOnly use the device for cooling indoor air whilst adhering to thetechnical data.The device is only suitable for commercial use.The device can ideally be used for cooling server rooms,production departments and workplaces. The device has beendesigned to provide a quick installation and start-up process.The mobile device can be flexibly used due to the robust wheelswith brakes.

4ENspot cooling air conditioning unit PT 2700 SPForeseeable misuse•Do not place the device on wet or flooded ground.•Do not place any objects, e.g. clothing, on the device.•Do not use the device out of doors.•Do not use the device in wet rooms (e.g. bathrooms orlaundry rooms).•Never immerse the device in water.•Do not make any unauthorised modifications, alterations orstructural changes to the device.•Any use other than the intended use is regarded as areasonably foreseeable misuse.Personnel qualificationsPeople who use this device must:•be aware of the dangers that occur when working withelectric devices in damp areas.•have read and understood the instructions, especially theSafety chapter.Maintenance tasks which require the housing to be openedmust only be carried out by specialist companies for cooling andair-conditioning or by Trotec.Electrically skilled personElectrically skilled personnel must be able to read andunderstand electric circuit diagrams, to put electrical systemsinto service and to maintain them, to wire control cabinets, toensure the functionality of electrical components and to identifypossible hazards from electrical and electronic systems.Safety signs and labels on the deviceNoteDo not remove any safety signs, stickers or labels fromthe device. Keep all safety signs, stickers and labels inlegible condition.The following safety signs and labels are attached to the device:
WARNING • WARNUNG • ATTENTION
Follow the manualThis symbol indicates that the operating manual mustbe observed.Follow the repair manualDisposal, maintenance and repair work of therefrigerant circuit may only be carried out inaccordance with the manufacturer's specifications andby persons having a certificate of qualification. Acorresponding repair manual is available from themanufacturer upon request.The following labels are attached to the device in German andEnglish.WarningsMake sure that no objects fall into the hot air inlet or thecooling air duct. Any foreign object will cause damage to thefan blades or potential blockage of the air current and is notcovered by guarantee.WarningsDo not reach into the flexible air duct when adjusting the airangle for cold air. Adjust the angle by moving the plastic cover.ImportantRegularly check the filter for dirt!Excessive dust and dirt on the filter will affect the air supplyand cause the heat exchanger to ice up. This leads to a drasticreduction of the cooling capacity.AttentionThere are combustible gases inside the device. It is prohibitedto disassemble or repair the device by non-qualified personnel!WarningsSwitch off the device when the condensation tank fullindication is displayed. Remove the condensation tank andempty it. Make sure that the condensation tank is insertedcorrectly before switching the device back on.

EN5spot cooling air conditioning unit PT 2700 SPResidual risksDangerNatural refrigerant propane (R290)!H220 – Extremely flammable gas.H280 – Contains gas under pressure; may explode ifheated.P210 – Keep away from heat, sparks, open flames andother ignition sources. No smoking.P377 – Leaking gas fire: Do not extinguish, unless leakcan be stopped safely.P410+P403 – Protect from sunlight. Store in a well-ventilated place.Warning of electrical voltageWork on the electrical components must only becarried out by an authorised specialist company!Warning of electrical voltageBefore any work on the device, remove the mains plugfrom the mains socket!Do not touch the mains plug with wet or damp hands.Hold onto the mains plug while pulling the power cableout of the mains socket.Warning of electrical voltageRisk of electric shock!The device does not have the appropriate protectionclass for use in wet rooms.There is a risk of electric shock!Never use the device in wet rooms (e.g. in bathroomsand laundry rooms) and never immerse the device inwater!WarningDangers can occur at the device when it is used byuntrained people in an unprofessional or improper way!Observe the personnel qualifications!WarningThe device is not a toy and does not belong in thehands of children.WarningRisk of suffocation!Do not leave the packaging lying around. Children mayuse it as a dangerous toy.WarningRisk of death due to suspended loads!Make sure that nobody is situated in the immediateproximity.NoteDo not operate the device without an inserted air filter!Without the air filter, the inside of the device will beheavily contaminated. This could reduce theperformance and result in damage to the device.Behaviour in the event of an emergency1.Switch the device off.2.In an emergency, disconnect the device from the mainsfeed-in: Hold onto the mains plug while pulling the powercable out of the mains socket.3.Do not reconnect a defective device to the mains.Information about the deviceDevice descriptionThe device is used for spot cooling. The effect of spot cooling isthat the cooled room air is directed to a specific point or area. Operating the device is effected via the operating elements onthe device. The device cools the room air by withdrawing warmth. Therefrigerant cools down the air coming from the room and indoing so absorbs the heat. The cooled air is supplied via thecold air duct into the room where the device is positioned.Water vapour contained in the room air precipitates on theevaporator fins as condensation or rime. The condensate istransported to the condensation tank.

6ENspot cooling air conditioning unit PT 2700 SPDevice depiction
2
3
4
9
1
8
6
7
5
No.Designation1Hot air duct2Transport handle3Condensation tank4Wheels with parking brake5Function selector switch6Cable storage compartment with power cable7Condensation hose connection8Air inlet with air filter9Cold air ductTransport and storageNoteIf you store or transport the device improperly, thedevice may be damaged.Note the information regarding transport and storage ofthe device.TransportPlease note that additional transport regulations might apply todevices containing flammable refrigerants. The equipment'sarrangement and the maximum number of components to betransported together can be gathered from the applicabletransport regulations.To make the device easier to transport, it is fitted with wheels.To make the device easier to transport, it is fitted with a carryhandle.Before transporting the device, observe the following:•Switch the device off.•Hold onto the mains plug while pulling the power cable outof the mains socket.•Drain the remaining condensate from the device.•Do not use the power cable to drag the device.•Only wheel the device on a level and smooth surface.While transporting the device, observe the following:•Only transport the device in an upright position.After transporting the device, proceed as follows:•Set up the device in an upright position after transport.•Apply and lock the brakes at the wheels again.StorageBefore storing the device, proceed as follows:•Clean the condensation tank and/or the condensation drainhose if necessary (see chapter Maintenance).•Drain the remaining condensate from the device.•Hold onto the mains plug while pulling the power cable outof the mains socket.When the device is not being used, observe the followingstorage conditions:•Only store the device in a room measuring more than15m2.•Only position the device in rooms where there is no sourceof ignition (e.g. open flames, an active gas appliance or anelectric heater).•Store the device in a dry location and protected from frostand heat.•Store the device in an upright position where it is protectedfrom dust and direct sunlight.

EN7spot cooling air conditioning unit PT 2700 SP•If required, use a cover to protect the device from invasivedust.•Place no further devices or objects on top of the device toprevent it from being damaged.Assembly and start-upScope of delivery•1x Device•1x Cold air duct•1x Flue pipe•1x Air filter•1x Condensation tank•1x Hot air duct•1x ManualUnpacking the device1.Open the cardboard box and take the device out.2.Completely remove the packaging.3.Fully unwind the power cable. Make sure that the powercable is not damaged and that you do not damage it duringunwinding.Start-upWhen positioning the device, observe the minimum distancefrom walls or other objects as described in the Technical datachapter.
ABCCD
•Only position the device in rooms where potentially leakingrefrigerant cannot accumulate.•Only position the device in rooms where there is no sourceof ignition (e.g. open flames, an active gas appliance or anelectric heater).•Before restarting the device, check the condition of thepower cable. If there are doubts as to the sound condition,contact the customer service.•Only put up the device in an upright, stable position on firmground.•Do not create tripping hazards when laying the powercable or other electric cables, especially when positioningthe device in the middle of the room. Use cable bridges.•Make sure that extension cables are completely unrolled.•Keep air inlets and outlets as well as the exhaust air hoseconnection free.•Make sure that no curtains or other objects interfere withthe air flow.Inserting the condensation tankNoteCondensate is formed during operation and must becollected with the condensation tank.Before commissioning, make sure that thecondensation tank is correctly inserted. Place theopening of the condensation tank underneath thecondensate outlet inside the device(see figure).Operating the device with a condensation drain hose isalso possible.
3

8ENspot cooling air conditioning unit PT 2700 SPConnecting the cold air ductFor spot cooling operation, a cold air duct(9) must beconnected.1.Place the angle flange(11) on the bayonet coupling(12).2.Turn the angle flange(11) to the right until the angleflange(11) engages.3.Place the cold air duct(9) on the angle flange(11).4.Turn the cold air duct(9) to the right until the cold airduct(9) engages.
unlock
lock
„Klick“
9
11
12
Connecting the hot air ductThe hot air duct(1) must be connected to the device before use.1.Screw the hot air duct(1) onto the device.
1
9
Aligning the air ductsThe cold air duct(9) can be adjusted by360°. In addition, thecold air duct can be adjusted upwards and downwards by150°.The cold air duct can be adjusted by45°.
360°
150°
45°

EN9spot cooling air conditioning unit PT 2700 SPExtending the hot air duct (optional)NoteConnected ducts must not exceed a length of3m.1.Cut the air duct to size or shorten or extend it as required.ðThe diameter of the duct to be extended mustbe200mm.2.Place the duct to be extended on the other duct whileperforming a rotating movement to the right.3.Wrap sturdy tape around the point where the ductsintersect.Inserting the air filterNoteDo not operate the device without an inserted air filter!Without the air filter, the inside of the device will beheavily contaminated. This could reduce theperformance and result in damage to the device.Make sure that the air filter is installed before switching thedevice on.1.If the air filter(8) has not already been inserted, push theair filter(8) into the designated recess.
8
InstallationNoteThe opening of the hot air duct in the outdoor areashould be positioned so that it is rainproof andpreventing any backflow, or so that it is bent towardsthe bottom.The cold air duct(1) must be directed towards the point or areato be cooled (see chapter Operation).The hot air duct(1) must be placed in the outdoor area so thatthe warm exhaust air can be directed outside.
Indoors
Machine
Outdoors
Hot Air Extraction
1
9

10ENspot cooling air conditioning unit PT 2700 SPOperation•Avoid open doors and windows.Operating elements
13 14
No.DesignationMeaning13Condensation tank fullLEDIlluminated when thecondensation tank is full.14Function selector switch0 = off = fan stage1 = fan stage2Warning of electrical voltageRisk of electric shock!The device does not have the appropriate protectionclass for use in wet rooms.There is a risk of electric shock!Never use the device in wet rooms (e.g. in bathroomsand laundry rooms) and never immerse the device inwater!Switching the device on1.Once you have completely installed the device asdescribed in the Start-up chapter, you can switch it on.2.Set the function selector switch(14) to fan speed1 or fanspeed2.ðThe device starts in spot cooling operation.Connecting the condensation hoseThe device can be operated with a condensation hose(10).üA suitable condensation hose is ready for use (13mmdiameter).1.Connect the condensation hose(10) to the condensationtank(3).2.Feed the condensation hose(10) through the condensationconnection(7) on the device.3.Push the condensation tank(3) into the designated recessas described under Inserting the condensation tank.
10
3
6

EN11spot cooling air conditioning unit PT 2700 SP4.Guide the other hose end to a suitable drain or sufficientlydimensioned collection container. To ensure that thecondensate can run off, the condensation drain hose mustnot be kinked, nor should it have to overcome an uphillincline towards the drain.ShutdownWarning of electrical voltageDo not touch the mains plug with wet or damp hands.•Switch the device off by setting the function selectorswitch(14) to position0.•Hold onto the mains plug while pulling the power cable outof the mains socket.•Clean the device according to the Maintenance chapter.•Empty the condensation tank, if need be.•Store the device according to the Transport and storagechapter.Errors and faultsThe device has been checked for proper functioning severaltimes during production. If malfunctions occur nonetheless,check the device according to the following list.The device does not start:•Check the power connection.•Check the power cable and mains plug for damage. If younotice damages, do not try to take the device back intooperation.If the supply cord is damaged, it must be replaced by themanufacturer, its service agent or similarly qualifiedpersons in order to avoid a hazard.•Check the on-site fusing.•Observe the operating temperature according to thechapter Technical annex.•Wait for 10minutes before restarting the device. If thedevice is not starting, have the electrics checked by aspecialist company or by Trotec.The device works with reduced or no cooling capacity:•Check the air filter(s) for dirt. If necessary, clean or replacethe air filter(s).•Check the minimum distance to walls or other objects.Position the device a little more in the room's centre ifrequired.•Check the temperature setting at the device. Reduce theset temperature if it is higher than the room temperature.The device is loud or vibrates:•Check whether the device is set up in a stable and uprightposition.Condensate is leaking from the basic device:•Check the device for leaks.The compressor does not start:•Check whether the overheating protection of thecompressor has tripped. Disconnect the device from themains and let it cool down for approx. 10minutes beforereconnecting it.•The compressor may start up with a delay of 3minutes, asit is provided with an internal protection against directrestart.The device gets very warm, is loud or is losingperformance:•Check the air inlets and air filters for dirt. Remove externaldirt.•From the outside, check the device for dirt (see chapterMaintenance). If the inside of the device is dirty, have itcleaned by a specialist company for cooling and air-conditioning or by Trotec.NoteWait for at least 3minutes after maintenance andrepair work. Only then switch the device back on.The device still does not operate correctly after thesechecks:Please contact the customer service. If necessary, bring thedevice to a specialist company for cooling and air-conditioningor to Trotec for repair.

12ENspot cooling air conditioning unit PT 2700 SPMaintenanceMaintenance intervalsMaintenance and care intervalbefore every start-upas neededat least every2weeksat least every4weeksat least every6monthsat least annuallyCheck air inlet and outlet for dirt andforeign objects and clean ifnecessaryXXCheck air inlets and outlets for dirt andforeign objects and clean ifnecessaryXXClean the exteriorXXVisually check the inside of the device fordirtXXCheck the air filter for dirt and foreignobjects and clean or replace if necessaryXXReplace the air filterXCheck for damageXCheck the attachment screwsXXTest runXEmpty and clean the condensation tankand/or drain hoseXMaintenance and care logDevice type: .............................................Device number: ....................................Maintenance and care interval12345678910111213141516Check air inlets and outlets for dirt andforeign objects and clean ifnecessaryCheck the air filter for dirt and foreignobjects and clean or replace if necessaryCheck air inlets and outlets for dirt andforeign objects and clean ifnecessaryClean the exteriorVisually check the inside of the device fordirtReplace the air filterCheck for damageCheck the attachment screwsTest runEmpty and clean the condensation tankand/or drain hose1. Date: ........................................Signature: .....................................2. Date: ..........................................Signature: ...................................... 3. Date: ..........................................Signature: ...................................... 4. Date: ..........................................Signature: ......................................5. Date: ........................................Signature: .....................................6. Date: ..........................................Signature: ...................................... 7. Date: ..........................................Signature: ...................................... 8. Date: ..........................................Signature: ......................................9. Date: ........................................Signature: .....................................10. Date: ........................................Signature: ...................................... 11. Date: ........................................Signature: ...................................... 12. Date: ........................................Signature: ......................................13. Date: ......................................Signature: .....................................14. Date: ........................................Signature: ...................................... 15. Date: ........................................Signature: ......................................16. Date: ........................................Signature: ......................................

EN13spot cooling air conditioning unit PT 2700 SPActivities required before starting maintenanceWarning of electrical voltageDo not touch the mains plug with wet or damp hands.•Switch the device off.•Hold onto the mains plug while pulling the power cable outof the mains socket.Warning of electrical voltageTasks which require the device to be opened mustonly be carried out by authorised specialistcompanies or by Trotec.Refrigerant circuitDangerNatural refrigerant propane (R290)!H220 – Extremely flammable gas.H280 – Contains gas under pressure; may explode ifheated.P210 – Keep away from heat, sparks, open flames andother ignition sources. No smoking.P377 – Leaking gas fire: Do not extinguish, unless leakcan be stopped safely.P410+P403 – Protect from sunlight. Store in a well-ventilated place.•The entire refrigerant circuit is a maintenance-free,hermetically sealed system and may only be maintained orrepaired by specialist companies for cooling and air-conditioning or by Trotec.Safety signs and labels on the deviceCheck the safety signs and labels attached to the device atregular intervals. Replace illegible safety signs!Cleaning the housingClean the housing with a soft, damp and lint-free cloth. Makesure that no moisture enters the housing. Protect electricalcomponents from moisture. Do not use any aggressive cleaningagents such as cleaning sprays, solvents, alcohol-based orabrasive cleaners to dampen the cloth.Visual inspection of the inside of the device for dirt1.Remove the air filter.2.Use a torch to illuminate the openings of the device.3.Check the inside of the device for dirt.4.If you see a thick layer of dust, have the inside of thedevice cleaned by a specialist company for cooling and air-conditioning or by Trotec.5.Put the air filter back in.

14ENspot cooling air conditioning unit PT 2700 SPCleaning the air filterThe air filter has to be cleaned as soon as it is dirty. This isbrought to light e.g. by a reduced capacity (see chapter Errorsand faults).WarningEnsure that the air filter is not worn or damaged. Thecorners and edges of the air filter must not bedeformed or rounded. Before reinserting the air filter,make sure that it is undamaged and dry!1.Remove the air filter from the device.
8
2.Clean the filter using a slightly damp, soft, lint-free cloth. Ifthe filter is heavily contaminated, clean it with warm watermixed with a neutral cleaning agent.3.Allow the filter to dry completely. Do not insert a wet filterinto the device!4.Reinsert the air filter into the device.
8
Condensate discharge (manual draining)In cooling mode condensate is formed, which is mostlydischarged via the exhaust air.The remaining condensate is collected in a container within thehousing. The condensate ought to be drained regularly.If too much condensate accumulates, the device switches offand indicates this via the Condensation tank full LED(13). Inaddition, n acoustic signal is emitted.1.Pull the condensation tank(3) out of the designatedrecess.
3
2.Empty the condensation tank.3.Refit the emptied condensation tank into the device.ðThe condensation tank fullLED(13) goes out once yourestart the device.Activities required after maintenanceIf you want to continue using the device:•Reconnect the device to the mains.If you do not intend to use the device for a considerable time:•Store the device according to the Transport and storagechapter.

EN15spot cooling air conditioning unit PT 2700 SPTechnical annexTechnical dataModelPT 2700 SPCooling capacity2.7kWDehumidification performance1.3l/hOperating range18 °C to 45 °CMax. air volume flow400 m3/hMains connection220V– 240V/ 50HzNominal current4.2AType of protectionIPXOMax. power input(coolingoperation)1.15kWSound pressure level at adistance of 1m55 dB(A)RefrigerantR290Amount of refrigerant250gGWP factor3CO2 equivalent0.00075tPressure suction side1MPaPressure outlet side2.5MPaMax. permissible pressure2.5MPaDimensions (lengthx widthxheight)405 x 430x 855mmCondensation tank capacity5 lMinimum distance to walls andother objects:top:sides:front:rear:90 cm30 cm30 cm30 cmWeight42kg

16ENspot cooling air conditioning unit PT 2700 SPCircuit diagram
BL
RD
H-FAN
N
N0
COM
30A RELAY
WATER SWITCH
YE/GN
GND
LIGHT
N
L
SWITCH
L-FAN
XH-4
WTHF5VLF
XH-2
WATER
PCB
BOARD
WH RD
RD
BL
FAN
MOTOR
YE
FAN
CAPACITOR
YE
BK BK
BK
M
COMPRESSOR
BL
BL
BL
BN
COMP.
CAPACITOR
RD R
S C
M
0
142

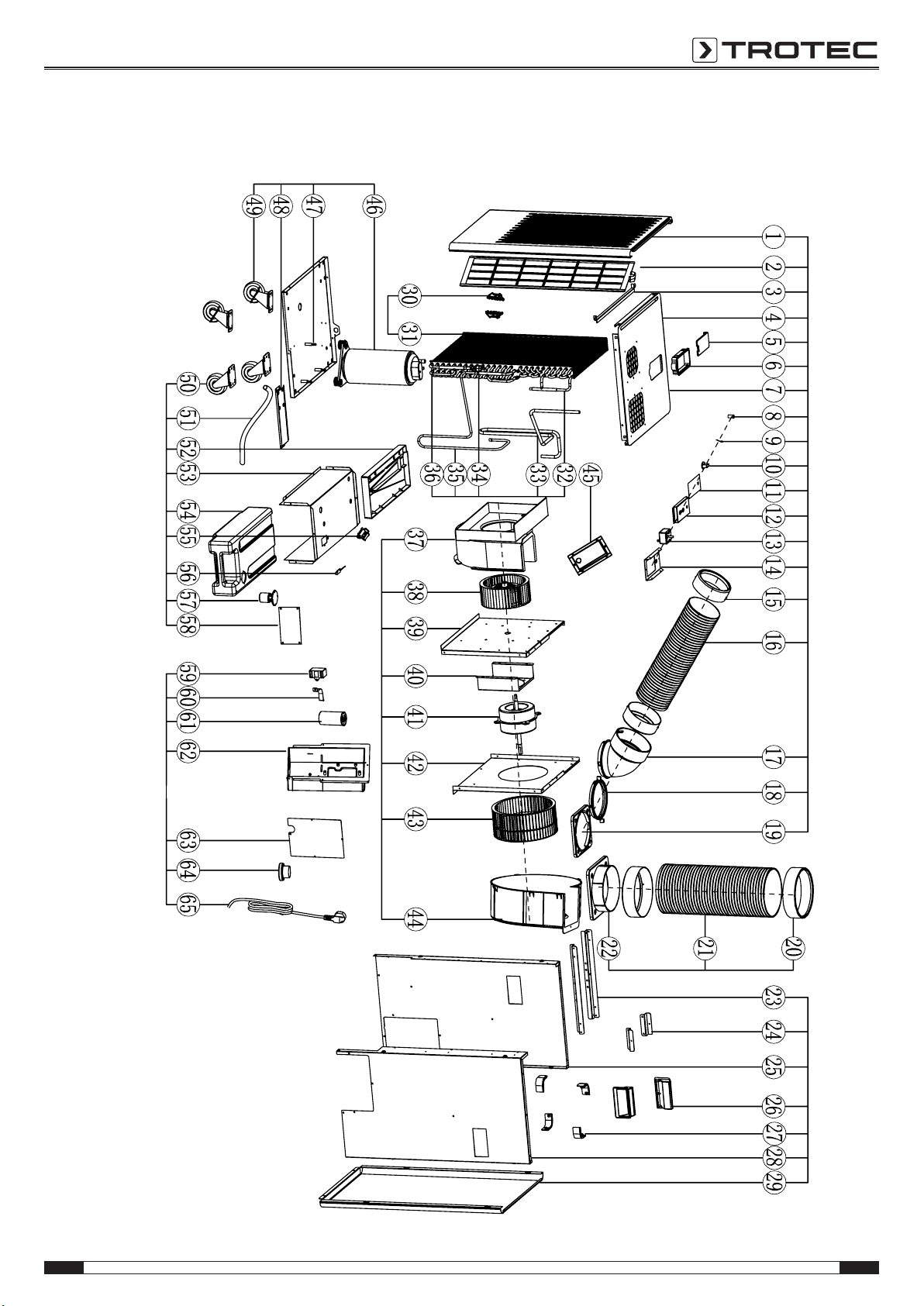

EN17spot cooling air conditioning unit PT 2700 SPOverview and list of spare partsNote: The position numbers of the spare parts differ from thosedescribing the positions of other parts mentioned in thisoperating manual.

18ENspot cooling air conditioning unit PT 2700 SPNo.Spare partNo.Spare partNo.Spare part1Front shell23Upper air duct connecting plate45Support plate2Filter net24Lower duct fixing plate46Compressor ass.3Top cover fix plate25Left side plate47Base plate4Top cover26Dig handle48Water tank support plate5Control box cover27Conner49Univeral casters with lock6Control box frame28Right side plate50Universal casters7Top cover29Back shell51Drain pipe8Indicator-lamp cover30Guide groove52Water tray9Internal wiring ass.31Heat exchanger assembly53Water tank cover plate10Knob32Steaming tube ass.54Water tank11Control panel label33Lower pressure tube55Magnetron switch support12Control box34Filter56Magnetically controlled switch13Rotate switch35High pressure tube57Water level switch14Switch fix plate36Cold outlet tube ass.58Power strip15Connector 137Front air duct front plate59Motor capacitor16Cooling tube38Wind mill 160Capacitor bracket17Tube 139Upper air duct back plate61Compressor capacitor18Tube 1 fix frame40Connect bracket62Electrical control box19Tube 1 fix base41Motor63Electrical control box cover plate20Tube head42Lower air duct front plate64Fix head21Tube 243Wind mill 265Power cord and plug22Tube 2 fix base44Hot air diffuser

EN19spot cooling air conditioning unit PT 2700 SPDisposalThe icon with the crossed-out waste bin on wasteelectrical or electronic equipment stipulates that this equipmentmust not be disposed of with the household waste at the end ofits life. You will find collection points for free return of wasteelectrical and electronic equipment in your vicinity. Theaddresses can be obtained from your municipality or localadministration. You can also find out about other return optionsthat apply for many EU countries on the website https://hub.trotec.com/?id=45090. Otherwise, please contact anofficial recycling centre for electronic and electrical equipmentauthorised for your country.The separate collection of waste electrical and electronicequipment aims to enable the re-use, recycling and other formsof recovery of waste equipment as well as to prevent negativeeffects for the environment and human health caused by thedisposal of hazardous substances potentially contained in theequipment.Have the refrigerant (propane) disposed of appropriately andaccording to the national regulations by a company with therelevant certification (European Waste Catalogue 160504).Only for United KingdomAccording to Waste Electrical and Electronic EquipmentRegulations 2013 (2013/3113) power tools that are no longerusable must be collected separately and disposed of in anenvironmentally friendly manner.Declaration of conformityDeclaration of conformity in accordance with the ECMachineryDirective 2006/42/EC, AnnexII, Part1, SectionAWe– Trotec GmbH– declare in sole responsibility that theproduct designated below was developed, constructed andproduced in compliance with the requirements of theECMachinery Directive in the version 2006/42/EC.Product model/ Product:PT 2700 SPProduct type:spot cooling air conditioningunitYear of manufacture as of:2022Relevant EUdirectives:•2011/65/EU: 01/07/2011•2014/30/EU: 29/03/2014Applied harmonised standards:•EN 55014-1:2017/A11:2020•EN 60335-2-40:2003/A13:2012•EN61000-3-11:2000Applied national standards and technical specifications:•EN 55014-2:2015•EN IEC 61000-3-2:2019•EN 61000-3-3:2013/A1:2019•EN 60335-1:2012/A2:2019•EN 62233:2008Manufacturer and name of the authorised representative ofthe technical documentation:Trotec GmbHGrebbener Straße 7, D-52525 HeinsbergPhone: [phone]E-mail: [email protected]Place and date of issue:Heinsberg, 21.03.2022Detlef von der Lieck, Managing Director
