Trotec Ttk 90 e User manual

TRT-BA-TTK90E-TC-004-EN

TTK 90 E

OPERATING MANUAL

DEHUMIDIFIER

1 EN

Operating manual – dehumidifier TTK 90 E

Table of contents

Notes regarding the operating manual.................................1

Safety .....................................................................................1

Information about the device................................................3

Transport and storage...........................................................5

Assembly and installation.....................................................5

Operation ...............................................................................7

Errors and faults..................................................................10

Maintenance ........................................................................11

Technical annex...................................................................15

Disposal ...............................................................................15

Notes regarding the operating manual

Symbols

Warning of electrical voltage

This symbol indicates dangers to the life and health of

persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average

risk level which, if not avoided, can result in serious

injury or death.

Caution

This signal word indicates a hazard with a low risk

level which, if not avoided, can result in minor or

moderate injury.

Notice

This signal word indicates important information

(e.g. material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry

out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the

operating manual must be observed.

You can download the current version of the operating manual

and the EU declaration of conformity via the following link:

TTK 90 E

https://hub.trotec.com/?id=41398

Safety

Read this manual carefully before starting or using the

device. Always store the manual in the immediate vicinity

of the device or its site of use!

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may

result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future

reference.

This appliance can be used by children aged from

8years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• Do not use the device in potentially explosive rooms.

• Do not use the device in aggressive atmosphere.

• Set the device up in an upright and stable position.

• Let the device dry out after a wet clean. Do not operate it

when wet.

• Do not use the device with wet or damp hands.

• Do not expose the device to directly squirting water.

• Never insert any objects or limbs into the device.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• This appliance is not a toy! Keep away from children and

animals. Do not leave the device unattended during

operation.

• Check accessories and connection parts for possible

damage prior to every use of the device. Do not use any

defective devices or device parts.

EN 2

Operating manual – dehumidifier TTK 90 E

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals). Never

use the device if electric cables or the power connection

are damaged!

• The electrical connection must correspond to the

specifications in chapter Technical data.

• Insert the mains plug into a properly secured mains

socket.

• Observe the device's power input, cable length and

intended use when selecting extensions to the power

cable. Completely unroll extension cables. Avoid electrical

overload.

• Before carrying out maintenance, care or repair work on

the device, remove the mains plug from the mains socket.

Hold onto the mains plug while doing so.

• Switch the device off and disconnect the power cable from

the mains socket when the device is not in use.

• Do not under any circumstances use the device if you

detect damages on the mains plug or power cable.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

Defective power cables pose a serious health risk.

• When positioning the device, observe the minimum

distances from walls and other objects as well as the

storage and operating conditions specified in the Technical

data chapter.

• Ensure that the air inlet and outlet are not obstructed.

• Ensure that the side of the device where the air inlet is

found is kept free of dirt and loose objects.

• Only transport the device in an upright position with an

emptied condensation tank or drain hose.

• Discharge the collected condensate before transport and

storage. Do not drink it. Health hazard!

Intended use

Only use the device for drying and dehumidifying room air, while

adhering to and following the technical data.

Intended use comprises:

• dehumidifying and drying:

– living rooms, bedrooms, bathrooms and basements

– laundries, holiday homes, camper vans, boats

• maintaining the dryness of:

– storage spaces, archives, laboratories, garages

– bathrooms, wash rooms, changing rooms etc.

Improper use

• Do not place the device on wet or flooded ground.

• Do not place any objects, e.g. clothing, on the device.

• Do not use the device outdoors.

• Any unauthorised modifications, alterations or structural

changes to the device are forbidden.

• Any operation other than as described in this manual is

prohibited. Non-observance renders all claims for liability

and guarantee null and void.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with

electric devices in damp areas.

• have read and understood the operating manual, especially

the Safety chapter.

Maintenance tasks which require the housing to be opened

must only be carried out by specialist companies for cooling and

air-conditioning or by Trotec.

3 EN

Operating manual – dehumidifier TTK 90 E

Residual risks

Warning of electrical voltage

Work on the electrical components must only be

carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug

from the mains socket!

Hold onto the mains plug while pulling the power cable

out of the mains socket.

Warning

Dangers can occur at the device when it is used by

untrained people in an unprofessional or improper way!

Observe the personnel qualifications!

Warning

The device is not a toy and does not belong in the

hands of children.

Warning

Risk of suffocation!

Do not leave the packaging lying around. Children may

use it as a dangerous toy.

Notice

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

Behaviour in the event of an emergency

1. Switch the device off.

2. In an emergency, disconnect the device from the mains

feed-in: Hold onto the mains plug while pulling the power

cable out of the mains socket.

3. Do not reconnect a defective device to the mains.

Information about the device

Description of the device

The device uses the principle of condensation to automatically

dehumidify rooms.

The fan sucks damp room air through the air inlet, the air filter,

the evaporator and to the condenser located behind it. The air is

cooled at the cold evaporator until it is below the dew point.

Water vapour contained in the room air precipitates on the

evaporator fins as condensation or rime. The dehumidified,

cooled air is slightly warmed at the condenser and blown out

again. The drier air thus conditioned mixes with the air in the

room. The humidity in the room where the device is positioned

is reduced as air constantly circulates through the device.

Depending on the air temperature and the relative humidity, the

condensed water either drops continuously or only during the

defrost phase through the integrated drain nozzle into the

condensation tank below. It is fitted with a float to measure the

filling level.

The device has a control panel for operating and controlling the

functions.

Once the maximum filling level of the condensation tank is

reached or in case the condensation tank is not installed

correctly, the condensation tank indicator light (see chapter

Operating elements) on the control panel is illuminated. The

device switches off. The condensation tank indicator light only

goes out again once the emptied condensation tank is

reinserted.

Optionally, the condensed water can be drained by attaching a

hose at the condensation connection.

The device can reduce the relative humidity of a room to approx.

30 %.

In addition, the device may also be used as a kind of clothes

dryer to dry wet laundry in living or working spaces.

Because of the heat radiation generated during operation, the

room temperature may rise slightly.

EN 4

Operating manual – dehumidifier TTK 90 E

Device depiction

No. Designation

1 Air outlet

2 Wheels

3 Condensation drain hose connection

4 Air filter

5 Transport handle

6 Condensation tank

7 Air inlet

8 Control panel

5 EN

Operating manual – dehumidifier TTK 90 E

Transport and storage

Notice

If you store or transport the device improperly, the

device may be damaged.

Note the information regarding transport and storage of

the device.

Transport

To make the device easier to transport, it is fitted with wheels.

To make the device easier to transport, it is fitted with a carry

handle.

Before transporting the device, observe the following:

• Switch the device off.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Do not use the power cable to drag the device.

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Only wheel the device on a level and smooth surface.

After transporting the device, observe the following:

• Set up the device in an upright position after transport.

• Leave the device to rest for 12to24hours, so the

refrigerant can accumulate within the compressor. Wait

12to24hours before switching the device back on! Acting

contrary might lead to compressor damage and a

malfunctioning device. If so, any warranty claims will be

voided.

Storage

Before storing the device, proceed as follows:

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Empty and clean the condensation tank prior to storage.

Drain any possibly remaining condensate.

When the device is not being used, observe the following

storage conditions:

• dry and protected from frost and heat

• in an upright position where it is protected from dust and

direct sunlight

• with a cover to protect it from invasive dust if necessary

• Place no further devices or objects on top of the device to

prevent it from being damaged.

Assembly and installation

Scope of delivery

• 1x Device

• 1x Air filter

• 1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power

cable is not damaged and that you do not damage it during

unwinding.

Start-up

When positioning the device, observe the minimum distance

from walls or other objects as described in the Technical data

chapter.

EN 6

Operating manual – dehumidifier TTK 90 E

• Before restarting the device, check the condition of the

power cable. If there are doubts as to the sound condition,

contact the customer service.

• Set the device up in an upright and stable position.

• Do not create tripping hazards when laying the power

cable or other electric cables, especially when positioning

the device in the middle of the room. Use cable bridges.

• Make sure that extension cables are completely unrolled.

• When positioning the device, keep a sufficient distance to

heat sources.

• Make sure that no curtains or other objects interfere with

the air flow.

• When positioning the device, particularly in wet areas,

secure it locally with an RCD (residual current device)

which complies with the respective regulations.

Inserting the air filter

Notice

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

• Make sure that the air filter is installed before switching

the device on.

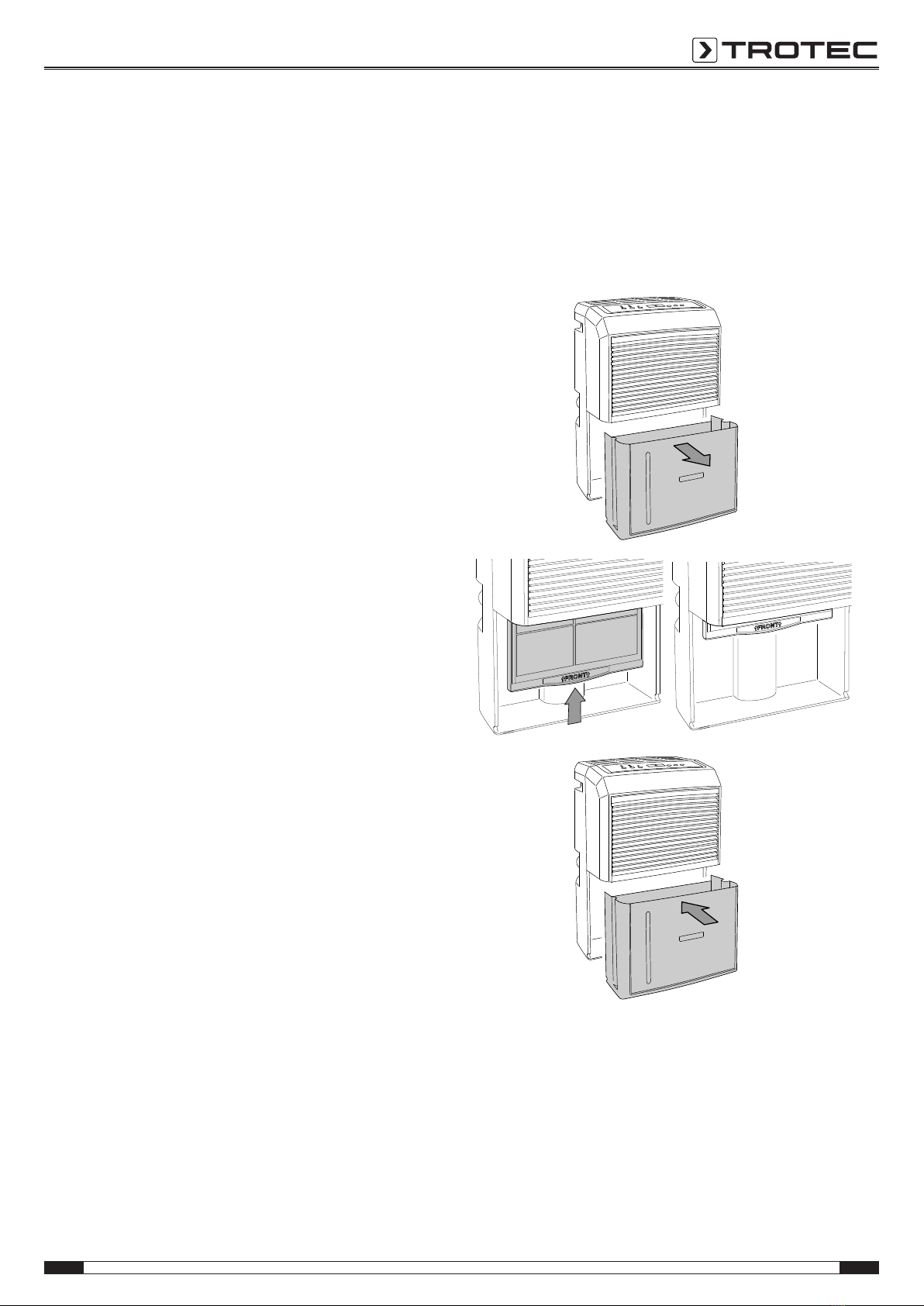

Inserting the condensation tank

• Ensure that the float inside the condensation tank is

inserted correctly.

• Ensure that the condensation tank is empty and inserted

correctly.

Connecting the power cable

• Insert the mains plug into a properly secured mains

socket.

7 EN

Operating manual – dehumidifier TTK 90 E

Operation

• Avoid open doors and windows.

• After being switched on, the device operates fully

automatically.

• The fan permanently runs in dehumidification mode even

after the set nominal value has been reached until the

device is switched off.

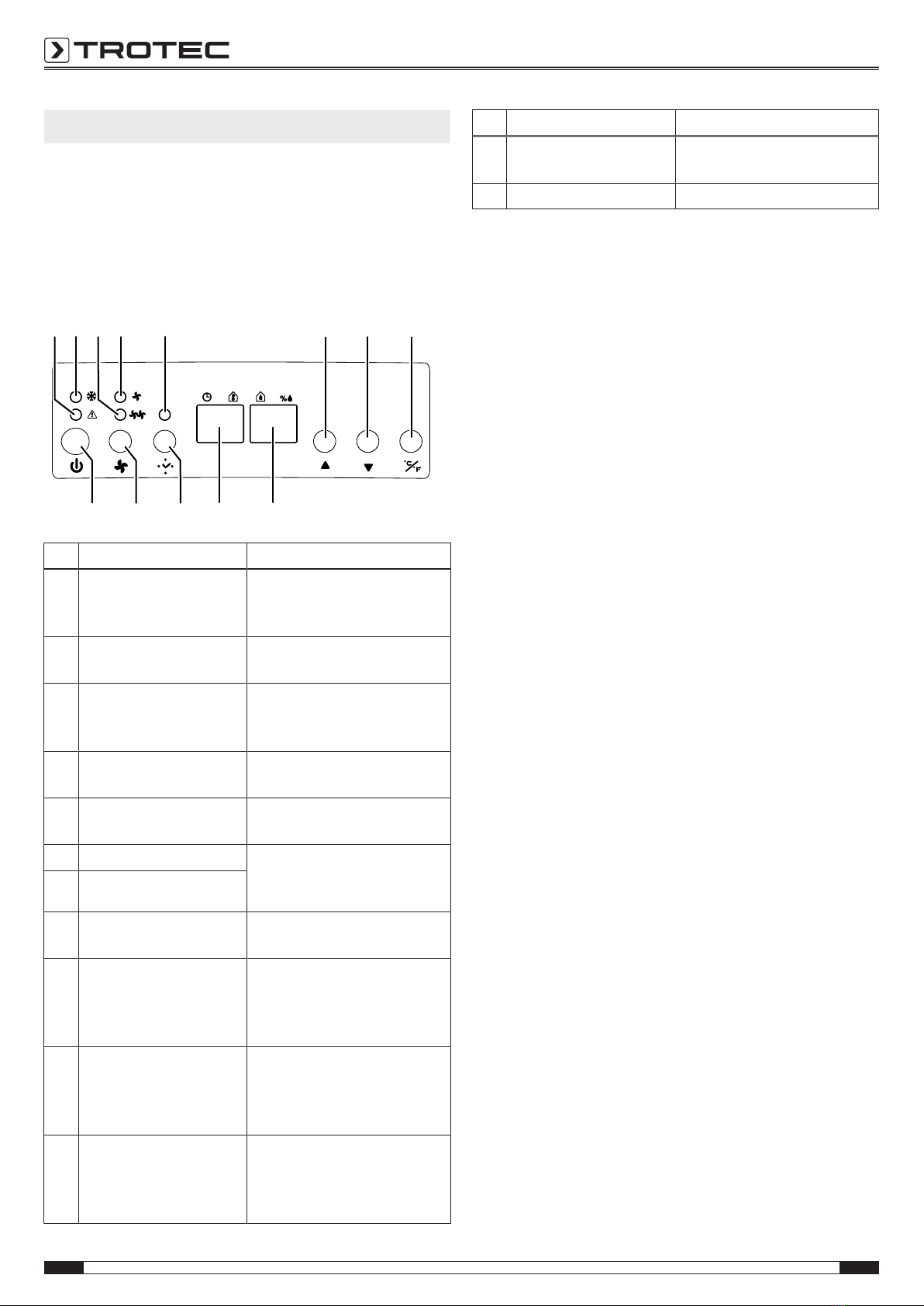

Operating elements

910 11 12 13 14 15 16

1718

No. Designation Meaning

9 Condensation tank full

LED

Illuminated when the

condensation tank is full or not

installed correctly

10 Automatic defrost LED Illuminated during automatic

defrosting

11 High fan speed LED Illuminated when a high fan

speed is set (function for

drying laundry)

12 Low fan speed LED Illuminated when a low fan

speed is set

13 Timer LED Illuminated when the timer is

programmed

14 Arrow button up Setting the relative humidity

level (30 to 90 %RH in

increments of 5%)

15 Arrow button down

16 °C/°F button Setting the temperature unit

(°C or °F)

17 Humidity level segment

display

Indicates the current relative

room humidity

Indicates the desired relative

room humidity during setting

18 Temperature/hours

segment display

Indicates the current

temperature in °C or in °F

Indicates the number of hours

during timer programming

19 Timer button Switching the timer function on

or off

Setting the number of hours for

the timer (1 to 12h)

No. Designation Meaning

20 Fan speed button Setting a low or high fan speed

(function for drying laundry)

21 Power button Switching the device on or off

Switching the device on

Once you have completely installed the device as described in

the Start-up chapter, you can switch it on.

1. Press the Power button(21).

ðThe device will start up.

Setting the operating mode

Setting the desired relative room humidity

Setting is possible in the range between 30% and 90 % in

increments of 5%.

1. Press the arrow buttons(14, 15) to adjust the relative room

humidity.

ðThe desired relative room humidity will be indicated on the

humidity level segment display(17).

Setting the fan speed

Using this function you can choose between a low and a high

fan speed (function for drying laundry).

1. Press the fan speed button(20) to select either high or low

fan speed.

ðThe LED for high(11) or low(12) fan speed lights up

depending on the selected setting.

Dehumidification

The device keeps running until reaching the desired relative

room humidity. Once the desired relative room humidity is

exceeded, the compressor switches back on.

The desired relative room humidity can be set within a setting

range from 30 % to 90 % in steps of 5% at any time.

Setting the timer

For the device to switch on or off automatically after a

predefined number of hours (1 to 24h) you can programme the

timer.

The timer can be programmed in increments of 1hour (1to

24h).

Notice

Do not leave the operating device unattended in a

freely accessible room with an activated timer.

EN 8

Operating manual – dehumidifier TTK 90 E

Automatic switch-on

1. Switch off the device.

2. Press the timer button(19) to activate the timer.

ðThe timer LED(13) is illuminated.

ðThe number of hours is shown on the segment

display(18).

3. Press the arrow buttons(14, 15) to set the number of

hours.

ðThe number of hours flashes on the segment

display(18).

4. Wait for approx. 5seconds in order to save the setting.

ðAfter the predefined time, the device switches itself on.

ðThe set operating time will be indicated for a few seconds

on the segment display(18). Afterwards, the current

temperature is displayed again.

Note regarding automatic switch-on:

• Pressing the power button(21) deactivates the automatic

switch-on function.

Automatic switch-off

üThe device is switched on.

1. Press the timer button(19) to activate the timer.

ðThe timer LED(13) is illuminated.

ðThe number of hours is shown on the segment

display(18).

2. Press the arrow buttons(14, 15) to set the number of

hours.

ðThe number of hours flashes on the segment

display(18).

ðAfter the predefined time, the device switches itself off.

ðThe set operating time will be indicated for a few seconds

on the segment display(18). Afterwards, the current

temperature is displayed again.

Note regarding automatic switch-off:

• Pressing the power button(21) deactivates the automatic

switch-off function.

Operation with hose attached to the condensation

connection

For continuous operation or unattended dehumidification, please

connect the supplied condensation drain hose to the device.

üA suitable hose (diameter= 1/2inch) is ready for use.

üThe device is switched off.

1. Unscrew the cover from the condensation drain hose

connection(3).

2. Remove the rubber plug.

3. Keep the cover and rubber stopper for later use.

4. Push one end of the hose onto the hose connection.

1/2''

9 EN

Operating manual – dehumidifier TTK 90 E

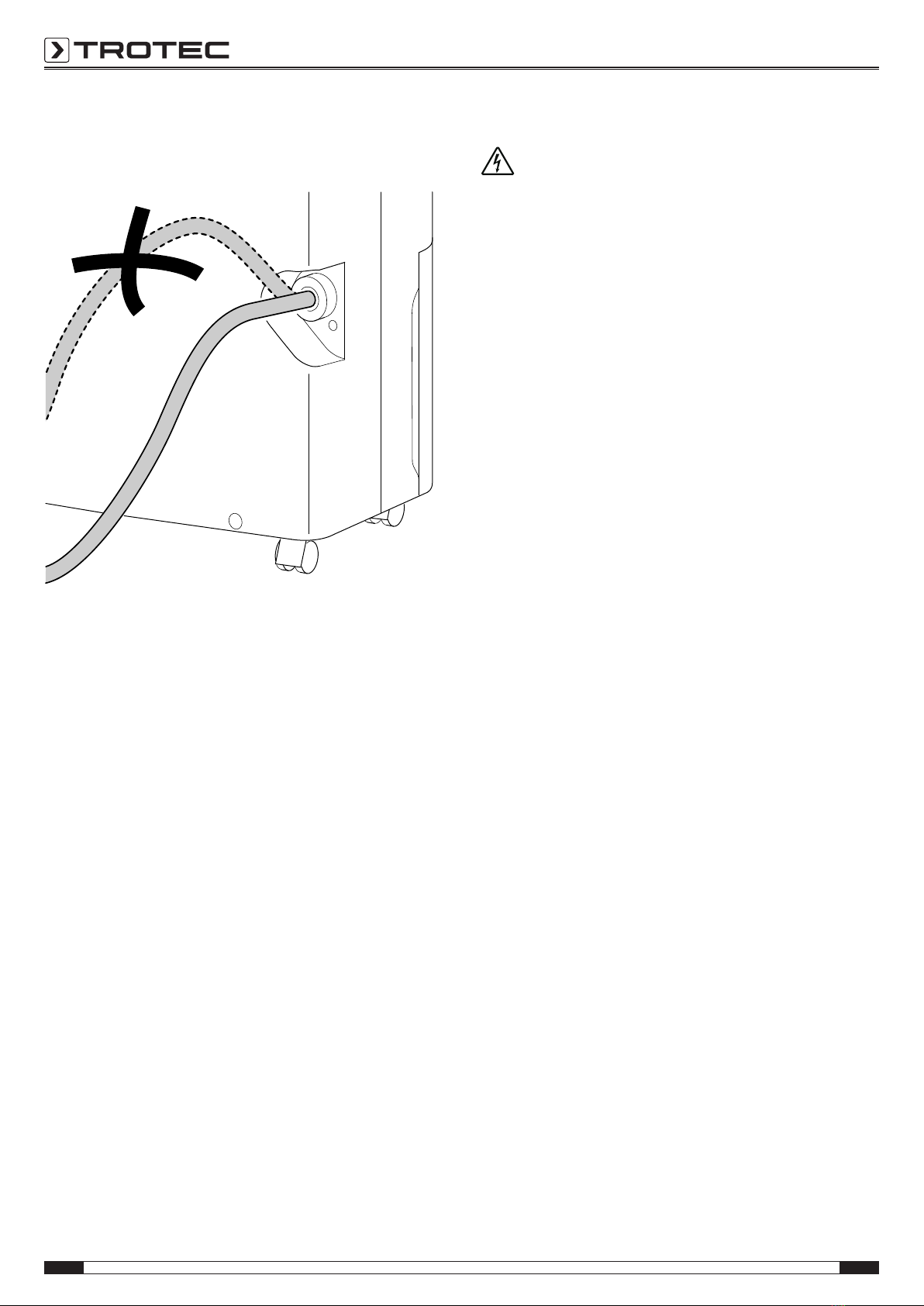

5. Guide the other hose end to a suitable drain or sufficiently

dimensioned collection container. Please observe that the

hose must not be kinked.

Remove the hose if you want to collect the condensate in the

condensation tank again. Allow the hose to dry prior to storage.

The hose can be connected in any operating mode for

continuous operation.

Automatic defrost

At low ambient temperatures, ice may form at the evaporator

during dehumidification. The device will then carry out an

automatic defrost. Dehumidification is briefly interrupted during

defrosting. The fan keeps running.

The automatic defrost LED(10) is illuminated throughout the

defrost process.

The duration of the defrost process can vary. Do not switch the

device off during automatic defrost. Do not remove the mains

plug from the mains socket.

Drying laundry

In addition, the device may also be used as a kind of clothes

dryer to dry wet laundry in living or working spaces.

When positioning the device or a clothes horse, please observe

the minimum distances specified in the technical data.

For drying laundry the following values should be selected:

• cupboard dry = 46 % relative humidity

• iron dry = 58 % relative humidity

• slightly dried = 65 % relative humidity

If necessary, use a measuring device to determine the humidity

level.

1. Press the fan speed button(20) to set the high fan speed.

ðThe LED for high fan speed(11) will be illuminated.

ðThe function for drying laundry is activated.

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch off the device.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• If necessary, remove the condensation drain hose and any

residual fluid from it.

• Empty the condensation tank, if need be.

• Clean the device according to the Maintenance chapter.

• Store the device according to the Storage chapter.

EN 10

Operating manual – dehumidifier TTK 90 E

Errors and faults

The device has been checked for proper functioning several

times during production. If malfunctions occur nonetheless,

check the device according to the following list.

The device does not start:

• Check the power connection.

• Check the power cable and mains plug for damages.

• Check the on-site fusing.

• Check the condensation tank for correct seating.

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

• Wait for 10minutes before restarting the device. If the

device is not starting, have the electrics checked by a

specialist company or by Trotec.

The device is running, but there is no formation of

condensate:

• Check the float in the condensation tank for dirt. If

necessary, clean the condensation tank. The float must be

able to move freely.

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

• Ensure that the relative room humidity complies with the

technical data.

• Check the air filter for dirt. If necessary, clean or replace

the air filter.

• From the outside, check the condenser for dirt (see

chapter Maintenance). If the condenser is dirty, have it

cleaned by a specialist company or by Trotec.

• The device might carry out an automatic defrost. During

automatic defrost, the device does not dehumidify.

The device is loud or vibrates:

• Check whether the device is set up in a stable and upright

position.

Condensate is leaking:

• Check the device for leaks.

The compressor does not start:

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

• Ensure that the relative room humidity complies with the

technical data.

• Check whether the overheating protection of the

compressor has tripped. Disconnect the device from the

mains and let it cool down for approx. 10minutes before

reconnecting it.

• The device might carry out an automatic defrost. During

automatic defrost, the device does not dehumidify.

The device gets very warm, is loud or loses power:

• Check the air inlets and air filters for dirt. Remove external

dirt.

• From the outside, check the device for dirt (see chapter

Maintenance). If the inside of the device is dirty, have it

cleaned by a specialist company for cooling and air-

conditioning or by Trotec.

Notice

Wait for at least 3 minutes after maintenance and

repair work. Only then switch the device back on.

Your device still does not operate correctly after these

checks?

Please contact the customer service. If necessary, bring the

device to a specialist company for cooling and air-conditioning

or to Trotec for repair.

11 EN

Operating manual – dehumidifier TTK 90 E

Maintenance Maintenance intervals

Maintenance and care interval before every

start-up

as needed at least every

2 weeks

at least every

4 weeks

at least every

6 months

at least

annually

Empty condensation tank and

drain hose

Check the air inlets and outlets

for dirt and foreign objects and

clean if necessary

X X

Clean the exterior X X

Visually check the inside of the

device for dirt

X X

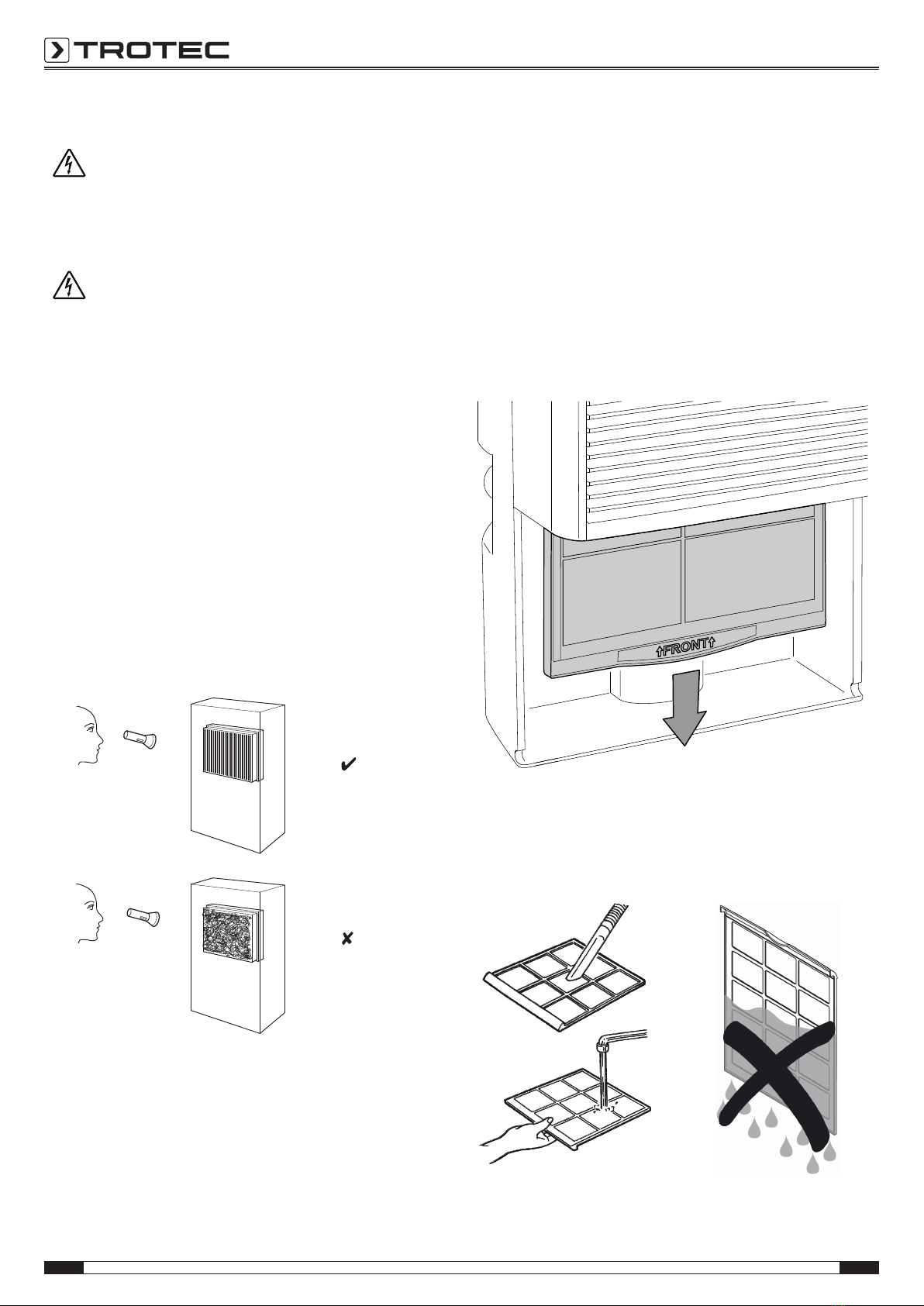

Check the air filter for dirt and

foreign objects and clean or

replace if necessary

X X

Replace air filter X

Check for damage X

Check the attachment screws X X

Test run X

EN 12

Operating manual – dehumidifier TTK 90 E

Maintenance and care log

Device type: ............................................. Device number: ....................................

Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Empty condensation tank and drain

hose

Check the air inlets and outlets for

dirt and foreign objects and clean if

necessary

Clean the exterior

Visually check the inside of the

device for dirt

Check the air filter for dirt and

foreign objects and clean or

replace if necessary

Replace air filter

Check for damage

Check the attachment screws

Test run

Remarks:

1. Date: ................................
