Trotec Ttr 56 e User manual

TRT-BA-TTR56E-TC-004-EN

TTR 56 E

OPERATING MANUAL

DEHUMIDIFIER

1 EN

Operating manual – dehumidifier TTR 56 E

Table of contents

Notes regarding the operating manual.................................1

Safety .....................................................................................1

Information about the device................................................3

Transport and storage...........................................................4

Assembly and installation.....................................................4

Operation ...............................................................................5

Errors and faults....................................................................8

Maintenance ..........................................................................9

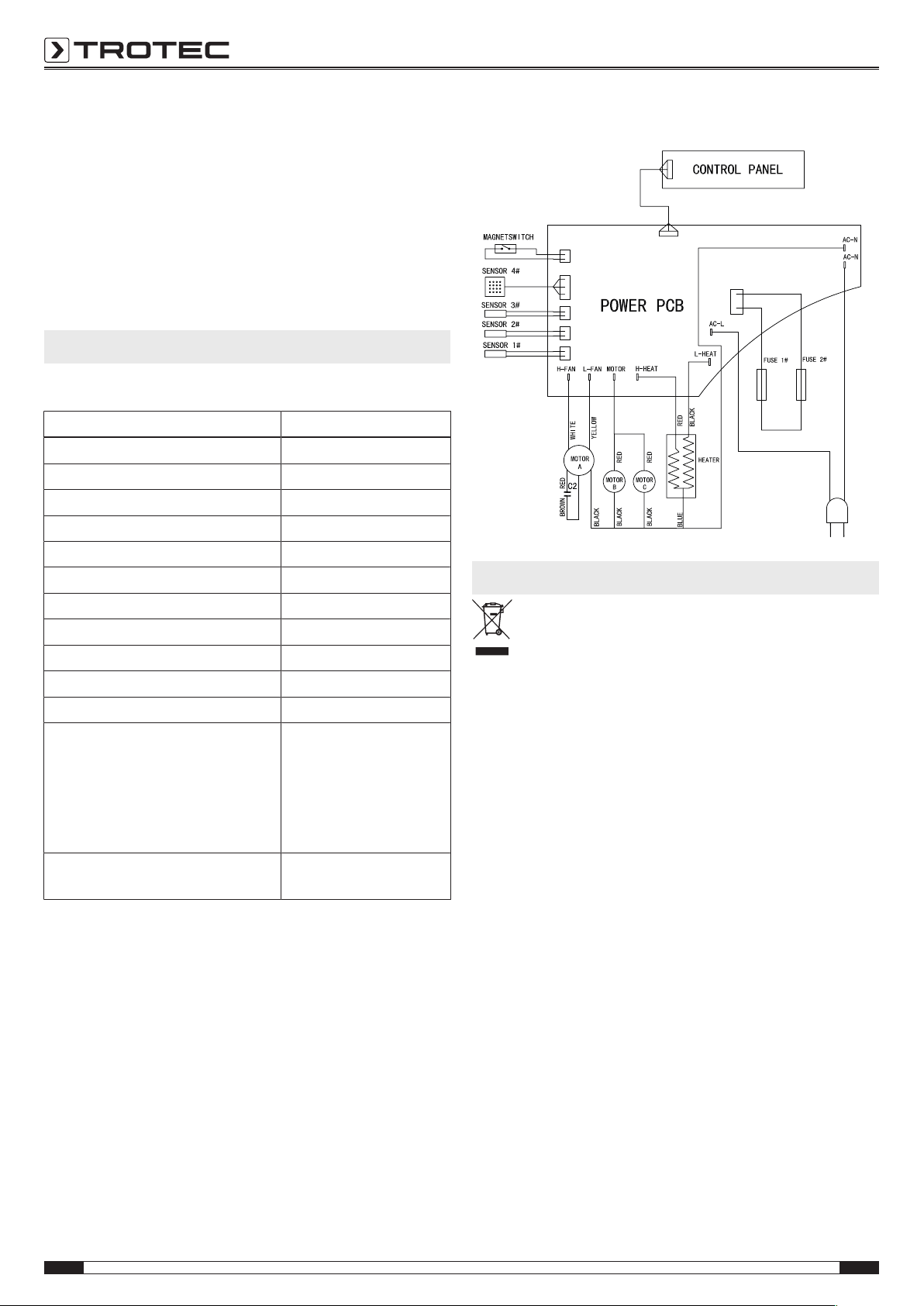

Technical annex...................................................................13

Disposal ...............................................................................13

Notes regarding the operating manual

Symbols

Warning of electrical voltage

This symbol indicates dangers to the life and health of

persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average

risk level which, if not avoided, can result in serious

injury or death.

Caution

This signal word indicates a hazard with a low risk

level which, if not avoided, can result in minor or

moderate injury.

Notice

This signal word indicates important information (e.g.

material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry

out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the

operating manual must be observed.

You can download the current version of the operating manual

and the EU declaration of conformity via the following link:

TTR 56 E

https://hub.trotec.com/?id=39929

Safety

Read this manual carefully before starting or using the

device. Always store the manual in the immediate vicinity

of the device or its site of use!

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may

result in electric shock, fire and/ or serious injury.

Save all warnings and instructions for future

reference.

This appliance can be used by children aged from

8years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• Do not use the device in potentially explosive rooms.

• Do not use the device in aggressive atmosphere.

• Set the device up in an upright and stable position.

• Let the device dry out after a wet clean. Do not operate it

when wet.

• Do not use the device with wet or damp hands.

• Do not expose the device to directly squirting water.

• Never insert any objects or limbs into the device.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• This appliance is not a toy! Keep away from children and

animals. Do not leave the device unattended during

operation.

• Check accessories and connection parts for possible

damage prior to every use of the device. Do not use any

defective devices or device parts.

EN 2

Operating manual – dehumidifier TTR 56 E

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals). Never

use the device if electric cables or the power connection

are damaged!

• The electrical connection must correspond to the

specifications in chapter Technical data.

• Insert the mains plug into a properly secured mains

socket.

• Observe the device's power input, cable length and

intended use when selecting extensions to the power

cable. Completely unroll extension cables. Avoid electrical

overload.

• Before carrying out maintenance, care or repair work on

the device, remove the mains plug from the mains socket.

Hold onto the mains plug while doing so.

• Switch the device off and disconnect the power cable from

the mains socket when the device is not in use.

• Do not under any circumstances use the device if you

detect damages on the mains plug or power cable.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

Defective power cables pose a serious health risk.

• When positioning the device, observe the minimum

distances from walls and other objects as well as the

storage and operating conditions specified in the Technical

data chapter.

• Ensure that the air inlet and outlet are not obstructed.

• Ensure that the side of the device where the air inlet is

found is kept free of dirt and loose objects.

• Only transport the device in an upright position with an

emptied condensation tank or drain hose.

• Discharge the collected condensate before transport and

storage. Do not drink it. Health hazard!

Intended use

Only use the device for drying and dehumidifying room air, while

adhering to and following the technical data.

Intended use comprises:

• dehumidifying and drying:

– living rooms, bedrooms, bathrooms and basements

– laundries, holiday homes, camper vans, boats

• maintaining the dryness of:

– storage spaces, archives, laboratories, garages

– bathrooms, wash rooms, changing rooms etc.

Improper use

• Do not place the device on wet or flooded ground.

• Do not place any objects, e.g. clothing, on the device.

• Do not use the device outdoors.

• Any unauthorised modifications, alterations or structural

changes to the device are forbidden.

• Any operation other than as described in this manual is

prohibited. Non-observance renders all claims for liability

and guarantee null and void.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with

electric devices in damp areas.

• have read and understood the operating manual, especially

the Safety chapter.

Maintenance tasks which require the housing to be opened

must only be carried out by specialist companies for cooling and

air-conditioning or by Trotec.

Residual risks

Warning of electrical voltage

Work on the electrical components must only be

carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug

from the mains socket!

Hold onto the mains plug while pulling the power cable

out of the mains socket.

Warning

Dangers can occur at the device when it is used by

untrained people in an unprofessional or improper way!

Observe the personnel qualifications!

Warning

The device is not a toy and does not belong in the

hands of children.

Warning

Risk of suffocation!

Do not leave the packaging lying around. Children may

use it as a dangerous toy.

Notice

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

3 EN

Operating manual – dehumidifier TTR 56 E

Behaviour in the event of an emergency

1. Switch the device off.

2. In an emergency, disconnect the device from the mains

feed-in: Hold onto the mains plug while pulling the power

cable out of the mains socket.

3. Do not reconnect a defective device to the mains.

Information about the device

Description of the device

The device operates on the desiccant principle, without

compressor or cooling agent.

The fully automatic control and the condensation tank(6) with

integrated overflow protection ensure fault-free operation.

The fan sucks in damp room air via the air inlet(4) with air

filter(7), the condenser and the desiccant wheel located behind

it.

Within the internal regeneration circuit the air is led via a

heating element, it dries the desiccant wheel and leads the

moist, warm air through the condenser. At the cooler

condenser, heat is withdrawn from the room air and cooled

below dew point. The water vapour contained in the room air

precipitates in form of condensate. The condensate drops into

the condensation tank(6).

The drier air, thus conditioned, is fed back to the room air via

the air outlet(2). The drier air mixes with the air in the room.

The relative humidity in the room where the device is positioned

is reduced by the constant circulation of the room air.

A float is attached inside the condensation tank(6), which in

case of a filled condensation tank interrupts the

dehumidification. When switching off, the device emits a triple

acoustic signal and the condensation tank indicator light on the

control panel(1) is illuminated (see chapter Operating

elements). The indicator light only goes out again once the

emptied condensation tank(6) is reinserted.

The device was designed to reduce the humidity level in living

and working spaces.

Device depiction

No. Designation

1 Control panel

2 Air outlet

3 Handle

4 Air inlet

5 Connection opening for condensation hose

6 Condensation tank

7 Air filter

EN 4

Operating manual – dehumidifier TTR 56 E

Transport and storage

Notice

If you store or transport the device improperly, the

device may be damaged.

Note the information regarding transport and storage of

the device.

Transport

To make the device easier to transport, it is fitted with a carry

handle.

Before transporting the device, observe the following:

• Switch the device off.

– Due to the follow-up time of the internal components,

the device only switches off completely after approx. 2

minutes.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Do not use the power cable to drag the device.

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

After transporting the device, observe the following:

• Set up the device in an upright position after transport.

• Leave the device to rest for one hour before switching it

back on. Otherwise the device could be damaged and no

longer work properly. Any warranty claims will be voided in

this case.

Storage

Before storing the device, proceed as follows:

• Drain the remaining condensate from the device and the

condensation drain hose (see chapter Maintenance).

• Empty and clean the condensation tank prior to storage.

When the device is not being used, observe the following

storage conditions:

• dry and protected from frost and heat

• in an upright position where it is protected from dust and

direct sunlight

• with a cover to protect it from invasive dust if necessary

• Place no further devices or objects on top of the device to

prevent it from being damaged.

Assembly and installation

Scope of delivery

• 1x Device

• 1x Air filter

• 1x Manual

Unpacking the device

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power

cable is not damaged and that you do not damage it during

unwinding.

Start-up

When positioning the device, observe the minimum distance

from walls or other objects as described in the Technical data

chapter.

• Before restarting the device, check the condition of the

power cable. If there are doubts as to the sound condition,

contact the customer service.

• Set the device up in an upright and stable position.

• Do not create tripping hazards when laying the power

cable or other electric cables, especially when positioning

the device in the middle of the room. Use cable bridges.

• Make sure that extension cables are completely unrolled.

• When positioning the device, keep a sufficient distance to

heat sources.

• Make sure that no curtains or other objects interfere with

the air flow.

5 EN

Operating manual – dehumidifier TTR 56 E

• When positioning the device, particularly in wet areas,

secure it locally with an RCD (residual current device)

which complies with the respective regulations.

Notes regarding the dehumidification performance

The dehumidification performance depends on:

• the layout of the room

• the room temperature

• the relative humidity

The higher the room temperature and relative humidity, the

greater the dehumidification performance.

For use in living rooms, a relative humidity of approx. 50 to

60% is sufficient. In storage facilities and archives, the

humidity should not exceed approx. 50%.

Inserting the air filter

Notice

Do not operate the device without an inserted air filter!

Without the air filter, the inside of the device will be

heavily contaminated. This could reduce the

performance and result in damage to the device.

• Make sure that the air filter is installed before switching

the device on.

Inserting the condensation tank

• Ensure that the float inside the condensation tank is

inserted correctly.

• Ensure that the condensation tank is empty and inserted

correctly.

Connecting the power cable

• Insert the mains plug into a properly secured mains

socket.

Operation

• After being switched on, the device operates fully

automatically – depending on the selected operating mode

or until the float indicates that the condensation tank is full

and the device switches itself off.

• Avoid open doors and windows.

Operating elements

MODE TIMER POWER

HU MITIDY

70%

60%

50%

40%

8910 11 12 13 14 15

No. Operating element

8 Eco mode indicator light:

Is illuminated when eco mode is activated.

9 Normal operation mode indicator light:

Is illuminated when normal operation is activated.

10 Drying mode indicator light:

Is illuminated when drying operation is activated.

11 Display:

Indicates the ambient air's relative humidity (35% to

95 % RH).

While setting the timer, the display indicates the

preselected number of hours for about 8 seconds.

12 Indication of the set humidity value:

Indicates the preselected humidity value (40 %, 50 %,

60% or 70 %) or permanent dehumidification.

Default value: 50 %

13 Timer indicator light:

Is illuminated when the timer was activated for the

selected number of hours.

14 Operation indicator light:

Is illuminated in green when the device is switched on.

Flashes green when

• the device was tilted (over): The device switches

off.

• the device is switching off (rundown operation). An

acoustic signal is emitted additionally.

15 Condensation tank indicator light:

Is illuminated in red when the condensation tank is full

or not positioned properly.

EN 6

Operating manual – dehumidifier TTR 56 E

No. Operating element

16 POWER button:

Switches the device on or off. An acoustic signal is

emitted.

17 TIMER button:

Sets the timer function. If no time is selected for drying

operation, the device switches off after 24 hours.

18 HUMIDITY button:

Setting the nominal value for humidity in normal

operation or eco mode: 40 %, 50 %, 60 %, 70 % or

permanent dehumidification.

Default value: 50 %

19 MODE button:

Setting the operating mode: eco mode, normal operation

or drying mode.

Switching the device on

Once you have completely installed the device as described in

the Start-up chapter, you can switch it on.

Notice

Wait for 3 minutes before you switch the device back

on (e.g. after draining the condensation tank).

1. Use the POWER button(16) to switch the device

on.

2. Select the desired operating mode by use of the

MODE button(19).

3. Set the nominal humidity value by means of the

HUMIDITY button(18).

4. Select the desired operating time in hours by use

of the TIMER button(17).

Info

If the target humidity value is not reached within

24hours, the device switches off automatically

regardless of the operating mode.

The device also switches off if the target value was

reached for a short time but the heating could not cool

down sufficiently. After reaching the target value, the

heating requires a certain time (approx.6min) to cool

down.

If the target value is reached within 24hours and the

heating always has sufficient time to cool down, the

device will remain in operation even for weeks.

Eco mode

The device operates at low fan speed to save energy.

The heating switches off when the relative humidity in the

ambient air falls below the set nominal value. If the humidity

increases to above the set value, the heating will switch on

again.

Start eco mode as follows:

1. Press the MODE button (19) until the eco mode indicator

light(18) is lit.

Normal operation mode

The device operates at normal fan speed. The heating switches

off when the relative humidity in the ambient air falls below the

set nominal value. If the humidity increases to above the set

value, the heating will switch on again.

Start normal operation mode as follows:

1. Repeatedly press the MODE button (19) until the normal

operation mode indicator light(9) is lit.

Drying mode (function for drying laundry)

In drying mode the device operates continuously at full capacity

until the preselected time has run out. If no time is selected, the

device switches off automatically after 24 hours.

In addition, the device may also be used as a kind of clothes

dryer to dry wet laundry. When positioning the device or a

clothes horse, please observe the minimum distances specified

in the technical data.

Start drying mode as follows:

1. Repeatedly press the MODE button (19) until the drying

mode indicator light(10) is lit.

Switch-off timer

Use the switch-off timer to automatically switch off the device

after a specified time interval (hourly increments from 1 to

24 hours).

Start the switch-off timer as follows:

1. Repeatedly press the TIMER button(17) until the desired

duration is displayed in hours.

7 EN

Operating manual – dehumidifier TTR 56 E

Operation with hose attached to the condensation

connection

At a high humidity level it is recommendable to constantly drain

the condensate via a hose, for otherwise the condensation tank

has to be emptied too frequently.

To do so, proceed as follows:

üA suitable hose (diameter: 12mm) is ready for use.

üThe device is switched off.

1. Remove the condensation tank.

2. Remove the protective cap at the condensation connection,

e.g. by means of a slotted screwdriver.

3. Remove the rubber stopper from the condensation

connection.

4. Insert the plug into the condensation tank drain located

within the device.

5. Push one end of the hose onto the hose connection.

EN 8

Operating manual – dehumidifier TTR 56 E

6. Put the condensation tank back in.

7. Guide the other hose end to a suitable drain or sufficiently

dimensioned collection container. Please observe that the

hose must not be kinked.

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch off the device.

• Wait for approx. 2 minutes.

– Due to the follow-up time of the internal components,

the device only switches off completely after approx. 2

minutes.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Empty the condensation tank, if need be.

• Clean the device according to the Maintenance chapter.

• Store the device according to the Storage chapter.

Errors and faults

The device has been checked for proper functioning several

times during production. If malfunctions occur nonetheless,

check the device according to the following list.

The device does not start:

• Check the power connection.

• Check the power cable and mains plug for damages.

• Check the on-site fusing.

• Check the condensation tank for correct seating.

• The device comes equipped with a tilt protection, it

switches off automatically when tilted. The operation

indicator light(44) must be illuminated in green. When the

lamp flashes, check whether device is in an upright

position on a level surface.

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

• Wait for 10minutes before restarting the device. If the

device is not starting, have the electrics checked by a

specialist company or by Trotec.

The device is running, but there is no formation of

condensate:

• Check the float in the condensation tank for dirt. If

necessary, clean the condensation tank. The float must be

able to move freely.

• Check the room temperature. Observe the device's

permissible operating range according to the technical

data.

• Ensure that the relative room humidity complies with the

technical data.

• Check the air filter for dirt. If necessary, clean or replace

the air filter.

• From the outside, check the condenser for dirt (see

chapter Maintenance). If the condenser is dirty, have it

cleaned by a specialist company or by Trotec.

The device is loud or vibrates:

• Check whether the device is set up in a stable and upright

position.

Condensate is leaking:

• Check the device for leaks.

The device gets very warm, is loud or loses power:

• Check the air inlets and air filter for dirt. Remove external

dirt.

• From the outside, check the device for dirt (see chapter

Maintenance). If the inside of the device is dirty, have it

cleaned by a specialist company for cooling and air-

conditioning or by Trotec.

Notice

Wait for at least 3 minutes after maintenance and

repair work. Only then switch the device back on.

Your device still does not operate correctly after these

checks?

Please contact the customer service. If necessary, bring the

device to a specialist company for cooling and air-conditioning

or to Trotec for repair.

Notice

For reasons of safety, the device switches off

automatically after a period of 24hours.

9 EN

Operating manual – dehumidifier TTR 56 E

Maintenance Maintenance intervals

Maintenance and care interval before every

start-up

as needed at least every

2 weeks

at least every

4 weeks

at least every

6 months

at least

annually

Empty condensation tank and drain

hose

Check the air inlets and outlets for

dirt and foreign objects and clean if

necessary

X X

Clean the exterior X X

Visually check the inside of the

device for dirt

X X

Check the air filter for dirt and

foreign objects and clean or

replace if necessary

X X

Replace air filter X

Check for damage X

Check the attachment screws X X

Test run X

EN 10

Operating manual – dehumidifier TTR 56 E

Maintenance and care log

Device type: ............................................. Device number: ....................................

Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Empty condensation tank and drain

hose

Check the air inlets and outlets for

dirt and foreign objects and clean if

necessary

Clean the exterior

Visually check the inside of the

device for dirt

Check the air filter for dirt and

foreign objects and clean or

replace if necessary

Replace air filter

Check for damage

Check the attachment screws

Test run

Remarks:

1. Date: ................................
