Trotec TTK54E User manual

TRT-BA-TTK54E/TTK66E-TC2019-28-005-EN
TTK 54 E / TTK 66 E
EN
OPERATING MANUAL
DEHUMIDIFIER

2 EN
dehumidifier TTK 54 E / TTK 66 E
Table of contents
Notes regarding the operating manual.................................2
Safety .....................................................................................2
Information about the device................................................5
Transport and storage...........................................................6
Assembly and installation.....................................................7
Operation ...............................................................................8
Errors and faults..................................................................11
Maintenance ........................................................................13
Technical annex...................................................................16
Disposal ...............................................................................22
Notes regarding the operating manual
Symbols
Danger
This symbol indicates dangers to the life and health of
persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
TTK 54 E
https://hub.trotec.com/?id=40260
TTK 66 E
https://hub.trotec.com/?id=40261
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.
• Only put up the device in an upright, stable position on firm
ground.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.

EN 3
dehumidifier TTK 54 E / TTK 66 E
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The electrical connection must correspond to the
specifications in chapter Technical data.
• Insert the mains plug into a properly secured mains
socket.
• Observe the device's power input, cable length and
intended use when selecting extensions to the power
cable. Completely unroll extension cables. Avoid electrical
overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk!
• When positioning the device, observe the minimum
distances from walls and other objects as well as the
storage and operating conditions specified in the Technical
data chapter.
• Make sure that the air inlet and outlet are not obstructed.
• Make sure that the suction side is kept free of dirt and
loose objects.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Only transport the device in an upright position with an
emptied condensation tank or drain hose.
• Discharge the collected condensate before transport and
storage. Do not drink it. Health hazard!
Safety warnings for devices containing flammable
refrigerants
• Only position the device in rooms where potentially leaking
refrigerant cannot accumulate.
• Only position the device in rooms where there is no source
of ignition (e.g. open flames, an active gas appliance or an
electric heater).
• Please note that the refrigerant is odourless.
• Only install the device in compliance with the national
installation regulations.
• Observe the national gas regulations.
• Only install, operate and store the device
TTK 54 E/ TTK 66 E in a room measuring more than 4m2.
• Store the device in a way that no mechanical damage can
occur.
• Please note that the connected pipelines must not contain
any sources of ignition.
• R290 is a refrigerant that complies with European
environmental regulations. No part of the cooling circuit
may be perforated.
• Observe the maximum refrigerant capacity in the technical
data.
• Do not drill through or burn.
• Do not use any means other than those recommended by
the manufacturer for accelerating the defrosting process.
• Every person working with or at the refrigerant circuit must
be able to provide a certificate of qualification issued by a
body accredited by the industry, demonstrating their
competence in the safe use of refrigerants based on a
procedure well-known in the industry.
• Service work may only be carried out in accordance with
the manufacturer's specifications. If maintenance and
repair work require the support of additional persons, the
person trained in handling flammable refrigerants shall
continuously supervise the work carried out.
• Unventilated rooms, in which the device is installed,
operated or stored, must be built in a way to ensure that
potentially leaking refrigerant cannot accumulate. This
serves to avoid fire or explosion hazards resulting from an
ignition of the refrigerant by an electric furnace, cooking
stove or another ignition source.
• The entire refrigerant circuit is a maintenance-free,
hermetically sealed system and may only be maintained or
repaired by specialist companies for cooling and air-
conditioning or by Trotec.

4 EN
dehumidifier TTK 54 E / TTK 66 E
Intended use
Only use the device for drying and dehumidifying room air, while
adhering to and following the technical data.
In addition, the device may also be used as a kind of clothes
dryer to dry wet laundry.
Intended use comprises:
• dehumidifying and drying:
– living rooms, bedrooms, bathrooms and basements
– laundries, holiday homes, camper vans, boats
• maintaining the dryness of:
– storage spaces, archives, laboratories, garages
– bathrooms, wash rooms, changing rooms etc.
Foreseeable misuse
The device is not intended for industrial use.
• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use the device outdoors.
• Any unauthorised modifications, alterations or structural
changes to the device are forbidden.
• Any other use than the one described in the chapter
"Intended use" is regarded as reasonably foreseeable
misuse.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the operating manual, especially
the Safety chapter.
Maintenance tasks which require the housing to be opened
must only be carried out by specialist companies for cooling and
air-conditioning or by Trotec.
Safety signs and labels on the device
Note
Do not remove any safety signs, stickers or labels from
the device. Keep all safety signs, stickers and labels in
legible condition.
The following safety signs and labels are attached to the device:
TTK54E/ TTK66E
Follow the manual
This symbol indicates that the operating manual must
be observed.
Follow the repair manual
Disposal, maintenance and repair work of the
refrigerant circuit may only be carried out in
accordance with the manufacturer's specifications and
by persons having a certificate of qualification. A
corresponding repair manual is available from the
manufacturer upon request.

EN 5
dehumidifier TTK 54 E / TTK 66 E
Residual risks
Danger
Natural refrigerant propane (R290)!
H220 – Extremely flammable gas.
H280 – Contains gas under pressure; may explode if
heated.
P210 – Keep away from heat, sparks, open flames and
other ignition sources. No smoking.
P377 – Leaking gas fire: Do not extinguish, unless leak
can be stopped safely.
P410+P403 – Protect from sunlight. Store in a well-
ventilated place.
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Note
Do not operate the device without an air filter inserted
into the air inlet!
Without the air filter, the inside of the device will be
heavily contaminated. This could reduce the
performance and result in damage to the device.
Behaviour in the event of an emergency
1. Switch off the device.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.
Information about the device
Description of the device
The device uses the principle of condensation to automatically
dehumidify rooms.
The fan sucks damp room air through the air inlet, the air filter,
the evaporator and to the condenser located behind it. The air is
cooled at the cold evaporator until it is below the dew point.
Water vapour contained in the room air precipitates on the
evaporator fins as condensation or rime. The dehumidified,
cooled air is slightly warmed at the condenser and blown out
again. The drier air thus conditioned mixes with the air in the
room. The humidity in the room where the device is positioned
is reduced as air constantly circulates through the device.
Depending on the air temperature and the relative humidity, the
condensed water either drops continuously or only during the
defrost phase through the integrated drain nozzle into the
condensation tank below. It is fitted with a float to measure the
filling level.
The device has a control panel for operating and controlling the
functions.
Once the maximum filling level of the condensation tank is
reached or if the tank is not installed correctly, the condensation
tank indicator light on the control panel will be illuminated and
an error code will be displayed as well (see chapter Operating
elements). The device switches off. The indications only
disappear once the emptied condensation tank is reinserted.
Optionally, the condensed water can be drained by attaching a
hose at the condensation connection.
The device can reduce the relative humidity of a room to approx.
35%.
In addition, the device may also be used as a kind of clothes
dryer to dry wet laundry in living or working spaces.
Because of the heat radiation generated during operation, the
room temperature may rise slightly.

6 EN
dehumidifier TTK 54 E / TTK 66 E

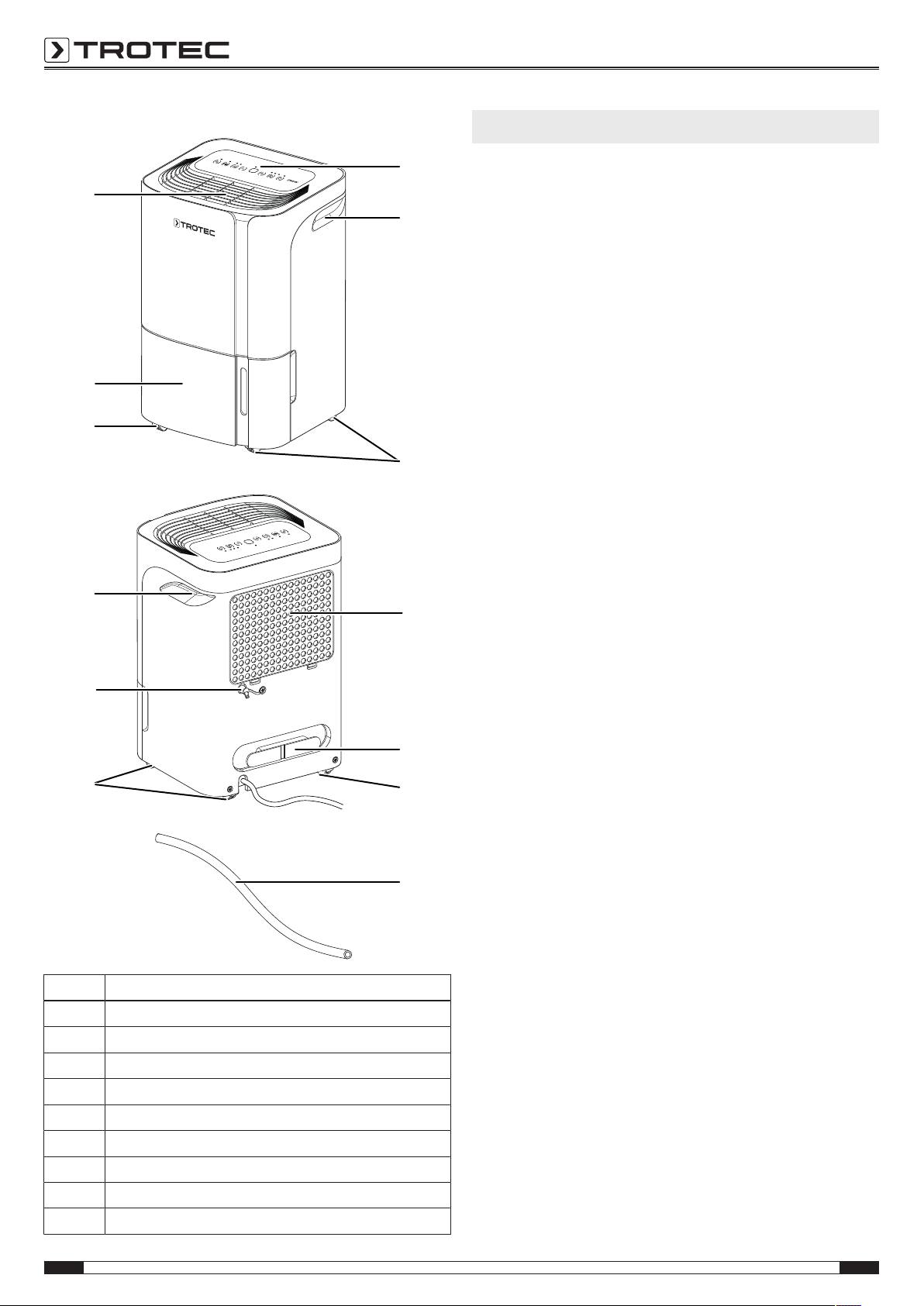

Device depiction
MODE ON/OFFTIMERTURBO
ION
On O Full Dryer SMDCont.
7
3
1
2
2
3
4
9
8
3
5
6
3
No. Designation
1 Control panel
2 Transport handle
3 Wheels
4 Air inlet with air filter
5 Power cable holder
6 Condensation drain hose
7 Condensation drain hose connection
8 Condensation tank with filling level indicator
9 Air outlet
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
Please note that additional transport regulations might apply to
devices containing flammable refrigerants. The equipment's
arrangement and the maximum number of components to be
transported together can be gathered from the applicable
transport regulations.
To make the device easier to transport, it is fitted with a carry
handle.
To make the device easier to transport, it is fitted with wheels.
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Drain the remaining condensate from the device and the
condensation drain hose (see chapter Maintenance).
• Do not use the power cable to drag the device.
• Only wheel the device on a level and smooth surface.
After transporting the device, observe the following:
• Set up the device in an upright position after transport.
• Leave the device to rest for 12to24hours, so the
refrigerant can accumulate within the compressor. Wait
12to24hours before switching the device back on! Acting
contrary might lead to compressor damage and a
malfunctioning device. If so, any warranty claims will be
voided.
Storage
Before storing the device, proceed as follows:
• Drain the remaining condensate from the device and the
condensation drain hose (see chapter Maintenance).
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
When the device is not being used, observe the following
storage conditions:
• Only store the device in a room measuring more than 4m2.
• Dry and protected from frost and heat
• In an upright position where it is protected from dust and
direct sunlight
• With a cover to protect it from invasive dust, if necessary
• Place no further devices or objects on top of the device to
prevent it from being damaged.

EN 7
dehumidifier TTK 54 E / TTK 66 E
Assembly and installation
Scope of delivery
• 1x Device
• 1x condensation drain hose, length: 0.6 m,
diameter: 14 mm
• 1x air filter
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Start-up
When positioning the device, observe the minimum distance
from walls or other objects as described in the chapter
Technical data.
A
B
C
C
D
• Before restarting the device, check the condition of the
power cable. If there are doubts as to the sound condition,
contact the customer service.
• Only position the device in rooms where potentially leaking
refrigerant cannot accumulate.
• Only position the device in rooms where there is no source
of ignition (e.g. open flames, an active gas appliance or an
electric heater).
• Only put up the device in an upright, stable position on firm
ground.
• Do not create tripping hazards when laying the power
cable or other electric cables, especially when positioning
the device in the middle of the room. Use cable bridges.
• Make sure that extension cables are completely unrolled.
• When positioning the device, keep a sufficient distance to
heat sources.
• Make sure that no curtains or other objects interfere with
the air flow.
• When positioning the device, particularly in wet areas,
secure it locally with an RCD (residual current device)
which complies with the respective regulations.
Inserting the air filter
Note
Do not operate the device without an air filter inserted
into the air inlet!
Without the air filter, the inside of the device will be
heavily contaminated. This could reduce the
performance and result in damage to the device.
• Make sure that the air filter is installed before switching
the device on.
Inserting the condensation tank
• Ensure that the float inside the condensation tank is
inserted correctly.
• Ensure that the condensation tank is empty and inserted
correctly.
Connecting the power cable
• Insert the mains plug into a properly secured mains
socket.

8 EN
dehumidifier TTK 54 E / TTK 66 E
Operation
Notes:
• Avoid open doors and windows.
• After being switched on, the device operates fully
automatically.
• The fan permanently runs in dehumidification mode even
after the set nominal value has been reached until the
device is switched off.
Operating elements
10 11 12 13 14
1718
16
1920212223
15
No. Designation Meaning
10 TIMER LED Illuminated when the timer is
activated
11 Fan speed LEDs Fan speed indication:
Low
Med(ium)
High (low + med.)
12 Full LED Condensation tank full or not
inserted correctly
13 Dryer LED Laundry drying mode is enabled
14 Cont. LED Continuous operation is enabled
15 Comfort LED Comfort mode is enabled
16 Power LED Illuminated during operation
17 ON/OFF button Power button:
Switching the device on or off
18 MODEbutton Selection button for operating
modes:
Dehumidification (not indicated)
Dryer = laundry drying function
Cont. = continuous operation
Comfort = comfort mode
19 Increase value button Setting the relative room
humidity
Setting the number of hours for
the timer function
No. Designation Meaning
20 Segment display Indication of the current relative
room humidity level
Indication of the relative room
humidity level during set-up
Indication of the number of
hours during timer
programming
Display of error codes
21 Decrease value button Setting the relative room
humidity
Setting the number of hours for
the timer function
22 FAN button Setting high, medium or low fan
speed
23 TIMER button Switches the timer function on
or off
Info
An acoustic signal is emitted each time a setting is
activated.
Switching the device on
Once you have completely installed the device as described in
the Start-up chapter, you can switch it on.
1. Press the ON/OFF button(17).
ðThe device starts in dehumidification mode.
Setting the operating mode
• Dehumidification
• Continuous operation
• Comfort mode
• Laundry drying function
Dehumidification
The device keeps running until reaching the desired relative
room humidity. Then the compressor switches off and the fan
keeps running. Once the desired relative room humidity is
exceeded, the compressor switches back on.
In this operating mode, the desired relative room humidity can
be set at any time in increments of 5% within a setting range of
35% to 85%.
1. Press the MODE button(18) until only the Power LED(16)
is lit.
2. Press the Increase value(19) or Decrease value button(21)
to select the relative room humidity.
ðThe desired relative room humidity is indicated in the
segment display(20) for approx.5seconds. Then the
current relative room humidity is displayed again.

EN 9
dehumidifier TTK 54 E / TTK 66 E
Setting the desired relative room humidity
You can only change the relative room humidity in
dehumidification mode.
1. Press the Increase value(19) or Decrease value button(21)
to set the relative room humidity. Setting is possible within
the range between 35% and 85% in steps of 5%.
ðThe desired relative room humidity is indicated in the
segment display(20) for approx.5seconds. Then the
current relative room humidity is displayed again.
Setting the fan speed
With this function you can choose between low, medium and
high fan speed. The fan speed can only be adjusted in
dehumidification mode. The default setting for the laundry
drying function is the highest level.
1. Repeatedly press the FAN button(22) to select the desired
fan speed.
Continuous operation
The device dehumidifies the air constantly and regardless of the
relative room humidity. The desired relative room humidity
cannot be adjusted in this operating mode.
1. Press the MODE button(18) until the Cont. LED(14) is lit.
ðContinuous operation is selected.
Info
For continuous operation the condensation drain hose
can be connected in order to continuously drain the
accumulating condensate.
Comfort mode
Comfort mode ensures an agreeable humidity level ranging
between 45% and 55%. Depending on the room temperature
the device automatically regulates the convenient humidity level
choosing a value from 45% – 50% – 55%.
In this operating mode it is not possible to regulate the humidity
level manually.
1. Press the MODE button(18) until the Comfort LED(15) is lit
to switch comfort mode on or off.
Setting the timer
For the device to switch on or off automatically after a
predefined number of hours (max. 24hrs) you can programme
the timer.
The timer can be programmed in increments of 0.5hours (0 to
10h) or in increments of 1hour (10 to 24h).
The timer can be set in all operating modes.
You can activate the function regardless of the device being
switched on or off.
Note
Do not leave the operating device unattended in a
freely accessible room with an activated timer.
Automatic switch-on
üThe device is switched off.
1. Press the TIMER button(23) to programme automatic
switch-on.
ðThe TIMER LED(10) is lit.
ðThe segment display(20) indicates the number of hours
until automatic switch-on. Standard: 0.0
2. Press the Increase value(19) and Decrease value
buttons(21) to set a number of hours until automatic
switch-on.
ðThe number of hours is indicated on the segment
display(20) for approx.5s. Then the current humidity
level of the room will be indicated.
ðThe timer setting equals the desired number of hours.
ðAfter the predefined time, the device switches itself on.
Automatic switch-off
üThe device is switched on.
1. Press the TIMER button(23) to programme automatic
switch-off.
ðThe TIMER LED(10) is lit.
ðThe segment display(20) indicates the number of hours
until automatic switch-off. Standard: 0.0
2. Press the Increase value(19) and Decrease value
buttons(21) to set a number of hours until automatic
switch-off.
ðThe number of hours is indicated on the segment
display(20) for approx.5s. Then the current humidity
level of the room will be indicated.
3. The device keeps running until the given switch-off time
has expired or until the device is switched off manually.
ðThe timer setting equals the desired number of hours.
ðAfter the predefined time, the device switches itself off.
Note
You can deactivate automatic switch-on and switch-off
by setting the respective number of hours back to 0 or
by manually switching the device on or off.
If error codeP2 is indicated on the segment
display(20), the timer is also disabled.
A full condensation tank can cause the device to be
switched off before the set number of hours until
automatic switch-off have elapsed.
Memory function
After a power failure during operation the device will
automatically be switched back on after a while. The selected
settings are saved. Any programmed timer settings will not be
saved.
Auto stop function
If the water tank is full, not inserted correctly or the relative
room humidity has been reached, the device will stop
automatically.

10 EN
dehumidifier TTK 54 E / TTK 66 E

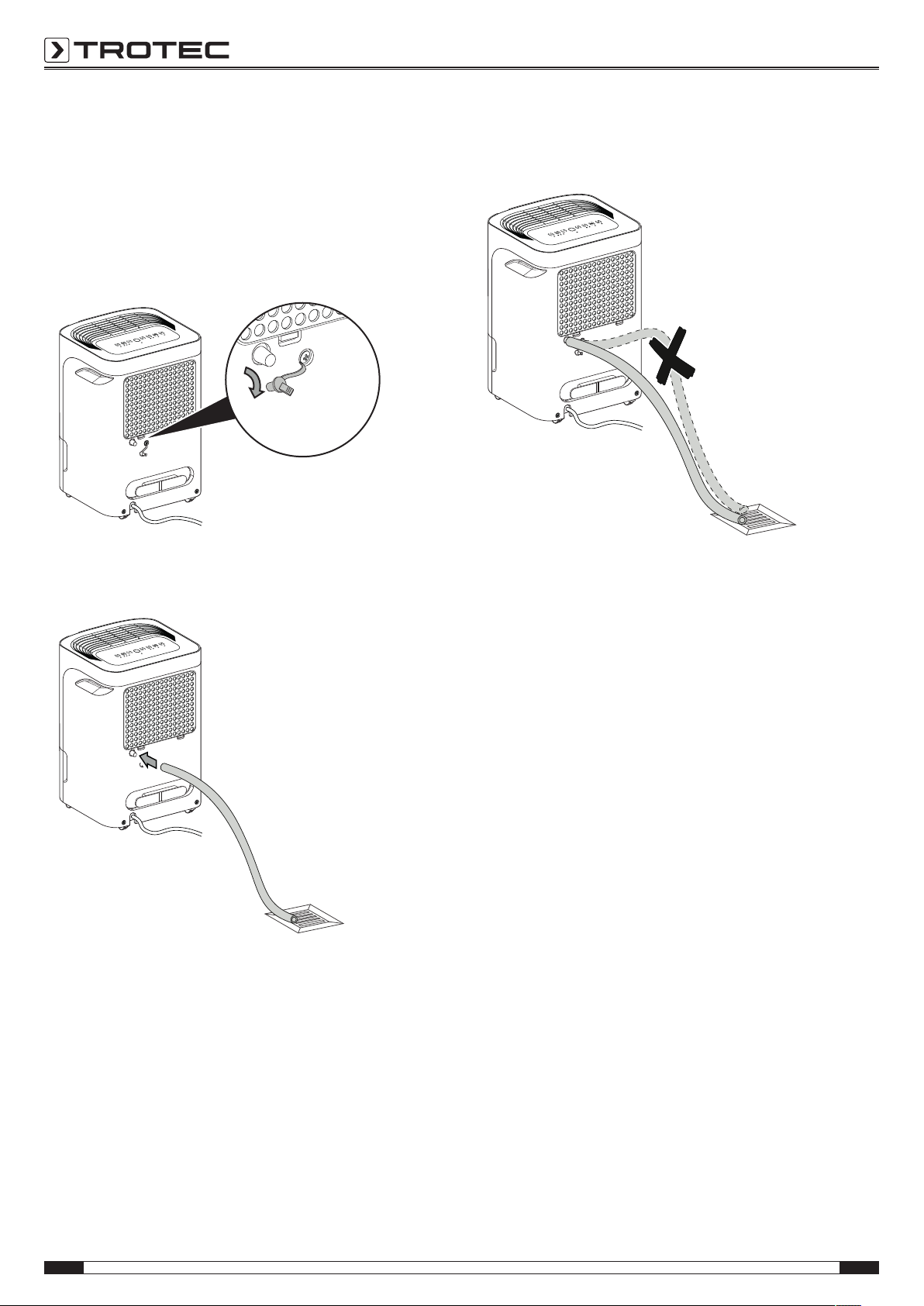

Operation with hose attached to the condensation
connection
For continuous operation or unattended dehumidification, please
connect the supplied condensation drain hose to the device.
üThe supplied hose (diameter= 14mm) is ready for use.
üThe device is switched off.
1. Remove the rubber plug.
2. Push one end of the hose onto the hose connection.
3. Guide the other hose end to a suitable drain or sufficiently
dimensioned collection container. Please note that the
hose must not be kinked.
Remove the hose if you want to collect the condensate in the
condensation tank again. Allow the hose to dry prior to storage.
The hose can be connected in any operating mode for
continuous operation.
Automatic defrost
At low ambient temperatures, ice may form at the evaporator
during dehumidification. The device will then carry out an
automatic defrost. Dehumidification is briefly interrupted during
defrosting. The fan keeps running. Error codeP1 for automatic
defrost will be indicated on the segment display(20).
The duration of the defrost process can vary. Do not switch off
the device during automatic defrost. Do not remove the mains
plug from the mains socket.

EN 11
dehumidifier TTK 54 E / TTK 66 E
Drying laundry
In addition, the device may also be used as a kind of clothes
dryer to dry wet laundry in living or working spaces.
When positioning the device or a clothes horse, please observe
the minimum distances specified in the technical data.
The following humidity values are suitable for drying laundry:
• cupboard dry= 46% relative humidity
• iron dry= 58% relative humidity
• slightly dried= 65% relative humidity
Adjust the settings for the relative humidity level to the device
(e.g. 60% relative humidity for iron dry laundry). If necessary,
use a measuring device to determine the humidity level.
The relative humidity cannot be adjusted in this operating mode.
The maximum operating time in this mode is 10hours.
1. Press the MODE button(18) until the Dryer LED(13) is lit.
ðThe function for drying laundry is activated.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• If necessary, remove the condensation drain hose and any
residual fluid from it.
• Empty the condensation tank, if need be.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damage.
• Check the on-site fusing.
• Check the filling level of the condensation tank, and empty
it if necessary. The Full LED(12) must not light up. Error
codeP2 must not be indicated on the segment
display(20).
• Check the condensation tank for correct seating.
• Check the room temperature. Observe the device's
permissible operating range according to the technical
data. Possibly, the device does not start because the
ambient temperature is too low (< 5°C).
• Wait for 10minutes before restarting the device. If the
device is not starting, have the electrics checked by a
specialist company or by Trotec.
The device is running, but there is no formation of
condensate:
• Check the float in the condensation tank for dirt. If
necessary, clean the condensation tank. The float must be
able to move freely.
• Check the room temperature. Observe the device's
permissible operating range according to the technical
data. Possibly, the device does not start because the
ambient temperature is too low (< 5°C).
• Ensure that the relative room humidity complies with the
technical data.
• Check the preselected relative room humidity. The
humidity in the room must be above the selected range.
• Check the air filter for dirt. If necessary, clean or replace
the air filter.
• Check whether the device is running in comfort mode. In
this case, the compressor switches off automatically once
the relative room humidity is below 45%.
• From the outside, check the condenser for dirt (see
chapter Maintenance). If the condenser is dirty, have it
cleaned by a specialist company or by Trotec.
• The device might carry out an automatic defrost. During
automatic defrost, the device does not dehumidify.

12 EN
dehumidifier TTK 54 E / TTK 66 E
The device is loud or vibrates:
• Check whether the device is set up in a stable and upright
position.
Condensate is leaking:
• Check the device for leaks.
The compressor does not start:
• Check the room temperature. Observe the device's
permissible operating range according to the technical
data. Possibly, the device does not start because the
ambient temperature is too low (< 5°C).
• Ensure that the relative room humidity complies with the
technical data.
• Check the preselected relative room humidity. The
humidity in the room must be above the selected range.
• Check whether the device is running in comfort mode. In
this case, the compressor switches off automatically once
the relative room humidity is below 45%.
• Check whether the overheating protection of the
compressor has tripped. Disconnect the device from the
mains and let it cool down for approx. 10minutes before
reconnecting it.
• The device might carry out an automatic defrost. During
automatic defrost, the device does not dehumidify.
The device gets very warm, is loud or is losing
performance:
• Check the air inlets and air filters for dirt. Remove external
dirt.
• From the outside, check the device for dirt (see chapter
Maintenance). If the inside of the device is dirty, have it
cleaned by a specialist company for cooling and air-
conditioning or by Trotec.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to a specialist company for cooling and air-conditioning
or to Trotec for repair.
Error codes
The following error messages can be displayed on the segment
display(20):
Error code Cause Remedy
AS Fault at humidity
sensor
Disconnect the device
briefly from the mains.
Should the error still be
displayed after the restart,
please contact the
customer service.
ES Fault at temperature
sensor
E3 General fault at the
device
EC Leaking refrigerant Switch the device off and
contact the customer
service.
P1 Automatic defrost This is not a fault. Wait for a
brief period. The indication
will disappear the moment
the automatic defrost
process is completed.
P2 Condensation tank
full or not inserted
correctly
Empty the condensation
tank or check the
condensation tank for
correct fit.

EN 13
dehumidifier TTK 54 E / TTK 66 E
Maintenance Maintenance intervals
Maintenance and care interval before every
start-up
as needed at least every
2weeks
at least every
4weeks
at least every
6months
at least
annually
Check air inlets and outlets for dirt
and foreign objects and clean
ifnecessary
X X
Clean the exterior X X
Visually check the inside of the
device for dirt
X X
Check the air filter for dirt and
foreign objects and clean or
replace if necessary
X X
Replace the air filter X
Check for damage X
Check attachment screws X X
Test run X
Empty the condensation tank and/
or drain hose
X
Maintenance and care log
Device type: ............................................. Device number: ....................................
Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Check air inlets and outlets for dirt and
foreign objects and clean ifnecessary
Clean the exterior
Visually check the inside of the device
for dirt
Check the air filter for dirt and foreign
objects and clean or replace if
necessary
Replace the air filter
Check for damage
Check attachment screws
Test run
Empty the condensation tank and/or
drain hose
Comments
1. Date: ...................................
Signature: ................................
2. Date: ....................................
Signature: .................................
3. Date: ....................................
Signature: .................................
4. Date: ....................................
Signature: .................................
5. Date: ...................................
Signature: ................................
6. Date: ....................................
Signature: .................................
7. Date: ....................................
Signature: .................................
8. Date: ....................................
Signature: .................................
9. Date: ...................................
Signature: ................................
10. Date: ..................................
Signature: .................................
11. Date: ..................................
Signature: .................................
12. Date: ..................................
Signature: .................................
13. Date: .................................
Signature: ................................
14. Date: ..................................
Signature: .................................
15. Date: ..................................
Signature: .................................
16. Date: ..................................
Signature: .................................

14 EN
dehumidifier TTK 54 E / TTK 66 E
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
Warning of electrical voltage
Tasks which require the housing to be opened
must only be carried out by authorised specialist
companies or by Trotec.
Refrigerant circuit
Danger
Natural refrigerant propane (R290)!
H220 – Extremely flammable gas.
H280 – Contains gas under pressure; may explode if
heated.
P210 – Keep away from heat, sparks, open flames and
other ignition sources. No smoking.
P377 – Leaking gas fire: Do not extinguish, unless leak
can be stopped safely.
P410+P403 – Protect from sunlight. Store in a well-
ventilated place.
• The entire refrigerant circuit is a maintenance-free,
hermetically sealed system and may only be maintained or
repaired by specialist companies for cooling and air-
conditioning or by Trotec.
Safety signs and labels on the device
Check the safety signs and labels attached to the device at
regular intervals. Replace illegible safety signs!
Cleaning the housing
Clean the housing with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.

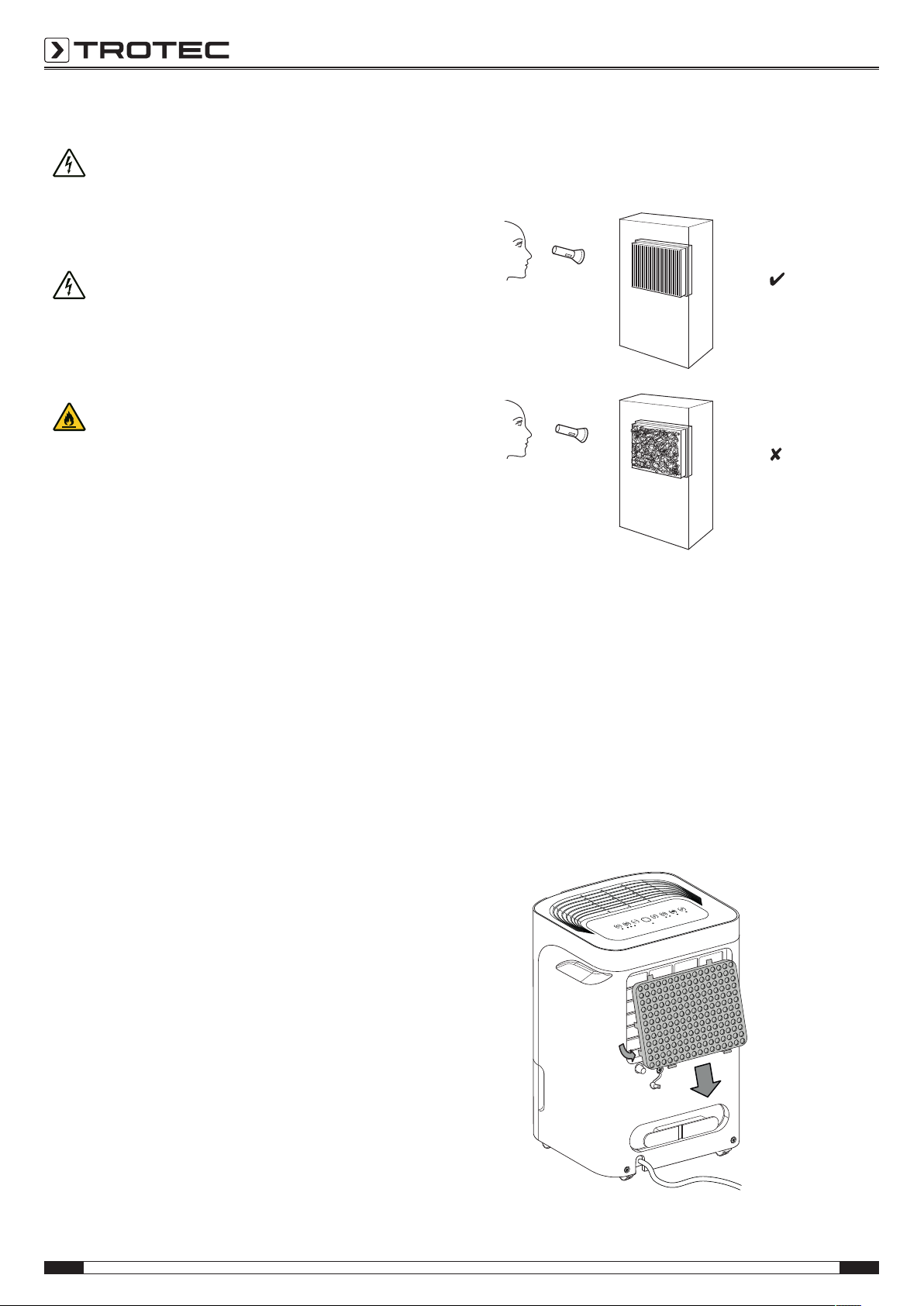

Visual inspection of the inside of the device for dirt
1. Remove the air filter.
2. Use a torch to illuminate the openings of the device.
3. Check the inside of the device for dirt.
4. If you see a thick layer of dust, have the inside of the
device cleaned by a specialist company for cooling and air-
conditioning or by Trotec.
5. Put the air filter back in.
Cleaning the air filter
Note
Ensure that the air filter is not worn or damaged. The
corners and edges of the air filter must not be
deformed or rounded. Before reinserting the air filter,
make sure that it is undamaged and dry!
The air filter has to be cleaned as soon as it is dirty. This is
brought to light e.g. by a reduced capacity (see chapter Errors
and faults).
1. Remove the air filter from the device.

EN 15
dehumidifier TTK 54 E / TTK 66 E
2. Clean the filter using a slightly damp, soft, lint-free cloth. If
the filter is heavily contaminated, clean it with warm water
mixed with a neutral cleaning agent.
3. Allow the filter to dry completely. Do not insert a wet filter
into the device!
4. Reinsert the air filter into the device.
Emptying the condensation tank
If the condensation tank is full or not inserted correctly, an
acoustic signal will be emitted. Moreover, the Full LED(12) will
be lit and error codeP2 indicated on the segment display(20).
The compressor and fan will switch off.

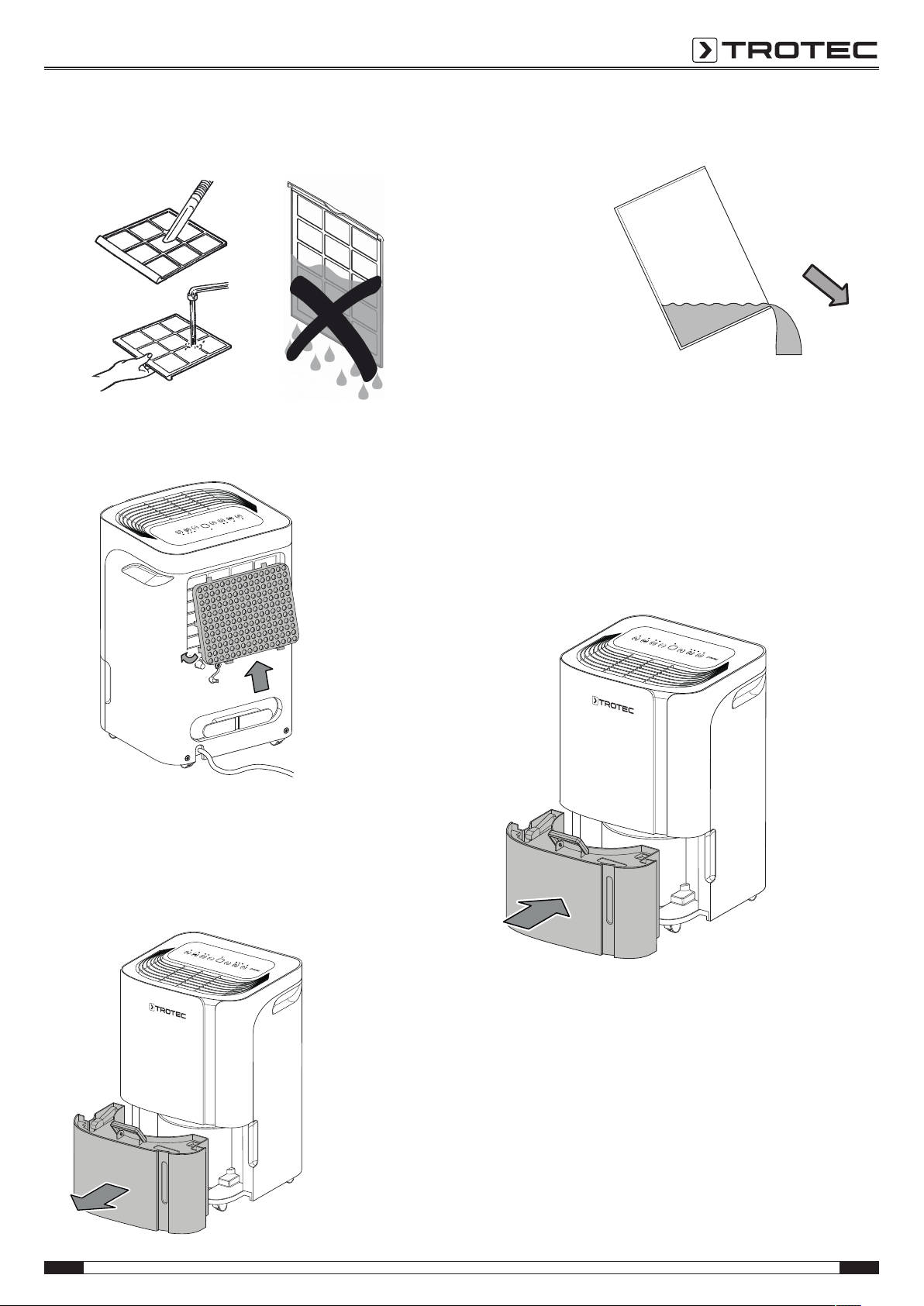

1. Take the condensation tank out of the device.
MODE ON/OFFTIMERTURBO
ION
On O Full Dryer SMDCont.
2. Empty the condensation tank into a drain or sink.
3. Rinse the tank with clear water. Clean the tank regularly
using a mild cleaning agent (no detergent!).
4. Refit the condensation tank into the device.
Make sure not to damage the float when inserting or
removing the condensation tank.
In doing so, make sure that the float is positioned
correctly.
In doing so, make sure that the condensation tank is
inserted correctly, since otherwise the device cannot be
switched back on.
MODE ON/OFFTIMERTURBO
ION
On O Full Dryer SMDCont.
Activities required after maintenance
If you want to continue using the device:
• Leave the device to rest for 12to24hours, so the
refrigerant can accumulate within the compressor. Wait
12to24hours before switching the device back on! Acting
contrary might lead to compressor damage and a
malfunctioning device. If so, any warranty claims will be
voided.
• Reconnect the device to the mains.
If you do not intend to use the device for a considerable time:
• Store the device according to the Storage chapter.

16 EN
dehumidifier TTK 54 E / TTK 66 E
Technical annex Technical data
Parameter Value
Model TTK54E TTK66E
Max. dehumidification performance 16 l/24h 24 l/24h
Dehumidification performance @ 30°C and 80%RH 14 l/24h 20 l/24h
Air flow rate 150 m3/h 168 m3/h
Ambient temperature 5°C to 32°C 5°C to 32°C
Operating range 35 % to 85 %RH 35 % to 85 %RH
Pressure suction side 1.0MPa 1.0MPa
Pressure outlet side 2.6MPa 2.6MPa
Max. permissible pressure 2.6MPa 2.6MPa
Power supply 220–240V/ 50Hz 220–240V/ 50Hz
Power consumption max. 0.43 kW 0.44 kW
Nominal current 2.2 A 2.3 A
Refrigerant R290 R290
Amount of refrigerant 75 g 75 g
GWP factor 3 3
CO2 equivalent 0.00023t 0.000225t
Condensation tank capacity 3 l 3 l
Sound pressure level (atadistance of1m) 46 dB(A) 46 dB(A)
Dimensions (lengthx widthx height) 245x 350x 510 mm 245x 350x 510 mm
Minimum distance to walls and other objects
A: top:
B: rear:
C: side:
D: front:
40 cm
20 cm
20 cm
20 cm
40 cm
20 cm
20 cm
20 cm
Weight 15 kg 15 kg

EN 17
dehumidifier TTK 54 E / TTK 66 E
Circuit diagram TTK 54 E

18 EN
dehumidifier TTK 54 E / TTK 66 E
Circuit diagram TTK 66 E
DISPLAY BOARD
MAIN BOARD
F A N
P O W E R
CNN1100
CCNN11
CCNN33
CCNN55
PP88
CCNN44
CCNN22
WWAATTEERR SSWWIITTCCHH
PPIIPPEE TTEEMMPP..
HHUUMMII.. SSEENNSSOORR
BBLLAACCKK((oorr BBRROOWWNN))
RREEDD
WWHHIITTEE((oorr BBLLUUEE))
RREEDD
YY//GG
YY//GG((oorr GGRREEEENN))
BBLLAACCKK
BBLLUUEE
BBRROOWWNN
FFAANN CCAAPPAACCIITTOORR
YY//GG
MM
CC
SS
MM
~
COMP.
BBLLUUEE
This symbol
indicates
the element
is optional,
the actual
shape shall
prevail
Notes:
OverLoad
Protector
PP77
PP44
RREEDD
BBLLAACCKK
ION
YY//GG
PP1100((oorr CCNN66//CCNN66AA //CCNN66BB//CCNN66CC))
Bypass Valve
BBLLUUEE
BBLLUUEE
PP1111
PP55
((oorr CCNN1133))
Notes: Display and Fan's conntors must be match the actual indicates.
CCNN1111
TOUCH
PANE L
POWER BOARD
CCNN11CCNN22
CCNN1144CCNN1155
11 3311 22
33 11
11 22
CCNN77
SSWWIITTCCHH
PP22PP11
PPTTCC.. SSTTAARRTTEERR
11
MM
SS
16020100001092
CCNN1100
WWIIFFII
CCNN11
PUMP
D C P O W E R BO A R D
CCNN22
RREEDD
OPT I ONA L
PP99 PP66
BBLLAACCKK((oorr BBLLUUEE))
RREEDD
BBLLAACCKK((oorr BBLLUUEE))
WWHHIITTEE
WWIIHHIITTEE((oorr YYEELLLLOOWW

EN 19
dehumidifier TTK 54 E / TTK 66 E
Overview of spare parts TTK54E Note: The position numbers of the spare parts differ from those
describing the positions of other parts mentioned in this
operating manual.

20 EN
dehumidifier TTK 54 E / TTK 66 E
Spare parts list TTK54E
NO. SPARE PART QTY. NO. SPARE PART QTY.
1 Water Tank Assembly 14.2 Micro Switch 1
1.1 Water Tank Subassembly 14.3 Fan Motor Capacitor 1
1.1.1 Dobber Case 15 Chassis Subassembly 1
1.1.2 Handle of Water Tank 15.2 Universal Wheel 4
2 Front Panel Assembly 16 Power Cord Subassembly 1
2.1 Front Panel Subassembly 17 Pipe Temperature Sensor 1
2.1.1 Top Cover 18 Fixed Speed Reciprocating Compressor 1
2.2 Display Box Subassembly 19 Suction Pipe Assembly 1
3 Volute Shell Assembly 110 Capillary Assembly 1
3.1 Volute Shell Subassembly 111 Condenser Assembly 1
3.2 Centrifugal Fan 112 Evaporator assembly 1
3.3 Single Phase Asynchronous Motor 113 Discharge Pipe Assembly 1
3.4 Electronic Control Box 114 Rear Panel Subassembly 1
3.5 Humidity sensor board module(plug-in)(double
letter KSH-02BHS scheme)
115 Air Inlet Grille 1
3.6 Dehumidifier Main Control Board Subassembly 120 Cover of Electronic Control Box 1
4 Middle Partition Board Assembly 125 Drain Pipe 1
4.1 Partition Board Subassembly 1
