Notes regarding the operating manual
TTK 400
http://download.trotec.com/?sku=1120000400&id=1

EN Operating Manual – Dehumidifier TTK 400 2
Read this manual carefully before starting or using the
device. Store the manual near the device or its site of use!
• Do not use the device in potentially explosive rooms.
• Do not use the device in atmospheres containing oil, sulphur,
chlorine, acid or salt.
• Do not operate the device in rooms containing acetone, undi-
luted acids or solvents.
• Set the device up in an upright and stable position.
• Do not expose the device to a direct jet of water during opera-
tion.
• Ensure that the air inlet and outlet are not obstructed.
• Ensure that the suction side is kept free of dirt and loose ob-
jects.
• Never reach or put objects into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• Ensure that all electric cables outside of the device are protect-
ed from damage (e.g. caused by animals).
• Observe the device's power input, cable length and intended
use when selecting extensions to the connecting cable. Avoid
electrical overload.
• Only transport the device in an upright position and when the
condensate pump and condensation tray are empty.
• Dispose of the collected condensate. Do not drink it. Health
hazard!
Intended use
Only use the device TTK 400 as a mobile industrial dryer for drying
and dehumidifying room air, while adhering to and following the
technical data.
Intended use comprises:
• drying and dehumidifying:
– production plants, underground rooms
– store rooms, archives, laboratories
– rooms and areas after water damages from burst pipes or
flooding
• maintaining the dryness of:
– instruments, devices, files
– electric control devices, boiler plants, turbines and pipe sys-
tems in power plants
– moisture-sensitive loads etc.
Improper use
Do not place the device on flooded ground. Do not use the device
outdoors. Do not place any objects on the device for drying. Any
changes, modifications or alterations to the device which have not
been authorised by Trotec are forbidden.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with electric
devices in damp areas.
• take measures to protect themselves from direct contact with
live parts.
• have read and understood the operating manual, especially the
chapter Safety.
Maintenance tasks at the electrical equipment or the air-
conditioning technology must only be carried out by
specialist companies for cooling and air-conditioning or by
Trotec.
Residual risks
Hazardous electric current!
Work on the electrical components must only be carried
out by an authorised specialist company!
Hazardous electric current!
Before any work on the device, remove the mains plug
from the mains socket!
Caution!
To avoid damages to the device, never operate the
device without an inserted air filter!
Danger!
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Danger!
The device can cause injuries if it falls over! Tilt the
device only slightly and move it carefully. If necessary,
ask another person to help you. For longer distances,
transport the device with a fork lift or pallet jack. Never
stand below the device when it is suspended.
Behaviour in the event of an emergency
1. Disconnect the device from the mains in the event of an emer-
gency.
2. Do not reconnect a defective device to the mains.
Safety

3Operating Manual – Dehumidifier TTK 400 EN
Device description
The device uses the principle of condensation to automatically
dehumidify rooms. It can be used in continuous operation.
The fan sucks in humid room air through the air inlet (2), the air
filter (5), the evaporator and the condenser located behind it. The
air is cooled at the cold evaporator until it is below the dew point.
Water vapour contained in the room air precipitates on the evapo-
rator fins as either condensation or rime. The dehumidified, cooled
air is warmed again and blown out via the air outlet (8). The drier
air thus conditioned mixes with the air in the room. The humidity
in the room where the device is positioned is reduced as air con-
stantly circulates through the device. Depending on the air tem-
perature and the relative humidity, the condensed water either
drops into the condensation tray continuously or only during the
defrost phases. The condensate is fed through a pressure-resist-
ant pipe connection and out of the device via the pre-assembled
condensation drain hose (7).
The condensed water can be discharged using a retrofitted con-
densate pump.
For easy operation and transport, the device is fitted with a mains
switch (10), an operating hours counter (3), a bar handle (1) and
wheels (4). Two rubber feet (6) prevent the device from rolling
away.
The device can reduce the relative humidity of a room to approx.
35 %. Due to the heat radiation generated during operation, the
room temperature may rise by approx. 1–3 °C.

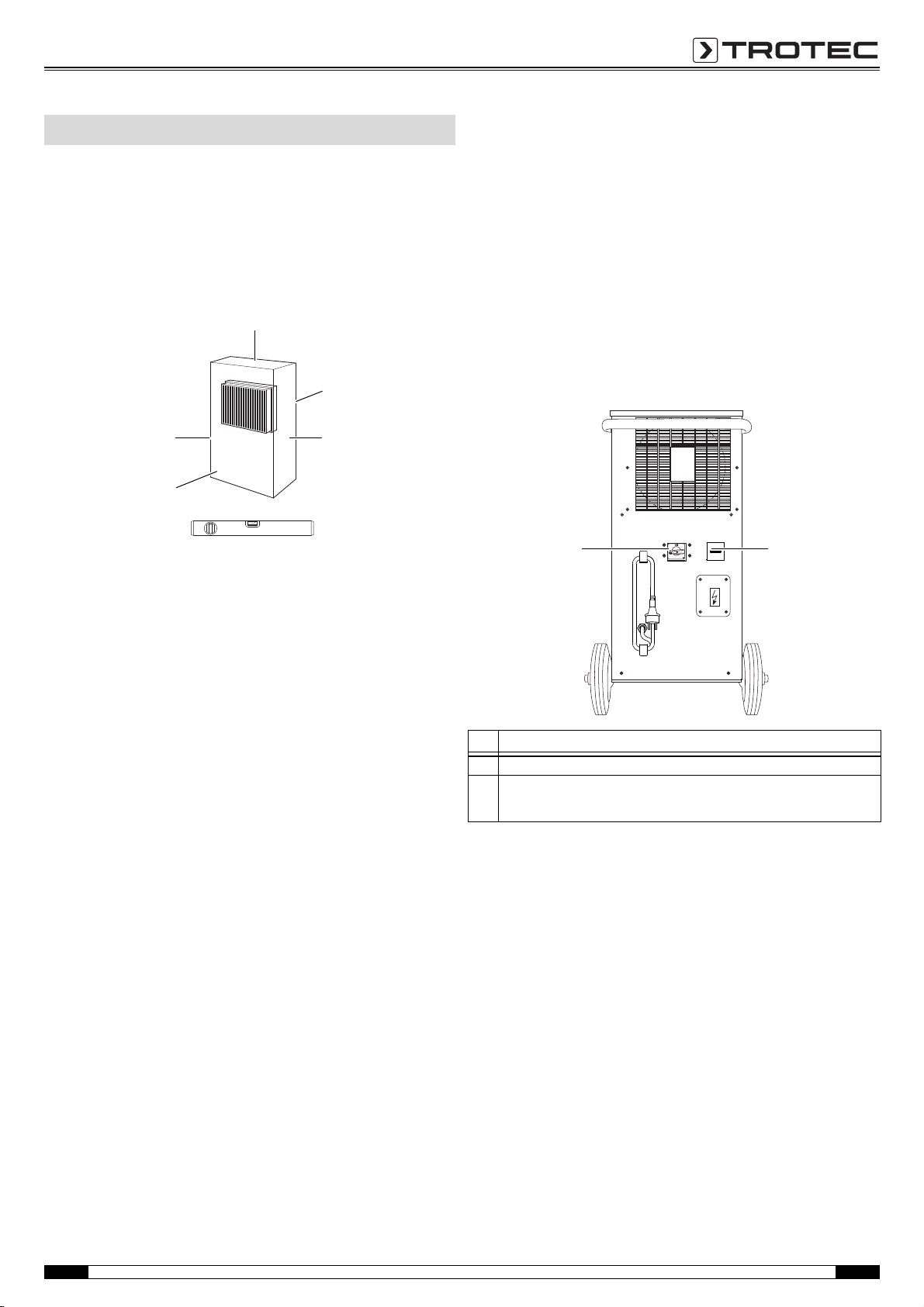

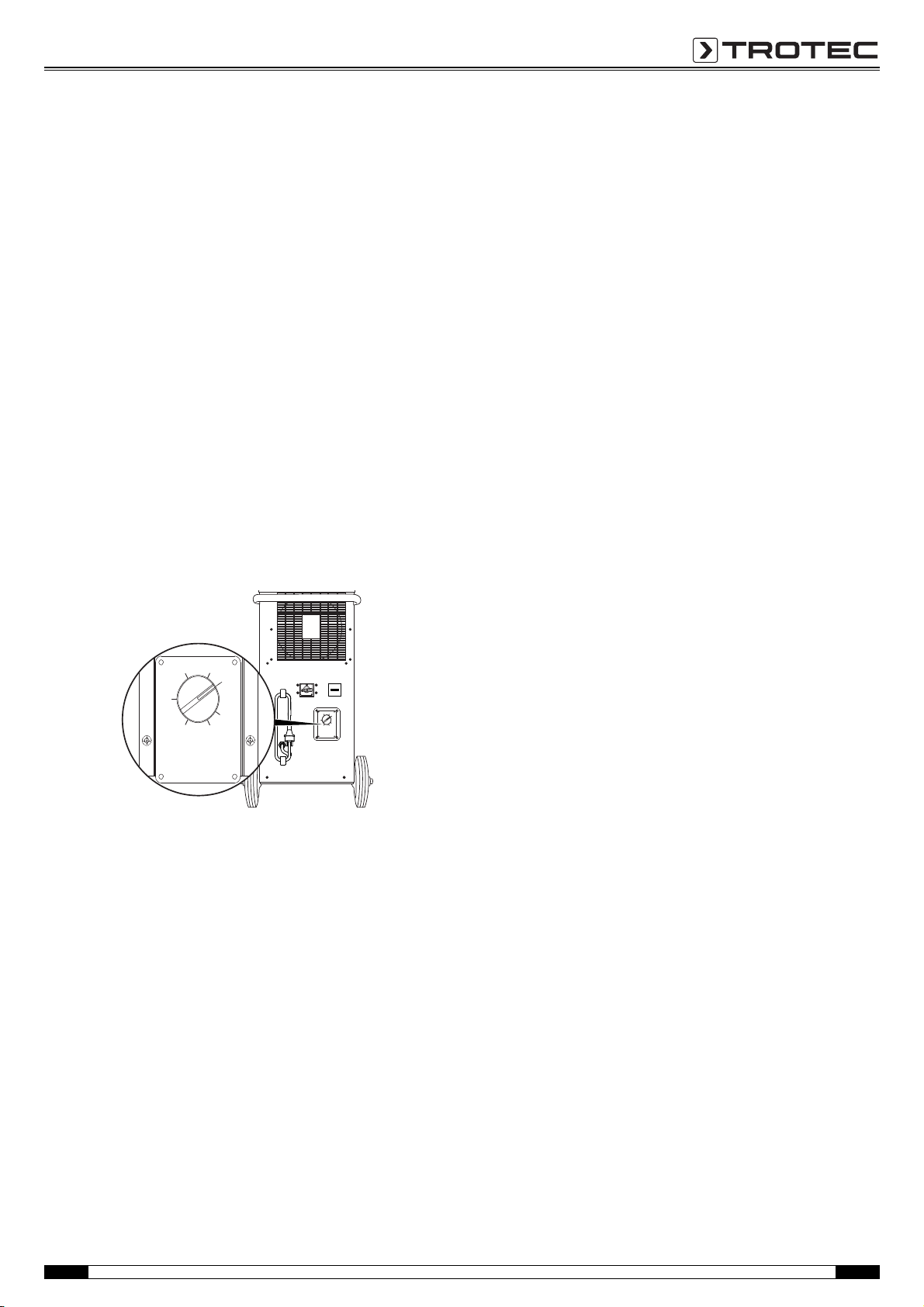

Device depiction and operating elements
Standard scope of delivery
•TTK 400 with bar handle
•Airfilter
• Condensation drain hose
• Operating manual
Optional accessories
•Hygrostat
• Condensate pump
• Energy cost gauge
Information about the device
No. Operating element
1Bar handle
2Air inlet
3Operating hours counter
4Wheels
5Air filter
6Rubber feet
7Condensation drain hose
8Air outlet
9Mains power cable
10 Mains switch
1
5
10
2
3
4
8
7
9
6

EN Operating Manual – Dehumidifier TTK 400 4
Technical data
Power consumption
The device's power consumption depends on the current room
temperature and relative humidity.
Multiply the operating hours (see operating hours counter (3)) by a
consumption value of one kilowatt per hour to determine the
approximate power consumption.
To determine the precise power consumption, an optionally
available energy cost gauge can be connected between the
construction dryer and the power source. Contact your Trotec
customer service.
Parameter Value
Model TTK 400
Dehumidification performance, max. 75 l / 24 h
Dehumidification performance (20 °C / 60 % relative humidity) 30 l / 24 h
Suitable for room dimensions up to:
Construction drying or water damage clearance
Dry keeping 400 m³ 800 m³
Operating temperature 0–40 °C
Working range for relative humidity 35–100 %
Air flow rate, max. 420 m³/h
Electric connection 230 V / 50 Hz / 6.85 A
Power consumption, max. 1.4 kW
Power consumption, average 1 kW
Fuse (home) 10 A
Compressor Rotary
Refrigerant R407c
Amount of refrigerant 0.45 kg
Weight 42 kg
Dimensions (HxDxW) 854 x 480 x 510 mm
Minimum distance to walls or other objects A:
B:
C:
D:
Top:
Rear:
Side:
Front:
50 cm
50 cm
50 cm
50 cm
Sound pressure level LpA (3 m; complies with DIN 45635-01-KL3) 56 dB(A)

5Operating Manual – Dehumidifier TTK 400 EN

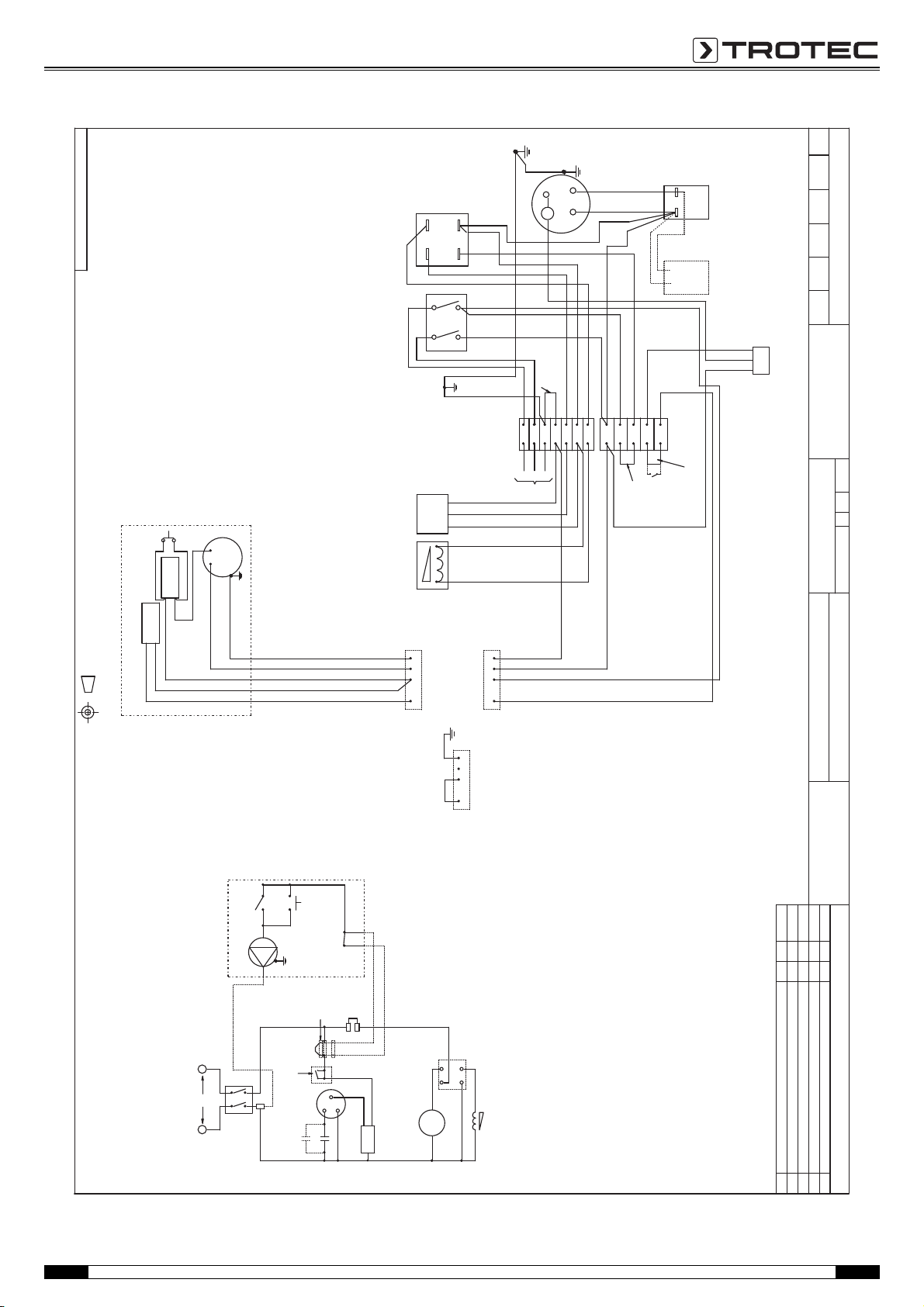

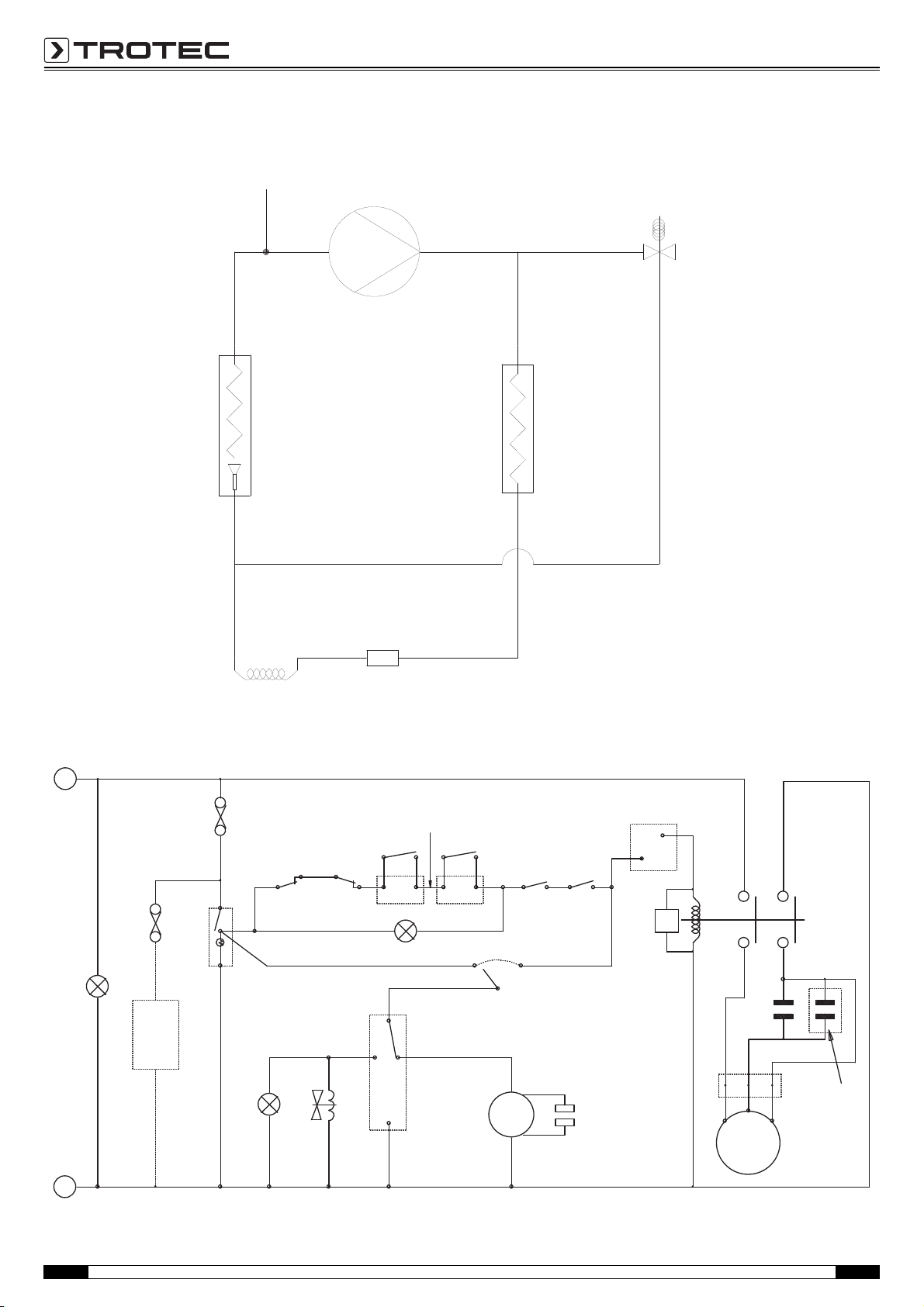

Refrigerant circuit diagram
Circuit diagram
COMP
AIR
CONDENSER
VALVE
SOLENOID
DRIER
EVAPORATOR
PORT
PROCESS
1
3
4
INTERLOCK
REMOVE LINK IF PUMP FITTED
HOURS RUN METER
2(NO) 6(NO)5
1 A1 A2
2 1 1 2 H(N/C)
C(COM)
C(COM)
(N/C)L
32
1
(COM)
2
(N/O)
(N/C)
MAKES 1-3 ON TEMP FALLING
MAINS LAMP
CONTROL SWITCH
CONTROL FUSE
DEFROST VALVE
DEFROST
THERMOSTAT
FAN MODE
SWITCH
CYCLE
FAULT LAMP
LP SWITCH
BREAKS ON
PRESSURE FALLING
HP SWITCH
BREAKS ON
PRESSURE RISING
INTERLOCK
DEFROST LAMP
FAN MOTOR
FAN CAP'
HUMIDISTAT HIGH AIR LIMIT STAT
DELAY TIMER
CONTACTOR
COMPRESSOR
CONDENSATE
PUMP
(IF FITTED)
PUMP FUSE
RUN CAP
SOFT START
(IF FITTED)
RELAY/HARD
START CAP
(IF FITTED)
L N
C
S
R
CONT
1

EN Operating Manual – Dehumidifier TTK 400 6
TB8
ASPEN
PUMP
230V
C
S R
COMPRESSOR
RUN CAP
FAN
MOTOR
1 4 2 3
SOLENOID VALVE
DEFROST CONTROL STAT
ISOLATOR
ON/OFF S WITCH
2 1
4 3
HUMIDISTAT IF FITTED
N LN
PURGE PUSH
BUTTON
HIGH
LEVEL FLOAT
SWITCH
LOW
LEVEL
FLOAT
SWITCH
ASPEN PUMP KIT OPTION
HARD START CAP IF FITTED
21
ISS C/N APPD DATE
MATERIAL FINISH
TOLERANCE UNLESS SPECIFIED HOLES TO BS 4500 E12
INSPECTION LEVEL DIMS
SHT No. CONT' DRAWN
ALL SHARP EDGES AND BURRS TO BE REMOVED
DRG No.
APPROVED DATE SCALE
DO NOT SCALE PRINT
3rd ANGLE PROJECTION
IF IN DOUBT ASK
TITLE
DRG No.
DRAWING CHANGE
1394 KW 19/01/10
kW HOURS
METER
BLUE1.0
WHITE
1.0
GREY 1.0
NL
OUT
L
IN
BLUE 1.0
kW HOURS METER
GREY1.0
3241
PLUG
BLACK
BLACK
BROWN
BLUE
GREEN/YELLOW
ASPEN
PUMP
HIGH LEVEL
FLOAT SWITCH
LOW LEVEL
FLOAT SWITCH
ASPEN PUMP KIT
IF FITTED
GREEN/YELLOW
RED
BROWN
BLUE
BLACK
BROWN
BLACK
BLACK
PURGE SWITCH
1 2
3241
SOCKET
BLUE1.0
GREEN/YELLOW 1.0
BROWN1.0
WHITE 1.0
3241
BROWN 1.0
COMPRESSOR
REMOVE PLUG AND FIT PUMP KIT PLUG IF FITTED
RED 1.0 LINK
BLUE1.0
TB12TB11
M/C PLUG
REMOVE & REPLACE
WITHPUMPPLUG IF FITTED
PUMP
PLUG
TB10
TB9
WHITE 1.0
BROWN1.0
REMOVE WHEN HUMIDISTAT FITTED
1 2
3
4
DEFROST CONTROL
BASE PLATE
C
RS
COMPRESSOR
PINK 1,0
BLACK 1,0
BLUE 1,0
BLUE 1,0
CAPACITOR
(RUN)
RED 1.0
GREEN/YELLOW 1.5
BLUE 1,0
BLUE 1,0
HARD START CAP'
FLYING LEAD
FLYING LEAD
KLIXON
2 1
4 3
BLUE 2.5
BROWN 2.5
ISOLATOR
RED 1.0
GREEN/YELLOW 1.5
BLACK 1.0
RED 1.0
BLUE 1.0
EARTH
STAT
8
9
10
11 12 WHITE 1.0
BLUE 1.0
ORANGE 1.0
HUMIDISTAT KIT
(SA64357201)
OPTION
WHITE 1.0
PINK 1.0 LINK
BROWN 1.0
ORANGE 1.0
IF FITTED
BLUE FLYING LEAD
SOLENOID
VALVEVALVE
BLUE FLYING LEADBLUE FLYING LEAD
BLUE FLYING LEAD
BROWN FLYING LEAD
GREEN/YELLOW FLYING LEAD
FAN MOTOR
230V
MAINS SUPPLY
E
N
L
BROWN 2.5
BLUE 2.5
GREEN/YELLOW 1.5
RED1.0 BLUE 1.0
BLACK 1.0
BLUE1.0
7 6
5 4 3 2 1
WHITE
D353153
WIRING DIAGRAM
D353153
1 / KW 19/01/10 N/A
1 INITIAL ISSUE
LABEL D353253 ISS 1

7Operating Manual – Dehumidifier TTK 400 EN
To make the device easier to transport, it is fitted with wheels and
a bar handle. If necessary, transport the device with the help of
another person. To lift the device, use a fork lift or pallet jack.
Before transporting the device, observe the following:
1. Switch off the device at the mains switch (see chapter Operat-
ing elements).
2. Remove the mains plug from the mains socket. Do not use the
power cable to drag the device!
3. Empty the condensation drain hose or the condensate pump
(optional). Check for dripping condensation.
4. Hold the bar handle in both hands and carefully tilt the device.
5. Transport the device on its wheels.
After transporting the device, observe the following:
1. Set up the device in an upright position after transport.
2. Make sure that the two rubber feet are placed level on the
ground. The rubber feet lock the device and prevent it from
rolling away.
Adjusting the bar handle
Depending on your requirements, the bar handle can be installed
horizontally or vertically. To adjust the bar handle, carry out the
following steps on both sides of the device:
1. Loosen screw (15).
2. Remove screws (16) and (17).
3. Turn the bar handle by 90°.
4. Insert screws (16) and (17) in the other position.
5. Tighten all screws (15, 16, 17).
Storage
When out of use, store the device as follows:
•dry,
• under a roof,
• in an upright position where it is protected from dust and direct
sunlight,
• with a plastic cover to protect it from invasive dust, if neces-
sary.
• The storage temperature is the same as the range given for the
operating temperature in the chapter Technical data.
Transport
15
16
15
16
A.
B.
17
17

EN Operating Manual – Dehumidifier TTK 400 8
• After being switched on, the device operates fully automatical-
ly.
• Avoid open doors and windows.
Positioning
When positioning the device, observe the minimum distance from
walls and other objects specified in the chapter Technical data.
• Set the device up in a level and stable position.
• When positioning the device, keep a sufficient distance to heat
sources.
• If possible, set up the device in the middle of a room. When us-
ing several devices, make sure that the distance between
them is the same.
• When positioning the device, particularly in wet areas, secure
it locally with an RCD (residual current device) which complies
with the respective regulations.
• Make sure that extension cables are completely unrolled.
• Make sure that the power supply's voltage and current comply
with the specifications on the device's nameplate.
• When using a generator, ensure that the generator supplies at
least 4 kW (The device's start-up current can exceed the nom-
inal current by four or five times. Also note this fact when using
several devices at one generator).
Notes regarding the dehumidification performance
The dehumidification performance depends on:
• the layout of the room
• the room temperature
• the relative humidity
The higher the room temperature and relative humidity, the
greater the dehumidification performance.
For operation in living rooms, a relative humidity of approx. 50–
60 % is sufficient. In store rooms and archives, the humidity
should not exceed approx. 50 %.
Operating elements
Operation
CC
A
B
D
No. Operating element
3Operating hours counter
10 Mains switch:
ON: The device is switched on.
OFF: The device is switched off.
3
10

9Operating Manual – Dehumidifier TTK 400 EN
Start-up
Inserting the air filter

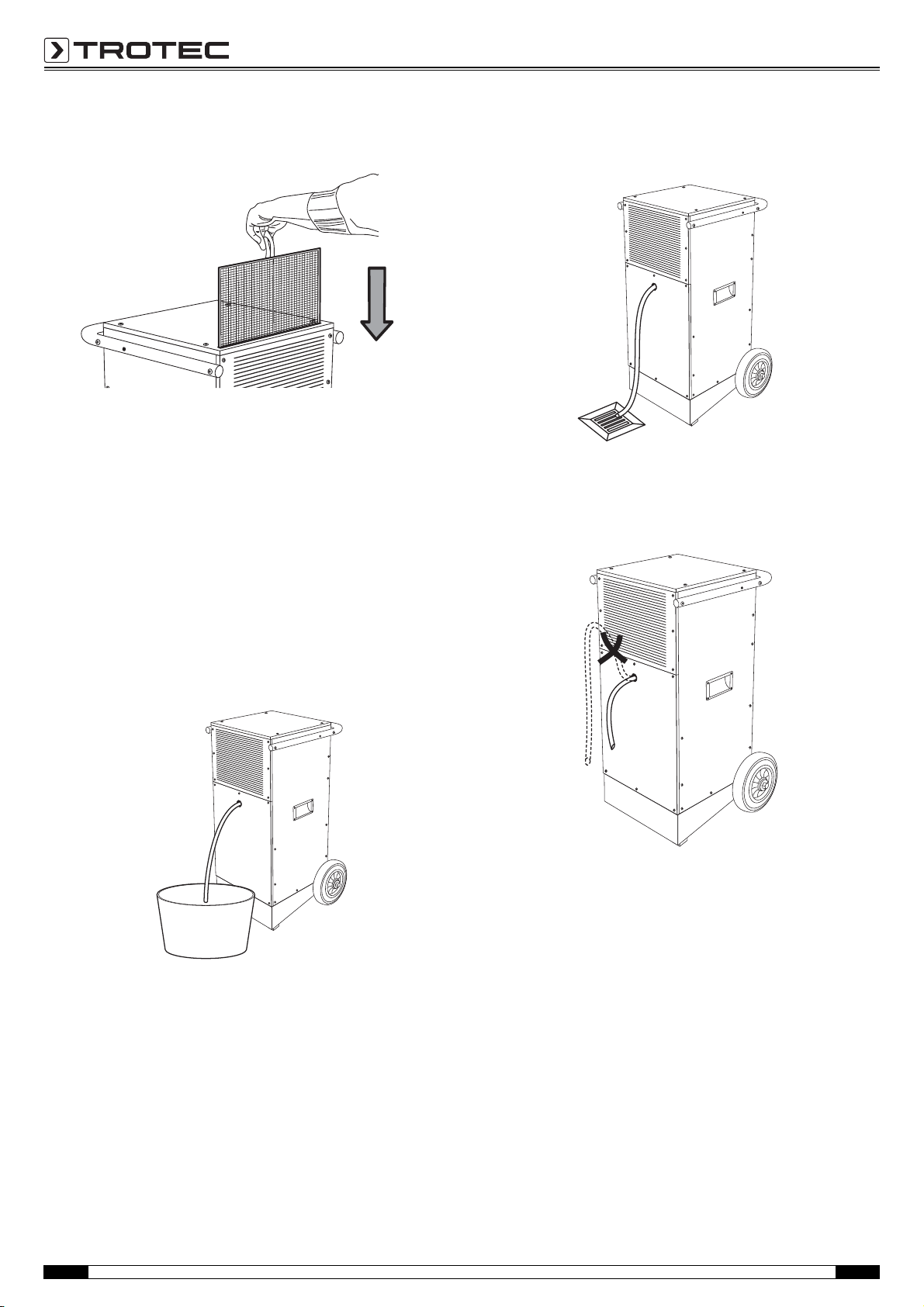

Positioning the condensation drain hose
Note:
The condensation drain hose is already installed when the device
is delivered.
1. Ensure that the condensation drain hose is properly connected
to the device and is free of damage.
2. Depending on the application, position the end of the conden-
sation drain hose as follows:
– Place a sufficiently dimensioned container (at least 90 litres)
beside the device and insert the hose end. Check the filling
level of the container regularly.
– Position the end of the condensation drain hose above a wa-
ter drain. For larger distances, a longer hose of the same
type can also be used.
– The device can also be operated with a condensate pump.
Contact your Trotec customer service.
3. Ensure that the condensation drain hose always descends.
16x1 mm
