Trotec BY10 User manual

TRT-BA-BY10-TC230711TTRT04-004-EN
BY10
EN
INSTRUCTIONS
TYRE PRESSURE GAUGE

2 EN
tyre pressure gauge BY10
Table of contents
Notes regarding the instructions .........................................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................4
Operation ...............................................................................5
Maintenance and repair ........................................................5
Disposal .................................................................................6
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
BY10
https://hub.trotec.com/?id=41249
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in aggressive atmosphere.
• Do not immerse the device in water. Do not allow liquids to
penetrate into the device.
• The device may only be used in dry surroundings and must
not be used in the rain or at a relative humidity exceeding
the operating conditions.
• Protect the device from permanent direct sunlight.
• Do not open the device.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Never charge batteries that cannot be recharged.
• Different types of batteries and new and used batteries
must not be used together.
• Insert the batteries into the battery compartment according
to the correct polarity.
• Remove discharged batteries from the device. Batteries
contain materials hazardous to the environment. Dispose
of the batteries according to the national regulations.
• Remove the batteries from the device if you will not be
using the device for a longer period of time.
• Never short-circuit the supply terminal in the battery
compartment!
• Do not swallow batteries! If a battery is swallowed, it can
cause severe internal burns within2hours! These burns
can lead to death!

EN 3
tyre pressure gauge BY10
• If you think batteries might have been swallowed or
otherwise entered the body, seek medical attention
immediately!
• Keep new and used batteries and an open battery
compartment away from children.
• Observe the storage and operating conditions (see
Technical data).
Intended use
Only use the device to measure the tyre pressure on Schrader
valves, as they are used on car and motorbike tyres and
sometimes on bicycle tyres. Make sure to adhere to the
measuring range specified in the technical data.
To use the device for its intended use, only use accessories and
spare parts which have been approved by Trotec.
Any use other than the intended use is regarded as misuse.
Reasonably foreseeable misuse
Do not use the device in potentially explosive atmospheres, for
measurements in liquids or at live parts. Trotec accepts no
liability for damages resulting from improper use. In such a
case, any warranty claims will be voided. Any unauthorised
modifications, alterations or structural changes to the device are
forbidden.
Personnel qualifications
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Residual risks
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Keep a sufficient distance from heat sources.
Note
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Note
Do not use abrasive cleaners or solvents to clean the
device.

4 EN
tyre pressure gauge BY10
Information about the device
Device description
With this device you can determine the tyre pressure with digital
precision and read it on the LCdisplay.
The device is equipped with an integrated LEDtorch allowing
you to determine the pressure or condition of the tyre in the
dark.
Device depiction
5
6
4
1
2
3
No. Designation
1 Function button
2 LCD display
3 LED torch
4 Cover of the battery compartment
5 Screw, battery compartment cover
6 Measuring tip
Display
10
7
9
8
No. Designation
7 Indication of the unit: psi
8 Indication of the unit: bar
9 Indication of the unit: kPa
10 Measurement value display
Technical data
Parameter Value
Model BY10
Measuring range 5 to 100psi
0.35 to 6.9bar
35 to 690kPa
Accuracy ±1% / 0.5psi
±1% / 0.05bar
±1% / 3.5kPa
Ambient conditions 0°C to 50°C (35°F to 122°F) with
<80%RH
Power supply 2x 1.5V AAAbatteries
Automatic switch-off after approx. 45 seconds
Dimensions (lengthx
widthx height)
156 x 20 x 42mm
Weight 82g
Scope of delivery
• 1 x Tyre pressure gauge
• 2x 1.5V battery AAA
• 1x Quick guide
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
When transporting the device, ensure dry conditions and and
protect the device from external influences e.g. by using a
suitable bag.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• the storage temperature complies with the values specified
in the Technical data
• Batteries are removed from the device

EN 5
tyre pressure gauge BY10

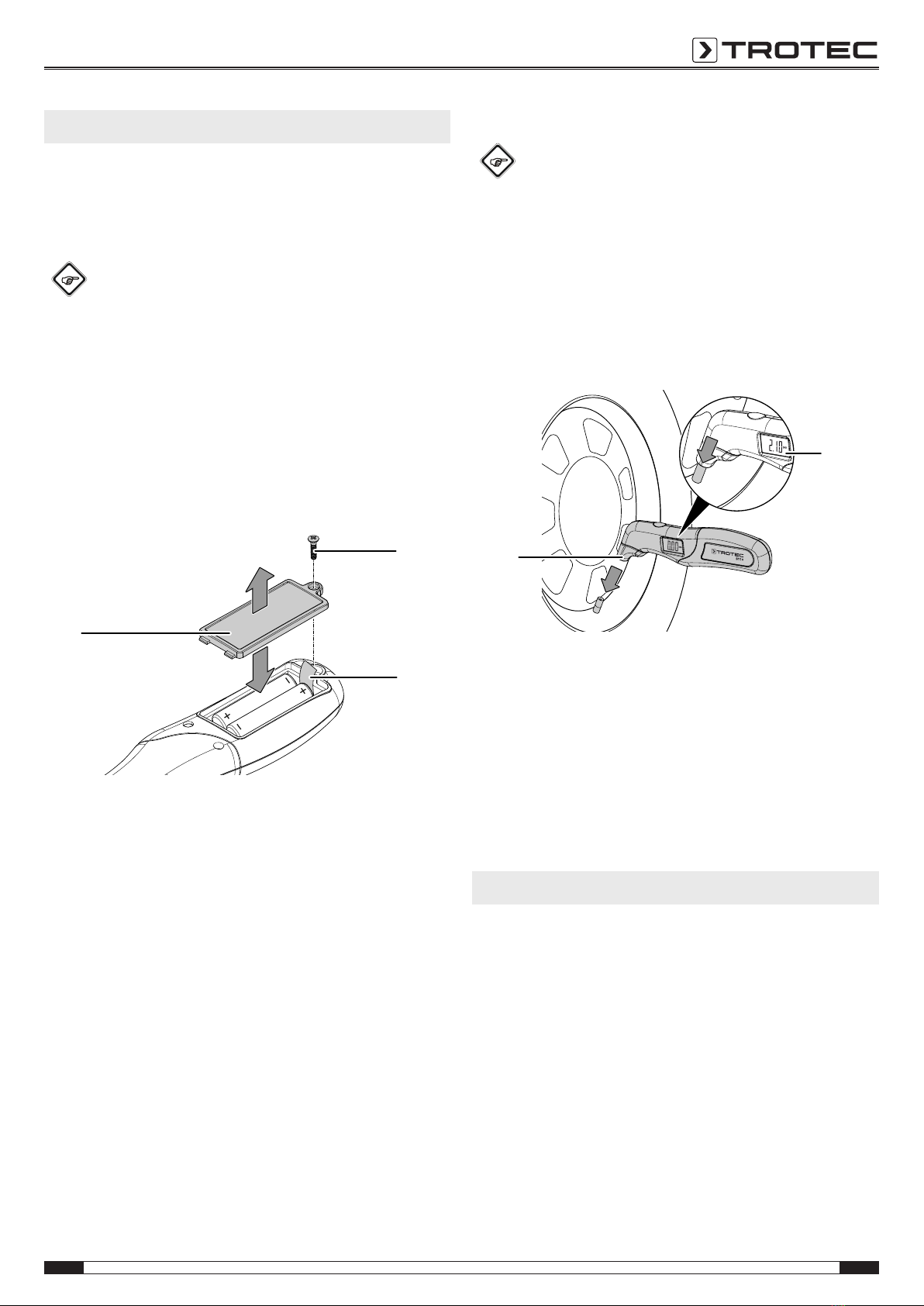

Operation
Inserting the batteries
Note
Make sure that the surface of the device is dry and the
device is switched off.
Info
The battery tab(11) must be removed before initial
use.
The battery must be changed if the indication on the LCdisplay
is only faintly visible during start-up.
1. Use a screwdriver and carefully remove the screw(5) at
the rear of the device.
2. Remove the battery compartment cover(4).
3. Insert the batteries (2x 1.5V batteriesAAA) into the
battery compartment with correct polarity.
4. Put the cover back onto the battery compartment(5).
5. Use a screwdriver to carefully tighten the screw(5).
4
5
11
Switch-on and air pressure measurements
Info
The tyres should be cold for measurement! Warm tyres
can distort the measurement result.
1. Briefly press the function button(1) to switch the device
on.
ðThe LCdisplay(2) is switched on and shows the last
measuring unit used.
ðThe LEDtorch(3) turns on.
2. Place the measuring tip(6) on the valve of your tyre. The
LCdisplay(2) shows the tyre pressure in the previously
selected measuring unit.
6
2
Changing the unit psi/ bar/ kPa
üThe device is switched on.
1. Press the function button(1) several times to switch
between the units (psi– bar– kPa).
Switch-off
If the device is not used for 45seconds, it switches off
automatically.
If you want to switch off the device directly, press and hold the
function button(1) for approx.3seconds.
Maintenance and repair
Battery change
It is required to change the batteries if the indications on the
display are only faintly visible, if the LED torch is only faintly
illuminated or not illuminated at all, or if the unit can no longer
be switched on (see chapter Inserting the batteries).
Cleaning
Clean the device with a soft, damp and lint-free cloth. Make
sure that no moisture enters the housing. Do not use any
sprays, solvents, alcohol-based cleaning agents or abrasive
cleaners, but only clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.

6 EN
tyre pressure gauge BY10
Disposal
Always dispose of packing materials in an environmentally
friendly manner and in accordance with the applicable local
disposal regulations.
The icon with the crossed-out waste bin on waste
electrical or electronic equipment is taken from Directive
2012/19/EU. It states that this device must not be disposed of
with the household waste at the end of its life. You will find
collection points for free return of waste electrical and electronic
equipment in your vicinity. The addresses can be obtained from
your municipality or local administration. You can also find out
about other return options that apply for many EU countries on
the website https://hub.trotec.com/?id=45090. Otherwise,
please contact an official recycling centre for electronic and
electrical equipment authorised for your country.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
In the European Union, batteries and accumulators must
not be treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.
Only for United Kingdom
According to Waste Electrical and Electronic Equipment
Regulations 2013 (SI2013/3113) (as amended) and the Waste
Batteries and Accumulators Regulations 2009 (SI2009/890) (as
amended), devices that are no longer usable must be collected
separately and disposed of in an environmentally friendly
manner.

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
