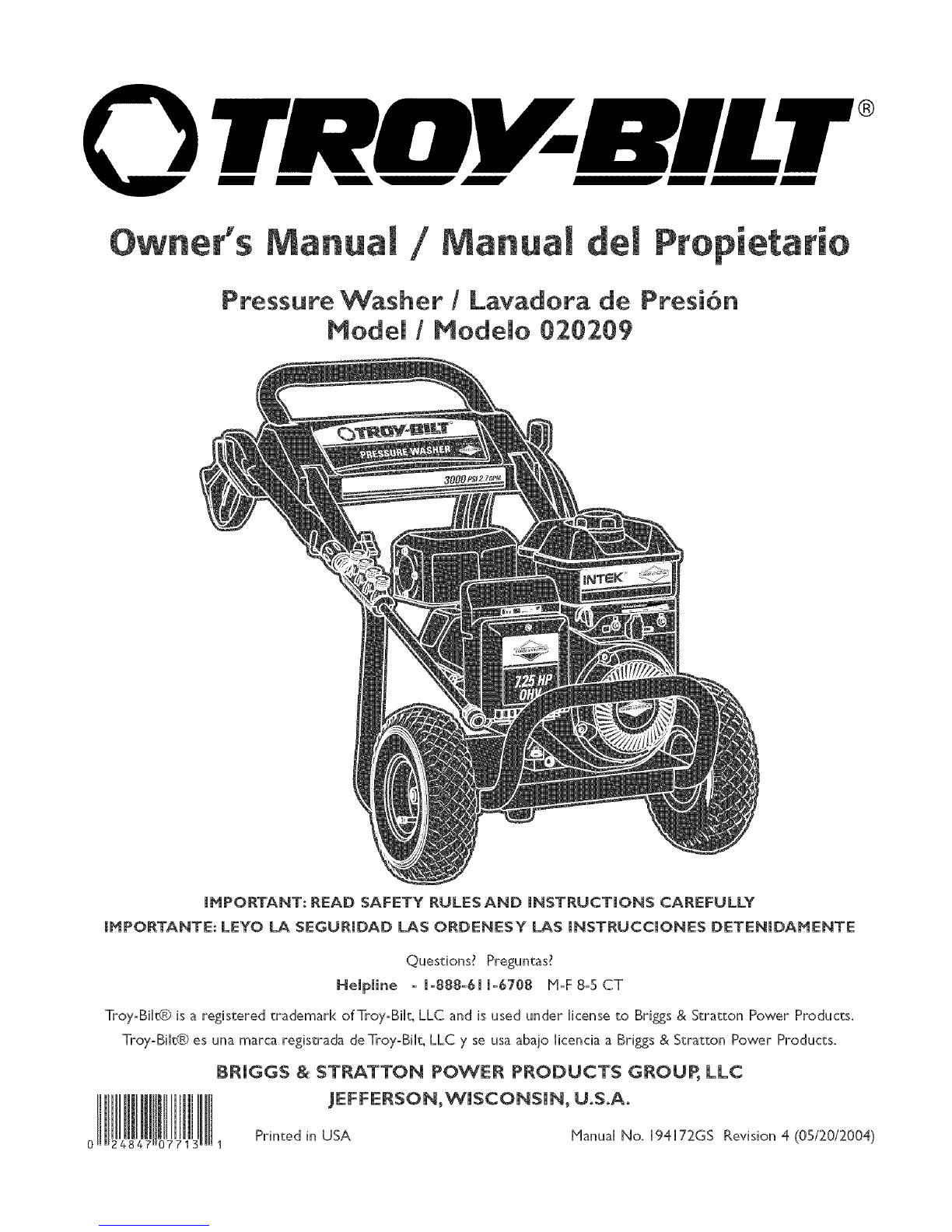

Troy-Bilt 20209 User manual

,®
ual /Ma
Pressure Washer /Lavadora de Presi6n
Modem/Modelo 020209
iMPORTANT: READ SAFETY RULES AND iNSTRUCTiONS CAREFULLY
Ii'IPORTANTE: LEYO LA SEGURIDAD LAS ORDENESY LAS INSTRUCCIONES DETENIDANENTE
Questions_ Preguncas?
Helpline - 1-888-611-6708 M=FS=SCT
Troy=BH_ is a registered _:rademark ofTroy=BH_:,LLC and is used under Hicense_:o Briggs &S_:ra[[on Power Produc[s.
Troy=Bill® es una marca regis[rada de Troy=Bile, LLC yse usa abajo licencia a Briggs & S[ra[[on Power Produc_:s.
BRJGGS &STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WiSCONSiN, U.S.A.
PrintedinUSA Manual No, 194172GS Revision 4 (05/:20/2004)

Safety Rules
TABLE OF CONTENTS
Safety RuHes .................................... 2-4
Know Your Pressure _¢Vasher ........................ 5
AssembHy ...................................... 6-8
Operation .................................... 9- H2
Maintenance ................................. [ 3o[ 5
Storage ........................................ [6
TroubHeshoodng ................................. H7
Rephcement Parts ............................ [ 8- [9
'Warranty ................................. Last Page
EQUmPNENT
DESCRIPTmON
-] Read this manual carefully and become familiar
pressure washers Know its
Jwith
...... your
applications, its [imitations a_d any hazards
involved.
This manua[ contains information for a high pressure
washer that operates at 3,000 PSI at a flow rate of
2.7 gallons per minute.This powerful high quaHity system
features large [0" wheels, a pump equipped with an
automatic cooH down system, chemicaH injection system,
nozzHe extension with quick connect, quick connect spray
tips, turbo nozzHe, utiHity brush, safety goggles, heavy duty
25' hose, and more.
Every effort has been made to ensure that information in
this manual is accurate and current. However, we reserve
the right to change, alter or otherwise improve the
product and this document at any time without prior
notice.
SAFETY RULES
This is the safety alert symbol, it is used to
alert you to potential persona[ injury
hazards. Obey a[[ safety messages that follow
this symbol to avoid possible iniury or death.
The safety alert symbol (_) is used with a signal word
(DANGER, CAUTION,VVARNING), a pictorial and/or a
safety message to alert you to hazards. DANG_:R indicates
a hazard which, if not avoided, will result in death or serious
injury. WARNING indicates a hazard which, if not
avoided, could result in death or serious injury. CAUTION
indicates a hazard which, if not avoided, might result in
minor or moderate injury. CAUTmON, when used
without the alert symbol indicates a situation that could
result in equipment damage. Follow safety messages to
avoid or reduce the risk of injury or death.
Hazard Symbols and Meanings
Toxic Fumes
Slipper 7 Surface
Fire
Fall
Explosion
Electrical Shock
Fluid Injection
Hot Surface
Moving Parts FIying Objects Kickback
4@

Section 1: Safety Rules
DANGER
Operate pressure washer ONLY outdoors,
Use a respirator or mask whenever there is a chance that
vapors may be inhaled.
Read all instructions with mask so you are certain the mask wilI
provide the necessary protection against inhaling harmful vapors.
WARNING
Keep water spray away from electric wiring or fatal electric
shock may resuk.
WARNING
Keep spray nozzle between 8 to 24 inches away from cleaning
surface.
Operate this unit on a stable surface,
The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
Be extremely careful if you must use the pressure washer from
a ladder, scaffolding or any other relatively unstable location,
Firmly grasp spray gun with both hands when using high
pressure spray to avoid iniury if gun kicks back.
WARNING
WHEN ADDING FUEL
Turn pressure washer" OFF and let it cool at least 2 minutes
before removing gas cap.
Fill fuel tank outdoors.
DO NOT overffil[ tank.Allow space for fuel expansion.
Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
DO NOT light acigarette or smoke.
_HEN OPERATING EQUIPMENT
• Transport/repair with fue! tank EMPTY or with fue! shutoff
valve OFE
WHEN STORING FUEL OR EQUIPMENT WiTH FUEL
mN TANK
Store away from furnaces, stoves, water heaters, clothes
dryers or other appliances that have pilot light or other
ignition source because they can ignite fue! vapors.
WARNING
NEVER aim spray gun at people, animals or plants.
DO NOT allow CHILDREN to operate pressure washer.
NEVER repair high pressure hose. Replace it.
Keep high pressure hose connected to pump and spray gun
while system is pressurized.
O

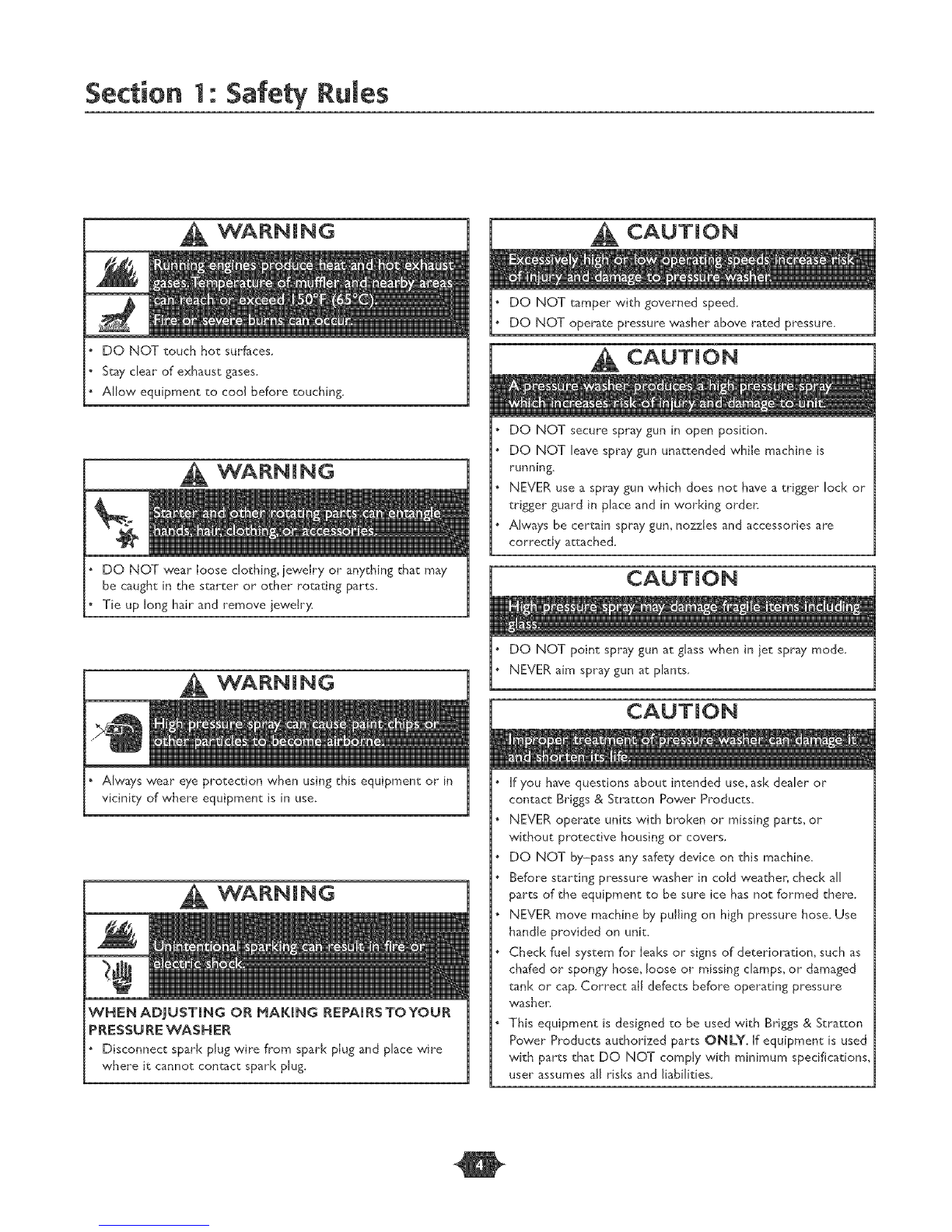

Section 1: Safety Rules
WARNING
DO NOT touch hot surfaces.
,Stay dear of exhaust gases.
Allow equipment to cool before touching.
[ WARNING
DO NOT wear loose clothing, jewelry or anything that may
be caught in the starter or other rotating parts.
Tie up long hair and remove ieweJDs
WARNING
Always wear eye protection when using this equipment or in
vicinity of where equipment is in use.
WARNING
WHEN ADJUSTING OR MAKING REPAiRSTOYOUR
PRESSURE WASHER
Disconnect spark plug wire from spark plug and place wire
where it cannot contact spark plug.
CAUTION
DO NOT tamper with governed speed.
DO NOT operate pressure washer above rated pressure.
CAUTION
DO NOT secure spray gun in open position.
DO NOT leave spray, gun unattended while machine is
running.
NEVER use a spraygun which does not havea triggerlockor
trigger guard in place and in working orden
Always be certain spray gun, nozzles and accessories are
correctly attached.
DO NOT point spray gun at glass when in jet spray mode.
NEVER aim spray gun at plants_
If you have questions about intended use, ask dealer or
contact Briggs & Stratton Power Products.
NEVER operate units with broken or missing parts, or
without protective housing or covers.
DO NOT by-pass an>, safety device on this machine.
Before starting pressure washer in cold weather, check all
parts of the equipment to be sure ice has not formed there.
NEVER move machine by pulling on high pressure hose. Use
handle provided on unit.
Check fuel system for leaks or signs of deterioration, such as
chafed or spongy hose, loose or missing damps, or damaged
tank or cap. Correct all defects before operating pressure
washe_%
This equipment is designed to be used with Briggs & Stratton
Power Products authorized parts ONLY. ff equipment is used
with parts that DO NOT comply with minimum specifications,
user assumes all risks and liabilities.

Features and Controls
KNOWYOUR PRESSURE WASHER
Read this owner's manual and safety rules before operating your pressure washers
Compare the ilhstrations with your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference,
High Pressure
Hose
Accessory Tray FuelTank Throttle Lever
Choke Lever
Fuel Valve
Recoil Starter
(on front of engine)
Air Filter
Nozzle Extension with
Quick Connect
SprayTips
Chemical Injection Oil Fill Cap
VVater Inlet
/Pump equipped with
Spray Gun High Pressure Outlet DataTag Automatic Cool Down System
Accessory Tray -- Provides convenient storage for
standard and optional accessories, such as brushes, turbo
wands_ ect.
Air Filter -- Protects engine by filtering dust and debris out
of intake air_
Automatic Cool Down System -- Cycles water through
pump when water reaches [25 °° 155°EWarm water will
discharge from pump onto ground.This system prevents
internal pump damage,
Chemical Injection Siphon/Filter -- Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream,
Choke Lever -- Prepares a cold engine for starting.
DataTag -- Provides model, revision and serial number of
pressure washer. Please have these readily available if calling
for assistance.
Fuel Tank -- Fill tank with regular unleaded fueLAIways leave
room for fuel expansion.
Fue[VaIve -- Used to turn fuel on and off to engine.
High Pressure Hose -- Connect one end to the water
pump and the other end to the spray gun.
Nigh Pressure Outlet --To connect high pressure hose.
Nozzle Extension with Quick Connect -- Allows you to
switch between four different spray tips and turbo nozzle.
Oil Fill Cap -- Fill engine with oil here.
Pump -- Develops high pressure.
[Recoil Starter -- Use for starting the engine manually.
Safety Goggles (not shown) --Always use the enclosed
goggles or other eye protection when running your
pressure washer.
Spray Gun -- Controls the application of water onto
cleaning surface with triger device. Includes safety latch.
Spray Tips -- Chemical iniection, 0°, [5°, and 40°: for various
high pressure cleaning app[ications_
Throttle Lever--Sets engine in starting mode for recoil
starter and stops a running engine.
Water inlet -- Connect garden hose here.

#2 Phillips Screwdriver
ASSEMBLY
IMPORTANT: Read entire owner's manual before you
attempt to assemble or operate your new pressure washer,
Remove Pressure Washer From
I. Remove parts bag packed with pressure washer.
2. Slice two corners at end of carton from top to bottom
so pane[ can be folded down flaL then remove ai[
packing material
3, Roi[ pressure washer out of carton,
Carton Contents
Items in the carton include:
Main Unit
Safety Goggles
Handle
Plastic Accessory Tray
High Pressure Hose
Spray Gun
Utility Brush and Adapter
Turbo Nozzle with Quid< Connect Fitting
Nozzle Extension with Quid< Connect Fitting and Spray
Tip Holder
"Oil Bottle
"Parts Bag (which includes the following):
Owner's Manual
Engine Manual
Owner's Registration Card
Bag containing 4 muirJ-colored Quick Connect Spray
Tips
Handle Fastening Hardware Kit (which includes):
Carriage Bok
"U' Bolt
Plastic Knobs (2)
"J" Hook
Chemical Hose Clip
SelfTapping Screws (4)
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer heipiine at i=888=6 [ i =6708o
To prepare your pressure washer for operation, you
will need to perform these tasks:
I. Fill out and send in registration card.
2. Attach accessory tray to handle, then attach handle to
main unit.
3. Add oil to engine crankcase.
4, Add fuel to fuel tank,
S. Connect high pressure hose to spray gun and pump,
6, Connect water supply to pump,
7, Attach nozzle extension to spray gun,
8, Select/attach quick connect spray tip to nozzle
extension,
Attach Handle and Accessory Tray
NOTE: All assembly operations given in this section will be
described from the perspective of assembling the pressure
washer from the rear,
i. Slide plastic accessory tray onto handle and align holes
in accessory tray with holes on handle (Figure I).
O

Section 3: Assembly
ZSecure tray to handle with self tapping screws using a
#2 phillips screwdriver, Ensure screws are tight but not
crushing the plastic accessory tray.
3. Place handle assembly onto handle supports connected
to main unit. Hake sure holes in handle align with holes
on handle supports (Figure 2).
7. Pinch chemical hose and slide it into metaHchip as
shown in Figure 5.
Handle
Align Holes/--_
NOTE: It may be necessary to move the handle supports
from side to side in order to align the handle so it will slide
over the handle supports.
4. [nsert"U' bolt through hole on right side of handle
(viewing from handle side of unit) and attach plastic
knob.Tighten knob by hand (Figure 3).
5.
6.
G
Insert carriage bok through left side hole from outside
of unit and attach a plastic [<nob from inside of unit
(viewing unit from the handle side).Tighten by hand
(Figure 3).
Insert "J" hook into second from left slot in accessory
tray (Figure 4).
8. Tilt unit up by handle and attach metal clip to rib on
center underside of accessory tray (Figure 6). Slide
chemical hose through metal clip so that it is tight but
not kinked.
Add Ensine Oi[ and Fuel
°Place pressure washer on a [eve[ surface.
,Refer to engine owner's manual and follow oil and fuel
recommendations and instructions.
•Refer r_oengine manual for oil and fuel fill information.
• Damage so equipment resuking from failure to follow this
instruction will void warranty.
NOTE: Check oil often during engine break-in, Refer to
engine owner's manual for recommendations,
O

Section 3: Assemb(y
Connect Hose and Water Supp[y to
iMPORTANT:To avoid pump damage,you must assemble
the nozzle extension to the spray gun and attach all hoses
before you start the engine.
I. Attach end of hose to base of spray gun (Figure 7).
Tighten by hand.
2. Attach other end of hgh pressure hose to hgh
pressure outlet on pump (Figure 8).Tighten by hand.
Before connecting garden hose to water inlet, inspect inlet
screen (Figure 9). Clean screen if it contains debris, replace
it if it is damaged. DO NOT RUN PRESSUREWASHER IF
SCREEN ISDAHAGED.
4. Run water through garden hose for 30 seconds to
clean out any debris.Turn off water.
JMPOP_TANT: DO NOT siphon standing water for the
water supply. Use ONLY cold water (less than [00°F).
5. Connect garden hose (not to exceed 50 feet in length)
to water inlet.Tighten by hand (Figure 9).
• Damage to equipment resulting from failure to follow this
instruction will void warranty,,
6. Turn ON the water and squeeze the trigger on the spray
gun to purge the pump system of air and impurities.
WANNING
Always wear eye protection when using this equipment or in
vicinity of where equipment is in use.
Before starting the pressure washer, be sure you are wearing
adequate eye protection,
Checklist Before Start[n Eg g[ne
Review the unit's assemb(y to confirm you have performed
a(( of the following:
[. Make sure handle is in place and secure.
2. Check that oil has been added to the proper level in
engine crankcase.
3. Add proper fuel to fuel tank.
4. Check for properly attached hose connections.
5. Check to make sure that there are no kinks_ cuts_ or
damage to high pressure hose.
6. Provide a proper water supply at an adequate flow.
7. Be sure to read "Safety RuNes"and "HowTo UseYour
Pressure VVasher" before using pressure washer.
O

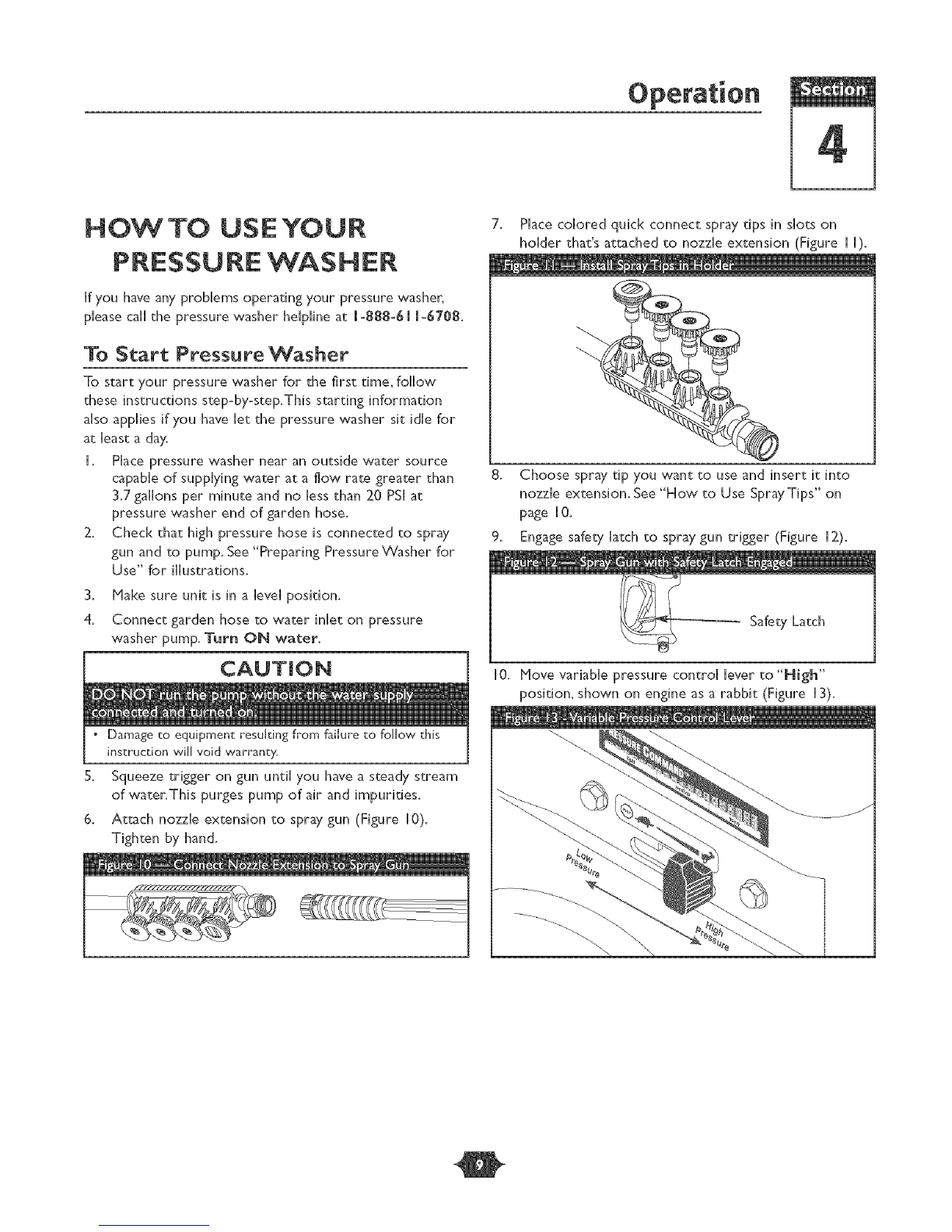

Operation
NOWTO USEYOUR
PRESSURE WASHER
If you have any proNems operating your pressure washer,
pHeasecall the pressure washer heHpHineat 1-888-611-6788.
To Start Pressure Washer
To start your pressure washer for the first time, follow
these instructions step-by-step.This starting information
aHso appHies if you have Het the pressure washer sit idHefor
at Heast a day.
H. PHace pressure washer near an outside water source
capaHe of suppHyin8 water at a flow rate greater than
3.7 gallons per minute and no Hessthan 20 PSI at
pressure washer end of garden hose.
2. Check that hish pressure hose is connected to spray
sun and to pump. See "Preparin 8 Pressure _A/asher for
Use" for illustrations.
3. Hake sure unit is in a level position.
4. Connect 8arden hose to water inlet on pressure
washer pump. Turn ON water.
6.
Damage to equipment resulting from failure to follow this
instruction will void warranty.
Squeeze triter on sun until you have a steady stream
of water.This purges pump of air and impurities.
Attach nozzle extension to spray sun (Fisure IO).
Tighten by hand.
7. Place colored quick connect spray tips in slots on
holder that's attached to nozzle extension (Figure II).
8. Choose spray tip you want to use and insert it into
nozzle extension. See "How to Use SprayTips" on
page IO.
9. Ensase safety latch to spray sun trigger (Fisure 12).
_ Safety Latch
IO. Move variable pressure control lever to "High"
position, shown on ensine as a rabbit (Fisure 13).
0

Section 4: Operation
[. Start engine according to [nstrucdons given in engine
owner's manuaLA[so see operating instructions tag
located on the pressure washer.
_ CAUTION
. When starring engine, punt cord slowiy und[ resistance is fek
and then pull rapidly to avoid kickback.
ff engine starts and fails to continue to run or if increased
resistance is fek during starting pull attempts, squeeze trigger
on spray gun.
Now to Stop Your Pressure Washer
o Move variable pressure control lever to "Stop" position.
o Turn engine off according to instructions given in the
engineowner's manual
o Squeeze trigger on the spray gun to relieve
pressure inthe hose°
NOTE: A small amount of water wilt squirt out when you
release the pressure.
Now to Use Accessory Tray
The unit is equipped with an accessory tray with places to
store your nozzle extensiom turbo nozzle and utility brush_
and slots to hold the cleaning solution bottle and the
detergent siphoning filter.There are also two hooks at the
ends of the handle to hold your spray gun and high
pressure hose.
I. Place nozzle extension through hole on accessory tray,
as shown in Figure 14.
2. Hang chemical solution botde on "J" hook and place
detergent siphoning fiker in last slot on [eft (Figure [4).
3. Place utility brush in the second to last slot on right in
tray (Figure 14).
4. Place turbo nozzle through hole on accessory tray, as
shown in Figure 14.
5. Place spray gun on hook attached to accessory tray on
right side of unit (Figure 14).
6. Hang high pressure hose on hook attached to accessory
tray on left side of unit, as shown in Figure 14.
Now to Use SprayTips
The quick-connect on the nozzle extension allows you to
switch between four different spray rips.The spray tips vary
the spray pattern as shown below (Figure [ 5).
CAUTION
NEVER exchange spray tips without Hocking the safety latch
on the triggen
Follow these instructions to change spray dps:
Engage safety latch on spray gun.
Low Pressure
Bhck
Use to apply
chemical
40 ° White 15°Yellow 0° Red

Section 4: Opecation

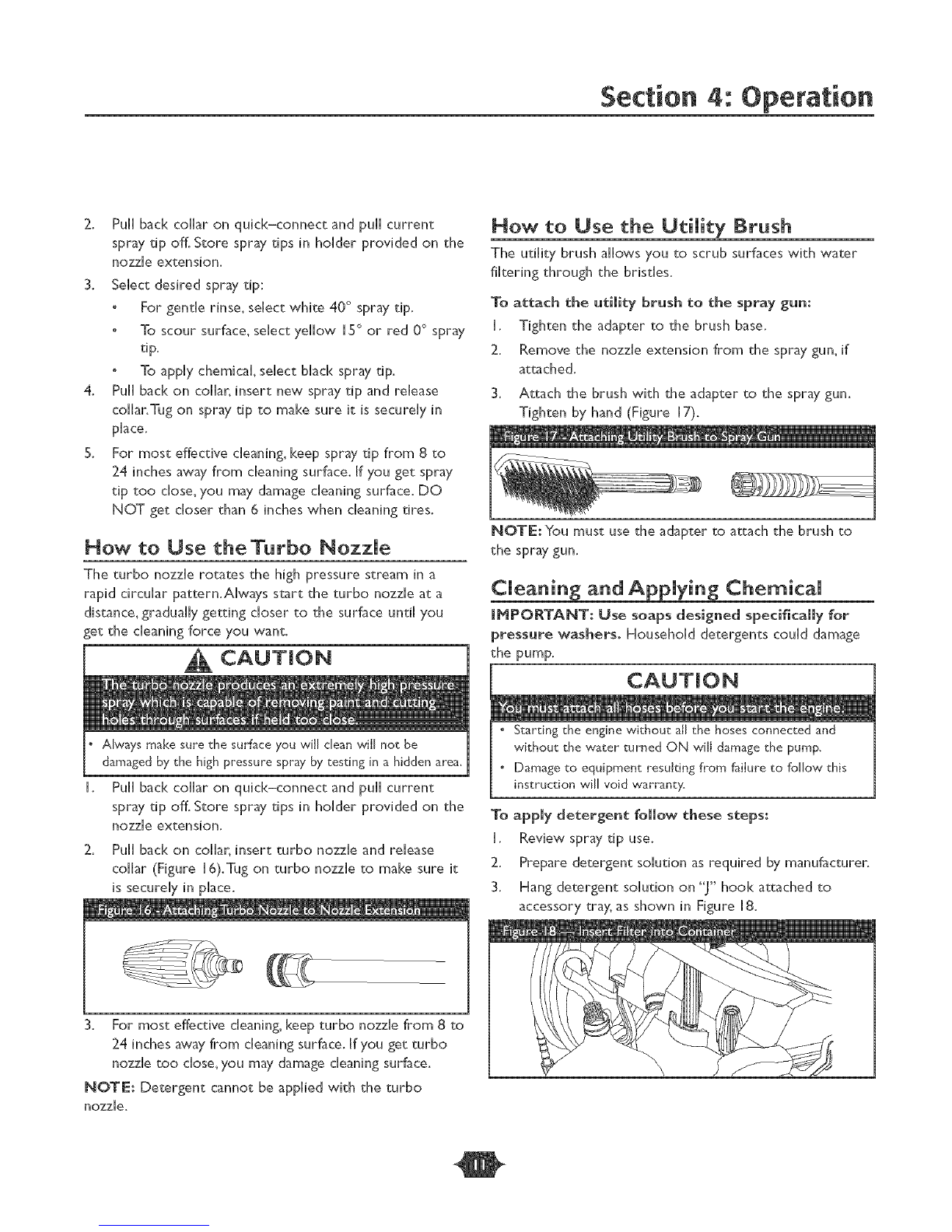

2. PuHHbacH(coHHaron quick-connect and puHHcurrent
spray tip off. Store spray tips in hoHder provided on the
nozzHe extension.
3. SeHectdesired spray tip:
For gende rinse, seHectwhite 40 ° spray tip.
To scour surface_ seHectyeHHowH5° or red 0° spray
tip.
To appHychemical seHectbHackspray tip.
4. PuHHbacH<on collar, insert new spray tip and reHease
coHHar.Tugon spray tip to make sure it is secureHy in
pHace.
5. For most effective cHeaning, keep spray tip from 8 to
24 inches away from cHeaning surface, ff you get spray
tip too chose, you may damage cHeaning surface. DO
NOT get cHoser than 6 inches when cHeaningtires.
Now to Use tbeTurbo Nozzle
The turbo nozzHe rotates the high pressure stream in a
rapid circuHar pattern.AHways start the turbo nozzHe at a
distance, graduaHHygetting cHoser to the surface untiH you
get the cHeaning force you want.
CAUTION
. Always makesure the surface you will dean will not be
damagedby the high pressure sprayby testing ina hidden area.
H. PuHHbacH(coHHaron quick-connect and puHHcurrent
spray tip off. Store spray tips in hoHder provided on the
nozzHe extension.
2. PuHHbacH<on collar, insert turbo nozzHe and reHease
coHHar(Figure H6).Tug on turbo nozzHe to make sure it
is secureHy in pHace.
Now to Use the Utility Brush
The utiHity brush allows you to scrub surfaces with water
filtering through the bristHes.
To attach the utility brush to the spray gun:
H. Tighten the adapter to the brush base.
2. Remove the nozzHe extension from the spray gun, if
attached.
3. Attach the brush with the adapter to the spray gun.
Tighten by hand (Figure H7).
NOTE: You must use the adapter to attach the brush to
the spray gun.
and Chemical
mNPORTANT: Use soaps designed specificammy for
pressure washers. HousehoHd detergents couHd damage
the pump.
*Starting the engine without all the hoses connected and
without the water turned ON will damage the pump_
*Damage to equipment resulting from f_ilure to follow this
instruction will void warranty.
To apply detergent follow these steps:
H. Review spray tip use.
2. Prepare detergent soHution as required by manufacturer.
3. Hang detergent soHution on "J" hook attached to
accessory tray, as shown in Figure HS.
3. For most effective deaning, keep turbo nozzHe from 8 to
24 inches away from cHeaning surface. If you get turbo
nozzHe too chose, you may damage cHeaning surface.
NOTE: Detergent cannot be appHied with the turbo
nozzHe.

Section 4: Operation
4. Phce smallflHterend of detergentsiphoningtube into
detergentcontainer.
• When inserting the filter into a detergent solution bottle,
route the tube so as to keep it from inadvertendy contacting
the hot muffler_
5. Hake sure bHackspray tip is installed.
NOTE: Detergent cannot be appHiedwith the high
pressure spray tips (White,Ydlow, or Red).
6. Hake sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump and start engine.
7. Apply detergent to a dry surface, starting at lower
portion of area to be washed and work upward_ using
Iong_evem overlapping strokes.
8. Allow detergent to soak in between 3-5 minutes
before washing and rinsing. Reapply as needed to
prevent surface from drying. DO NOT allow detergent
to dry on (prevents streaking).
mNPORTANT:You must flush the chemical iniection
system after each use by placing the filter into a bud<et of
clean waten then run the pressure washer in low pressure
for 1:2 minutes.
Pressure Washer Rinsing
Wash and Rinse Surface
This pressure washer permits regulation of output water
pressure by varying the engine speed.The variable pressure
control lever found on the front of the engine may be set_
as shown in Figure 19:
Pressure Low to High
Dut 7Light Medium Heavy
Auto Concrete Paintremoval
Boat Driveway Degreasing
Furniture Deck
After you have applied detergent, scour the surface
and rinse it dean as fommows:
I. Apply safety latch to spray gun.
2. Remove black chemical nozzle from nozzle extension.
3. Select and install desired high pressure nozzle
following instructions "How to Use SprayTips" on
page I0.
4. Keep spray gun a safe distance from the area you plan
to spray.
WARNING
Keep spray nozzle between 8 to 24 inches away from cleaning
SUPlace,
Operate this unit on a stablesurface.
Beextremely careful if you must use the pressure washer from
a laddenscaffolding or any other relatively unstable location.
Firmly grasp spraygun with both handswhen using high
pressure spray to avoid iniury if gun kicks back.
5. Adiust spray pressure by sliding variable pressure contol
lever left or right, as shown in Figure 13 on page 9.
6. Apply a high pressure spray to a small area and then
check the surface for damage. If no damage is found,
you can assume it is okay to continue rinsing.
7. Start at top of area to be rinsed, working down with
same overlapping strokes asyou used for cleaning.
Automatic Cool Down System
(Thermal Remief)
If you run the engine on your pressure washer for
3=5minutes without pressing the trigger on the spray gum
circulating water in the pump can reach temperatures
above 125°F.The system engages to cool the pump by
discharging the warm water onto the ground_

GENERAL MAmNTENANCE
RECOMMENDATmONS
The pressure washer warranty does not cover items that have
been subjected to operator abuse or neghgence.To receive full
value from the warranty, the operator must main_in the
pressure washer as instructed in this manual
°Some adjustments wiHHneed to be made periodicaHHyto
properHy maintain your pressure washer. Check the spray
gun and adjustabHenozzHeextension assembHyfor wear.
° AHHmaintenance in this manuaH and the engine owner's
manuaH shouHdbe made at Heastonce each season.
o Once ayear you shouHddean or replace the spark pHug,
dean or replace the air fiHter.A new spark pHugand dean
air fiHter assure proper fueH-airmixture and heHpyour
engine run better and Hastlonger. PHeaserefer to your
engine owner's manuaHfor more details.
. If equipped with inflatable tires, keep the air pressure at
the vaHuemarked on the tire or within H5 and 40 psi.
Before _=ach Use
H. Check engine oiHlevel
2. Check water inHetscreen for damage.
3. Check inoHinefiHter for damage.
4. Check high pressure hose for Heaks.
5. Check detergent siphoning tube and fiHter for damage.
6. Check spray gun and nozzle extension assembHyfor Heaks.
7. Rinse out garden hose to flush out debris before
connecting to pressure washer.
PRESSURE WASHER
Check and Clean Inlet Screen
Examine the screen on the water inHet.CHeanit if the
screen is cHoKed or repHaceit if screen is damaged.
Check Hig=h Pressure Hose
The high pressure hose can deveHop Heaksfrom wear,
kinking, or abuse. Inspect the hose each time before using
it. Check for cuts, Heaks,abrasions or buHgingof cover,
damage or movement of coupHings. If any of these
conditions exist, repHace the hose immediately.
WARNING
NEVER repair high pressure hose. Replace k.
Replacement hose rating HUST exceed maximum pressure
rating of unit.
Check Detergent $iphon[n_
Examine the fiHter on the detergent tube and dean if
cHoKed.The tube shouHd fit tightHy on the barbed fitting.
Examine the tube for Heaksor tears. RepHacethe fiHter or
tube if either is damaged.
Cleaning Detergent Siphoning Tube
If you used the detergent siphoning tube,you must flush it
with dean water before stopping the engine.
H. PHacechemicaH injection siphon/fiHter in a bucket full of
dean water.
2. Attach bHackHow pressure spray tip.
3. Hush for H:2 minutes.
4. Shut off engine.
IMPORTANT: SimpHyshutting OFF engine wiHHnot
reHeasepressure in the system. When the engine has
shut down, squeeze the triggeron the spray gun to
relieve the pressure in the hose°
Check Gun and Nozzle Extension
Examine the hose connectionto the spraygun and make
sureitissecure.Testthe triterby pressingitand making
sureit"springsbacH<"intopHacewhen you reHeaseit.Put
the safetyHatchinthe ON positionand testthe triter.You
shouHdnot be abHeto press the triter.
Check In-Line F[Ker
Referto Figure20 and servicethe inoHinefiHterifit
becomes clogged,as follows:
NozzHe Extension
FiHter Screen
Oorin

Section 5: Maintenance

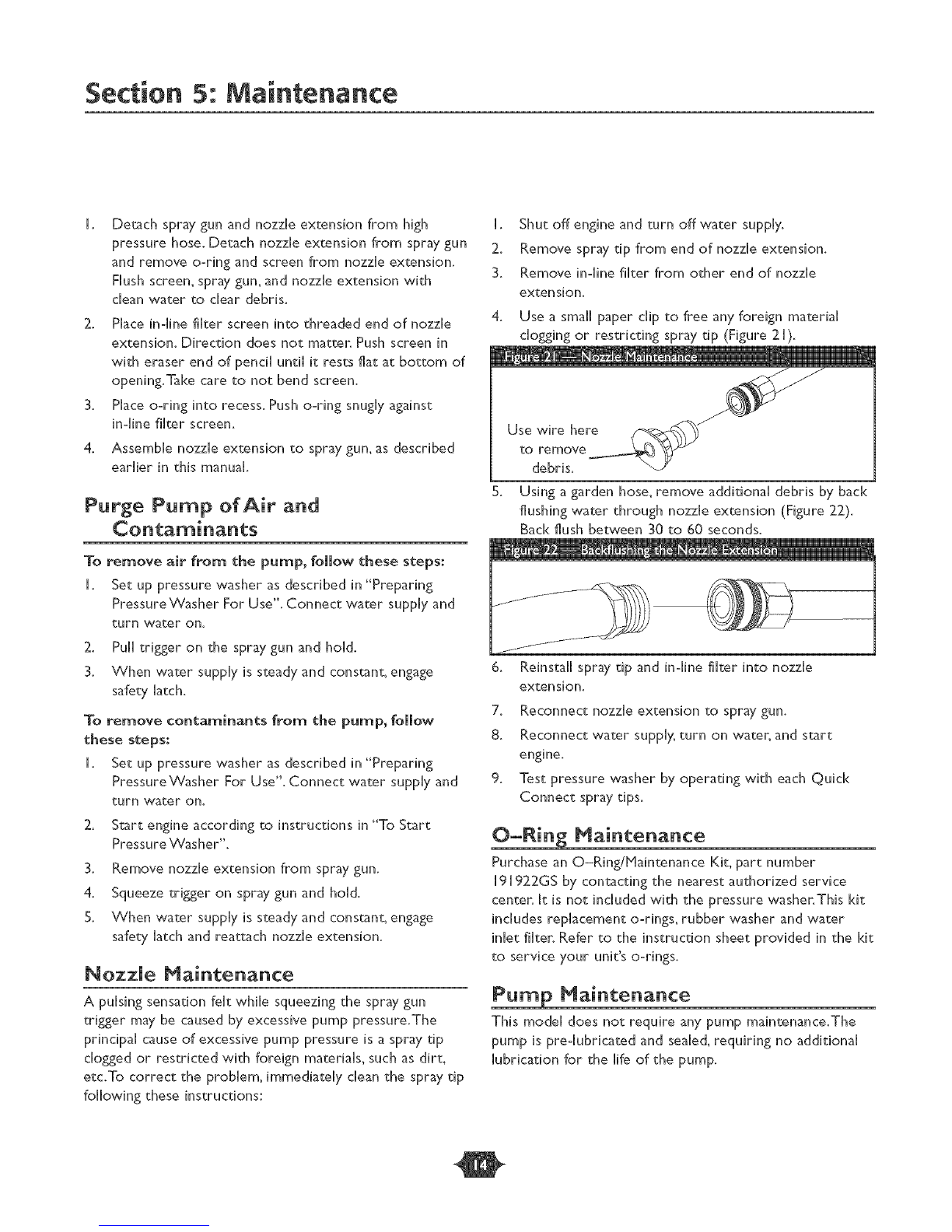

H. Detach spray gun and nozzHe extension from high
pressure hose. Detach nozzHe extension from spray gun
and remove o-ring and screen from nozzHe extension.
Rush screen_ spray gun_ and nozzHe extension with
dean water to dear debris.
2. PHace in:Hine fiHter screen into threaded end of nozzHe
extension. Direction does not matter. Push screen in
with eraser end of pendH until it rests fiat at bottom of
opening.Take care to not bend screen.
3. PHace o-ring into recess. Push o-ring snugHy against
in:Hine filter screen.
4. AssembHe nozzHe extension to spray gun_ as described
earHier in this manual
Purge Pump of Air and
To remove air from the pump, fommowthese steps:
H. Set up pressure washer as described in "Preparing
Pressure Washer For Use'L Connect water suppHyand
turn water on,
2. PuHHtrigger on the spray gun and hold.
3. When water suppHyis steady and constant_ engage
safety Hatch.
To remove contaminants from the pump, follow
these steps:
H. Set up pressure washer as described in "Preparing
PressureVVasher For Use". Connect water suppHy and
turn water on.
2. Start engine according to instructions in "To Start
Pressure Washer".
3. Remove nozzHe extension from spray gun.
4. Squeeze trigger on spray gun and hoHd.
5. When water suppHyis steady and constant, engage
safety Hatchand reattach nozzHe extension.
Nozzle Maintenance
A puHsingsensation felt whiHe squeezing the spray gun
trigger may be caused by excessive pump pressure.The
principaH cause of excessive pump pressure is a spray tip
cHoKed or restricted with foreign materiaHs, such as dirt,
etc.To correct the probHem, immediately dean the spray tip
following these instructions:
H. Shut off engine and turn off water supply.
2. Remove spray tip from end of nozzHe extension.
3. Remove in=HinefiHter from other end of nozzHe
extension.
4. Use a smaHHpaper chip to free any foreign material
dogging or restricting spray tip (Figure 2H).
Use wire here
tO remove
debris.
5. Using a garden hose, remove additionaH debris by bacH<
flushing water through nozzHe extension (Figure 22).
BacH<flush between 30 to 60 seconds.
6. ReinstaHHspray tip and in=Hinefilter into nozzHe
extension.
7. Reconnect nozzHe extension to spray gun.
8. Reconnect water supply, turn on water, and start
engine.
9. Test pressure washer by operating with each Quick
Connect spray tips.
O-Rin Maintenance
Purchase an O-Ring/Haintenance Kit, part number
H9H922GS by contacting the nearest authorized service
center. It is not incHuded with the pressure washer.This kit
incHudesrepHacement o-rings_ rubber washer and water
inHetfilter. Refer to the instruction sheet provided in the kit
to service your unit's o-rings.
Pump Maintenance
This modeH does not require any pump maintenance.The
pump is pre-Hubricated and seaHed, requiring no additionaH
Hubrication for the life of the pump.

Section 5: Maintenance
ENGINE MAINTENANCE
See the engine owner's manuaHfor instructions on how to
property maintain the engine.
1 cAuTlo.
, Used motor oil has been shown to cause skin cancer in
certain laboratory animals,
, Thoroughly wash exposed areas with soap and water,
KEEP OUT OF REACH OF CHILDREN, DON'T
POLLUTE. CONSERVE RESOURCES, RETURN
USED OILTO COLLECTION CENTERS,
Copy HodeH
MODEL [ I_ _'_'_ Number Here
REV NO [ _. Copy Revision
Here
SERIAL L ] _ Copy Serial
PSI [ Number Here
QPM L i
Data tag information is very important if you need help from
our Customer Service Department or an authorized service
dealer.
,The data tag (Figure 23) is located on the base of the
pressure washer, For future reference, please copy the
model revision_ and serial number of the pressure washer
in the space below.

Storage
PREPARmNG THE fJNmT
FOP, STORAGE
VVater shouHdnot remain in the unit for Hongperiods of
time. Sediments or mineraHs can deposit on pump parts and
"freeze" pump action. If you do not pHanto use the pressure
washer for more than 30 days_foHHowthis procedure:
H. Rush detergent siphoning tube by pHadng the fiker into
a paiHof dean water wile running pressure washer in
How pressure mode. Hush for one to two minutes.
2, Shut off the engine and Herit cool then remove high
pressure and garden hoses. Disconnect spark pHugwire
from sparkpHug.
3. Empty the pump of Hiquidsby puHHingthe engine recoiH
handHeabout 6 times.This shouHdremove most of the
Hiquid in the pump.
4. Use pump saver to prevent corrosion buiHdup and
freezing of pump.
5. Store unit in a cHean_dry area.
Protecting the Pump
To protect the pump from damage caused by mineral
deposits or freezing, use PumpSaver to treat pump.This
prevents freeze damage and Hubricates pistons and seaHs.
NOTE: PumpSaver is available as an optionaH accessory. [t
is not incHuded with the pressure washer. Contact the
nearest authorized service center or visit your HocaHLowe's
store to purchase PumpSaver.
• Failure to do so will permanently damage your pump and
render your unit inoperable,
Freeze damage is not covered under warranty.
CAUTION
Alwayswear eye protection when using PumpSave_:
To use PumpSaver, make sure the pressure washer is
turned off and disconnected from suppHywater. Read and
follow aHHinstructions and warnings given on the PumpSaver
container_
NOTE: PumpSaver wiHHdrip from pump after treatment
and will stain wood and concrete,
NOTE: If PumpSaver is not avaiHabHe,draw RV antifreeze
(non-aHcohoH) into the pump by pouring the soHution into a
3°foot section of garden hose connected to inlet adapter
and puHHingrecoiH handHetwice.
STORING THE ENGINE
See the engine owner's manual for instructions on how to
proper[), prepare the engine for storage,

TROUBLESHOOTmNG
Probmem
Pump has foRowing probmems:
faimure to produce pressure, erratic
pressure, chattering, mossof
pressure, mowwater vomume,
Detergent falls to mix with spray°
Engine shuts down during
operatiom
Cause
i. Low pressure spray tip installed.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Inlet hose is kinked or leaking.
5. Clogged inlet hose strainer.
6. Water supply is over i00°E
7. High pressure hose is blocked or
leaks.
8. Gun leaks.
9. Spray tip is obstructed.
i0. Pump is faulty.
I. Detergent siphoning tube is not
submerged.
2. Chemical filter is dogged or
cracked.
3. Dirty in=line filter.
4. High pressure spray tip installed.
Out of gasoline.
Corr÷ction
Replace spray tip with high
pressure spray tip.
2. Clear inlet.
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and dean inlet hose
strainer.
6. Provide cooler water supply.
7. Clear blocks in oudet hose.
8. Replace gun.
9. Clean spray tip.
10. ContactAuthorized service facility.
Insert detergent siphoning tube
into detergent.
2. Clean or replace filter/detergent
siphoning tube.
3. See "Check In=Line Filter".
4. Replace spray tip with low
pressure spray tip.
Fiil fuel tank.

E×pIoded Views and Parts Lists
EXPLODED V[EWAND PARTS L[ST _ UN[T
900
2 _
t
21 _,, x,+
(tern Part #
[ P[ 90 [ 56GS
2 PI87602GS
3[ 87606GS
4 185877GS
5 [ 92 [ 34GS
6 192131GS
7 [ 94236CGS
8 88935GS
9 [ 94062GS
10 B5646GS
[ [ [ 92 [ 99GS
H2 BHB62BGS
Description
BASE
HANDLE
BILLBOARD
HOSE
KIT,EngineMounting Hardware
KIT,Pump Mounting Hardware
NOZZLETurbo
ADAPTER, Brush Ext
PUSHNUT
KIT,SprayTips
ASSY,Extension
GUN
items Not illustrated:
Part #
H94172GS
MS6737
194421GS
BB306HBGS
Description
MANUAL, Owner's
MANUAL+ Engine
KIT+Decals
OIL+Engine
4 \
16
item Part #
13 88185GS
14 95457GS
15 94004GS
16 90668GS
17 92553GS
18 92526GS
19 94298GS
20 92796GS
21 23139DGS
22 194003GS
900 NSP
BRUSH, Udlity
CONNECTOR+ Garden Hose
KIT, Inlet+ Hose+ Grdn+ Srv
KIT, Handle Fasteners
KIT+Vibration Mount
KIT,Wheel
RELIEEThermai
KIT, Chem Hose & Fiker
KEY
ASSY,Pump (see page 19)
ENGINE

Section 8: E×pioded Views and Parts Lists
EXPLODED VmEW AND PARTS LIST -- PUMP
L0
42
D
/
\
L
oo
intern Part #
21 194434GS
22 190639GS
24 190640GS
42 190646GS
50 191441GS
63 194435GS
70 190654GS
71 190655GS
72 190656GS
Description
OoRING
SPACER
WASHER
PISTON_Guide
VENT CAR with OoRing
OoRING
PUMP HEAD
GRUB SCREW & _A/ASHER
OIL BOTTLE
intern Part #
A 90657GS
B 92914GS
C 94425GS
D 94426GS
E 94427GS
F 93126GS
Description
KIT,CHECK VALVE
KIT,CHEMICAL INJECT
KIT,SEAL OIL
KIT,INJECTOR
KIT,BALL & SPRING
KIT,UNLOADER
NOTE: Item letters A oF are service kits and include all
parts shown within the box.

Reglas de Seguddad
TABLA DE CONTENIDOS
Reglas De Seguridad ................................ 20-22
Conozca Su Maquina Lavadora De Presion ................. :23
Ensambraie ........................................ 24-26
Fundonamienco .................................... 27-30
Mantenimiento ..................................... 3U-33
Atmacenamien_o ...................................... 33
Di_gnosticos De Averias ................................ 34
Piezas De Recambio ................................ U8-U9
Garantia ............................................ 35
DES€NIP€ION DEL EQUIPO
'.... 1 Lea este manual de manera cuidadosa y
[_-i ] ,avadora a presi6n. Conozca
...... famimiar{cese con su
sus uses, sus mimitaciones y cualquier pe_igro
re_acionado con e_ mismo°
Este manual contiene informaci6n reference et lavador a alta
presi6n que funciona a 3,000 psi, a un promedio de flujo de
2.7 galones pot minuco. Este sistema profesional de alto poder y
de atta calidad, posee una Ilanta de 10 puJgadas, una bomba
equipada con un sistema de enfriamienco, un sistema de inyecci6n
quimica, una ex_ensi6n de lanzas que se pueden conectar
r@idamence, puntas de rociado, boquilla a chorro, cepillo de
servicio, g_fas de seguridad, una manguera de alta resistencia de
25 pies y muchlsimo m_s.
Se ha hecho cada esfuerzo posible para asegurarse que Ia
informaci6n que aparece en esce manual es exacca y se encuentra
accualizada Sin embargo, nosotros se reserva el derecho a
cambiar, akerar o de otra manera meiorar, el producto y es_e
documenco en cualquier momenco, sin previo aviso.
En el estado de California es obligatorio, segun Ia ley, el uso de
apagachispas (Secci6n 4442 del C6digo de Recursos P_5blicos de
California). O_:ros escados pueden tenet leyes similares. Las leyes
federales se aplican en tierras federales. Si equipa el silenciador
con un apagachispas, este deber_ set mantenido en buenas
condiciones de trabaio.
REGLAS DE SEGURJDAD
Este es ems_mbo_o de alerta de seguridad. Sirve
para advertir al usuario de un posibme riesgo para
su integridad fisica. Siga redes ruesmensajes de
seguridad que figuren d÷spu_s de este s{mbomo
para evitar mesiones o incmuso la muerte,
El simbdo de alerta de seguridad (_) es usado con una palabra
(PELIGRO, ADVERTENCIA, PRECAUCION), un mensaie pot
escrito o una ilustraci6n, para aler_rIo acerca de cuaIquier
si_uaci6n de peligro que pueda exis_ir. PEUGRO indica un riesgo
dcual, si no se evita, causar4 Ia muer_e o una herida grave.
ADVERTENC_A indica un riesgo eJ cuat, si no se evita, puede
causar Ia muerte o una herida grave. PRECAUC_ON indica un
riesgo, d cuaL si no se evita, puede causar heridas menores o
moderadas. PRECAUC_ON, cuando se usa sin d simboJo de
alerta, indica una si_uaci6n que podria resukar en et da_o del
equipo. Siga los mensaies de seguridad para evitar o reducir los
riesgos de heridas e inclusive la muer_e.
ADVERTENaA 1
E_ escape del motor de este producto contiene
elementos qu_micos reconocidos en el Estado de
California per produc}r c_ncer, defectos de nacimiento u
otros da_os de ripe reproductive,
Sirnbolos de Peligro y Significados
Gases T6xicos Descarga EI6ccrica
Superficies Resbalosas
Fuego
Caer Inyecci6n Liquida
Explosi6n Superficie Caliente
Partes en Movimiento Obie_os VoJadores ContragoJpe
