TRU-BOLT 0711016 User manual

Page 1
0711016

Page 2
INSTALLATION INSTRUCTIONS
ELECTRONIC DEADBOLT WITH KEYPAD

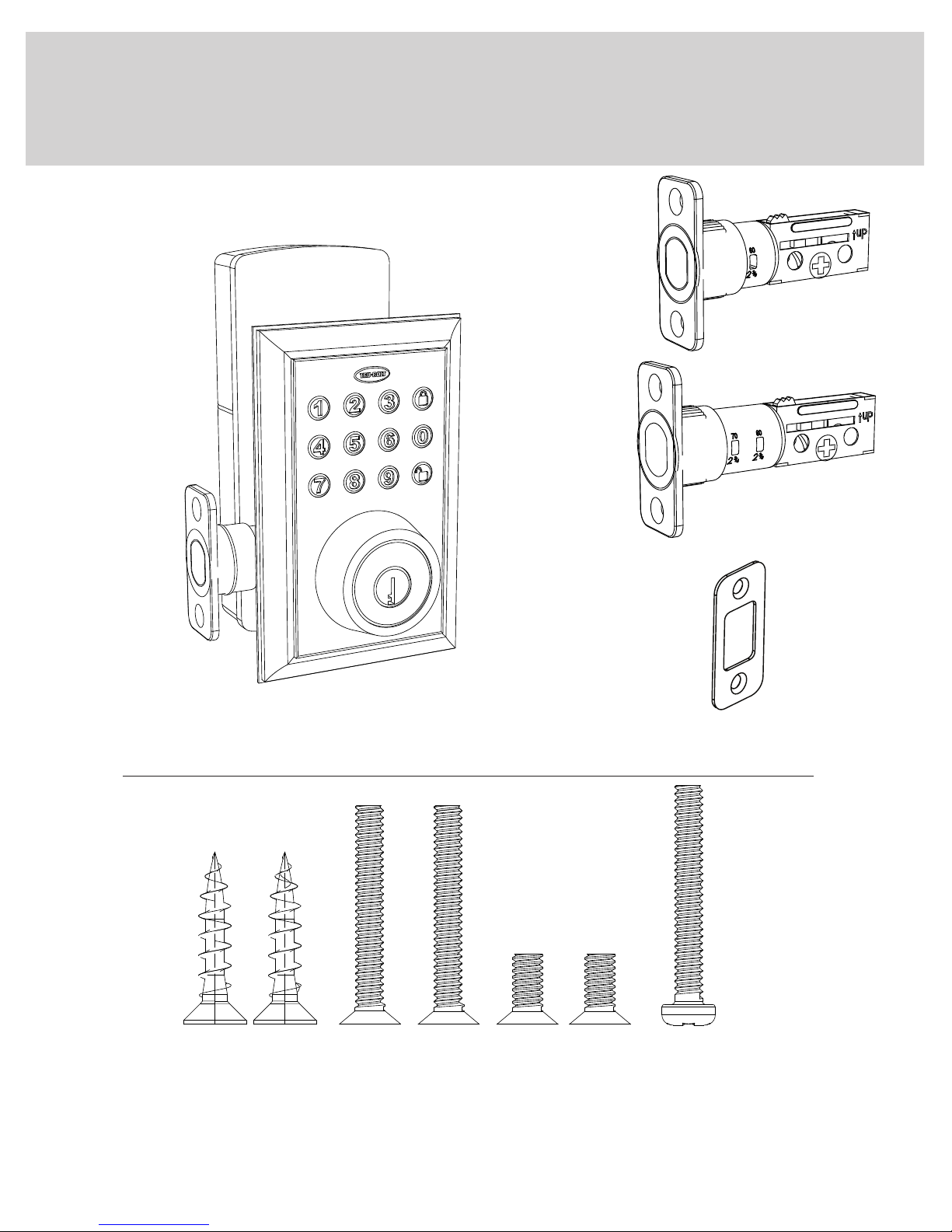

Screw A (5ea.) Screw B (2ea.) Screw C (2ea.) Screw D (1ea.)
Deadbolt Strike Plate
latch 2-3/4
latch 2-3/8
Do NOT use electric screwdriver, only hand tighten screws with phillips
head screwdriver. DO NOT OVER TIGHTEN SCREWS.
Cylindrical cover Extension plate
Your latch is now set 2-3/8” (60mm) backset
2-3/4"
(70mm)
2-3/8"
(60mm)
Cylindrical cover Extension plate
Your latch is now set 2-3/8” (60mm) backset
2-3/4"
(70mm)
2-3/8"
(60mm)

Page 3
Please read and understand this entire manual before attempting to assemble, operate or install the product.

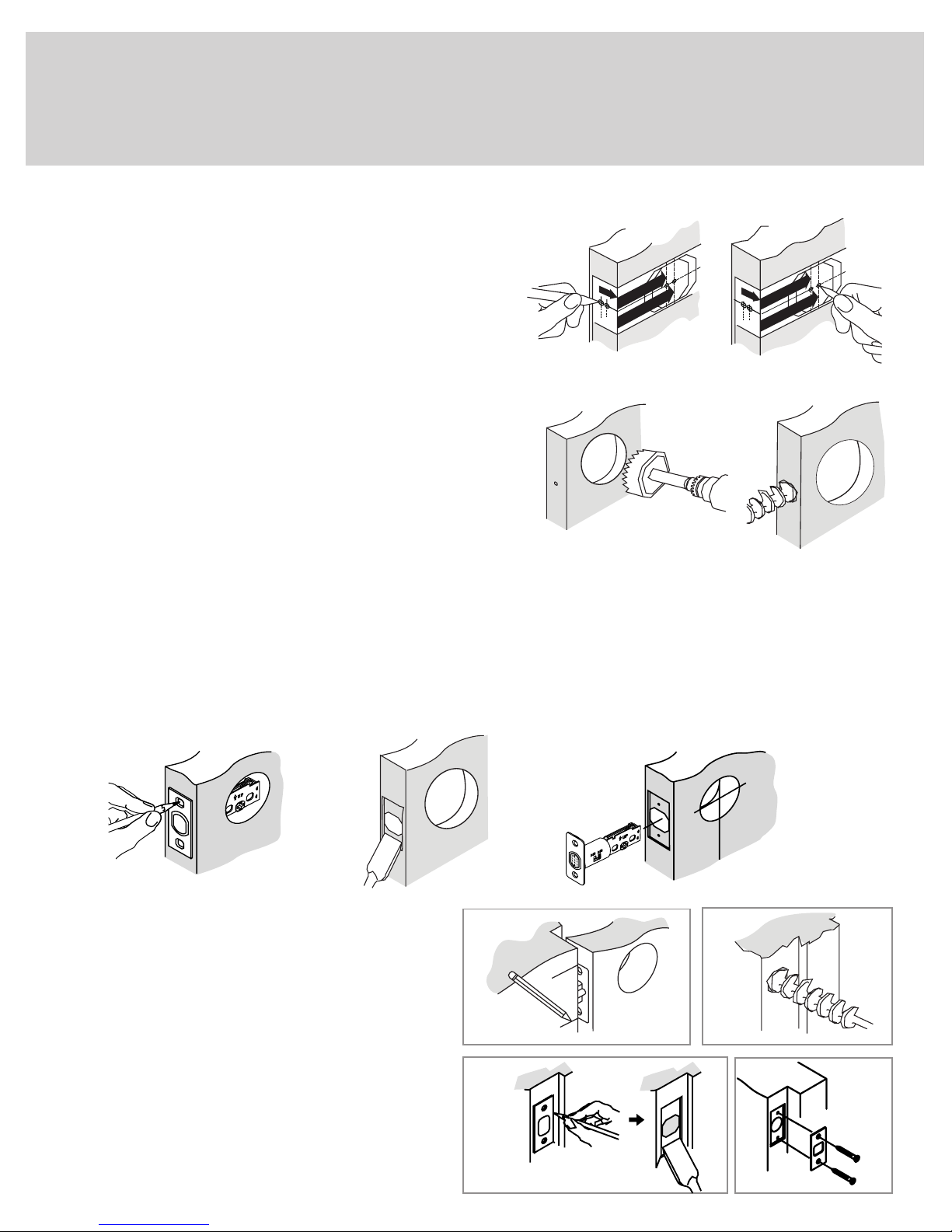

1. MARK DOOR FOR DRILLING
3. MARKING THE JAMB HOLE LOCATION
2. DRILLING HOLES
a. Start 36” from oor. Fold and apply template (page 17)
to high edge of door.
b. Mark center hole on door face through guide on
template for 2-3/8” (60 mm) or 2-3/4” (70 mm)
backset.
a. Insert latch in hole keeping it parallel to face of door. Mark outline and remove latch.
b. Chisel 1/8” deep or until latch face is ush with door edge.
c. Insert latch and tighten screws.
Note: for drive in latch DRILL HOLE size indicated on template and PRESS latch until it is ush with door edge.
a. Drill 2-1/8” hole through door face as marked for lock
set.
b. Drill 1” hole in center of door edge for latch.
1 a 1 b
2 a 2 b
INSTALLATION INSTRUCTIONS
DRILLING HOLE IN DOOR
4. INSTALL DEADBOLT STRIKE PLATE
a. Mark template from edge of jamb and locate
strike opening.
b. Drill 1” hole 1 3/16” deep in door jamb on
center line of screws.
c. Outline outside edges of strike. Chisel 1/6”
deep for strike or until ush.
d. Install strike and tighten screws (A).
3 a 3 b 3 c
4 a 4 b
4 c 4 d
U
P
1st step if hole
is predrilled.
1st step
if replacing
faceplate.
Note: If your door has pre-drilled holes skip to step 3 C

Page 4

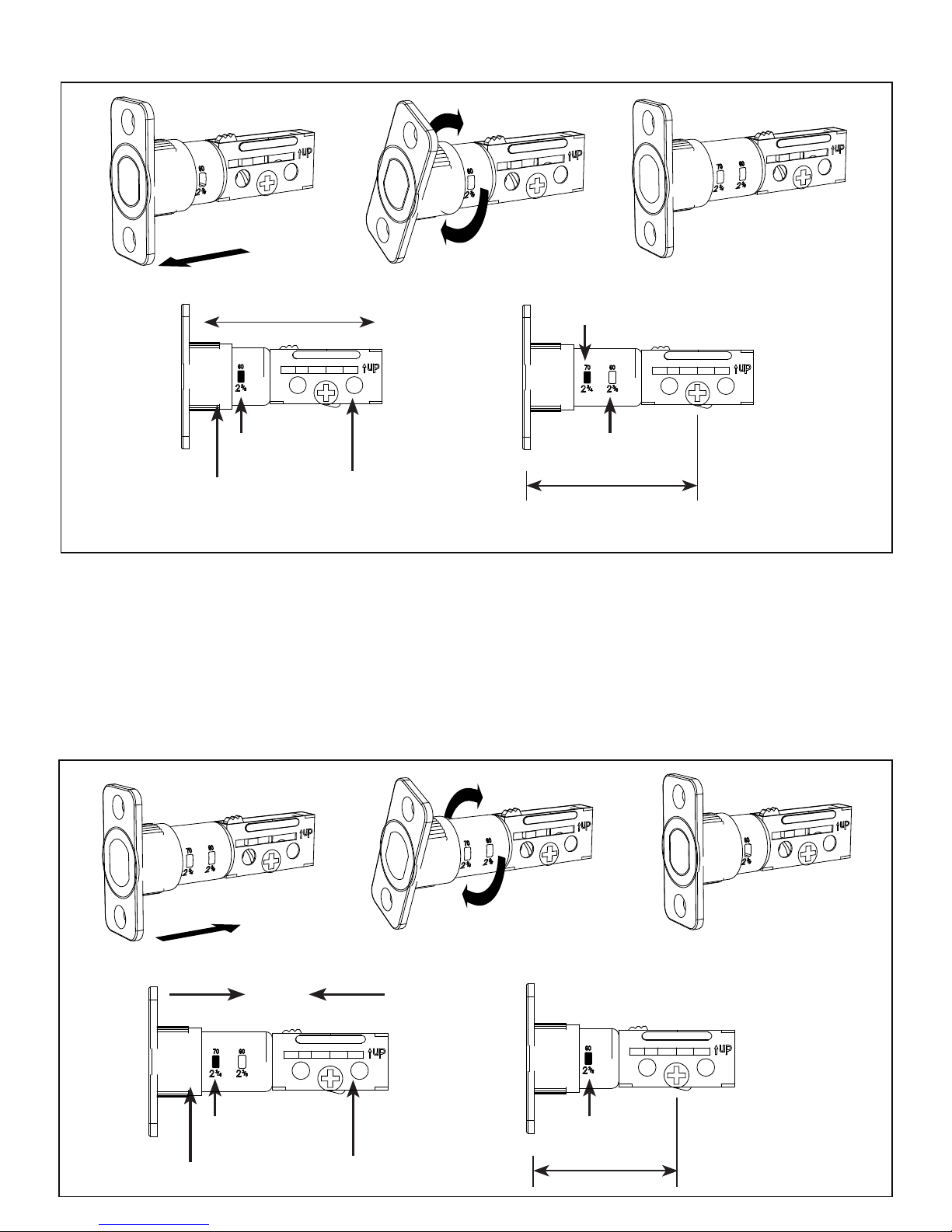

1. ADJUSTING THE DEADBOLT LATCH BACKSET (Deadbolt is shipped with the backset set at 2-3/8”)
a. Hold latch with numbers facing forward and thumb pressing on the bolt
b. Rotate the cylinder cover Clockwise
c. Pull and twist the extension plate all the way out
d. Rotate the cylinder cover counter clockwise so that the marking aligns with the 2-3/4”
position indicator
- Measure the backset (Backset is Distance between edge of the door and the center of Lock)
To convert from 2-3/8” (60mm) backset to 2-3/4” (70 mm) backset
INSTALLATION INSTRUCTIONS
GETTING STARTED
For troubleshooting tips and “how to videos” visit www.truboltlocks.info

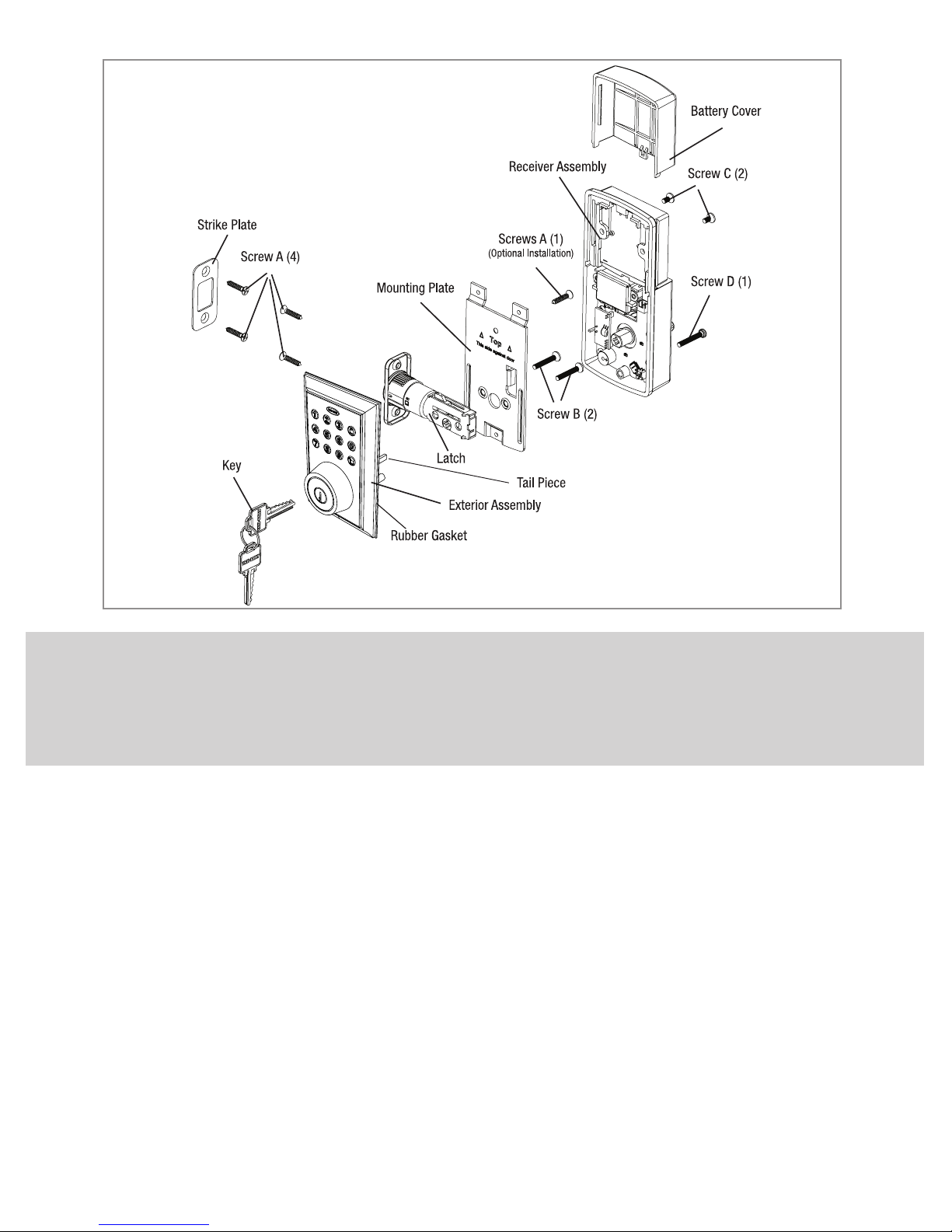

INSTALLATION OVERVIEW

Page 5
Cylindrical cover Extension plate
Your latch is now set 2-3/4” (70mm) backset
2-3/8"
(60mm)
2-3/8"
(60mm)
2-3/4"
(70mm)
a. Hold latch with numbers facing forward and thumb pressing on the bolt
b. Rotate the cylinder cover Clockwise
c. Push and twist the extension plate all the way in
d. Rotate the cylinder cover counter clockwise so that the marking aligns with the
2-3/8” position indicator
2. TO CONVERT FROM 2-3/4” (70 MM) BACKSET TO 2-3/8” (60MM) BACKSET
g. 1
Cylindrical cover Extension plate
Your latch is now set 2-3/8” (60mm) backset
2-3/4"
(70mm)
2-3/8"
(60mm)
g. 2
NOTE: Do not extend Cylindrical Cover past 2-3/4”

Page 6

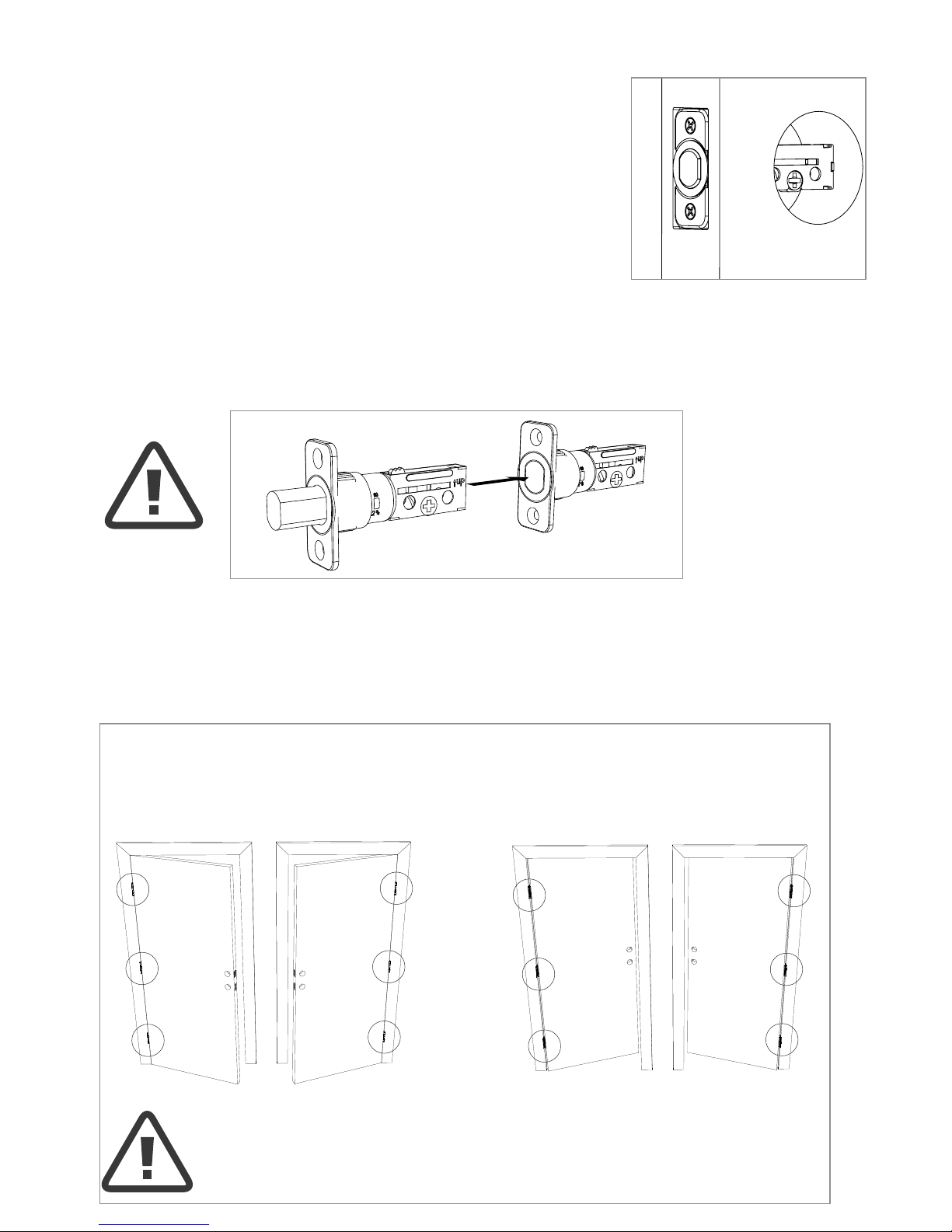

5. IDENTIFYING YOUR DOOR HANDING
a. If the hinges are on the left your door is Left Handed
b. If the hinges are on the right your door is Right Handed
Stand outside the door
You are standing outside the door
Right Handed Door
Hinges are on the right side
Left Handed Door
Hinges are on the left side
Right Handed Door
Hinges are on the right side
Left Handed Door
Hinges are on the left side
Out Swing Door In Swing Door
g. 5
4. Deadbolt Latch must be retracted when installing
a. Insert Deadbolt Latch into door edge hole with the word UP and
the arrow on the extension plate facing UP. Cross shaped spindle
connector will be at the bottom of the Deadbolt Latch.
b. Make sure the face plate sits ush with the door. Do not force the
latch into the mortise ush. Chisel out excess material if necessary
for a ush t.
c. Using two screws (A) provided, screw the latch into the door with a
hand held screwdriver. DO NOT OVER TIGHTEN.
3. INSTALLING THE DEADBOLT LATCH (need phillips head screwdriver)
g. 3
g. 4

Page 7
Control Wire
Mounting Plate
Screw (A)
(Optional Installation)
Screw B
g. 7.5

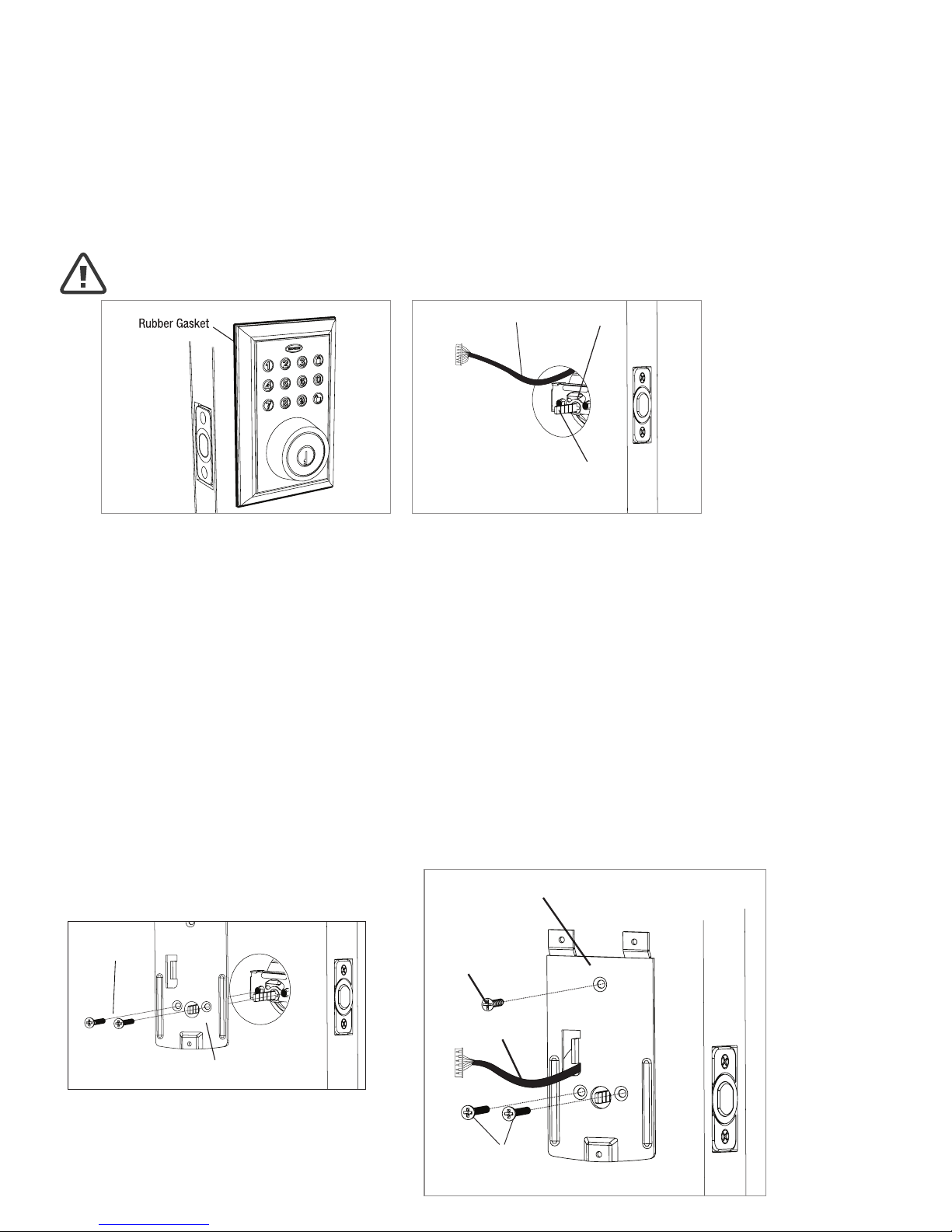

6. INSTALLING THE EXTERIOR ASSEMBLY
Work with the Door Open for easy access
a. Unpack the Exterior Assembly. Use care to not scratch the green circuit board during handling and
installation.
b. Check that the rubber gasket is properly seated on the Exterior Assembly. ( see gure 6 )
c. Insert the Exterior Assembly onto the door with the tailpiece going through the Deadbolt Latch cross
shaped spindle connector in the VERTICAL POSITION. Route the Control Wire through the door below
the Deadbolt Latch. (see gure 6)
a. From the side marked “This side against door”, route the Control Wire through the rectangular slot in
the Mounting Plate
b. Place Mounting Plate against door with tailpiece passing through the center hole in the three hole set
c. Secure the Mounting Plate to the Exterior Assembly using Screw B (2 ea)
d. Hand tighten with a screwdriver leaving loosely connected
e. Check that the Rubber Gasket is properly aligned and correct as necessary.
f. Check vertical alignment of the lock
g. Tighten with a hand held screwdriver. DO NOT OVER TIGHTEN
7. SECURING THE EXTERIOR ASSEMBLY TO THE DOOR
NOTE: Unpack the Interior Assembly. Remove the battery cover by sliding the cover upward. Locate the one
screw holding the Mounting Plate to the Interior Assembly. Remove the screw to release the Mounting Plate
from the Interior Assembly.
NOTE: TAILPIECE MUST BE POSITIONED VERTICALLY
Right Handed Door View
Control Wire Latch Hole
Tailpiece
(Vertical)
g. 6.5g. 6
g. 7
Mounting Plate
Screw B

Page 8

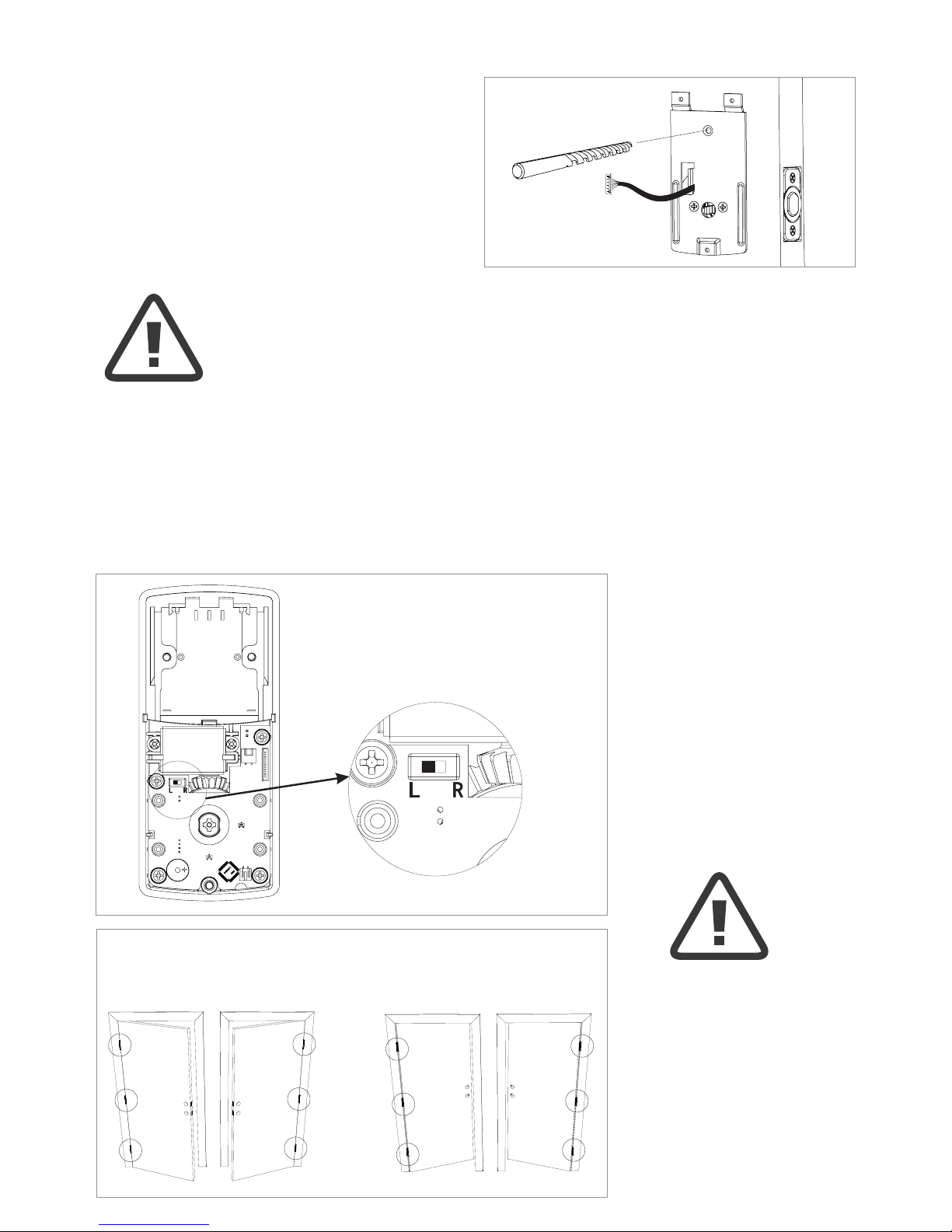

9. INSTALLING THE INTERIOR ASSEMBLY
1. Gently move the switch to “L” for Left Handed Door
2. Gently move the Switch to “R” for Right Handed Door
a. Set the Entry Switch for Left or Right Handed door
a. Using a 1/16” drill bit, drill a pilot hole in
your door using the Mounting Plate upper
hole as a guide (see Figure 8a)
b. Insert Screw A and tighten
8. OPTIONAL INSTALLATION
8
NOTE: LOCK AND UNLOCK USING THE KEY TO SEE IF THE
DEADBOLT LATCH IS OPENING AND CLOSING EASILY.
Entry Switch
(Left or Right)
g. 9
You are standing outside the door
Right Handed Door
Hinges are on the right side
Left Handed Door
Hinges are on the left side
Right Handed Door
Hinges are on the right side
Left Handed Door
Hinges are on the left side
Out Swing Door In Swing Door
g. 9.5

Page 9
Right Handed Door
(vertical) Left Handed Door
(horizontal)
a. Use care to attach the Control Wire to the interior Wire Connector.
b. Do not force Plug onto Wire Connector.
c. The Plug has two alignment tabs on the smooth side of the Wire Connector.
d. The Plug is inserted with the smooth side facing left into the Wire Connector and pressed into place.
a. The knob goes in the VERTICAL position for Right Handed Doors
b. The knob goes in the HORIZONTAL position for Left Handed Doors
11. ATTACH THE CONTROL WIRE TO THE INTERIOR ASSEMBLY
10. SET THE INTERIOR KNOB POSITION FOR LEFT OR RIGHT HANDED DOORS
12. Position the Interior Assembly over the tailpiece and push the Interior Assembly against the door
13. Using Screw C (2 ea) and Screw D (1 ea), attach the Interior Assembly to the Mounting
DO NOT OVER TIGHTEN SCREWS
Screws C
Screw D
Screw D
Screw C
g. 12,13 &14
g. 11
g. 10
Mounting screws
NOTE: LOCK AND UNLOCK USING THUMBTURN KNOB TO SEE
IF THE LATCH IS OPENING AND CLOSING EASILY.
Right Handed Door View
Make sure deadbolt
latch is retracted
INTERIOR WIRE
CONNECTOR
PLUG

Page 10
BATTERY INSTALLATION
14. Insert 4 AA high quality Alkaline batteries into the Battery Compartment in the direction noted +/- on the
Compartment. The Lock will beep 2 times, the Keypad will illuminate blue, and the Tru-Bolt button will ash
green twice to signify that it has received power.
15. Slide the Battery Cover down into the track on the Interior Assembly to
cover the batteries
16. With the Door Open
a. Test the Lock using the interior turn piece, bolt should move smoothly
b. Test the lock using the Keypad, to lock press and then press “1234” to unlock.
Interior Door Face
Thumbturn Knob
Battery Cover
Light Indicator
Override
Access Key
Exterior Door Face
Keypad
Lewis Hyman Inc. - Customer Service :1-800-860-1677
g.14 & 15
NOTE: DO NOT touch the keypad until the blue light turns off.
DO NOT use rechargeable batteries or non-alkaline batteries.
