Tru-bolt Classic User manual

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

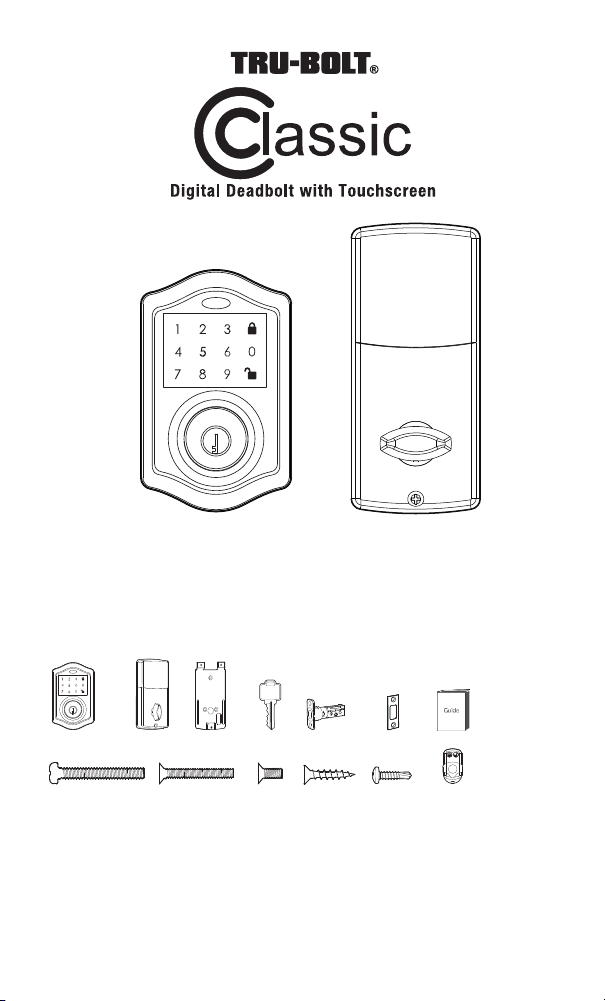

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

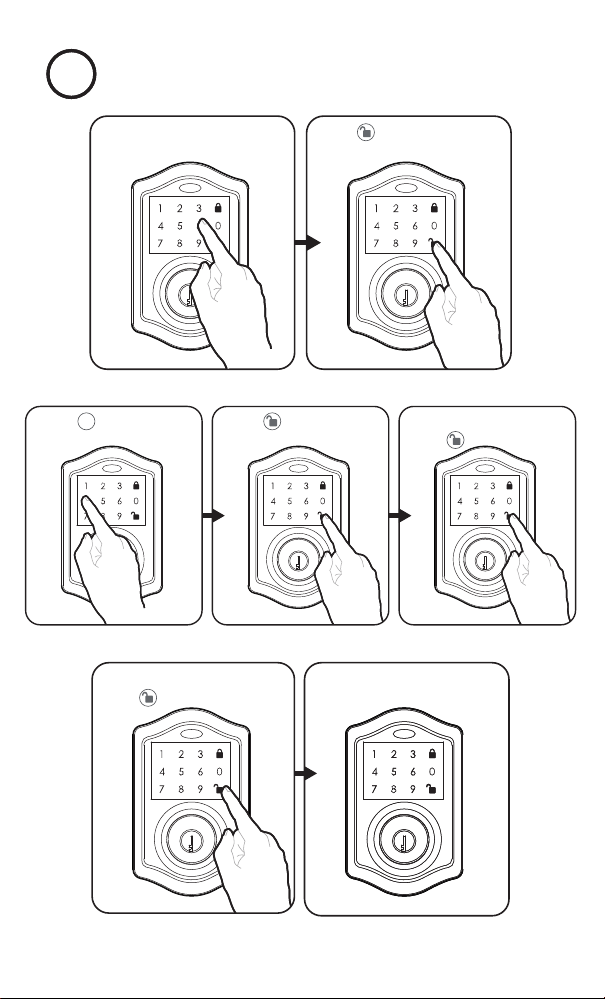

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

ENGLISH

Models 1740032, 1740034, 1740036, 1740038

G H I J K

B C

E F

Installation OverviewTesting Operation

Before Opening Door

Let Motor Complete Cycle

Install Batteries and Cover7

This Electronic lock requires (4) High Quality AA Alkaline

batteries.When all 4 batteries are installed in the correct

position, you should hear 2 beeps and the keypad will

illuminate.

NOTE: Do not touch the Keypad until the light turns off.

Do not use rechargeable batteries or non-alkaline batteries.

Install Enclosed Latch and Strike Plate21 Determine Door “Handing”3

Remove Screw to Remove Mounting Plate

Right Handed Door Turn Knob VerticalLeft Handed Door Turn Knob Horizontal

View from outside of door

Set entry Switch to

Correct Direction

Install Exterior Assembly4

Install Interior Assembly

3/4” Screws1”Screws 5/16” Screws1 3/8”Screws

Exterior Faceplate Interior Faceplate User Guide

Keys Latch

Optional Set Screw

Mounting Plate

Preparing Door

Strike plate

1 - Exterior Faceplate

1 - Interior Faceplate

1 - User Guide

2 - Keys

1 - Strike Plate

1 - Mounting Plate

1 - Latch

1 - 1 3/8” Screws

2 - 5/16” Screws

2 - 1” Screws

5 - 3/4” Screws

1 - Electronic Remote

Package Includes:

Read this manual carefully before installing and operating!

Please carefully check the above list to conﬁrm all items have been received. If any items are

missing, please contact Consumer Assistance. (See page for contact information)

Strike Plate

2-3/4” position

2-3/8” position

Do Not Over Tighten

Deadbolt Latch Must Be

Retracted During Installation

TO CONVERT FROM 2-3/8”(60mm) BACKSET TO 2-3/4” (70mm) BACKSET

1. Hold latch with numbers facing forward and thumb pressing on the bolt.

2. Rotate the cylinder cover clockwise.

3. Pull and twist the extension plate all the way out.

4. Rotate the cylinder counter clockwise so that the marking aligns with

the 2-3/4” position indicator.

NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)

Carefully insert control wire

into the wire connector

Work with the door open

NOTE:Make sure the connector dots line up with the dots on the wire

Install Interior Assembly

Test the lock

Lock and unlock using the knob make sure the latch is opening and

closing easily. If not,go back to step 2 and ensure you followed the steps

NOTE: Make sure the Knob is in the correct position.

Be careful not to pinch the control wire when assembling

Refer to Template included for

Door Prep Instructions

NOTE: Skip this step if your door comes with pre-drilled holes.

Example

Remote

Check that the Rubber Gasket is secured on the Exterior

Assembly. Insert the Exterior Assembly onto the door with

the tailpiece going through the Deadbolt Latch Set in the

VERTICAL POSITION. Route the Control Wire through the

door under the Deadbolt Latch Set.

Secure mounting

plate to door

K (optional)

Test unlocking

Press 1-2-3-4-

Test the lock button with door open

M1740032 1740034 1740036 1740038 FH E V2

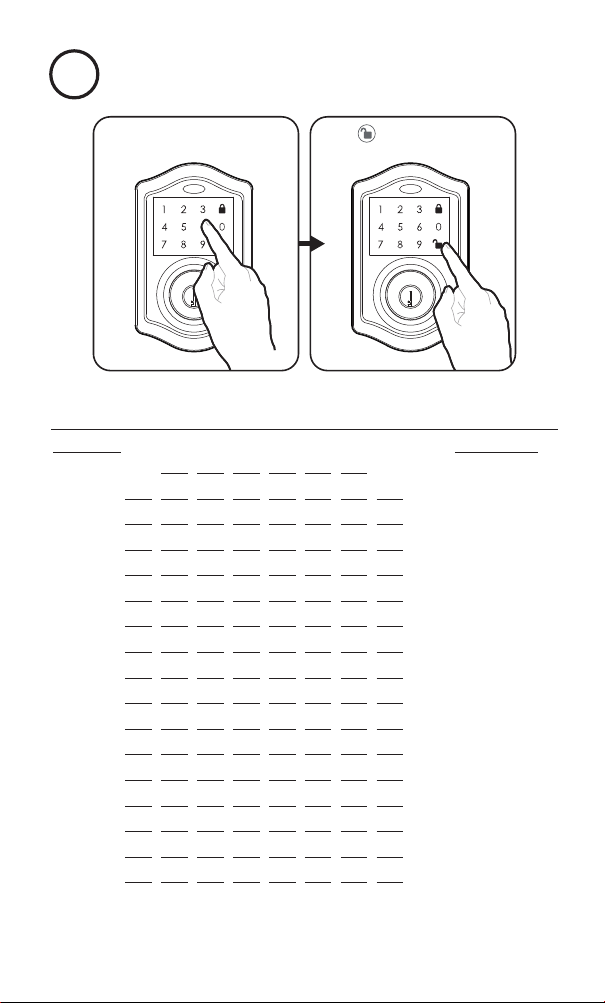

Programming Instructions

Complete all the programming steps in the

programming mode within 5 seconds

Do not press keypad until keypad stops illuminating

To reset the lock to the original factory settings including the

Programming Code and all User Codes follow these steps:

1. Remove one batteryfor 10 seconds.

2. Reinsert the battery and wait for a long and short beep

3. Press 3times within 3 seconds.

4. The lock will beep and the light indicator will turn green.

Restore Factory Settings

Low Battery Warning

Beeps and LED ﬂashes red 7 times. Replace with good

quality alkaline batteries.

Note: Removing batteries does not erase active Administrator

orUser Codes.

Unlock / Valid programming: 1 long beep and LED illuminates green

Lock: 2 short beeps and LED illuminates red

2 short beeps and LED ﬂashes red twiceInvalid Programming:

Low Voltage: Short beeps and LED ﬂashes red seven times

3 long beeps LED ﬂashes red three times

2 short beeps three times LED ﬂashes red six times

Super Low Voltage:

4 Incorrect code entry attempts: 2 short beeps and LED illuminates red each attempt

Power on: 1 long beep and 1 short beep and LED illuminates green

Chip Reset:

Lock Error:

Repeat operation after Lock Error:

Consumer Friendly Message Guide

4 short beeps and LED ﬂashes red four times

1 long beep and 1 short beep and LED illuminates green

(may occur several times or once in a while)

Add One Remote Control

Delete One Existing Remote Control

Delete All Remote Controls

You can “mute” or turn the “sound on”on yourlock by entering the following.

(Factory setting is sound on).

Sound Off (1) - Light Indicatorilluminates green.

Sound On (2) - Hear 1 beep and Light Indicator illuminates green.

6 1 or 2

SOUND ON AND OFF

1 = Sound Off

2 = Sound On

7Additional Programming Functions

6Additional Programming Functions

Lock / Clear

Unlock / Programming

Administrator Code

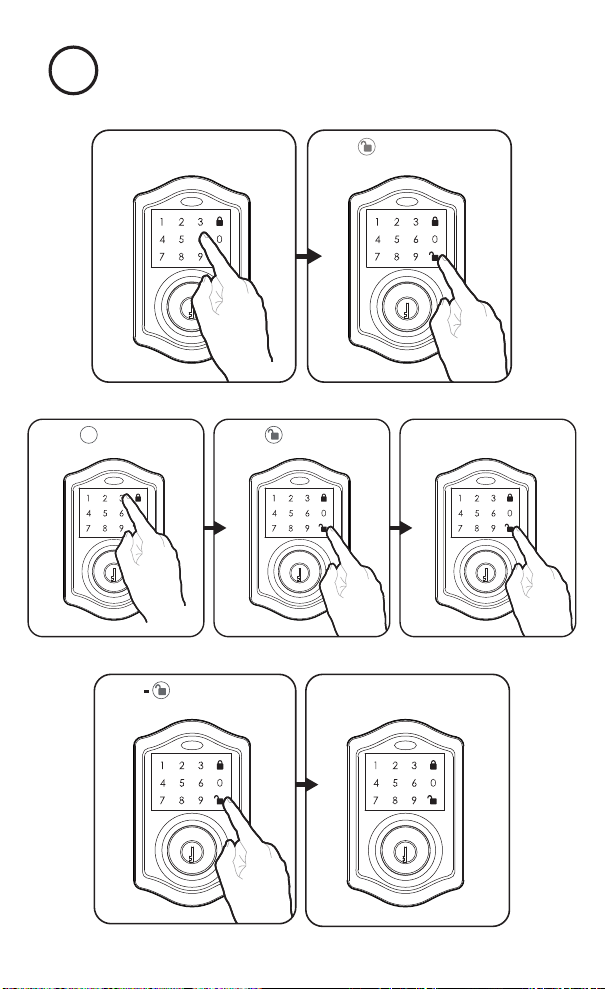

SET OR CANCELAUTO LOCK

You can set the lock to automatically close after each time the lock is opened. Time

value range = 20 - 900 seconds, enter the following:

Set Auto Lock:

Hear 1 beep and Light Indicator illuminates green.Hear 1 beep and Light Indicator illuminates green.

To cancel Auto Lock set the time to 00, enter the following:

Cancel Time Value Auto Lock:

Hear 1 beep and Light Indicator illuminates green.

5 Time Value5 Time Value

5 00

Automatic Lock Function

NOTE: Ifyou only press the for more than 3 seconds but do not input ,

the system will remain in VacationMode.

With Vacation Mode enabled, the system enters into low-power consumption mode.

During this mode, all buttons and functions will be disabled until theyare re-enabled.

ENABLE:

DISABLE:

To disable the Vacation Mode, you must press and hold for more than 3 seconds,

then input followed by to unlock the door. Vacation Mode is now disabled.

Once the door is locked then vacation mode will be engaged and all buttons and functions will be disabled

10 1

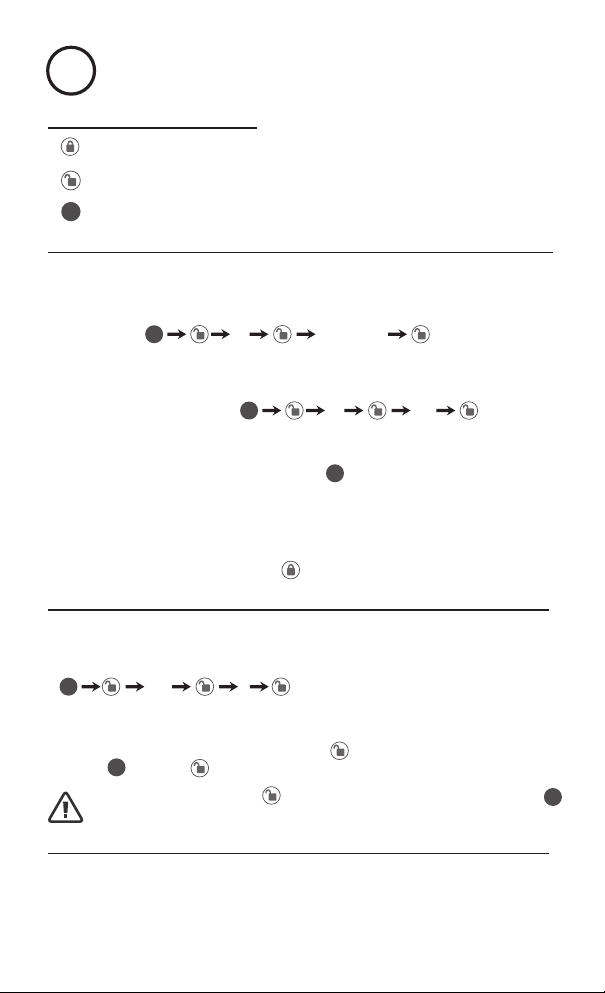

Programming Symbols

Secure Lock-out period

Vacation Mode

Warning sounds and LED ﬂashes red after 4 incorrect code attempts: Keypad shuts

down for 60 seconds.

TEMPORARILY DISABLE:

While in Auto-Lock mode, unlock door using , within 10 seconds you must turn the

locking knob by hand to the locked position, wait more than 2 seconds then turn the

locking knob back to the unlock position. The Auto-Lock mode is now disabled.

RESTORE:

To restore the Auto-Lock function, turn the locking knob by hand to the locked position,

wait more than 2 seconds or press the Lock button on the keypad.

Troubleshooting

Issue Solution

Interior Knob will not

turn

Knob or vertical tailpiece is installed in incorrect position.

• Remove Interior Assembly and reposition the Interior Knob. With the

Deadbolt Latch retracted verify that the tailpiece is vertical.

Lock will not function

electronically

• Check that all batteries are fresh high quality Alkaline Batteries.

• Check for proper polarity (+ -) of all batteries.

• Check that the Control Wire is attached to the Interior Assembly

and not damaged.

• Check each wire for loose or disconnected wires.

• Disconnect the wiring harness and reconnect the wiring harness.

Lock gives error signal

when opening or

locking and Deadbolt

Latch will not extend

or retract completely

when door is closed

• Unlock door using Key or Interior Knob. While door is open, check that the

Deadbolt Latch operates smoothly.

• Check for proper alignment of the strike plate, adjust as needed to assure

there is no binding against the Deadbolt Latch.

• Make sure tail piece is in the vertical position and straight up and down.

Deadbolt Latch is

sticking

Installation screws of the lock may be too tight and have to be loosened.

• Remove Interior Assembly.

• Slightly loosen the Mounting Plate screws.

• Lock and unlock using the Key.

• Reattach Control Wire and Interior Assembly.

Keypad not working • Wait 60 seconds, keypad may be locked out due to incorrect code.

• Replace with 4 high quality alkaline batteries.

Keypad beeps and

LED ﬂashes • Replace with 4 high quality alkaline batteries.

Don’tforget to register your lock at Truboltlocks.info for updates.

EMAIL: [email protected]

WEBSITE: www.truboltlocks.info

ADDRESS: Consumer Assistance Dept.

Lewis Hyman, Inc.

860 East Sandhill Avenue

Carson, CA 90746 USA

TELEPHONE: US/Canada 800-860-1677 Ext. 1801 (Toll Free)

DO NOT RETURN TO STORE!

If any parts are missing or damaged, please call Customer Service

Toll free at 1-800-860-1677 (Toll Free, M-F 7am – 5pm PST).

Online installation videos can be viewed at TruBoltLocks.info.

Don’t forget to register your lock at TruBoltLocks.info for updates.

Limited 1-Year Electronic Warranty

Limited Lifetime Mechanical and Finish Warranty

This Tru-Bolt® product comes with a 1-Year Limited Warranty on Electronic

Parts and a Limited Lifetime Mechanical and Finish Warranty against defects

in materials and workmanship under normal use to the original residential

user. Proof of purchase and ownership is required for the warranty to be in eect.

This warranty is non transferable and applies to the original purchaser

only, as long as the original purchaser occupies the residential premises upon

which the product[s] was originally installed. This warranty DOES NOT

COVER removal and reinstallation of product[s], scratches, abrasions,

deterioration due to the use of paints, solvents or other chemicals, abuse,

misuse, or product[s] used in commercial applications, does not cover any

losses, injuries to persons/property or costs, and shipping and freight

expenses required to return product[s]. In no event shall Tru-Bolt® be liable

for any special, incidental or consequential damages. If this product[s] is

considered a consumer product, please be advised that some local and state

laws do not allow limitations on incidental or consequential damages or how

long an implied warranty lasts, so that the above limitations may not fully apply.

Refer to your local laws for your speciﬁc rights under this warranty. If

there are any problems please call our customer service with any questions or

concerns.

Creating Administrator Code11

Input 6 digit code

Press

Press Press

Repeat the 6 digit code

Press

Green light ﬂashes

conﬁrming success

Input Admin code

(default 123456)

Press

Deleting All User Codes

Reenter Admin code

Press Press

Press Green light ﬂashes

conﬁrming success

Input Admin code Press

Adding a User Code

Input Admin code Press Press 1

Green light ﬂashes

conﬁrming success

Repeat 4-8 digit

user code

Press

Press Input new 4-8 digit

user code

Press

Input user number

between 02-50

Press

Unlocking Door with User Code

User Code 13 (4-8 digits) / /

User Code 14 (4-8 digits) / /

User Code 15 (4-8 digits) / /

User Code 16 (4-8 digits) / /

User Code 17 (4-8 digits) / /

User Code 18 (4-8 digits) / /

My Codes: Date Created

Programming Code (6 digits) //

User Code 02 (4-8 digits) / /

User Code 03 (4-8 digits) / /

User Code 04 (4-8 digits) / /

User Code 05 (4-8 digits) / /

User Code 06 (4-8 digits) / /

User Code 07 (4-8 digits) / /

User Code 09 (4-8 digits) / /

User Code 10 (4-8 digits) / /

User Code 11 (4-8 digits) / /

User Code 12 (4-8 digits) / /

PROGRAMMING RECORD

Enter User Code Press

Deleting a User Code4

Repeat the User #

Press

Green light ﬂashes

conﬁrming success

Input Admin code Press

Press Press

2Input existing user #

between 02-50

Press

Hear 1 beep and Light Indicator illuminates green.

Note: This is the only step you need to use the remote for programming.

Hear 1 beep and Light Indicator illuminates green.

Note: You must have more than 1 remote synced to this lock to DELETE ONE OR ALL REMOTES

Hear 1 beep and Light Indicator illuminates green.

AC ID

Pressany

buttonon

the remote

(01-20)

AC ID ID

8 re-enter

(01-20)

AC AC

re-enter

M1740032 1740034 1740036 1740038 FH E V2
