True G4SM-23-PT User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
G4SM-23-PT
G4SM-23-PT
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
G4SM-23-PT 2 23
652
427
686
323/4
832
785/8
1998
1/2
1/2
115/60/1
230-240/50/1
10.0
5.0
5-15P
▲
9
2.74
410
186
†Depth does not include 11/8" (29 mm) each side for door handles. ▲Plug type varies by country.
1/06
The world’s #1 manufacturer of
glass door merchandisers.
Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).
Exterior - attractive, high luster
copper aluminum finish with black
trim.
Interior - attractive, NSF approved,
white aluminum interior liner with
300 series stainless steel floor.
Pass-thru design allows access into
unit from two sides.
“Low-E”, double pane thermal
glass in door assemblies and sides.
The latest in energy efficient
technology.
Illuminated exterior front and rear
sign panels.
Entire cabinet structure is foamed-
in-place using high density, CFC
free, polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility
Storage on top of cabinet.
Easily accessible condenser coil
for cleaning.
Glass Door Merchandiser:
Pass-Thru Glass Four Sided Refrigerator
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
G4SM-23-PT TFAY10E TFAY34S TFA034P TFAY343
G4SM-23-PT
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in a
stylish merchandiser that creates a dynamic
360° product display.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating evaporator
fan motor and larger fan blades give True
merchandisers a more efficient low velocity,
high volume airflow design. This unique
design insures more consistent, colder
holding temperatures and faster recovery in
high use situations.
• Bottom mounted condensing unit positioned
for easy maintenance; “no stoop” lower
shelf maximizes visibility by raising
merchandised product to higher level.
CABINET CONSTRUCTION
• Exterior - attractive, high luster copper
aluminum finish with black trim.
• Glass sides - Low-E, double pane thermal glass
end assemblies. The latest in energy efficient
technology.
• Interior - attractive, NSF approved, white
aluminum interior liner with 300 series
stainless steel floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior front and rear sign
panels. Variety of sign options available.
DOORS
• “Low-E”, double pane thermal glass front
and rear door assemblies with extruded
aluminum frames. The latest in energy
efficient technology.
• Each door fitted with 15" (381 mm) long
extruded aluminum handle.
• Self closing doors. Positive seal, torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty, black
PVC coated wire shelves 231/8"L x 213/4"D
(588 mm x 553 mm). Four (4) chrome plated
shelf clips included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
LIGHTING
• Front and rear lighting system utilizes two (2)
full-length, safety shielded fluorescent bulbs
for enhanced, shadow-free illumination.
• Cabinet lighting utilizes electronic ballast and
T-8 bulbs for brighter illumination, longer
bulb life and increased energy efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• See our website www.truemfg.com for latest
color and sign offerings.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase
- 15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒Black exterior.
❒White exterior.
❒Rosewood exterior.
❒Black aluminum interior liner.
❒6"(153 mm) standard legs.
❒6"(153 mm) seismic/flanged legs.
❒2
1/2"(64 mm) diameter castors.
❒4"(102 mm) diameter castors.
❒Red wine thermostat.
❒Chocolate thermostat.
❒White wine thermostat.
❒Barrel locks.
❒Novelty baskets.
❒Black shelves.
❒True offers five versions of the G4SM-23
with a variety of features to increase the
merchandiser’s function and versatility,
allowing it to be customized to your needs.
❒Remote cabinets (condensing units supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R

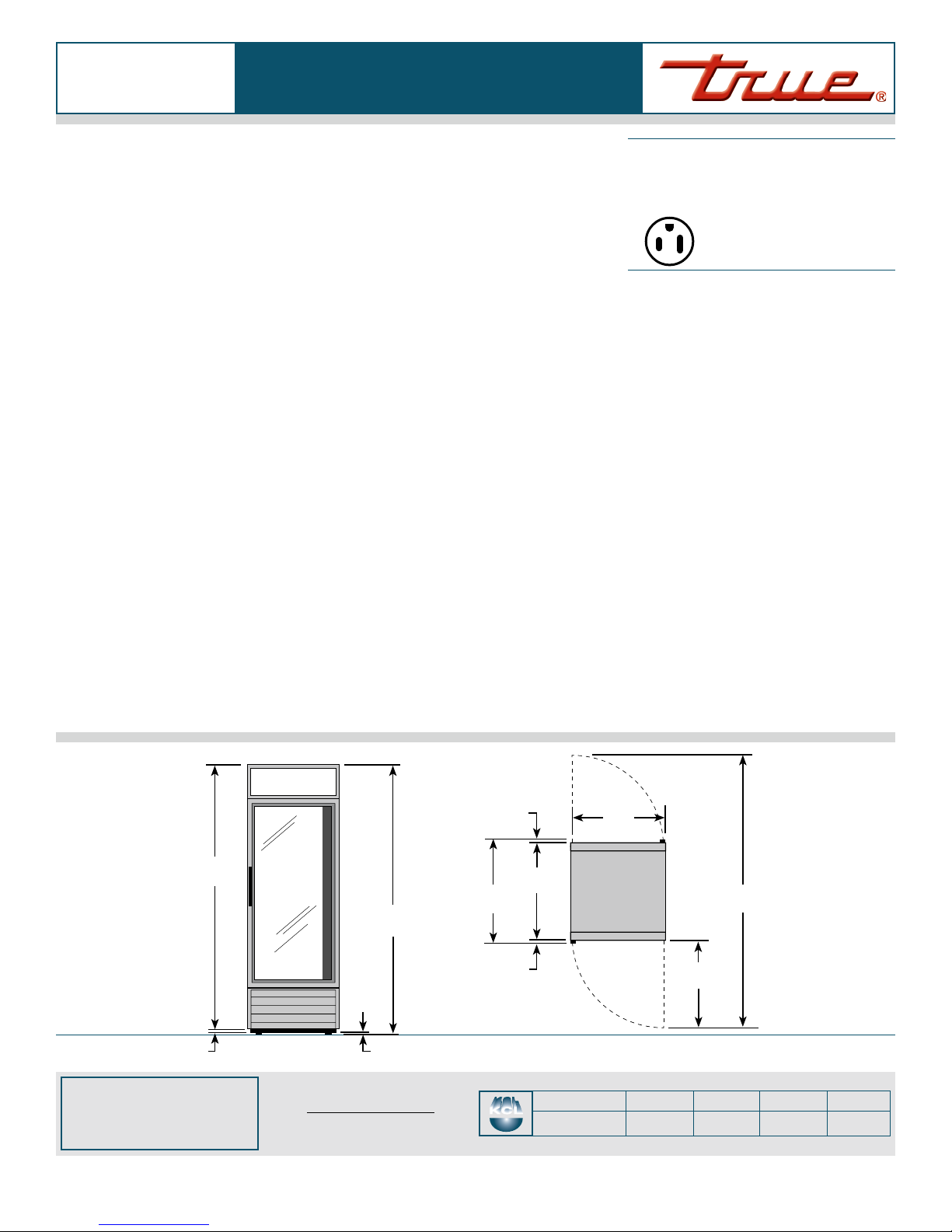

ELEVATION PLAN VIEW
Glass Door Merchandiser:
Pass-Thru Glass Four Sided Refrigerator
7615/16"
(1955 mm)
13/8"
(35 mm)
27"
(686 mm)
3415/16"
(888 mm)
323/4"
(832 mm)
13/32"
(28 mm)
825/8"
(2099 mm)
2415/16"
(634 mm)
13/32"
(28 mm)
785/8"
(1998 mm)
5/16"
(8 mm)
