GDM-9-PT
GDM-9-PT
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-9-PT 4 7.3
207
236
1/8
918
205/8
524
415/8
1058
1/3115/60/1 8.2 5-15P 9
2.74
295
134
†Depth does not include 3/4" (20 mm) each side for door handles.
11/06
R
The world’s #1 manufacturer of
glass door merchandisers.
True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, and lower
utility costs in an attractive
merchandiser that brilliantly
displays packaged food and
beverages.
Designed for convenient access, fast
service, and attractive display.
Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).
Exterior - non-peel or chip white
laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,
white aluminum interior liner with
300 series stainless steel floor.
Self closing doors. Counter-
balanced weight system for smooth,
even, positive closing.
“Low-E”, double pane thermal
glass door assemblies. The latest in
energy efficient technology.
Entire cabinet structure is foamed-
in-place using high density, CFC
free, polyurethane insulation.
Safety shielded fluorescent interior
lighting for longer, brighter,
shadow-free illumination.
Glass Door Merchandiser:
Pass-Thru, Slide Door, Counter-Top Refrigerator
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
PLAN VIEW
KCL
Model Elevation Right Plan 3D
GDM-9-PT TFAY075E TFAY075S TFAY075P TFAY0753
GDM-9-PT
DESIGN
• True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures, and lower utility costs
in an attractive merchandiser that
brilliantly displays packaged food and
beverages.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more efficient low velocity, high
volume airflow design. This unique
design ensures faster temperature
pull down of warm product, colder
holding temperatures and faster
recovery in high use situations.
CABINET CONSTRUCTION
• Exterior - non-peel or chip white
laminated vinyl; durable and
permanent.
• Interior - attractive, NSF approved,
white aluminum liner with 300 series
stainless steel floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.
• Cabinet fitted with leg levelers.
• Illuminated exterior sign panel.
Variety of sign options available.
DOORS
• “Low-E”, double pane thermal glass
door assemblies with mitered plastic
channel frames. The latest in energy
efficient technology.
• Each door fitted with 12" (305 mm)
handle.
• Self closing doors. Counter-balanced
weight system for smooth, even
positive closing.
SHELVING
• Two (2) adjustable, heavy duty PVC
coated wire shelves two (2) 307/8" x
147/8" (785 mm x 378 mm). Four (4)
chrome plated shelf clips included per
shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves
are adjustable on 1/2" (13 mm)
increments.
LIGHTING
• Safety shielded fluorescent interior
lighting.
• Cabinet lighting utilizes electronic
ballast and T-8 bulbs for brighter
illumination, longer bulb life and
increased energy efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• See our website www.truemfg.com for
latest color and sign offerings.
• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ Black exterior.
❒ Stainless steel exterior model available
.
❒ Red wine thermostat.
❒ Chocolate thermostat.
❒ White wine thermostat.
❒ Ratchet locks.
❒ Additional shelves.
❒ 11/4" (32 mm) pricing strips.
115/60/1
NEMA-5-15R
Glass Door Merchandiser:
Pass-Thru, Slide Door, Counter-Top Refrigerator
209/16"
(523 mm )
3/4"
(20 mm )

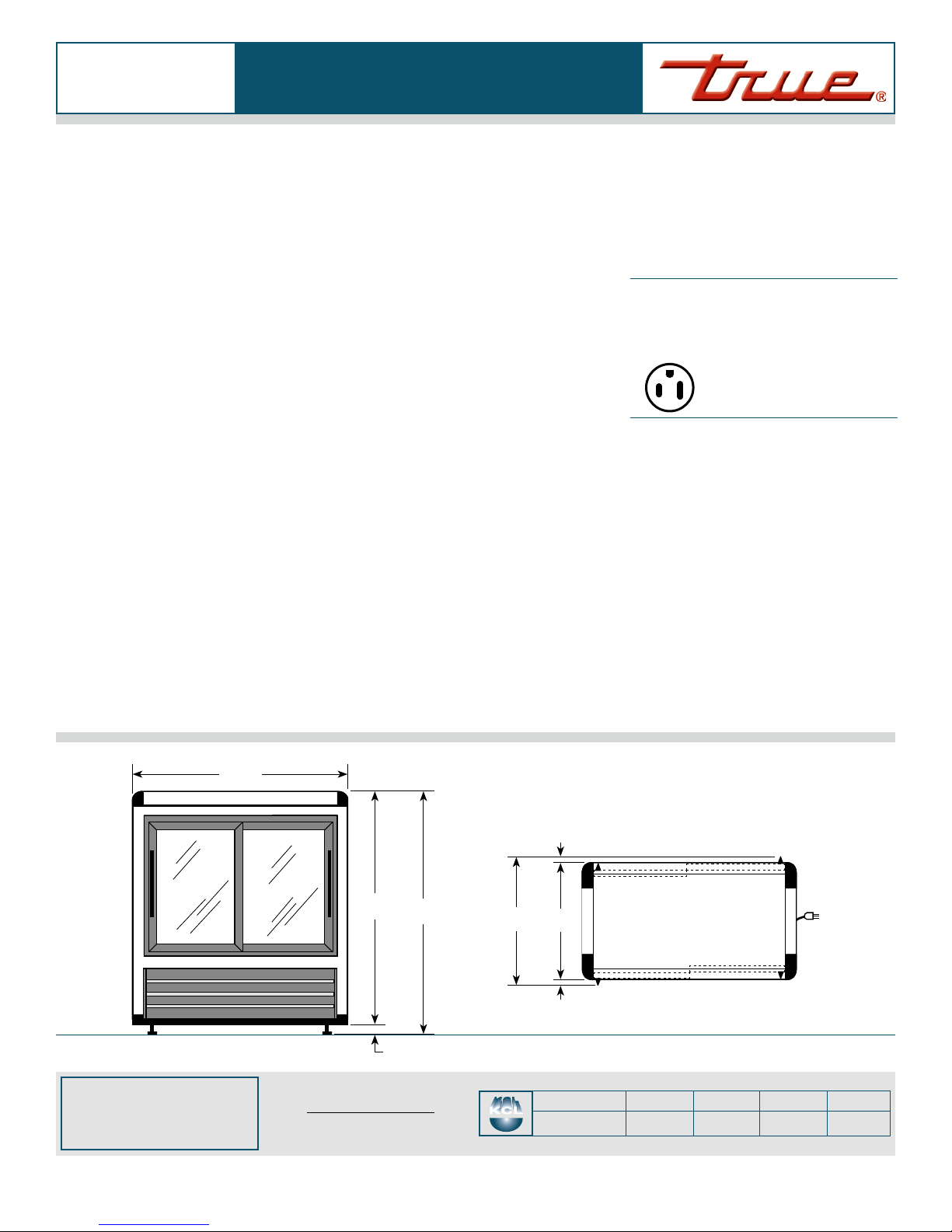

PLAN VIEW
221/16"
(561 mm )
ELEVATION
415/8"
(1058 mm )
361/8"
(918 mm )
3915/16"
(1015 mm )
111/16"
(43 mm )
3/4"
(20 mm )
