True GDM-49RL User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
GDM-49RL
GDM-49RL
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-49RL 2fr/
2bk
49
1388
854
1/8
1375
323/8
823
785/8
1998
1/2
1/2
115/60/1
230-240/50/1
10.6
5.4
5-15P
▲
9
2.74
595
270
†Depth does not include 11/8" (29 mm) for front door handles. ▲ Plug type varies by country.
Rear doors are solid/swing with recessed handles.
6/07
Glass Door Merchandiser:
Rear Load Swing Door Refrigerator
The world’s #1 manufacturer of
glass door merchandisers.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
Exterior and rear doors - non-peel
or chip white laminated vinyl;
durable and permanent.
Interior - attractive, NSF
approved, white aluminum
interior liner with 300 series
stainless steel floor.
Self closing doors. Positive seal,
torsion type closure system.
“Low-E”, double pane thermal
insulated glass front door
assemblies with extruded
aluminum frames.
Patented integrated door light
(IDL) system for brighter, shadow
free illumination.
Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.
Bottom mounted units feature
”No stoop” lower shelf to
maximize product visibility.
Storage on top of cabinet.
Easily accessible condenser coil
for cleaning.
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
GDM-49RL TFAY03E TFAY14S TFAY14P TFAY143
GDM-49RL
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in
an attractive merchandiser that brilliantly
displays packaged food and beverages.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give
True merchandisers a more efficient low
velocity, high volume airflow design. This
unique design ensures faster temperature
pull down of warm product, colder holding
temperatures and faster recovery in high use
situations.
• Bottom mounted condensing unit positioned
for easy maintenance. “No stoop”
lower shelf maximizes visibility by raising
merchandised product to higher level.
CABINET CONSTRUCTION
• Exterior - non-peel or chip white laminated
vinyl; durable and permanent.
• Interior - attractive, NSF approved, white
aluminum liner with 300 series stainless steel
floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of
sign options available.
DOORS
• Front doors - “Low-E”, double pane thermal
insulated glass door assemblies with extruded
aluminum frames. The latest in energy
efficient technology.
• Rear doors - non-peel or chip white
laminated vinyl exterior with white
aluminum interior liners.
• Each front door fitted with 12" (305 mm)
extruded aluminum handle.
• Each rear door fitted with recessed handle.
• Self closing doors. Positive seal, torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Eight (8) adjustable, heavy duty PVC coated
wire shelves 249/16"L x 221/8"D (624 mm x
562 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
LIGHTING
• Safety shielded fluorescent interior lighting.
Front doors utilize full-length, patented,
integrated door light (IDL) system.
• Cabinet lighting utilizes electronic ballast and
T-8 bulbs for brighter illumination, longer
bulb life and increased energy efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• See our website www.truemfg.com for latest
color and sign offerings.
• Convenient clean-out drain built in cabinet
floor.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒Black exterior.
❒Rosewood exterior.
❒Stainless steel exterior.
❒Black aluminum interior liner with
black shelving.
❒Stainless steel interior liner.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒2
1/2" (64 mm) diameter castors.
❒ 4" (102 mm) diameter castors.
❒Red wine thermostat.
❒Chocolate thermostat.
❒White wine thermostat.
❒Padlocks (front doors only).
❒ Wine racks
❒ Additional shelves.
❒TrueTrac4 gravity feed organizers.
❒1
1/4" (32 mm) pricing strips.
❒ Remote cabinet (condensing unit supplied
by others; system comes standard with
404A expansion valve ad requires R404A
refrigerant), consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
Glass Door Merchandiser:
Rear Load Swing Door Refrigerator

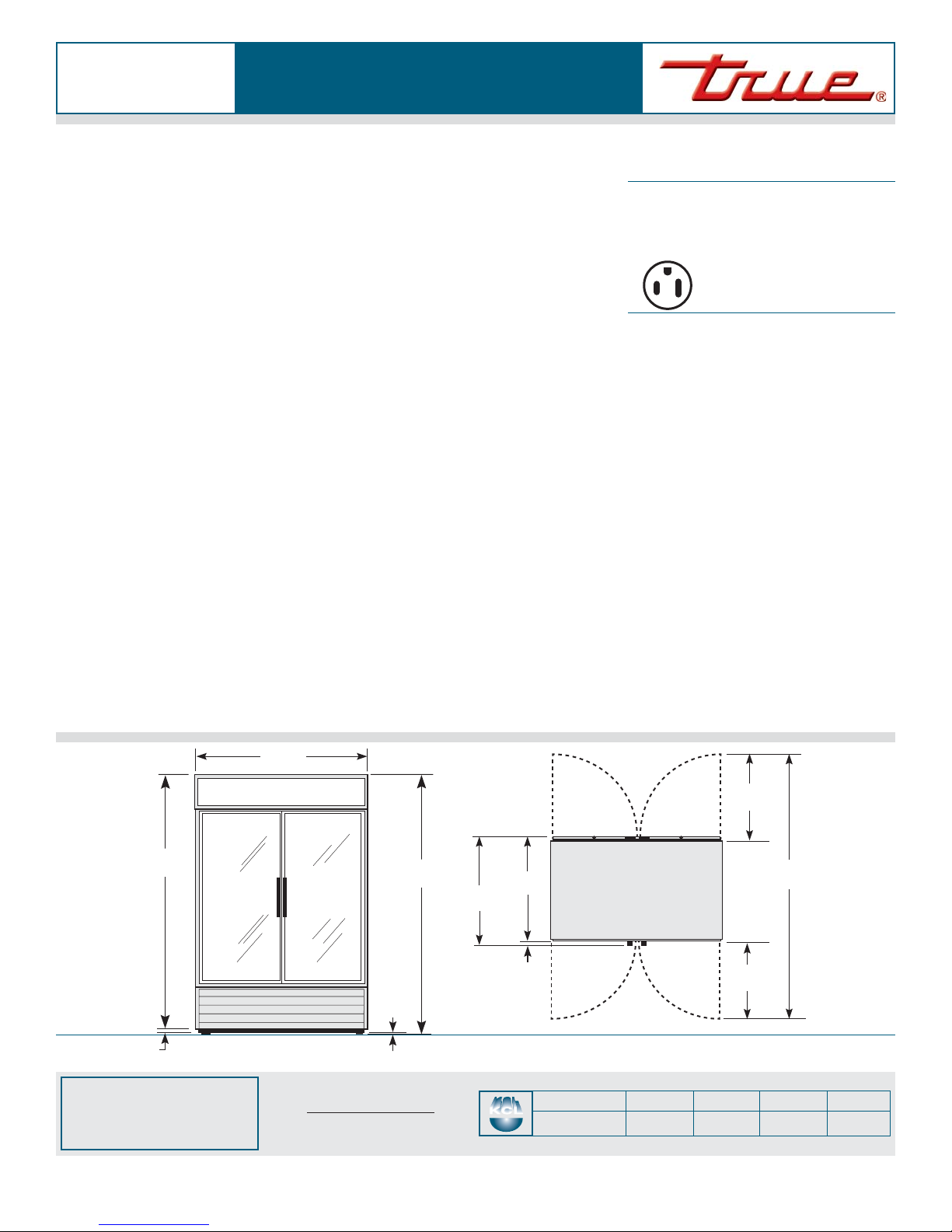

ELEVATION PLAN VIEW
541/8"
(1375 mm)
3211/32"
(822 mm)
337/16"
(850 mm)
7615/16"
(1955 mm)
13/8"
(35 mm)
785/8"
(1998 mm)
5/16"
(8 mm)
1 3/32"
(28 mm)
8223/32"
(2102 mm)
2415/16"
(634 mm)
2731/32"
(711 mm)
