True TVM-400 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TVM-400
TVM-400
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TVM-400 1 14.8 4 247/8
632
241/2
623
785/8
1998
1/3
1/3
115/60/1
230-240/50/1
6.0
2.6
5-15P
▲
9
2.74
265
121
†Depth does not include 1/8" (4 mm) for door handle. ▲ Plug type varies by country.
9/07
Glass Door Merchandiser:
Swing Door Refrigerator
The world’s #1 manufacturer of
glass door merchandisers.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
Exterior - non-peel or chip black
laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,
white aluminum interior liner with
300 series stainless steel floor.
Self closing door. Positive seal,
torsion type closure system.
“Low-E”, double pane thermal
insulated glass door assembly
with extruded aluminum frame.
The latest in energy efficient
technology.
Patented integrated door light (IDL)
system for brighter, shadow free
illumination.
Entire cabinet structure is foamed-
in-place using high density, CFC
free, polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility.
Storage on top of cabinet.
Easily accessible condenser coil for
cleaning.
®
R
Pending

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TVM-400
TVM-400
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
and lower utility costs in an attractive
merchandiser that brilliantly displays
packaged food and beverages.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades gives True merchandisers a more
efficient low velocity, high volume airflow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
• Bottom mounted condensing unit positioned
for easy maintenance. “No stoop”
lower shelf maximizes visibility by raising
merchandised product to higher level.
CABINET CONSTRUCTION
• Exterior - non-peel or chip black laminated
vinyl, durable and permanent.
• Interior - attractive, NSF approved,
white aluminum liner with 300 series
stainless steel floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of
sign options available.
DOOR
• “Low-E”, double pane thermal insulated
glass door assembly with extruded
aluminum frame. The latest in energy
efficient technology.
• Door fitted with 12" (305 mm) long
extruded handle.
• Self closing door. Positive seal, torsion
type closure system.
• Magnetic door gasket of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable (narrow gap), heavy
duty PVC coated wire shelves 205/8"L x
161/2"D (524 mm x 420 mm). Four (4)
chrome plated shelf clips included per
shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
LIGHTING
• Safety shielded fluorescent interior
lighting. Door utilizes full-length,
patented, integrated doors light (IDL)
system.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Convenient clean-out drain built in
cabinet floor.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒White exterior.
❒Rosewood exterior.
❒Stainless steel exterior.
❒Black aluminum interior liner with
black shelving.
❒Stainless steel interior liner.
❒21/2" (64 mm) diameter castors.
❒Red wine thermostat.
❒White wine thermostat.
❒Chocolate thermostat.
❒Barrel locks (factory installed).
❒Additional shelves.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
115/60/1
NEMA-5-15R
Glass Door Merchandiser:
Swing Door Refrigerator

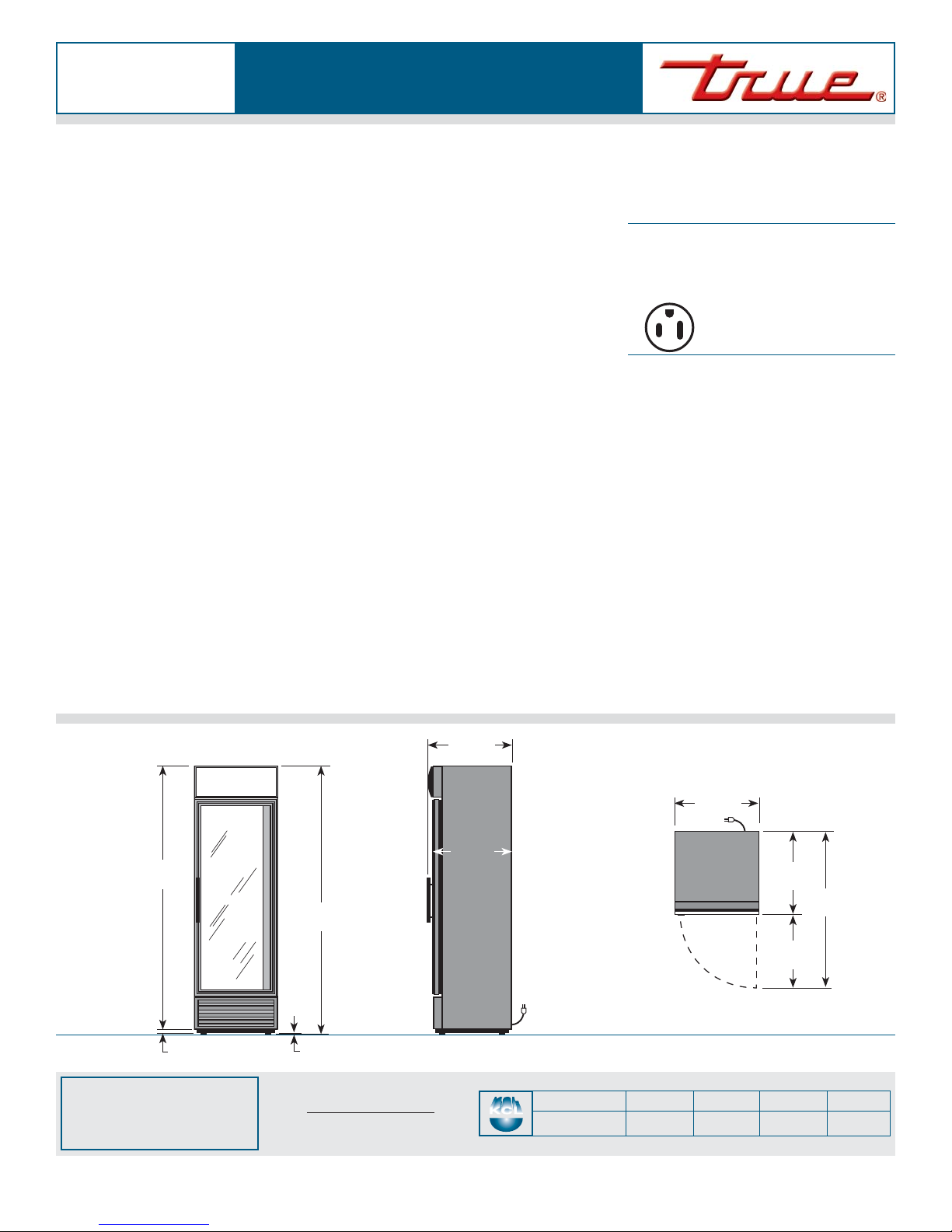

ELEVATION PLAN VIEW
789/16"
(1996 mm)
763/8"
(1940 mm)
5/16"
(8 mm)
2413/16"
(631 mm)
461/16"
(1170 mm)
2111/16"
(551 mm)
17/8"
(48 mm)
RIGHT VIEW
2413/32"
(620 mm)
231/32"
(585 mm)
243/8"
(620 mm)
