True GDM-69FC User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
GDM-69FC
GDM-69FC
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD†H
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
GDM-69FC 3 69
1954
678
1/8
1985
295/8
753
793/8
2017
1/2
1/2
115/60/1
230-240/50/1
12.0
6.9
5-15P
▲
9
2.74
625
284
†Depth does not include 3/8" (10 mm) for door handles. ▲Plug type varies by country.
4/05
The world’s #1 manufacturer of glass
door merchandisers.
Oversized and balanced refrigeration
system, factory sealed and pre-
lubricated for long life. Designed to
accommodate a broad range of floral
temperature settings, holds 35°F (1.6°C).
Exterior - non-peel or chip black
laminated vinyl; durable and
permanent.
Interior - attractive, NSF approved,
black aluminum interior liner with 300
series stainless steel floor.
Self closing doors. Counter-balanced
weight system for smooth, even
positive closing.
“Low-E”, double pane thermal glass
door assemblies. The latest in energy
efficient technology.
Adjustable, heavy duty black PVC
coated shelves.
Special interior agro lighting designed
for flowers to prevent premature
discoloration.
Illuminated sign panel.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility.
Storage on top of cabinet.
Easily accessible condenser coil for
cleaning.
Glass Door Merchandiser:
Floral Case
Shown with optional True Stripe sign.

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
GDM-69FC TFAY02E TFAY02S TFAY02P TFAY023
GDM-69FC
DESIGN
• True’s commitment to using the highest
quality materials and refrigeration
systems provides the user with better
product temperatures, and lower utility
costs in an attractive merchandiser that
brilliantly displays high profit floral
arrangements.
• True’s floral merchandisers offer interior
agro lighting combined with a baffled
airflow design which creates the ideal
environment to prolong fresh flower
shelf life.
• Brilliant black exterior and interior with
product accentuating black shelves
further entice customers to purchase high
profit floral arrangements.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
• Oversized and balanced refrigeration
system, factory sealed and pre-lubricated
for long life. Designed to accommodate
a broad range of floral temperature
settings, holds 35°F (1.6°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True merchandisers a more
efficient low velocity, high volume
airflow design.
• Baffled airflow provides even air
distribution for longer shelf life of fresh
flowers.
• Bottom mounted condensing unit
positioned for easy maintenance; “No
stoop” lower shelf maximizes visibility by
raising merchandised product to higher
level.
CABINET CONSTRUCTION
• Exterior - non-peel or chip black
laminated vinyl; durable and permanent.
• Interior - attractive, NSF approved, black
aluminum interior liner with 300 series
stainless steel floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety
of sign options available.
DOORS
• “Low-E”, double pane thermal glass door
assemblies with mitered plastic channel
frame. The latest in energy efficient
technology.
• Self closing doors. Counter-balanced
weight system for smooth, even positive
closing.
• Doors fitted with 12" (305 mm) long
black PVC handles.
SHELVING
• Six (6) adjustable, heavy duty black PVC
coated wire shelves 237/8"L x 209/16"D
(607 mm x 523 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
LIGHTING
• Fluorescent interior lighting. Safety
shielded.
• Special interior agro lighting designed
for flowers to prevent premature
discoloration.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒White exterior.
❒Rosewood exterior.
❒Mirrored back.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒21/2" (64 mm) diameter castors.
❒Ratchet locks.
❒White wire shelves.
❒Remote cabinets condensing unit
supplied by others; system come standard
with 404A expansion valve and requires
R404A refrigerant. Consult factory
technical service department for BTU
information.
115/60/1
NEMA-5-15R
PLAN VIEW
Glass Door Merchandiser:
Floral Case
793/8"
(2017 mm)
7615/16"
(1955 mm)
21/8"
(54 mm)
297/8"
(759 mm)
299/16"
(751 mm)
781/8"
(1985 mm)

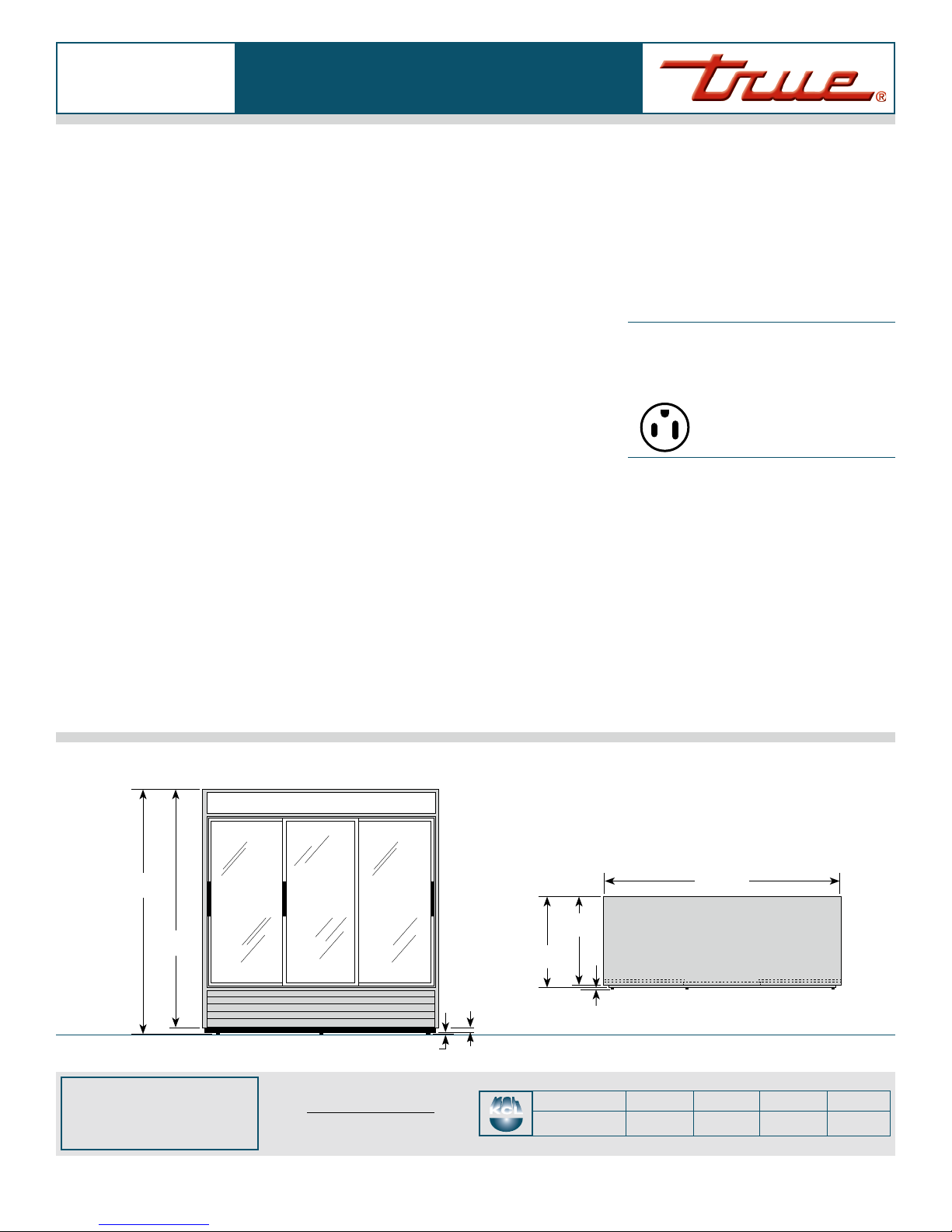

ELEVATION
5/16"
(8 mm)
5/16"
(8 mm)
