G4SM-23-RGS
G4SM-23-RGS
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
G4SM-23-RGS 1 23
652
627
686
297/8
759
785/8
1998
1/2
1/2
115/60/1
230-240/50/1
10.8
5.0
5-15P
▲
9
2.74
405
184
†Depth does not include 11/8" (29 mm) for door handle. ▲Plug type varies by country.
12/05
The world’s #1 manufacturer of glass
door merchandisers.
True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, and
lower utility costs in a unique
merchandiser that creates a dynamic
360° product display.
Exterior - attractive, high luster
copper aluminum finish with black
trim. Illuminated front sign panel.
Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).
Interior - attractive, NSF approved,
white aluminum interior liner with
300 series stainless steel floor.
Door is self closing with a positive
seal, torsion type closure system.
“Low-E”, double pane thermal glass
in door assembly, sides and rear. The
latest in energy efficient technology.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility
Storage on top of cabinet.
Easily accessible condenser coil for
cleaning.”
Glass Door Merchandiser:
Glass Four Sided Refrigerator
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
G4SM-23-RGS TFAY10E TFAY10S TFAY10P TFAY103
G4SM-23-RGS
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in a
stylish merchandiser that creates a dynamic
360° product display.
• Attention commanding- revolving glass
shelves provide high visibility difference for
high profit dessert items.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures of
33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating evaporator
fan motor and larger fan blades give True
merchandisers a more efficient low velocity,
high volume airflow design. This unique
design insures more consistent, colder holding
temperatures and faster recovery in high use
situations.
• Bottom mounted condensing unit positioned
for easy maintenance; “no stoop” lower shelf
maximizes visibility by raising merchandised
product to higher level.
CABINET CONSTRUCTION
• Exterior - attractive, high luster copper
aluminum finish with black trim.
• Glass sides and back - Low-E, double pane
thermal glass door assembly. The latest in
energy efficient technology.
• Interior - attractive, NSF approved, white
aluminum interior liner with 300 series
stainless steel floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior front sign panel. Variety
of sign options available.
DOORS
• “Low-E”, double pane thermal glass door
assembly with extruded aluminum frame.
The latest in energy efficient technology.
• Door fitted with 15" (381 mm) long extruded
handle.
• Self closing door. Positive seal, torsion type
closure system.
• Magnetic door gasket of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• 360° revolving shelf system with 6 non-
adjustable 215/8" (220 mm) diameter round
shelves; 5 tempered glass and 1 tempered
mirrored glass. Mirrored shelf designed to
be used on bottom level.
LIGHTING
• Safety shielded fluorescent interior
lighting. Door utilizes full-length, patented,
integrated door light (IDL) system.
• Cabinet lighting utilizes electronic ballast and
T-8 bulbs for brighter illumination, longer
bulb life and increased energy efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• See our website www.truemfg.com for latest
color and sign offerings.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ Black exterior.
❒ White exterior.
❒ Rosewood exterior.
❒ Black aluminum interior liner.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ 4" (102 mm) diameter castors.
❒ Red wine thermostat.
❒ Chocolate thermostat.
❒ White wine thermostat.
❒ Barrel lock.
❒ True offer’s five versions of the G4SM-23
with a variety of features to increase the
merchandiser’s function and versatility,
allowing it to be customized to your needs.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant. Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
Glass Door Merchandiser:
Glass Four Sided Refrigerator

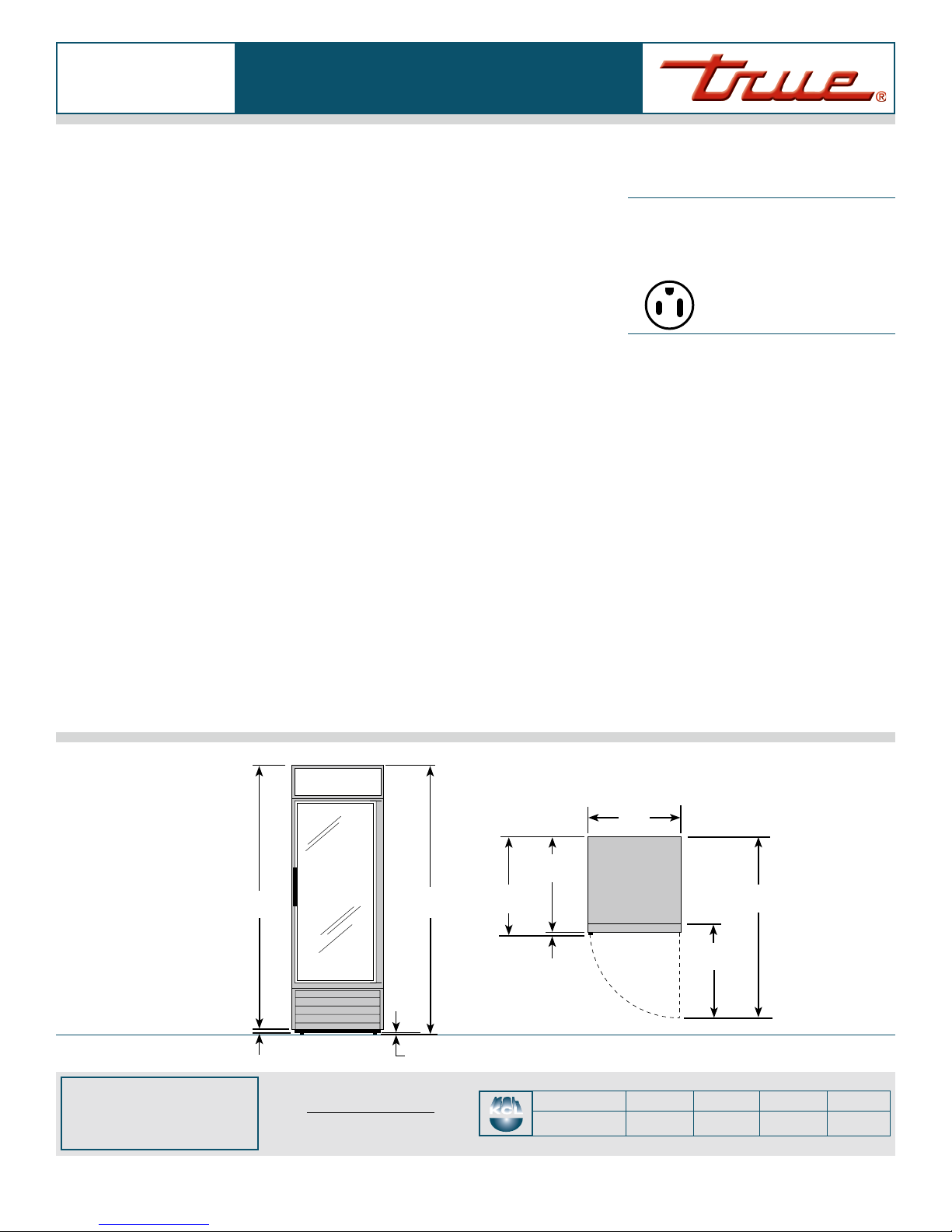

ELEVATION PLAN VIEW
7615/16"
(1955 mm)
785/8"
(1998 mm)
13/8"
(35 mm)
27"
(686 mm)
3029/32"
(786 mm)
2913/16"
(758 mm)
13/32"
(28 mm)
543/4"
(1391 mm)
2415/16"
(634 mm)
5/16"
(8 mm)
