Trust 7230 Easy Connect User manual

7230 Easy Connect
7230 Easy Connect
User's Manual

7230 Easy Connect
Copyright
Without the written consent of the manufacturer it is prohibited to
reproduce or transfer any part of this manual in any format, either
electronically or mechanically, as photocopy or recording,
information or search systems other than for personal use by the
purchaser.
Liability
The manufacturer accepts no liability for any explicit or implicit
guarantees, including but not limited to the guarantees for
saleability and suitability pertaining to a given objective with
respect to the software, the enclosed product manual or manuals
and written documentation and all other hardware included. The
manufacturer reserves the right to modify or improve its product
without prior warning or acknowledgement of any kind to third
parties.
The manufacturer accepts no liability for any ensuing or
accidental damages, including damages resulting in any form of
business or commercial forfeiture on the strength of use of the
product.
All company and product names are trademarks or registered
trademarks of the relevant owners.

7230 Easy Connect
Preface
This manual describes how to install and use the 7230 Easy
Connect scanner. No special knowledge is required.
Conventions used in this manual:
<key> This means pressing a key. The name is shown
between the arrow symbols.
‘System’ This is a specific term from a program. This
contains the terms used by Windows for
example.
[DIR] Text shown in this font has to be keyed in.
Additional information shown as follows:
Note: Switch off the computer before connecting the
scanner.

7230 Easy Connect
Blank page

7230 Easy Connect
Contents
1. Introduction.......................................................................... 1
2. Safety First............................................................................ 3
3. Connecting ........................................................................... 5
4. Installation Software ............................................................ 7
4.1 TWAIN driver and application software.............................. 7
4.1.1 Installation in Windows 3.1x........................................ 7
4.1.2 Installation in Windows 95/Windows NT 4.0................ 8
4.2 Installing iPhoto Plus 4.0................................................. 10
5. Working with One-Click Easy Go ! .................................... 13
6. Working with iPhoto Plus 4.0 ............................................ 17
6.1 One-off installation.......................................................... 17
6.2 Scanning with iPhoto Plus 4.0 ......................................... 18
7. Working with TextBridge Classic ...................................... 23
7.1 One-off Setting................................................................ 23
7.2 Scanning with TextBridge Classic.................................... 26
8. Troubleshooting................................................................. 27
Appendix A: Specifications ................................................... 31

7230 Easy Connect
Blank Page

7230 Easy Connect
1
1. Introduction
The 7230 Easy Connect is a flatbed scanner for originals in A4
format. The scanner has power-saving features and automatic
power switch on and switch off.
The scanner is suitable for use in an office environment
combined with an AT-compatible computer running under
Windows 95, Windows NT or Windows 3.1x. Connecting to your
computer is a simple procedure, as the scanner is connected to
the printer port. The printer in turn is connected to the special port
on the scanner, so you can print as normal.
Note: The scanner does NOT work under DOS, O/S2 or an
Apple Macintosh computer, you need to use Windows
3.1x, Windows 95 or Windows NT on a PC.
Contents of the box
•Scanner;
•This User Manual;
•Scanner cable;
•CD-ROM with application software (the manual for the
software is on the CD-ROM);
•CD-ROM with iPhoto Plus 4.0;
•Disks with TWAIN drivers;
•Alternating current (AC) adaptor.
Contact your dealer if any item is missing.

7230 Easy Connect
2
System requirements
•MS Windows 3.1 or higher;
•MB RAM (16 MB recommended);
•Hard disk with at least 20MB free;
•Graphics board which can display at least 256 colours (16.8
million recommended);
•Mouse;
•CD-ROM drive.
As a result of enhancements to the product, diagrams shown in
this manual may differ from those shown on your screen.

7230 Easy Connect
3
2. Safety First
Read the following instructions carefully:
1. Remove the plugs from the sockets before cleaning the
device. Do not use liquid cleaning agents or spray cans.
Wipe down the device with a damp cloth.
2. Never use the device in damp conditions such as bathrooms,
damp cellars, swimming pools, and so forth.
3. Make sure there is nothing on the power cable. Do not place
the device where the cable may be subject to wear and tear
or become damaged.
4. Never insert any objects into the grooves on the outside of
the device, as you may touch hazardous voltage points or
components. This can cause a fire or severe electric shocks.
5. Never attempt to repair the device yourself. If you open or
remove the housing, you may accidentally touch parts
carrying a voltage. You will also be running other risks. This
device can only be maintained by specially trained staff.
6. Remove the plug from the socket under the following
conditions only, and have the device repaired by specially
trained staff:
•the cable of the plug is damaged or worn;
•liquid has ended up in the device;
•the device has been in contact with rain or water;
•the device is not working normally;
•the device has fallen or the housing is damaged;
•the device is clearly performing poorly;

7230 Easy Connect
4
Blank Page

7230 Easy Connect
5
3. Connecting
Proceed as follows to connect the scanner to your PC:
1. Switch off the PC and all the peripherals connected (for
example the monitor and the printer).
2. Unplug the various cables from the PC and note their
position.
3. Remove the interface cable from the scanner box, connect it
to the host port on the scanner and screw the plug tight. (see
figure 1, connector A).
4. Connect the other end of the cable to the printer connection
on the computer. If a printer is already connected,
disconnect the printer cable from the computer. Then
connect your printer to the printer connection on the scanner
(see figure 1, connector B). Screw the plugs home.
5. Connect the alternating current (AC) adapter to the adapter
port (see figure 1, connector C). Your scanner is ready for
use. The scanner is automatically switched on and off, which
is why it does not have an on/off switch.

7230 Easy Connect
6
Figure 1: Connecting the scanner to the PC
A Host connection on the scanner
B Printer connection
C Adapter connection
D Computer printer connection

7230 Easy Connect
7
4. Installation Software
4.1 TWAIN driver and application software
4.1.1 Installation in Windows 3.1x
1. Start Windows.
2. Insert the CD-ROM supplied with the application in your CD-
ROM drive and insert disk 1 in drive A. It is assumed in the
examples that the letter ‘D’ has been assigned to your CD-
ROM station on your computer. If your computer is using a
different letter, for example ‘E’, replace ‘D’ by ‘E’.
3. In ‘Program manager’ select ‘File’ and then the option ‘Run’.
Figure 2: Installation in Windows 3.1x

7230 Easy Connect
8
4. Type the command line A:\run. Then press <Enter>.
Figure 3: Installation in Windows 3.1x
5. In the menu select the language you want to use and follow
the instructions on screen during installation.
6. Now select the CD-ROM drive and follow the instructions on
screen.
7. Select a directory to which the software is to be installed,
preferably ‘C:\MSCAN’.
8. The installation window (figure 6) appears. Here you can
select which applications are to be installed. You are advised
to select all applications.
9. Click ‘Next’ and follow the instructions on screen.
4.1.2 Installation in Windows 95/Windows NT 4.0
1. Start Windows.
2. Place the CD-ROM supplied with the application in your CD-
ROM drive and insert disk 1 into drive A.
3. Click the mouse on the start button and select ‘Run’.

7230 Easy Connect
9
Figure 4: Installation in Windows 95 and Windows NT
4.0
4. Type [A:\run] in the command line (see figure 5). Then press
<Enter>.
Figure 5: Installation Windows 95 and Windows NT 4.0
5. In the menu select the language you want to use and follow
the instructions on screen for installation.
6. Now select your CD-ROM drive which is usually ‘D:\’ and
follow the instructions on the screen.

7230 Easy Connect
10
7. Select the directory in which the software is to be installed,
preferably in ‘C:\MSCAN’.
8. Installation window (figure 6) appears. Here you can select
the applications to install. You are advised to select all
applications.
9. Click ‘Next’ and follow the instructions on screen.
Figure 6: Installation of TWAIN driver and application
software
4.2 Installing iPhoto Plus 4.0
iPhoto Plus 4.0 is a very user-friendly program for scanning and
editing images. For example, you can use it to create postcards
and calendars in a simple manner. iPhoto Plus 4.0. is suitable for
Windows 3.1x, 95 and NT.
Note: First close down all outstanding applications.
Otherwise, iPhoto Plus 4.0 cannot be installed!

7230 Easy Connect
11
Note: The ‘iPhoto Plus 4.0 Tour’ is also supplied. This
demonstration explains step-by-step what you can
actually do with the program.
1. Place the iPhoto Plus 4.0 CD-ROM in your CD-ROM drive.
On most systems with Windows 95 or Windows NT, the
installation program will start automatically within 30
seconds.
2. If the installation program starts automatically, proceed with
step 5.
3. If the installation program does not start automatically, click
the mouse on the ‘Start’ button and select the ‘Run’ option
for Windows 95/ NT 4.0 or ‘File’ and ‘Run’ for Windows 3.1x.
4. Type [D:\setup] on the command line. Then press <Enter>.
5. Select the language you want to use and follow the
instructions on screen. Follow the instructions for standard
installation.
6. At the end of installation you are asked whether you want to
follow the iPhoto Plus Tour, a sort of demonstration of the
features of the program. You are advised to follow this tour.

7230 Easy Connect
12
Blank Page

7230 Easy Connect
13
5. Working with One-Click Easy Go !
‘One-click Easy Go !’ is a program which allows you to readily
edit images such as photos and text from a single menu.
Note: Before you can scan, the scanner has to warm up for
a few minutes as otherwise the images come out too
dark.

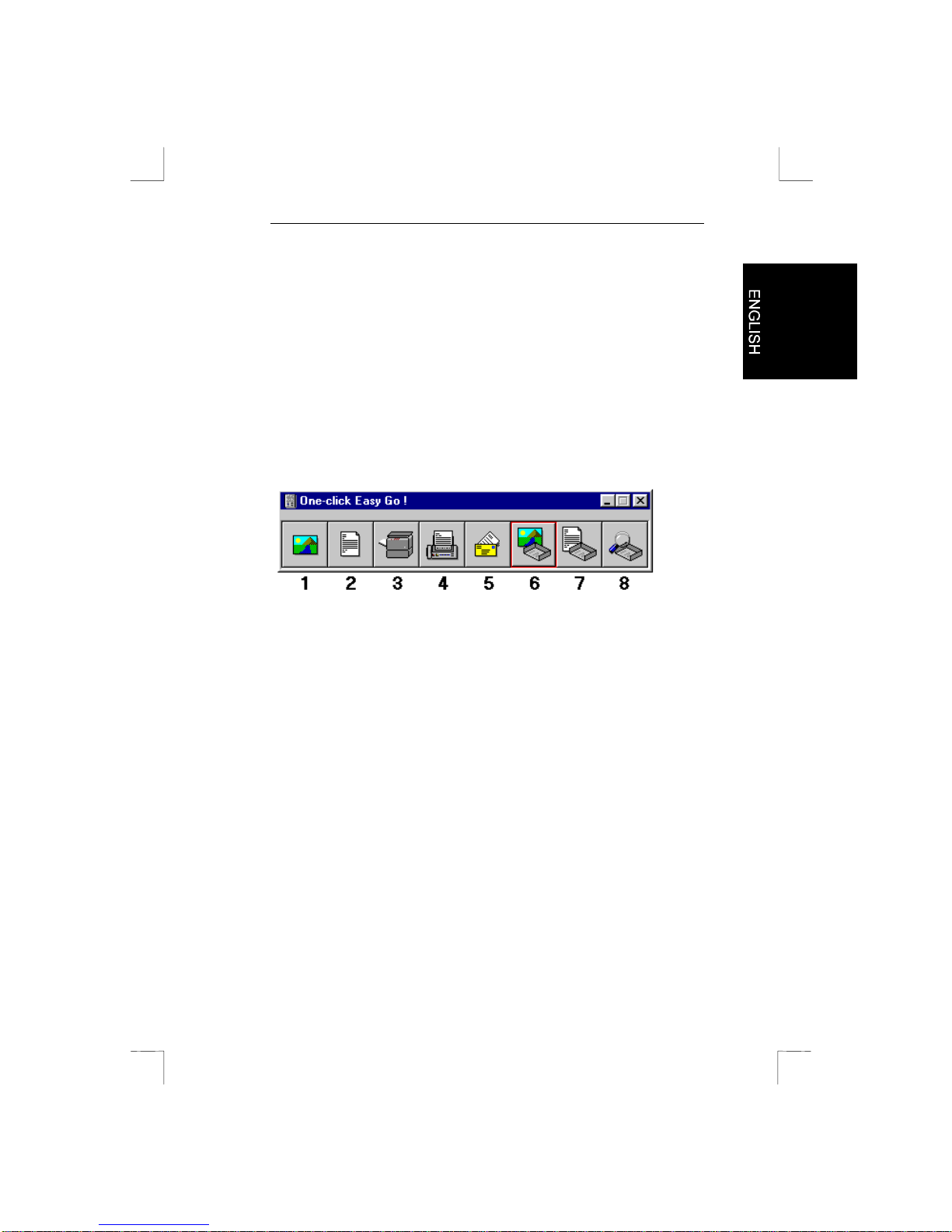

Figure 7: One-click Easy Go !
Use of the icons:
1. Scanning and editing photos;
2. Scanning and identifying text (OCR, Optical Character
Recognition);
3. Copying a document;
4. Faxing a document;
5. Sending as E-mail;
6. Scanning an image document;
7. Scanning a text document;
8. Viewing the ’Inbox’.

7230 Easy Connect
14
1. Scanning and processing photos
Scanning in and then editing an image. See figure 8.

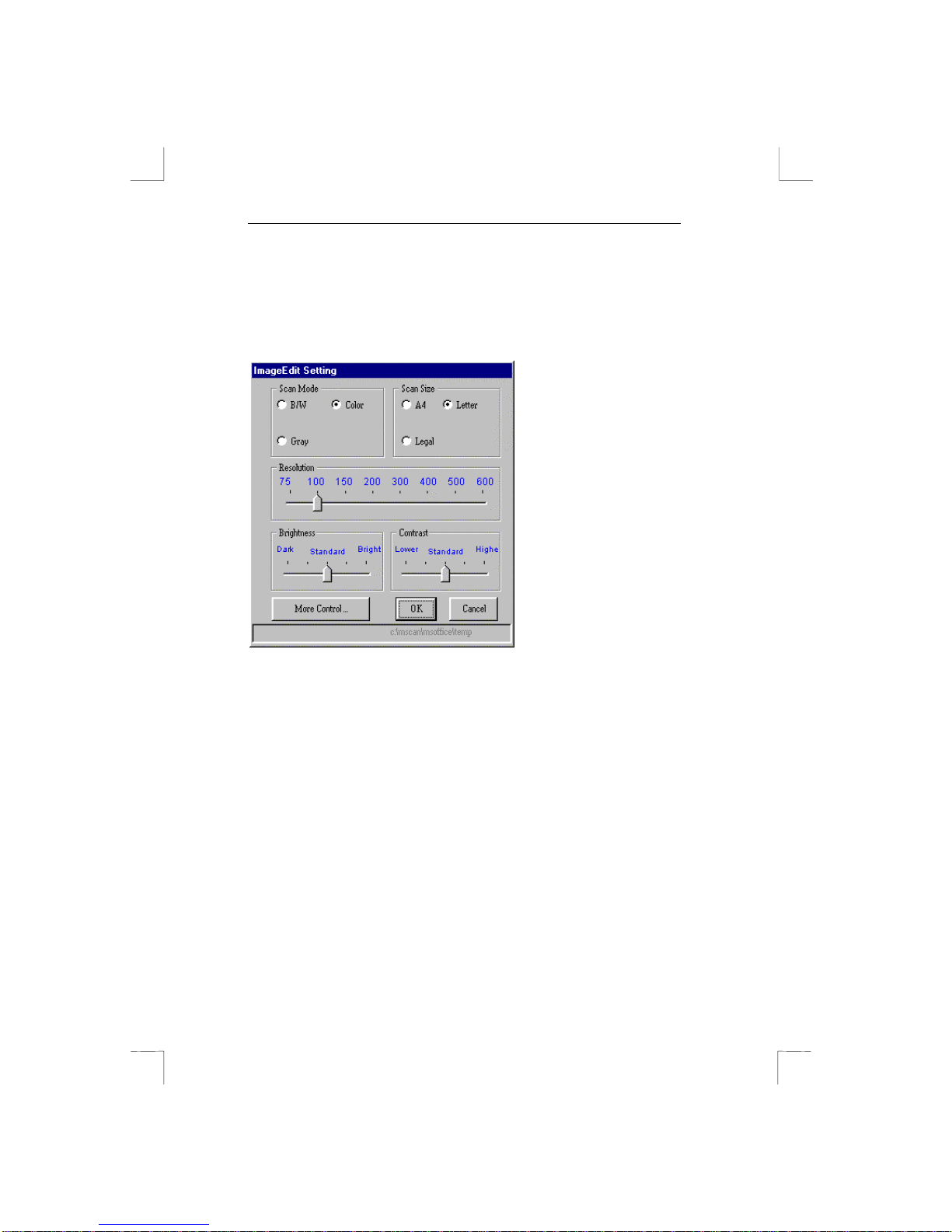

Figure 8: Selection window for One-click Easy Go !
The ‘ImageEdit Setting’ window contains various settings for
scanning. For example, if you are going to scan a dark or light
image you can change the brightness and contrast settings in
advance.
If you want to scan with more than 600 dpi’s (dots per inch) you
can change this by clicking on the ‘More Control’ button.
2. Scanning and identifying text
Scanning in and then editing a piece of text. In the ‘TextEdit’
window you can change the settings for scanning text, such as
resolution and scan size.
