Truvox valet tub vac User manual

03-8193-0000 Issue 5 07-13
ORIGINAL INSTRUCTIONS
CAUTION – READ THESE INSTRUSTIONS BEFORE USING THE MACHINE
Valet Tub Vac
Commercial Vacuum Cleaner
USER MANUAL EN

Truvox International
31-702
Introduction
The following instructions contain important information
about the machine and safety advice for the operator.
Equipment must be operated, serviced and maintained in
accordance with the manufacturer’s instructions. If in doubt
contact the supplier of your machine.
Read all instructions before using
the machine
Product information
This vacuum cleaner is designed for the collection of dust in
indoor areas. This machine is for indoor use only. The
machine is intended for commercial use, for example in
hotels, schools, hospitals, factories, shops, offices, rental
businesses and other than normal housekeeping purposes.
Technical Specifications
IMPORTANT SAFETY ADVICE
The safety information described in this manual provides
basic precautions and supplements standards in force in the
country where the machine is used.
This symbol warns the operator of hazards and
unsafe practices which could result in severe
personal injury or death.
WARNING – to reduce the risk of injury, electric
shock or fire.
1. This machine must only be used for the manufacturer’s
approved application as described in this manual.
2. Operators must be fully trained in the use of the machine
in accordance with these instructions, able to perform
regular user maintenance and the correct selection of
accessories.
3. Only genuine accessories and spare parts provided with
the machine or those approved by the manufacturer
should be used. All repairs must be performed by a
qualified service agent.
4. Do not use without filters or dust bags in place.
5. Do not modify the machine from its original design.
6. This machine is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the machine by a person responsible
for their safety.
7. Keep children and unauthorised persons away from the
machine when in use. Do not use as a toy.
8. The machine must be kept clean and in good condition
with regular inspections of the power supply cord and
plug for signs of any damage. If any parts are damaged
they shall only be replaced by an approved part by the
manufacturer, its service agent or a similar qualified
person in order to avoid a hazard.
9. CAUTION - This machine is for dry indoor use only and
should not be used or stored outdoors in wet conditions.
10. DO NOT use where hazardous dust is present.
11. DO NOT use in an explosive atmosphere.
12. DO NOT pick up or use near flammable or combustible
fluids, dusts or vapours.
13. DO NOT use to pick up moisture or any liquids.
14. DO NOT use to clean up any burning or lighted materials
such as cigarettes, matches, ashes or other combustible
objects.
15. DO NOT use the appliance to vacuum tiny particles like
cement or plaster dust as this will shorten life of the
motors.
16. Take care when using a machine near the top of stairs to
avoid overbalancing.
17. DO NOT put any object into openings. DO NOT use with
any opening blocked; keep free of dust, debris and
anything that may reduce airflow.
18. Keep hair, loose clothing, hands, feet and all other parts
of the body away from openings and moving parts.
19. This machine should always be connected to a fully
earthed power supply of the right voltage and frequency.
20. DO NOT leave the machine connected to the electricity
supply when not in use; always remove the plug from the
socket outlet. DO NOT leave machine running
unattended.
21. Switch off the machine before removing the plug.
22. When unplugging, pull the plug, not the supply cord.
23. The plug of the power supply cord must be removed
from the socket-outlet when not in use and before
commencing cleaning of the machine or undertaking
maintenance operations.
24. DO NOT pull or carry by the supply cord. DO NOTuse
cord as a handle, close door on cord or pull cord around
sharp edges or corners.
Model Valet Tub Vac
Voltage AC (~)/
Frequency V/ Hz 220-240/50
Construction class II
Protection class IP 20
Vacuum motor power W 1400
Vacuum mmwg/kPa 1730/17
Productivity rate m²/h 232
Airflow rate l/s 35
Filtration 4-stage (including HEPA 10
filter)
01lyticapaC
Sound noise dB(A)
Dimensions (L x W x H) cm 51 x 35 x 35
5.8gkthgieW
Hose length m 1.9
Cable length m 10
raey1ytnarraW
Waste Electrical & Electronic Equipment
(WEEE)
Do not dispose of this device with unsorted
waste. Improper disposal may be harmful to the
environment and human health. Please refer to
your local waste authority for information on
return and collection systems in your area.
EC DECLARATION OF CONFORMITY
Machine Type: Commercial vacuum cleaner
Model:VTV…
This machine is in conformity with the following EU directives:
Machinery Directive: 2006/42/EC
The EMC Directive: 2004/108/EC
Applied harmonised standards:
EN60335-1, EN60335-2-69, EN55014-1, EN55014-2,
EN610003-2, EN610003-3, EN62233
Truvox International Limited
Third Avenue, Millbrook
Southampton, SO15 0LE, Malcolm Eneas
Hampshire, England Operations Manager
Southampton, 11/07/2013
LpA:72±3;LwA:82±3
Vibration m/s² ≤2.5

Truvox International
3 07-13
25. WARNING: Keep the power supply cord clear of moving
parts. During operation hazard may occur when running
the machine over the power supply cord.
26. DO NOT kink or twist the power cord and keep cord
away from heated surfaces.
27. DO NOT operate switches or touch the mains plug with
wet hands as this may cause electric shock.
28. The power supply cord plus any extension leads should
not exceed 30 metres in total. The cross section of an
extension cable wiring must be at least 2.5mm².
Transporting the machine
Incorrect lifting techniques may result in personal injury. We
advise that the manual handling regulations are followed.
Carefully wrap the power cord and store in dry indoor
location. Do not expose the machine to rain or moisture. Lift
the machine by the carrying handle to transport.
UK Model only
The cord is equipped with a 13 amp fuse. If replacing fuse,
use a 13 amp fuse confirming to BS1362. Do not use the
machine if fuse cover is missing.
After sales service
Truvox machines are high quality machines that have been
tested for safety by authorised technicians. It is always
apparent that after longer working periods, electrical and
mechanical components will show signs of wear and tear or
ageing. To maintain operational safety and reliability the
following service interval has been defined: Every year or
after 250 hours. Under extreme or specialised conditions
and/or insufficient maintenance, shorter maintenance
intervals are necessary. Use only original Truvox spare
parts. Use of other spare parts will invalidate all warranty and
liability claims. Should you require after sales service please
contact the supplier from whom you purchased the machine,
who will arrange service. Repairs and servicing of Truvox
products should only be performed by trained staff. Improper
repairs can cause considerable danger to the user.
Guarantee
Your product is guaranteed for one year from the date of
original purchase, or hire purchase, against defects in
materials or workmanship during manufacture. Within the
guarantee period we undertake at our discretion, to repair or
replace free of charge to the purchaser, any part found to be
defective, subject to the following conditions:
CONDITIONS
1. Claims made under the terms of the guarantee must be
supported by the original invoice/bill of sale issued at the
time of sale, or the machine Serial No.
2. For claims under this guarantee contact the supplier from
whom you purchased the product who will arrange the
appropriate action. Do not initially return the product as
this could result in transit damage.
3. Neither Truvox nor its distributor shall be liable for any
incidental or consequential loss.
4. This guarantee is governed by the laws of England.
5. This guarantee does not cover any of the following:
Periodic maintenance, and repair or replacement
of parts due to normal wear and tear.
Damage caused by accident, misuse or neglect, or
the fitting of other than genuine Truvox parts.
Defects in other than genuine Truvox parts, or
repairs, modifications or adjustments performed by
other than a Truvox service engineer or authorised
service agent.
Costs and risks of transport relating directly or
indirectly to the guarantee of this product.
Consumable items such as, brushes, drive discs,
filters and vacuum skirts.
This guarantee does not affect your statutory rights, or
your rights against the supplier arising from their sales or
purchase contract. Truvox International Limited policy is
one of continual product development and we reserve the
right to alter specifications without prior notice.
Recommended Spares & Accessories
Fault diagnosis
The following simple checks may be performed by the operator:
* If the fuse blows several times, the machine should be checked by an authorises Service Agent
Part No. Item
96-0107-0000 Cord Assembly
20-0192-0000 HEPA Filter + Pre Filter (inclusive of HEPA Holder + 1 x HEPA 13 filter + 5 x Vac inlet filter)
20-0174-0000 Cloth Filter
20-0172-0000 Dust bag (Pack of 10)
20-0168-0000 Hose
20-0169-0000 Telescopic wand
RD270 Floor tool
DS-076 Crevice tool
Trouble Reason Remedy
Machine not working Lack of voltage/electrical supply

Check fuse *, supply cord, plug and socket
outlet
Loss of suction Bag full
Blocked hose or wand
Motor not working

Replace bag
Remove obstruction
Contact supplier
Motor is not running Broken switch
Defective power cord
Defective motor

Contact supplier

Truvox International
4 07-13
1
2
3
4
5
1
2
1
2
3

Truvox International
5 07-13
1
2
3
4
4
5

Truvox International
6 07-13
1
2
3
4
1
3
4
5
6
7
2

Truvox International
7 07-13
8
9
10
1
2
3

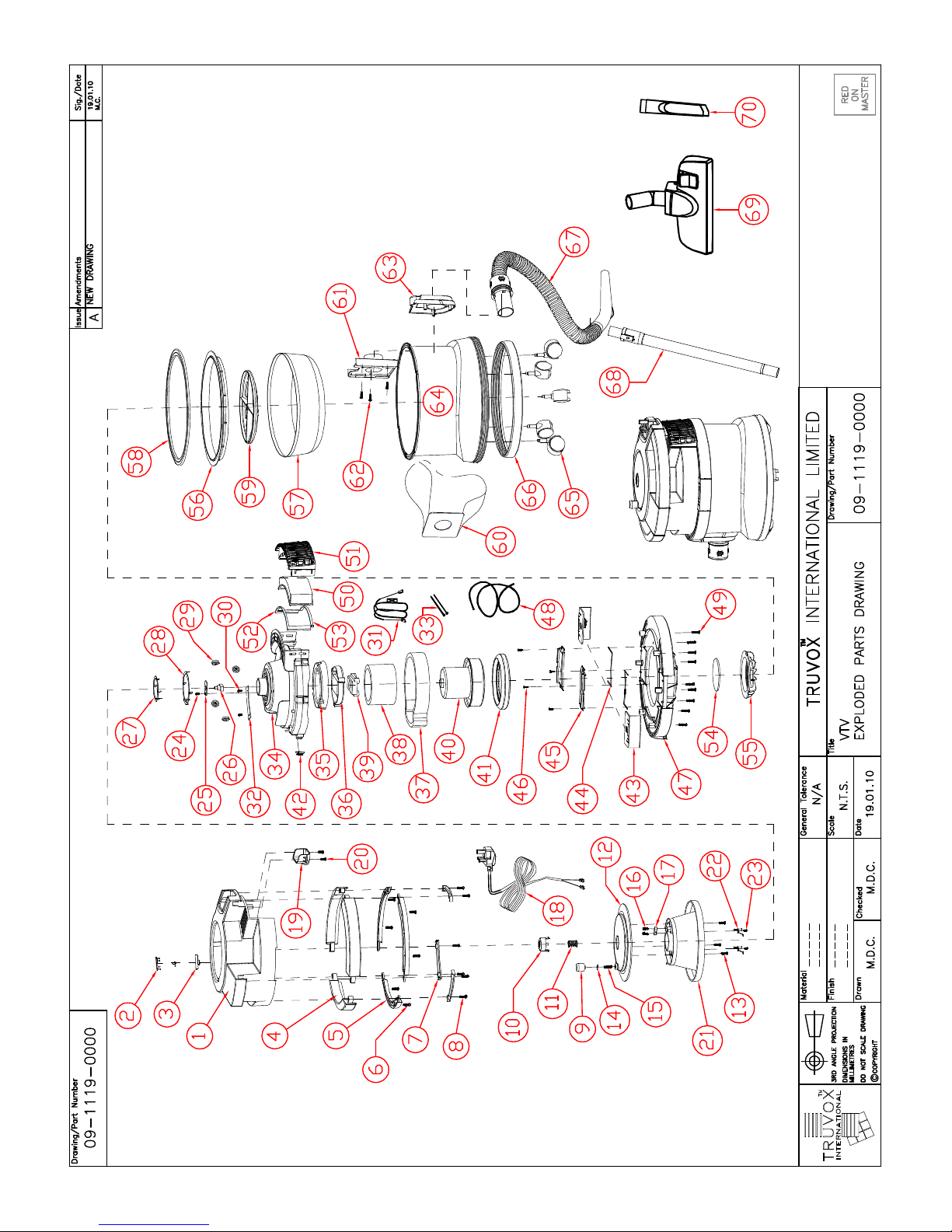

Drawing
Ref. Part Number DESCRIPTION Qty Per
1 96-0137-0000 Top Cover 1
2 96-0101-0000 Lamp Cover 1
3 96-0102-0000 Lamp Holder 1
4 96-0147-0000 Handle 3
5 96-0139-0000 Handle Cover 3
6 PBT 4*12 Self Tapping screw 6
7 96-0148-0000 Handle Plate 3
8 PBT 4*16 Self Tapping screw 6
9 96-0103-0000 Cord Rewinder Crank 1
10 96-0104-0000 Switch Button 1
11 96-0105-0000 Switch Button Spring 1
12 96-0146-0000 Upper Cord Rewinder 1
13 PBT 4*16 Self Tapping screw 3
14 Washer 1
15 PBT 4*16 Self Tapping screw 1
16 PBT 4*12 Self Tapping screw 2
17 96-0141-0000 Cord Plate 2
18 96-0107-0000 Cord Assembly 1
19 96-0108-0000 Cord Outlet 1
20 PBT 4*12 Self Tapping screw 2
21 96-0149-0000 Lower Cord Rewinder 1
22 96-0109-0000 Touching Plate 2
23 PWA 3*8 Self Tapping Screw 2
24 PBT 3*8 Self Tapping Screw 1
25 96-0110-0000 Switch Plate 1
26 96-0111-0000 Switch 1
27 96-0112-0000 Inside Copper Loop 1
28 96-0113-0000 Outside Copper Loop 1
29 96-0114-0000 Idler Wheel (4 per in Kit) 1
30 PA 3*8 Self Tapping Screw 2
31 96-0115-0000 Inside Cord Assembly 1
32 96-0116-0000 PCB Assembly 1
33 96-0117-0000 Wiring Loom 2
34 96-0143-0000 Upper Motor Housing 1
35 96-0118-0000 Motor Damping Pad 1
36 96-0119-0000 Motor Holder 1
39 96-0122-0000 Motor Supporting Bead 1
40 96-0123-0000 Motor 1
41 96-0124-0000 Motor Sealing Ring 1
42 96-0125-0000 Lead Outlet Seal Ring 1
43 96-0126-0000 Dust Tank Link Buckle (2 per in kit) 1
44 96-0127-0000 Seal Ring (2 per in kit) 1
Spare Parts List
Model Ref.:- VTV
SERIES C (Serial Numbers 06806 Onwards)
Ref. Drawing 09-1119-0000 Issue B Dated 06th December 2010
Spare Parts List Issue 3 Dated 04th-July-2013

Drawing
Ref. Part Number DESCRIPTION Qty Per
45 96-0128-0000 Cover Link Buckle (2 per in kit) 1
46 KA 3*10 Self Tapping Screw 4
47 96-0144-0000 Lower Motor Housing 1
48 96-0129-0000 Seal Strip 1
49 PBT 4*20 Self Tapping Screw 9
50 20-0192-0000 Hepa Holder & 1xH13 filter and 5xVac
inlet filter 1
51 96-0150-0000 Air Outlet Grid 1
52 96-0151-0000 Seal Ring Air Outlet 1 1
53 96-0152-0000 Seal Ring Air Outlet 2 1
54 20-0192-0000 Hepa Holder & 1xH13 filter and 5xVac
inlet filter 1
55 96-0133-0000 Filter Holder 1
56
57
58
59
60 20-0172-0000 Dust Bags (Packs of 10) 1
61 96-0134-0000 Bag Holder and suction port 1
62 PBT 4*16 Self Tapping screw 3
63 96-0134-0000 Bag Holder and suction port 1
64 96-0153-0000 Dusk Tank 1
65 96-0135-0000 Universal Wheel (5 per in kit) 1
66 96-0154-0000 Bumper Strip 1
67 20-0168-0000 Hose Assembly 1
68 20-0169-0000 Telescopic Tube 1
69 RD270 Floor Brush 1
70 DS-076 Crevice Tool 1
20-0174-0000 Filter Bag and Frame 1

Truvox International
07/13
Electrical Diagram
M
220-240V AC
SUPPLY
VOLTAGE
SWITCH
