Tubz Vending Tower User manual

1

2
Contents of your order ……………….. 3
Assembling tower with black stand ……………….. 4
Optional Sticker placement ……………….. 8
Opening the machine ……………….. 11
Cardboard Backings ……………….. 14
Adjusting the twist motion ……………….. 15
Operating the machine ……………….. 16
Replacing the plastic segments ……………….. 18

3

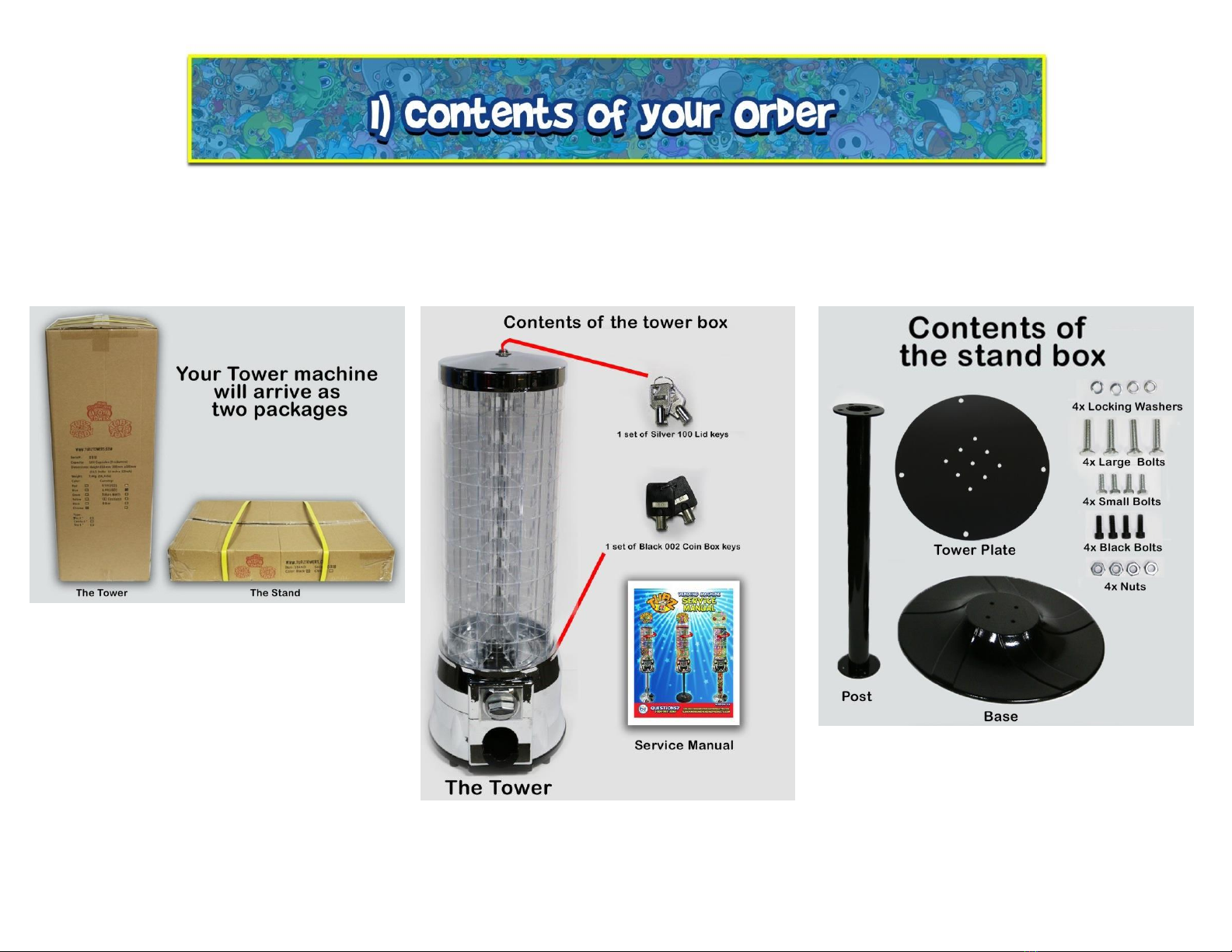

Each tower is shipped as two boxes the
large tower box and the smaller stand box.
Open each of the boxes and inventory
each of the parts before starting assembly
to ensure all parts have arrived.
The larger tower box contains the Tubz
Vending Tower, a set of Silver 100 Lid Keys,
and a set of Black 002 Coin Box Keys. Note:
Some tower units will arrive pre-stickered
The smaller stand box includes the post, the
base, the tower plate, 4x large bolts, 4x small
bolts, 4x black bolts, 4x nuts, and 4x locking
washers.

4
Step 1:
Start by standing the post up so that the 4 square holes are facing up
toward you.
Step 2:
Flip the base upside down and lay it on
top of the post making sure to line the
square holes up with the holes on the
base.

5

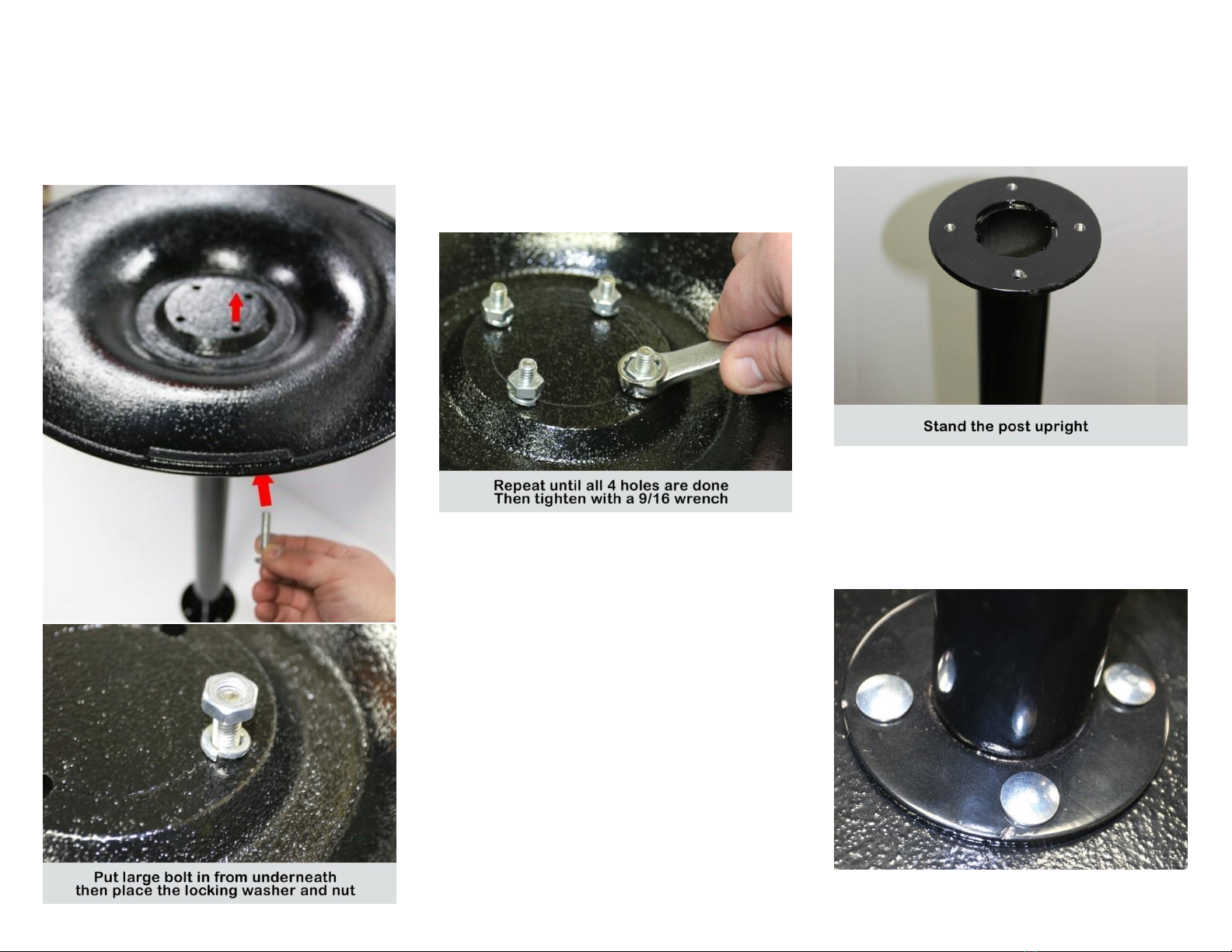

Step 3:
Place the Large Bolt in from underneath
then place on the Locking Washer and
one nut
Step 4:
Place on the Locking Washer and Nut
then tighten with a 9/16 wrench. Repeat
3 more times into all 4 Large Bolts are
secure
Step 5:
Now flip the post and stand it upright
Note: The Large bolt should fit flush into
the square hole and lay flush on top of
the base.

6

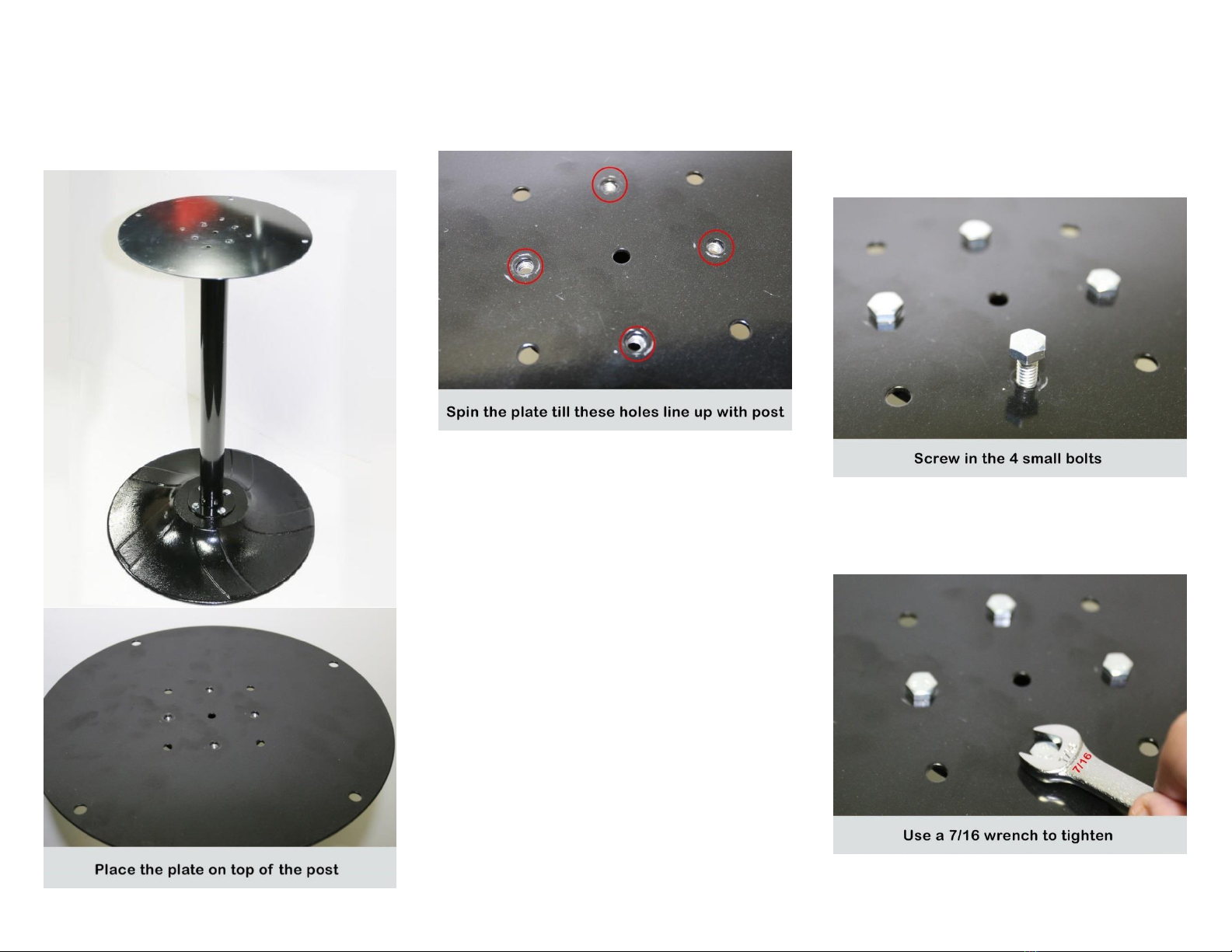

Step 6:
Place the tower plate on top of the post
Note: May have to spin the tower plate to
line up with the following holes
Step 7:
Once the holes are aligned screw in the 4
small bolts into the tower plate
Tighten them with a 7/16 wrench

7

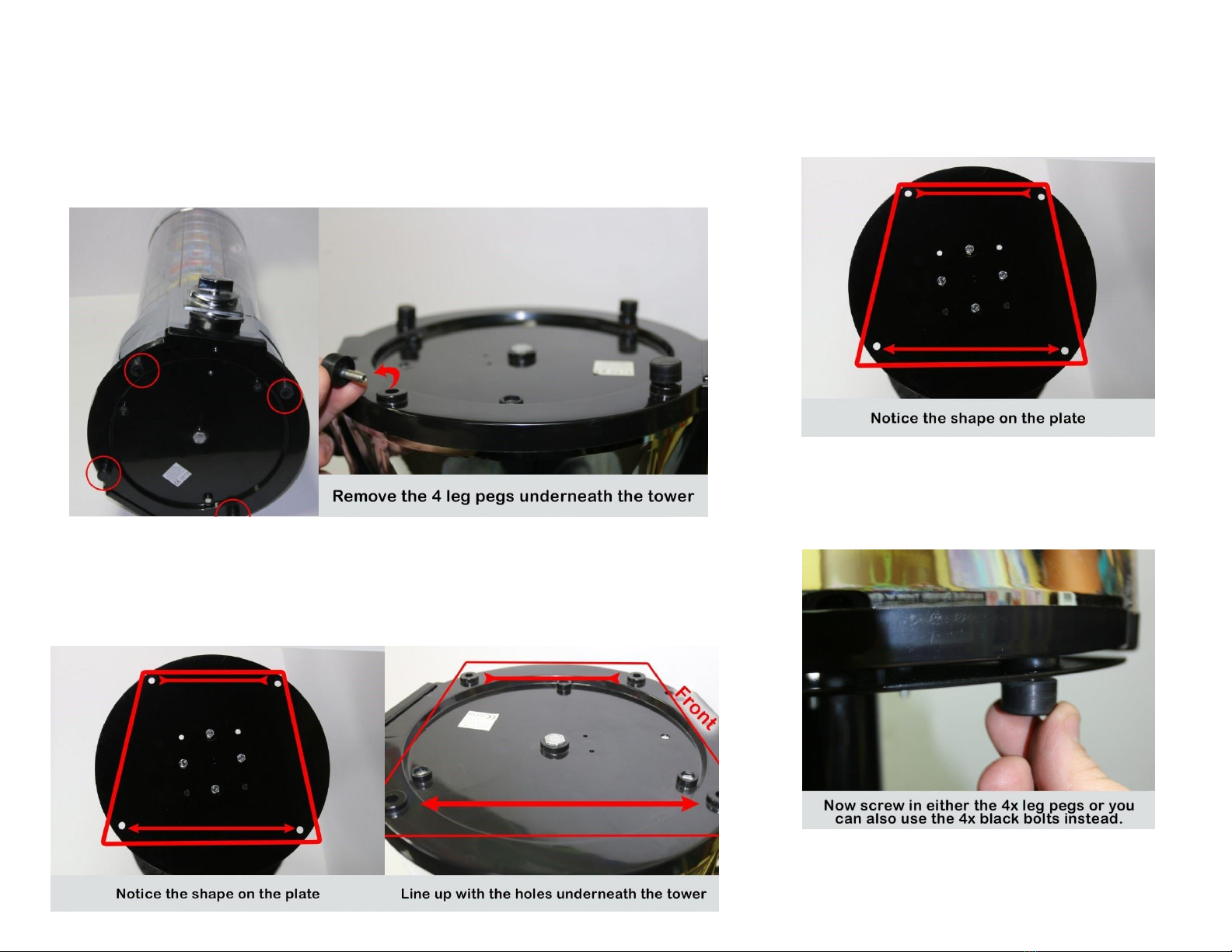

Step 8:
Underneath the tower machine are four rubber leg pegs. These are when your
machine is to be used on the counter top with no post. If you are using the
post remove the four rubber leg pegs and set them aside, we will be using
them again shortly.
Note: Notice the Shape that the legs holes are in with two holes closer
together then the other two holes. This Is important because the machine will
only fit onto the post in certain direction. So, spin the tower until the holes are
aligned
Step 9:
Now place the machine on top of the posts
aligning the holes mentioned in step 8
Now you can fasten the machine to the post
using either the 4x rubber leg pegs you removed
in Step 8. Alternatively, you can use the 4x black
bolts the choice is yours
Note: Before fully securing the tower to the tower
plate please make sure to hold on to machine
securely

8
Step 1:
Tubz will provide you a full set of stickers for your machine
Note: Some Towers will arrive pre-stickered
Step 2:

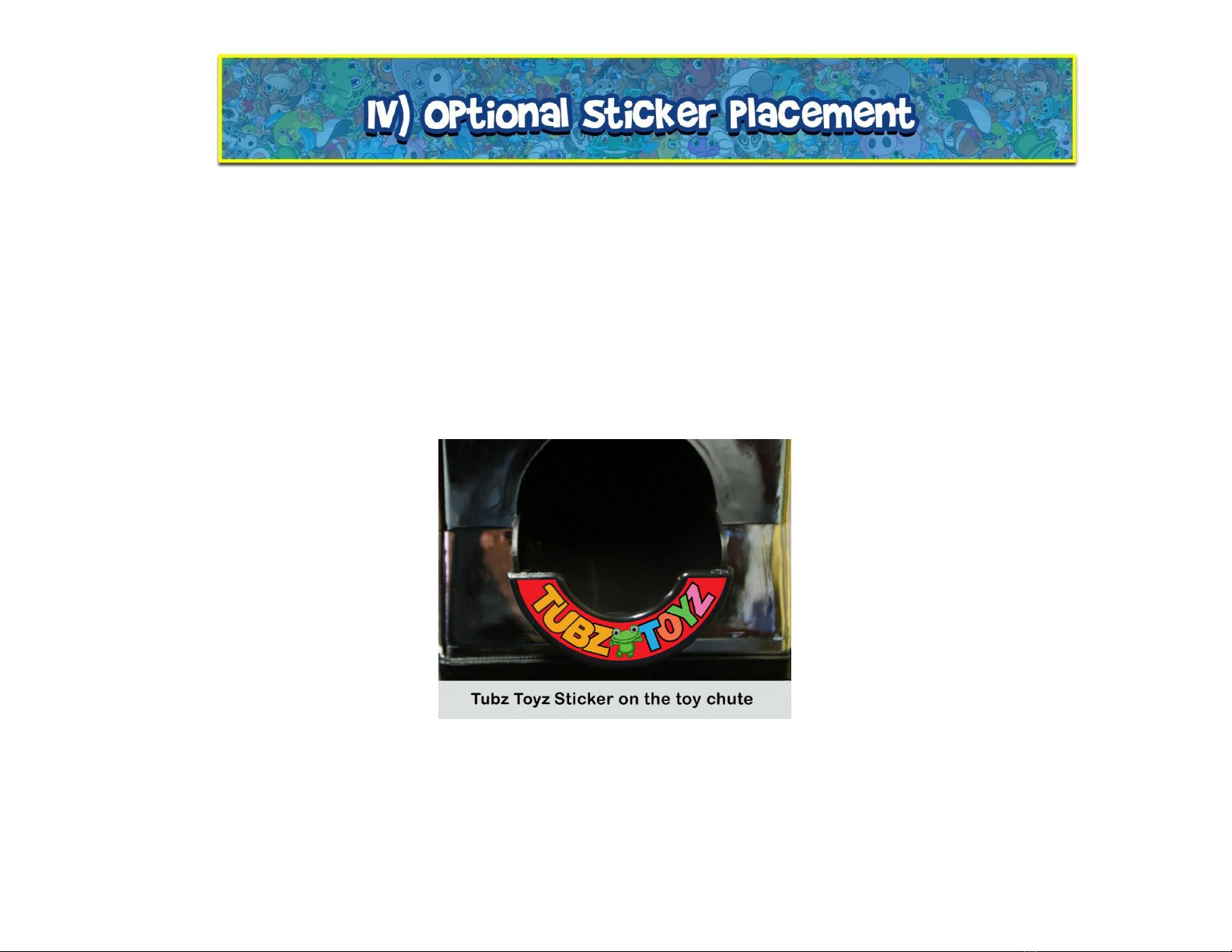

The following are the recommended sticker placements. Please also see Stickers guide Sheet.
Tubz Toyz Tower

9
Place the brand stickers on each side of the machine lining up the middle of the sticker to the seam in photo
The www.ilovetubz.com stickers are placed on the front of each machine between the segments and the coin mech.

10
The 2x Insert £1turn twice stickers are placed on each side of the front mechanism align the bottom of the sticker with the
top seam in photo
The 3x lid stickers are placed side by side all the way around the top lid 360 °

11
The Sticker displays for each machine are placed starting from the 4th segment down
All the stickers are now placed!
WARNING! Using the wrong key in the wrong lock may result in key getting stuck! The Silver 100 Lid
Keys are for the Top Lid and the BLACK 002 Coin Box Keys are for the coin box.
Your set of vending machine keys includes 2 Black 002 Coin Box keys and 2 Silver 100 Lid keys.
The silver key is used to open the top of the machine to refill the machine with either toys or more candy. The black key is
used to open the coin box for money the machine has collected.

12

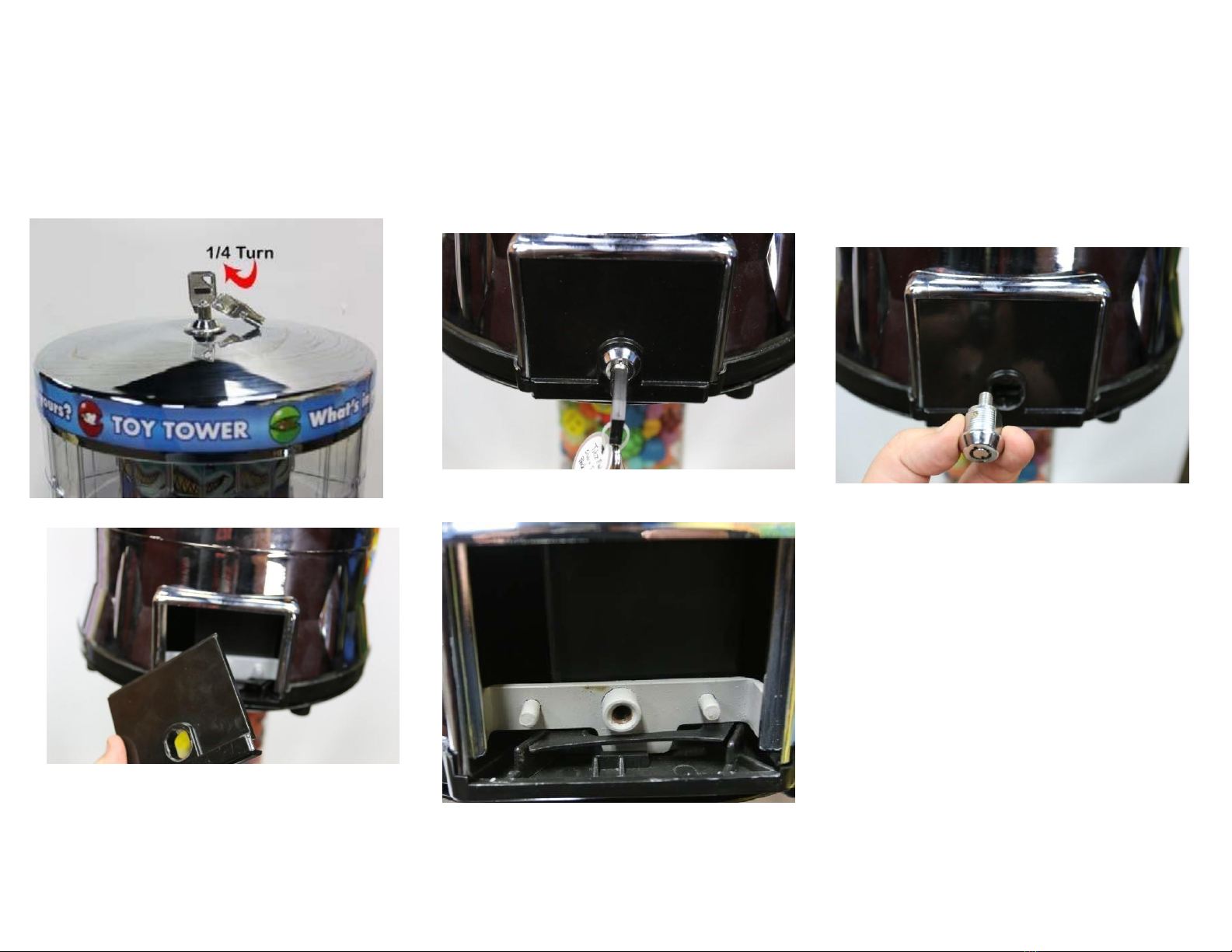

Step 1:
To add more toys simply turn the silver 100
lid key on the tower lid. This lock doesn’t
screw in like a traditional vending
machine. The Silver 100 Lid key only takes
one quarter turn to remove the lid.
Step 2:
To open the coin box, simply unscrew the
lock using the Black 002 Coin Box key.
This lock is a traditional style vending lock
and requires you to turn until it unscrews.
Next remove the cash draw black plate
cover from the machine.
Remove the lock and put to one side

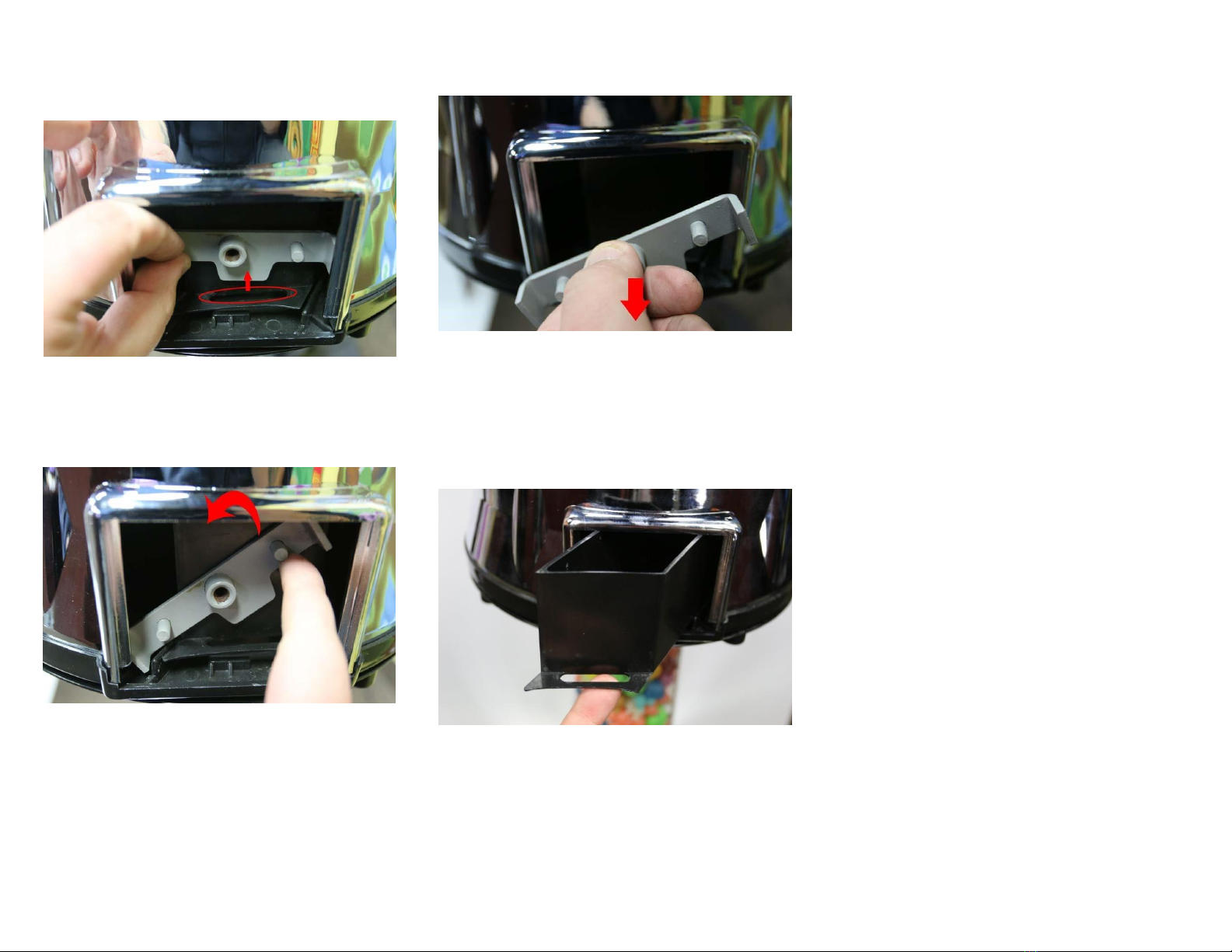

Now remove the silver bar that holds the
coin drawer in place.

13
First lift it up the entire silver bar so that its
lip pops out of hole in the coin drawer.
Next using the 2 small pegs turn the entire
silver bar counter clockwise
Now you can remove the entire silver bar
Once you remove the coins simply slide
the drawer back in pop in the silver bar
and the cash draw black plate cover
and lock it all up.

14
FOR SMALLER 45MM CAPSULES ONLY (Sqwishland size)
Step 1:
Make sure you have the 9x cardboard
backings. The cardboard backings are
double-sided one for candy and one for
toys
Step 2:
Remove the top lid of the tower using
the all silver key. Now place the 9x
cardboard backings into each
machine’s slot.
Note: Notice the lip inside each of the
slots; make sure the backing is behind the
lips so that the toys won’t get caught.
Warning: If cardboard backings
become wet, bent, or damaged they
may cause the machine to not vend
properly

15
Step 1:
Remove the top lid of the tower using the
Silver 100 Lid key a ¼ turn
The black centre lock latch can be
adjusted with a 9/16 wrench this adjusts
the tension of the twist motion of the
tower. So, if it feels loose or tight then its
tension can be adjusted here
Once you loosen the bolt a little no need
to completely remove
Grab onto all the plastic sections and pull
down to add tension to the twist to
choose action. If loosening the tension,
no need to push down just unscrew the
initial bolt a little to release the tension
If loosening the tension, no need to push
down just unscrew the initial bolt a little to
release the tension
Replace the lid and lock the top lid of the
tower using the Silver 100 Lid key a ¼ turn

16

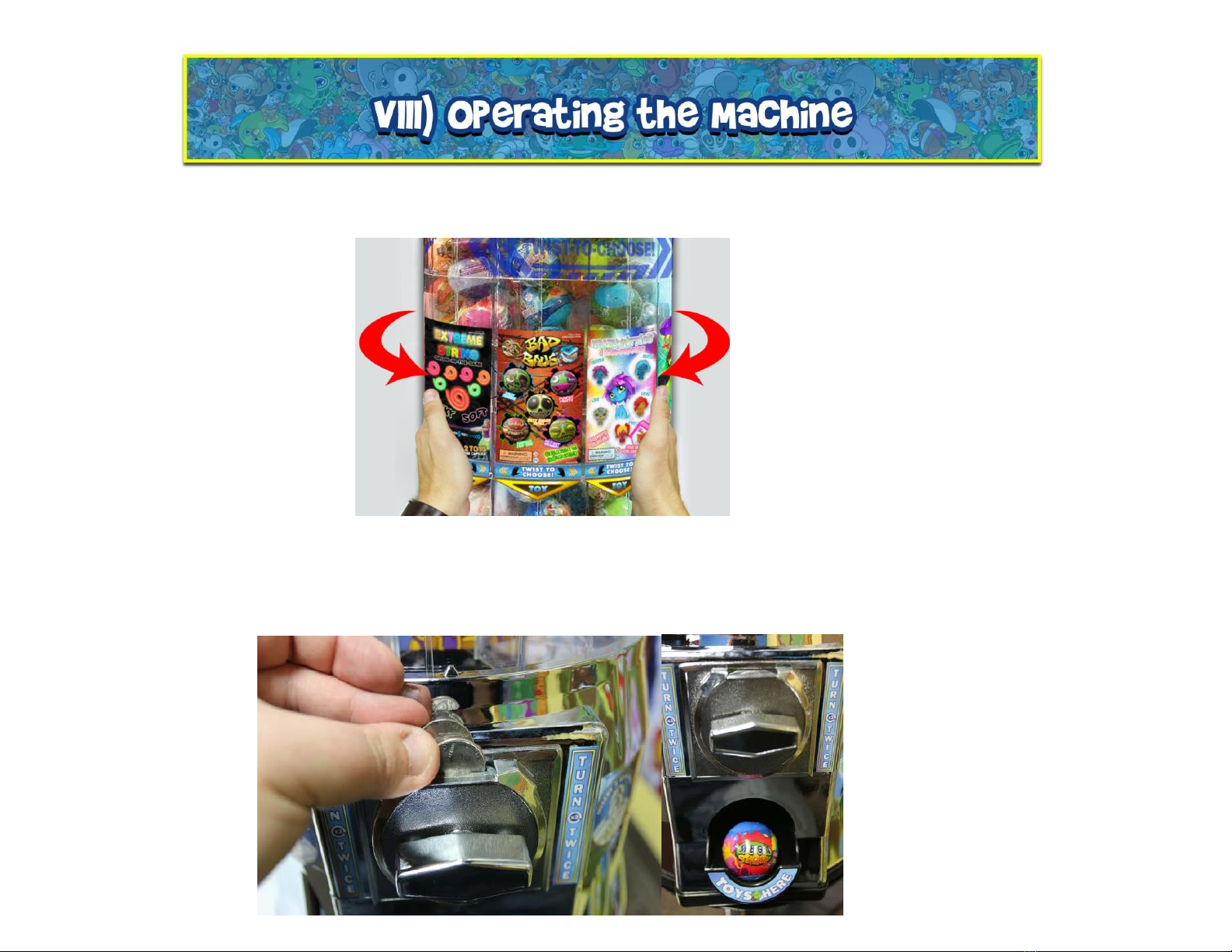

Step 1: To use the machine all you must do is grab it with both hands and turn it. You want to align the product with the
coin mechanism. The product that is lined up is the product that will vend.
Step 2: Now that you have chosen the selection that you want. Insert the £1 coin into the Coin Mech. The Sweet / toy
Tower is currently set up to Vend for £1.00 you must first place the coin in the slot at the top of the coin mech then turn the
handle clockwise.

17
Step 1:
Remove the top lid of the tower using the
Silver 100 Lid key a ¼ turn
Step 2:
Use a 9/16 wrench to remove the black
centre part.
Step 3:

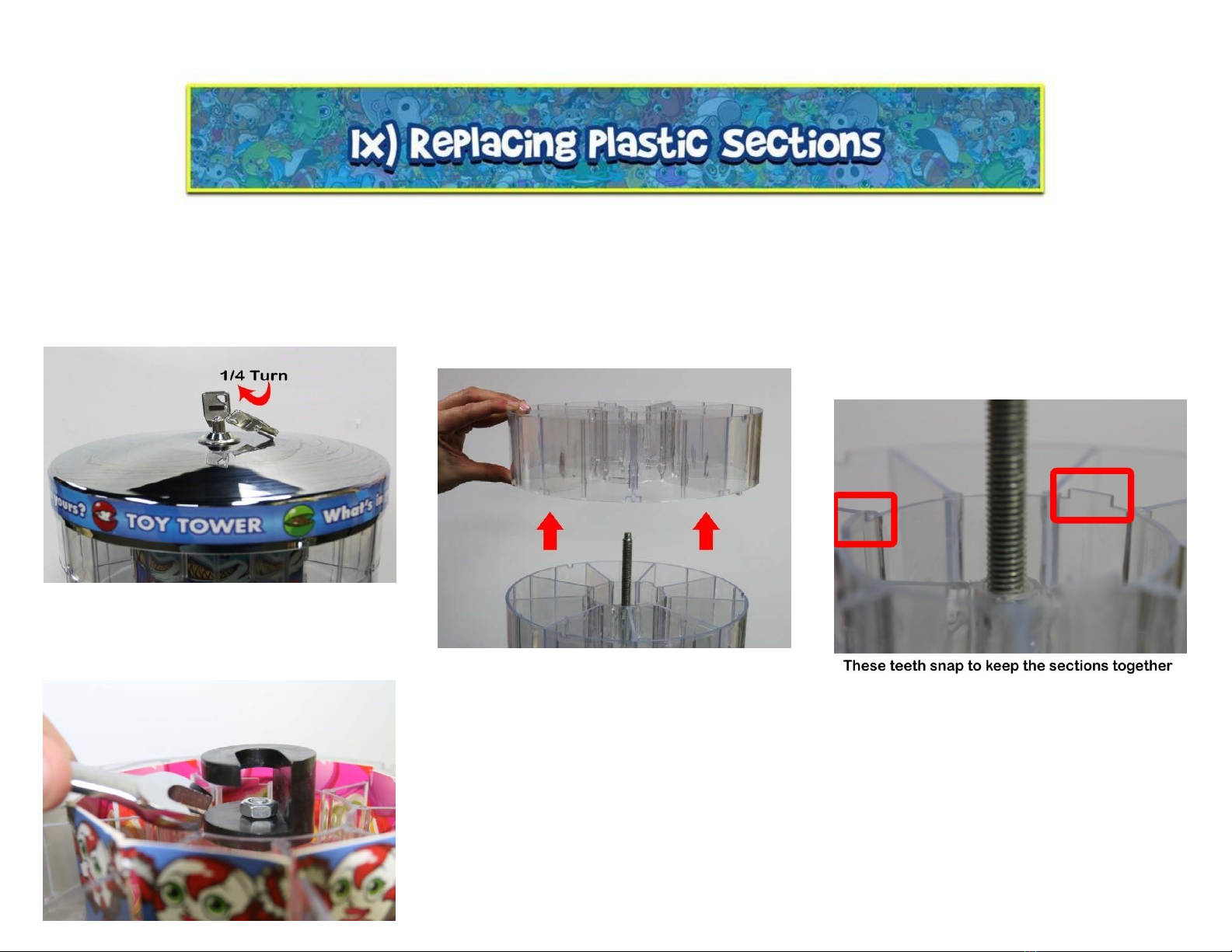

The tower machine is designed in
sections, so you can easily replace a
broken section.
Step 4:
When placing the sections back together
rotate each section one at a time until
these teeth snap into the section to keep
it all secure

18
Step 5:
If you have removed all the segment
before you go any further, you need to
check to make sure the segments are
aligned correctly.
It is important that you have the
segments positioned correctly in the
positioning part otherwise the products
won’t vend properly and will cause jams.
Correct Position: the two black pins are in
the middle of the three clear pins.
Incorrect Position: The two black pins over
on either end of the three clear pins.
If this is the case, you need to lift all the
segment up and readjust the segments to
the correct position.
Replace the black centre part on to the
machine and use a 9/16 wrench to
secure the black centre part.
Test the machine to make sure the
segments are turning and that there are
no issues.
Replace the lid and lock the top lid of the
tower using the Silver 100 Lid key a ¼ turn
