Tulsa RUFNEK 30 User manual

SEL-0046-001.DOC
REV- July 2020
RUFNEK 30
AND
MODEL 34
SERVICE MANUAL
GENERAL INFORMATION .......................................................................................................................... 4
INTRODUCTION AND THEORY OF OPERATION .............................................................................................................4
ASSEMBLY NUMBER EXPLANATION ...............................................................................................................................4
WINCH BREAK-IN ..............................................................................................................................................................4
MODEL CODES ........................................................................................................................................... 5
MAINTENANCE............................................................................................................................................ 6
OIL LEVELS........................................................................................................................................................................7
BRAKE ADJUSTMENT .......................................................................................................................................................8
DISASSEMBLY ............................................................................................................................................ 9
RUFNEK 30 BRAKE DISASSEMBLY..................................................................................................................................9
MODEL 34 BRAKE DISASSEMBLY....................................................................................................................................10
CLUTCH AND DRUM DISASSEMBLY................................................................................................................................11
GEARBOX DISASSEMBLY.................................................................................................................................................12
GEAR INSPECTION INSTRUCTIONS ................................................................................................................................13
ASSEMBLY ................................................................................................................................................ 14
GEARBOX ASSEMBLY ......................................................................................................................................................14
MODEL 34 BRAKE ASSEMBLY..........................................................................................................................................15
RUFNEK 30 BRAKE ASSEMBLY........................................................................................................................................15
CLUTCH AND DRUM ASSEMBLY......................................................................................................................................16
TROUBLESHOOTING................................................................................................................................ 17
BILL OF MATERIAL................................................................................................................................... 18
TORQUE SPECIFICATIONS CHART ........................................................................................................ 19
CLUTCH INSPECTION .............................................................................................................................. 19
ISOMETRIC VIEW ...................................................................................................................................... 19
RUFNEK BRAKE, HYDRAULIC MOTOR, & CLUTCH POSITION INDICATOR...................................... 19
DESIGN SERIES 001

2
FAILURE TO HEED THE FOLLOWING WARNINGS
MAY RESULT IN SERIOUS INJURY OR DEATH.
The safety of the winch operator and ground personnel should always be of great
concern, and all necessary precautions to insure their safety must be taken. The
primary mover and the winch must be operated with care and concern for the
equipment and the environment and with a thorough knowledge of the equipment and
its performance capabilities must be understood. These general safety guidelines are
offered, however local rules and regulations or national standards may also apply.
Recommended references are, but not limited to, ANSI B30, OSHA 1910, AWS D 14.3,
and SAE J706.
Additional information can be found at http://www.team-twg.com/TulsaWinch/
Mounting:
Winch mounting must be secure and able to withstand the applied loads.
•The stability of the mounting system must be approved by a qualified person.
•All welding should also be done by a qualified person.
•Winch mount must be flat so as not to induce binding.
•The flatness must not exceed 1/16 inch across the mounting surface of the winch
itself.
Guards must be placed on all open drives in the case of mechanical winches. Insure
that all hydraulic hoses, valves and fittings are rated to winch manufacturer’s operating
pressures.
Relief valves should be set to winch manufacturer’s specifications. Insure that all PTO’s
and drivelines are sized appropriately for the winch manufactures speed and torque
specifications.
Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious
injury.
Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate
injury or property damage.
Indicates information or a company policy that
relates directly or indirectly to the safety of
personnel or protection of property.

3
Operator:
Must read and understand the operating and service manual.
Both the SERVICE MANUAL and OPERATING AND MAINTENANCE MANUAL
are available online at http://www.team-twg.com/TulsaWinch/
Must never lift or move people with this winch.
This winch is not designed or intended for any use that involves moving people.
Must stay clear of the load at all times.
Ground personnel should remain a safe distance from the load and winch cable
at least 1 ½ times the length of cable measured from the winch to the load.
Must stay clear of the cable at all times.
A broken cable can cause serious injury or death.
Must avoid shock loads.
Shock loads can impose a strain on the winch that can be many times the design
rating.
Must be aware of the fleet angle of the winch.
All loads should only be pulled with the load line perpendicular to the drum shaft,
this is to avoid excessive stresses on the winch and will help prevent the cable
from building on one side of the drum flange.
Must wear personnel protective equipment (PPE) if required.
Check the local, state and federal regulations for compliance.
Must insure that the drum clutch is fully engaged before hoisting.
A visual inspection of the drum clutch engagement is required before each
winching operation.
Must rig all loads secure before winching.
Pull the load line taut and inspect the condition of load for stability.
Must inspect the drum brake if equipped.
The drum brake is not a load holding device it is design to prevent over spooling
of the drum and causing bird nesting of the cable on the drum. Inspect the brake
for wear of the lining and the actuation method.
Must inspect the load control brake.
These winches can be equipped with two (2) forms of dynamic braking. The
worm brake is one method and is adjustable for pay-out load control. Before a
load is handled the load should be pulled tight and stopped to check this brake.
The second method is a hydraulic lowering control that is not field adjustable.
The same method should be used to check this brake.
Operation:
•All winch controls must be well marked for function to avoid confusion.
•Insure that the PTO is disengaged when the winch is not in use.
•All winch controls must be located to provide the operator with a clear view of the
load.
•The clutch must be inspected daily for proper operation.
•The winch cable should be inspected daily for serviceability.
•A minimum of five wraps of tightly wound cable must remain on the drum.

4
GENERAL INFORMATION
GENERAL INFORMATIONGENERAL INFORMATION
GENERAL INFORMATION
INTRODUCTION AND THEORY OF OPERATION
INTRODUCTION AND THEORY OF OPERATIONINTRODUCTION AND THEORY OF OPERATION
INTRODUCTION AND THEORY OF OPERATION
The Tulsa worm gear winch is operated by turning the input of the worm using a
hydraulic motor or PTO driven sprocket and chain. The winch utilizes the adjustable,
spring applied, multiple disc oil brake that activates only during pay-out to provide
maximum efficiency during pay-in. The torque is transferred from the gearbox through
the drum shaft which is keyed to a mechanically actuated sliding clutch that when
engaged transfers the torque to the drum.
ASSEMBLY NUMBER EXPLANATION
ASSEMBLY NUMBER EXPLANATIONASSEMBLY NUMBER EXPLANATION
ASSEMBLY NUMBER EXPLANATION
This manual is for design series 001. In the case of a major design change
implementation, a new design series designation number will be issued for the winch. A
new manual will also be created for that specific design series.
WINCH BREAK
WINCH BREAKWINCH BREAK
WINCH BREAK-
--
-IN
ININ
IN
Winches, like any other kind of machinery, require a “break-in” to perform well and to
maximize their life. The following guidelines should be used in the break-in of Tulsa
Winches.
Use extreme care when first spooling cable onto the winch. DO NOT run the winch
at high speeds when performing this operation. Make sure that the cable is payed-out in
a straight line (to prevent kinks) and SLOWLY pay-in the winch to install the cable.
DO NOT exceed one half rated load or one half rated line speed for the first thirty
minutes of operation. This will insure that the worm and gear have an opportunity to
wear in properly. Periodically, check the gearbox for temperature rises and allow the
winch to cool down between pulls. Worm gear winches are designed and intended for
intermittent duty application only; using them in extremely long pulls may generate
excessive heat and shorten the life of the winch.
69216 001
ASSEMBLY # SERIES
DESIGN

5

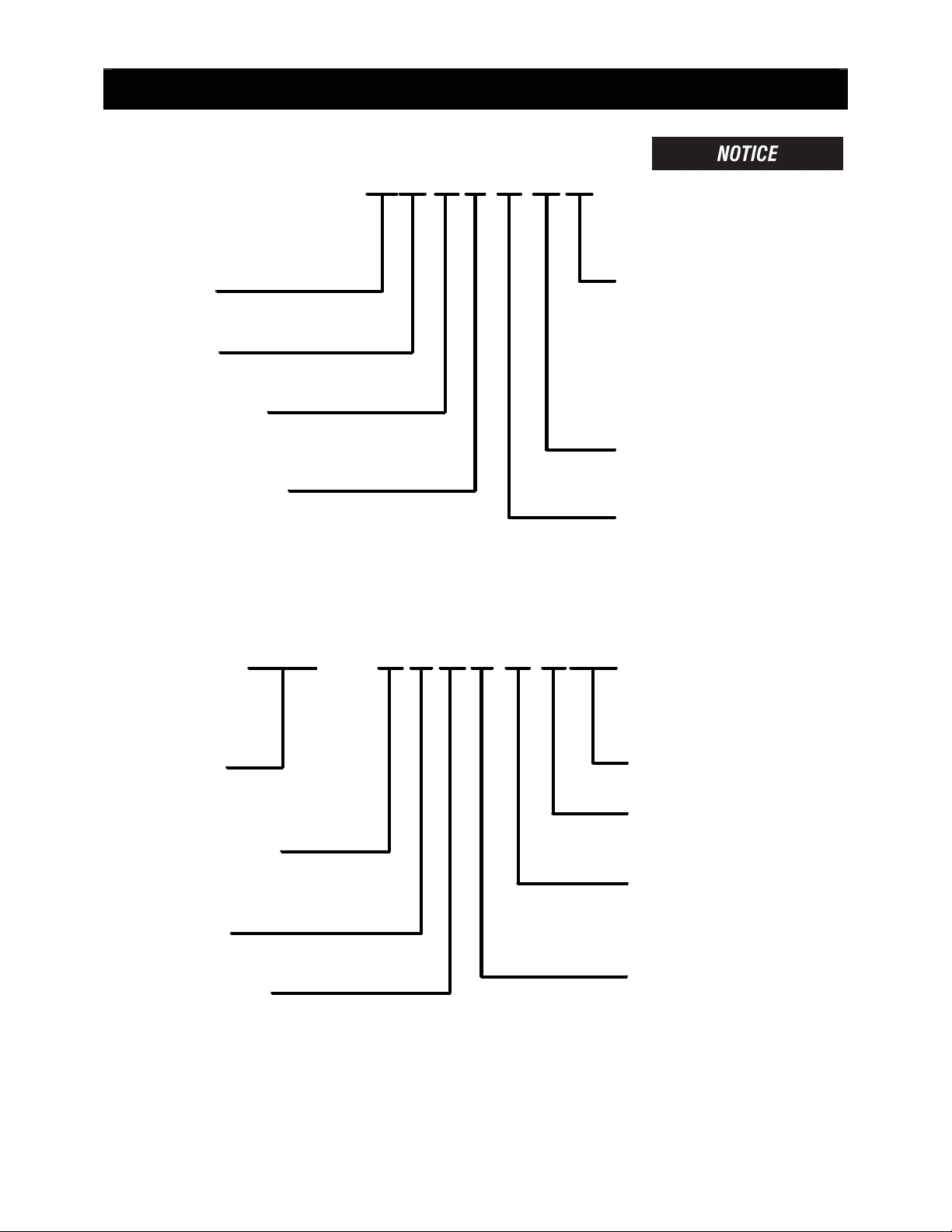

MODEL CODES
MODEL CODESMODEL CODES
MODEL CODES
Gear Type
W=Worm
P=Planetary
Drive Type
H=Hydraulic
M=Mechanical
Gearbox Position
L=Left
R=Right
(viewed from rear of truck)
Input Shaft Location
F=Front
R=Rear
X=Does not apply
(viewed from rear of truck)
Cable Spooling
O=Over Drum
U=Under Drum
(viewed from rear of truck)
Clutch Device
M=Mechanical
A=Air
Motor Type
1. Single Speed Gear Motor
2. Two Speed Gear Motor
3. Single Speed Geroler Motor
4. Two Speed Geroler Motor
5. Piston
6. Vane
X. No Motor
RN30 W M R F O M X
Winch Type
M=Mechanical
H=Hydraulic
No. of Worm Starts
S=Single
D=Double
Worm Angle
L=Left
R=Right Input Shaft Location
F=Front
R=Rear
X=Does not apply
(viewed from rear of truck)
Cable Spooling
O=Over Drum
U=Under Drum
(viewed from rear of truck)
Motor Mount
D=Direct Mount
X=No Motor
Motor Type
CL-CharLynn
M34 S L R F O D CL
G=Speed Reducer
T=Triple
Gearbox Location
L=Left
R=Right
(viewed from rear of truck)
THE RUFNEK 30 SERIES
WINCHES ARE ONLY
AVAILABLE WITH LEFT
HAND GEARS.

6
MAINTENANCE
MAINTENANCEMAINTENANCE
MAINTENANCE
Tulsa Winch worm gear winches require regular maintenance to ensure safe and
reliable operation. Regular oil changes with the correct oil for the ambient temperature
conditions and an annual inspection of the wear components are strongly
recommended.
Maintenance Scheduling
The owner is to ensure proper inspection intervals, in compliance with the API RP
2D Section 4, ANSI B30.5, 5-2.3, or ANSI B30.7, 7-2.1, and will review winch usage
categories on a periodic basis. A qualified inspector should perform all maintenance
and inspections.
Oil Maintenance
The oil in the gear and brake section should be changed every 1000 hrs or 6 months of
normal usage.
•Tulsa Winch recommends that the oil level in the gearbox be checked and
adjusted as part of the pre-use inspection. If the oil level drops frequently or oil
leakage is detected during an inspection, maintenance should be performed to
correct any problems.
GEARBOX OIL CAPACITY = 3 QTS
•Gearbox oil level inspection is achieved by removing the oil level inspection plug
and visually inspecting the oil level. Minimum oil level is to the bottom of the
threads of the inspection hole. Refer to the chart below for the recommended oil
type and grade for your application.
All oils must meet MIL-PRF2105E standards. Substitution from a reputable
manufacturer is allowed as long as type and grade are maintained.
USE
(HRS PER
MONTH)
API RP 2D RECOMMENDED
INSPECTION SCHEDULE
0-10 PRE-USE, ANNUAL
11-50 PRE-USE, QUARTERLY
51+ PRE-USE, MONTHLY
MOBIL SHC 626
MOBILUBE HD80W140
SAE 140W AGMA 7 EP

7
OIL LEVELS
OIL LEVELSOIL LEVELS
OIL LEVELS
BRAKE
OIL DRAIN
BRAKE
OIL LEVEL
BRAKE
FILL/VENT
GEARBOX
OIL LEVEL
GEARBOX
FILL/VENT
GEARBOX
OIL DRAIN

8
BRAKE ADJUSTMENT
BRAKE ADJUSTMENTBRAKE ADJUSTMENT
BRAKE ADJUSTMENT
In general, worm brakes on Tulsa winches should be set to hold the load you are
currently working with. Excessive brake torque will result in excessive heat generation
and brake wear. The best way to insure proper brake adjustment is to pull the cable
tight against the load and stop to ensure the brake holds. If it doesn’t, tighten the brake
slightly and try it again. If the brake doesn’t respond to adjustment the brake must be
serviced.
If the input to the winch is accessible and a torque wrench can be adapted to it, the
brake can be set with a torque wrench. The Model 34 brake is shipped from the factory
pre-set at 70 Ft.-Lbs.
ADJUSTABLE SHOE BRAKE
To tighten the brake, loosen the two capscrews in the slotted holes and rotate the brake
in the direction shown. If the brake needs to be reversed, remove those same two
capscrews, rotate the cam 60 degrees and reinstall the capscrews in the other set of
holes which have just been revealed. After adjustment, be sure to re-tighten the cam
capscrews securely.
ADJUSTABLE MULTIPLE DISC OIL BRAKE
RN30W
This style of brake can be adjusted by turning the hex adjuster counter-clockwise to
increase brake and clockwise to decrease brake. The direction of braking for all multiple
disc brakes can be changed by removing the cam clutch, turning it over, and re-
installing it. For detailed service instructions, contact your Tulsa Winch distributor or the
factory.
If the input to the winch is accessible and a torque wrench can be adapted to it, the
brake can be set with a torque wrench. The RN30W brake is shipped from the factory
pre-set at 70 Ft.-Lbs.

9
DISASSEMBLY
DISASSEMBLYDISASSEMBLY
DISASSEMBLY
RUFNEK
RUFNEK RUFNEK
RUFNEK 30
3030
30 BRAKE DISASSEMBLY
BRAKE DISASSEMBLYBRAKE DISASSEMBLY
BRAKE DISASSEMBLY
1. Remove the bottom drain plug
(100) to drain oil from brake.
2. Loosen the spring tension inside
the brake by rotating the adjusting
nut (97) clockwise until it stops.
Extreme care should be taken
when removing the brake cover.
The cover is spring loaded
against the cover screws.
3. Evenly remove the capscrews (94)
from the brake cover (96).
4. Remove the spring (105). Remove
the brake driver (101) along with
the brake components (93, 103,
104, 106, and 107).
5. Inspect parts as follows, replace if
necessary:
A. Inspect the friction discs (104) for
uneven or excessive wear.
Friction discs should measure no
less than .055-in thick.
B. Inspect the stator plates (103) for
warpage or excessive damage.
C. Inspect the spring (105) for
damage or discoloration.
D. Cam clutch (107) should be free
of debris and have
all cams intact.
If replacing the cam clutch
(107), take note of the direction
it locks up for reassembly.
E. Check coupler (108) for signs of
pitting, spalling, or excessive
wear.

10
MODEL
MODEL MODEL
MODEL 34
3434
34 BRAKE DISASSEMBLY
BRAKE DISASSEMBLYBRAKE DISASSEMBLY
BRAKE DISASSEMBLY
1. Loosen the capscrews (26).
2. Remove the capscrews (30) from the
cover (87).
3. Remove the cover (87) from the
brake housing (31).
4. Remove the brake shoes (86).
5. Remove the nut (85) and washer
(84).
6. Use the two threaded holes in the
brake drum (83) and a gear puller to
remove the brake drum.
7. Inspect parts as follows, replace if
necessary:
A. Inspect the brake shoes (86) for
wear. If the shoe linings are worn
flush with the rivet heads, they
must be replaced.
B. Inspect the brake drum (83) for
severe wear or scoring.
C. Check the inside lower part of the
brake housing (31) for the
presence of oil. Replace the seal
(55) if oil is present.
If replacing the seal (55), first
drain the oil from the gearbox
then remove the capscrews
(56) and brake housing (31).

11
CLUTCH AND DRUM DISASSEMBLY
CLUTCH AND DRUM DISASSEMBLYCLUTCH AND DRUM DISASSEMBLY
CLUTCH AND DRUM DISASSEMBLY
1. Remove the rod (44) by removing
the cotter keys (43).
2. Remove the arms (34) by removing
the capscrews (46), nuts (24), and
washers (23) holding the arm in
place.
3. Remove the line shafts (35) by
loosening the set screws in the
collars (38) and the setscrews (42) in
the arms (45) & (27).
4. Remove the capscrews (59), nuts
(63), and washers (62) attaching the
end bracket (6) to the frames (65 &
66).
5. Remove the end cap (5) by removing
the four capscrews (3), nuts (20),
and washers (19).
6. Remove the end bracket (57), yoke
assembly (items 7, 16, 19, 20, 39,
40, 41) or clutch position indicator
assembly (109), and sliding clutch
(55).
7. Remove the keys (67) and collar (10)
from the shaft (68) by loosening set
screw (9).
8. Remove the brake band assembly
(8) by loosening the nuts on the rod
(21) to remove tension on the spring
(22). Then, remove the cotter key
(32) & pin (33) attaching clevis (28)
to control arm (27). Finally, remove
the capscrews (16), washers (23),
and nuts (24) attaching the brake
band to the frame.
9. Slide the drum (14) off of the output
shaft (68) using an overhead hoist.
10.Inspect parts as follows, replace if
necessary:
A. Inspect the bushing (2) in the end
bracket (6) for excessive wear.
B. Inspect the keys (67), sliding
clutch (11), and collar (10) for
damage. See page 22 for clutch
inspection .
C. Inspect the brake band (8) and
verify the band and lining is at
least .225-in thick.
D. Inspect the drum bushings (60)
for wear or damage.
E. Inspect the line shafts & linkage
for excessive damage or wear.

12
GEAR
GEARGEAR
GEARBOX
BOXBOX
BOX DISASSEMBLY
DISASSEMBLY DISASSEMBLY
DISASSEMBLY
1. Supporting the end of the shaft (68),
remove the cover (76) by removing
capscrews (46 and 78), nuts (20 and
24), and washers (19 and 23).
2. Lift the shaft (68), bushings (69),
keys (70), and gear (assembled
items 71, 72, 73, 74, 75, 80, and 81)
out of the housing (61). Remove the
bushings (69) from the shaft (68).
3. Remove the gear (75) from the
carriers (72) by removing the twelve
capscrews (71), nuts (81), and
washers (80), then pull the carrier
(72) off of the shaft (68). Finally,
remove the spacer (73), carrier (72)
and keys (70).
4. Remove the worm (57) from the
housing (61) by removing either the
motor (116) and motor adapter (112),
or just the end cap (51), depending
on the type of drive.
5. From the brake end, push the worm
(57) out of the housing (61). If the
brake has not been removed, see
brake disassembly on page 9 or 10 .
6. Inspect parts as follows, replace if
necessary::
A. Inspect the carriers (72) for
damage.
B. Inspect the gear (75) for
excessive wear or damage. See
page 13 for detailed instructions.
C. Inspect the keys (70) and
bushings (69) for damage.
D. Inspect the worm (57) for
excessive wear or signs of heat
checking or cracks.
E. Inspect the bearings (54) and
seals (55) for excessive wear or
damage.

13
GEAR INSPECTION INSTRUCTIONS
GEAR INSPECTION INSTRUCTIONSGEAR INSPECTION INSTRUCTIONS
GEAR INSPECTION INSTRUCTIONS
Check gear wear by removing the cover and visually inspecting the bronze gear. If the
gear is worn such that there is no visible land on the throat of the gear between the gear
flanks as shown in picture above the gear should be replaced.
LAND

14
ASSEMBLY
ASSEMBLYASSEMBLY
ASSEMBLY
GEAR
GEARGEAR
GEARBOX
BOXBOX
BOX ASSEMBLY
ASSEMBLY ASSEMBLY
ASSEMBLY
1. Press the bearings (54) onto the
worm (57) then install the worm and
bearings into the housing (61).
2. For winches driven by a hydraulic
motor:
Press a new oil seal (55) into the
motor adapter (112). Install the
gasket (52). Attach the motor
adapter (112) to the housing (61)
with six capscrews (89) using gasket
(52). Install the motor (116) with two
capscrews (114) and washers (115),
using gasket (113).
For winches driven by a PTO
sprocket and chain:
Press a new oil seal (55) into the end
cap (51). Attach the end cap (51) to
the housing (61) with six capscrews
(56) using gasket (52).
3. Install the keys (58) into the output
shaft (68).
4. Slide the carrier (72) over the keys
(70). Install the spacer (73) using
the two pins (74). Slide the gear (75)
and the other carrier (72) onto the
shaft and secure with eighteen
capscrews (71), nuts (81), and
washers (80).
5. Install the assembled gear onto the
shaft (68). Slide the bushings (69)
on to both ends of the shaft (68).
6. Install the output shaft assembly into
the housing (76).
7. Install both gaskets (79) onto the
housing. Attach the cover (76) to the
housing (61), using capscrews (46 &
78), nuts (19 & 20), washers (19 &
23), using gaskets (79).
8. Fill the gearbox and brake with the
proper oil. Refer to the maintenance
section of this manual for correct oil
type and amount.

15
MODEL
MODEL MODEL
MODEL 34
3434
34 BRAKE
BRAKEBRAKE
BRAKE ASSEMBLY
ASSEMBLY ASSEMBLY
ASSEMBLY
1. Press the oil seal (55) into the brake
housing (31). Attach the brake
housing (31) to the gearbox with six
capscrews (56) using gasket (52).
2. Install the brake drum (83) and key
(82) onto the worm shaft (57).
Secure the brake drum with the nut
(85) using the lock washer (84).
Bend two tabs of the washer (84)
over the flats of the nut (85).
3. If removed, reattach the cam (53) to
the brake cover (87) in the
orientation needed for your
application using two capscrews (26)
and washers (29).
4. Install the brake cover (87), cam
(53), and brake shoes (86) into the
brake housing (31).
5. Secure the brake cover (31) using
four capscrews (30).
6. Adjust the brake using the procedure
on page 8 of this manual.
RUFNEK
RUFNEK RUFNEK
RUFNEK 30
3030
30 BRAKE ASSEMBLY
BRAKE ASSEMBLY BRAKE ASSEMBLY
BRAKE ASSEMBLY
1. Press the oil seal (90) into the brake
housing (91). Attach the brake
housing to the gearbox with eight
capscrews (89) using gasket (110).
2. Install the key (92) and coupler (108)
onto the worm. Next, install the
clutch/driver assembly (Items 93,
101, 106, and 107), onto the coupler
(108).
3. With the retaining ring (93) on the
clutch driver (101). Install the stator
plates (104) and friction discs (103),
as shown below.
4. Install the spring (105).
5. Install the adjusting nut assembly
(assembled items 97, 98, and 99)
into the brake cover (96) and attach
the brake cover to the housing (91)
with eight evenly installed capscrews
(94).
6. Install the drain plug (100) into the
bottom of the brake cover (96).
7. Fill gearbox and brake with proper
oil. Refer to winch maintenance
section of this manual for oil type and
amounts.
8. Adjust the brake using the procedure
on page 8 of this manual.

16
1. Install bushings (60) into drum (14).
Install the drum (14) onto the output
shaft (68).
2. Install the collar (10). Tap the keys
(67) into the output shaft.
3. Install the sliding clutch (11) and end
bracket assembly onto the shaft (68),
lining up the yoke with the grooves in
the sliding clutch (11). Attach the
end bracket to the frame using four
capscrews (59), washers (62), and
nuts (63).

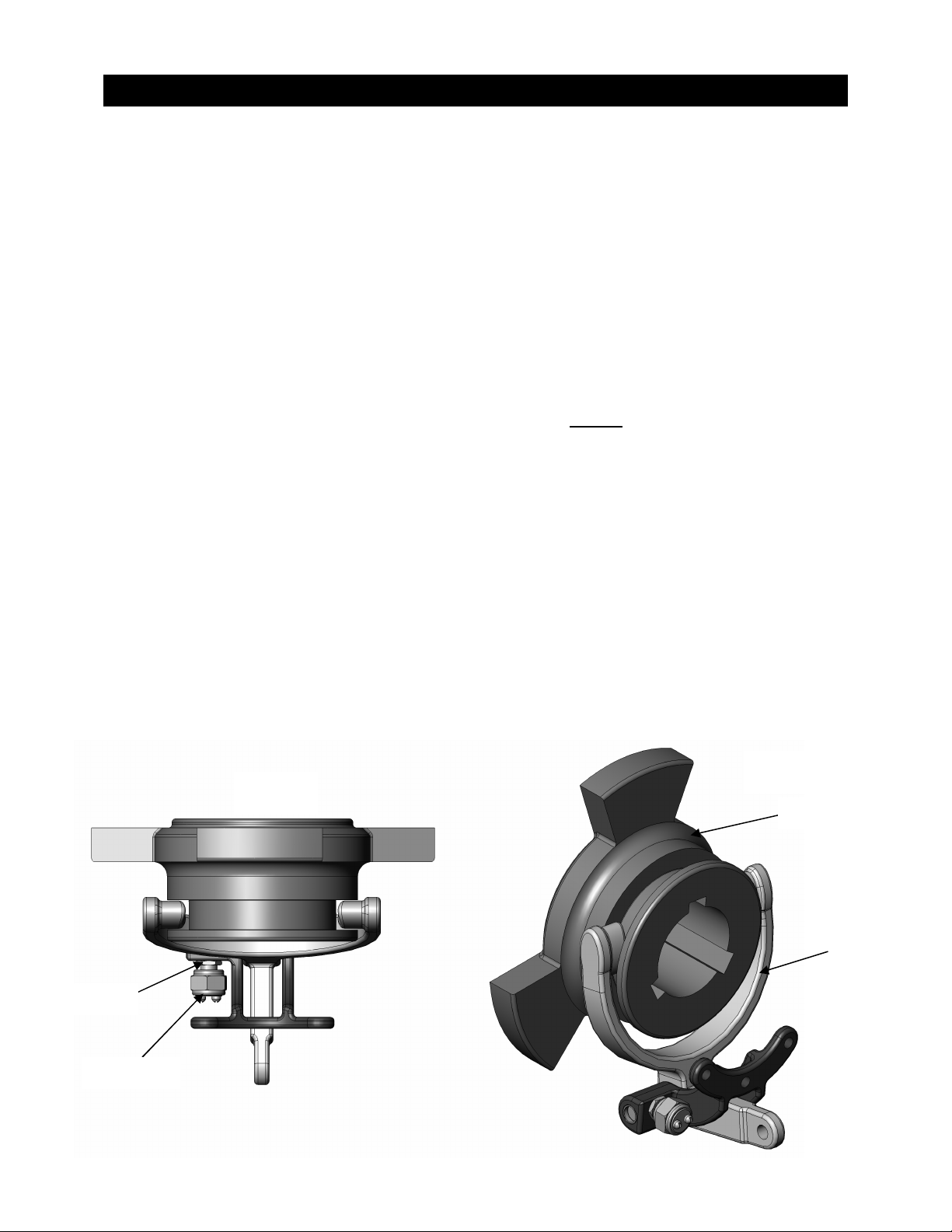

CLUTCH POSITION INDICATOR ADJUSTMENT
(FOR RUFNEK WINCHES ONLY)
Make sure that the sliding clutch (11) is fully engaged and that the yoke assembly (111)
is not binding on the drum clutch. The lugs of the yoke MUST be centered in the groove
with the clutch fully engaged in order for the clutch position indicator to be properly
adjusted (See FIG-1).
The switch is a normally-open electrical switch that is actuated by disengaging the
clutch which closes the circuit.
With the clutch fully engaged, adjust the switch in until the warning device is activated,
then back-out 1/4 turn to deactivate the warning device.
Tighten the jam nut against the clutch bracket to secure the adjustment.
Test the switch by fully engaging, then disengaging, the clutch. The warning device
should activate while disengaging the clutch pivoting no more than 3°.
CLUTCH AND DRUM ASSEMBLY
CLUTCH AND DRUM ASSEMBLYCLUTCH AND DRUM ASSEMBLY
CLUTCH AND DRUM ASSEMBLY
FIG.-1
FIG.-2
11
NUT
111
SWITCH

17
TROUBLESHOOTING
TROUBLESHOOTINGTROUBLESHOOTING
TROUBLESHOOTING
FAILURE PROBABLE CAUSE
Clutch handle won’t latch a) Clutch jaws aren’t aligned. Align the
jaws by rotating drum.
b) Damaged yoke or linkage. Replace the
yoke or clutch
Oil leaks from housing a) Seal damaged or worn. Replace the
seal(s).
b) Too much gearbox oil. Drain excess
oil.
c) Gasket is worn. Replace gasket.
Load drifts a) The brake is out of adjustment or worn.
Adjust brake until load doesn’t drift.
Replace the parts as required.
Winch runs too slow a) Low flow rate. Check the flow rate and
increase if necessary.
b) Hydraulic motor worn out. Replace the
motor.
Cable drum won’t free spool a) Winch not mounted squarely. Check
mounting and confirm that the winch is
mounted on a level surface.
b) Clutch not disengaged. Disengage the
clutch.
Hydraulic fluid leaks from the vent in
the gearbox
a) Damaged motor shaft seal. Replace
the seal.
Winch won’t pick up heavy loads. a) Too much cable on the drum. Use the
snatch block or remove some cable
from the drum.
b) System pressure too low. Increase the
hydraulic system pressure.
c) Winch not broke-in. Run winch at half
of rated load for several pulls.

18
BILL OF MATERIAL
BILL OF MATERIAL BILL OF MATERIAL
BILL OF MATERIAL
BOM DATED SEPTEMBER 2005
SEQ QTY P/N DESCRIPTION
1 3 20517 PIN
2 1 32842 BUSHING
3 4 20266 CAPSCREW
4 5 21128 GREASE ZERK
5 1 20053 END CAP
6 1 20256 BRACKET
7 1 20129 BRACKET
8 1 1741 BRAKE BAND ASSEMBLY
9 2 20515 SET SCREW
10 2 20096 WASHER
11 1 20262 SLIDING CLUTCH
12 1 23598 DRUM CLUTCH
13 6 20407 CAPSCREW
14 1 23595 DRUM
15 1 21154 U BOLT
16 5 20270 CAPSCREW
17 -- -- OMIT
18 -- -- OMIT
19 8 20518 LOCKWASHER
20 9 20267 NUT
21 5 20521 NUT
22 1 20958 SPRING
23 16 20526 LOCKWASHER
24 15 20271 NUT
25 1 20112 ROD
26 2 20522 CAPSCREW
27 1 20094 ARM
28 1 20054 CLEVIS
29 4 20617 WASHER
30 4 28578 CAPSCREW
31 1 21365 HOUSING
32 1 20514 COTTER PIN
33 1 939243 CLEVIS PIN
34 2 20070 ARM
35 2 20282 SHAFT
36 -- -- OMIT
37 4 20193 SET SCREW
38 4 20230 COLLAR
39 1 20264 YOKE
40 2 24724 SNAP RING
41 1 20116 PIN

19
BILL OF MATERIAL
BILL OF MATERIALBILL OF MATERIAL
BILL OF MATERIAL CONTINUED
CONTINUED CONTINUED
CONTINUED
SEQ QTY P/N DESCRIPTION
42 2 20737 SET SCREW
43 2 20474 COTTER PIN
44a 1 20111 RIGHT HAND ROD
44b 1 20113 LEFT HAND ROD
45 1 20072 ARM
46 10 20276 CAPSCREW
47 1 20284 BRACKET
48 4 20105 KEY
49 1 20278 CAPSCREW
50 1 20092 WASHER
51 1 21542 CAP
52 2 20118 GASKET
53 1 23875 CAM
54 2 20303 BEARING
55 2 20281 OIL SEAL
56 16 30205 CAPSCREW
57a 1 21641 RIGHT HAND WORM (M34)
57b 1 21640 LEFT HAND WORM (M34)
57c 1 44068 MECHANICAL WORM (RN30)
57d 1 44070 HYDRAULIC WORM (RN30)
58 1 25393 KEY
59 8 939262 CAPSCREW
60 2 32840 BUSHING
61 1 21556 HOUSING
62 8 20520 LOCKWASHER
63 8 20274 NUT
64 3 20286 PIPE PLUG
65 1 939269 LEFT FRAME
66 1 20293 RIGHT FRAME
67 2 20098 KEY
68 1 22443 SHAFT
69 2 32839 BUSHING
70 2 20574 KEY
71 10 21157 CAPSCREW
72 2 22438 CARRIER
73 1 20569 SPACER
74 2 164056 PIN
75a 1 21643 RIGHT HAND GEAR
75b 1 21642 LEFT HAND GEAR
76a 1 20127 MODEL 34 COVER
76b 1 44030 RUFNEK 30 COVER
77 1 26799 BREATHER

20
BILL OF MATERIAL
BILL OF MATERIALBILL OF MATERIAL
BILL OF MATERIAL CONTINUED
CONTINUED CONTINUED
CONTINUED
SEQ QTY P/N DESCRIPTION
78 4 20268 CAPSCREW
79 2 20326 GASKET
80 10 20519 LOCKWASHER
81 10 20273 NUT
82 1 20279 KEY
83 1 29503 BRAKE DRUM
84 1 20115 LOCKWASHER
85 1 20114 LOCK NUT
86 2 1733 BRAKE SHOE
87 1 3568 CAM PLATE
88 1 43962 BRAKE HOUSING
89 16 40546 CAPSCREW
90 1 44050 OIL SEAL
91 1 43964 BRAKE HOUSING
92 1 25519 KEY
93 1 44151 O-RING
94 8 20522 CAPSCREW
95 1 13050 BREATHER
96 1 43966 BRAKE COVER
97 1 41406 ADJUSTING NUT
98 1 43960 SPRING PLATE
99 1 41411 O-RING
100 2 21684 PLUG
101 1 44150 BRAKE DRIVER
102 1 44145 RETAINING RING
103 6 33564 FRICTION DISC
104 11 44141 STATOR PLATE
105 1 33559 SPRING
106 1 29084 RETAINING RING
107 1 33565 CAM CLUTCH
108 1 44142 COUPLER
109 1 12208 BUSHING
110 1 20118 GASKET
111 1 4362 YOKE ASSEMBLY W/ POSITION INDICATOR
112 1 40432 MOTOR ADAPTER
113 1 40147 GASKET
114 2 13529 CAPSCREW
115 2 41000 WASHER
116 1 40275 MOTOR
117 1 996547 OIL SEAL
