Tunstall Gem5 User manual
Tunstall Gem5
User Guide
1
Getting To Know Your Watch
Front Back
Side
Accessories
USB Cable Watch Strap Charging Base
2
Charging Your Watch
• Connect the USB cable from charging base to the AC adaptor.
• Place the watch into the charging base correctly, you will hear spoken
confirmation “your watch is charging.”
• Please fully charge the battery daily for around 2 hours or when battery is low.
TIP The watch battery is not removable. After a long period of inactivity, the watch
may not be turned on due to low battery. please charge it every day to ensure that
the watch can work normally.
3
Functions and Basic Settings
When the watch is turned on, slide leftwards or rightwards to view all available
functions. it displays Watch Face, Heart Rate, Steps and Settings.
1. On the watch face, you can see time, date, heart rate and steps.
2. There are five watch faces to select from, two analog and three digital. Slide
right to the end and click settings, select watch face and choose your preferred
option by sliding left and right.
Heart Rate Measurement
Wear the watch on the left hand and click heart rate, after several seconds
checking, the screen the will display your heart rate BPM.
4

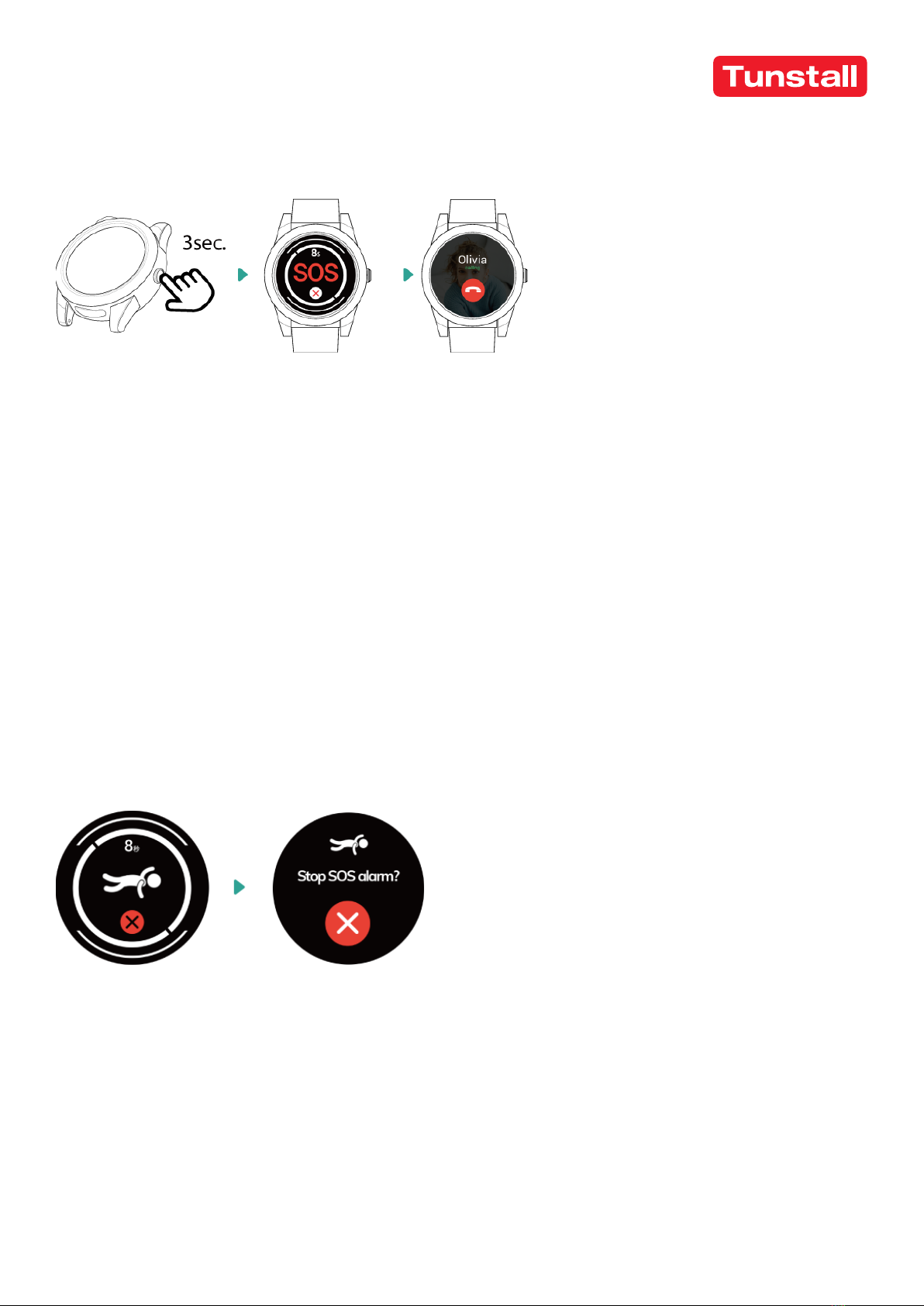

Activating an SOS Alarm
To activate SOS alarm, press the side button for 3 seconds until you feel the watch
vibrate.
• After SOS alarm is activated, you will hear a voice prompt confirming the
activation of the SOS alert and allowing you approximately 10 seconds to cancel
the alarm. If the SOS is not cancelled in time an SOS alert text message is
immediately sent to the emergency contact numbers followed by the outgoing
calls.
• If the watch fails to connect to the first number, it will call the second number
after delay of 10 seconds. In case the second number fails to be connected as
well, the system will connect to the third number etc.
• Between each call, it will have 10 seconds delay, during this time, user can stop
call sequence or prevent a possible false alarm by pressing SOS button.
Fall Alarm
The watch can automatically detect a fall. When this occurs the watch will give a
warning message to the user.
• Some daily activities like sports or even sitting down abruptly can trigger the fall
alarm.
• The wearer has a short time to cancel a fall alarm by clicking the Cancel on the
watch. If the alarm is not cancelled, emergency contacts will be called.
TIP It is possible that the watch will not detect every real fall. We strongly advise
the wearer to press the SOS button in any emergency situation, if they are able.
5
Getting a GPS Fix
To get an initial GPS fix, go outdoors or near a window so the watch can get a fix on
the satellites. This could take few minutes depending on your environment.
TIP GPS functionality may be unavailable or inaccurate in some locations (for
example, availability or accuracy of GPS location maybe impacted inside buildings
or near tall buildings or other tall features or underground).
6
General Specifications
Dimension: 47.5mm*16.9mm / 1.87in*0.66in
Weight: 65g / 2.29oz
Battery: Rechargeable, 3.7V,580mAh
Battery life: Up to 24 hours under normal environmental conditions
Charging voltage: 5V DC
Waterproof: IP67
Locating technology: GPS
TIP Please comply with the instructions to extend the watch life:
• Don’t use & store the watch in dusty, hot, cold, electric, chemical, areas. Please
always keep the watch and accessories dry.
• Don’t drop, shake or knock the watch, Rough handling can break it.
• Clear the watch with a piece of dry cloth. Don’t clean in chemicals, detergent.
• Don’t disassemble or refit the watch as it will void your warranty.
• Using other batteries will cause unwanted situation.
• To avoid accident, never play the watch while driving.
• Please turn off the watch in aircraft and follow any restrictions. Wireless devices
can cause interference in aircraft.
7
NEW ZEALAND
Tunstall New Zealand Ltd
Business No. 3502431
PO Box 13153
Tauranga 3110
NEW ZEALAND
Telephone: 0800 488 678
Fax: 07 571 2685
Support enquiries: nz.info@tunstall.
com
www.tunstall.co.nz
Our policy of continual development means that product specifications and
appearance may change without notice.
Tunstall does not accept any responsibility for any errors and omissions contained
within this document.
©2023 Tunstall Group Ltd.
®Tunstall and Tunstall Gem are trademarks
Contact Details
AUSTRALIA
Tunstall Australasia Pty Ltd
ABN 44 059 121 863
Locked Bag 1
985 Kingsford Smith Drive
Eagle Farm QLD 4009
Telephone: 1800 603 377
Fax: 1800 435 570
Support enquiries: au.info@tunstall.
com
www.tunstallhealthcare.com.au
8472-UG-20
