IMPORTANT ASSEMBLY NOTE
FOR ALL MULTI-PIECE TOPS!

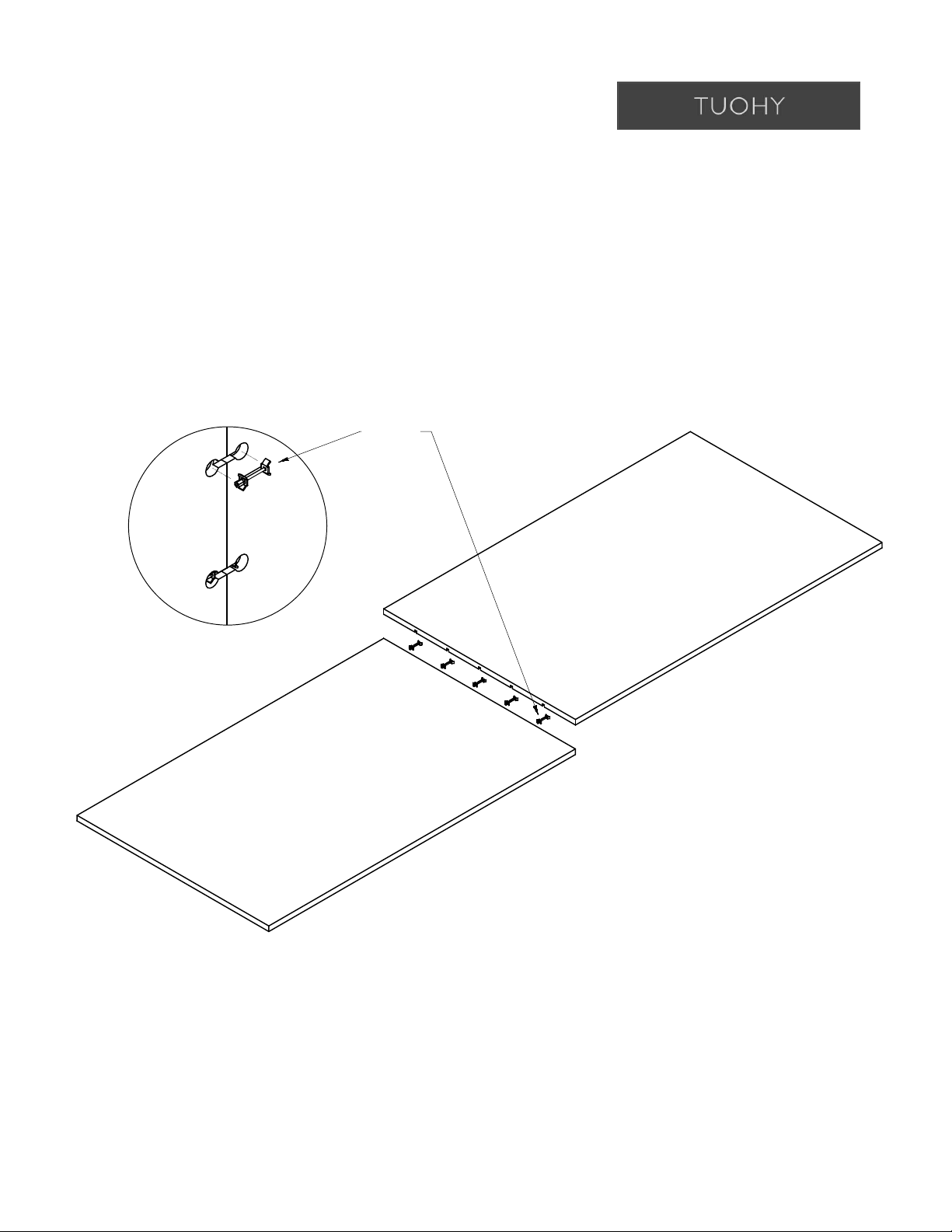

FIELD JOINT
DETAIL A
-DO NOT ASSEMBLE MULTI-PIECE TOPS UPSIDE DOWN AND FLIP OVER!
-If specific table instructions instruct to install table upside down, follow this
assembly note over base assembly instructions and install table upside right.
•Rest top on bases, or another support option to assemble top pieces
together from underside.
•Assemble table top together from underside using Field Joints ( Detail A )
•Assemble base at same time as joining table pieces together per base
assembly instructions.

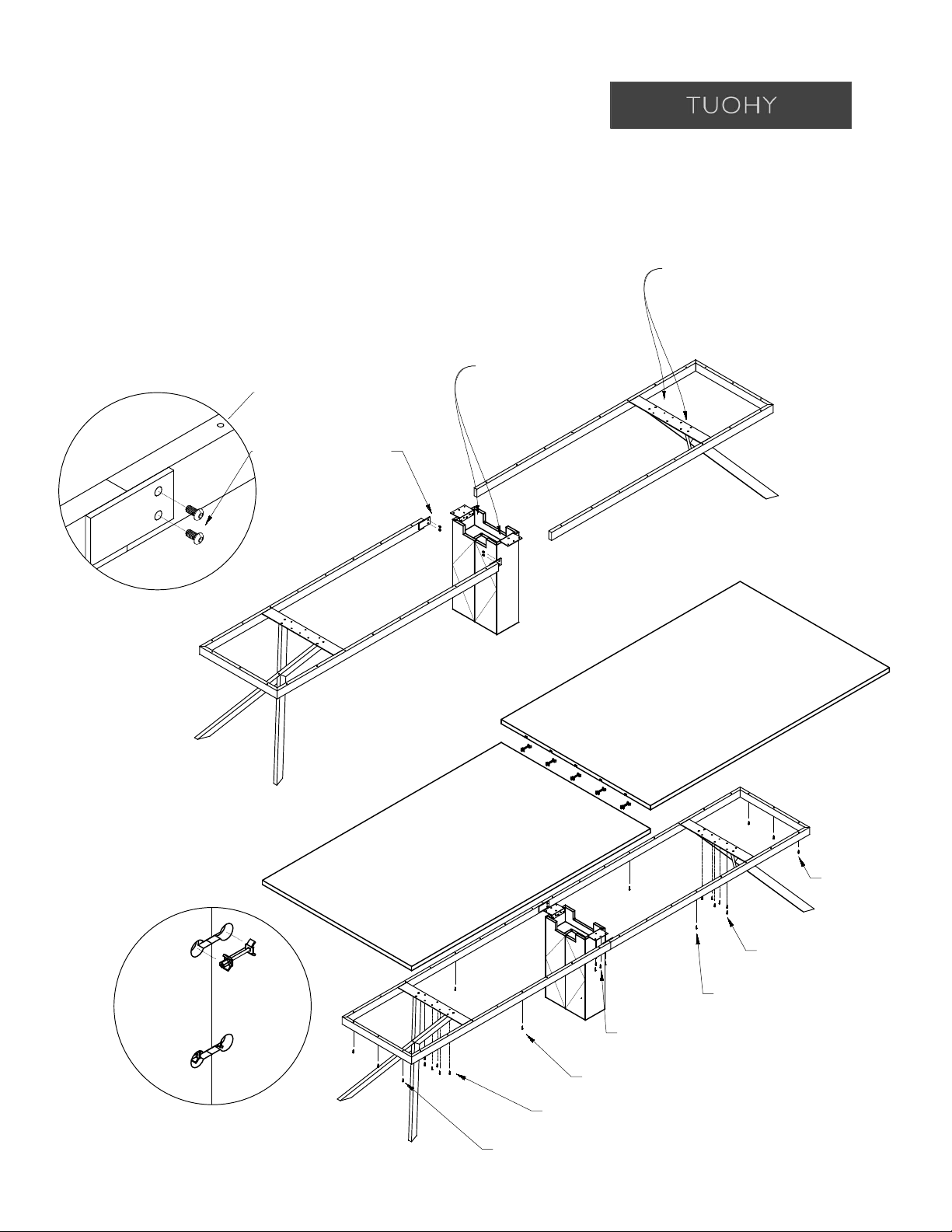

CODA - VEE BASE

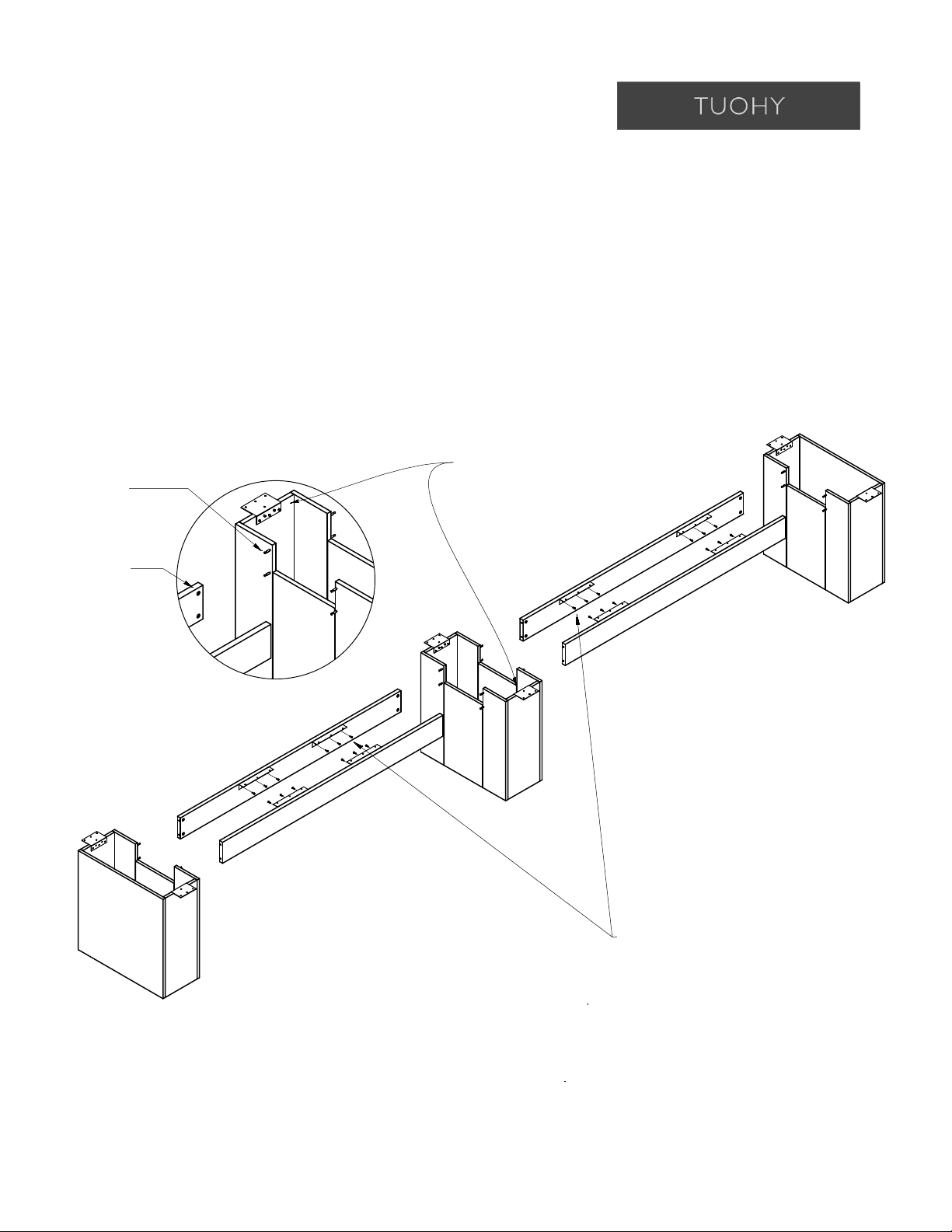

1. Attach Coda-Vee bases to metal frames using
1/4-20 X 7/8" Flat Head Machine Screws ( Detail A )
* Attach metal frame to metal frame when in need for large table sizes using
1/4-20 X 1/2" Button Socket Cap Screws ( Detail B )
* Center plinth base between metal frames when in need for larger table sizes.
( If Needed )
2. Place table top onto base assembly and join together using Field Joints
( Detail C )
3. Center metal frame and base assembly under top and attach using
#10 X 1" Pan head Screws
* Attach Center Plinth base to top using #10 x 1" Pan Head Screws ( If Needed )
4. Attach Coda - Vee bases to top using #10 X 1" Pan Head Screws
DETAIL B
DETAIL C
1
#10 x 1" PAN HEAD SCREWS
* CENTER PLINITH REQUIRED FOR LARGE TABE SIZES *
#10 X 1" PAN HEAD SCREWS
1/4-20 X 1/2"
BUTTON SOCKET CAP SCREW
* ONLY WHEN SHIPPED
AS MULTIPLE PIECES *
1/4-20 X 7/8"
FLAT HEAD MACHINE SCREWS
#10 X 1" PAN HEAD SCREWS
DETAIL A
#10 X 1" PAN HEAD SCREWS
#10 X 1" PAN HEAD SCREWS
COUNTER SUNK HOLES
( 10 ) #10 x 3/4" PAN HEAD SCREWS

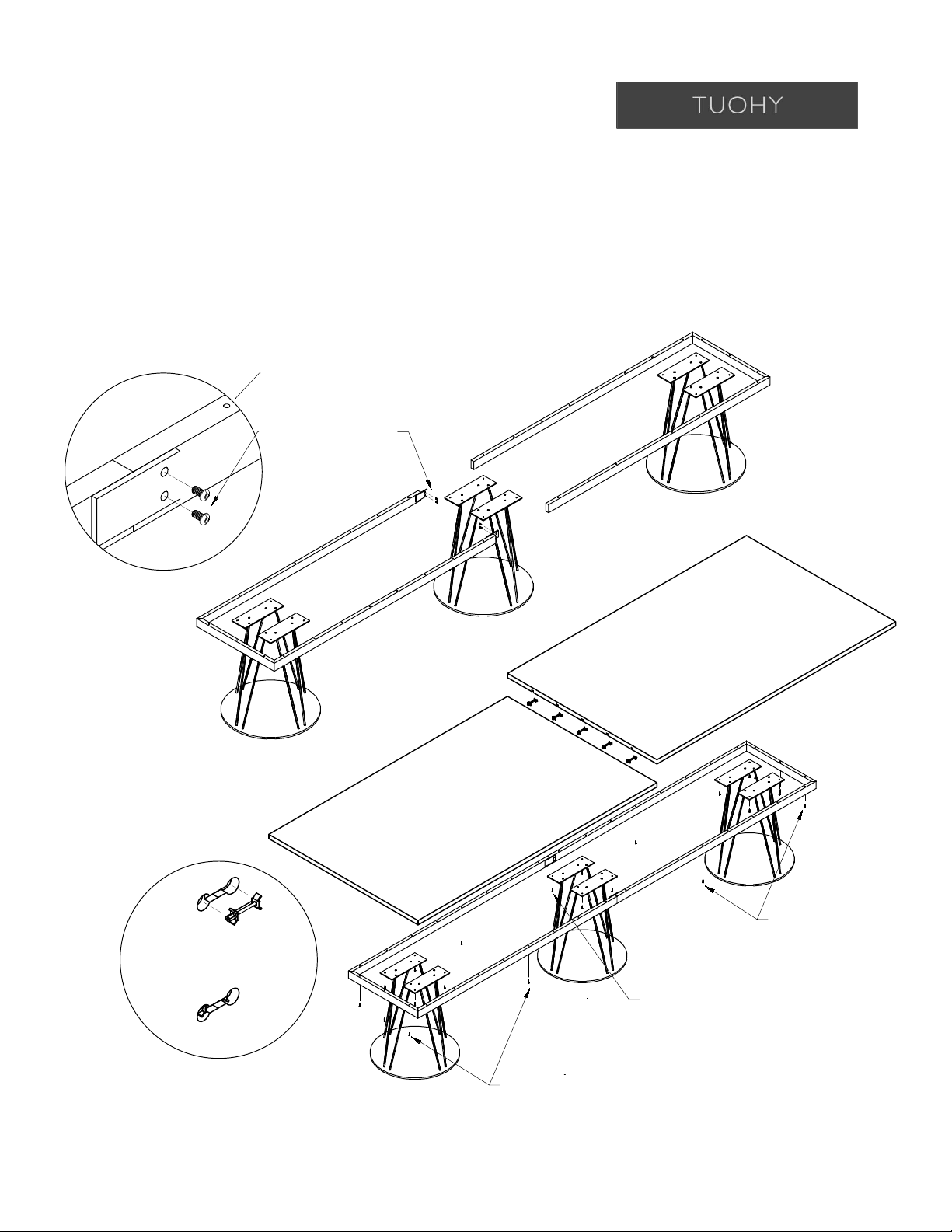

CODA - WIRE BASE
* ONLY WHEN SHIPPED AS MULTIPLE PIECES *
2
1/4-20 X 1/2"
BUTTON SOCKET CAP SCREW
#10 x 1" PAN HEAD SCREWS
* CENTER BASE REQUIRED FOR LARGE TABLE SIZES *
DETAIL B
DETAIL A
#10 x 1" PAN HEAD SCREWS
#10 x 1" PAN HEAD SCREWS
* Attach metal frame to metal frame when in need for large table sizes using
1/4-20 X 1/2" Button Socket Cap Screws ( Detail A )
* Center Coda - Wire base between metal frames when in need for large table sizes.
1. Place top onto base assembly and join together using Field Joints ( Detail B )
2. Center metal frame under table top and attach using #10 x 1" Pan Head screws
* Attach Center Coda - Wire base to top using #10 X 1" Pan head Screws ( If Needed )
3. Attach Coda - Wire bases to top using #10 X 1" Pan Head Screws

CODA - X BASE
* ONLY WHEN SHIPPED
AS MULTIPLE PIECES *
3
1/4-20 X 1/2"
BUTTON SOCKET CAP SCREW
#10 x 1" PAN HEAD SCREWS
* CENTER PLINTH REQUIRED FOR LARGE TABE SIZES *
#10 X 1" PAN HEAD SCREWS
DETAIL B
DETAIL A
* Attach metal frame to metal frame when in need for large table sizes using
1/4-20 X 1/2" Button Socket Cap Screws ( Detail A )
* Center plinth base between metal frames when in need for larger table sizes ( If Needed )
1. Place table top onto base assembly and join together using Field Joints ( Detail B )
2. Center metal frame and base assembly under top and attach using #10 X 1" Pan head Screws
* Attach Center Plinth base to top using #10 x 1" Pan Head Screws ( If Needed )
3. Attach Coda - X bases to top using #9 X 1-1/2" x 1" Flat Head Screws
( 10 ) #10 x 3/4" PAN HEAD SCREWS
( 8 ) 5/16-18 x 1" FLAT HEAD MACHINE SCREWS
#9 X 1-1/2" FLAT HEAD SCREWS
#10 X 1" PAN HEAD SCREWS
#10 x 1" FLAT HEAD SCREWS
#10 X 1" PAN HEAD SCREWS
#9 X 1-1/2"
PAN HEAD SCREWS

DETAIL B
DETAIL C
4
#9 x 1-1/2" FLAT HEAD SCREWS
CONFIRMAT SCREWS
* ONLY WHEN SHIPPED AS MULTIPLE PIECES *
#5/16-18 x 5/8"
BUTTON HEAD
CAP SCREWS
#9 x 1-1/2"
FLAT HEAD SCREWS
DETAIL A

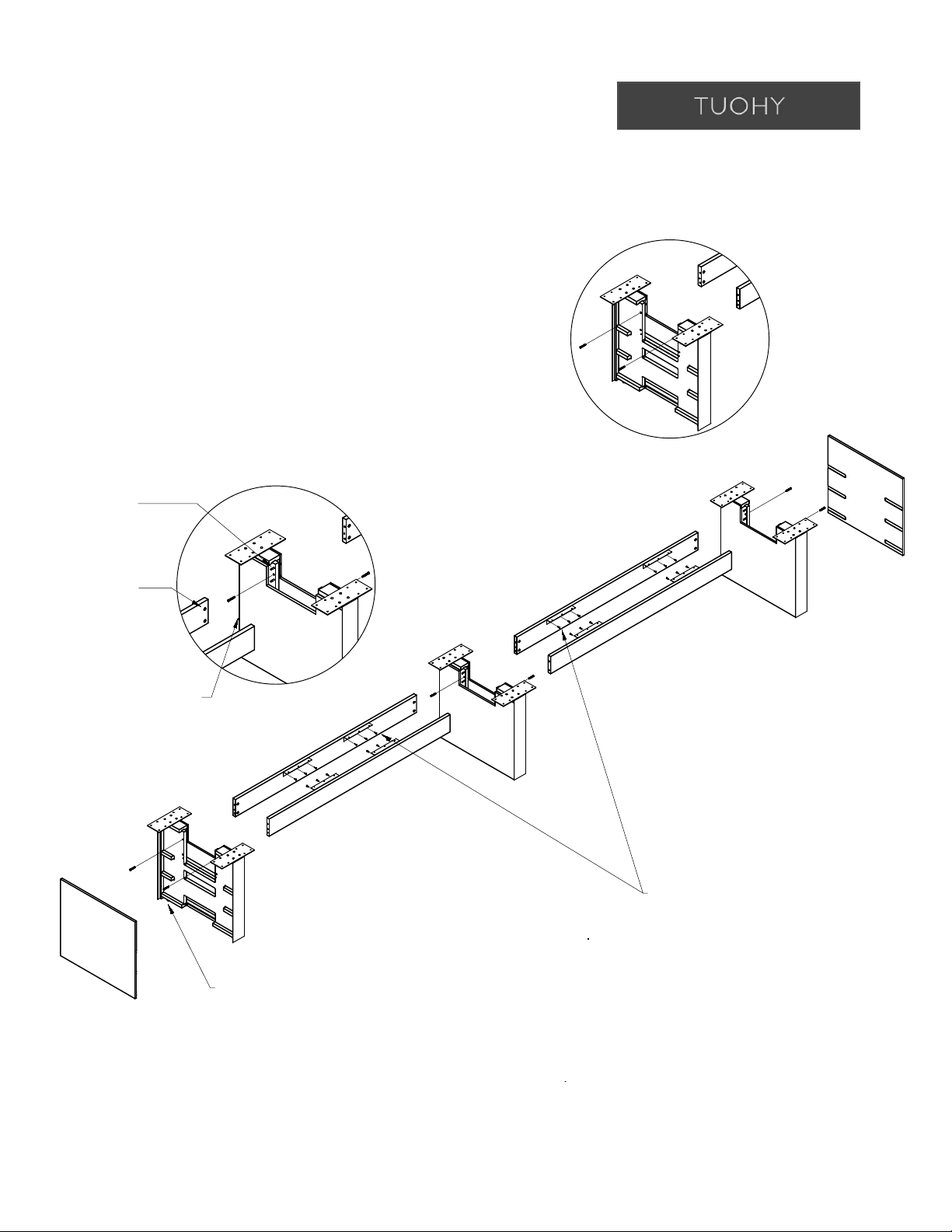

1. Attach Loop End frames to tube supports using
5/16-18 X 5/8 " Button Head Socket Cap Screws ( Detail A )
* Attach tube support to tube support when in need for large table sizes using
1/4-20 X 3/4" Socket Cap Flat Head Screws ( Detail B )
* Center plinth base between tube supports and attach using Confirmat Screws ( If Needed )
2. Place table top onto base assembly and join together using Field Joints
( Detail C )
3.Center metal frame and base assembly under top and attach using
#10 x 1" Pan head Screws
4. Attach Uffizi Loop bases to top using #9 x 1-1/2" Flat Head Screws
#10 X 1" PAN HEAD SCREWS
#10 X 1" PAN HEAD SCREWS
1/4-20 X 3/4"
SOCKET CAP
FLAT HEAD SCREWS
* CENTER PLINTH REQUIRED FOR LARGE TABE SIZES *
UFFIZI LOOP BASE

RYVIT BASE
5
FIELD JOINT
#16 x 1"
PAN HEAD SCREWS
DETAIL A
1. Assemble table top together using Field Joints ( Detail A )
2. Center Ryvit bases under top and attach using #16 x 1" Pan Head Screws

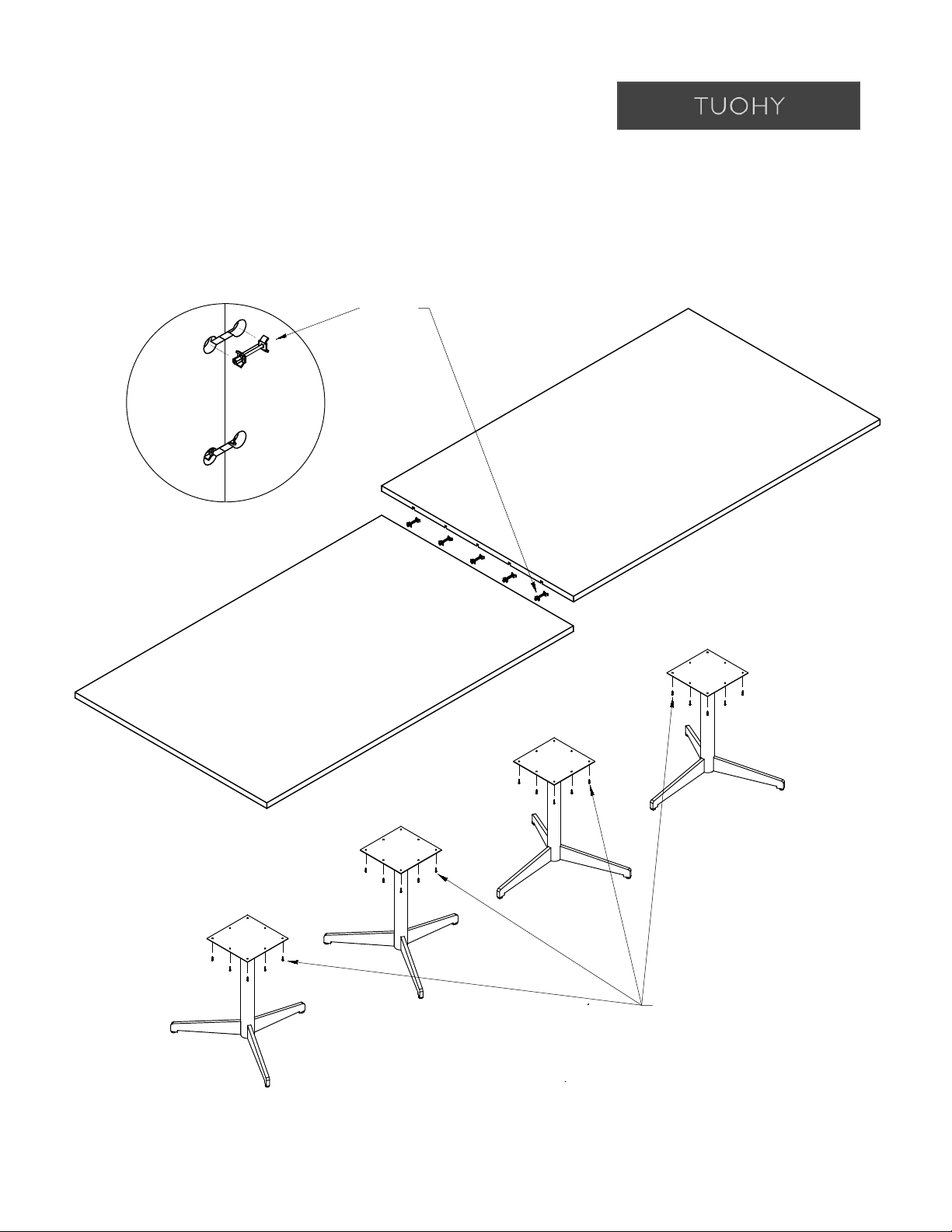

SPYDA - T BASE
6
FIELD JOINT
#16 x 1"
PAN HEAD SCREWS
DETAIL A
1. Assemble table top together using Field Joints ( Detail A )
2. Center Spyda - T bases under top and attach using using #16 x 1" Pan Head Screws

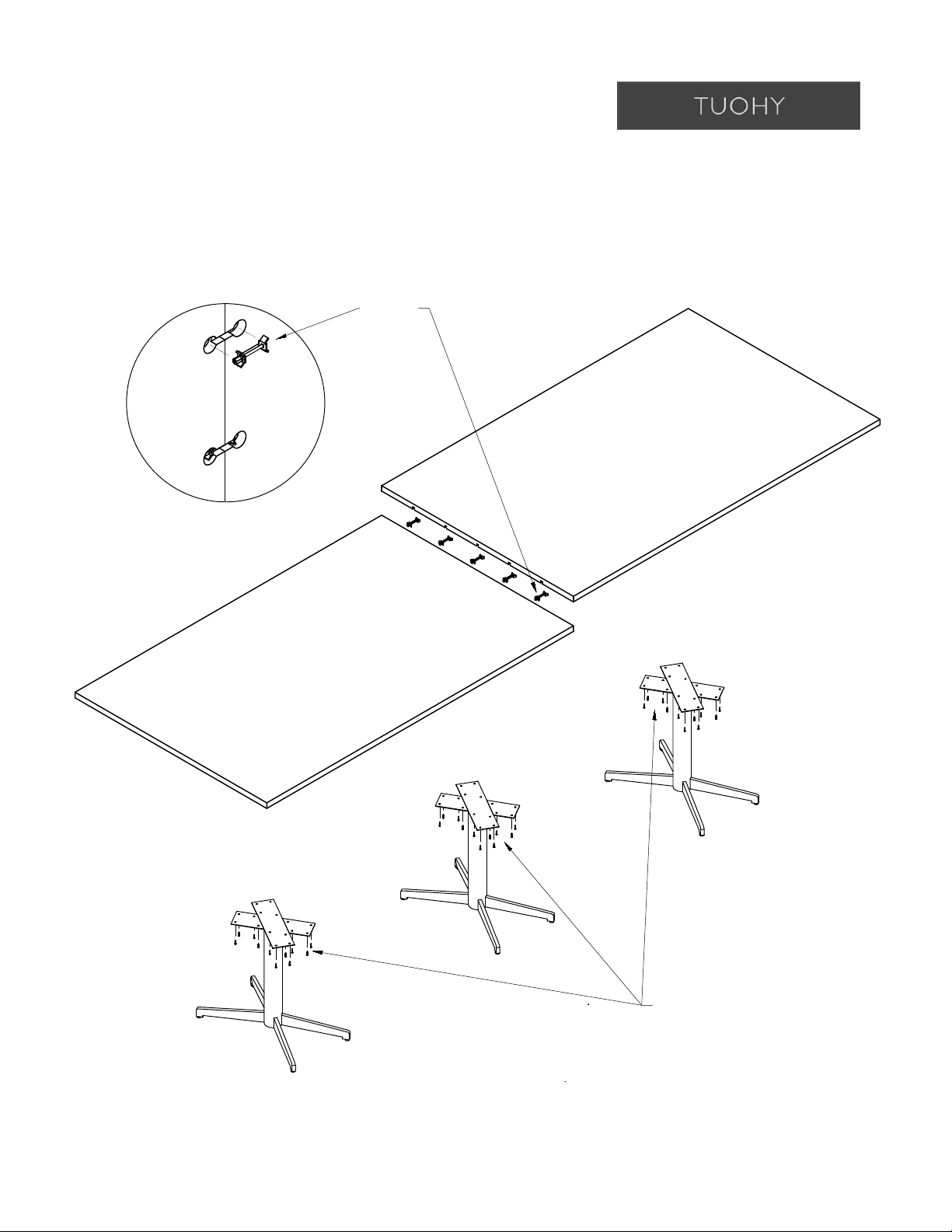

SPYDA - X BASE
7
FIELD JOINT
#16 x 1"
PAN HEAD SCREWS
DETAIL A
1. Assemble table top together using Field Joints ( Detail A )
2. Center Spyda - X bases under top and attach using #16 x 1" Pan Head Screws

SPYDA - Y BASE
8
FIELD JOINT
#16 x 1"
PAN HEAD SCREWS
DETAIL A
1. Assemble table top together using Field Joints ( Detail A )
2. Center Spyda - Y bases under top and attach using #16 x 1" Pan Head Screws

CYLINDER BASE
9
FIELD JOINT
#10 x 3/4"
FLAT HEAD SCREWS
DETAIL B
DETAIL A
1. Place sand bags into Cylinder bases ( Detail A )
2. Assemble table top together using Field Joints ( Detail B )
3. Center Cylinder bases under top and attach using #10 X 3/4" Flat Head Screws

PLINTH BASE
CENTER BASE
10
Rafix
Rafix
#9 X 5/8" PAN HEAD SCREWS
1. Install cam bolts into holes in bases, then align cam bolts with cams
installed in the support keels.
2. Tighten cams by turning them clockwise until they are completely secure.
3.Attach 10" angle irons to support keels using #9 X 5/8" Pan Head Screws.
( Angles to be equally spaced apart on support keels )
( 10 ) #10 x 3/4" PAN HEAD SCREWS

PLINTH BASE
DETAIL A
11
#9 X 5/8"
PAN HEAD SCREWS
#10 x 1"
PAN HEAD SCREWS
#9 X 5/8"
PAN HEAD SCREWS
FIELD JOINT
#10 x 1"
PAN HEAD SCREWS
#10 x 1"
PAN HEAD SCREWS
1. Place table top onto base assembly and join together using Field Joints ( Detail A )
2. Center Plinth bases under top and attach using #10 x 1" Pan Head Screws
3. Attach support keels to top using #9 X 5/8" Pan Head Screws.

ZI - A BASE
CENTER BASE
END BASES
12
CAMS
ALTERNATE CONFIRMAT SCREWS
ON OPPOSITE SIDES OF BASE
AS SHOWN, CENTER BASE ONLY
CAM BOLTS
CONFIRMAT SCREWS
#9 X 5/8" PAN HEAD SCREWS
1. Install cam bolts into holes in bases, then align cam bolts with cams
installed in the support keels.
2. Tighten cams by turning them clockwise until they are completely secure.
3. Install confirmat screws. Alternating screws on center base as shown.
4. Attach 10" angle irons to support keels using #9 X 5/8" Pan Head Screws.
( Angles to be equally spaced apart on support keels )

ZI - A BASE
DETAIL A
13
#9 X 5/8"
PAN HEAD SCREWS
#16 x 1"
PAN HEAD SCREWS
#9 X 5/8"
PAN HEAD SCREWS
#16 x 1"
PAN HEAD SCREWS
#16 x 1"
PAN HEAD SCREWS
FIELD JOINT
1. Place table top onto base assembly and join together using Field Joints ( Detail A )
2. Center ZI - A bases under top and attach using #16 x 1" Pan Head Screws
3. Attach support keels to table top using #9 X 5/8" Pan Head Screws.

ZI - D BASE
CENTER BASE
END BASES
14
CAMS
ALTERNATE CONFIRMAT SCREWS
ON OPPOSITE SIDES OF BASE
AS SHOWN, CENTER BASE ONLY
CAM BOLTS
CONFIRMAT SCREWS
#9 X 5/8" PAN HEAD SCREWS
1. Install cam bolts into holes in bases, then align cam bolts with cams
installed in the support keels.
2. Tighten cams by turning them clockwise until they are completely secure.
3. Install confirmat screws. Alternating screws on center base as shown.
4. Attach 10" angle irons to support keels using #9 X 5/8" Pan Head Screws.
( Angles to be equally spaced apart on support keels )

ZI - D BASE
DETAIL A
15
#9 X 5/8"
PAN HEAD SCREWS
#16 x 1"
PAN HEAD SCREWS
#9 X 5/8"
PAN HEAD SCREWS
#16 x 1"
PAN HEAD SCREWS
#16 x 1"
PAN HEAD SCREWS
FIELD JOINT
1. Place table top onto base assembly and join together using Field Joints ( Detail A )
2. Center ZI - D bases under top and attach using #16 x 1" Pan Head Screws
3. Attach support keels to table top using #9 X 5/8" Pan Head Screws.
